SPECIFICATIONS

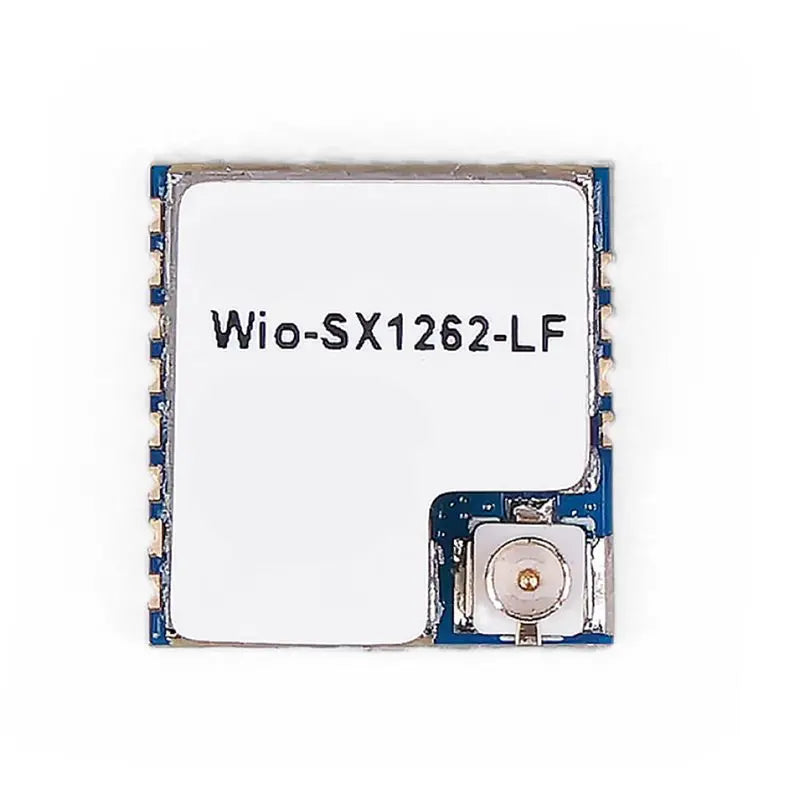

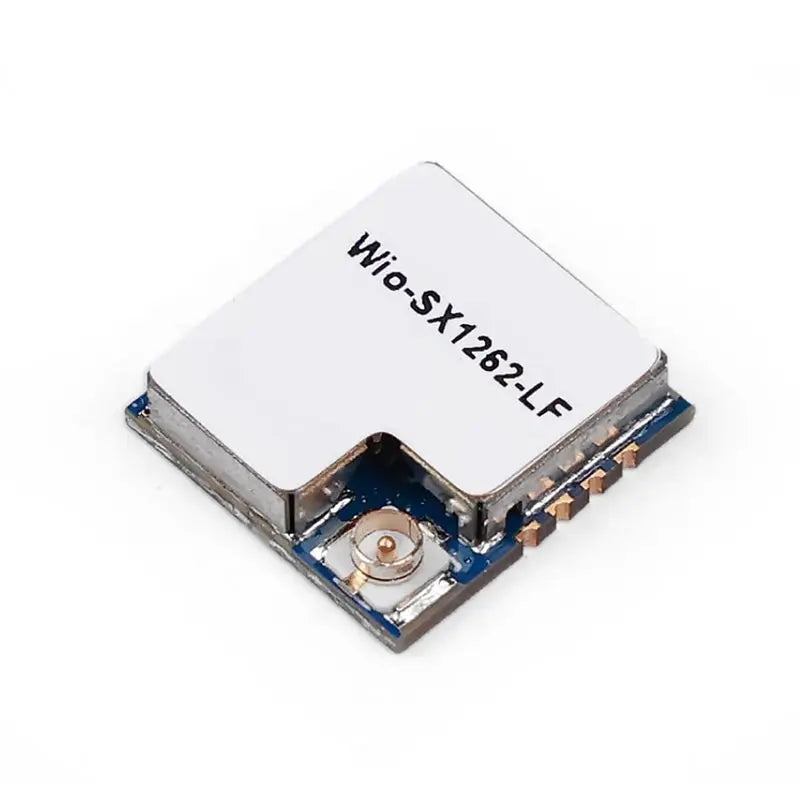

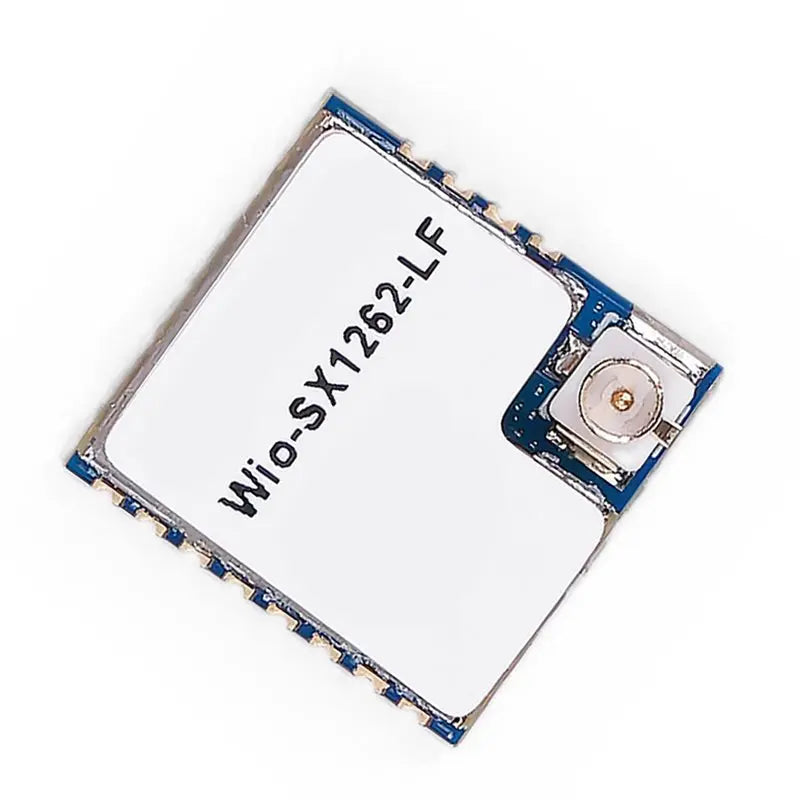

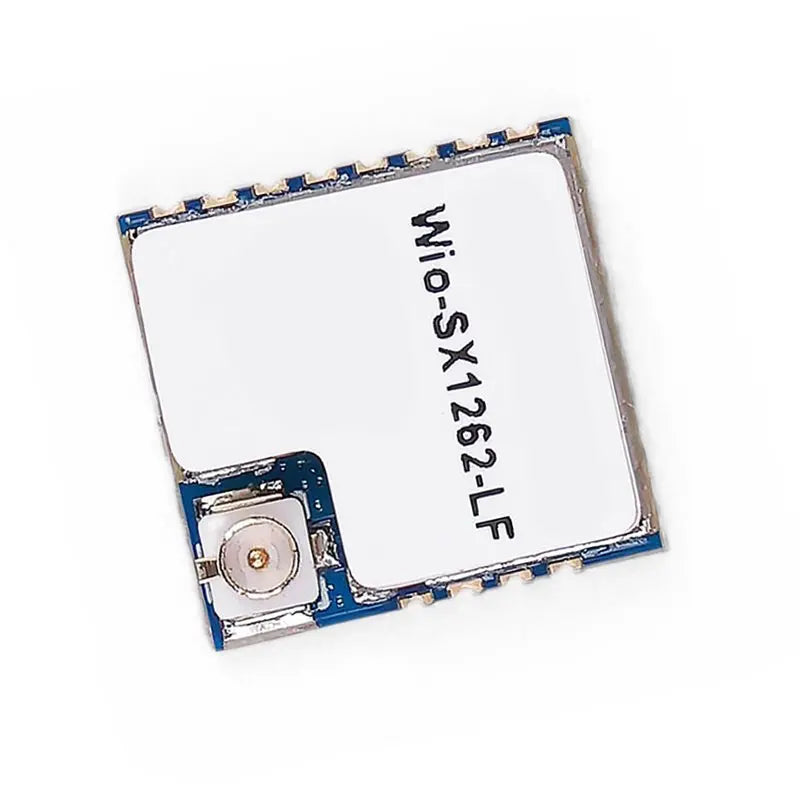

The Wio-SX1262-LF is a LoRa wireless module based on the SX1262 chip, supporting LoRa & LoRaWAN 433, 470 MHz frequency band. Equipped with an onboard antenna connector. Suitable for industrial, agricultural, smart home, and other long-range, low-power applications.
High Performance: The transmit power up to 22 dBm @470MHz,10dBm @ 433MHz; -136.5 dBm sensitivity for SF12 with 125 kHz BW.
Wireless Connectivity: SPI ADC & GPIOs , supports 433, 470MHz global LoRa & LoRaWAN frequency plan.
Low Power Consumption: 1.62 uA sleep current.
Onboard RF Interface: default antenna port.

Specification:
Main Chip: SX1262-LF
Frequency: supports 433, 470MHz
Power Supply: 3.3V @typical
Sleep Current: 1.62uA (WDT on);
Maximum Operation Current (Transmitter):
55mA @10dBm in 433MHz
106mA @22dBm in 470MHz
Maximum Operation Current (Receiver):
6.3mA @BW125kHz, 434MHz type
6.3mA @BW125kHz, 470MHz type
Output Power:
10dBm max @434MHz
22dBm max @470MHz
Receiver Sensitivity:
@SF12, BW125kHz typical
136dBm, @433MHz
136.5dBm, @470MHz
Harmonics: <-31dBm above 1GHz
Antenna: port or SMT pin, default @50-ohm impedance

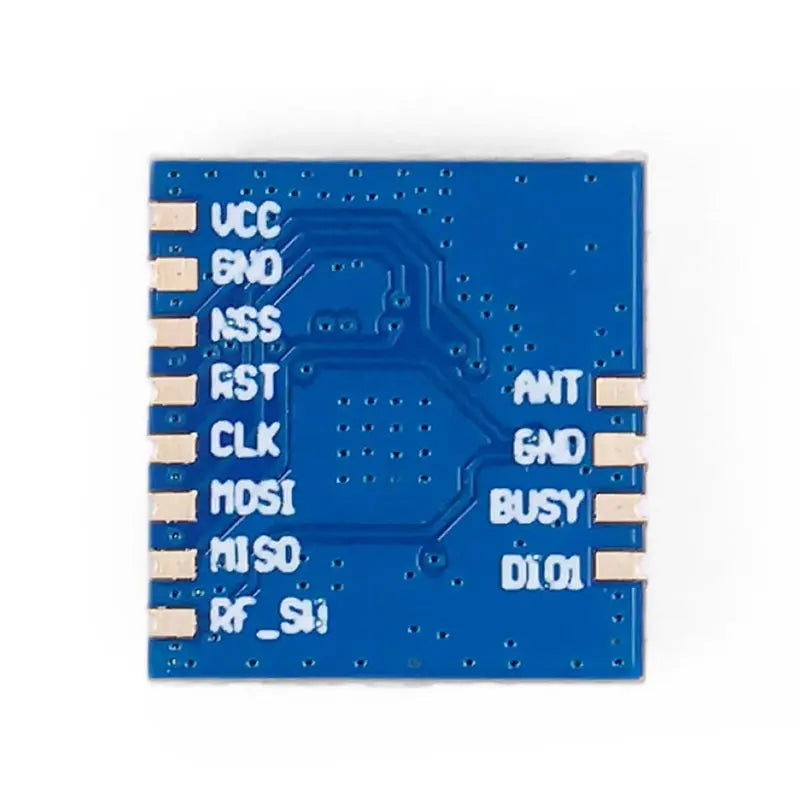

Interface: RF, SPI*1
Working Temperature: -40°C ~ 85°C
Color: Blue
Material: PCB+Metal

Package Contents:
1 * Wireless Module

Only the above package content, other products are not included.
