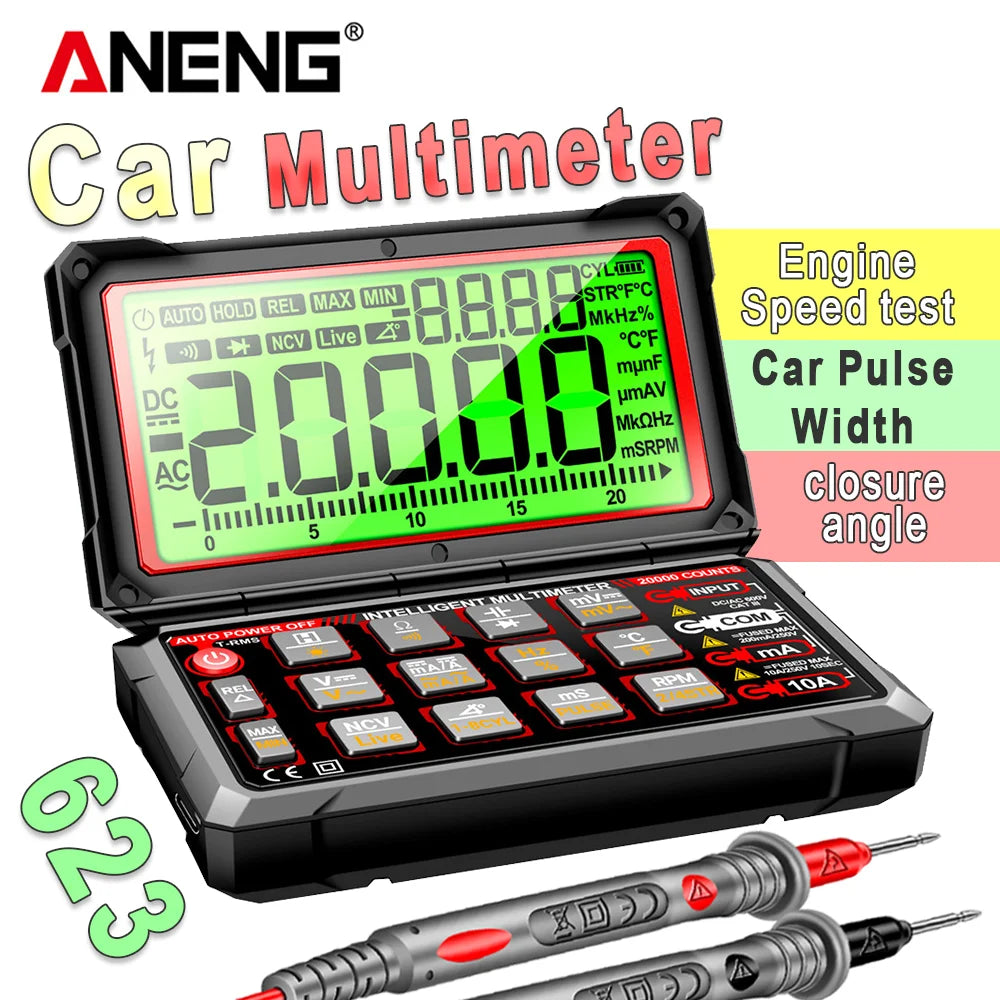

Digital Car Multimeter ANENG 623 Engine Speed Test Auto AC/DC Voltage/Current Ohm Meters Capacitance Car Pulse Width Test Tools

Digital Car Multimeter ANENG 623 Engine Speed Test Auto AC/DC Voltage/Current Ohm Meters Capacitance Car Pulse Width Test Tools

$164.92

$164.92 $0.00

Description

SPECIFICATIONS

AC Current: 0mA-10A

AC Voltage: 1mV-750V

Auto power off: 15 If there is no operation,it will automatically shut down

Battery Included: Yes

Brand Name: ANENG

Certification: CE

Choice: yes

DC Current: 0mA-10A

DC Voltage: 0.5mV-1000V

DIY Supplies: Electrical

Dimensions: /

Display Type: Digital Display

High-concerned chemical: none

Is Smart Device: no

Material: ABS

Max count: 20000 counts

Measuring Capacitance Range: 0nF-20mF

Measuring Inductance Range: /

Measuring Resistance Range: 0Ohm~20MOhm

Model Number: ANENG 623 Multimete

Operating Mode: Manual Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Power supply: 3.7V/1800mAh Lithium battery

Semi-finishedproduct: No

Weight: 341g

A NENG 623 Digital Car Multimeter 20000 Counts Engine speed test Auto AC/DC Voltage/Current Ohm meters Capacitance Car Pulse Width Test Tools

Comprehensive Indicators:
Automatically select measurement range
Full range overload protection
The maximum allowable voltage between the measuring end and the ground is 1000V DC or 750V AC
Working height: maximum 2000m

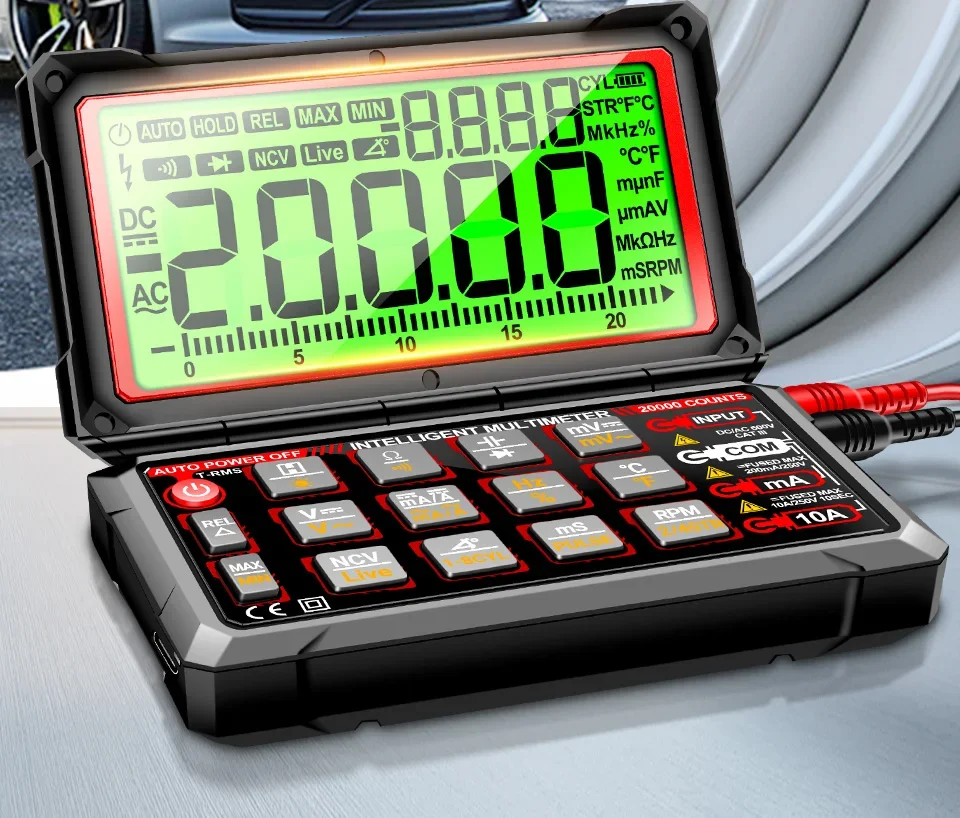

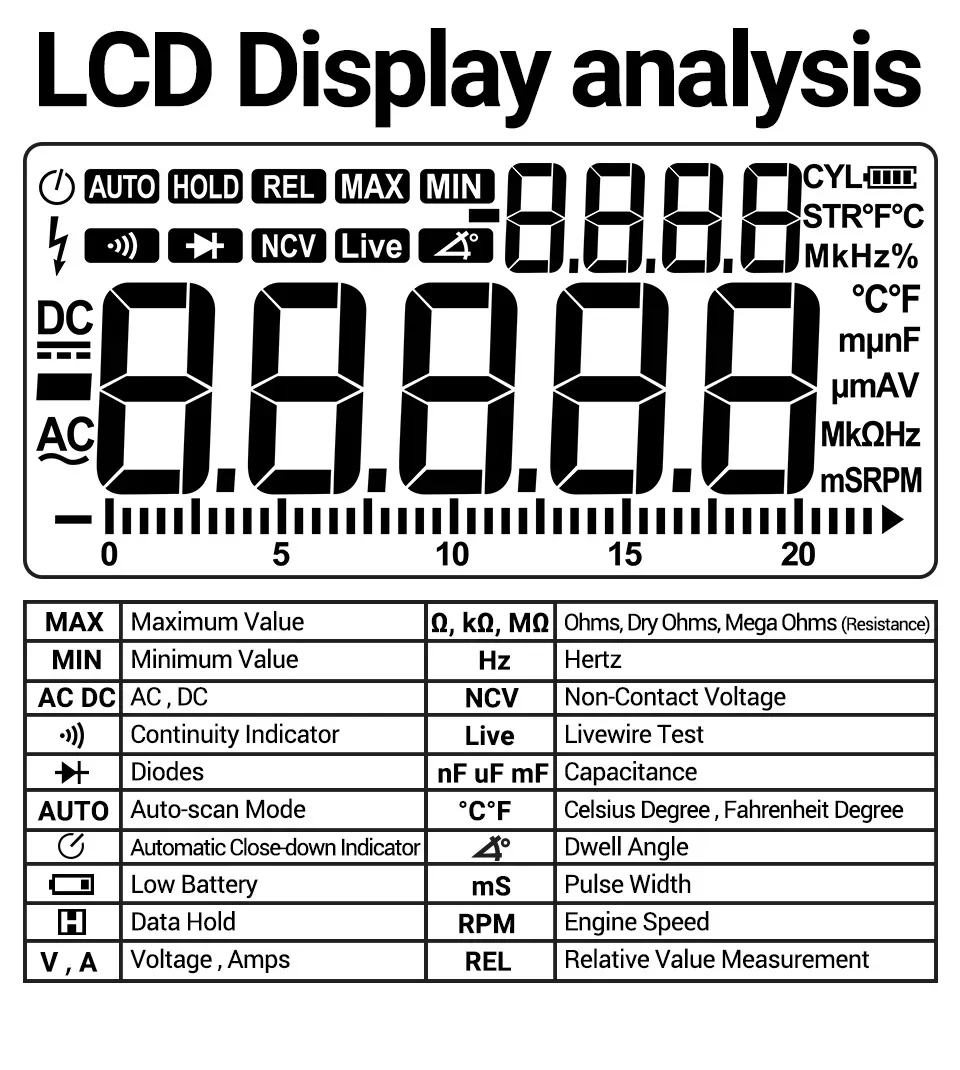

Display: LCD
Maximum display value 19999 digits
Polarity indication: Automatic indication, '-' indicates negative polarity.
Over range display: 'OL' or '- OL'
Sampling time approximately: 2 times per second
Unit display: with functionality, displaying electricity units
Automatic shutdown time: about 15 minutes

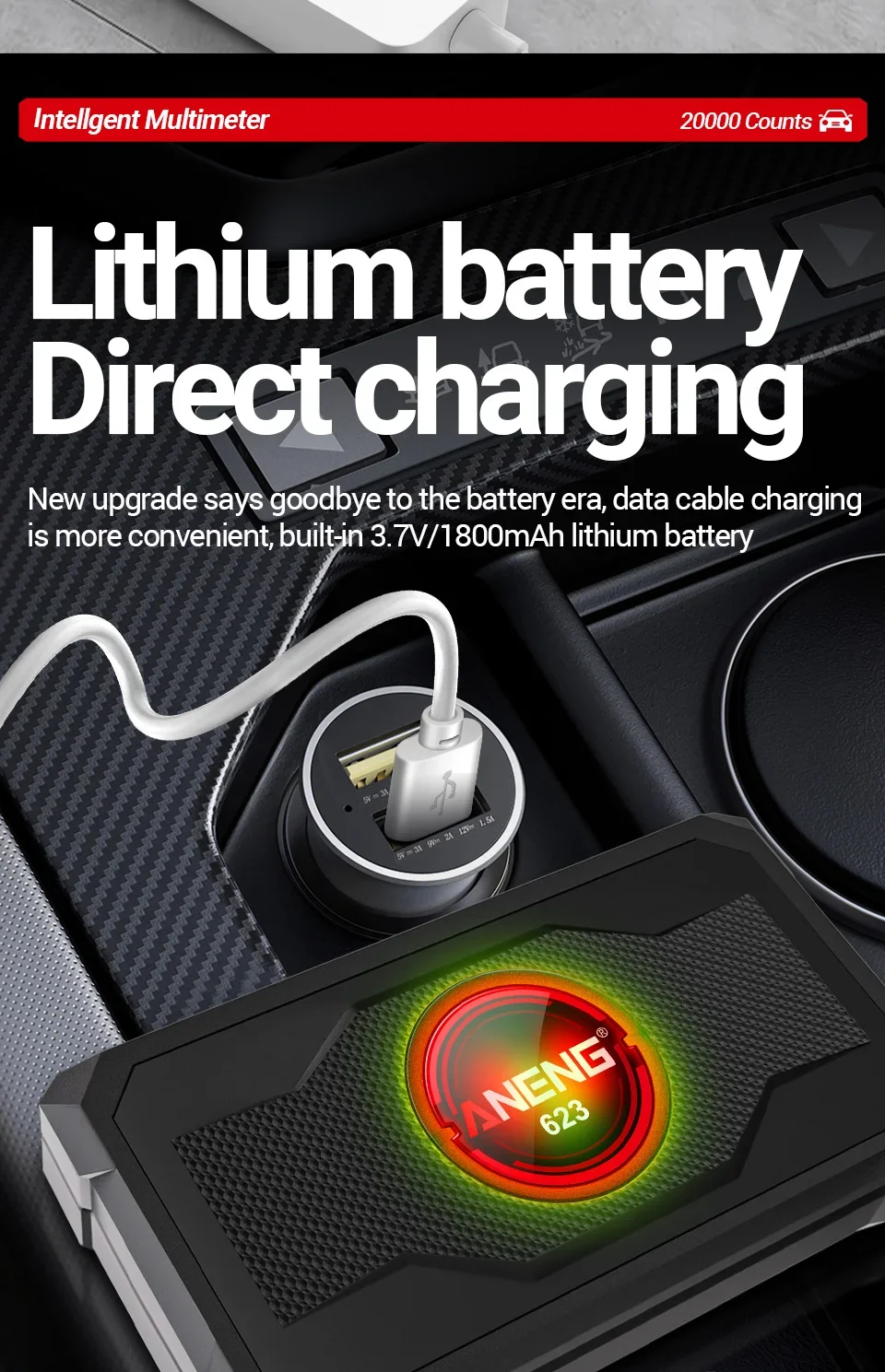

Power supply: 3.7V/1800mAh lithium battery
Temperature coefficient: less than 0.1 x accuracy/℃
Working temperature: 0 ℃ -40 ℃
Storage temperature: -20 ℃ -60 ℃
Features:

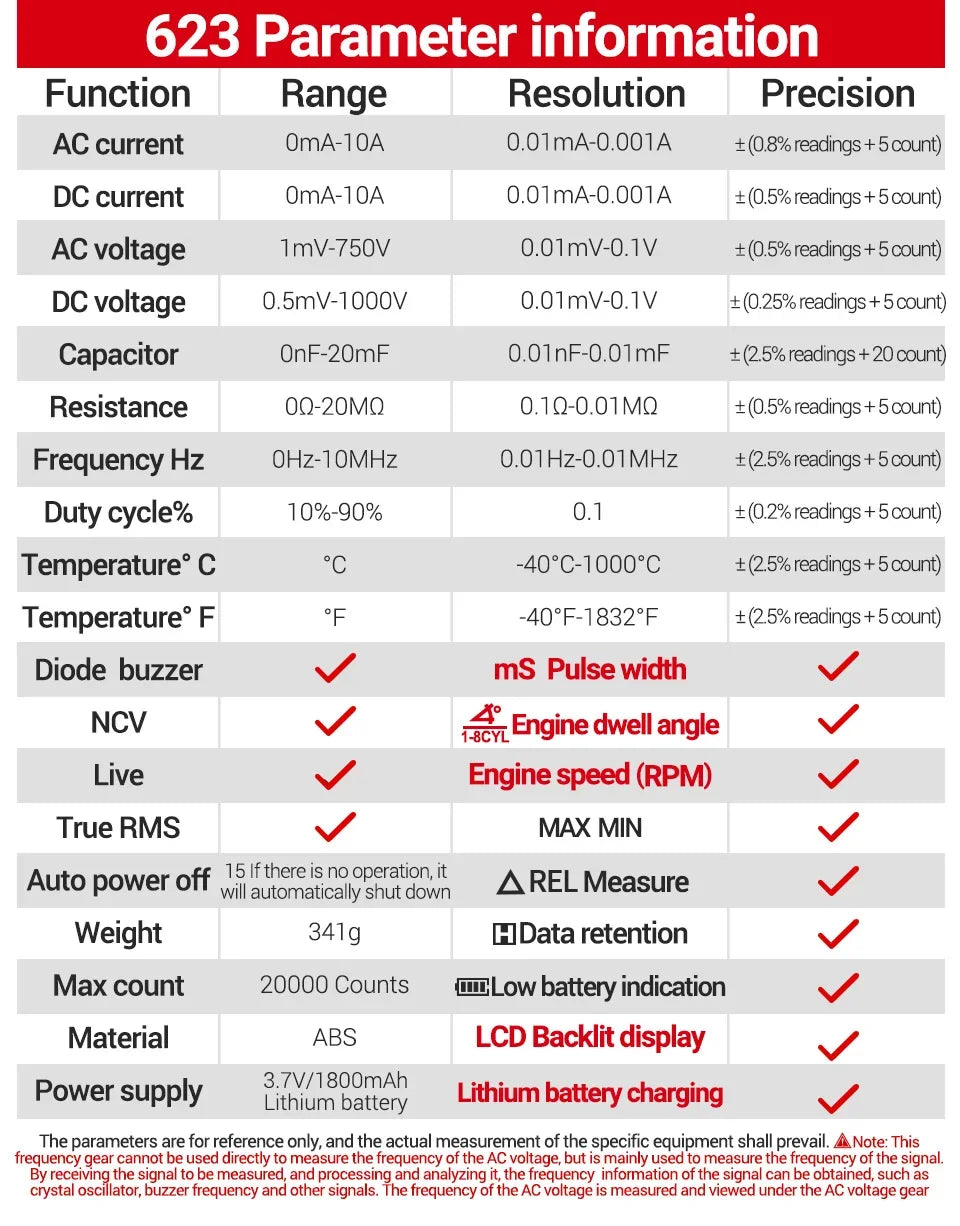

Function	Range	Resolution	Precision

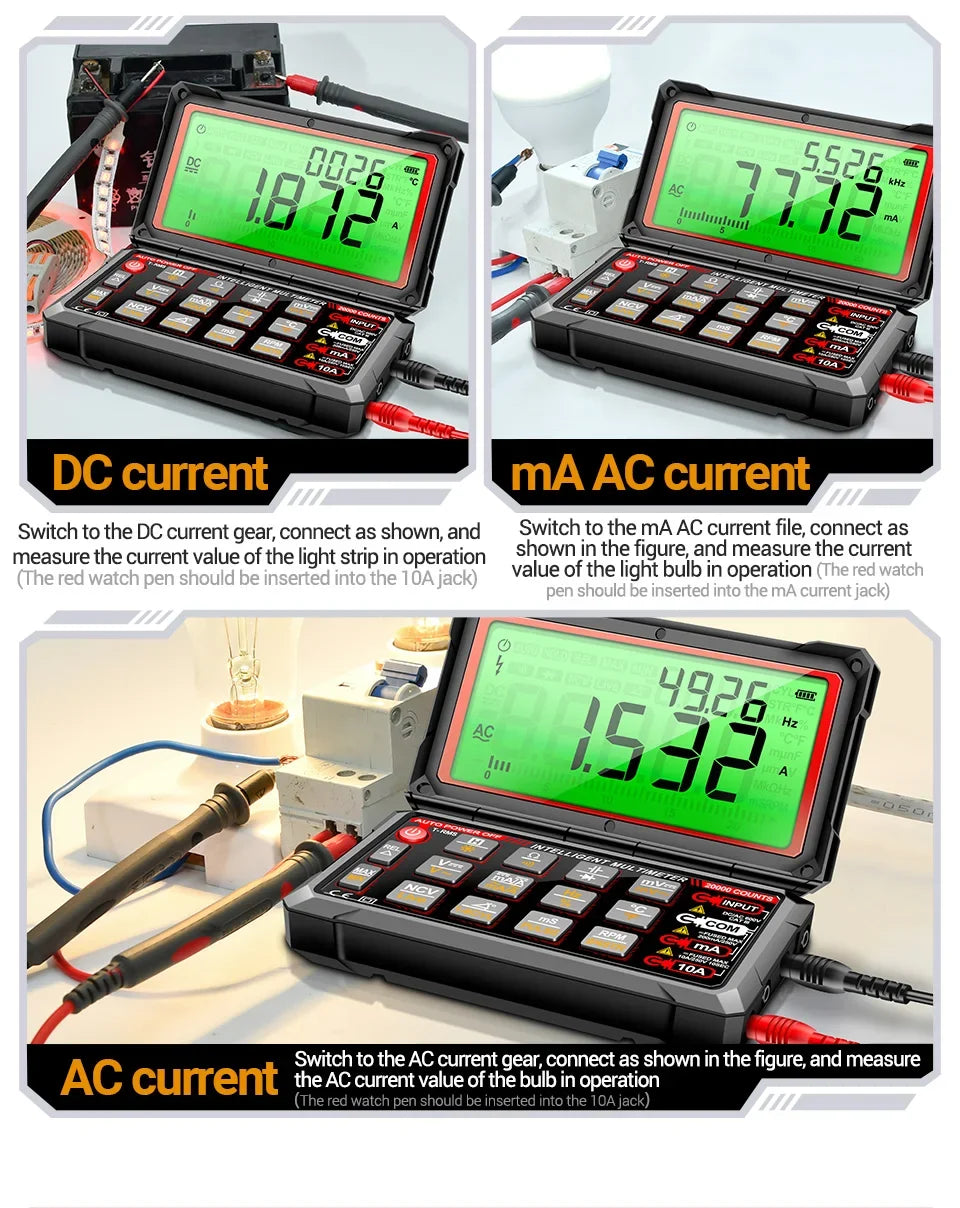

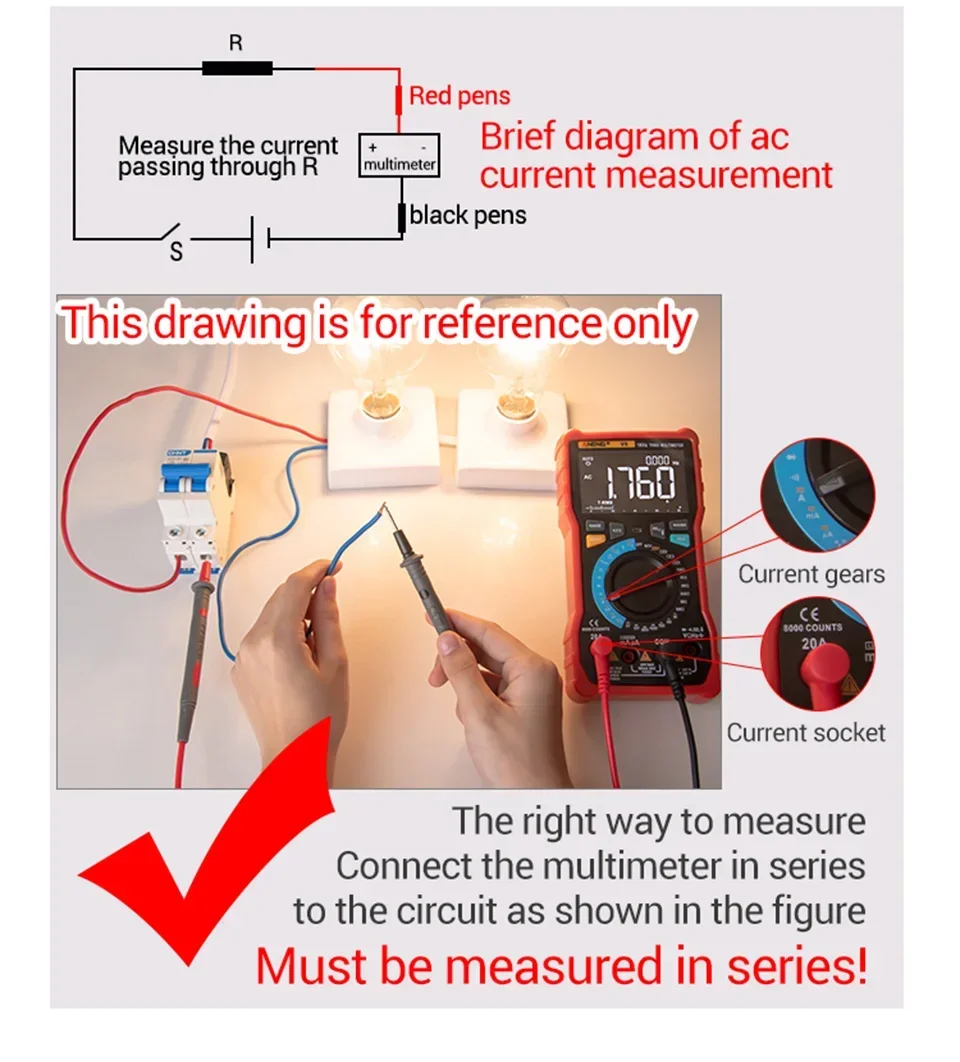

AC current	0mA-10A	0.01mA-0.001A	±(0.8% readings + 5 count)
DC current	0mA-10A	0.01mA-0.001A	±(0.5% readings + 5 count)

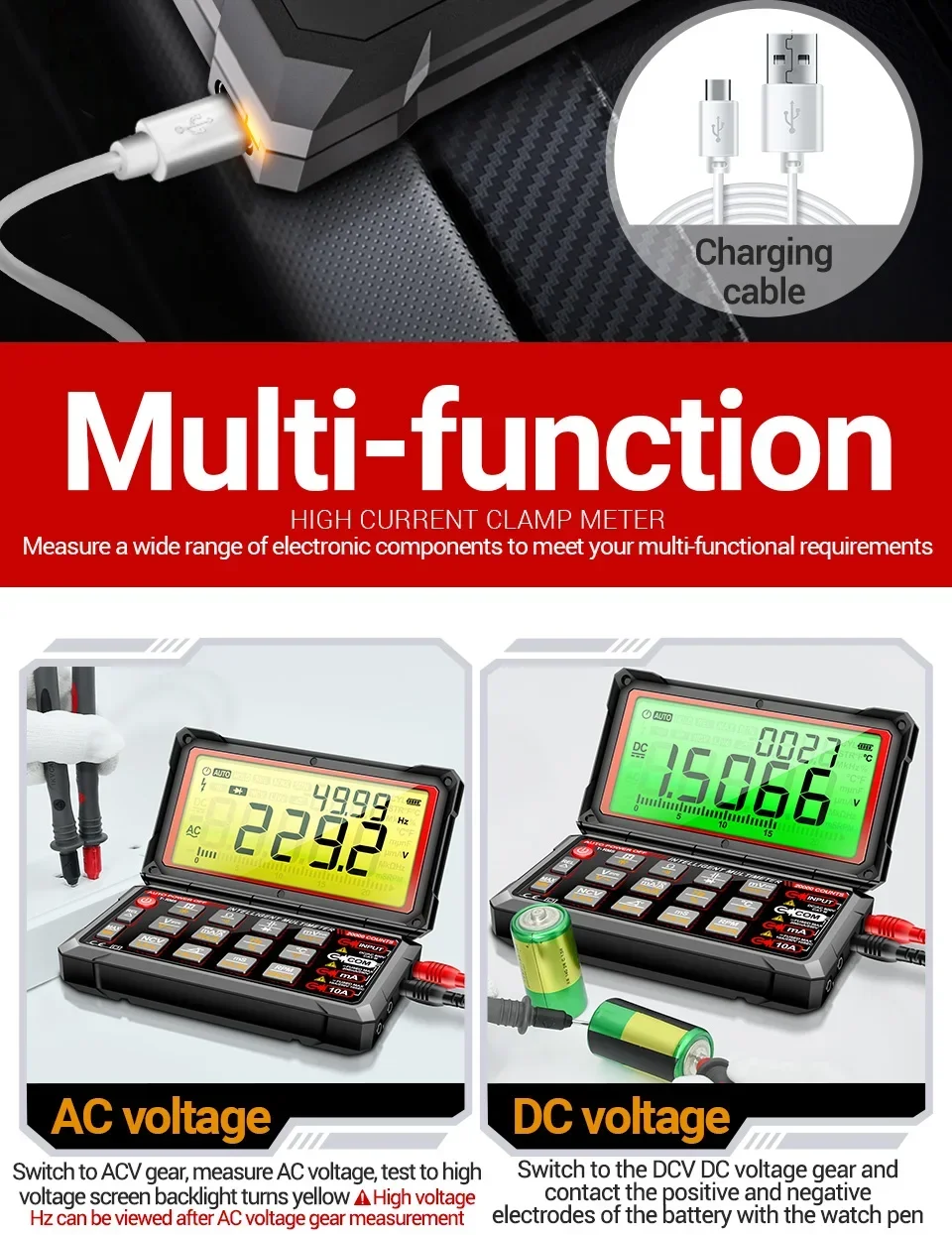

AC voltage	1mV-750V	0.01mV-0.1V	±(0.5% readings + 5 count)
DC voltage	0.5mV-1000V	0.01mV-0.1V	±(0.25% readings + 5 count)
Capacitor	0nF-20mF	0.01nF-0.01mF	±(2.5% readings + 20 count)
Resistance	0Ω-20MΩ	0.1Ω-0.01MΩ	±(0.5% readings + 5 count)

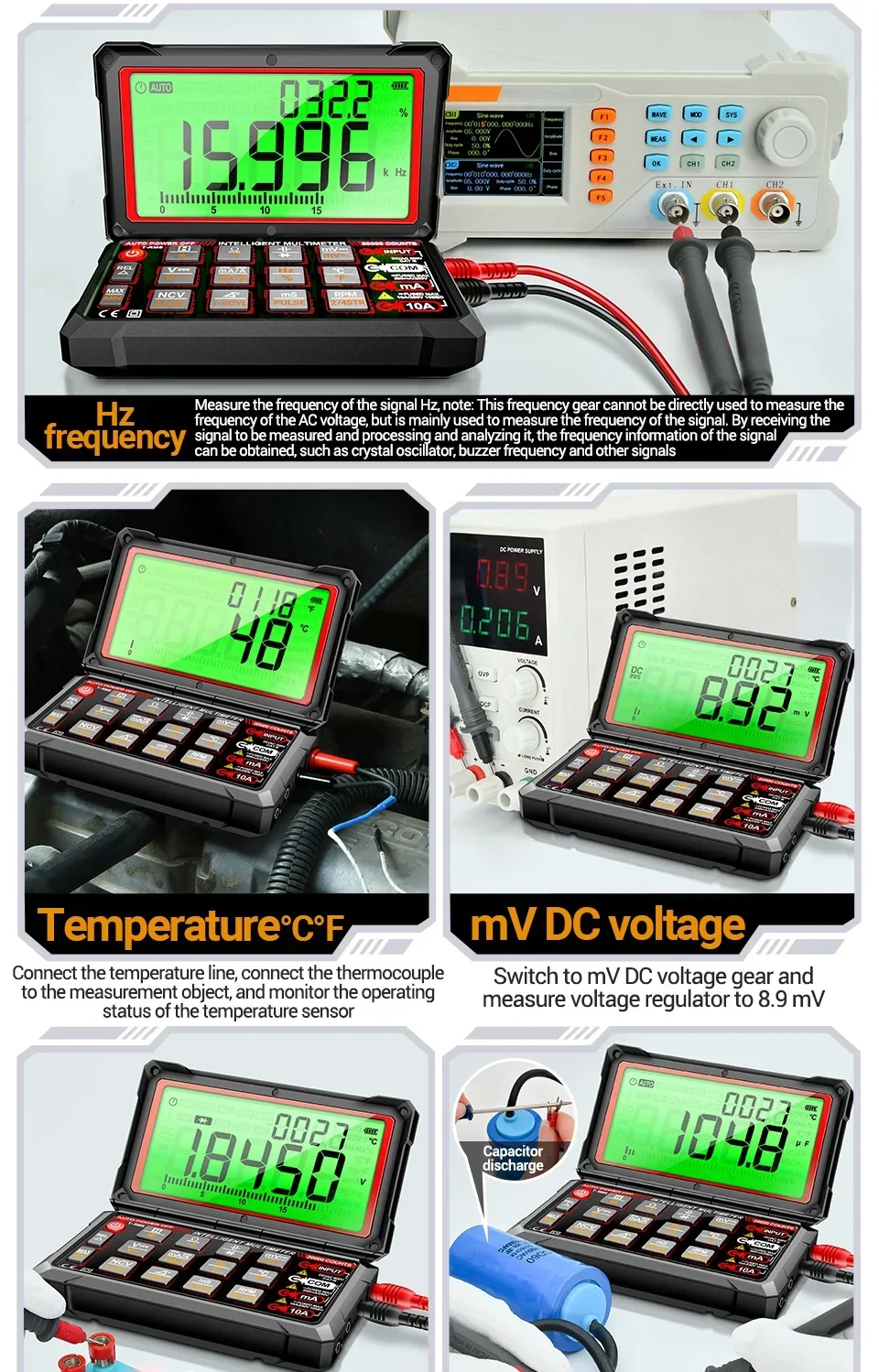

Frequency Hz	0HZ-10MHZ	0.01Hz-0.01MHz	±(2.5% readings + 5 count)
Duty cycle%	10%-90%	0.1	±(0.2% readings + 5 count)
Temperature° C	° C	-40°C-1000C	±(2.5% readings + 5 count)
Temperature° F	° F	-40°F-1832°F	±(2.5% readings + 5 count)

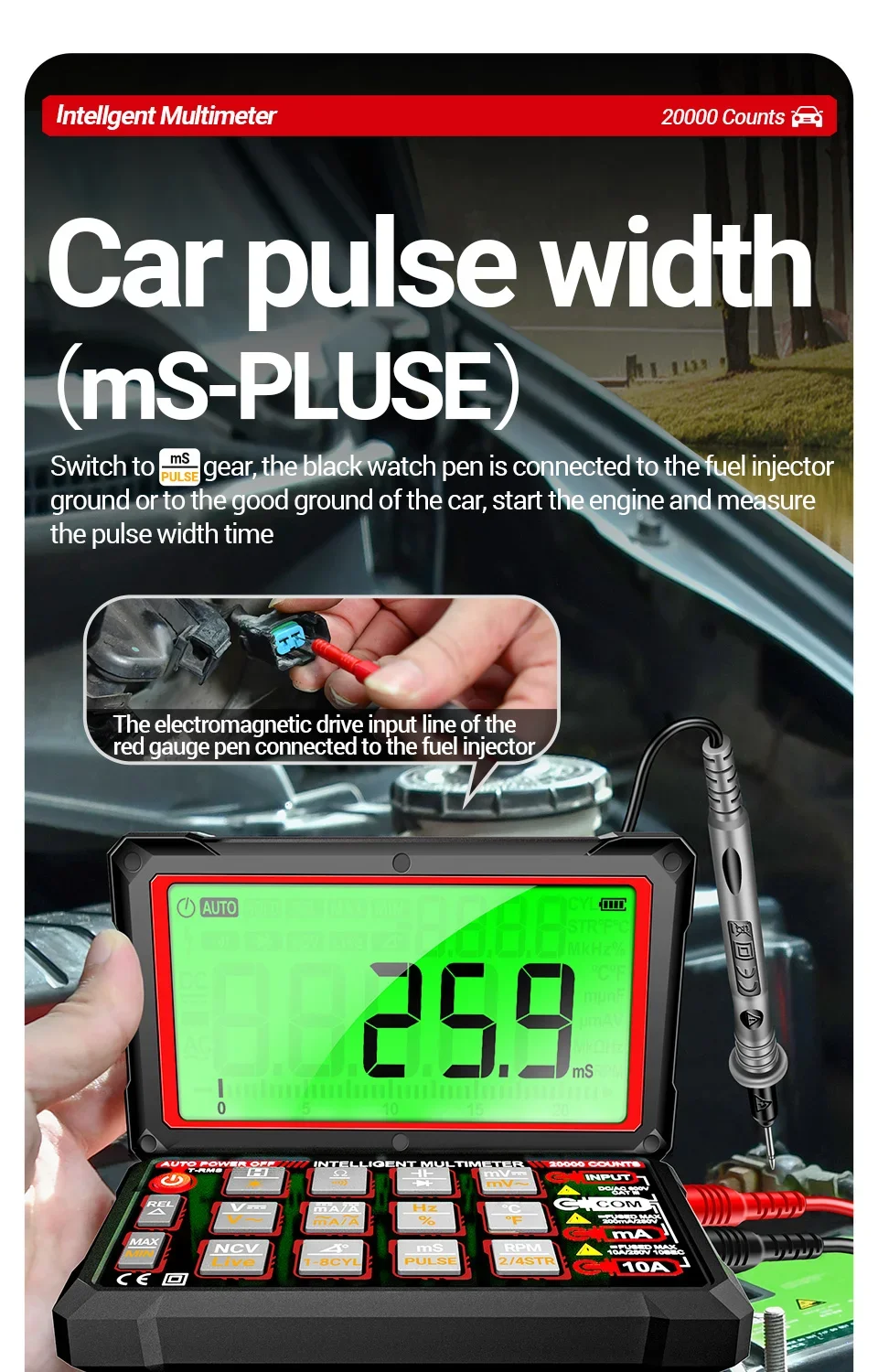

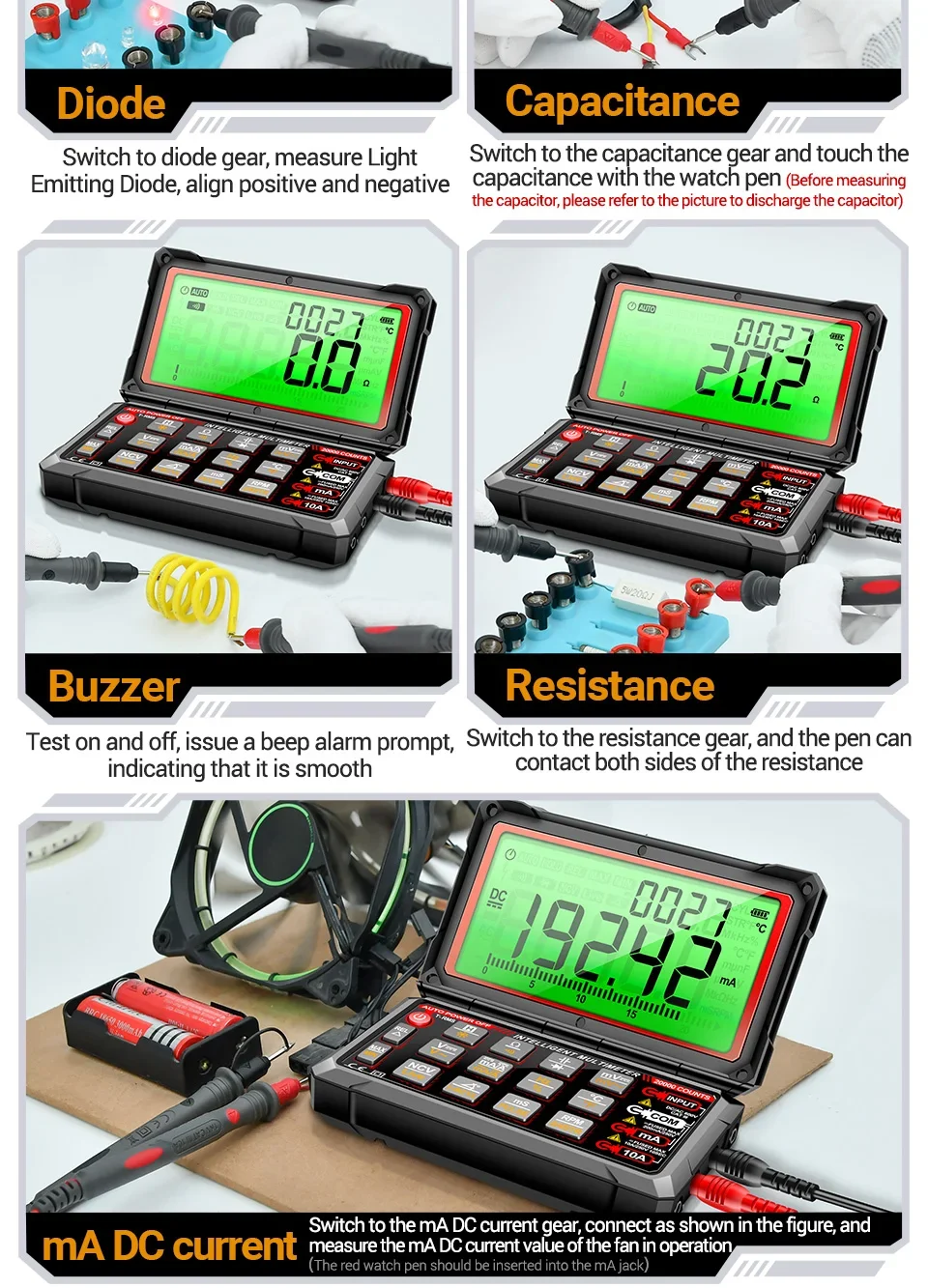

Diode buzzer	√	mS Pulse width	√

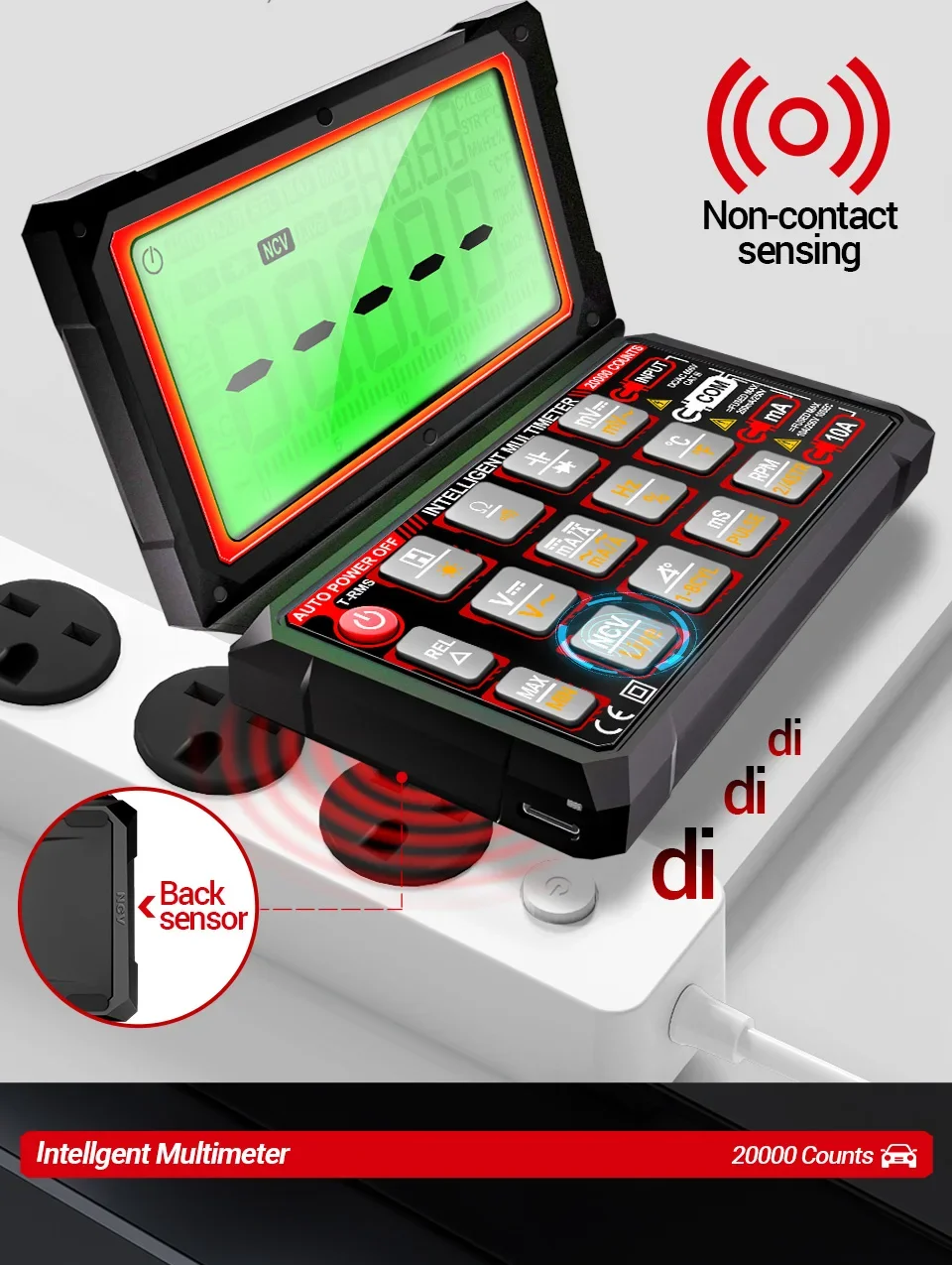

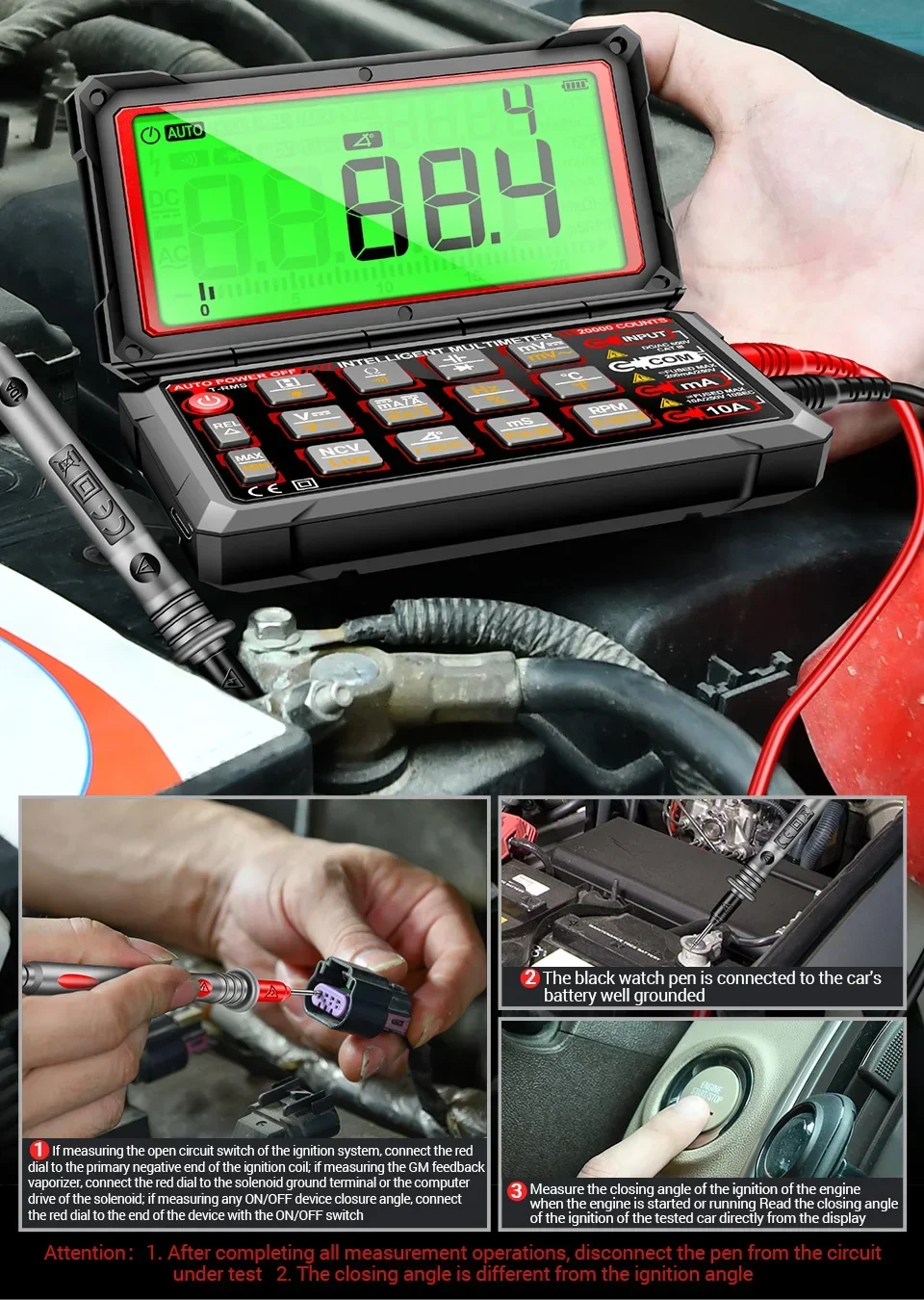

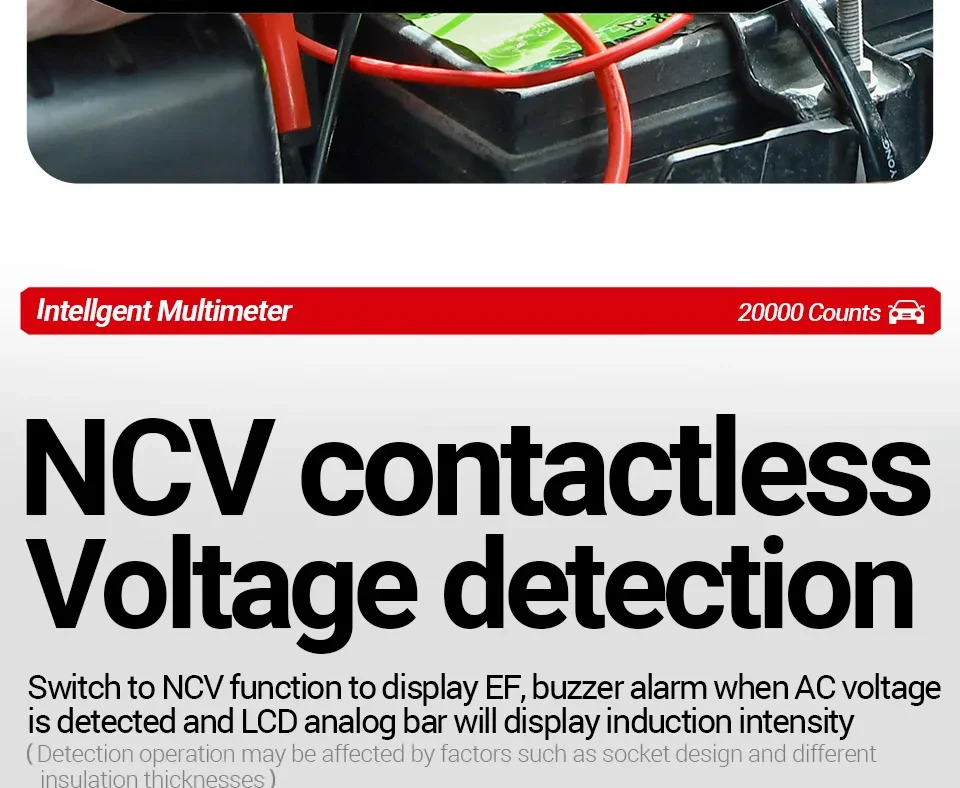

NCV	√	Engine dwell angle	√

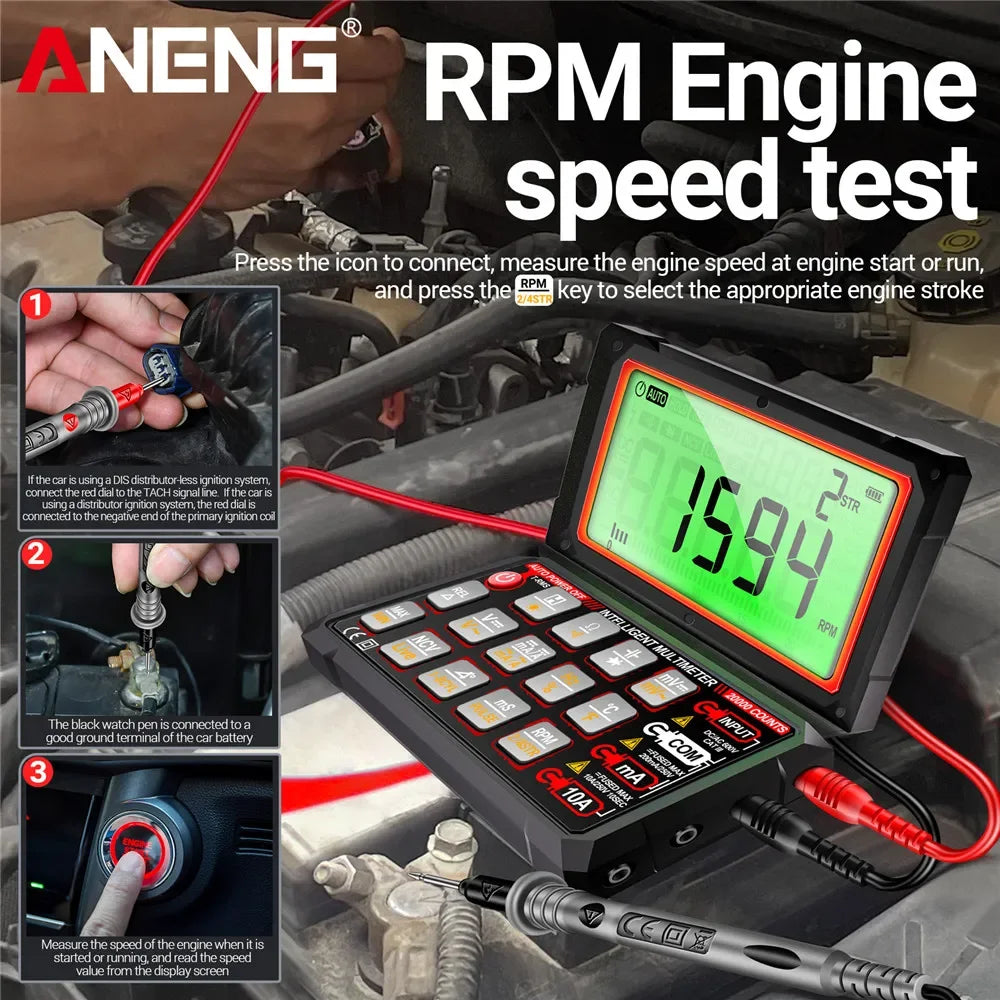

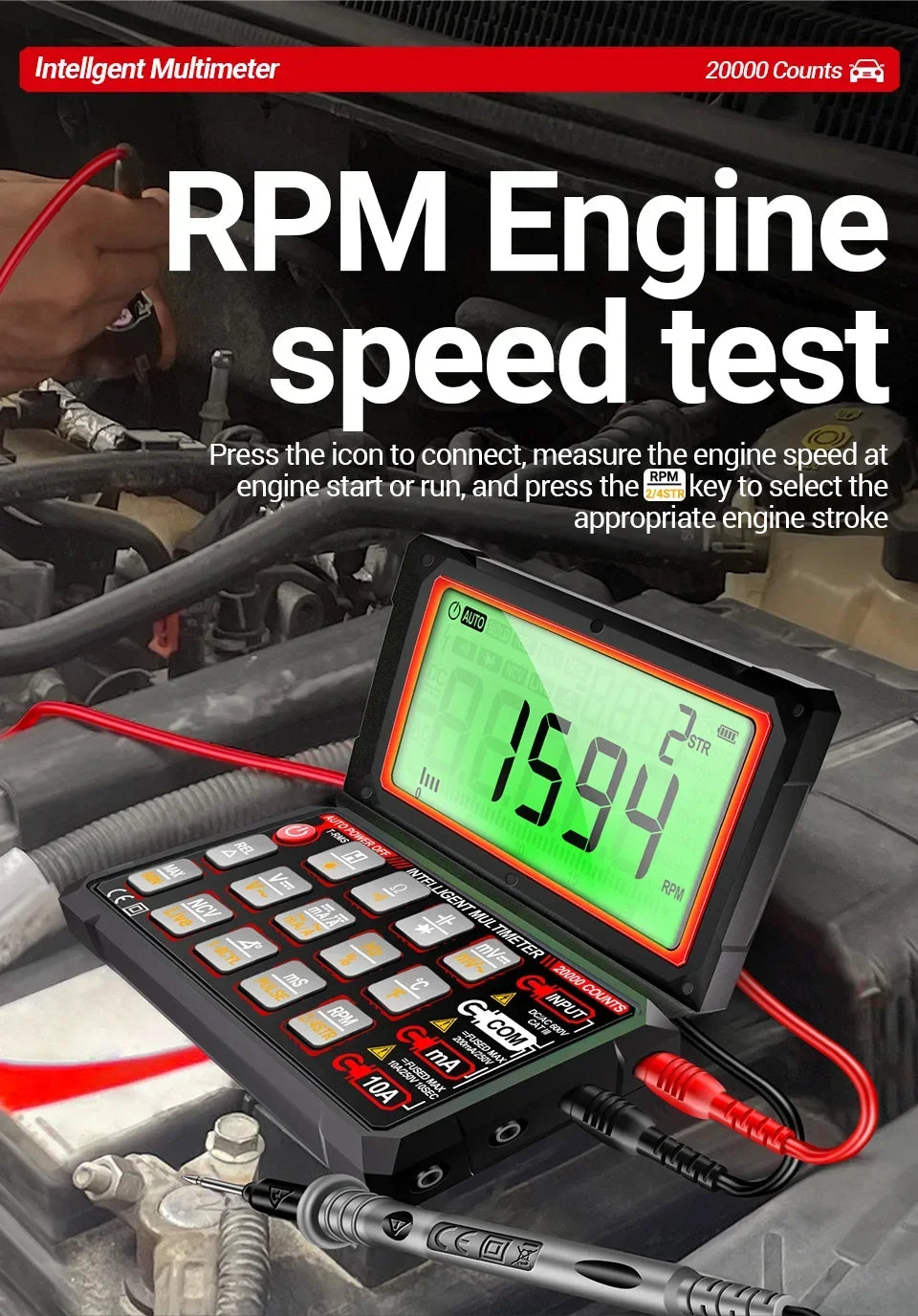

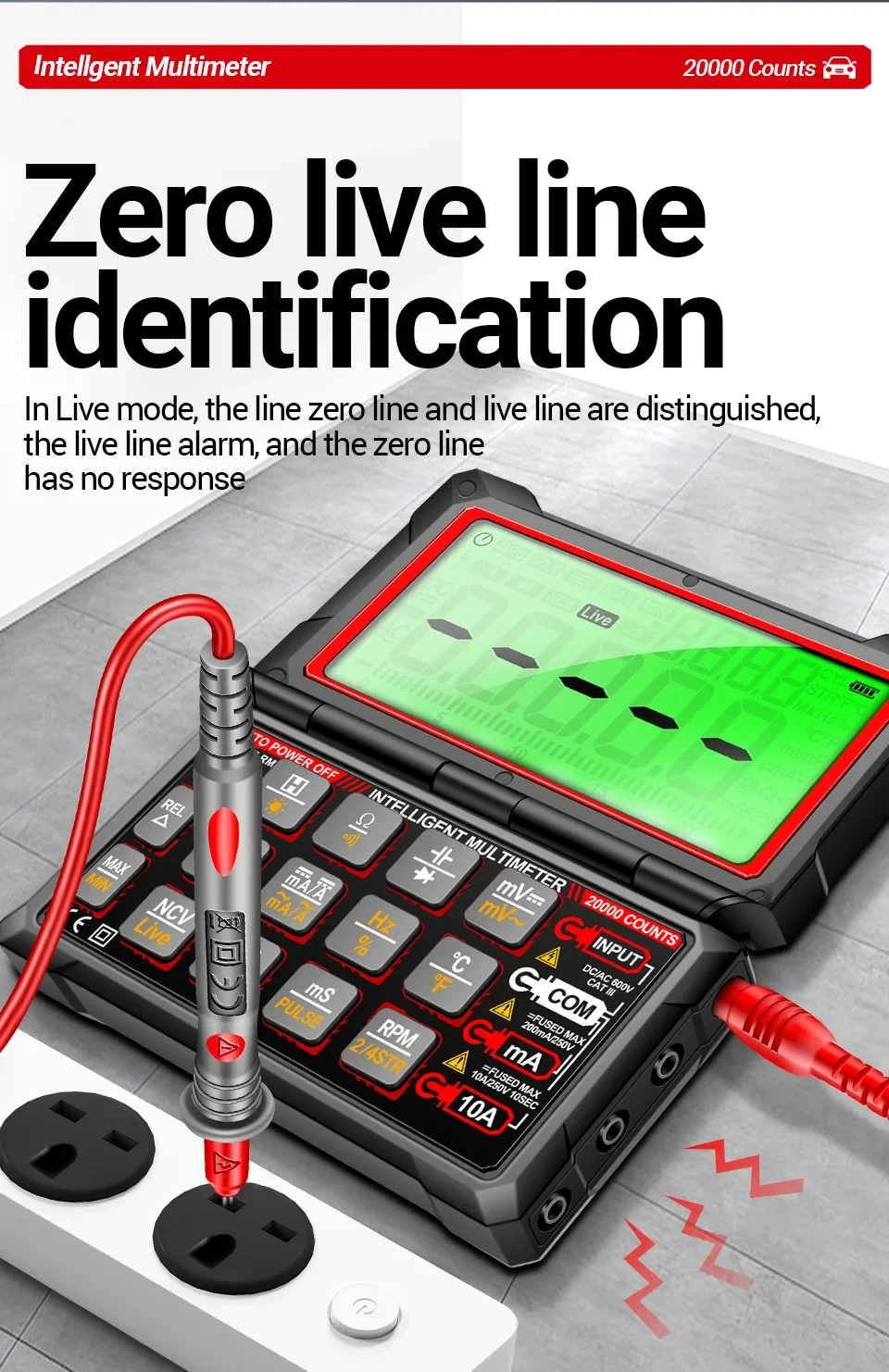

Live	√	Engine speed (RPM)	√
True RMS	√	MAX MIN	√
Auto power off	15 lf there is no operation, it will automatically shut down	REL Measure	√
		Data retention	√
Max count	20000 Counts	Low battery indication	√
Material	ABS	LCD Backlit display	√
Power supply	3.7V/1800mAh Lithium battery	Lithium battery charging	√

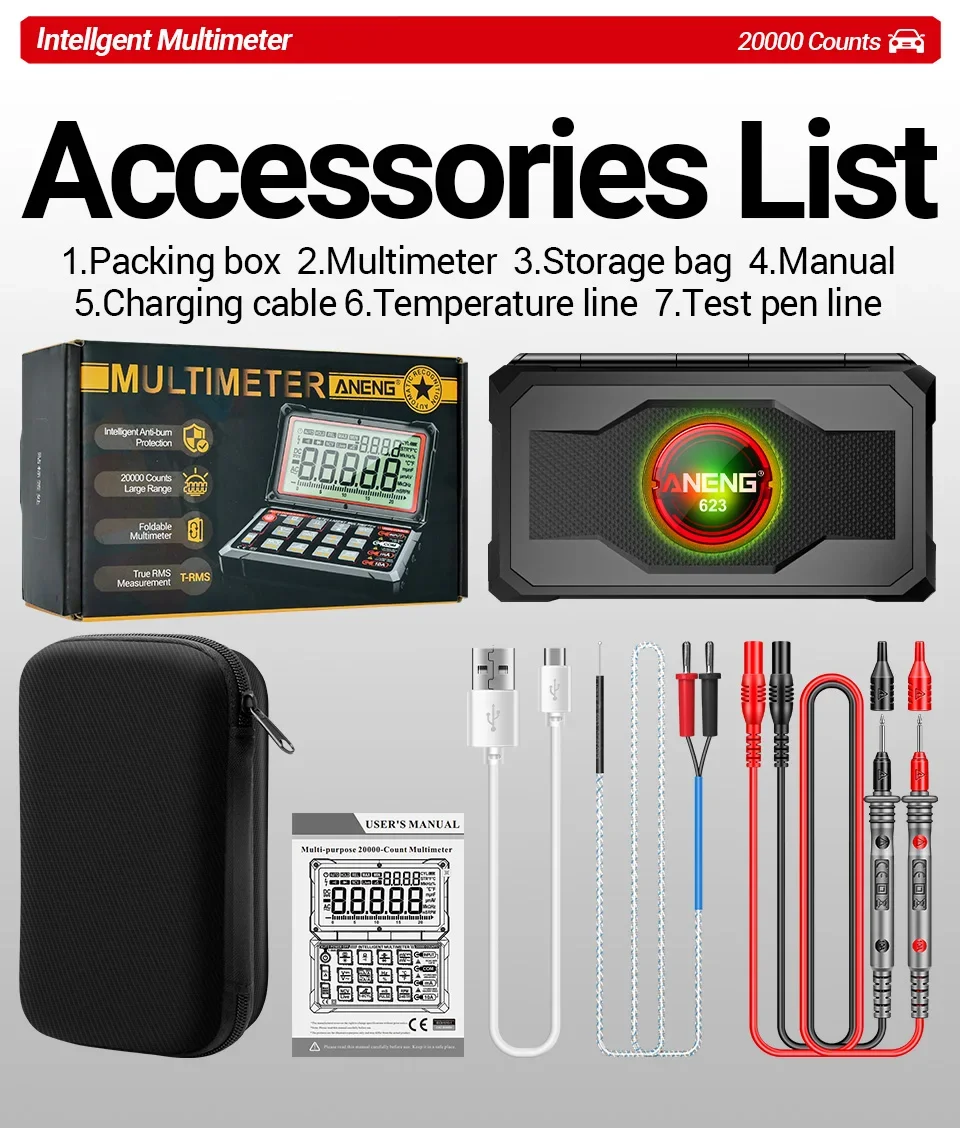

Packaging included:
1 * Multimeter
1 * Packing box
1 * Storage bag
1 * Manual
1 * Temperature line

1 * Testpenline

1 * Charging cable
1 * 16in-1 combination line (according your choice)
