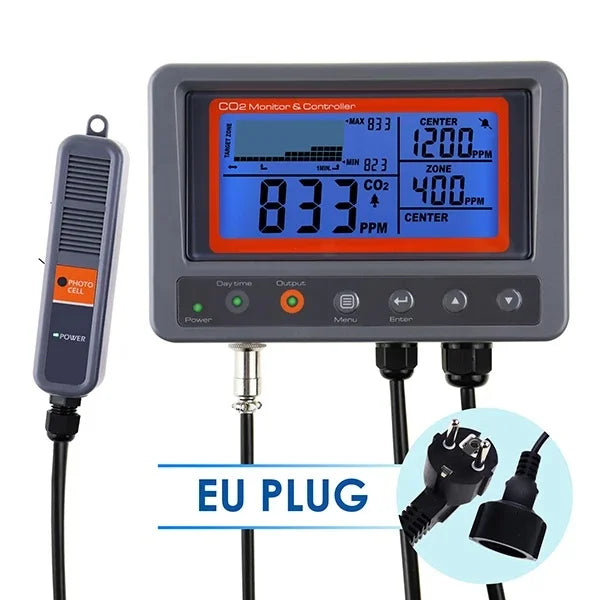

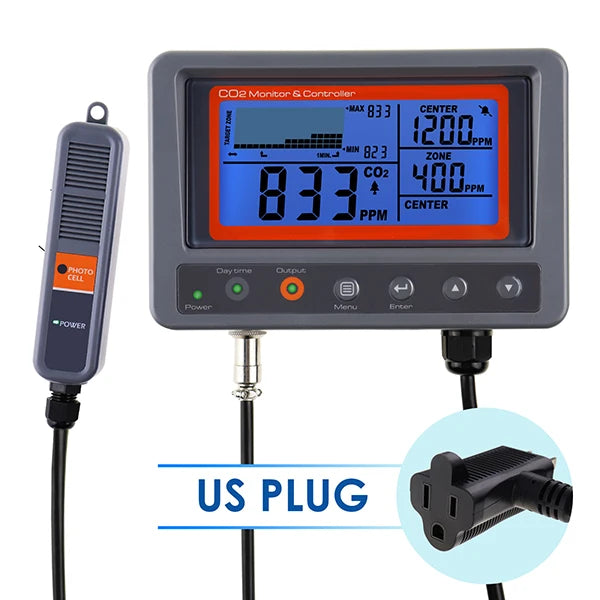

Digital CO2 Carbon Dioxide Monitor Controller Sensor W/ Relay Function NDIR Sensing Probe For Greenhouse Mushroom Farm

Digital CO2 Carbon Dioxide Monitor Controller Sensor W/ Relay Function NDIR Sensing Probe For Greenhouse Mushroom Farm

$669.51

$669.51 $0.00

Description

SPECIFICATIONS

Accuracy: CO2 below 3000ppm ±50ppm or ±5% of reading

Application Scenarios: Industrial Grade

Battery Included: no

Brand Name: GAIN EXPRESS

Certification: CE

Choice: yes

DIY Supplies: Electrical

Gas Type: Co2

High-concerned chemical: none

Is Smart Device: Yes

Measurement Range: 0~5000 ppm

Model Number: 7530

Operating condition: 0~50°C , 5~95% RH (avoid condensation)

Origin: Mainland China

PCBincluded: No

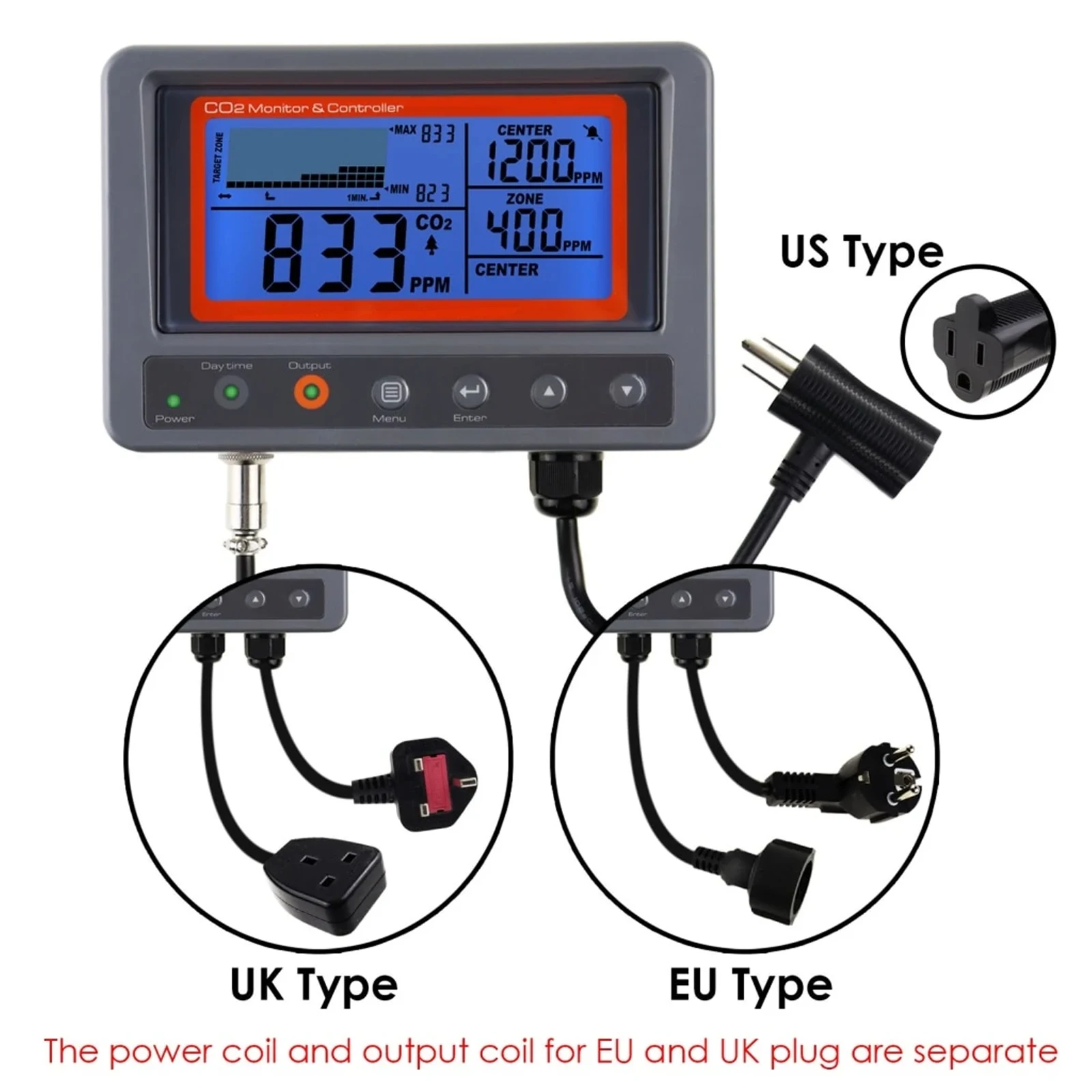

Piggyback socket load: 5A@250VAC; 10A@120VAC

Power supply: AC100~240VAC

Resolution: 1ppm (0-1000)

Semi-finishedproduct: No

Storage condition: -20~ 60°C, 5~95%RH (avoid condensation)

Type: CO2 Meter

Warm-up time: 30 seconds

With LCD Screen Or Not: Yes

semi_Choice: yes

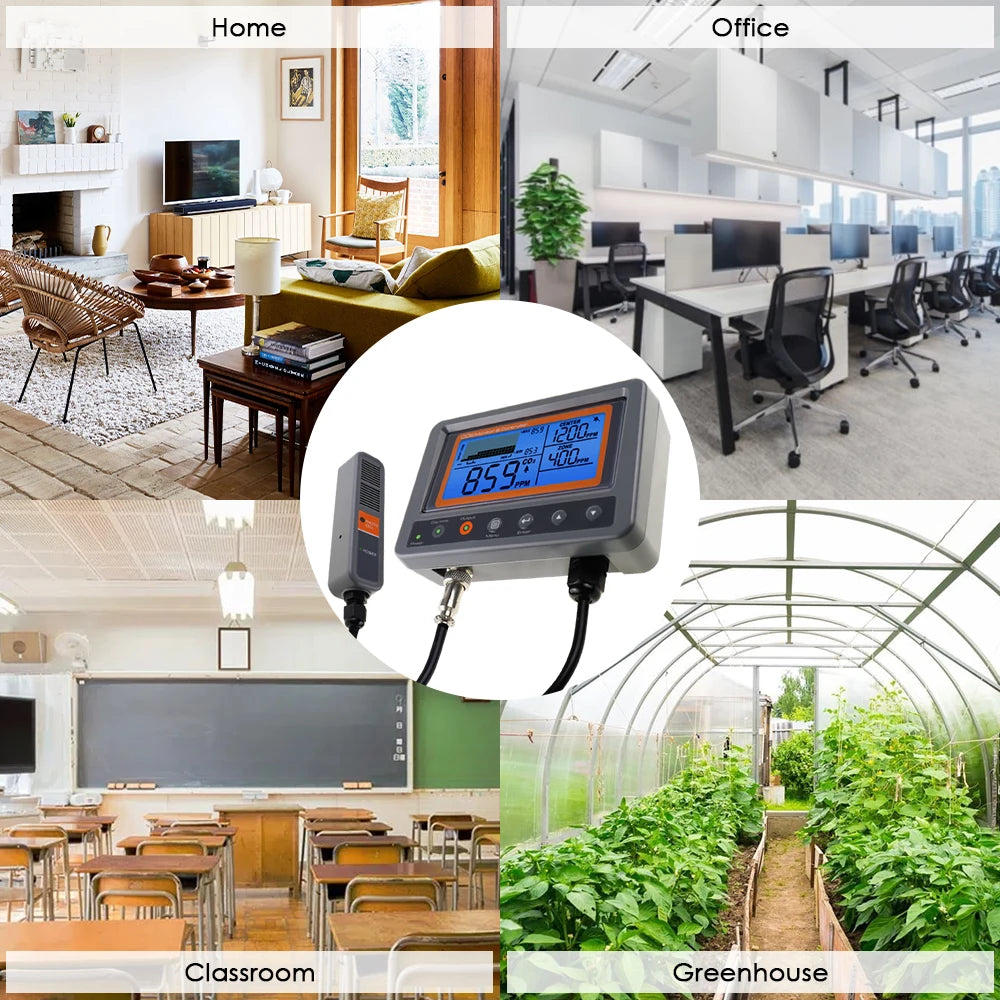

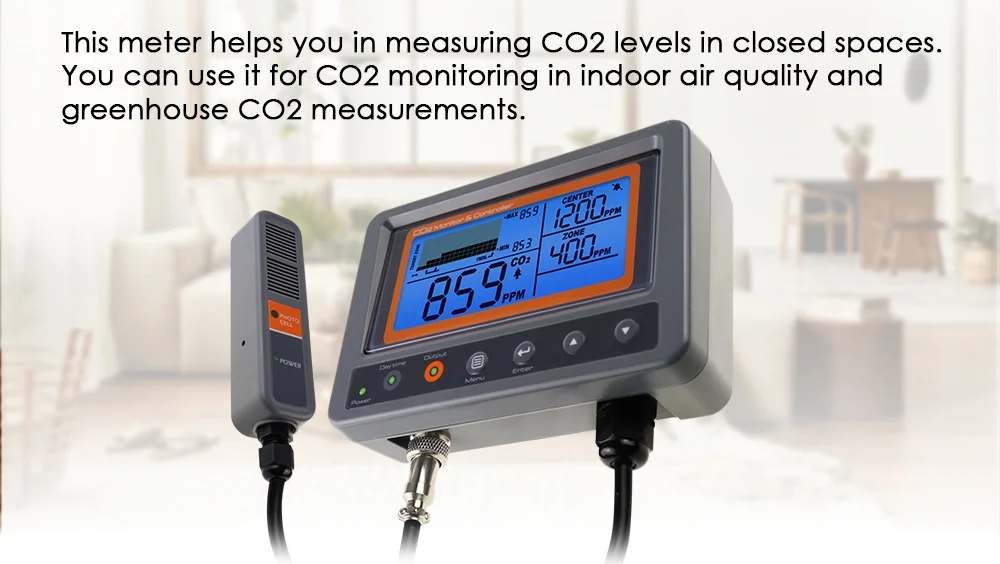

7530 offers you a simple and affordable way to control and monitor CO2 levels in a Greenhouse, residential, hydroponics, mushroom farm, commercial building and so on.

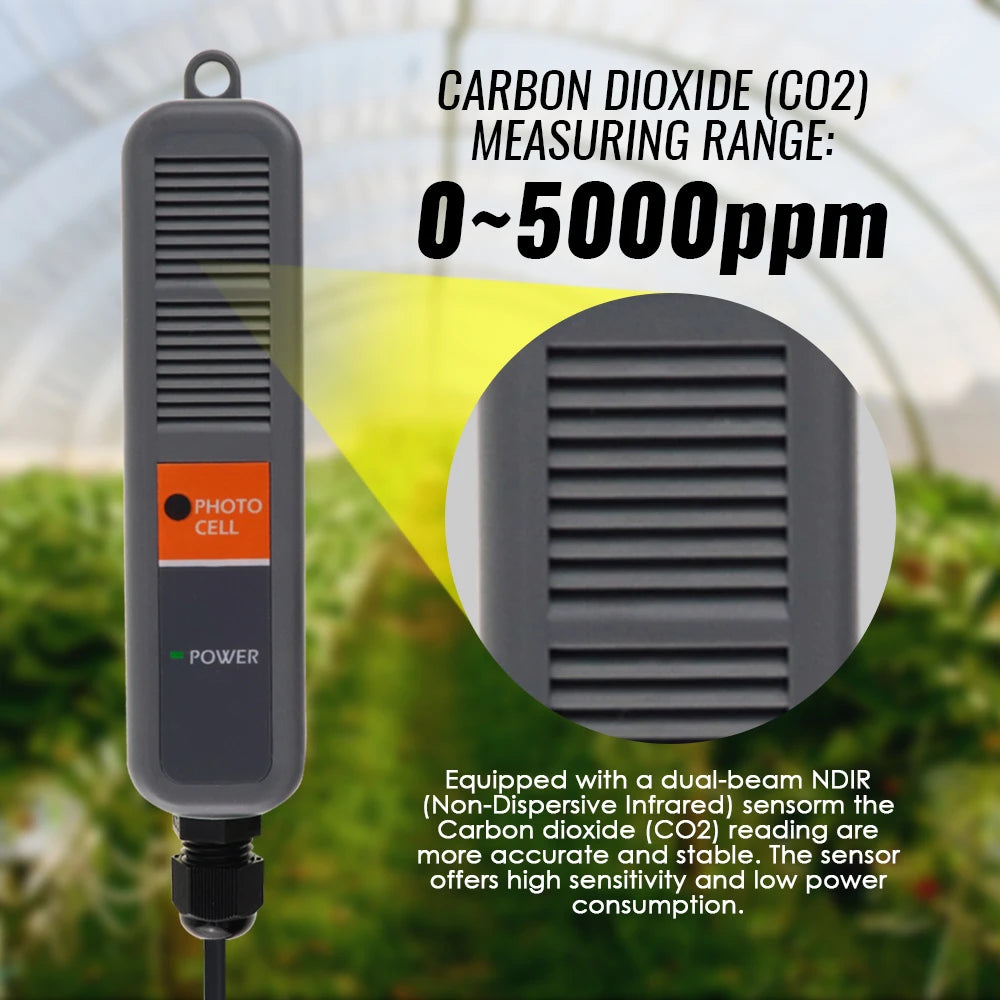

High-precision Split-Type Probe Sensor:

high sensitive external probe sensor for quickly and accurately measurement of carbon dioxide content.

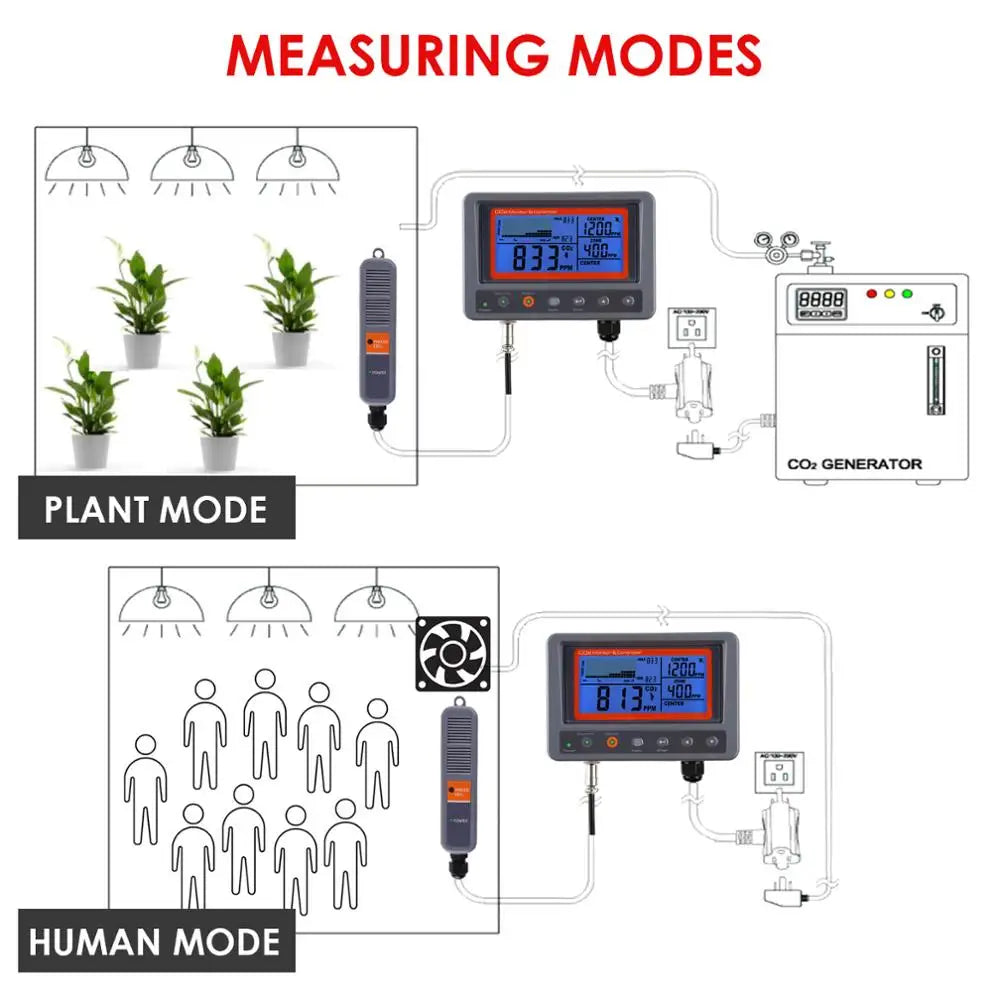

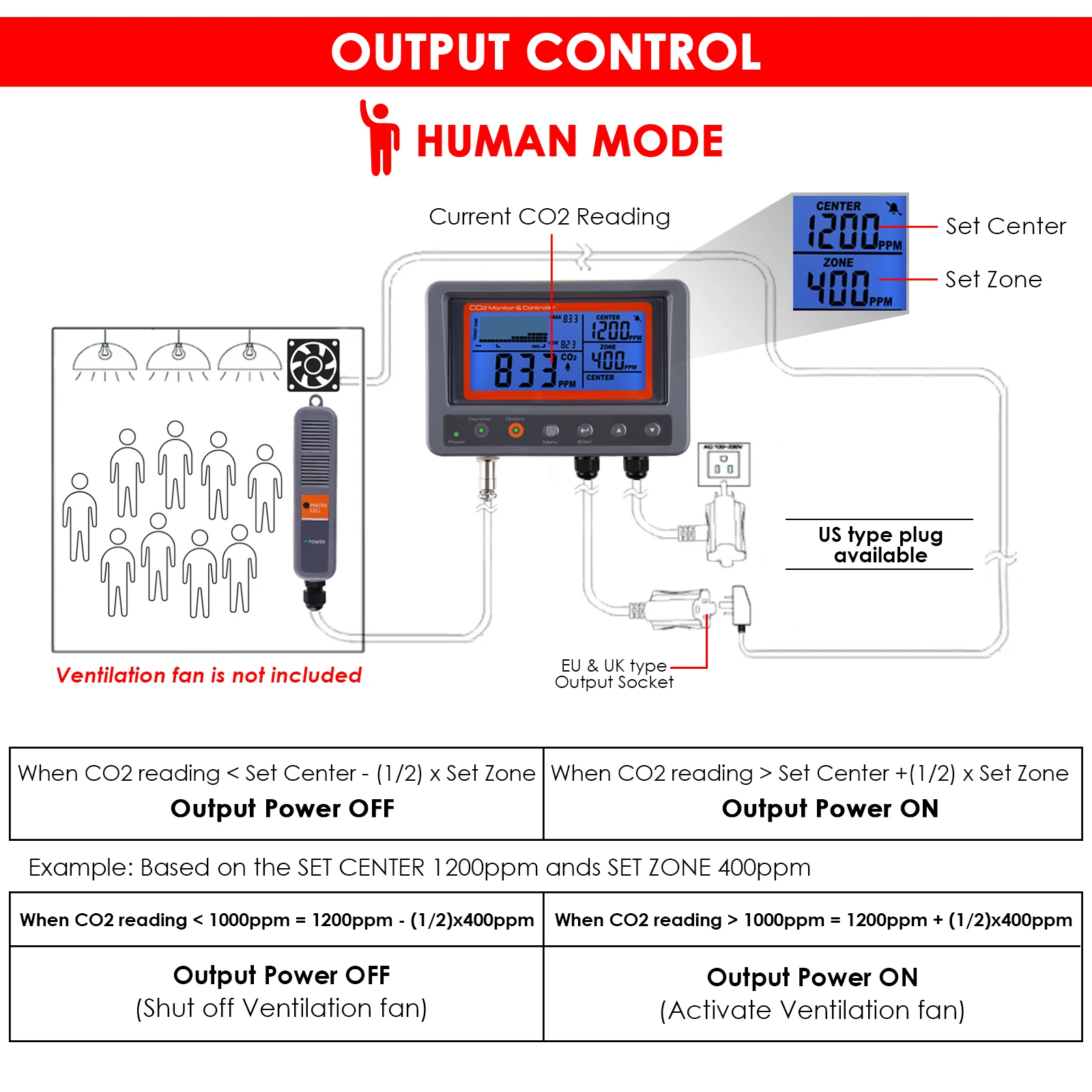

Human Mode

if the set alarm value is exceeded, the instrument will automatically supply power to the exhaust fan for ventilation and beep sound-light alarm. Suitable for hospitals, offices, schools, stations, commercial buildings, etc.

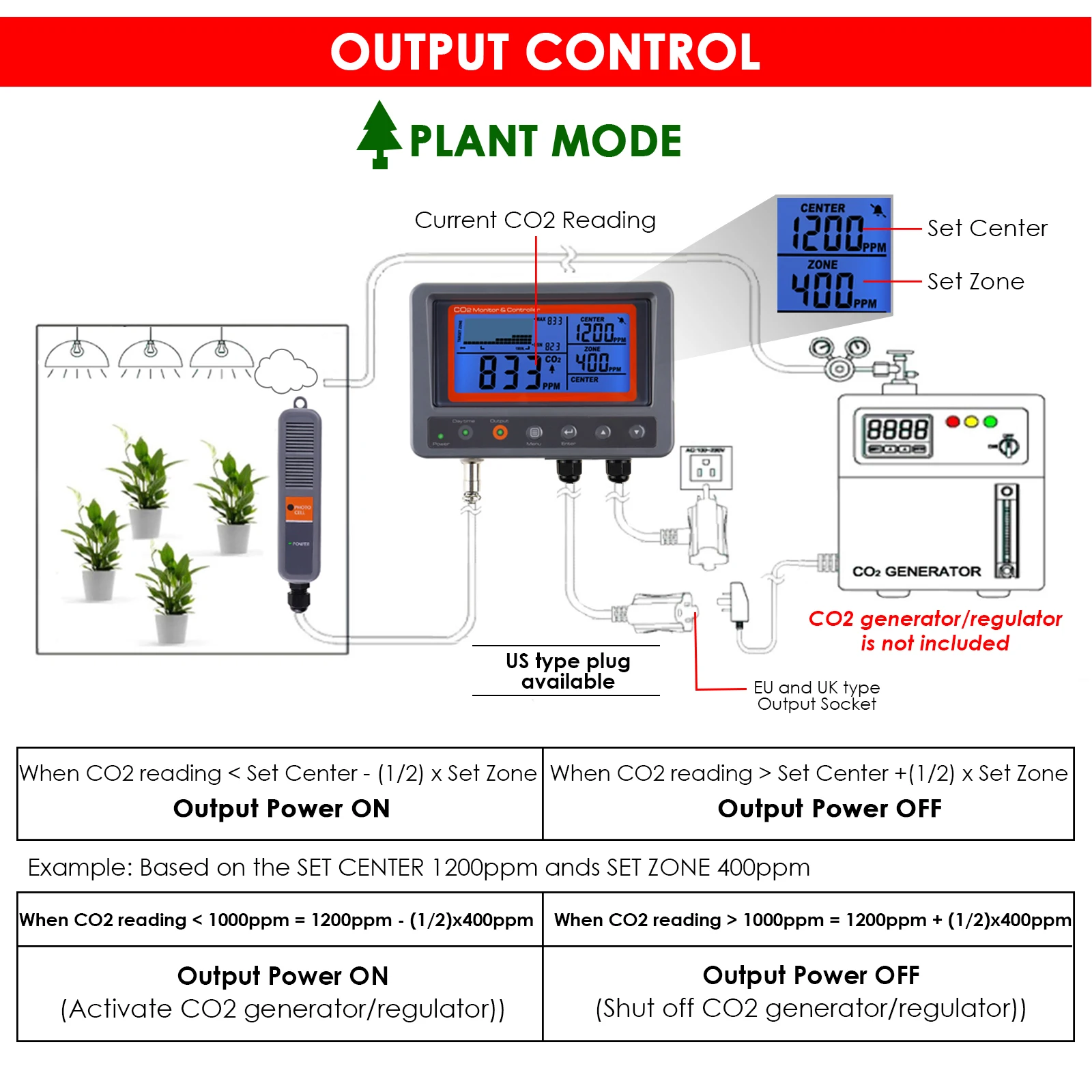

Plant Mode

when the set value is exceeded, the relay output will be turned off; and the relay output will be turned on automatically when it decrease to the preset low value. Suitable for greenhouse, agricultural, hydroponic flower industry, mushroom farm, etc.

Features

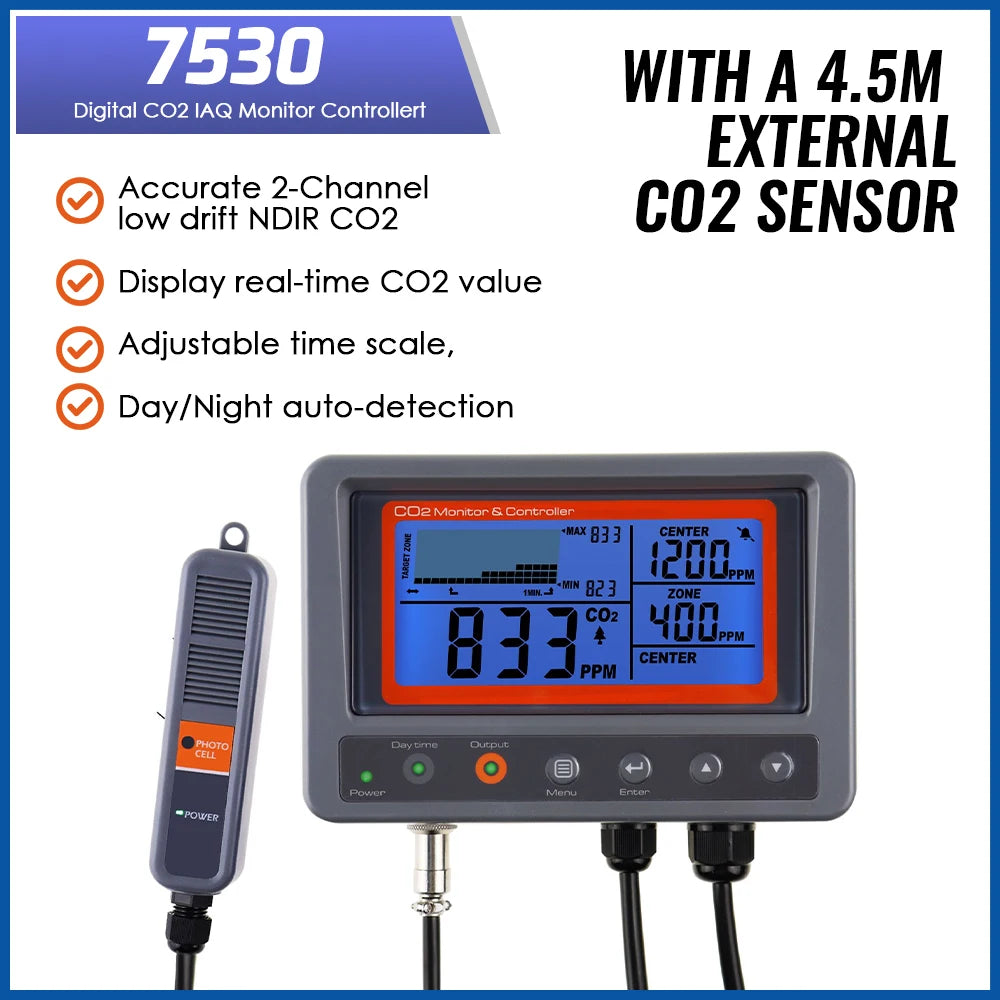

1、Accurate 2-Channel low drift NDIR CO2 measurement

2、With an 4.5M External CO2 sensor to be used in closed space

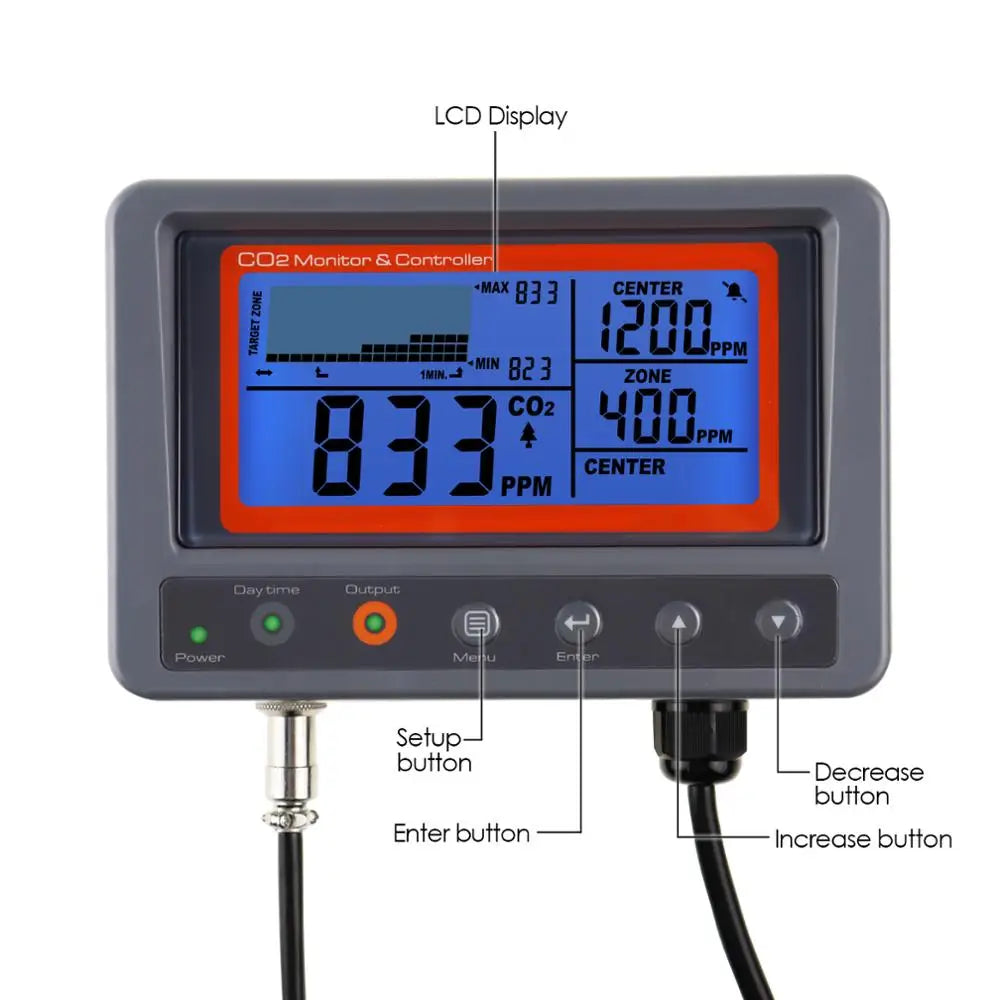

3、Display real time CO2 value

4、Display CO2 chart with adjustable time scale (week/day/hour/min/auto)

5、Auto Max. /Min. Recall on CO2 chart

6、Programmable CO2 zone value & CO2 center value to control output power on/off

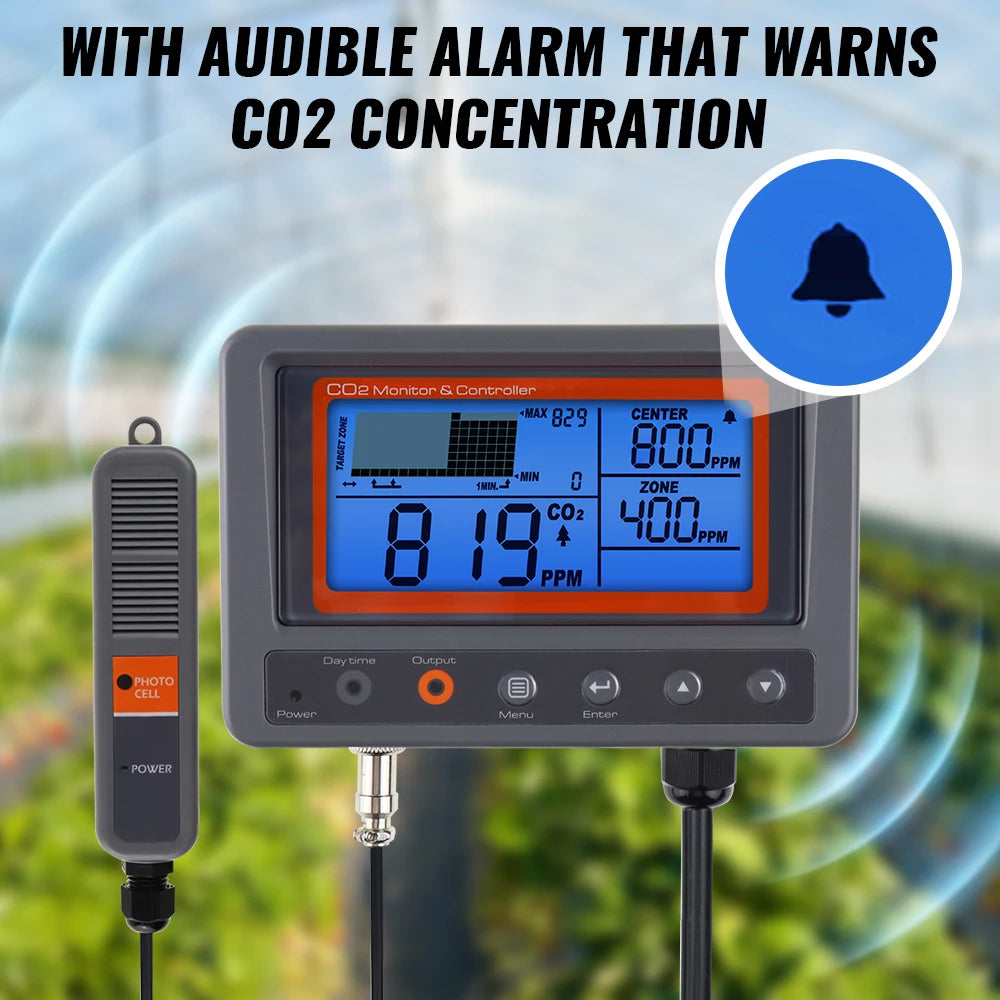

7、Audible alarm that warns CO2 concentration

8、Target zone indicator on CO2 chart

9、Built-in Day/Night auto detection on CO2 probe to override CO2 control

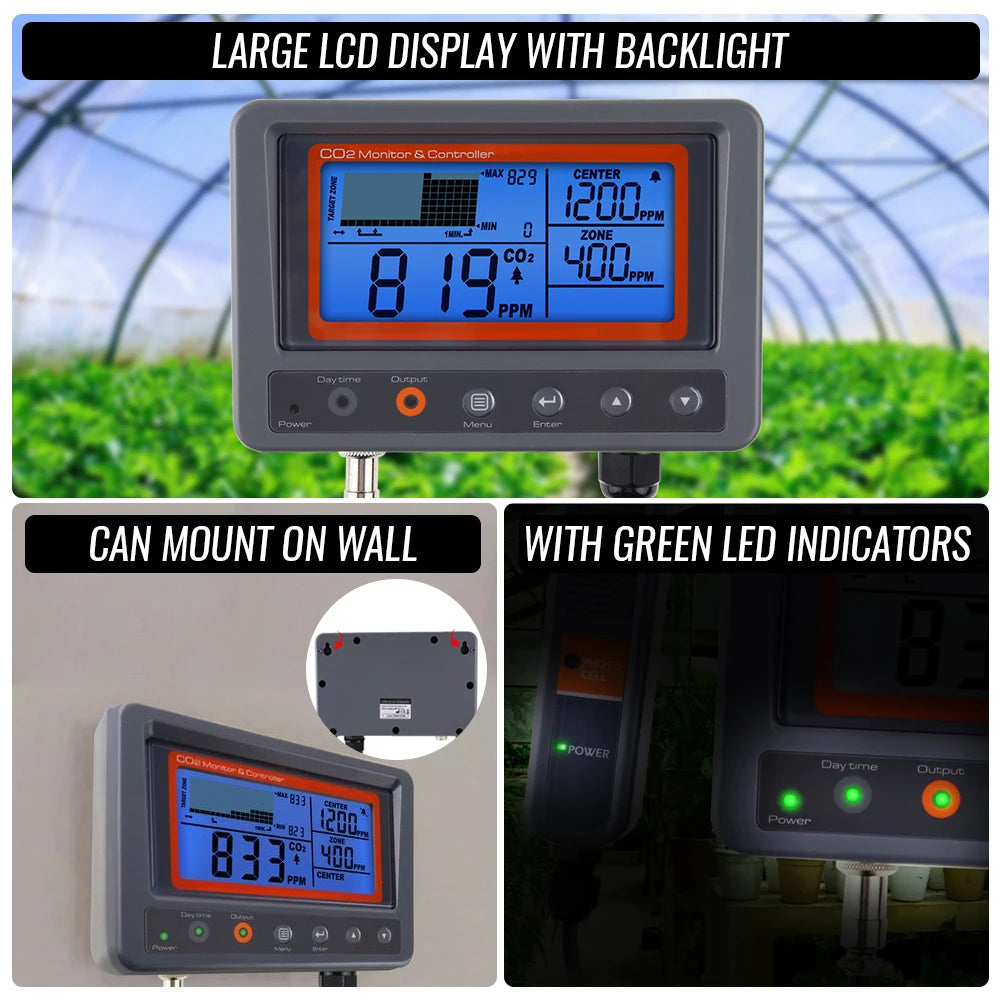

10、Backlight to assist operation in dark place

11, directly from AC100~240 VAC power supply, applicable to a wider range of voltage, more easily match your local power grid.

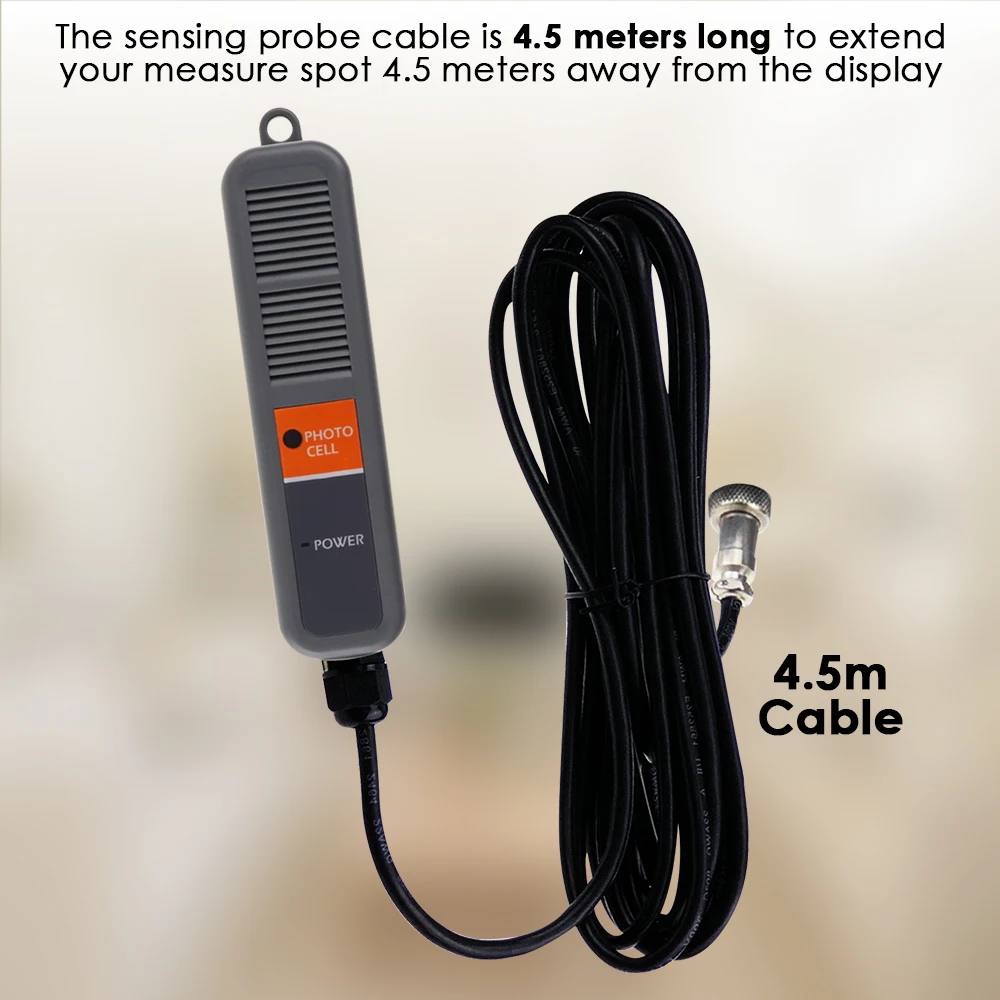

12、Sensing probe cable is 4.5 meter long to extend your measure spot 4.5 meter away from display

13、Installed with 3kA@300VAC fuse in meter to avoid the damage by power overload

14、Ultra-fast 30-second warm-up

About Scope

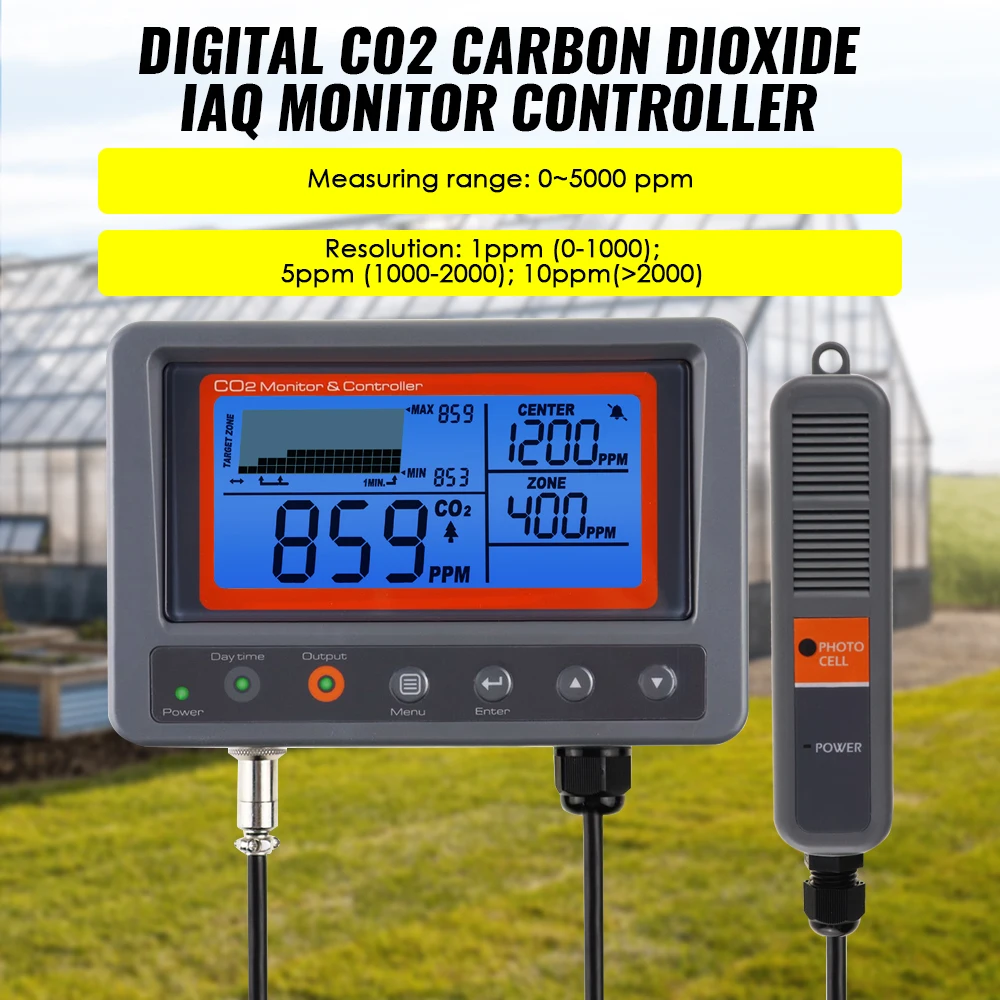

Measuring range: 0~5000 ppm

Resolution: 1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)

Accuracy

1、CO2 below 3000ppm ±50ppm or ±5% of reading, whichever is greater
2、CO2 above 3000ppm ±7% of reading

Responce Time CO2

<2min for 63% of step change or
<4.6min for 90% step change

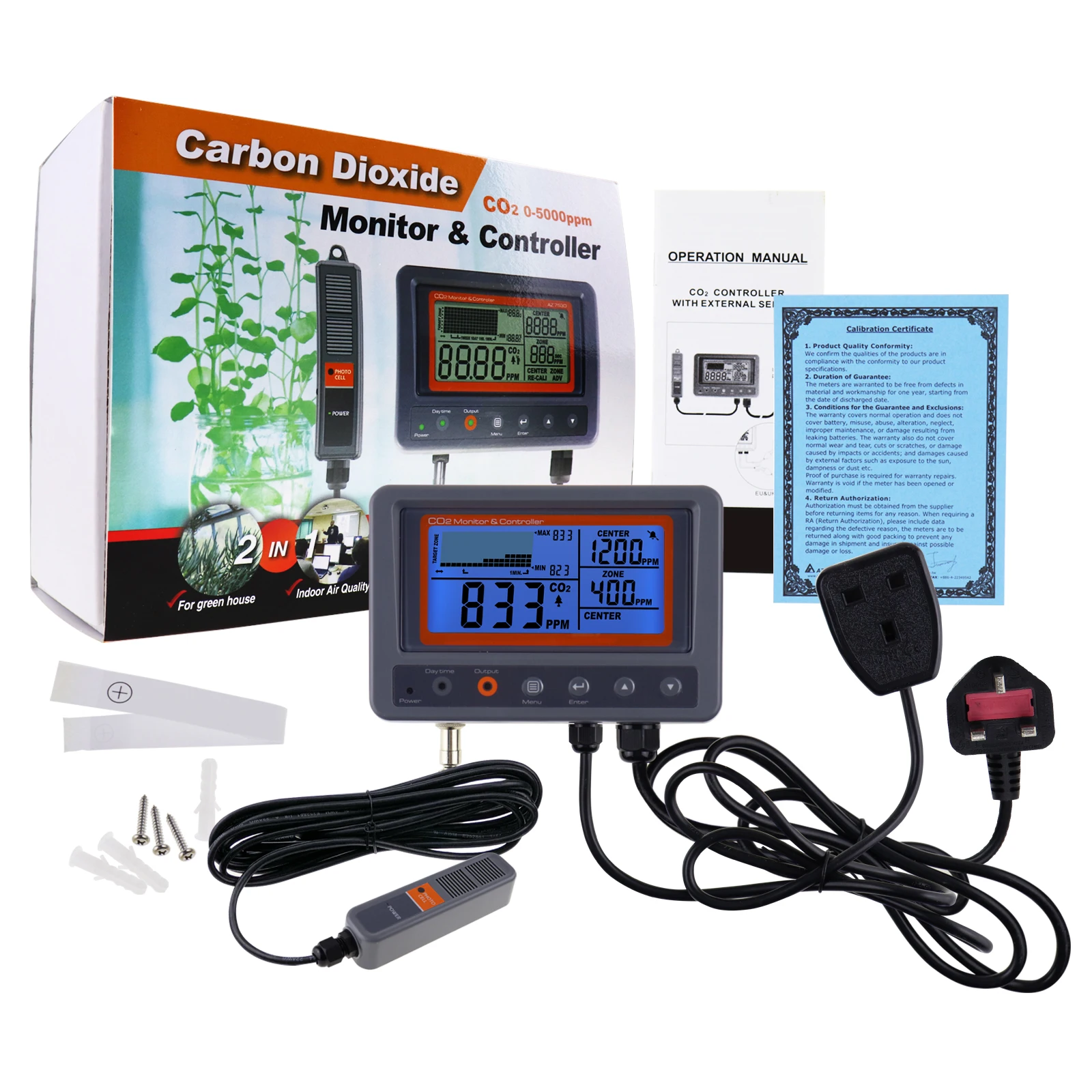

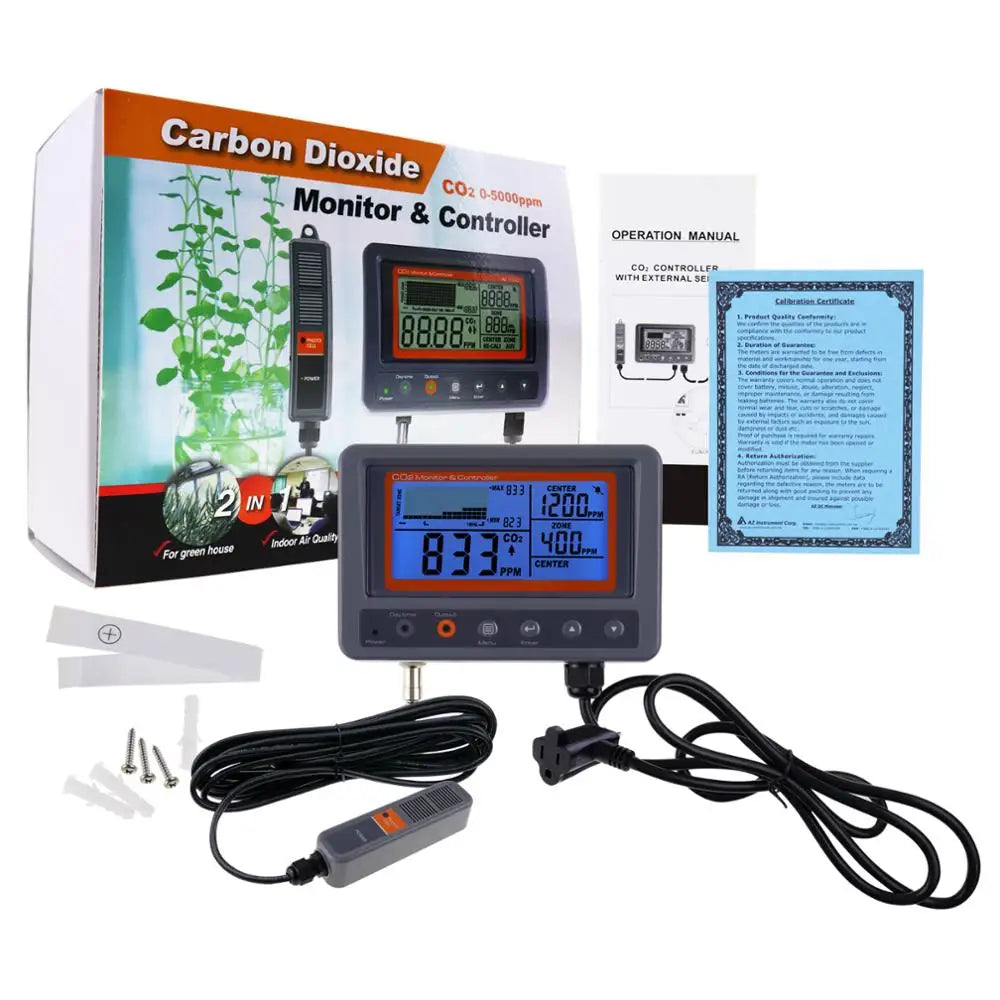

Set Includes

1 x CO2 Meter (Controller + Sensor)

Screws and tapes

English Instruction Manual

Standard factory packaging

HIGH SENSITIVE WALL-MOUNTED CO2 MONITOR SCONTROLLER HUMAN MODE S PLANT MODE

Relative Humidity Range: 0-99%RH
CO2 Measuring Range: 0-9999ppm
Temperature Measuring Range: 0-50℃(32-122F)

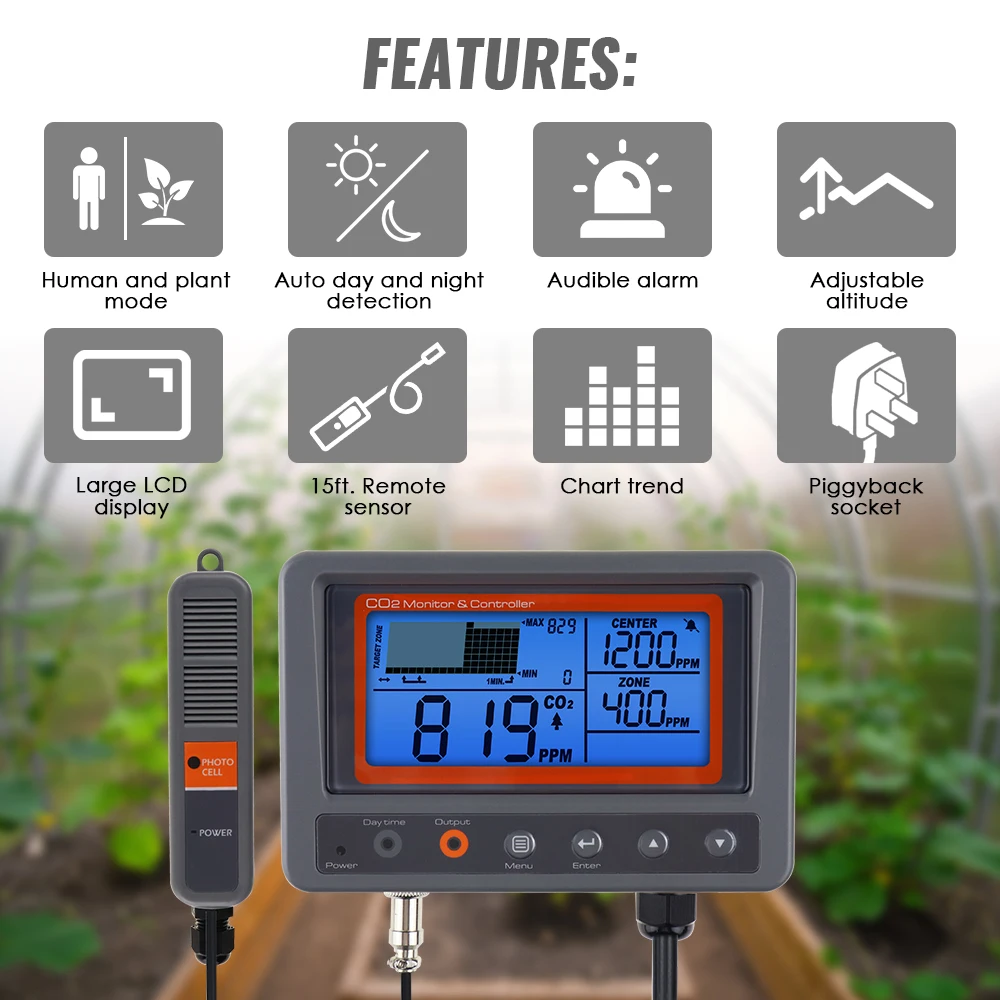

Our Eight Characteristics

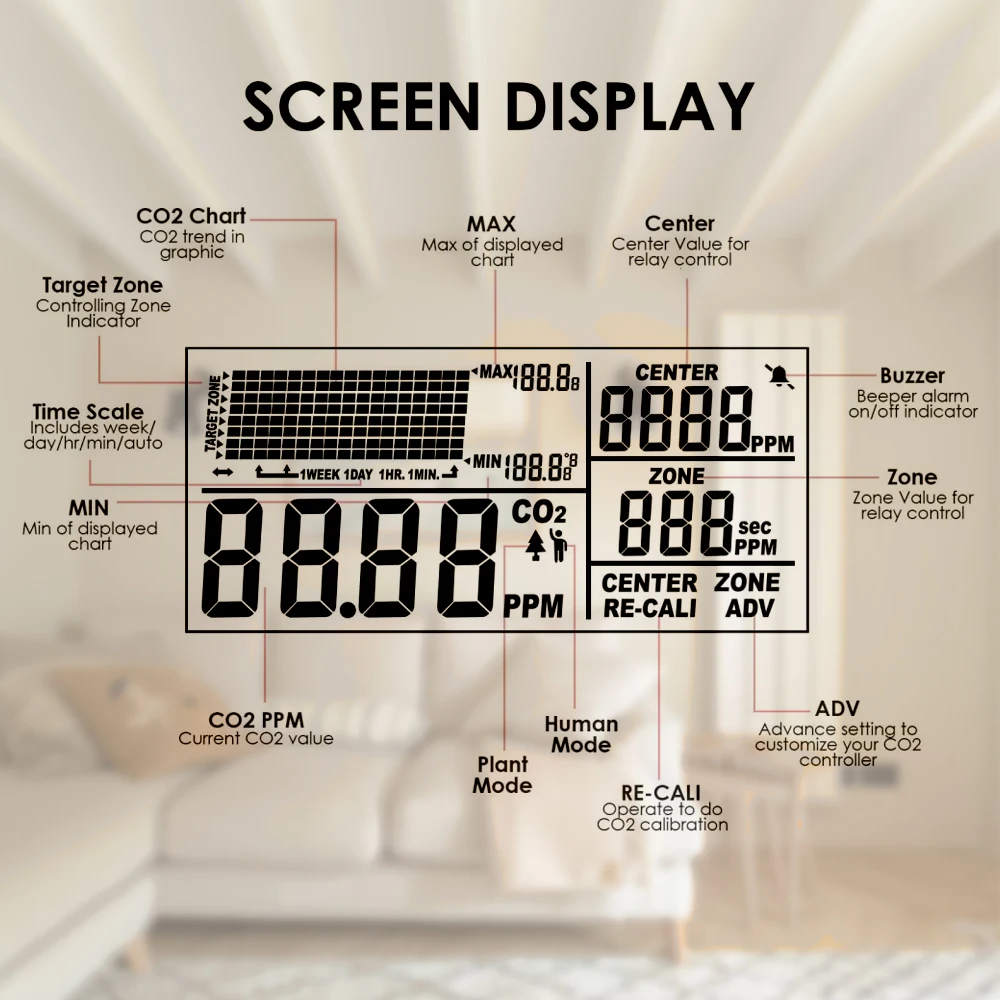

More intuitive display

The screen will display different co2 indices to help you identify the co2 concentration level more quickly

Effects of different co2 indices on the human body

It is not recommended to stay for long periods of time in environments with carbon dioxide levels above 1000 ppm.

automatic warning

With bulitin alert desin, once Co2 is higher than pre-set value, it willtur on alert to help you reduce the risk of air qualty, protect yourself&family

At the same time, in case of linking the relay function, it will automatically open the exhaust air system

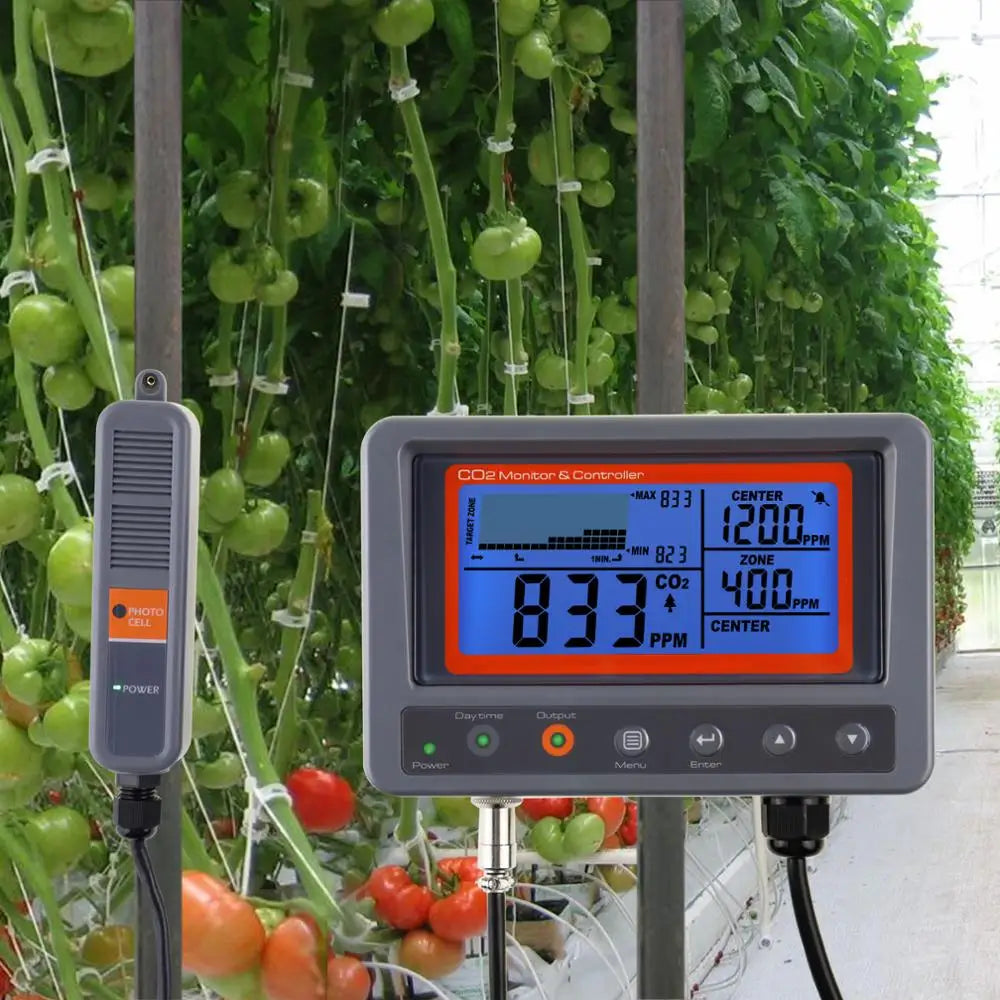

Scientific Planting

Automatic Co2 concentration control

Carbon dioxide affects the progress ofvegetable photosynthesis, andthe installation of carbon dioxide sensors in greenhouses can ensure timelysupplyin the case ofinsufficient carbon dioxide concentration

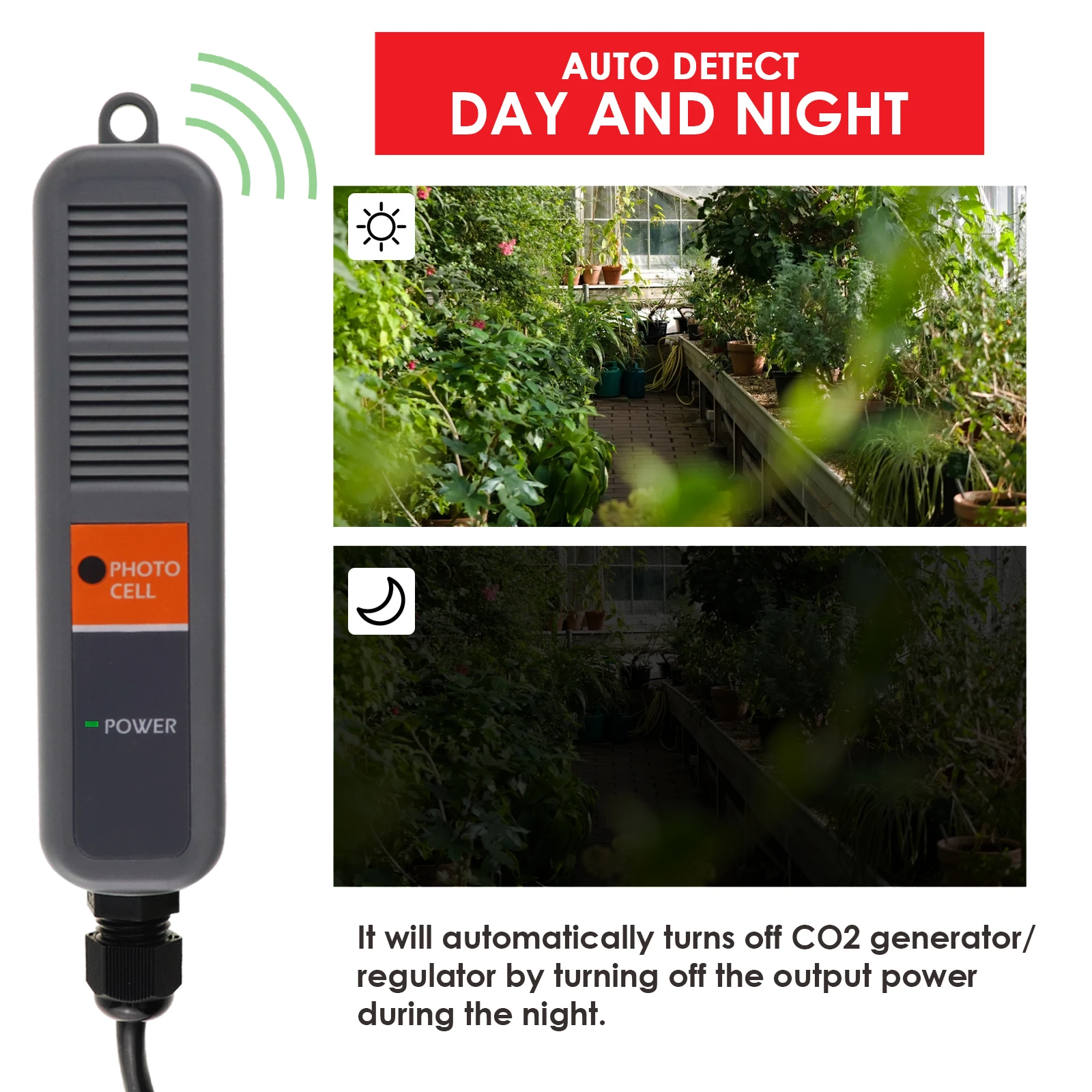

Auto Detect Day and Night

It will automatically turns off CO2 generator/regulator by turning off the output powerduring the night.

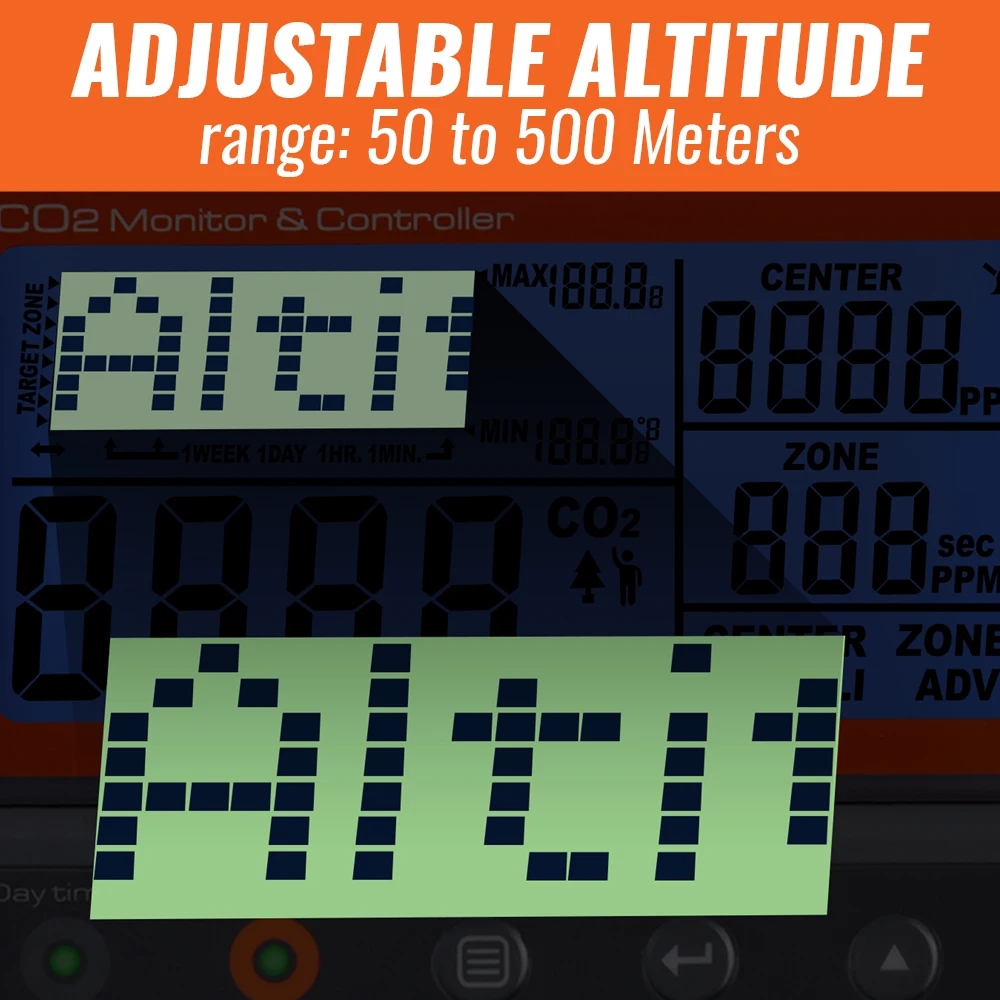

Adjustable height for more accurate measurements

ADJUSTABLE ALTITUDErange: 50 to 500 Meters

memory function

This controller willRETAIN THE SAME SETTINGfrom last operation in theevent of power failureexcept the chart time willstart in day 1

High Precision Sensors

Simultaneous Use OfSelf-developed NDlR SensorsAnd Laser Particle Sensor

Stand-alone CO,NDlR sensor Higher accuracy andinterference immunity than semiconductor sensors

Carbon dioxide measuring range:0-5000ppm

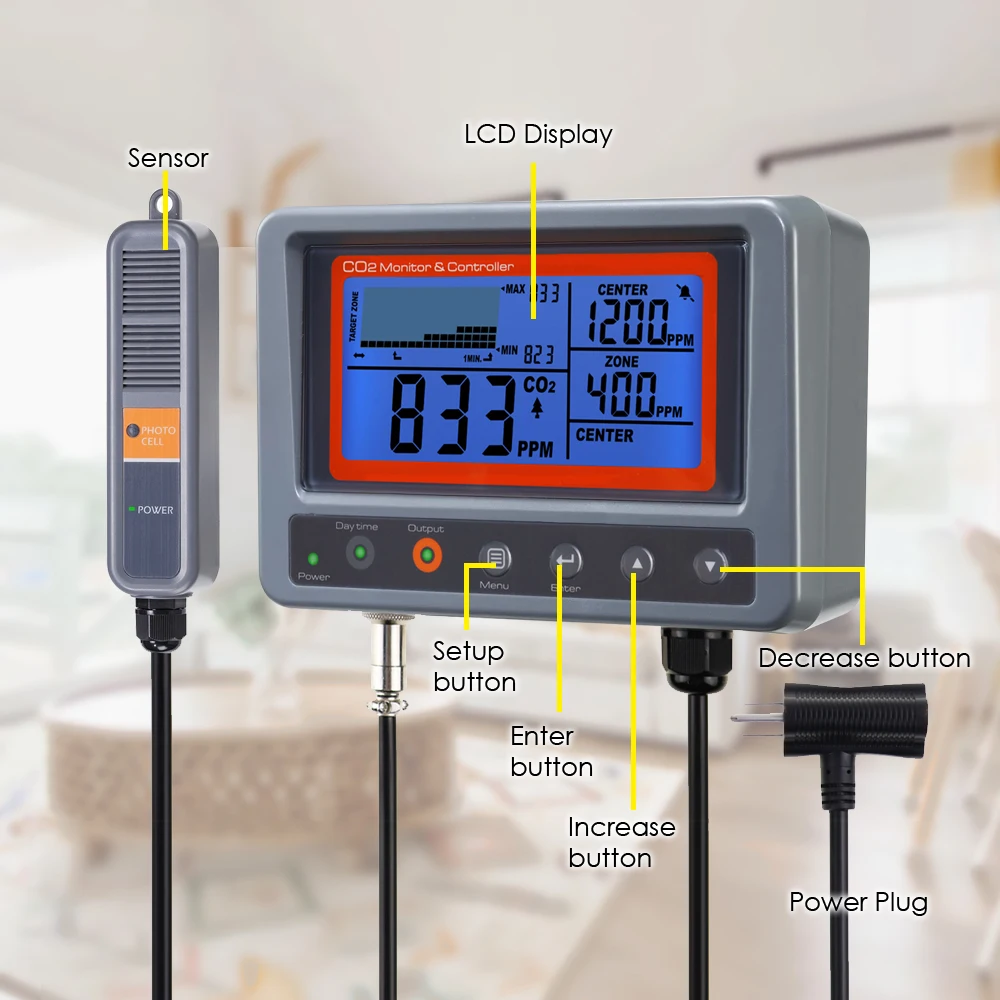

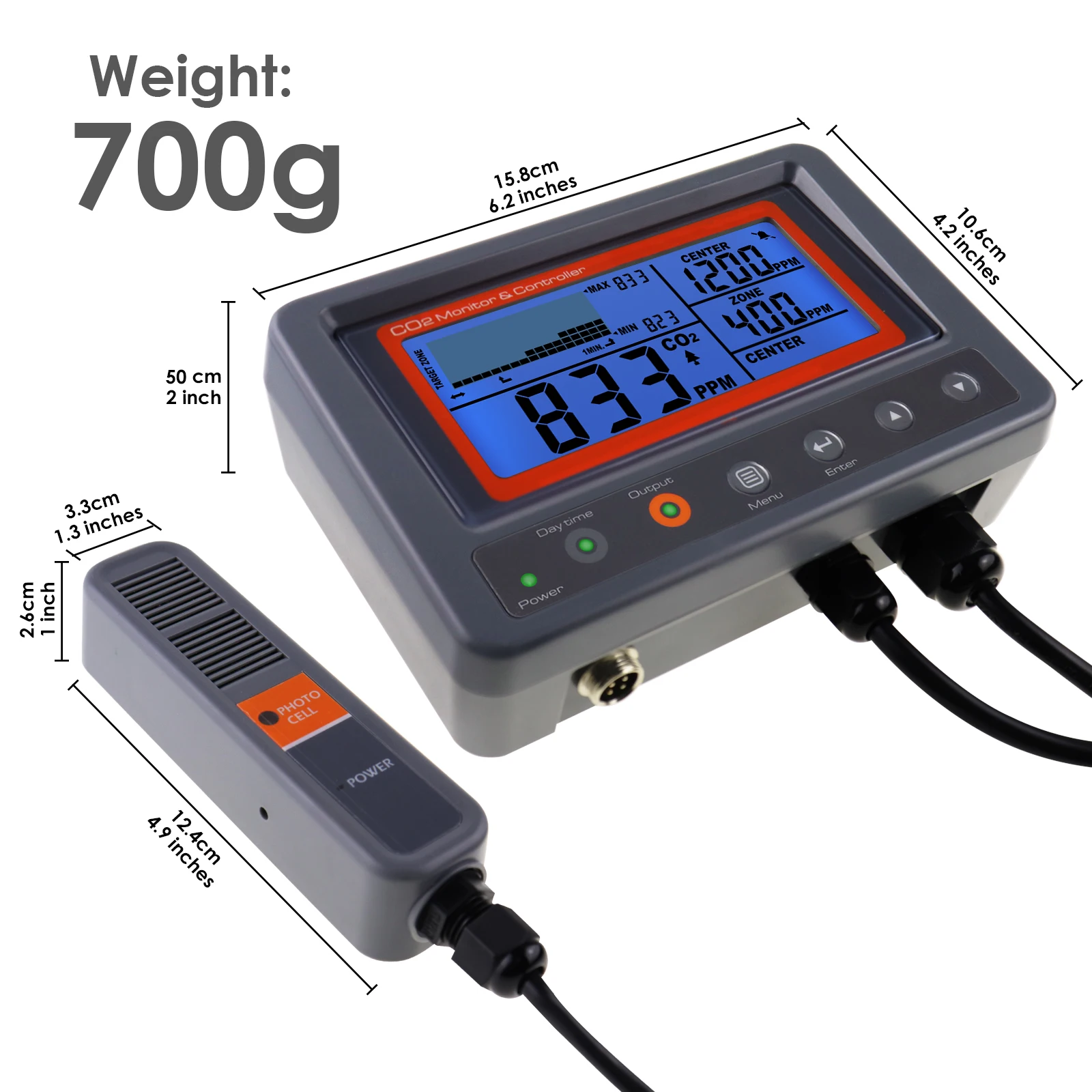

Detail Show

LCD size: 47 x 104 mm

Meter size: 158 x 106 x 50 mm

Sensor size: 124 x 33 x 26 mm

Operating condition: 0~50°C , 5~95% RH (avoid condensation)

Storage condition: -20~ 60°C, 5~95%RH (avoid condensation)

Power supply: AC100~240VAC

Piggyback socket load 5A@250VAC; 10A@120VAC
