Description

SPECIFICATIONS

Battery Included: no

Brand Name: kejun,KEJUN

Certification: CE,CE

Display: LED display

High-concerned chemical: none

Max Measuring Range: 400 Bar & Above,400 Bar & Above

Measure range: -100KPa~0~100KPa

Measuring medium: Dry/no corrosion gas

Model Number: KEJUN-2068,KEJUN130

Origin: Mainland China,Mainland China

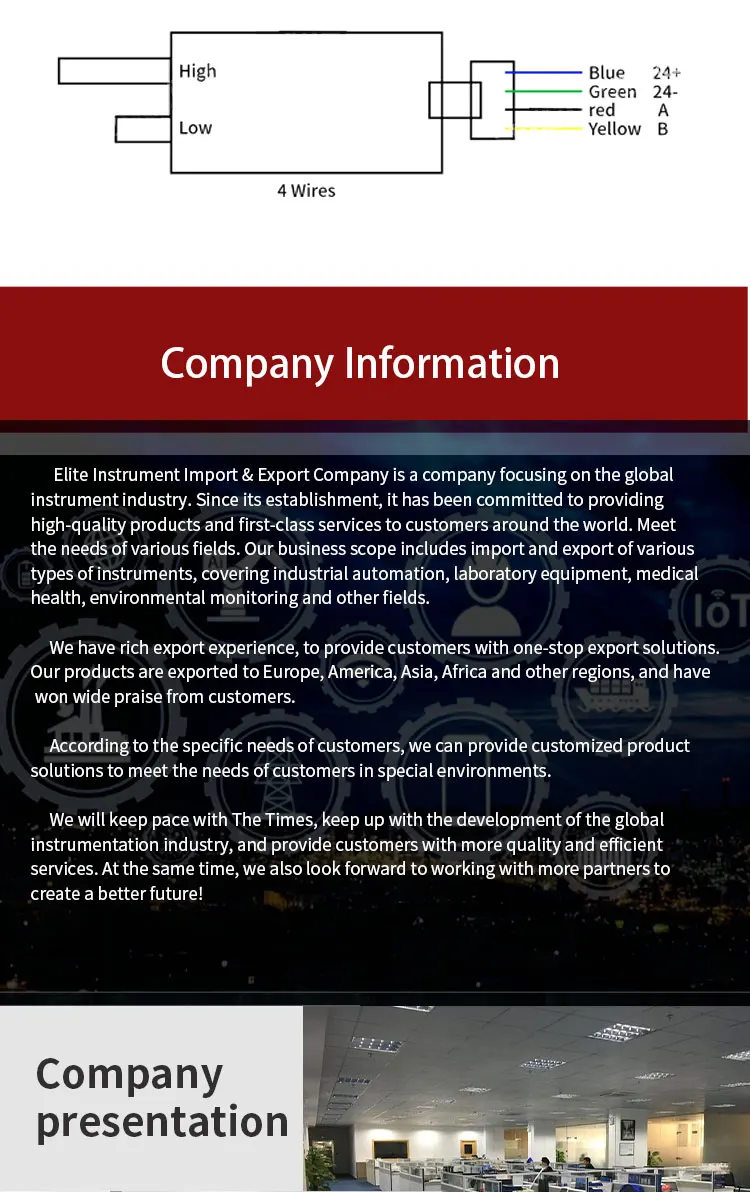

Output signal: RS485/4-20mA/0-10V

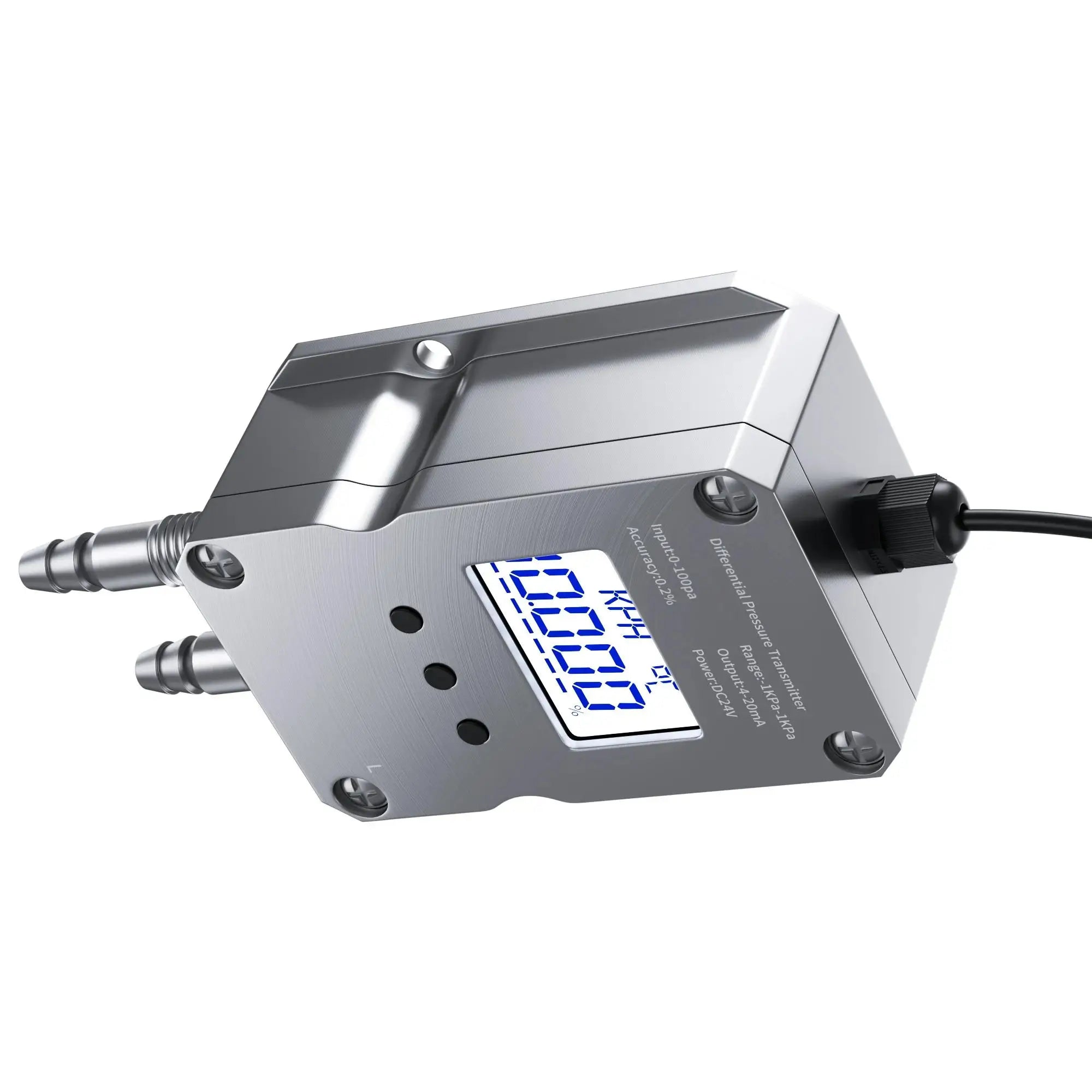

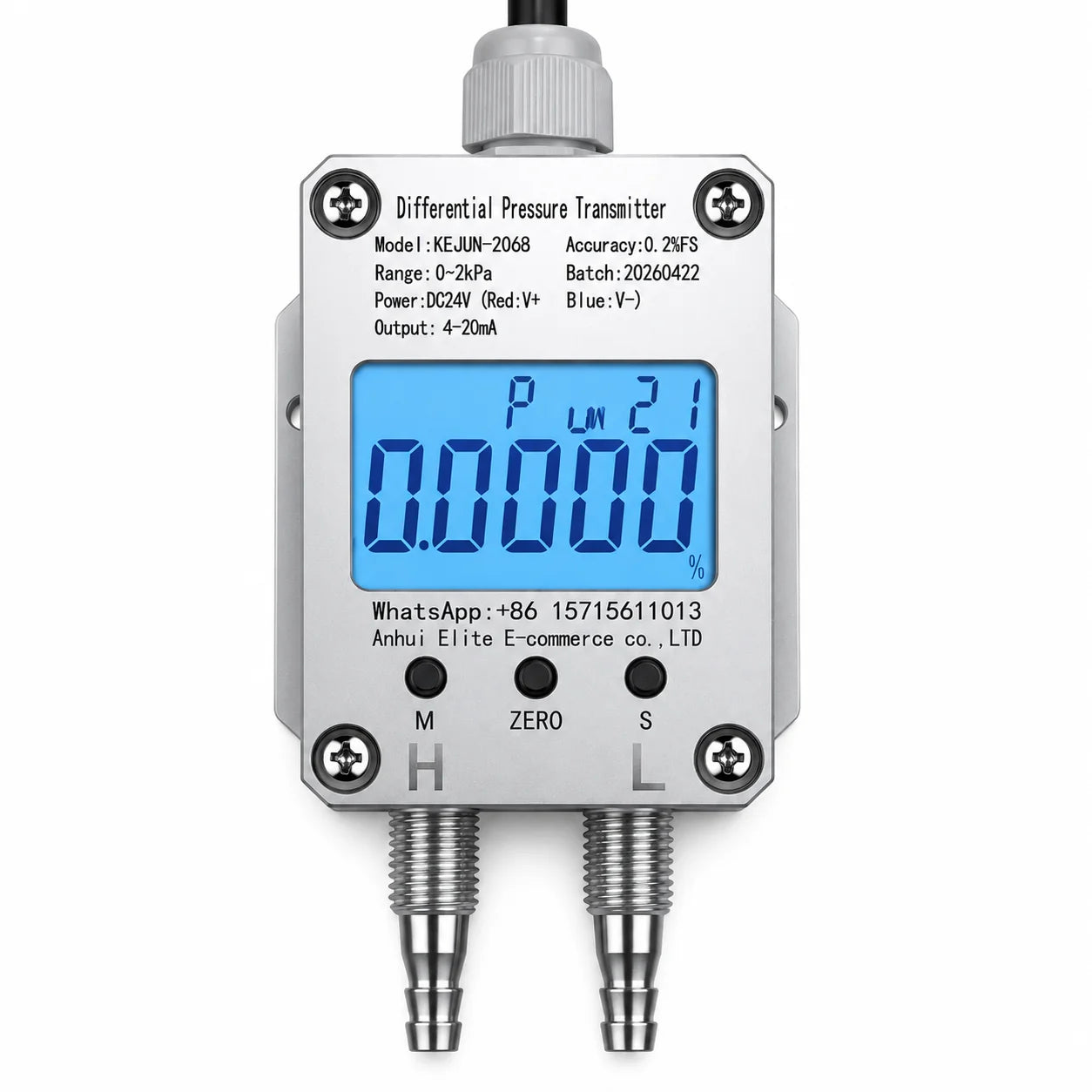

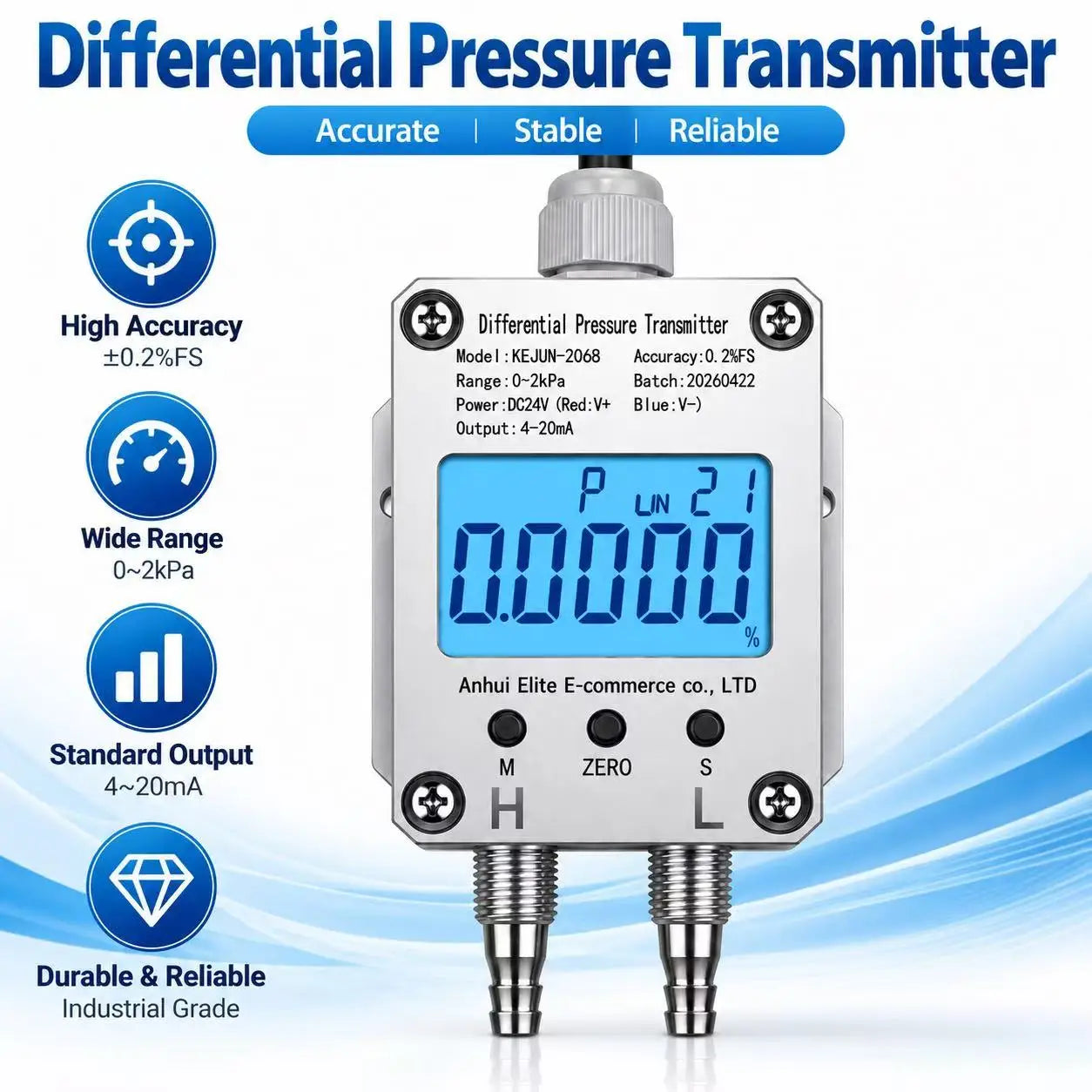

Product name: Differential pressure transmitter

Semi-finishedproduct: No

Low Pressure 1000pa Air Differential Pressure Transducer for Wind LED Display Micro 1kpa Air Differential Pressure Sensor

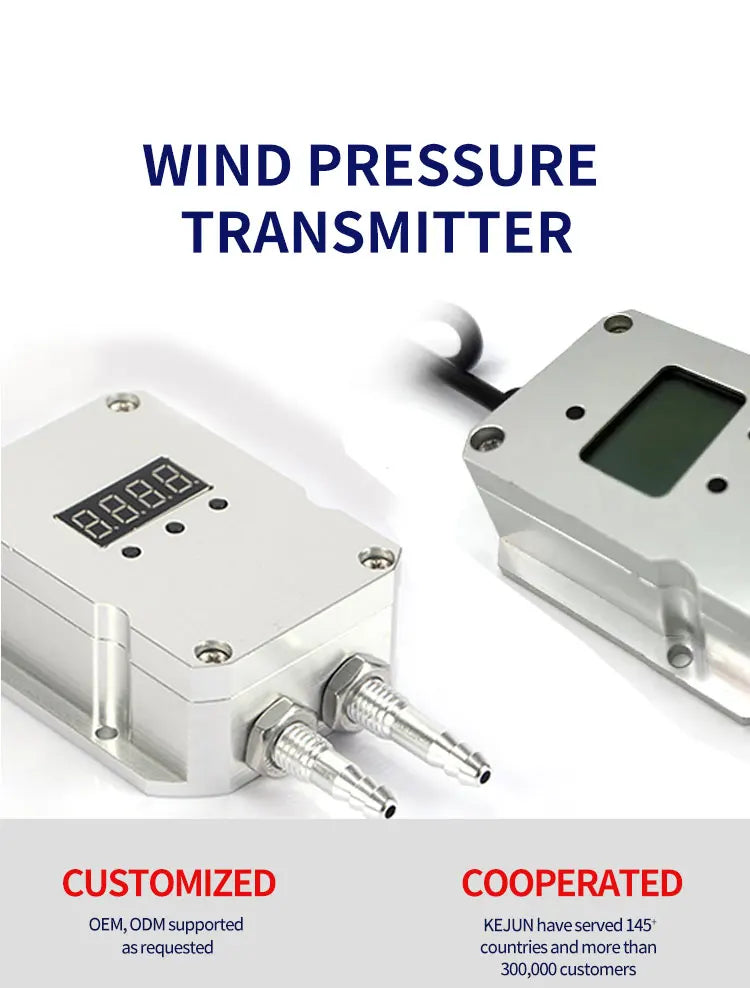

LED/LCD display random delivery, if the specified display when the order please leave a message, thank you.

This link is special for:

1. Measuring range: the one you choose

2. Power supply: DC24V

Notes:

What we can make:

1. Available measuring range: any range within -100KPa~0~100KPa.

2. Available output signal: 4~20mA, 0~10V, 0~5V, RS485.

3. Available power supply: 12~30Vdc, 24Vdc, 12Vdc.

So: if you need other parameters, please contact me.

And tell me the measuring range, output signal, power supply, thread size.

We can make special customization for you.

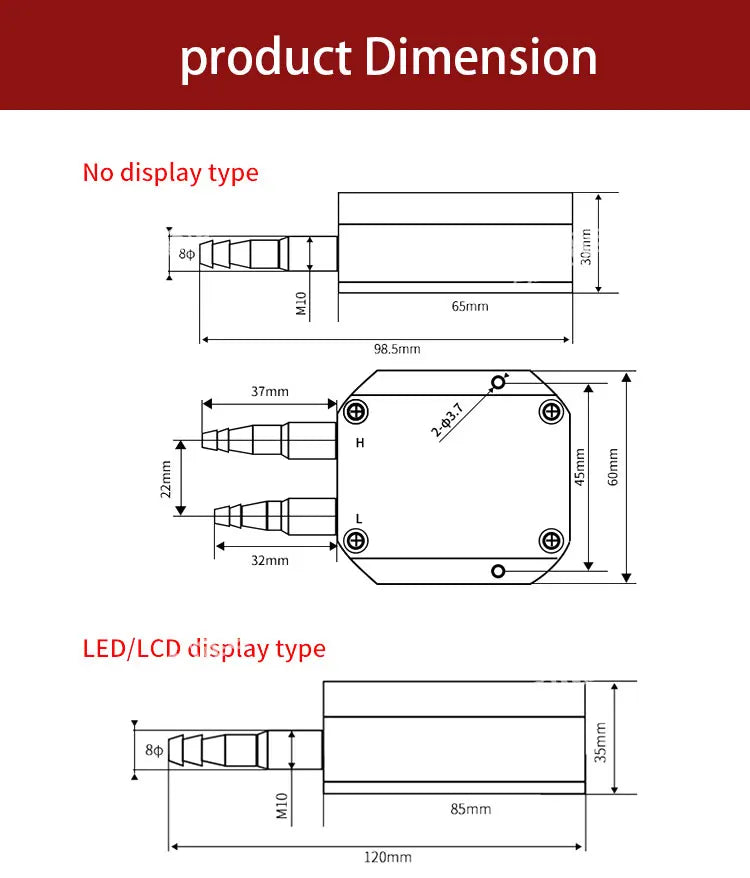

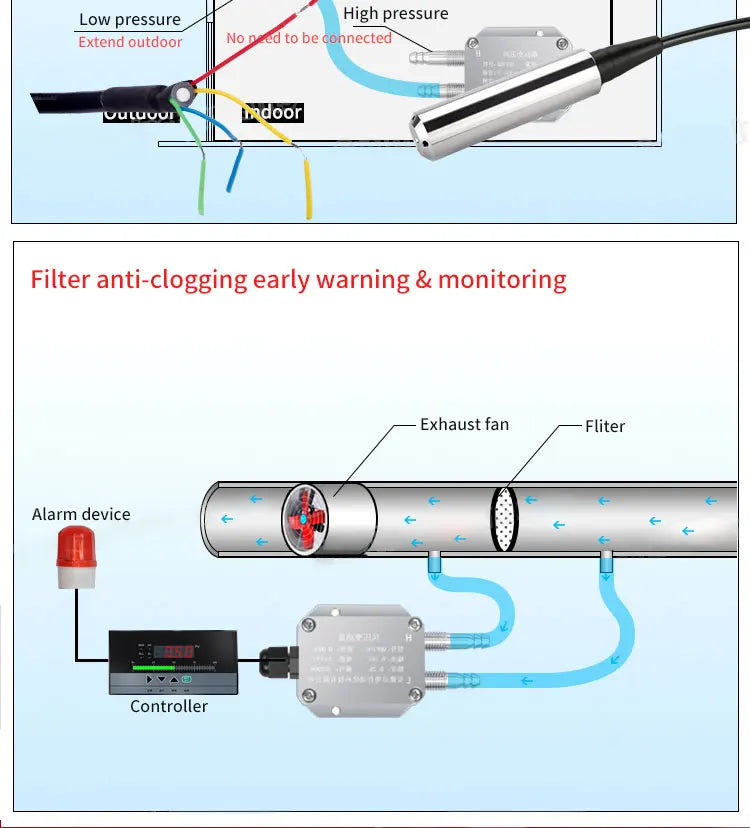

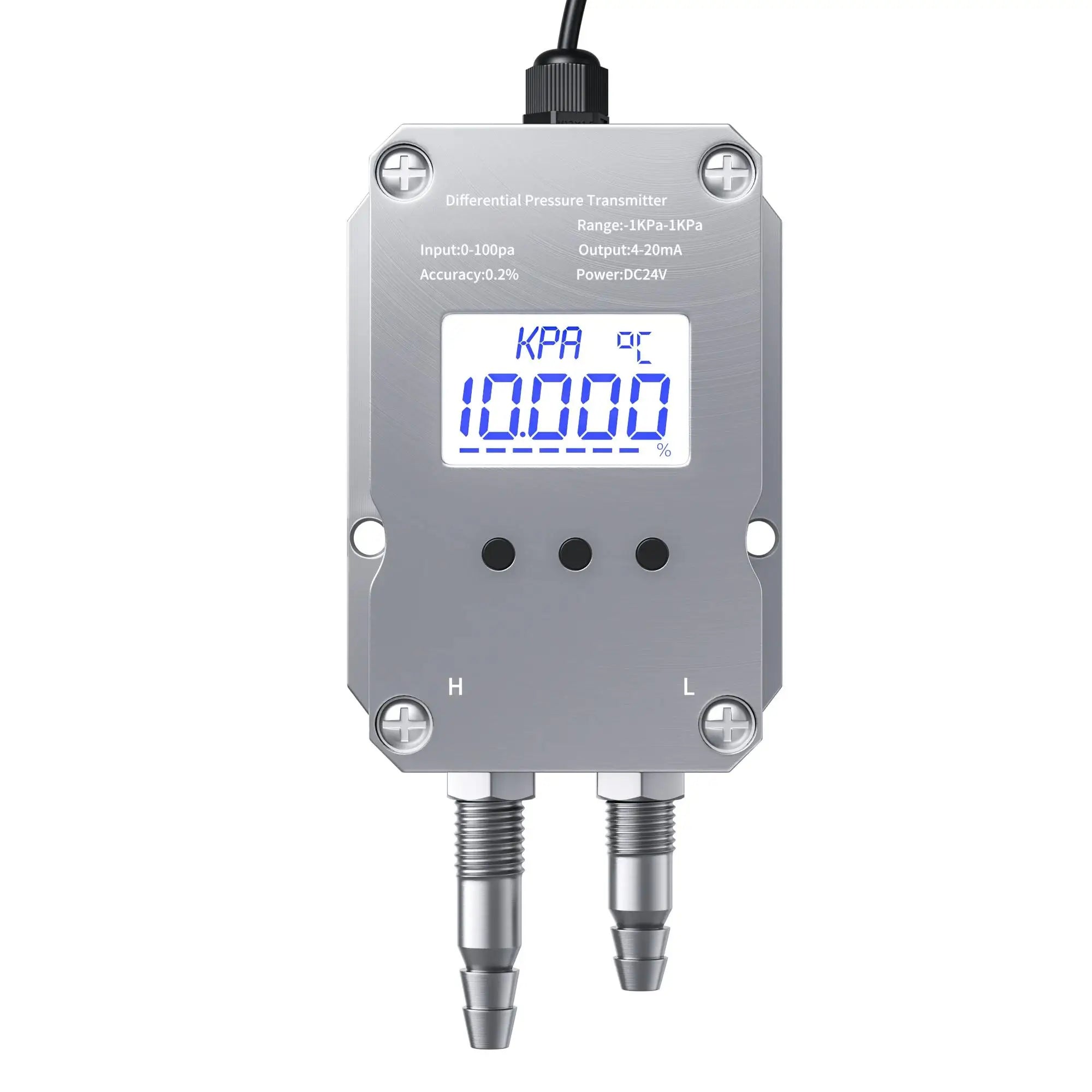

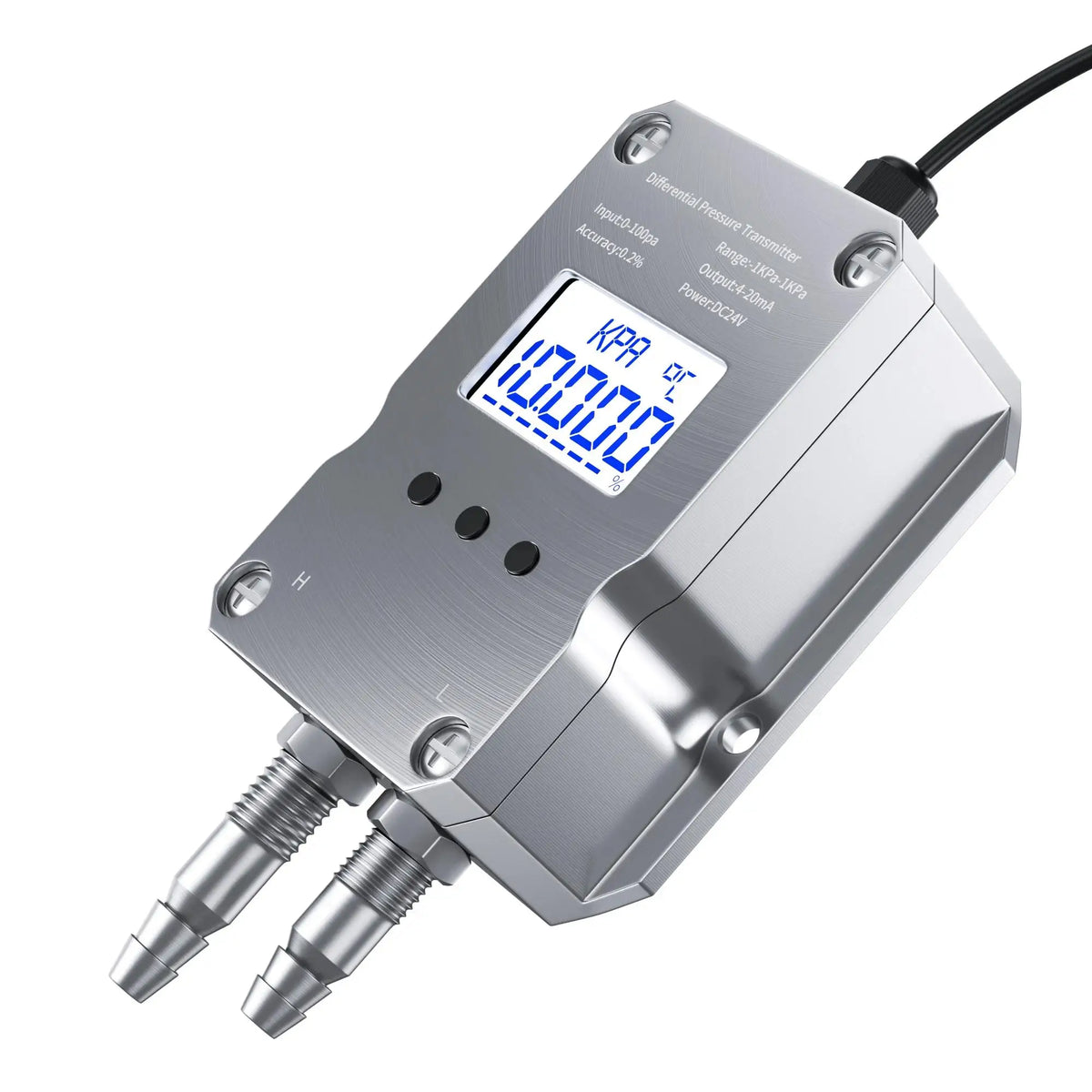

1>>. KEJUN130 differential air pressure transmitter is composed of high quality silicon piezoresistive differential pressure core and aluminium alloy shell, with 2 pressure interfaces M8 threaded and cock structures.It can be directly installed in the measuring pipeline or connected through the booster pipe, and can accurately measure the pressure and differential pressure of the gas.

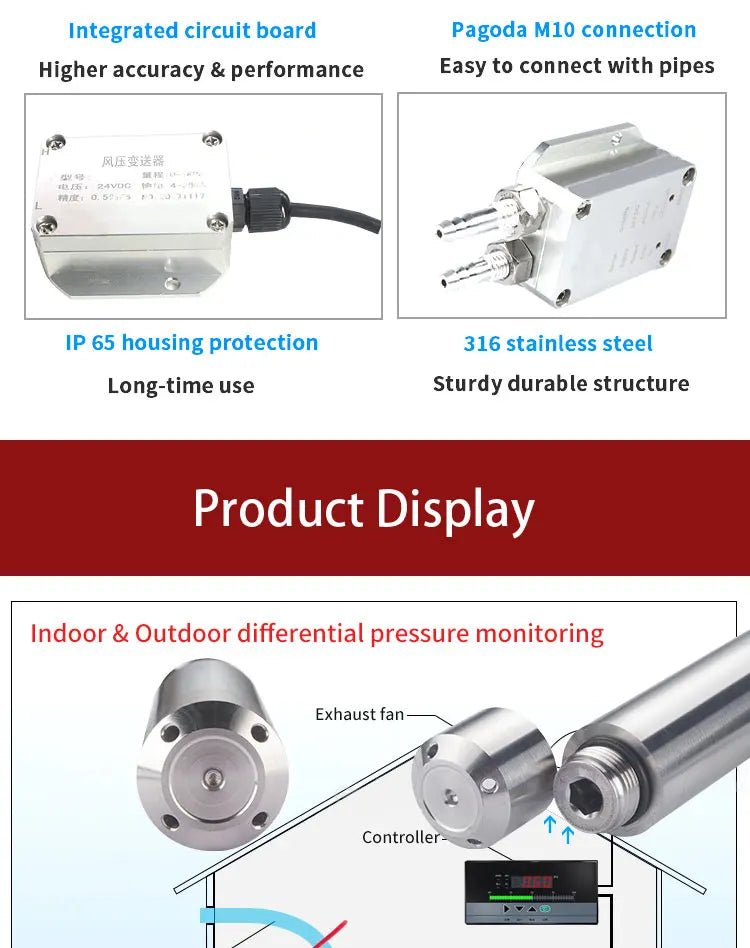

2>>. KEJUN130 differential pressure transmitter is widely used in the field of pressure process control in power and coal industry, such as boiler air supply and underground ventilation.

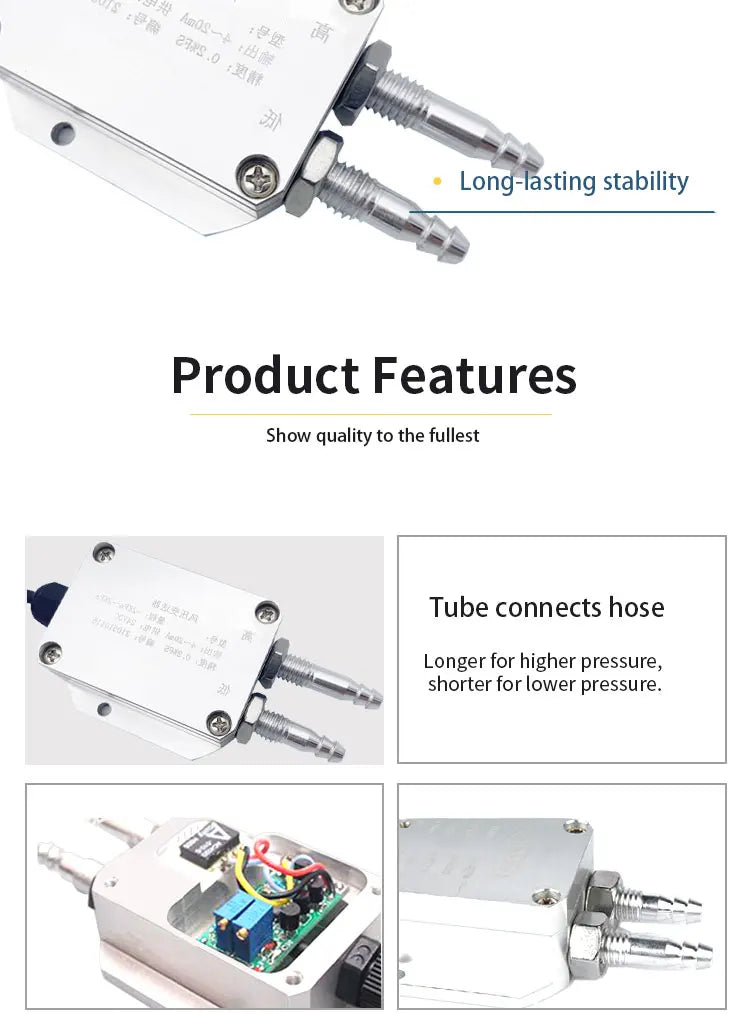

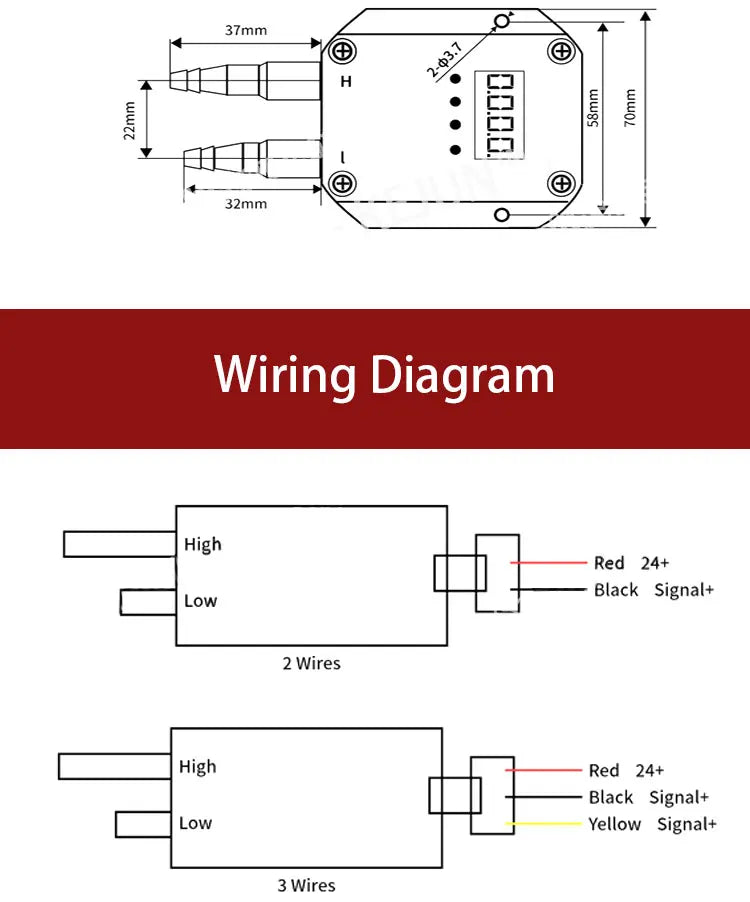

3>>. The long tube is the high pressure input port, while the short tube is the low pressure input port.
