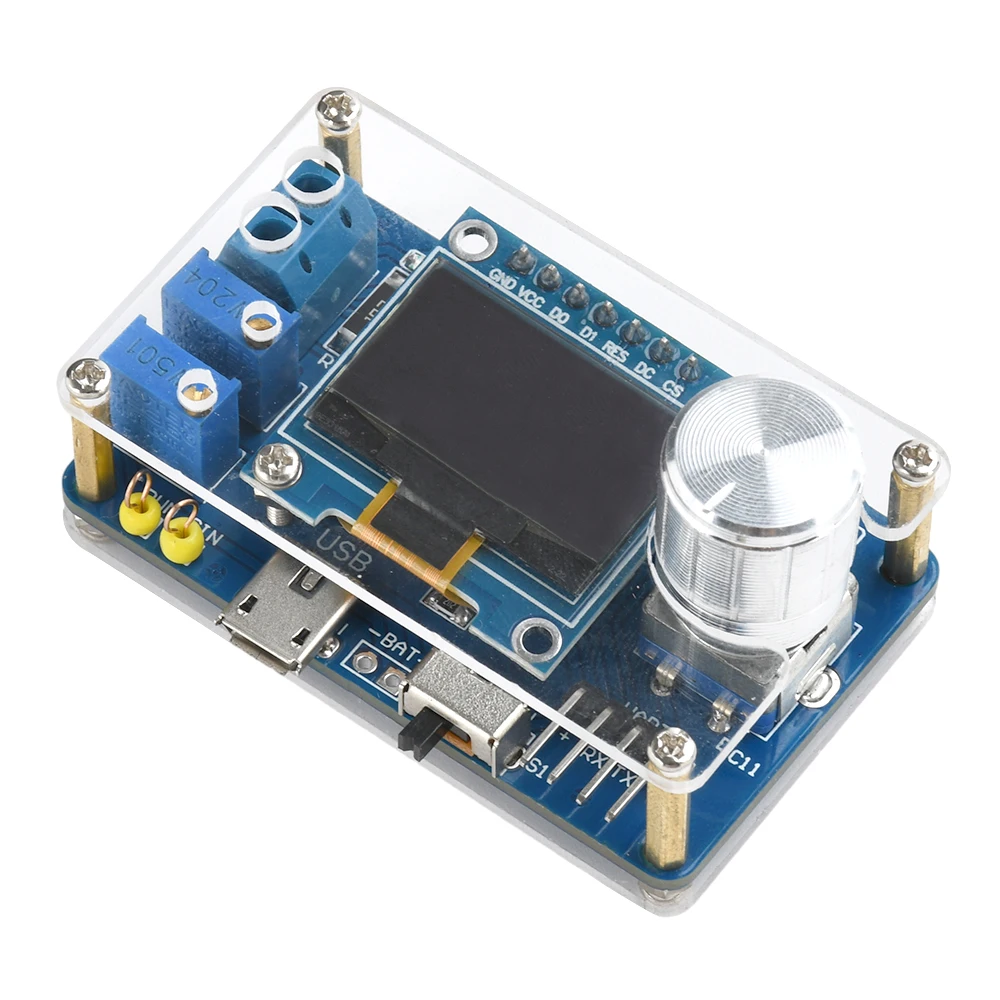

Digital DIY Oscilloscope Kit STC8K8A Microcontroller Electronic Component Soldering Practice Loose Parts
A
$37.28
Sale price
$37.28
Regular price
$0.00
Skip to product information
Digital DIY Oscilloscope Kit STC8K8A Microcontroller Electronic Component Soldering Practice Loose Parts
$37.28
Sale price
$37.28
Regular price
$0.00
Description
SPECIFICATIONS
Battery Included: no
Brand Name: Aideepen
Choice: yes
DIY Supplies: Electrical
Display Resolution: 128*64 Pixels
Display Size: 2.9 Inches & Under
High-concerned chemical: none
IS Battery Demountable: Yes
Model Number: Oscilloscope Kit
Origin: Mainland China
Semi-finishedproduct: No
semi_Choice: yes
Feature :

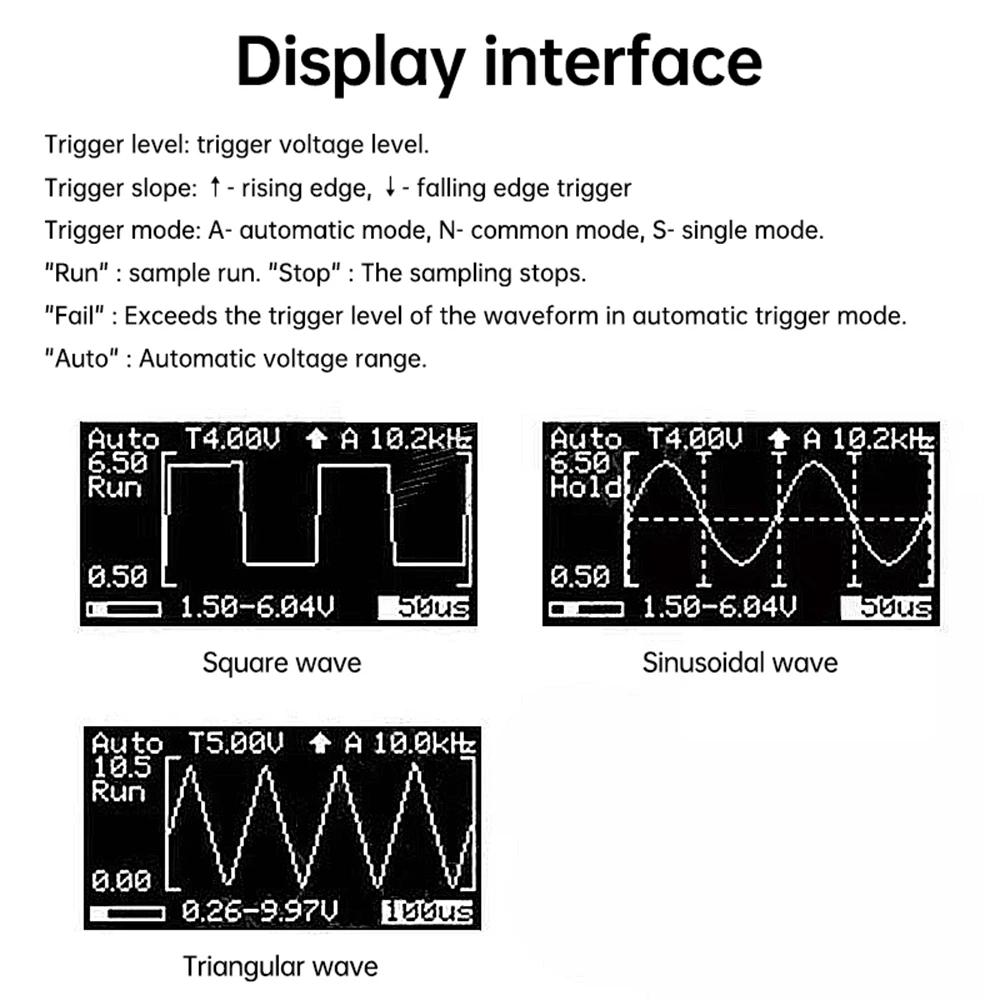

1. Indicator light: Usually the indicator light is on to indicate that sampling is running
2. There are three trigger modes: automatic mode, normal mode, and single mode

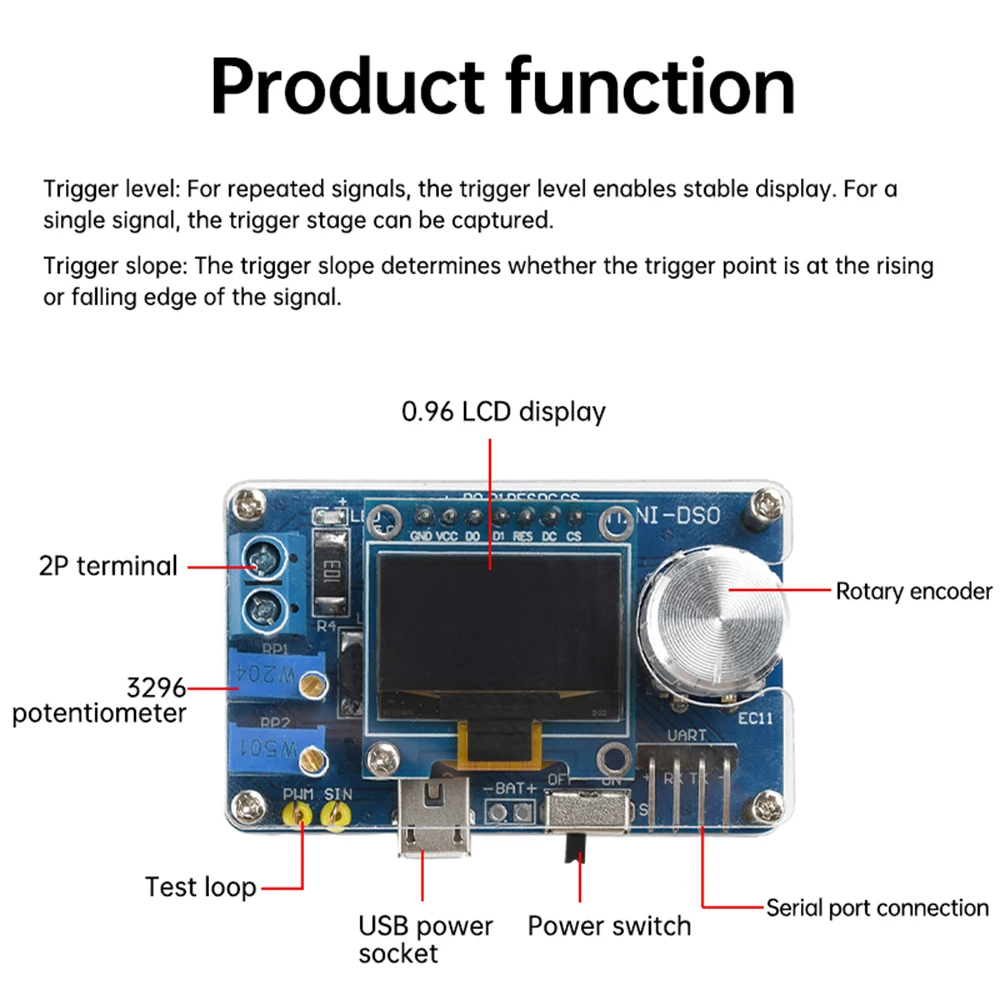

3. Trigger slope: The trigger slope determines whether the trigger point is on the rising or falling edge of the signal
4. Trigger level: For repetitive signals, the trigger level can make it display stably. For single-shot signals, the trigger level can capture
5. Save settings: When exiting the setting interface, all parameters of the setting interface and the main interface will be saved in the EEPROM
6. Waveform generator: PWM (PWM generator) and SIN (sine wave generator), adjust RP1 and RP2 to change the amplitude respectively
Product parameters:
Power supply voltage: DC 5V (micro usb)
Voltage range: 0~30V (LSB needs to be adjusted)
Level sampling: 10kHz@100us/div
Sec/div: 500ms, 200ms, 100ms, 50ms, 20ms,
10ms, 5ms, 2ms, 1ms, 500us, 200us, 100us

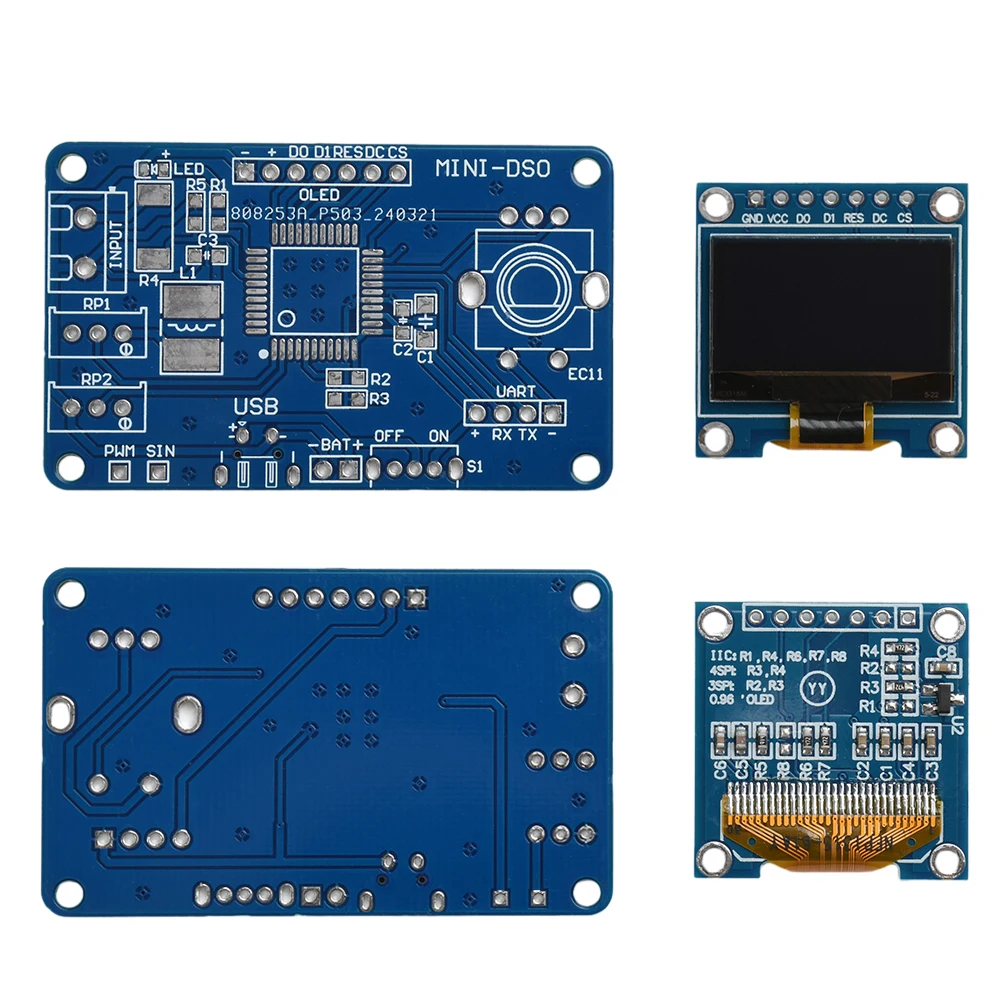

Circuit board size: 57*35mm
Finished product size: 57*35*30mm

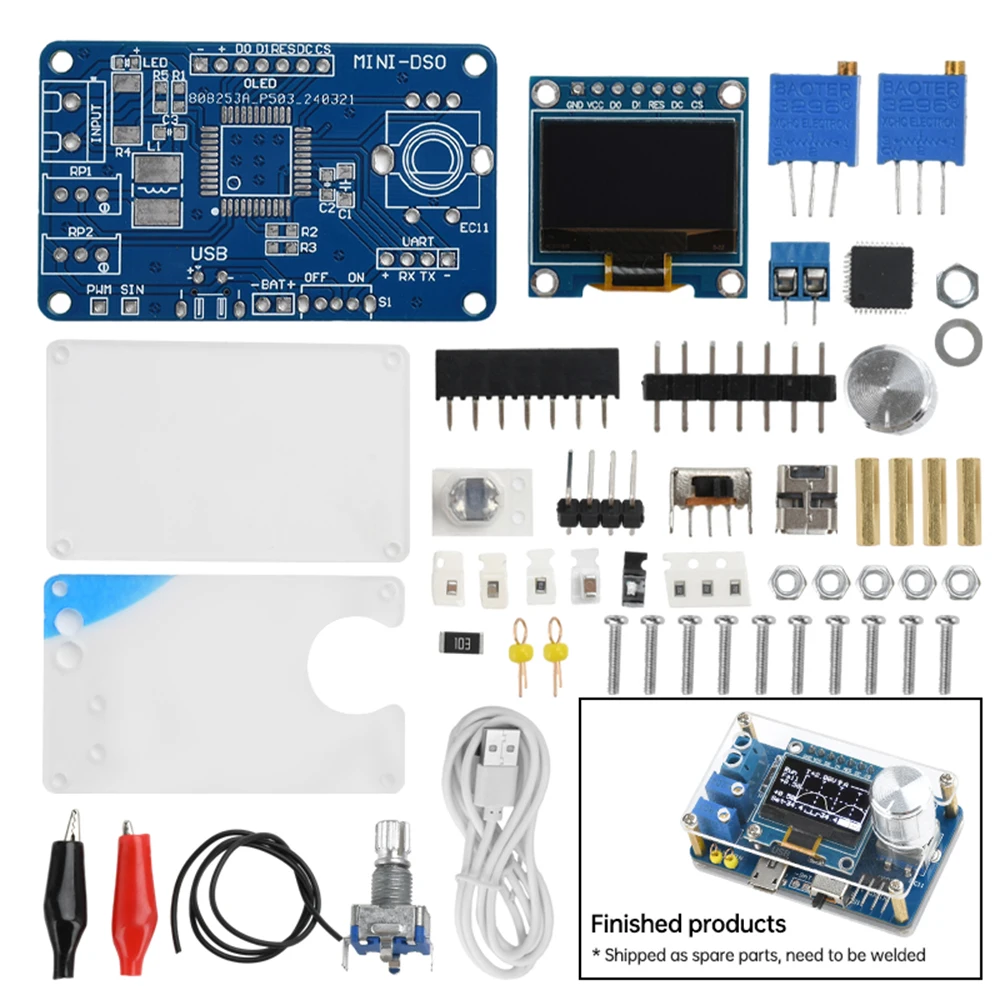

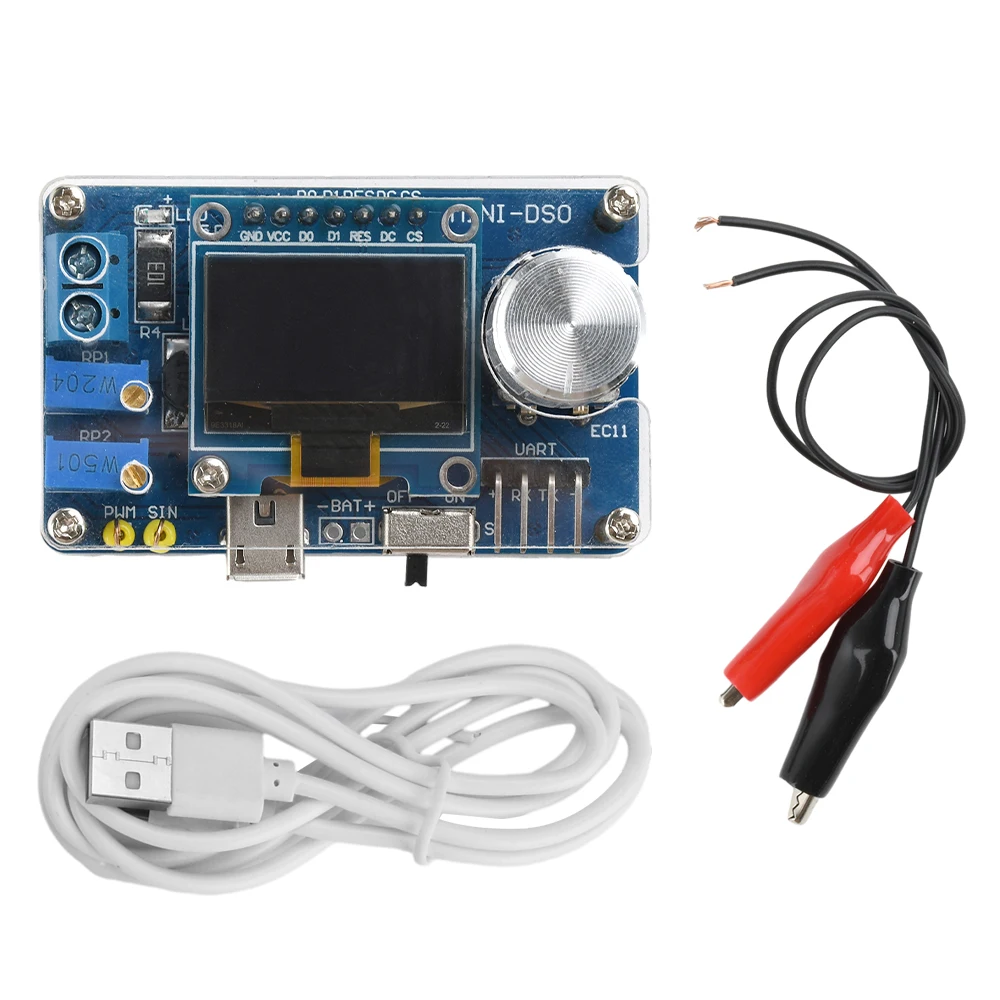

Package list:
DIY oscilloscope parts*1
