SPECIFICATIONS

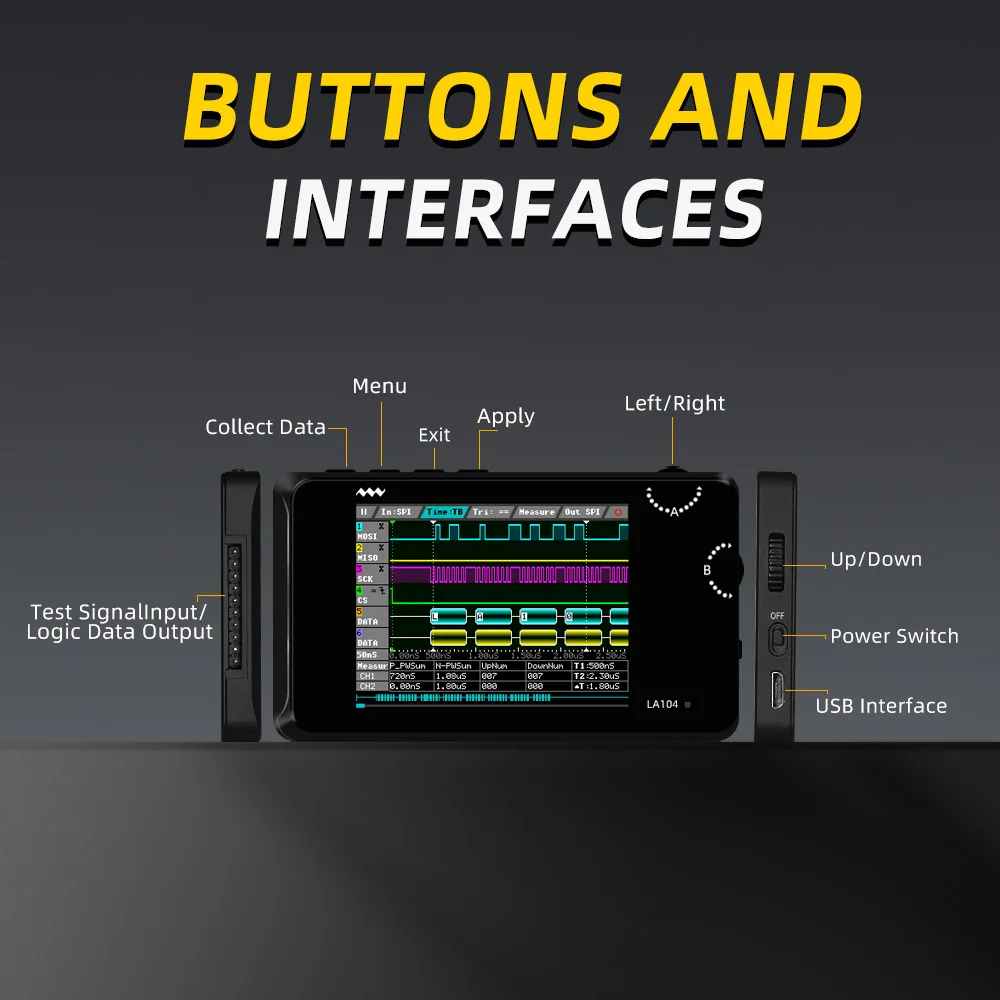

Features:

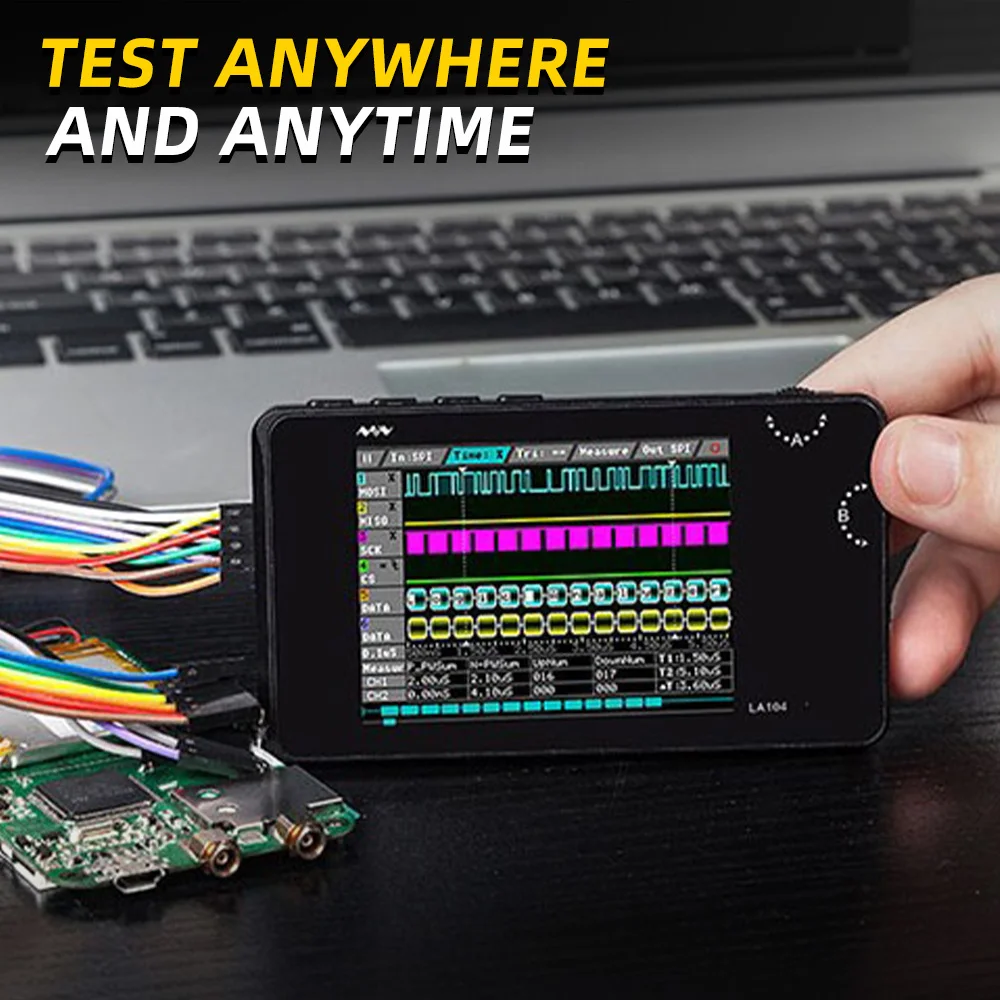

A logic analyzer is an instrument that analyzes the logical relationship of a digital system. It can collect and store multi-channel digital signals and visually display the timing relationships of these signals on the screen.

It also has protocol analysis function, which can parse the logic signal of protocol physical layer into high-level protocol data and display it.

2.8 inch TFT LCD screen makes reading data faster and easier.

Small and portable, easy to use and carry.

Can be widely used in automotive electronics, communications, power, computers and other industries and fields.

Specifications:

Material: ABS

Color: black

Input:

Channels: 4

Max. sampling rate: 100MHz

Minimum capture pulse width: 10ns

Input impedance: 1MΩ

Output:

Channels: 4

Mode: SPI, I2C, PWM

3V output channel: 1

Storage: 8MB USB flash disk memory

Screen size: 2.8"

Screen resolution: 320*240

Battery: 1 * lithium battery, 500mAh (included)

Environment temperature: 10~50℃

Environment humidity: 10~90%RH

Item size: 100 * 56 * 8.6mm / 3.9 * 2.2 * 0.3in

Item weight: 83g / 2.9ounce

Package size: 170 * 97 * 40mm / 6.69 *3.82 * 1.57in

Package weight: 210g / 7.4ounce

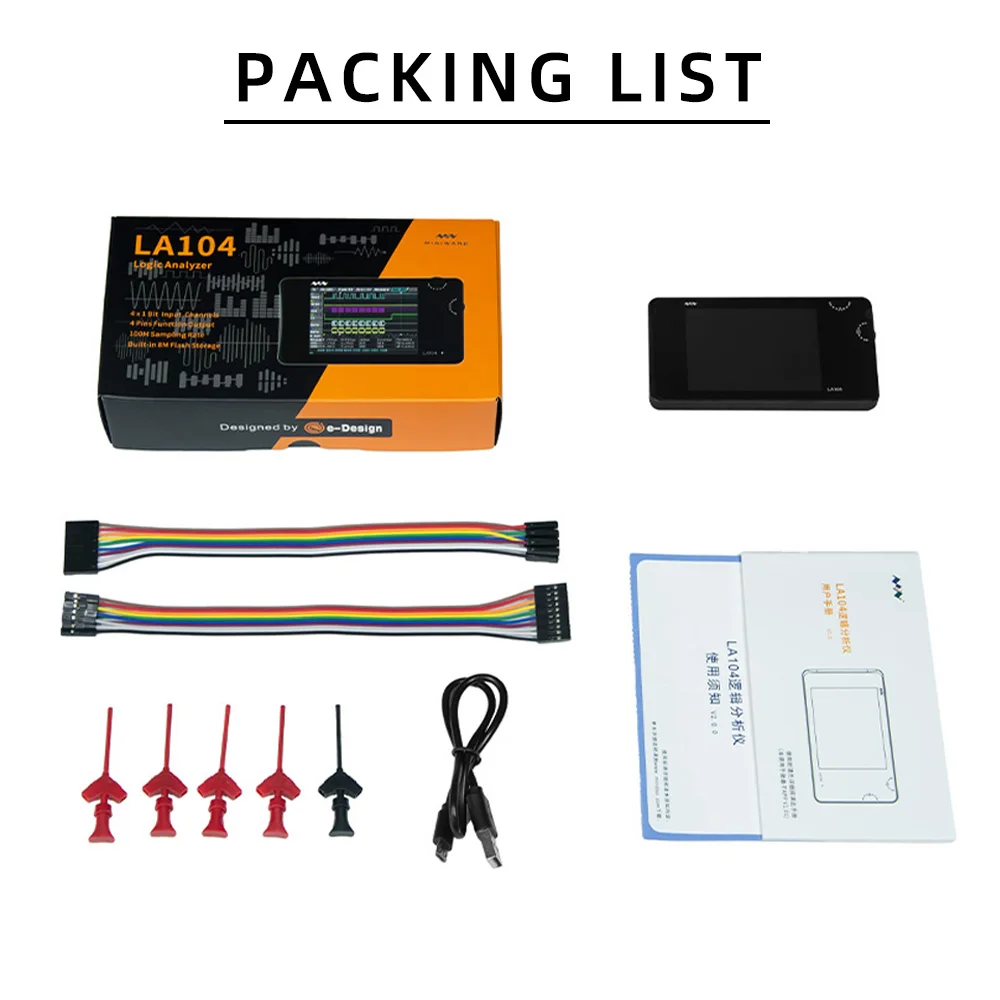

Package list:

1 * LA104 Logic Analyzer
