Digital Multimeter Voltage Tester Voltmeter SZ06 SZ308 TRMS 2000 Counts Auto-Ranging Ohm Volt Amp Meter Measuring AC/DC Voltage

Digital Multimeter Voltage Tester Voltmeter SZ06 SZ308 TRMS 2000 Counts Auto-Ranging Ohm Volt Amp Meter Measuring AC/DC Voltage

$34.32

$34.32 $0.00

Color SZ06-Red SZ06-Black SZ304 M113 Pink Brown Orange Red M118A

Description

SPECIFICATIONS

AC Current: Digital Multimeter Voltage Tester

AC Voltage: SZ06 Digital Multimeter

Battery Included: no

Brand Name: ANENG

Certification: NONE

Choice: yes

DC Current: Digital Multimeter Voltage Tester

DC Voltage: Digital Multimeter

DIY Supplies: Electrical

Data Record: No

Dimensions: Digital Multimeter Voltage Tester

Display Type: Digital Display

High-concerned chemical: none

Is Smart Device: no

Measuring Capacitance Range: Digital Multimeter Voltage Tester

Measuring Inductance Range: Digital Multimeter Voltage Tester

Measuring Resistance Range: Digital Multimeter Voltage Tester

Model Number: Digital Multimeter

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Semi-finishedproduct: No

semi_Choice: yes

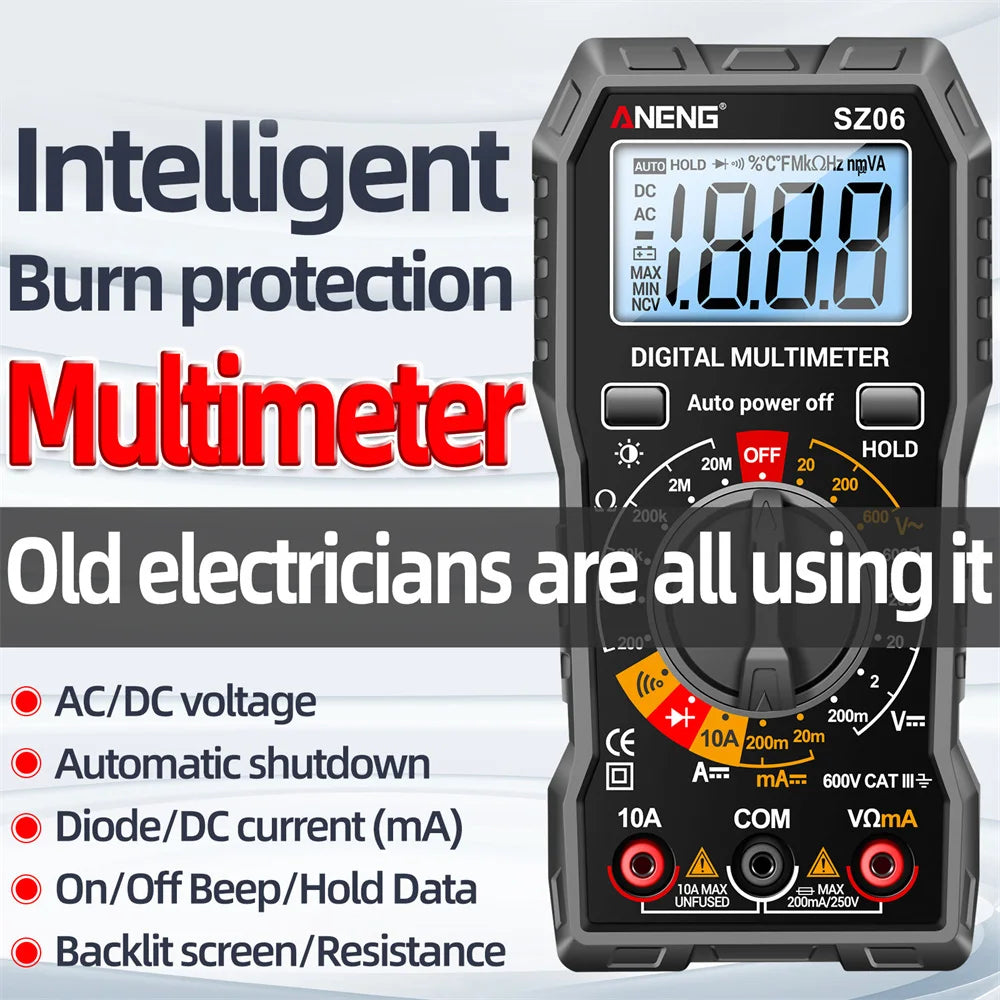

Features:

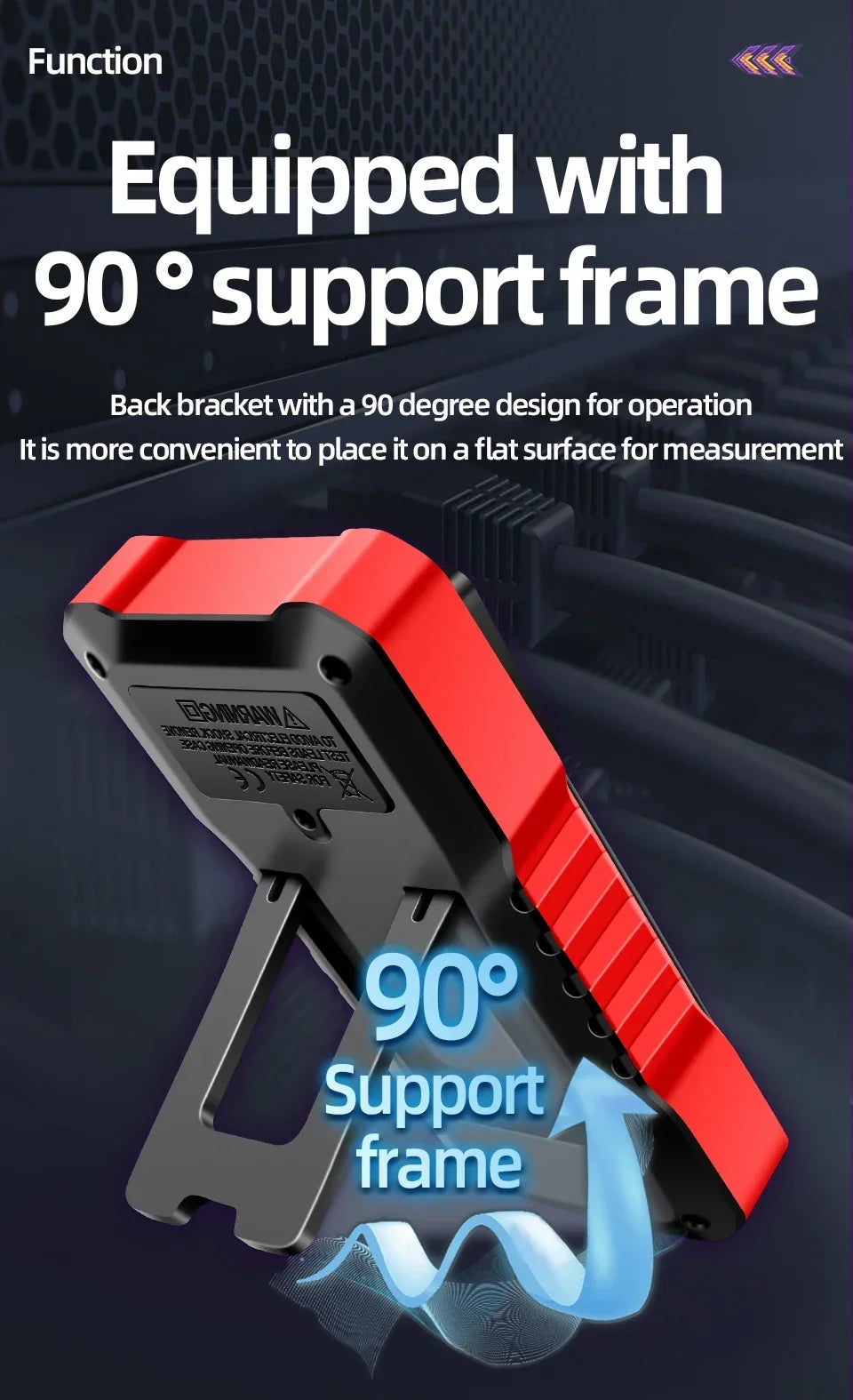

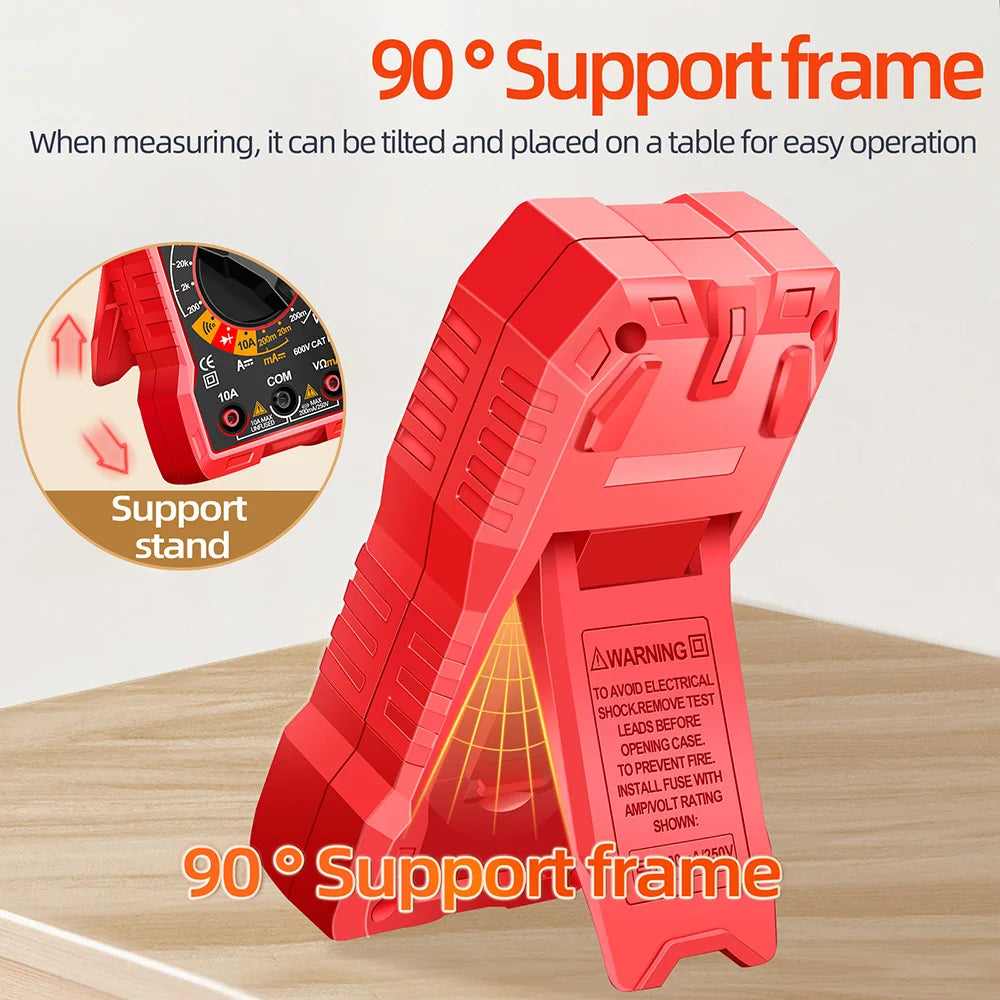

1.90 ° bracket support placement contraction: There is an extended support bracket on the back, which effectively supports the multimeter. When measuring, it can be tilted on the table for easy standing operation

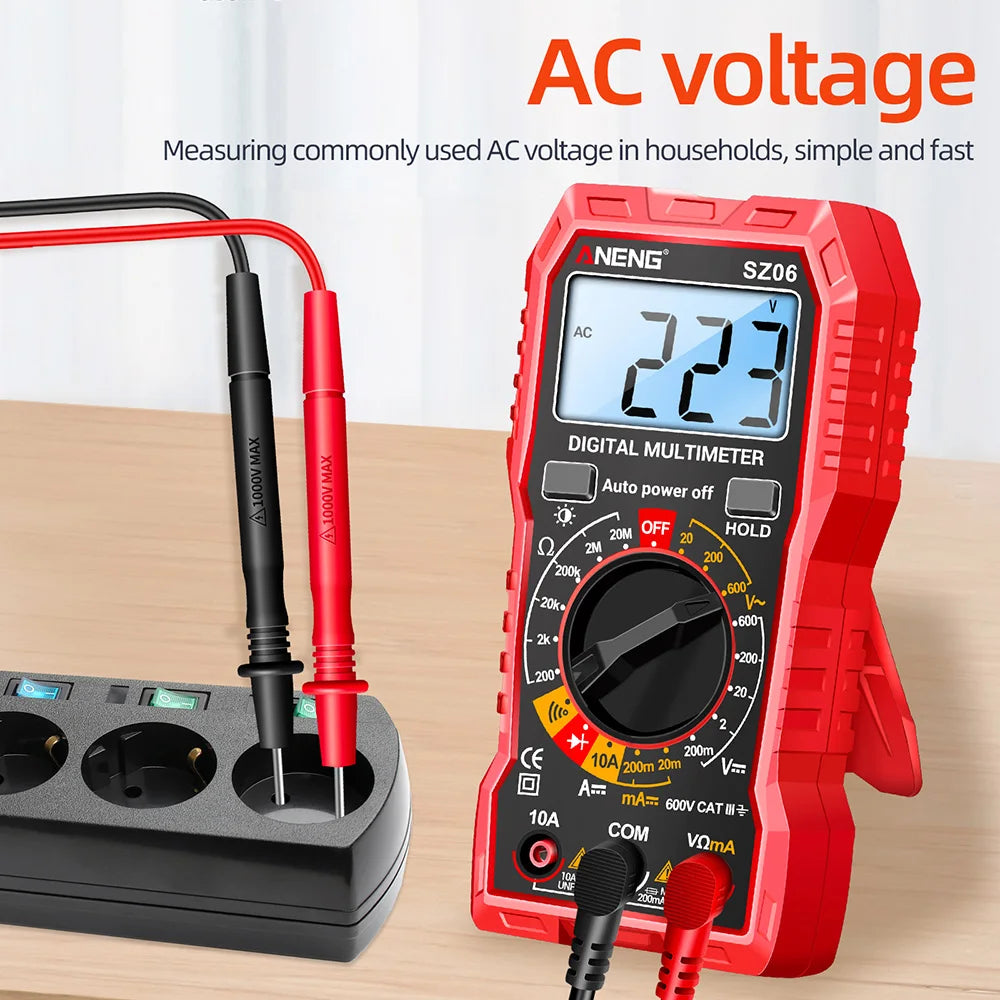

2. AC voltage measurement, simpler operation: Use a pen to measure the voltage range at home, commonly used AC voltage, easy to use, and fast measurement

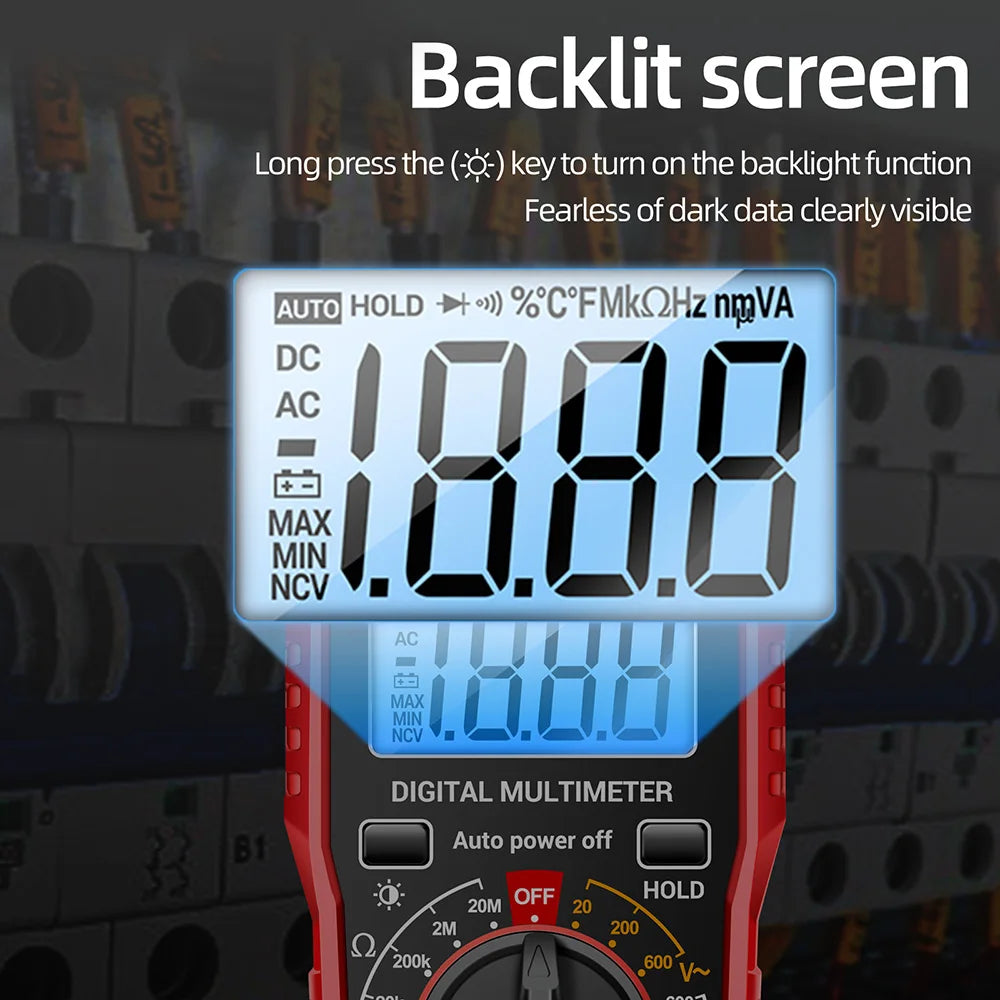

3. High definition backlight digital display: The backlight function is not afraid of darkness, and data is clearly visible

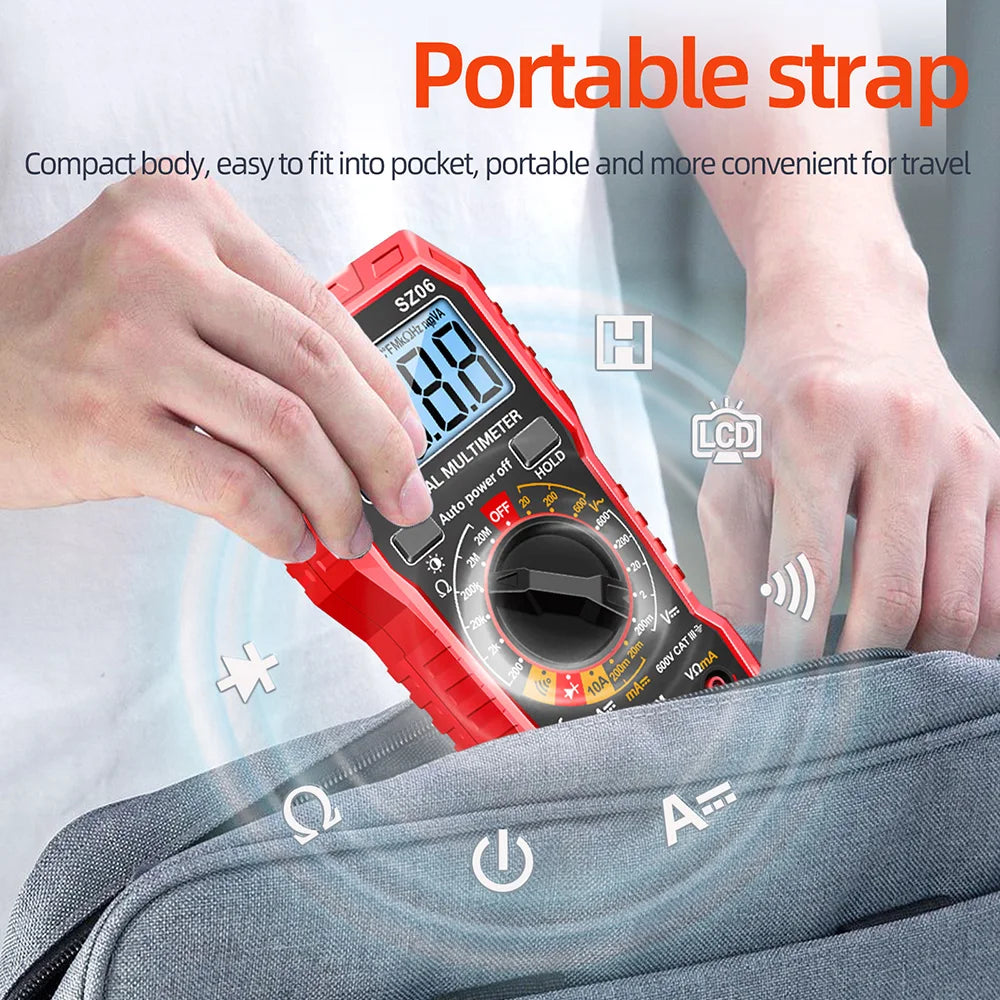

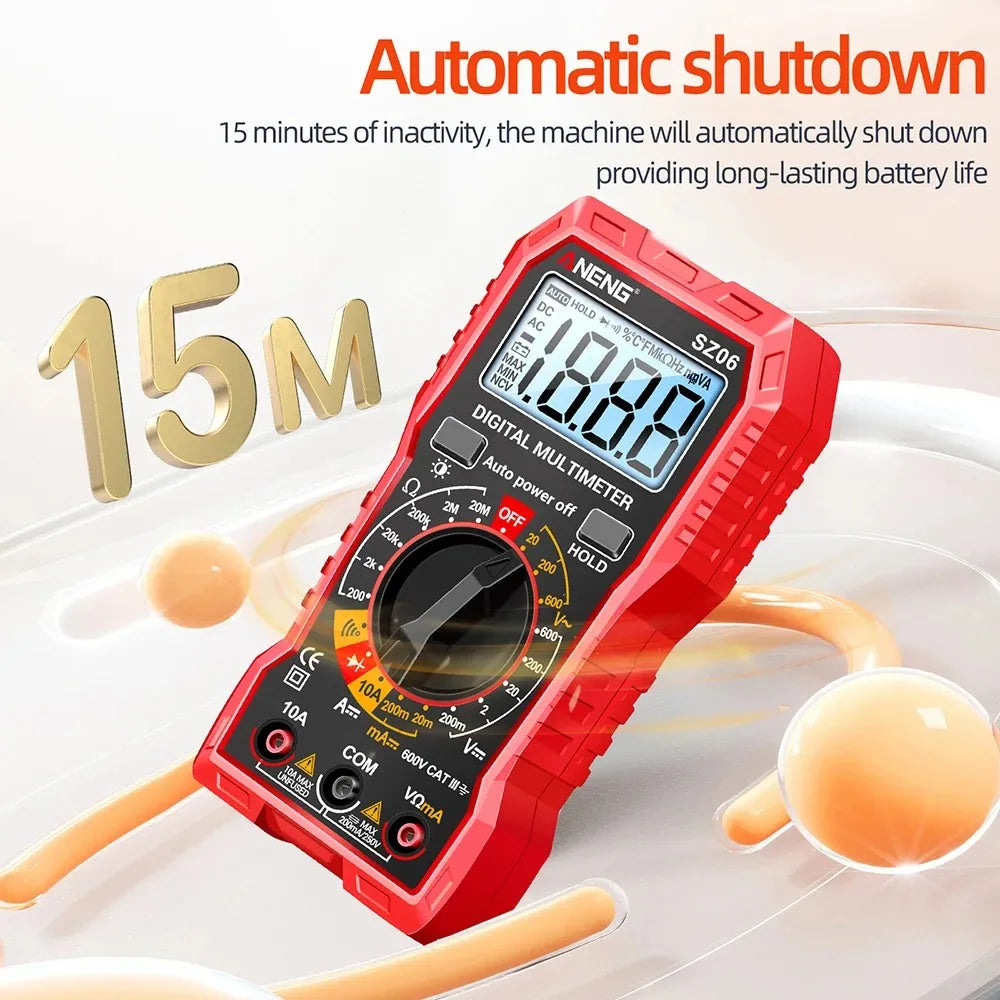

4. Automatic shutdown intelligent multimeter: compact body, easy to put into pocket, portable for travel, 15 minutes of no operation, the machine will automatically shut down, long-lasting battery life

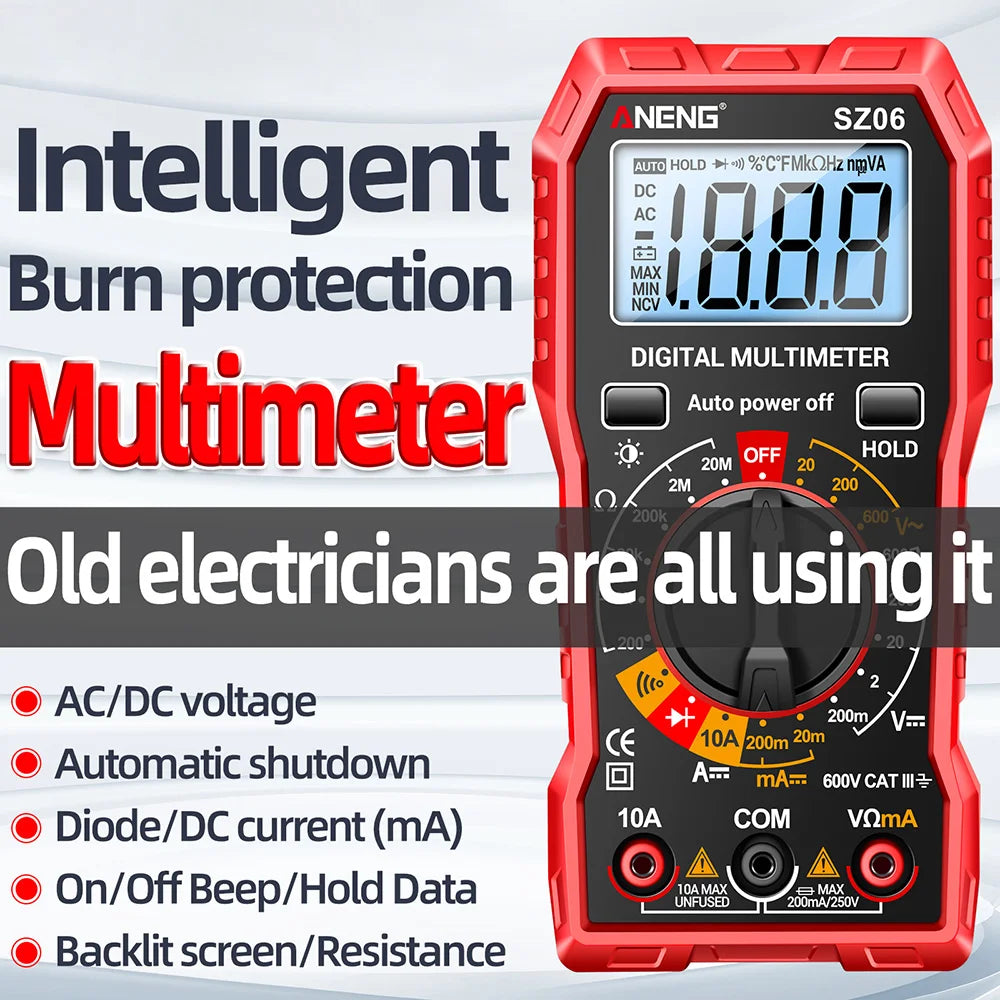

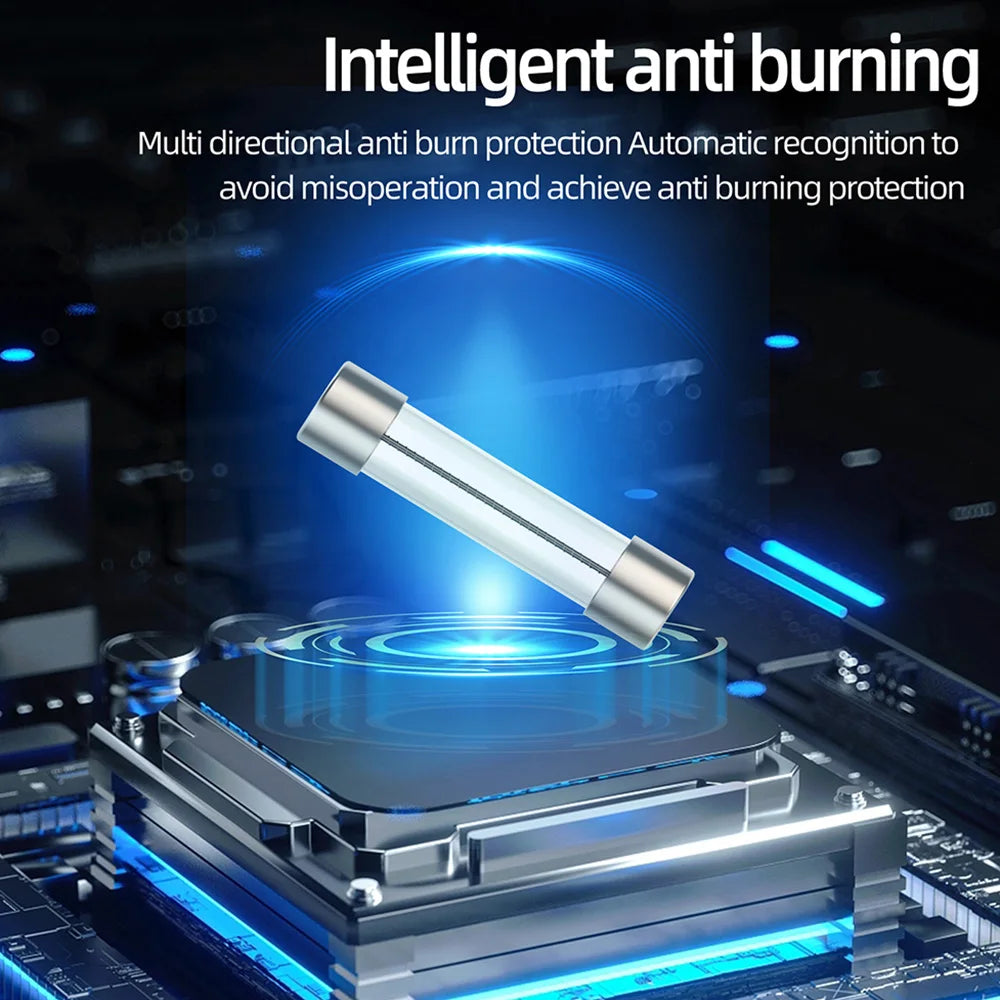

5. Anti burn safety tube overload protection is safer: built-in safety tube, multi-directional anti burn protection, automatic identification to avoid misoperation and achieve anti burn protection

Parameters:

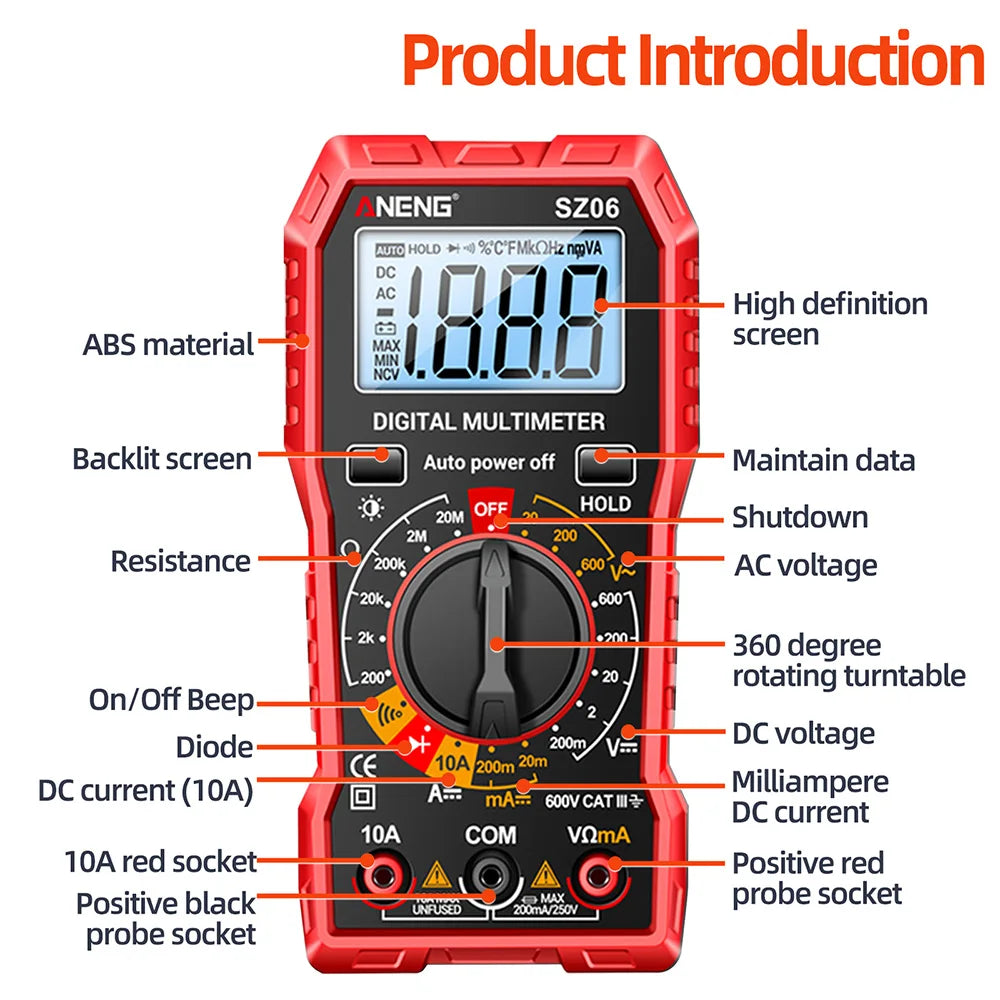

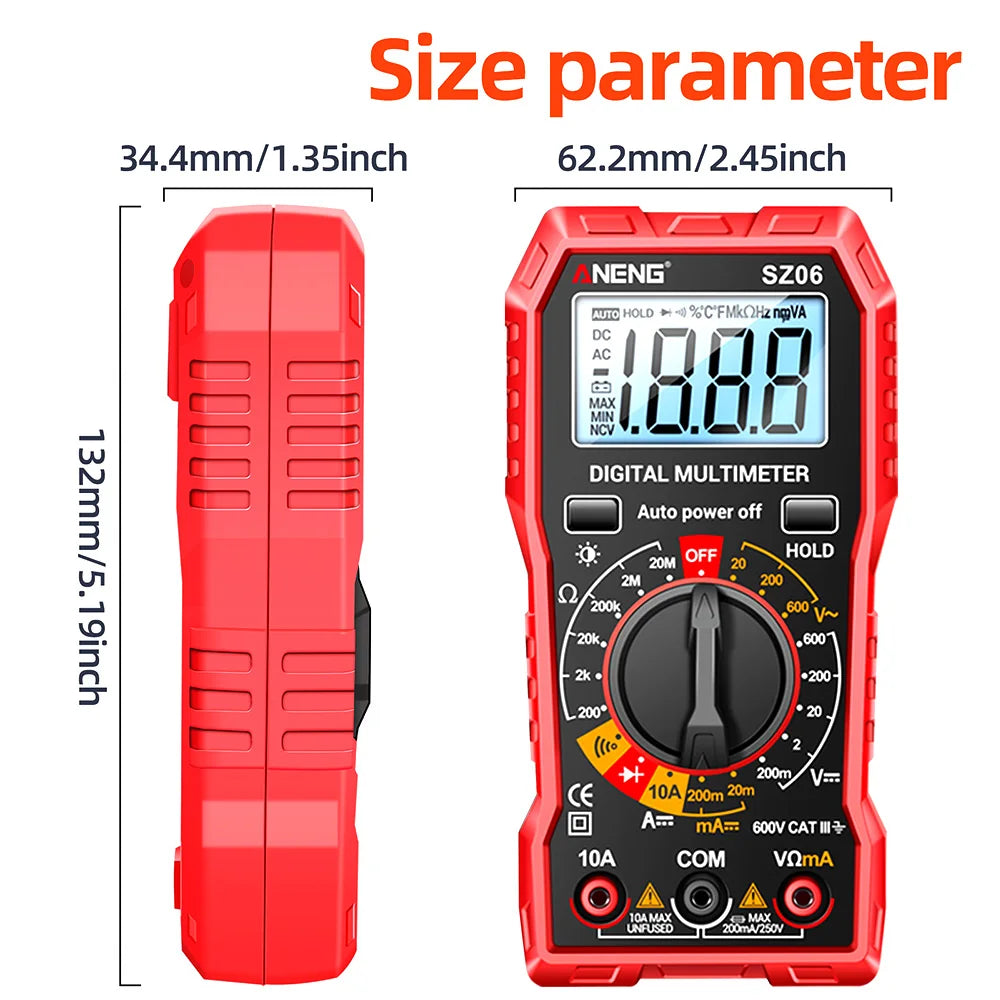

Model: SZ06
DC voltage: 200mV~600V
AC voltage: 20V~600V
DC current: 20mA~10A
Resistance: 0 Ω~20M Ω
Milliampere DC current: 20mA~200mA
Maximum count: 2000
Color: Red/Grey
On/Off Beep: √

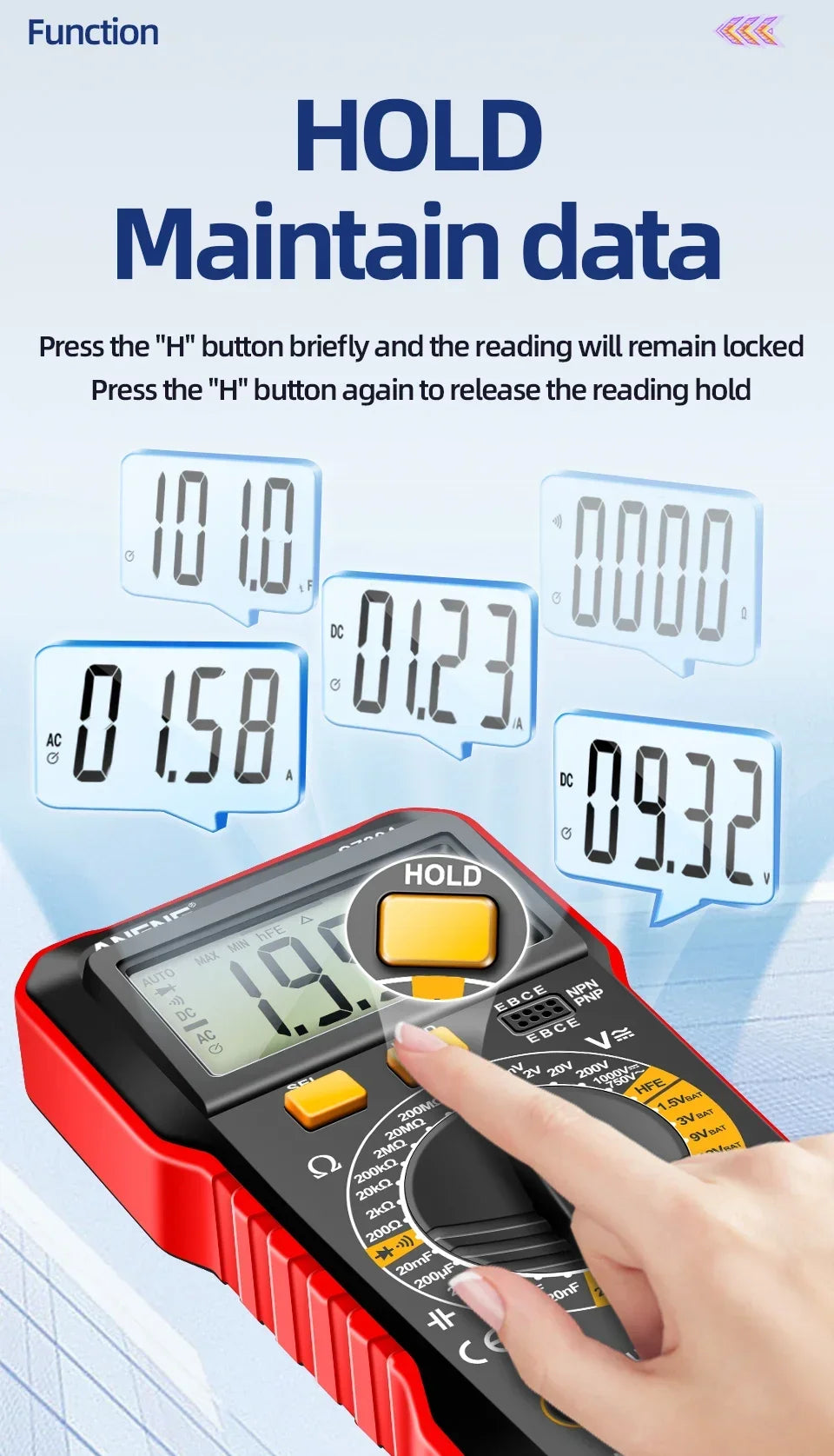

Maintain data: √
Automatic shutdown: √
Equipped with support frame: √
Diode: √
Backlit screen: √
Safety tube: √
Pen line length: 88cm
Product material: ABS

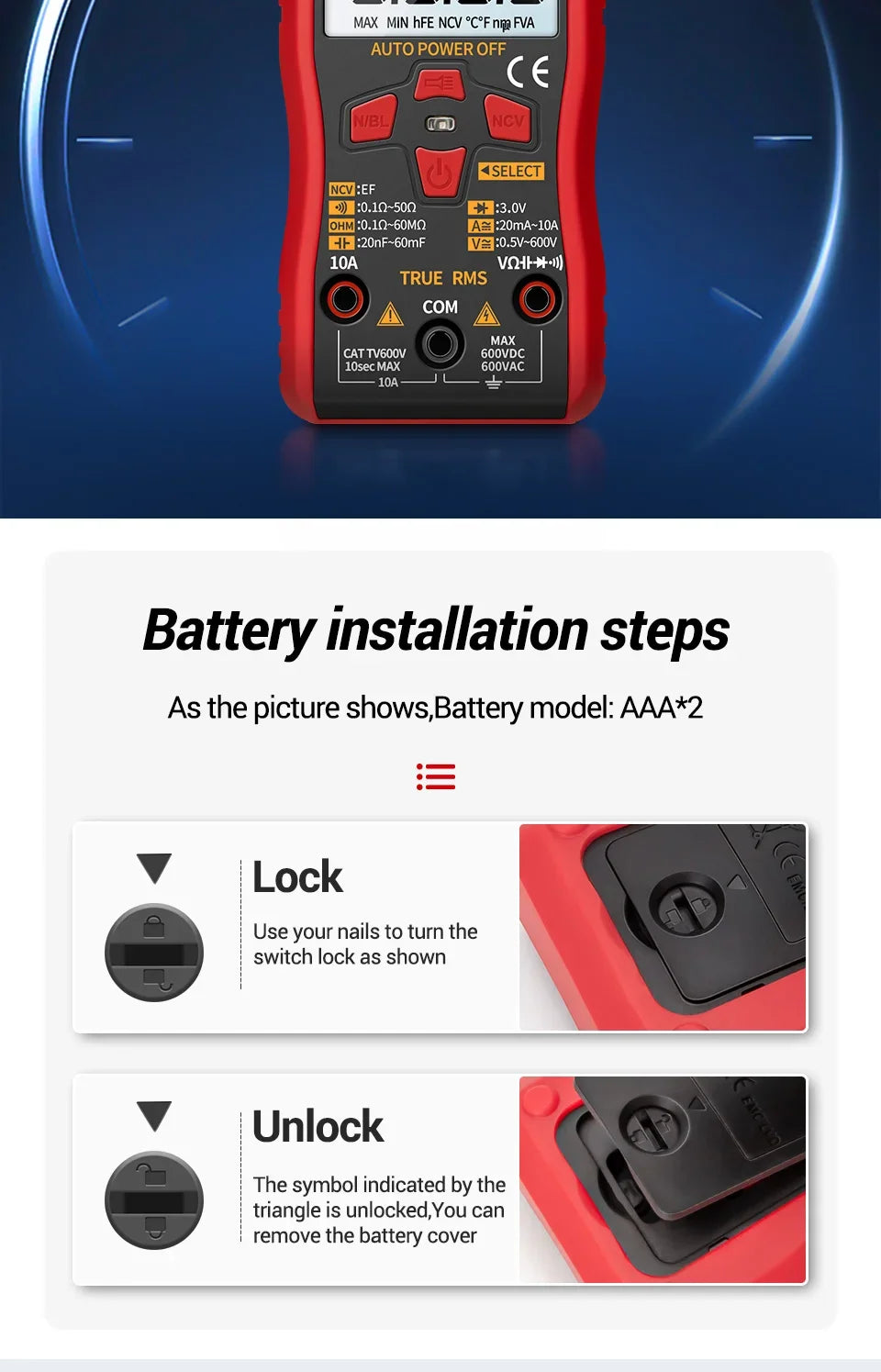

Battery: 2 * AAA (shipped without battery)

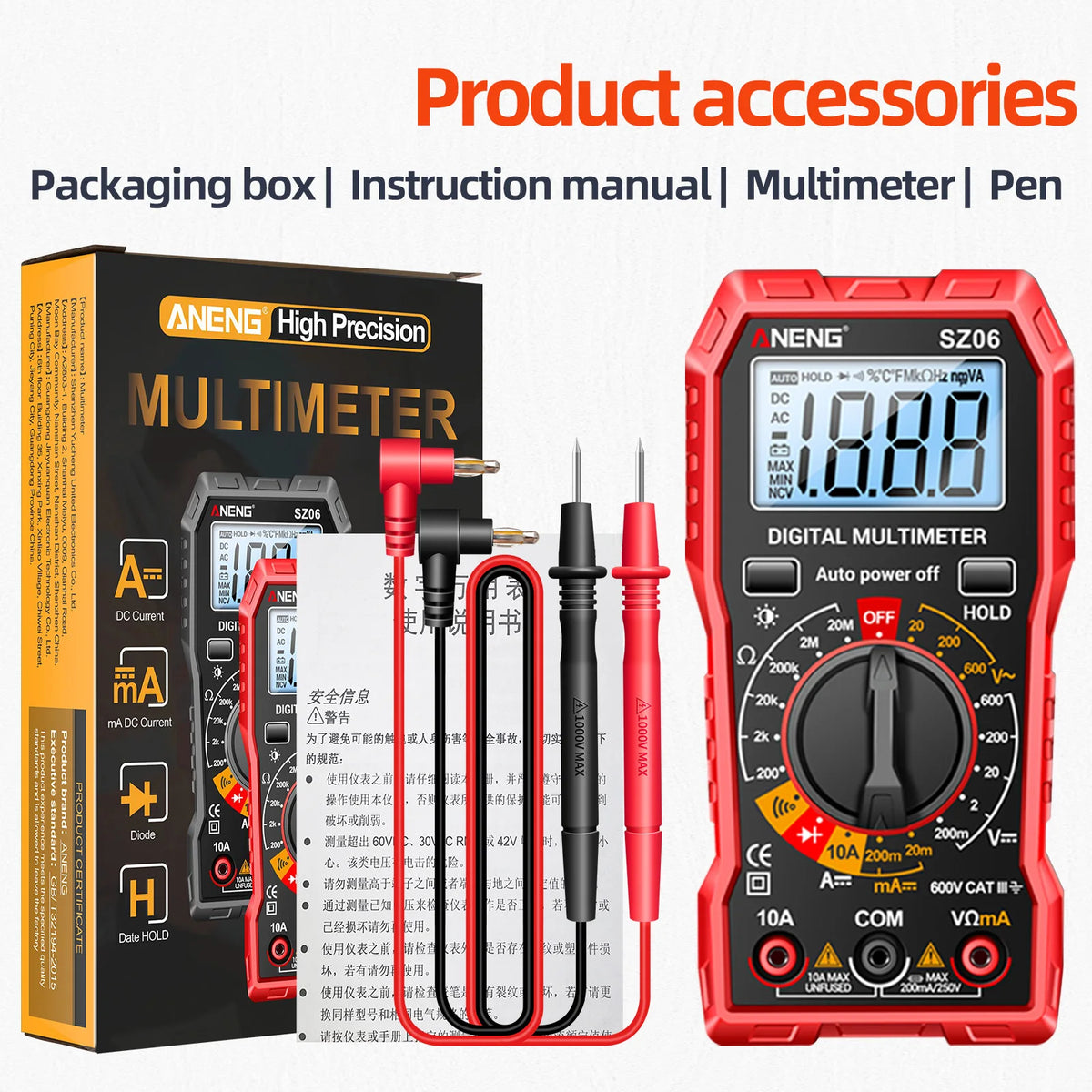

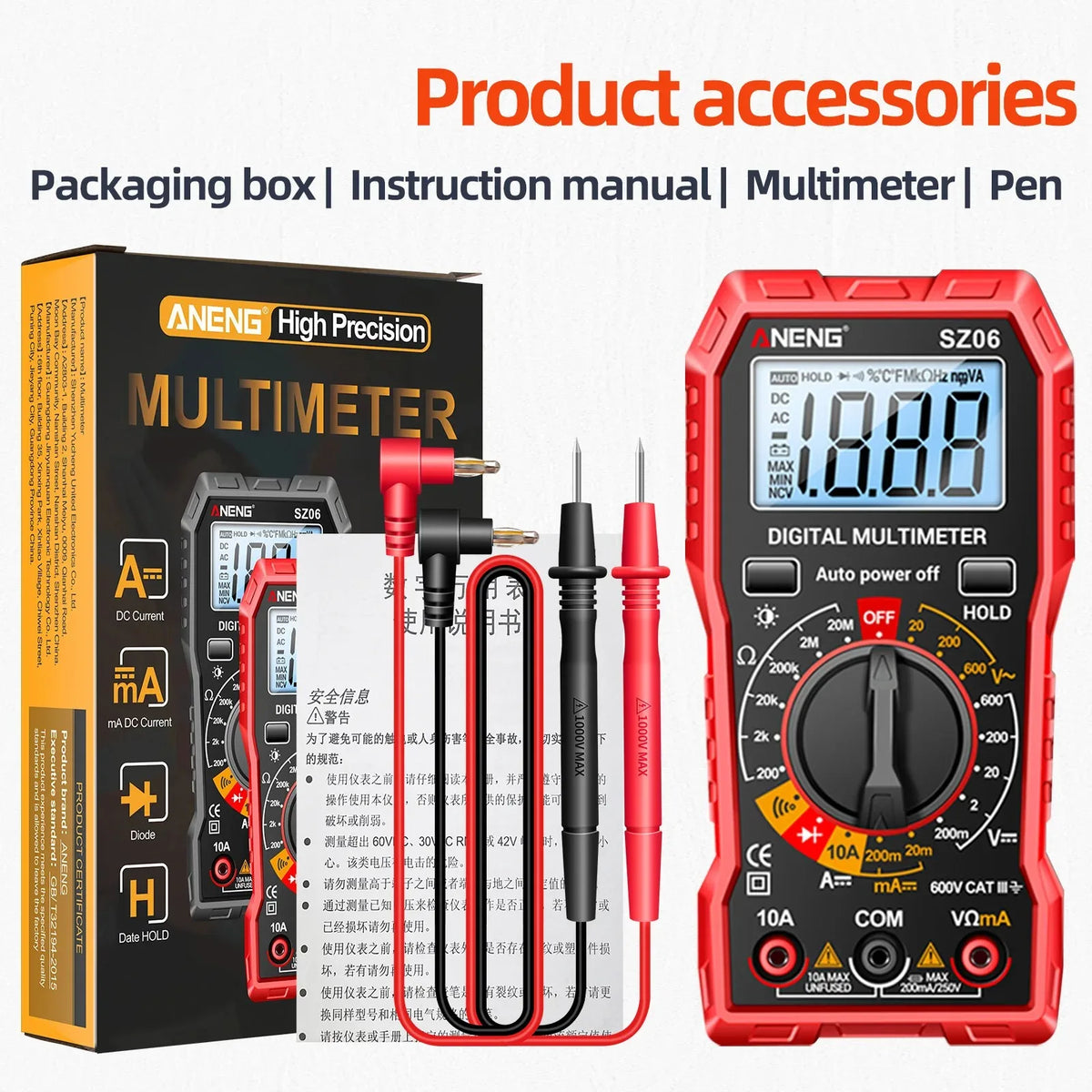

Package include:

Paper box packaging
Host * 1
Instructions * 1
Pen * 1

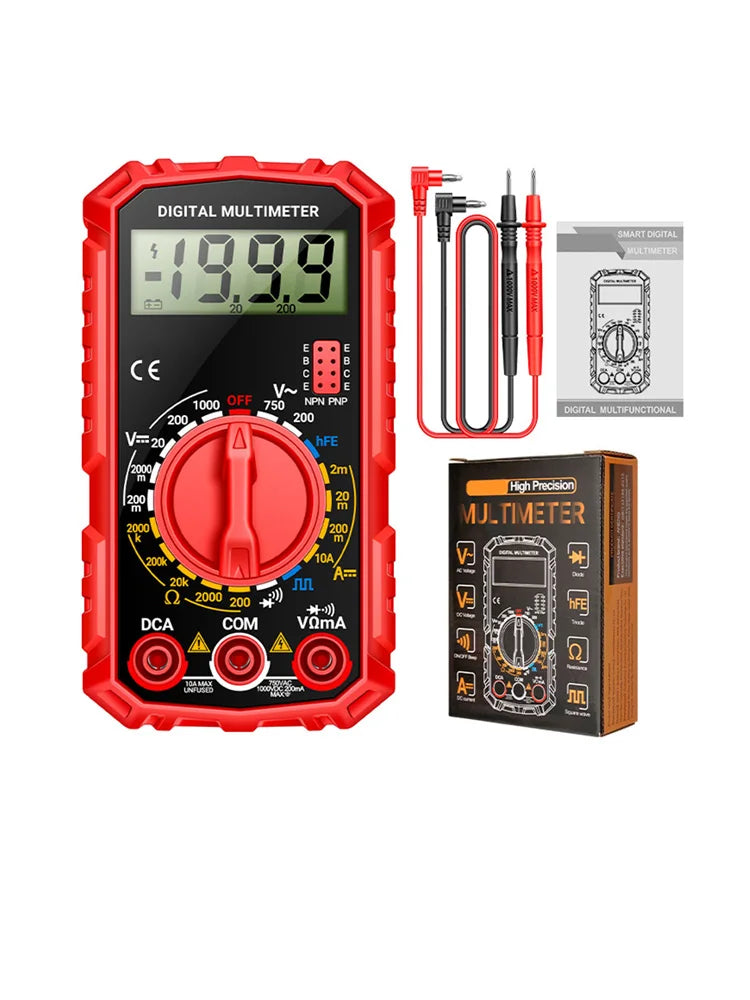

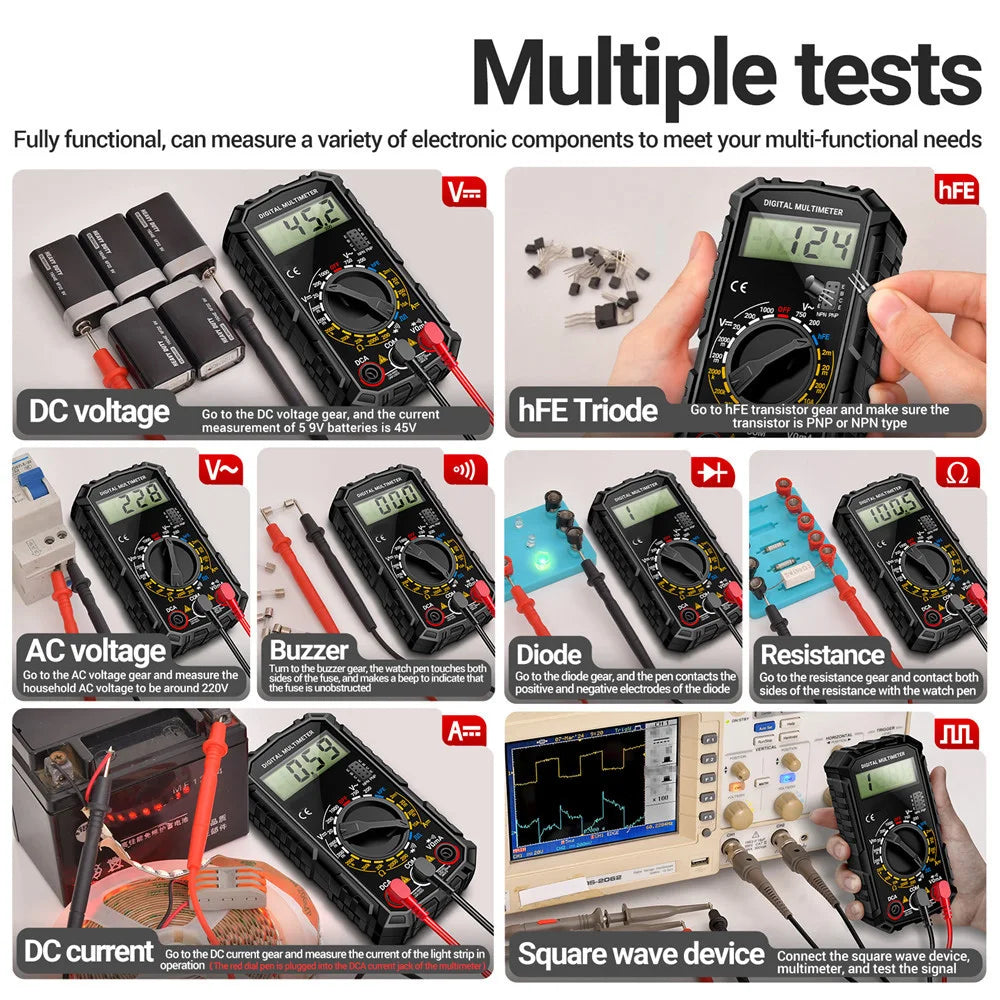

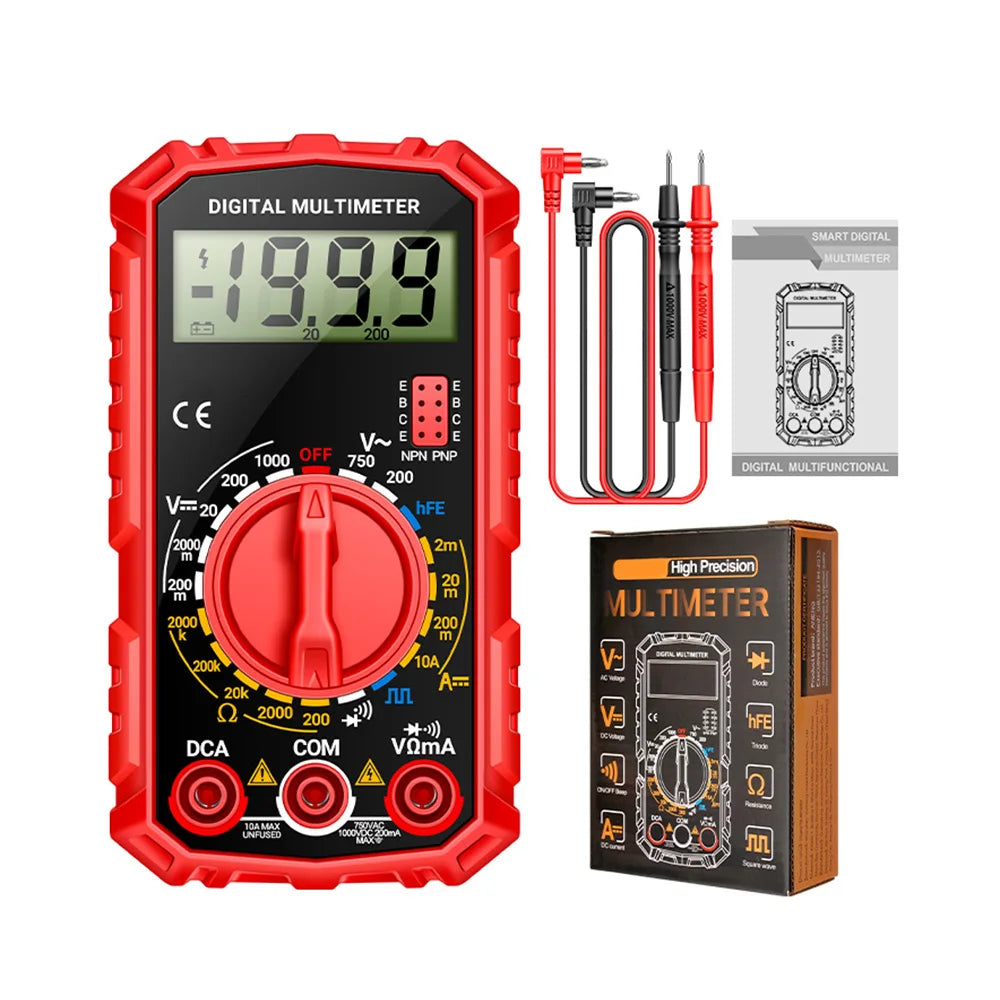

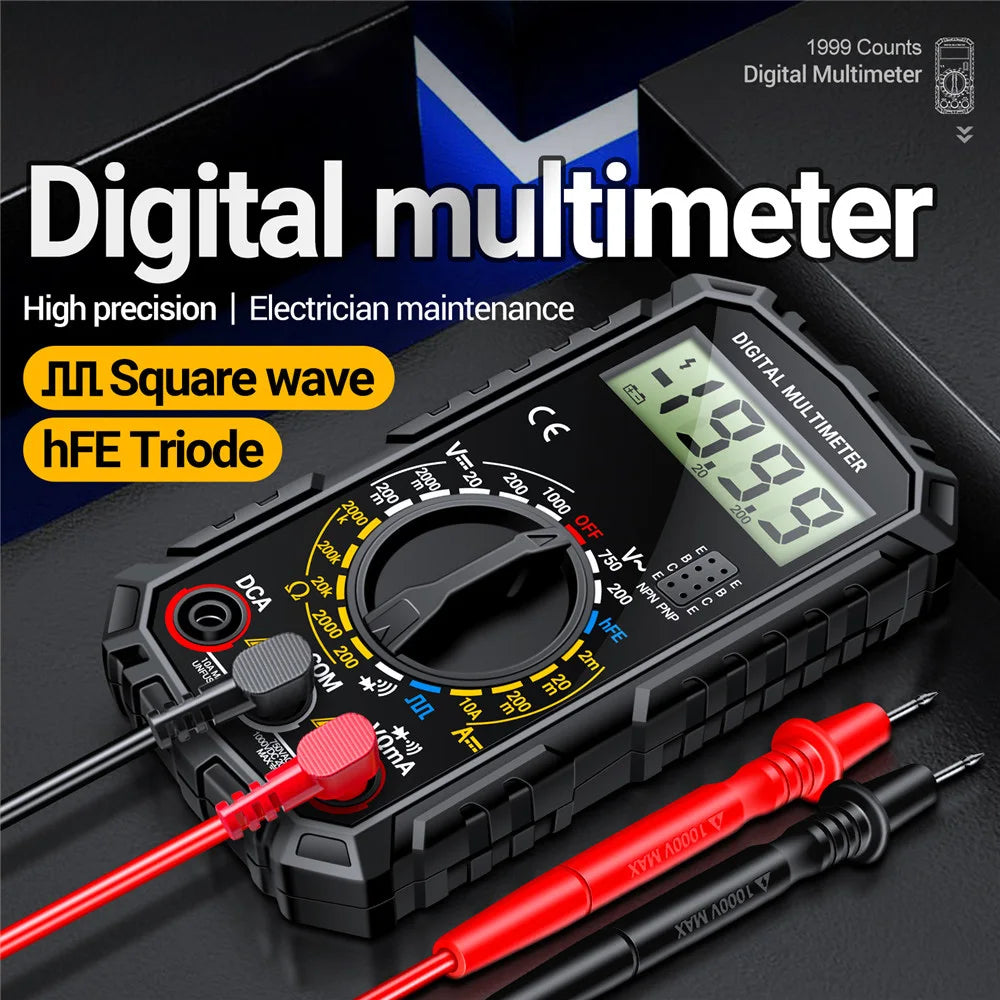

feature:
1. Applicable to multiple scenarios: to meet your needs in multiple scenarios, electronic component maintenance and testing

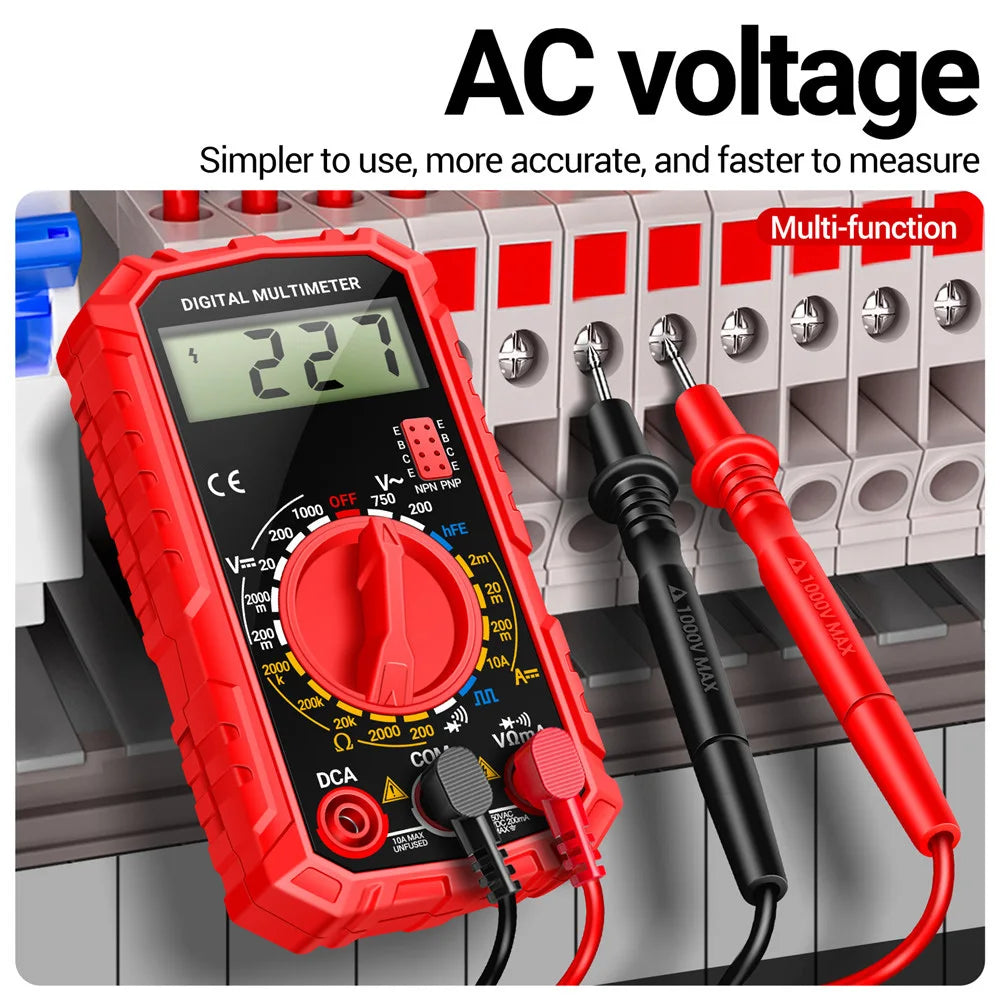

2. AC voltage measurement: easier to use, higher precision, and faster measurement

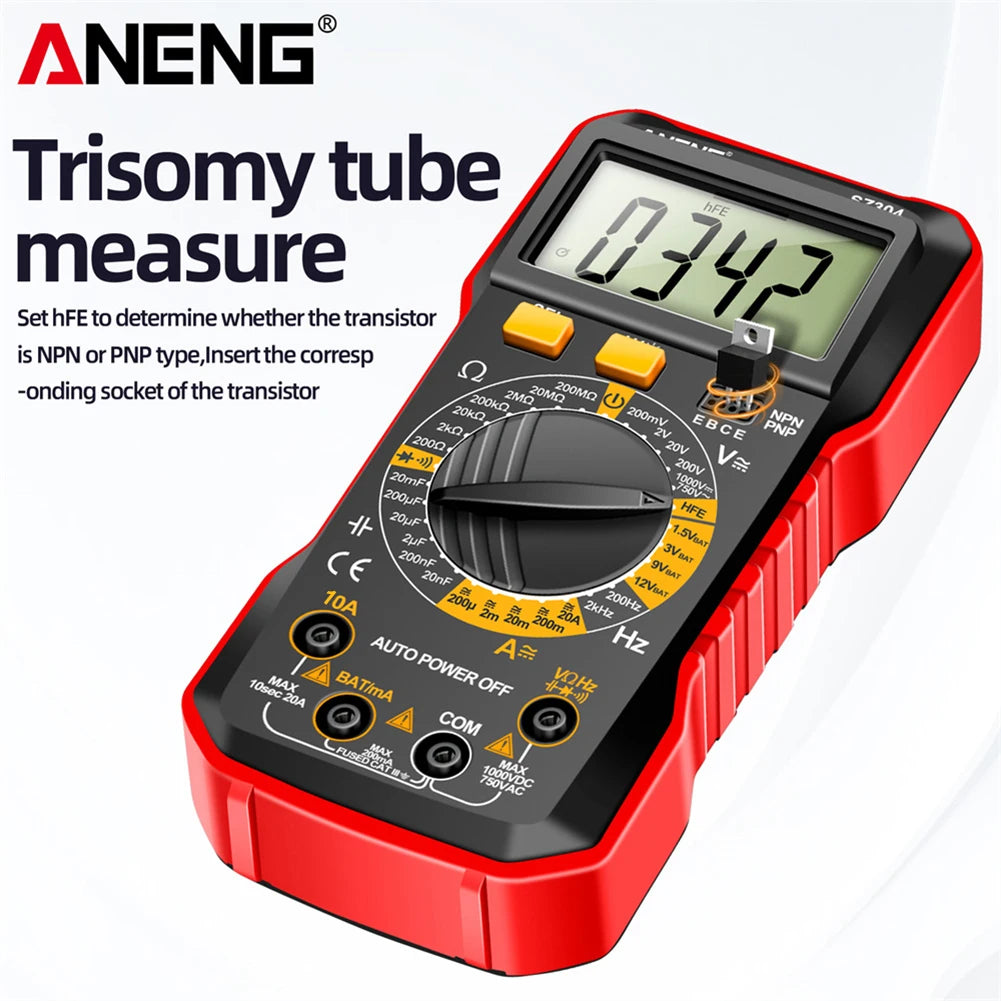

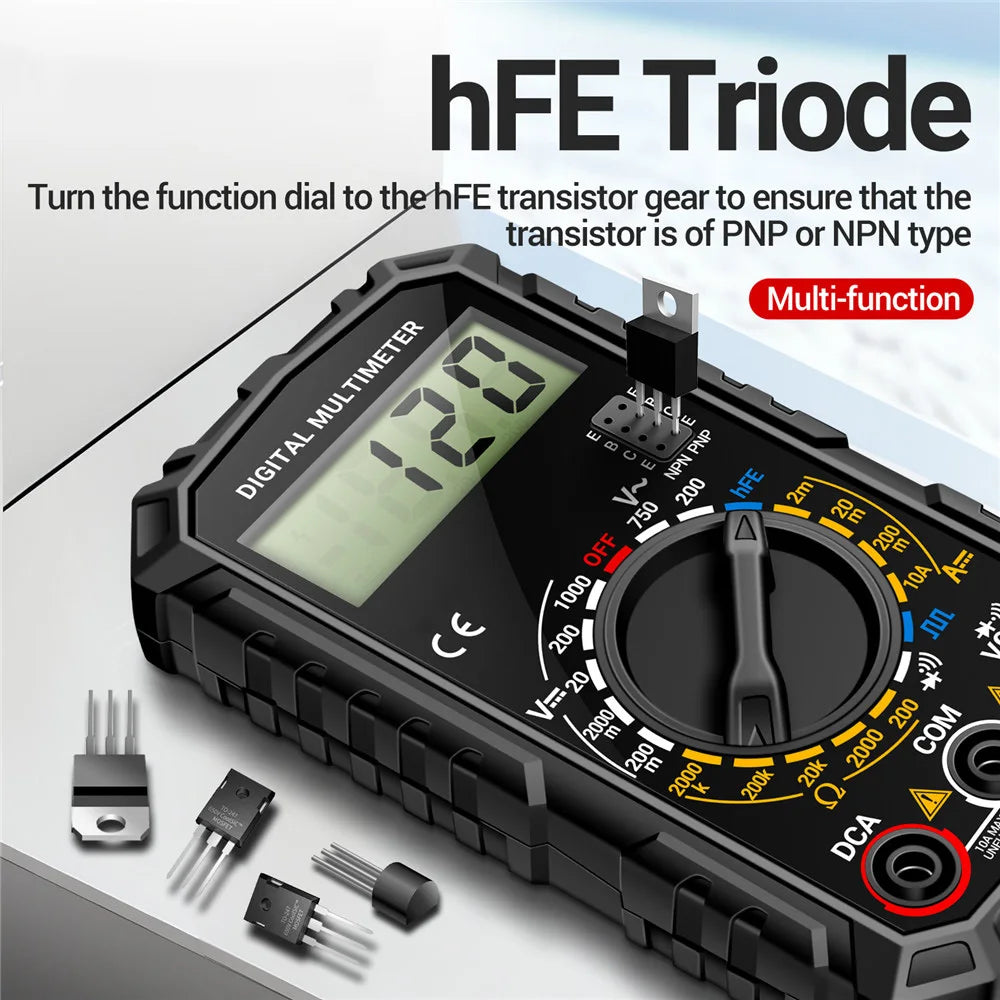

3. hFE transistor measurement: When measuring, turn the function dial to the hFE transistor position and make sure the transistor is of PNP or NPN type.

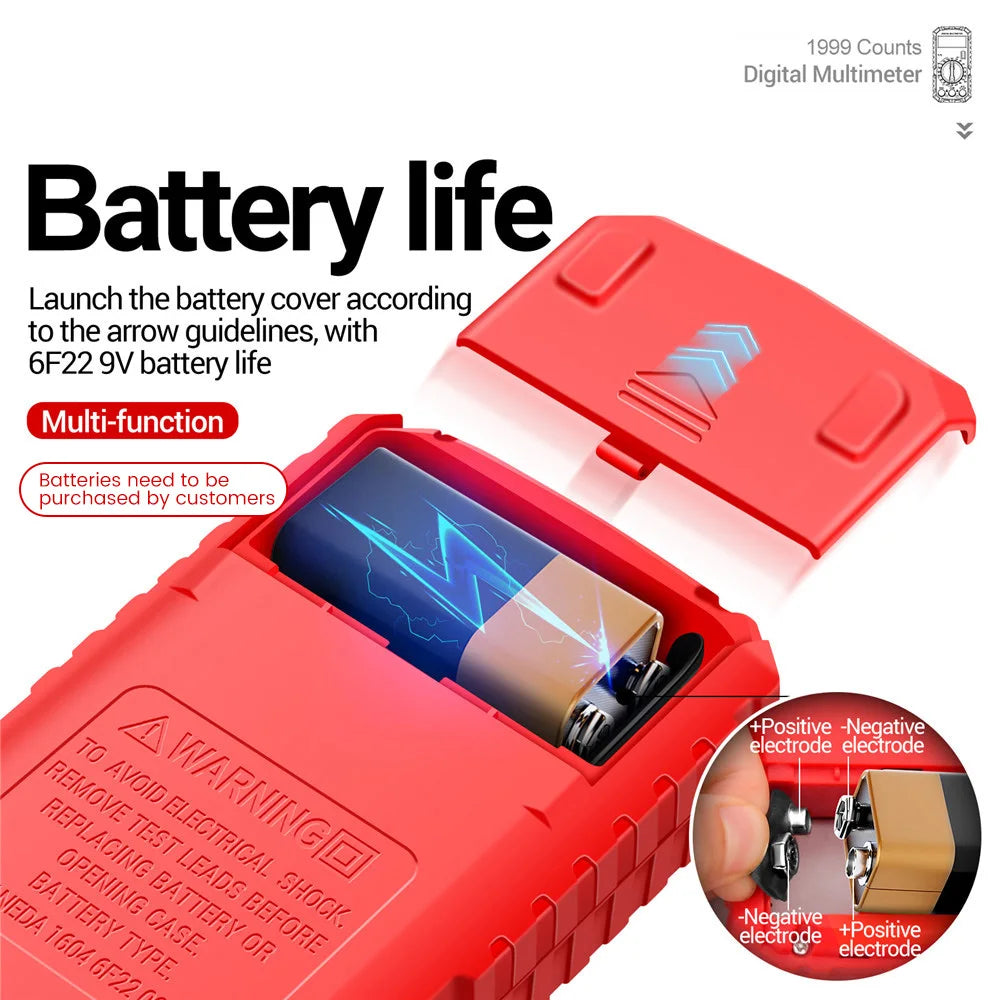

4.9V battery life: Push the battery cover upward according to the arrow guide of the battery compartment. Use 6F22 9V battery life. Pay attention to the positive and negative poles. Install the positive pole corresponding to the negative pole.

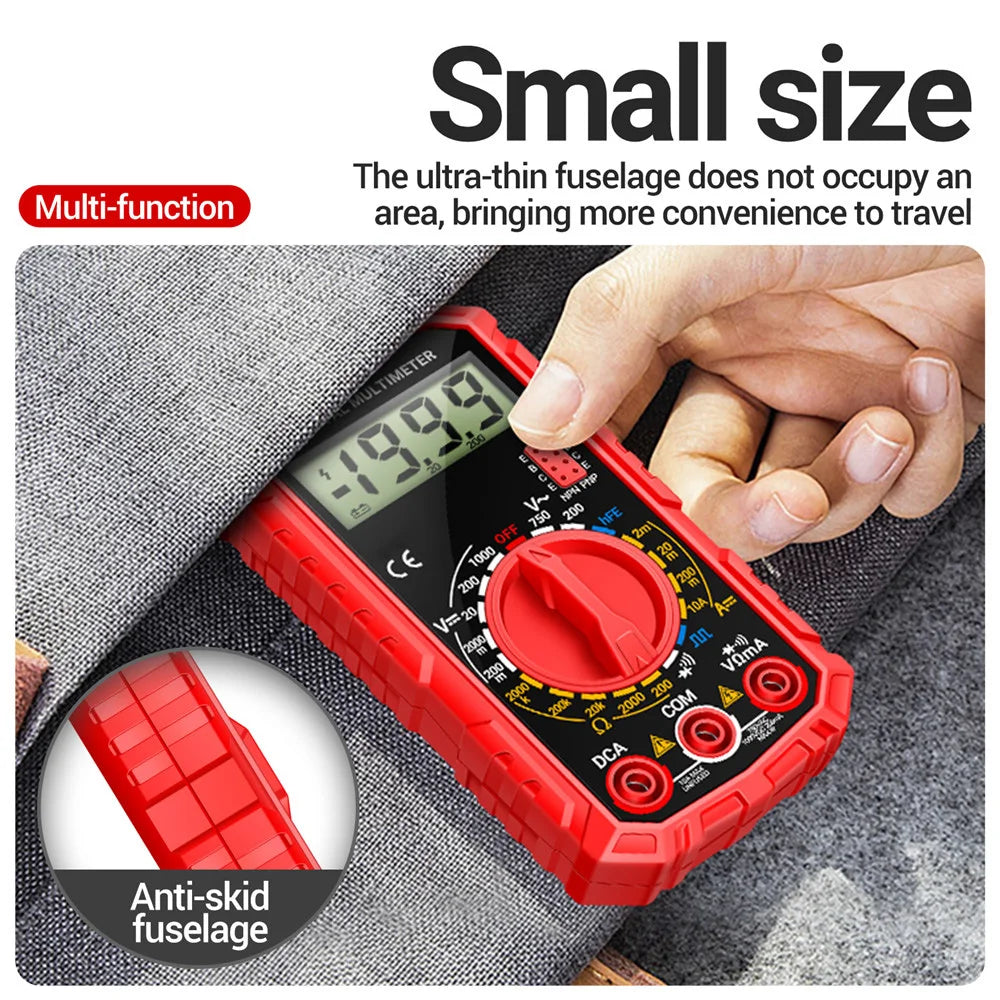

5. Small size and easy to carry: The ultra-thin body does not occupy any space, making measurement easier and bringing more convenience to travel.

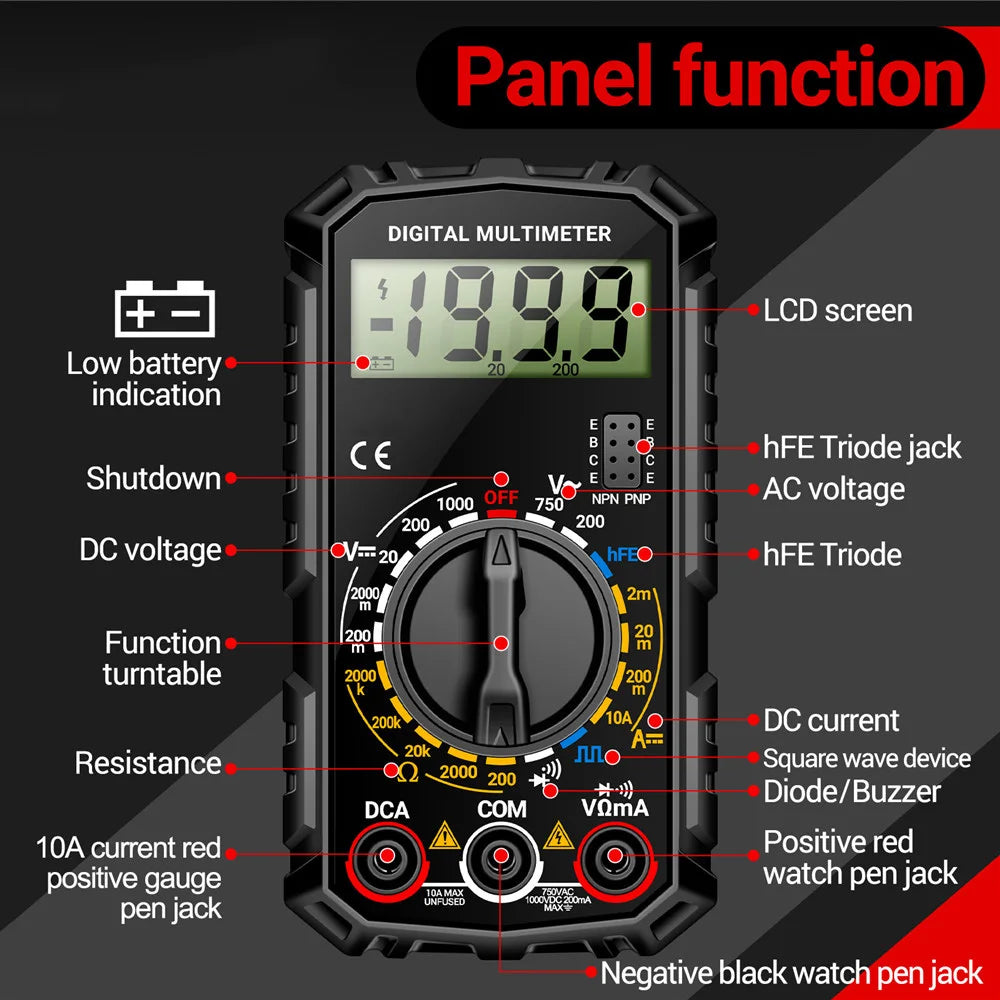

parameter:
Maximum display: 1999
AC voltage: 0V-750V, resolution: 0.1-1V, accuracy: ± (1.0% reading + 15 words)
DC voltage: 200mV-1000V, resolution: 0.1mV-1V, accuracy: ± (1.0% reading + 15 words)
DC current: 2mA-10A, resolution: 0.01mA-0.01A, accuracy: ± (1.5% reading + 5 digits)
Resistance: 0Ω-2000kΩ, resolution: 0.1Ω-1kΩ, accuracy: ± (1.2% reading + 5 digits)
Transistor:√
Diode:√
Buzzer:√

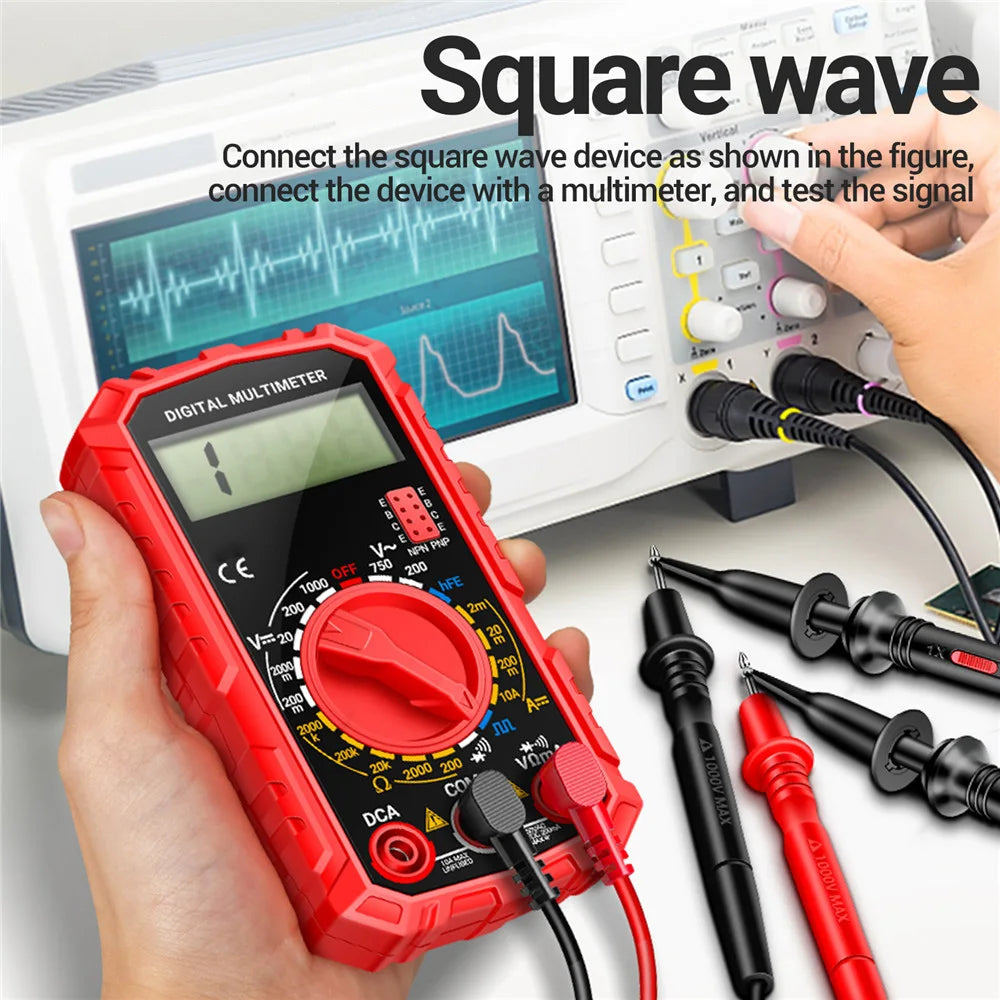

Square wave measurement:√
Low battery indicator:√
Material: ABS
Battery: 6F22 9V battery (delivered without battery)
Test lead total length: 70cm / 27.5 inch

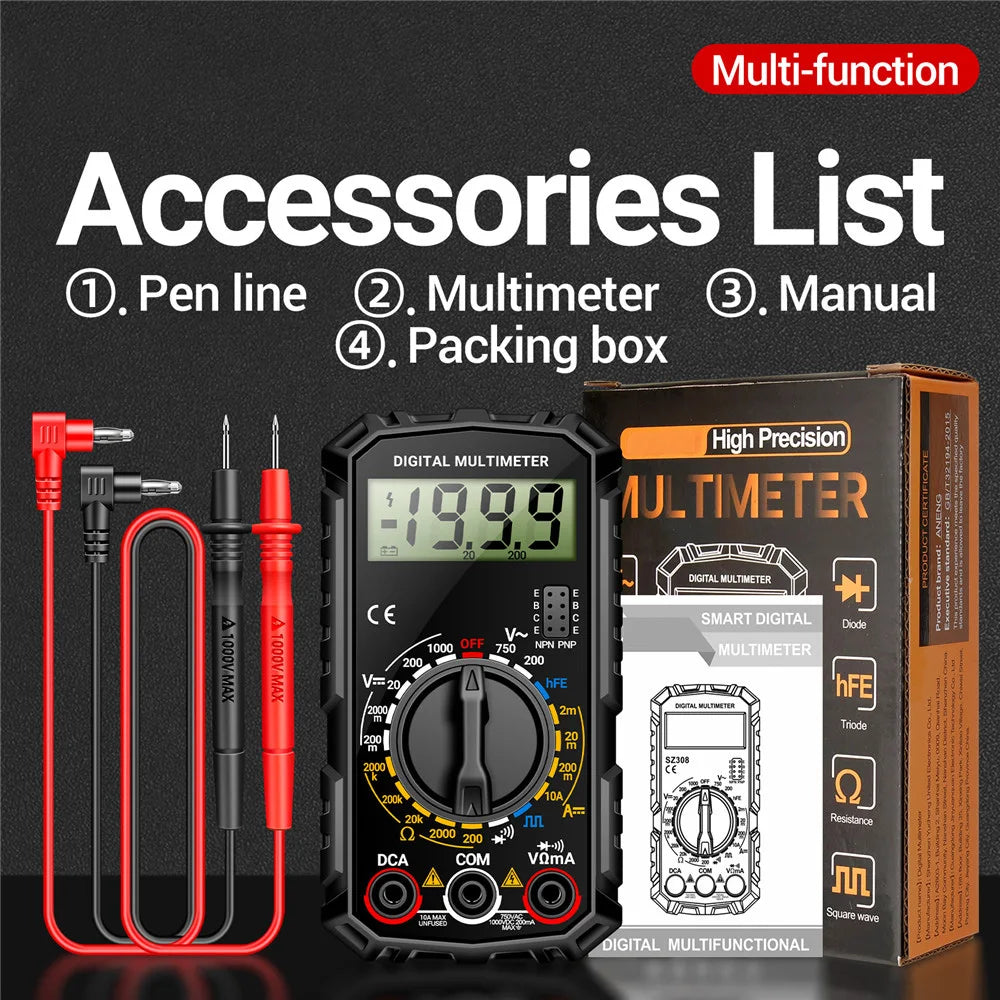

Package Included:
Multimeter*1
Instruction manual*1
Test pen*1

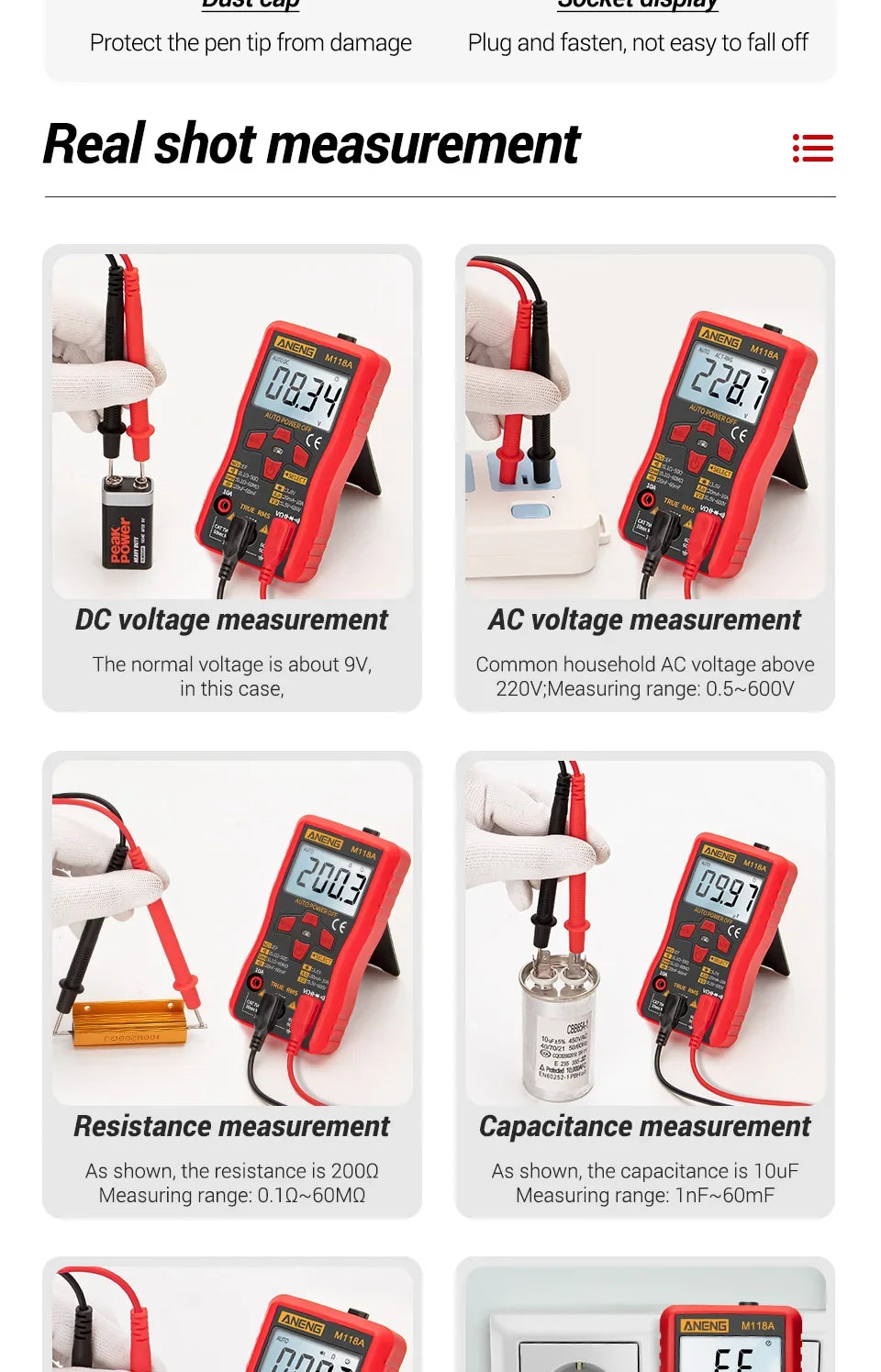

Features:

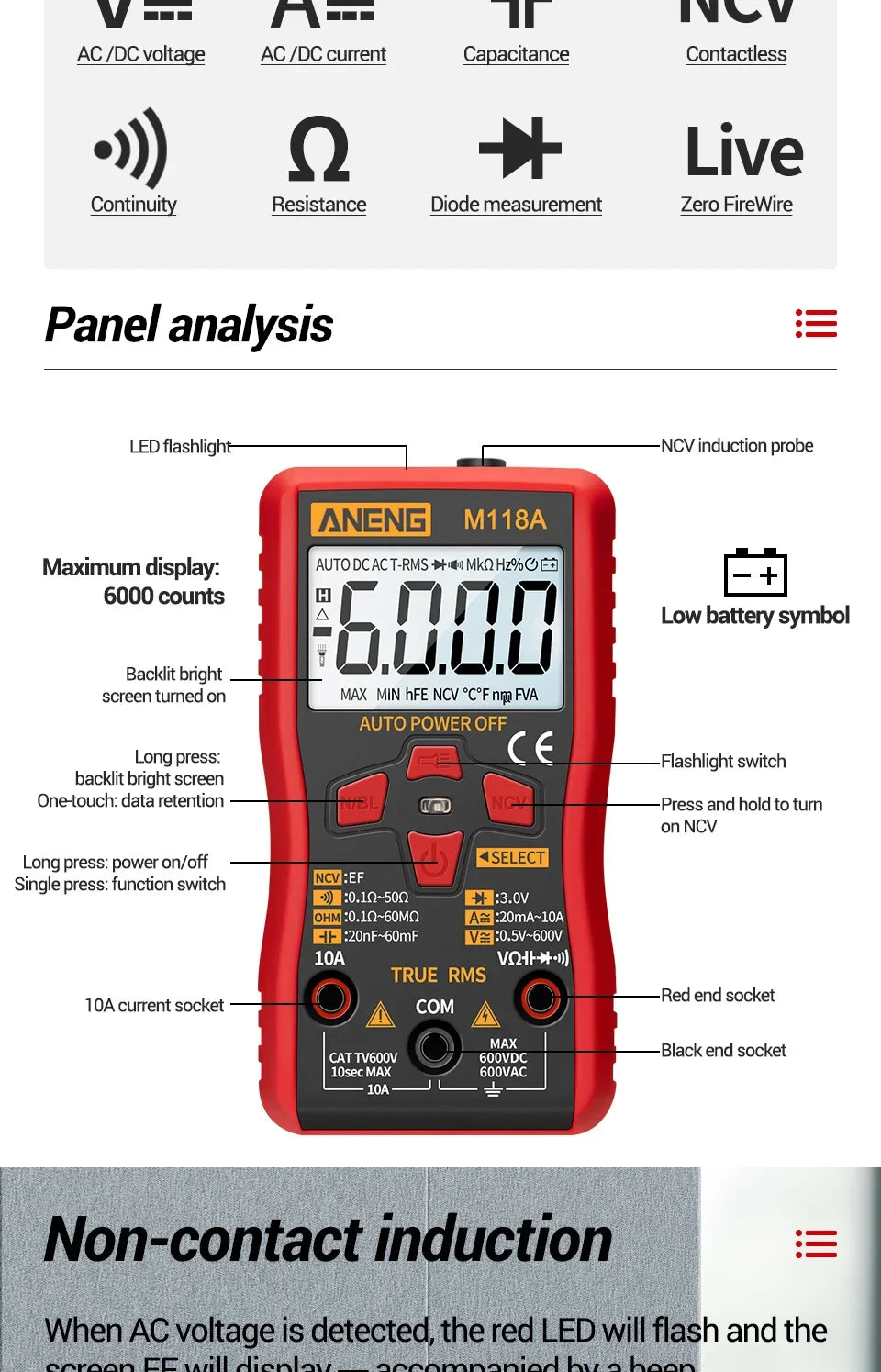

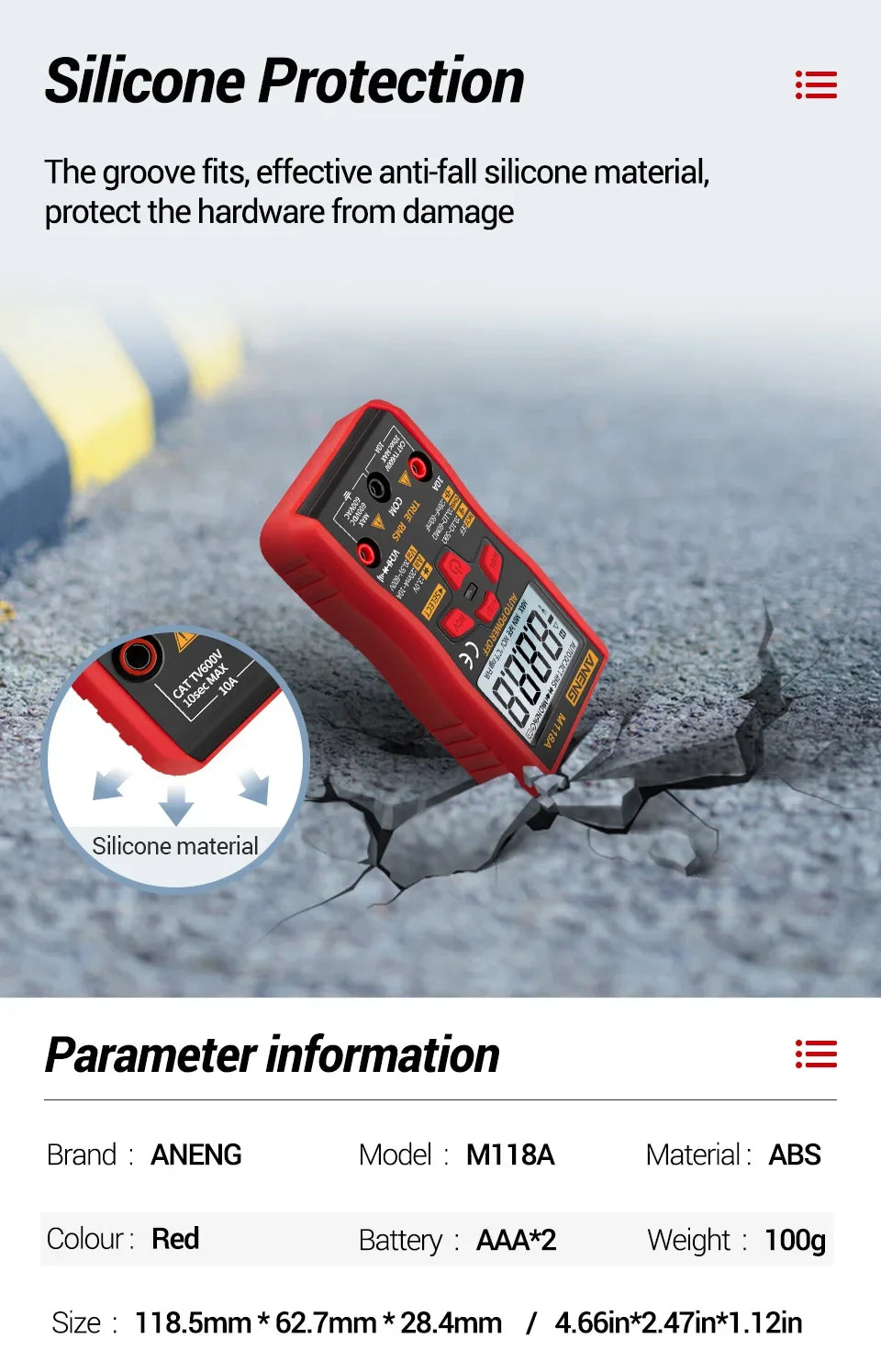

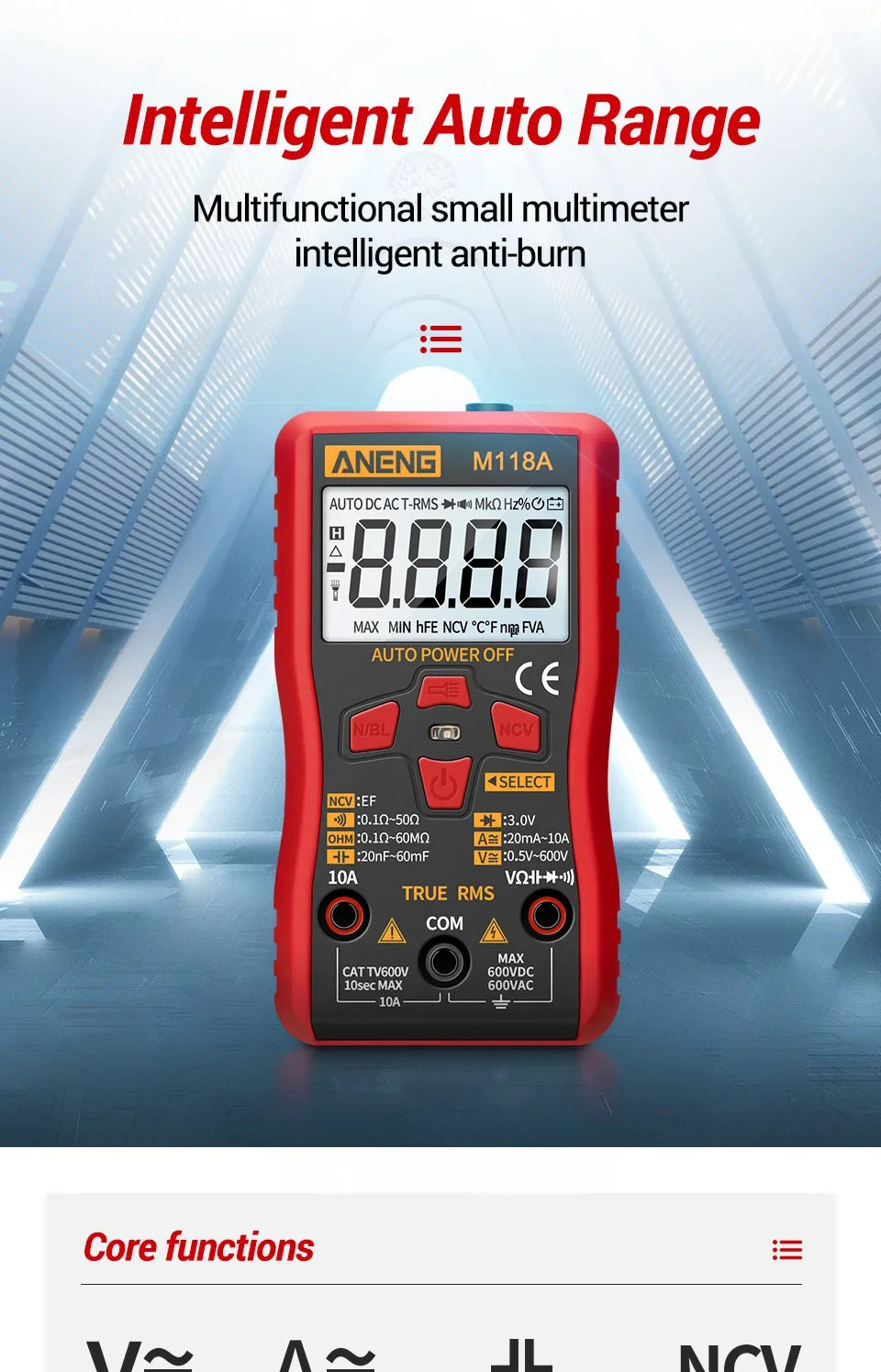

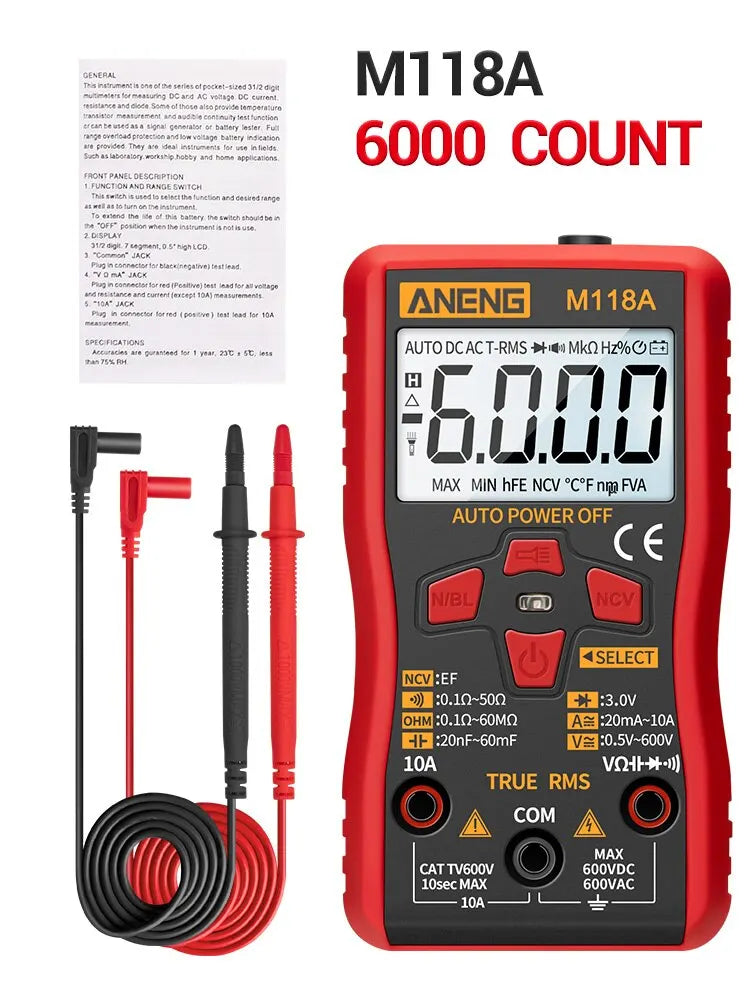

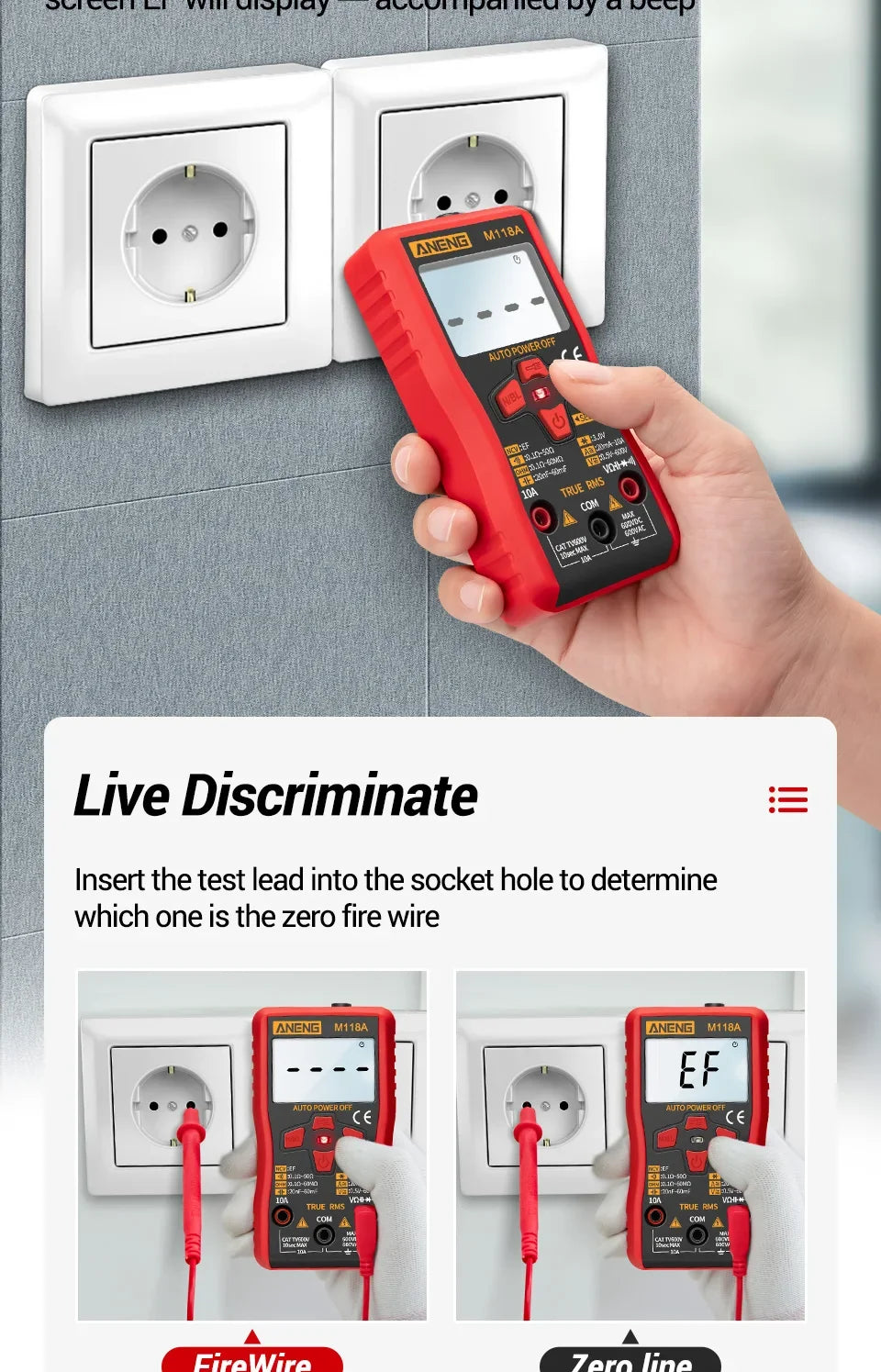

Model Number: M118A
Display:6000 counts
DIY Supplies: Electrical

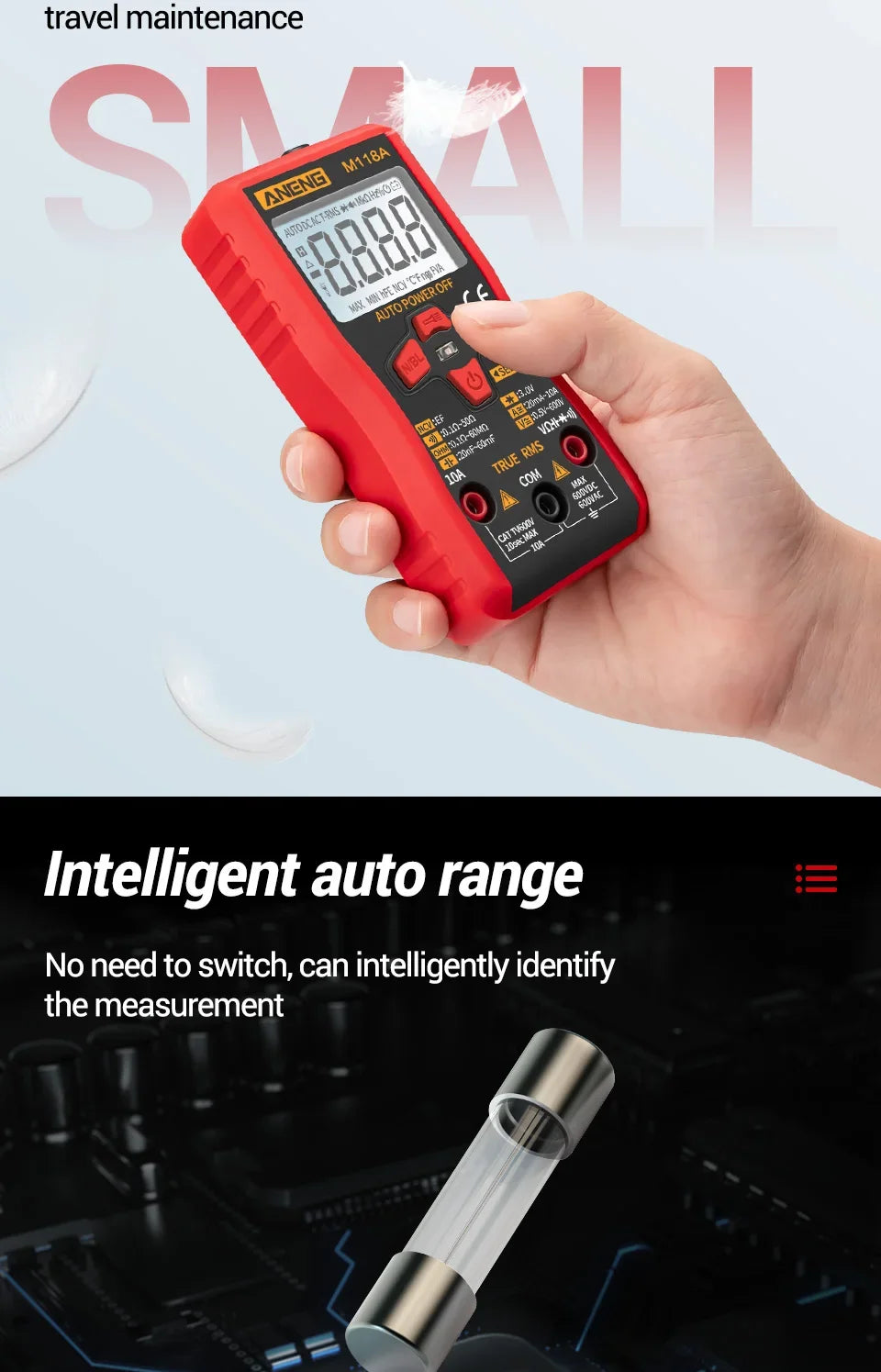

Operating Mode: Automatic
DC Voltage Range: 0.5V~600V
AC Voltage Range: 0.5V~600V
AC Current Range:20mA/10A
DC Current Range: 20mA/10A
Measuring Resistance Range: 0.1~50 Ohm
Display Type: Digital Display

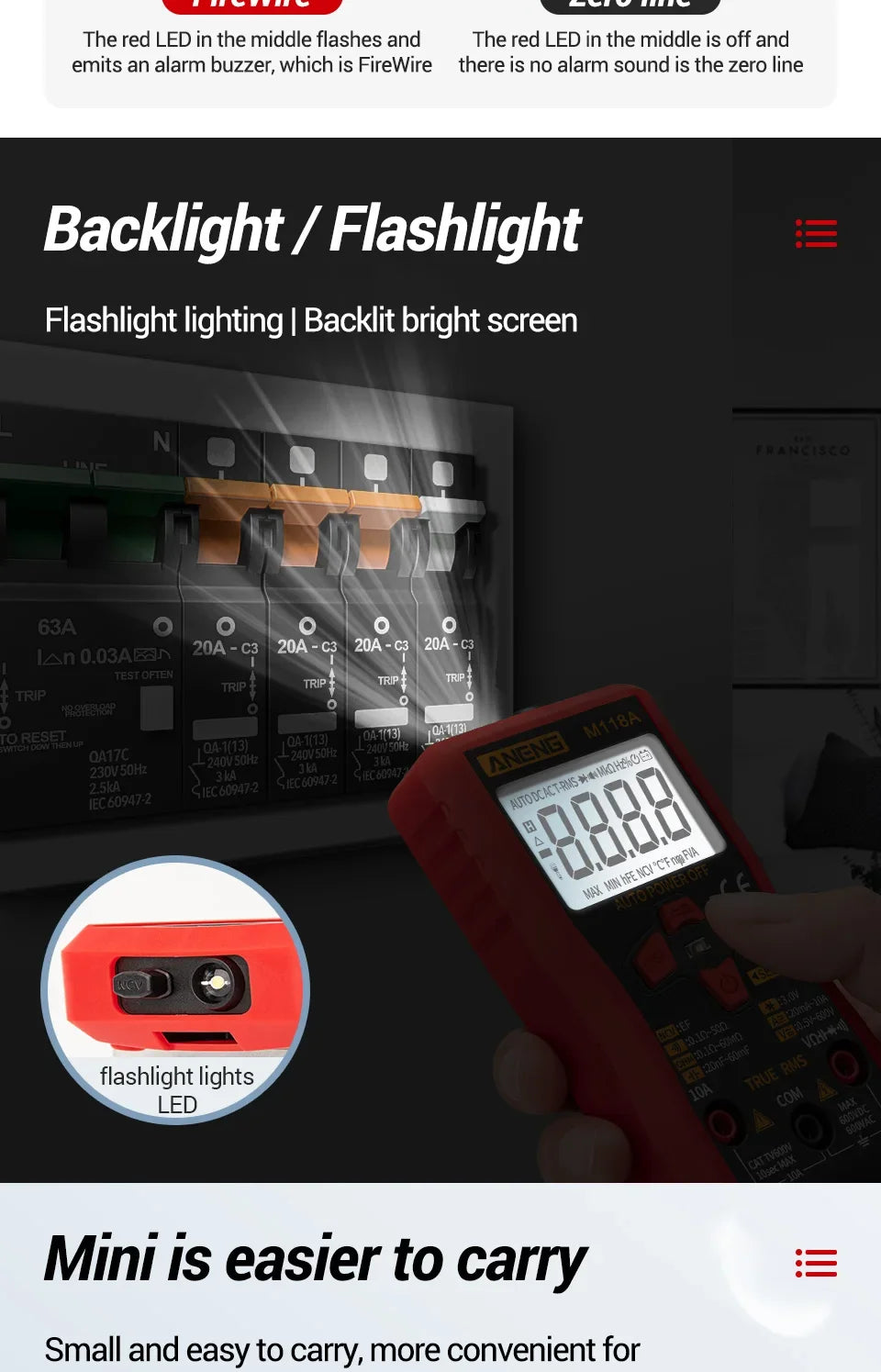

Flash Light, Back light,Auto-power Off
NCV test,TRUE-RMS,Data Hold
Sample Rate: 3 times per second

Packing List:（Without Battery）
1 * Digital Multimeter
1 * Test leads
1 * English user Manual

Feature:

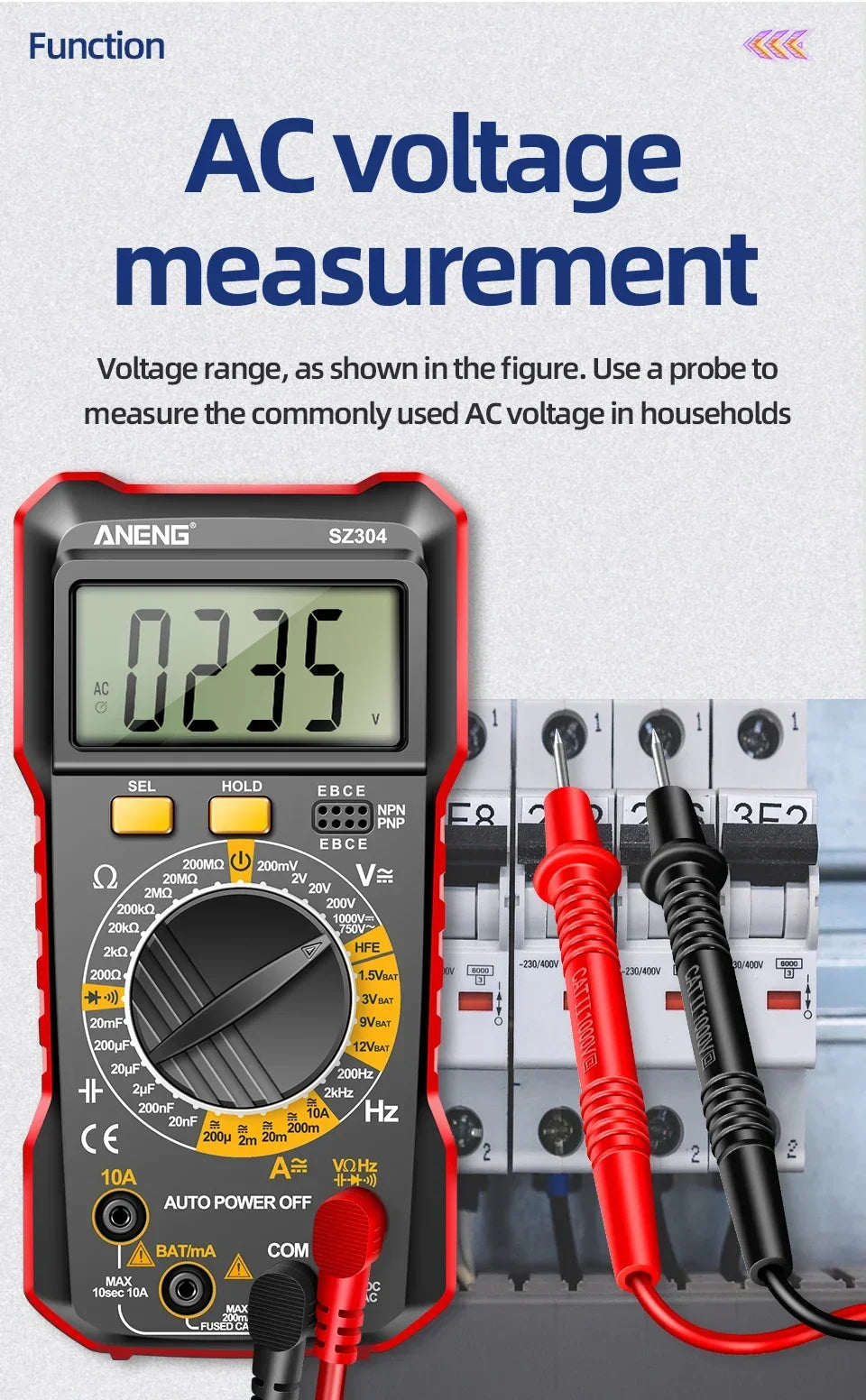

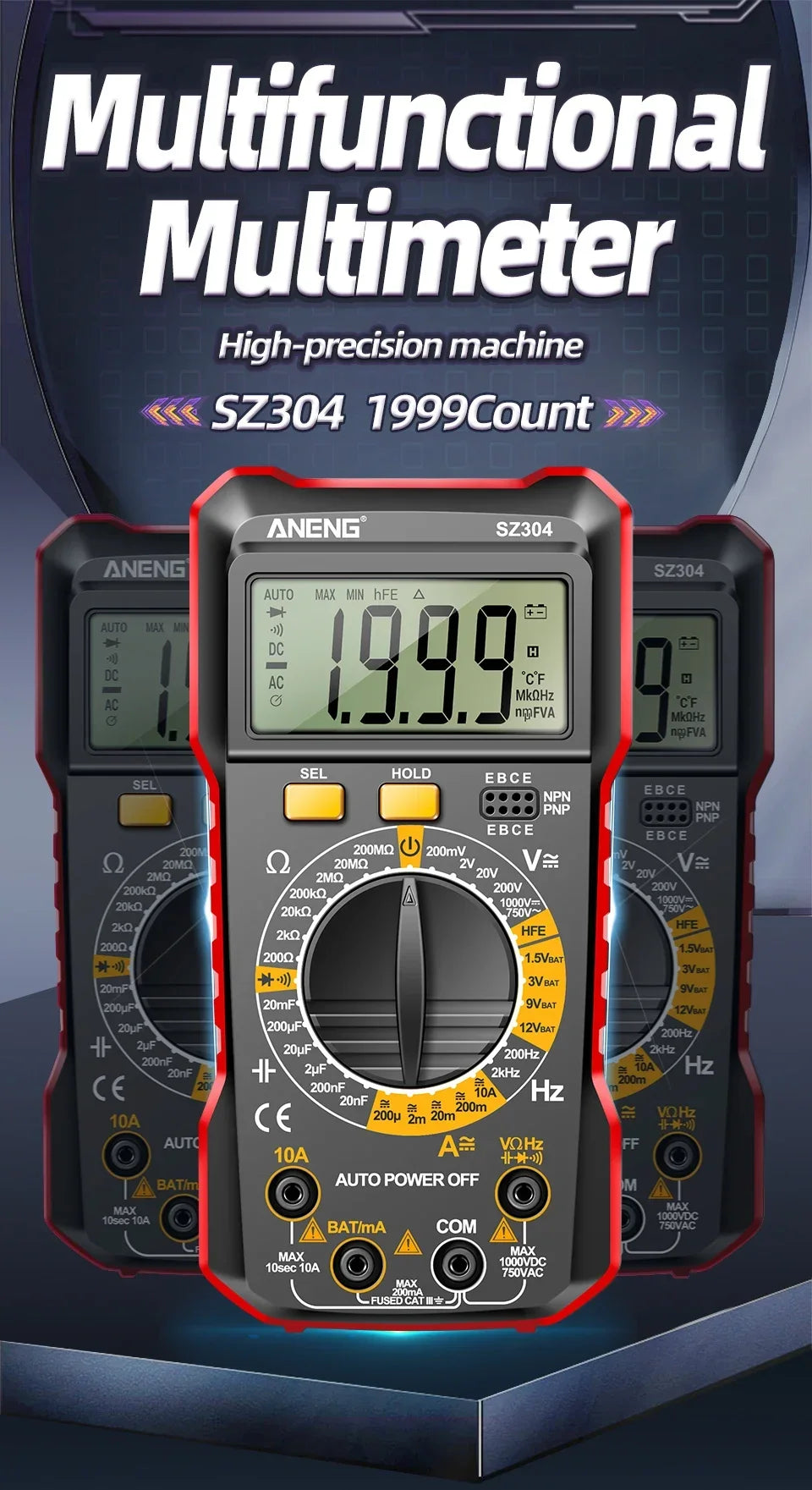

Model: SZ304
Function	Range	Resolving power	Accuracy
DC voltage	200mV-1000V	0.1mV-1V	±(1.5%+5d)
AC voltage	200mV-750V	0.1mV-1V	±(1.5%+10d)
DC current	200uA-10A	0.1uA-10mA	±(2.0%+10d)
AC current	200uA-10A	0.1uA-10mA	±(2.5%+10d)
Resistance	0Ω-200MΩ	0.1Ω-100kΩ	±(5.0%+ 10d)
Capacitance	0nF-20mF	0.01nF-10uF	±(6.0%+ 20d)
Hz frequency	0Hz-2kHz	0.1Hz-1Hz	±(1.5%+8d)
Diode	√	Data retention	√
Triode	√	Digital display screen	√
On/Off Beep	√	Automatic shutdown	√
Battery detection	1.5/3/9/12V	Material quality	ABS
Max count	2000 Counts
