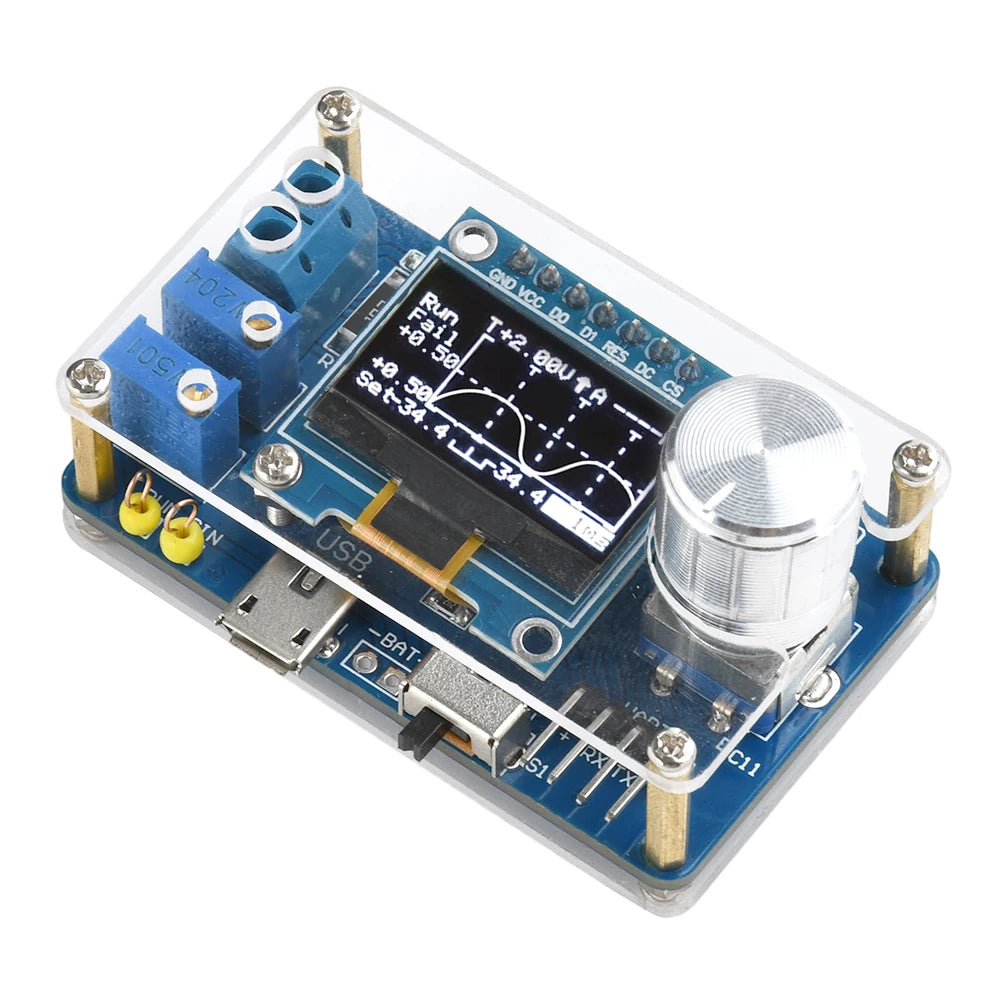

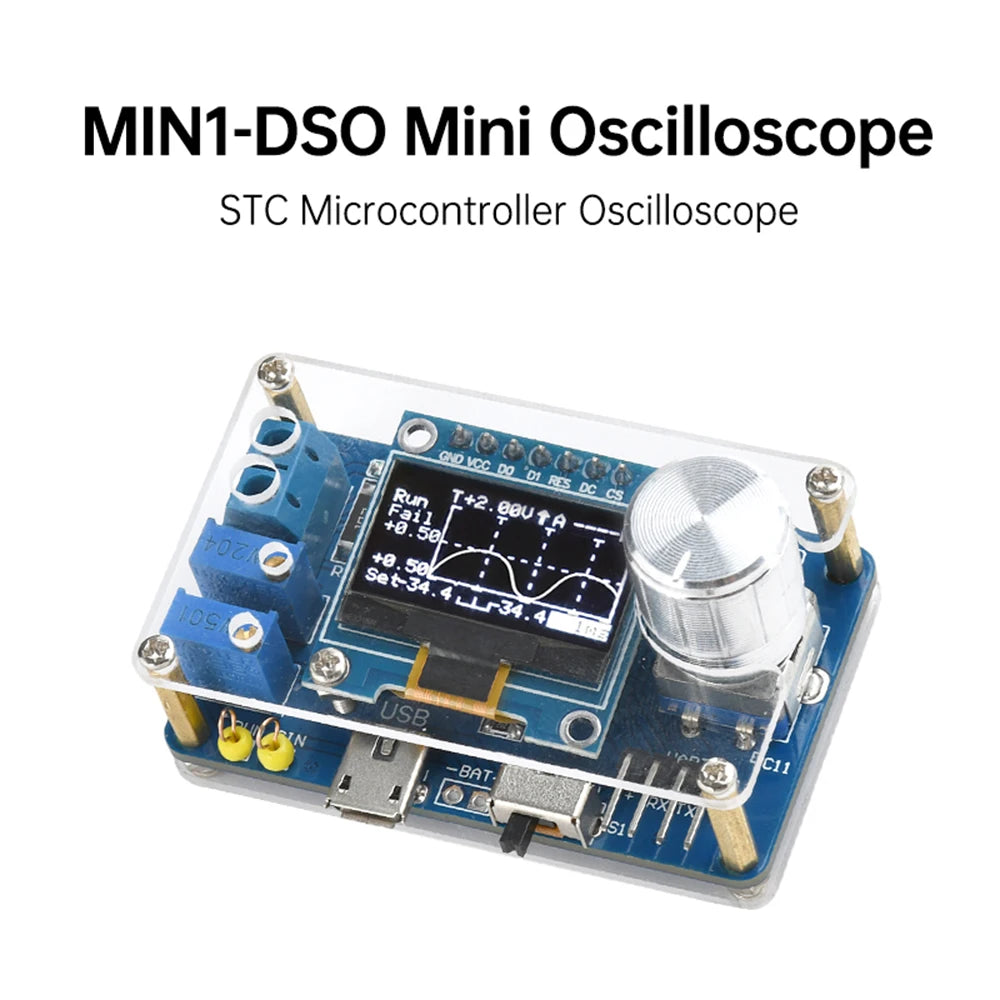

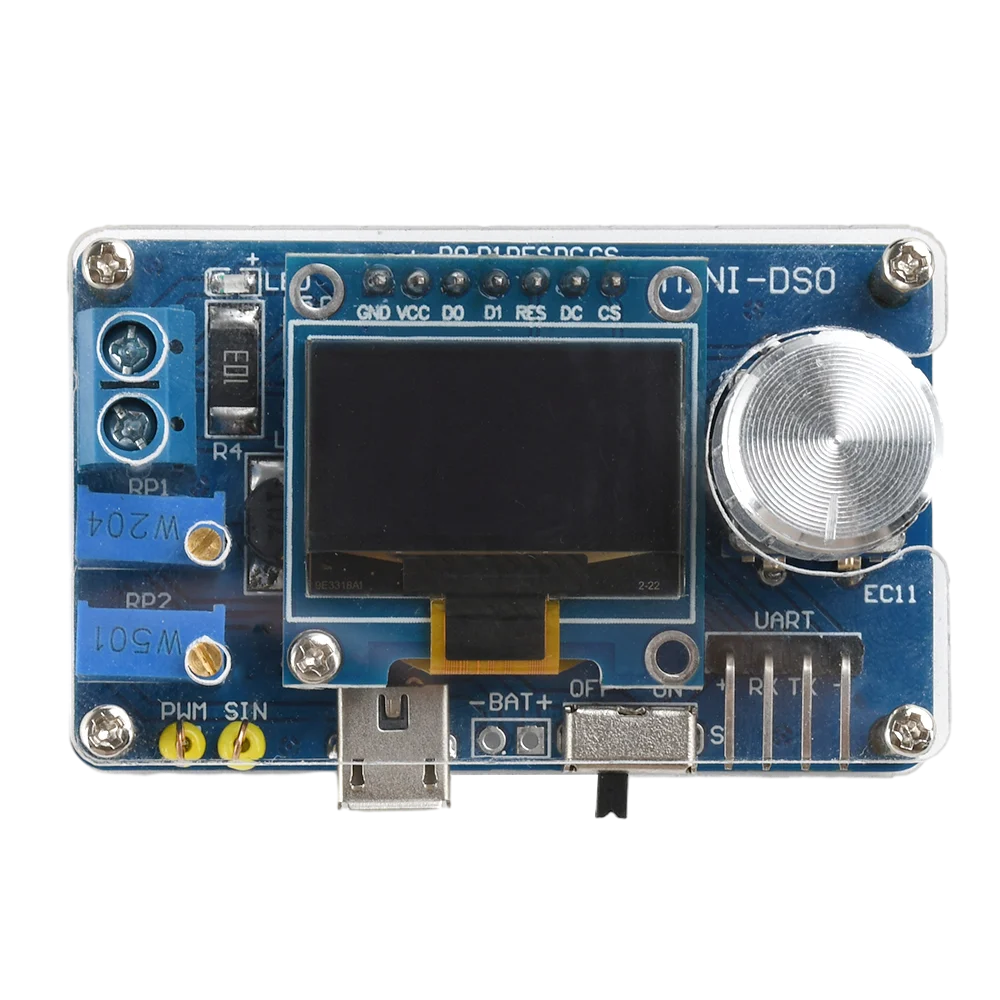

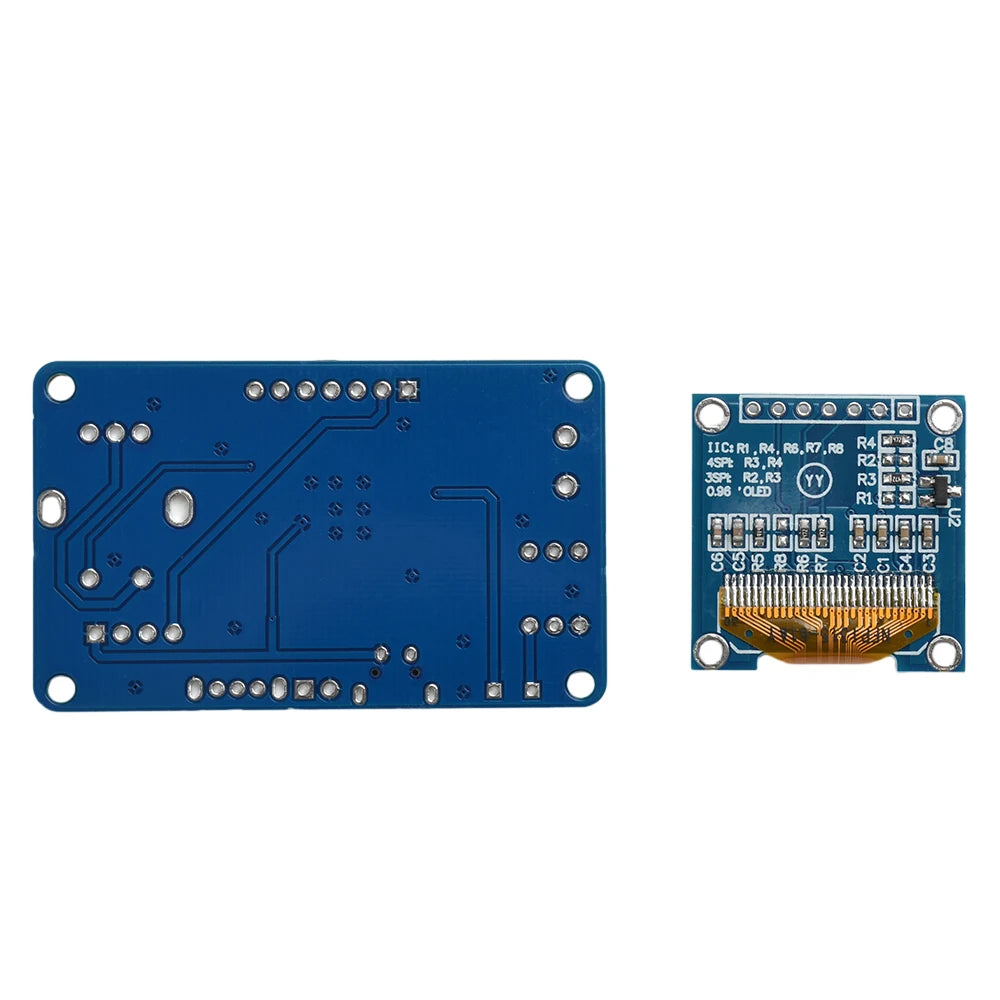

Digital Oscilloscope Kit 0.96 Inch LCD with 3 Trigger Modes Signal Generator Module DIY Electronic Parts STC Microcontroller

Digital Oscilloscope Kit 0.96 Inch LCD with 3 Trigger Modes Signal Generator Module DIY Electronic Parts STC Microcontroller

$23.13

$23.13 $0.00

Description

SPECIFICATIONS

Application: Computer

Brand Name: diymore

Choice: yes

Condition: New

High-concerned chemical: none

Operating Temperature: 0℃ to +40℃

Origin: Mainland China

Package: SMD

Quantity: 1

Supply Voltage: DC 5V

Type: Module

is_customized: Yes

semi_Choice: yes

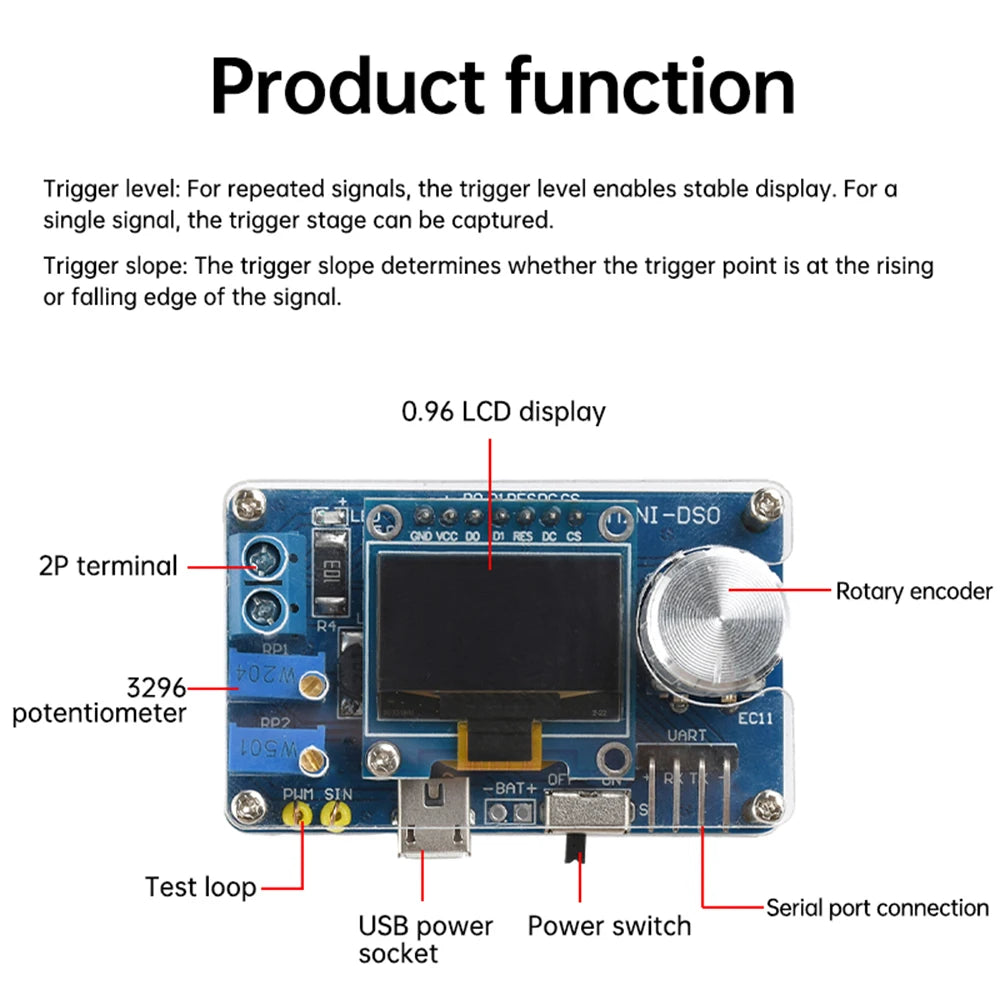

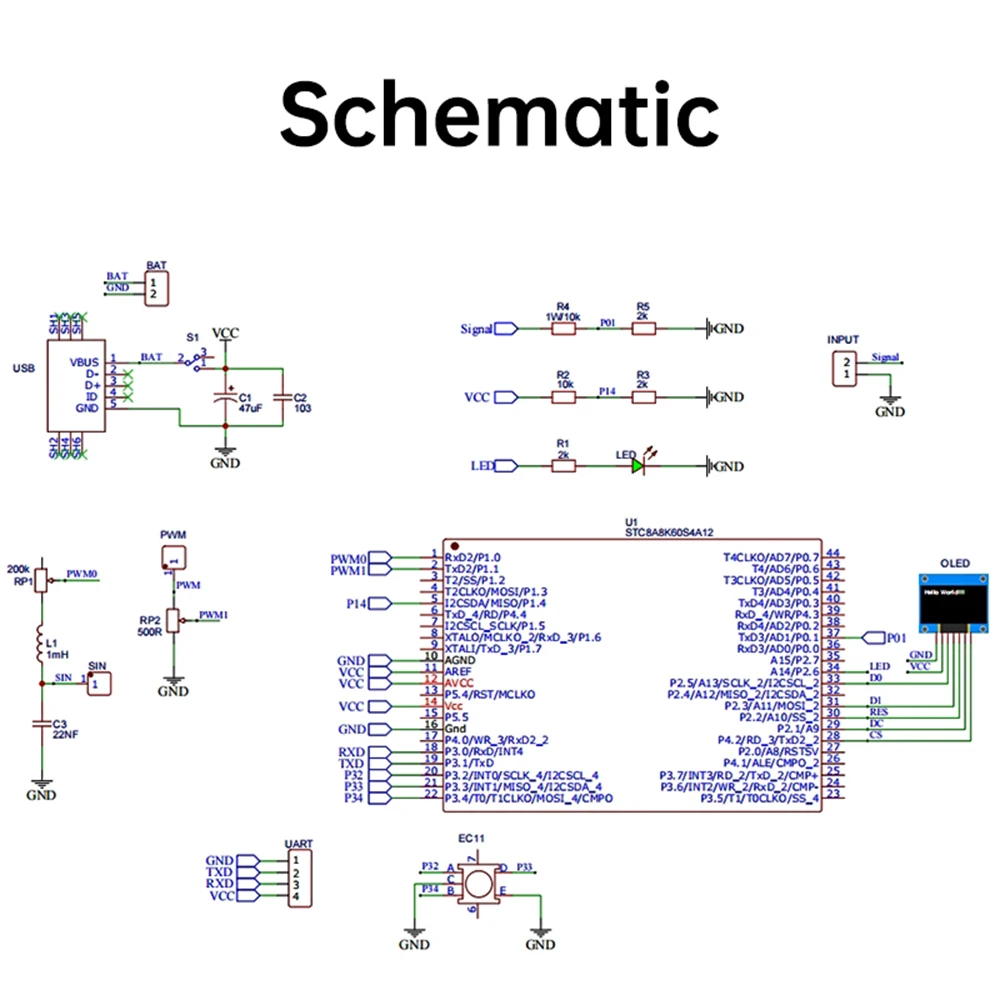

Features:

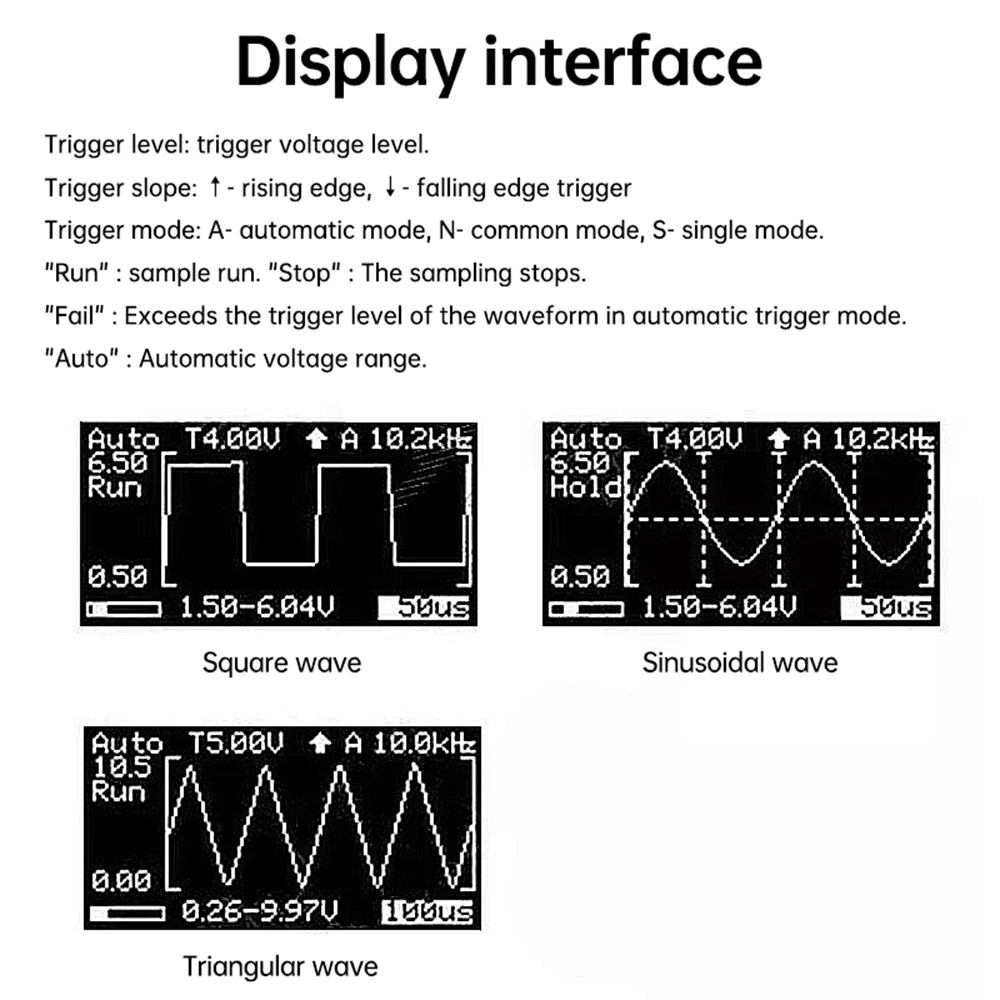

1. Indicator light: usually the indicator light indicates that the sampling is running
2. There are three trigger modes: automatic mode, normal mode and single mode.
3. Trigger slope: the trigger slope determines whether the trigger point is on the rising edge of the signal or on the falling edge.
4. Trigger level: For repeated signals, the trigger level can stabilize the display. For single signal, the trigger level can be captured
5. Save Settings: When you exit the setup interface, all the parameters of the setup interface and the main interface will be saved in EEPROM.
6. Waveform generator: PWM (PWM generator) and SIN (sine wave generator), adjust RP1 and RP2 to change the amplitude respectively.

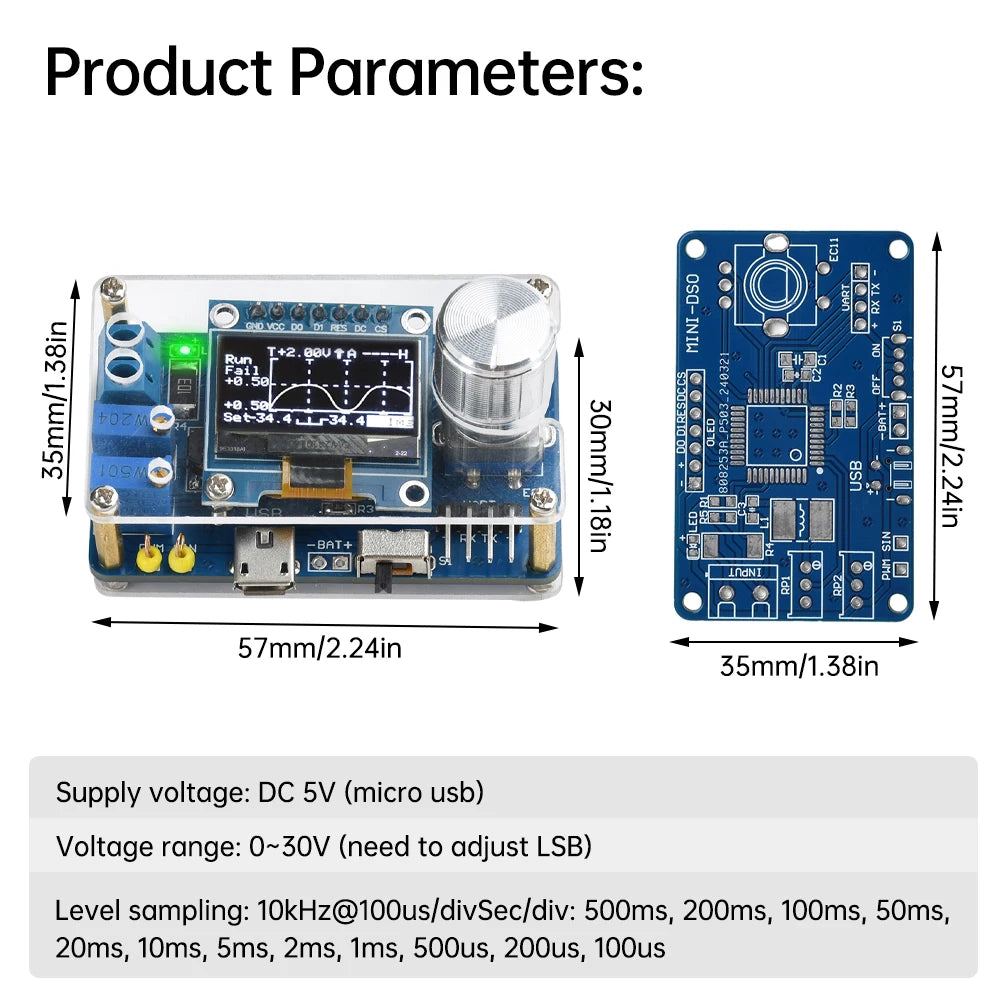

Parameter:
Supply voltage: DC 5V (micro usb)
Voltage range: 0~30V (LSB adjustment required)
Level sampling: 10kHz@100us/div
Sec/div: 500ms, 200ms, 100ms, 50ms, 20ms,
10ms, 5ms, 2ms, 1ms, 500us, 200us, 100us

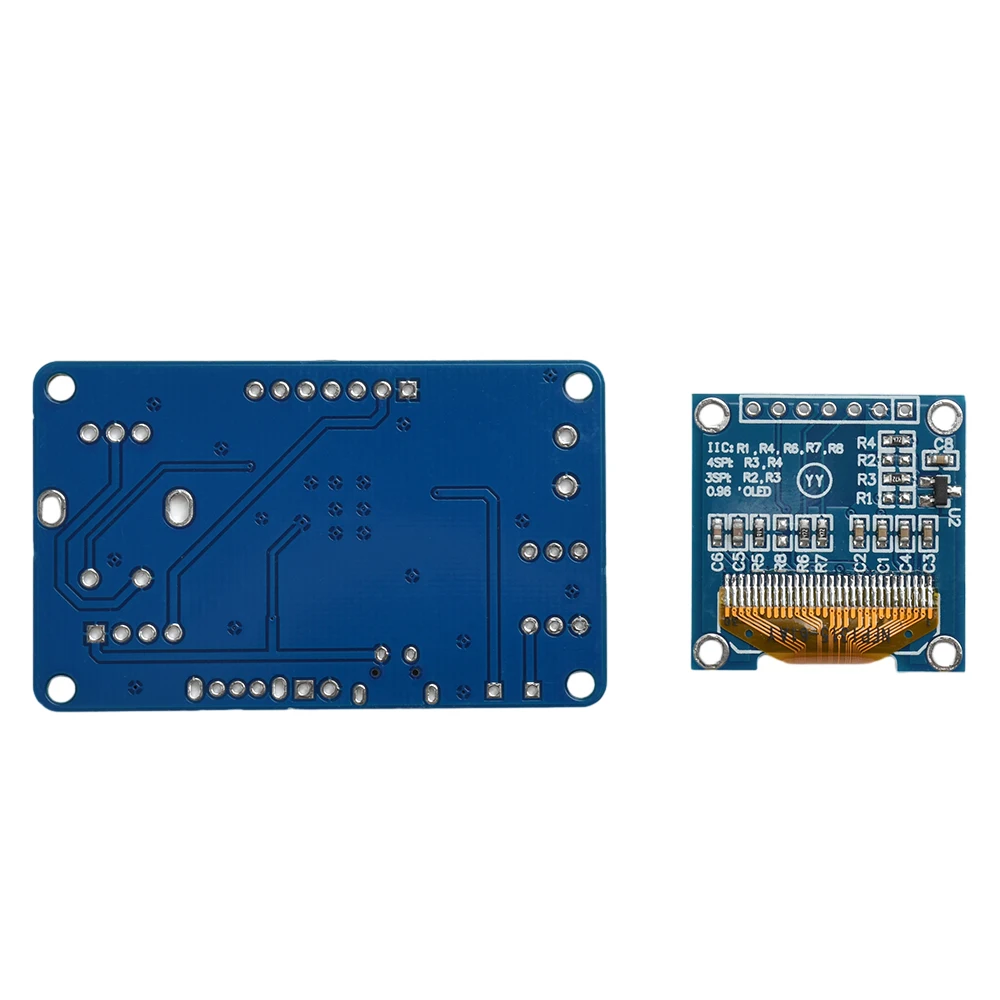

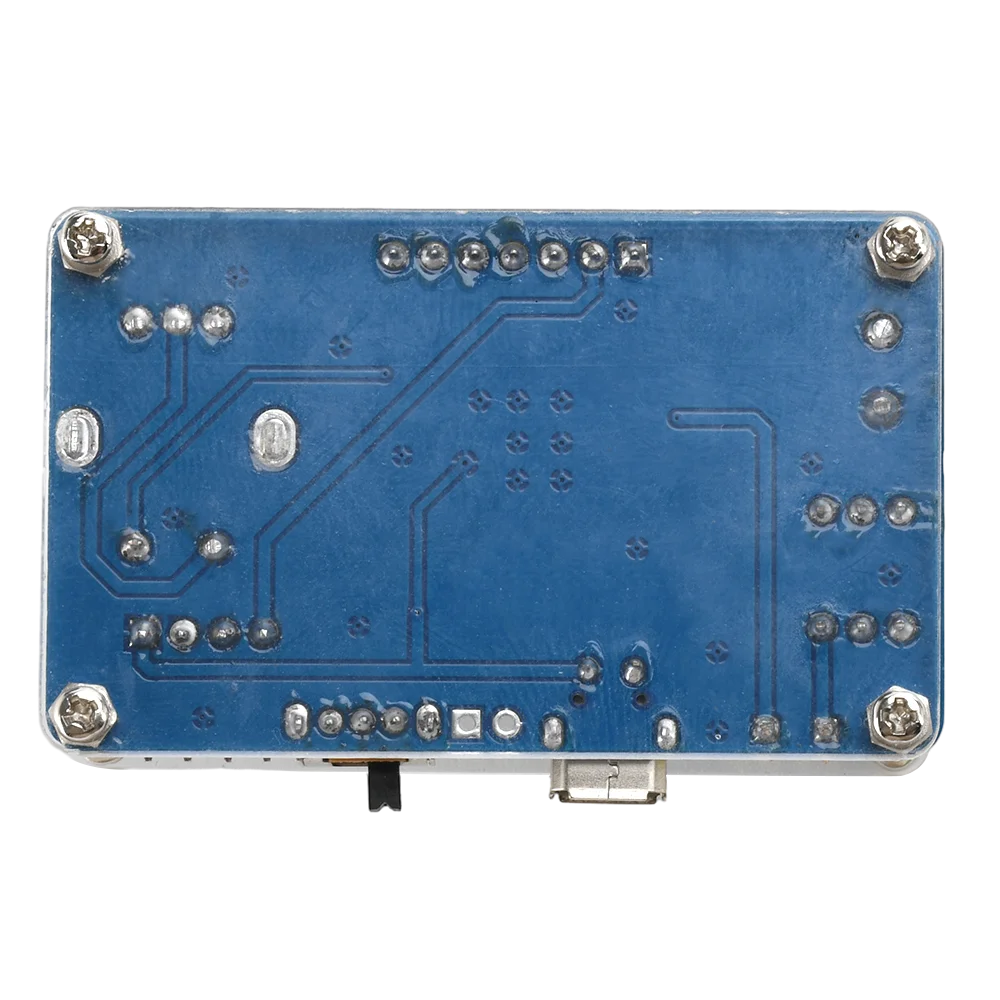

Board size: 57*35mm
Finished size: 57*35*30mm

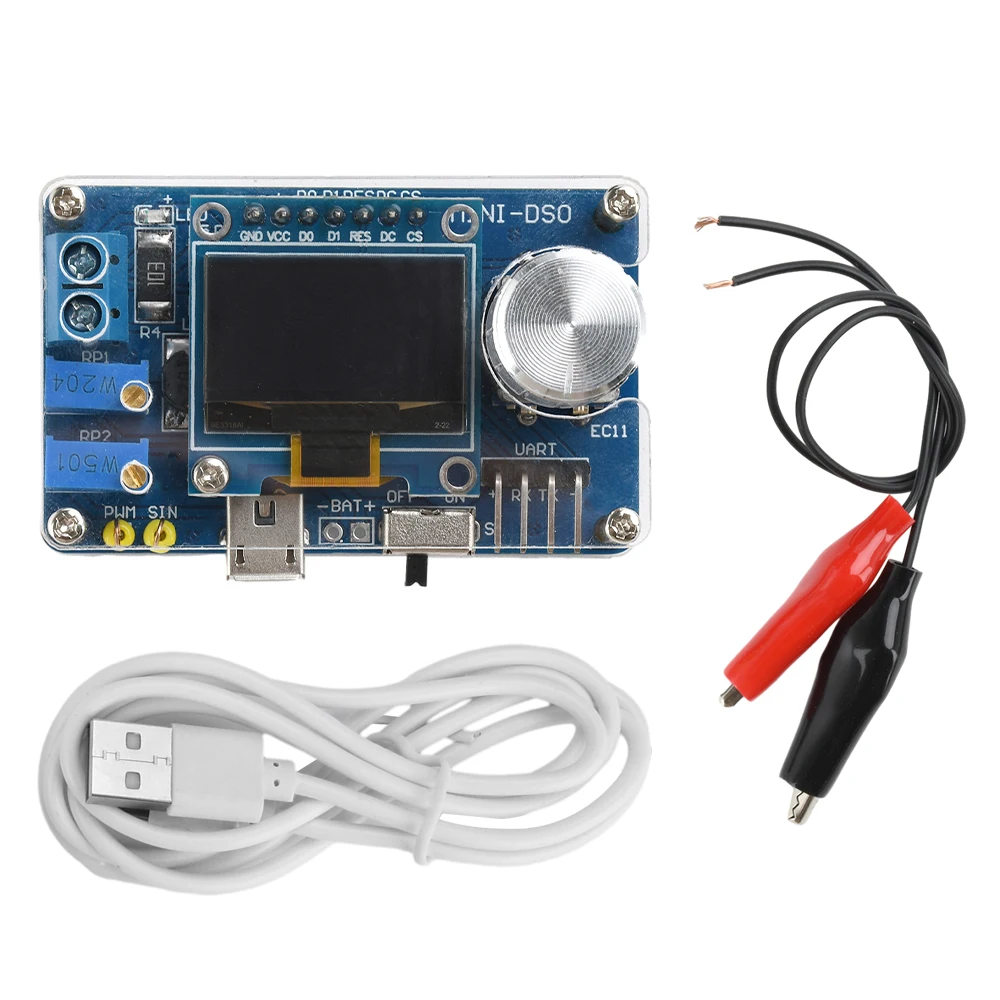

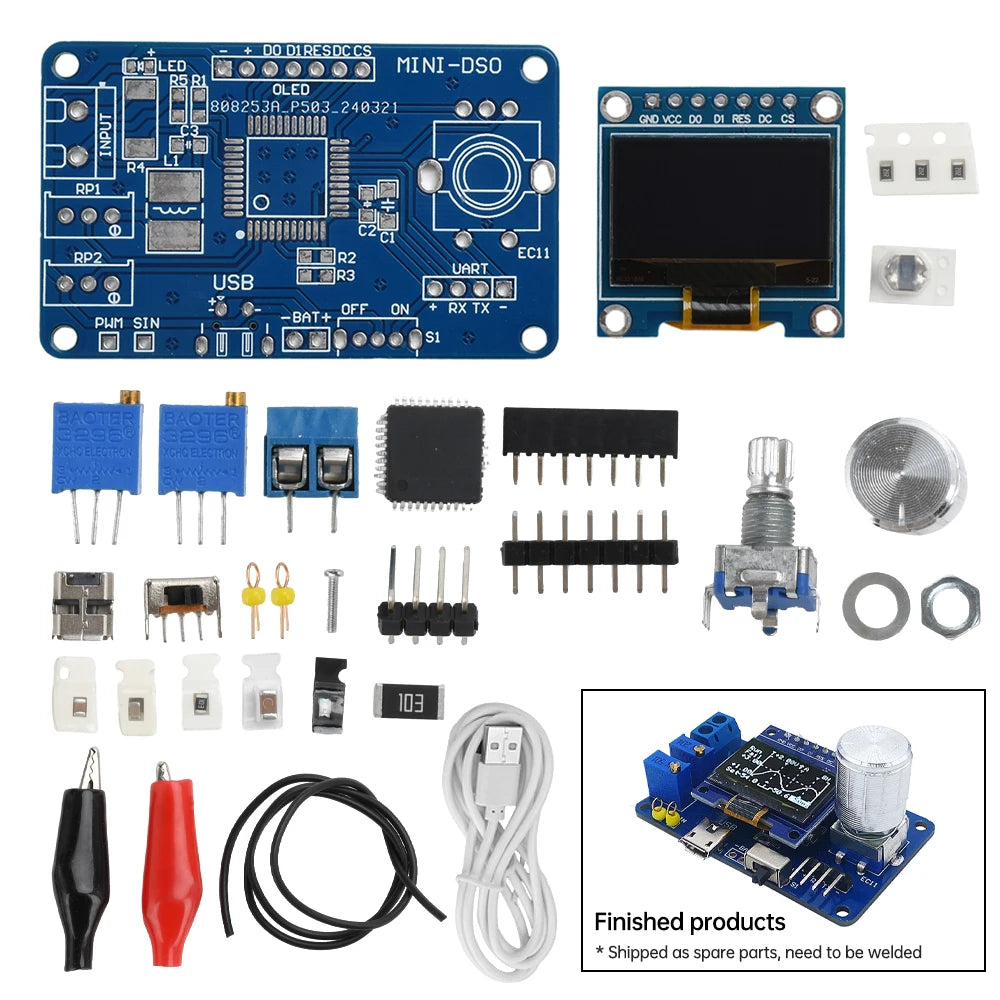

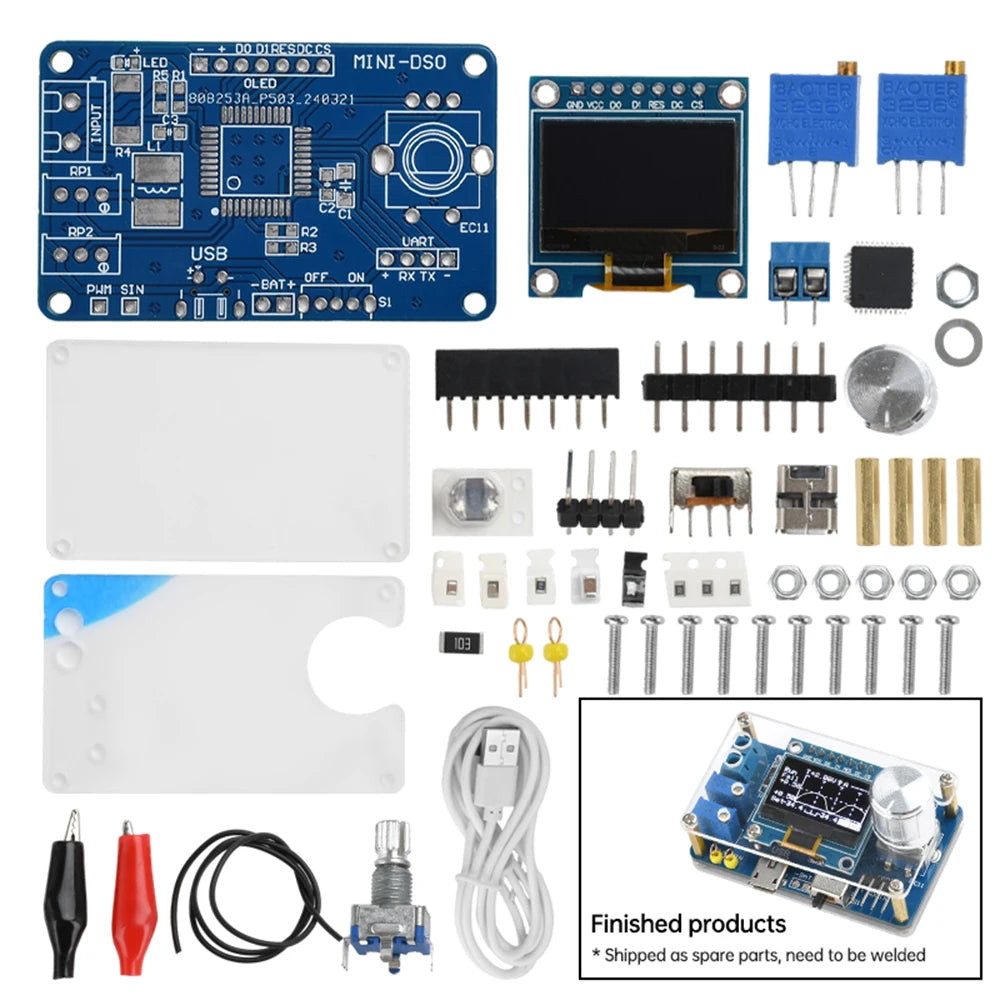

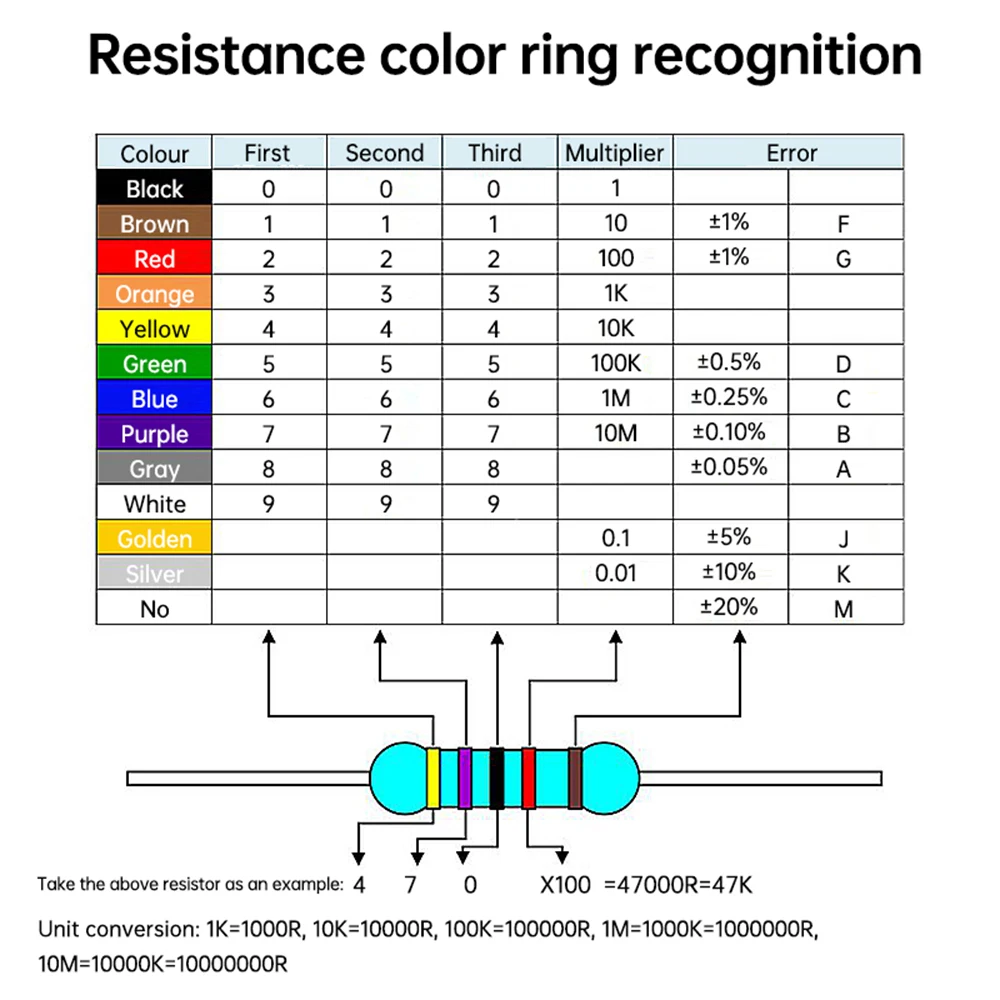

Package include:

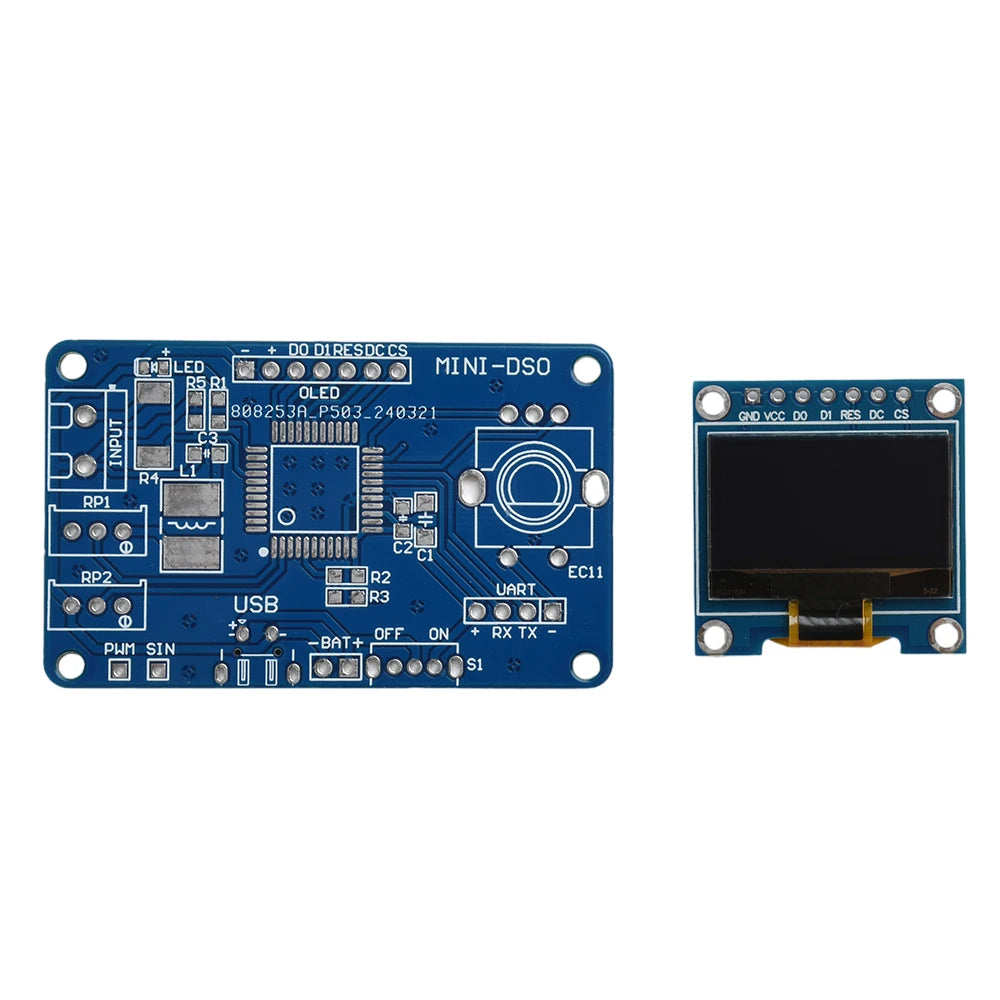

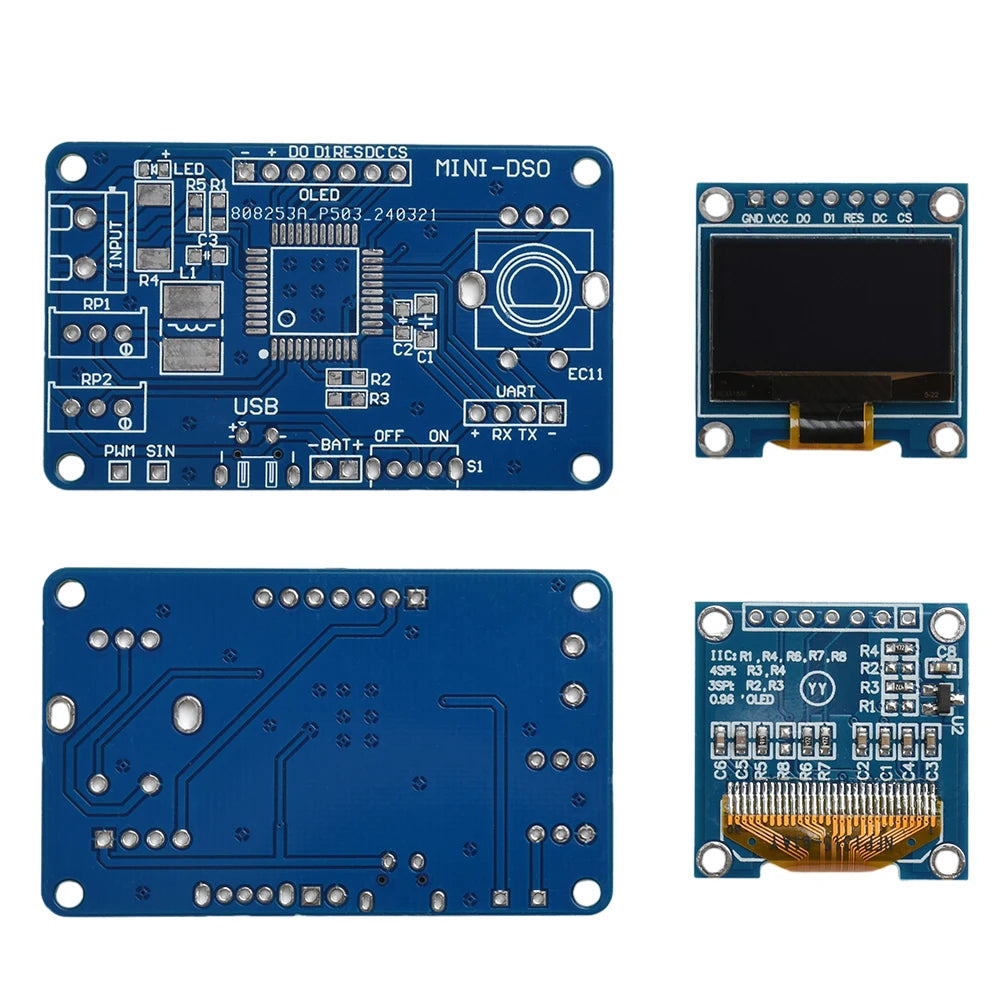

DIY loose parts*1
