SPECIFICATIONS

Brand Name: Aideepen

Certification: CE

Choice: yes

Model Number: Digital Time Delay Relay

Operating voltage: DC12V/DC24V/AC110~220V

Origin: Mainland China

Output type: switch type, contact no output

Power Source: Ac

Relay type: 1 way normally open relay

Theory: Time Relay

Timing unit: second/minute/hour

Use: General Purpose

semi_Choice: yes

Features:
1. Wide time range: digital cycle timer relay module, time range from 1 second to 999 hours

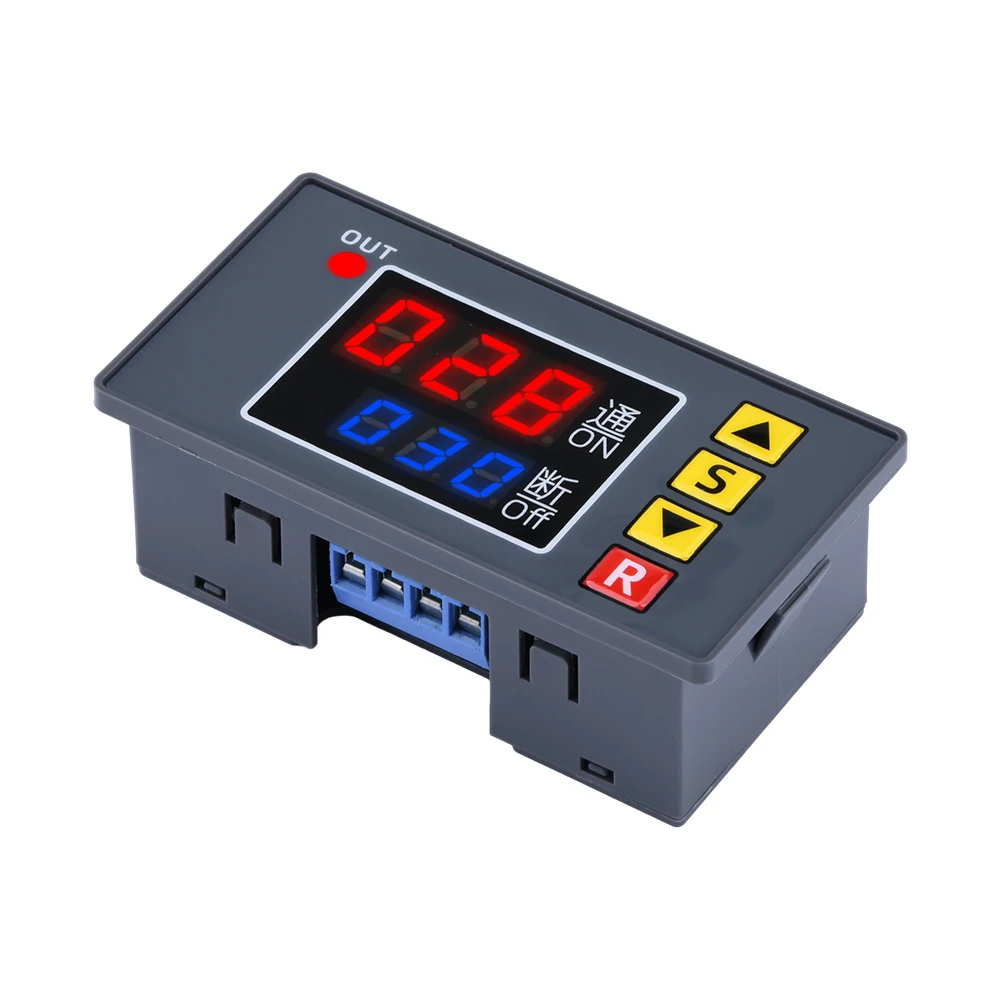

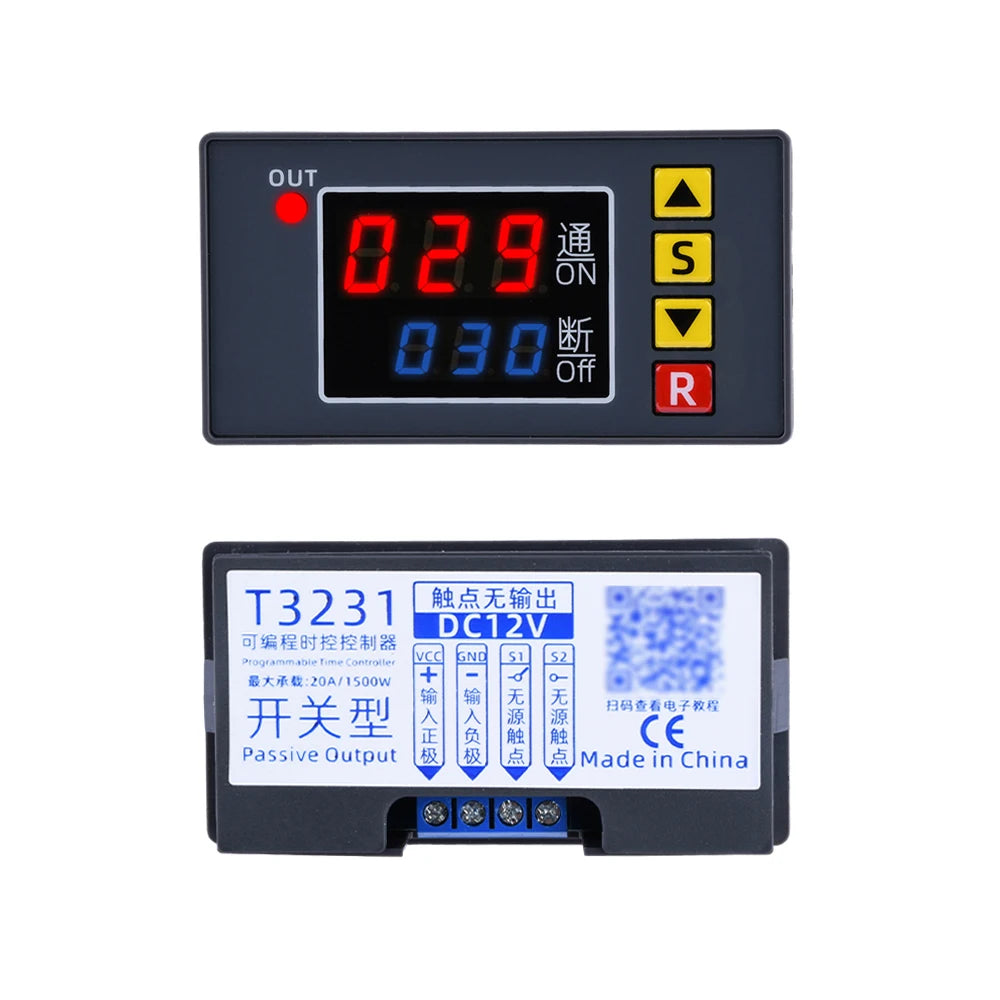

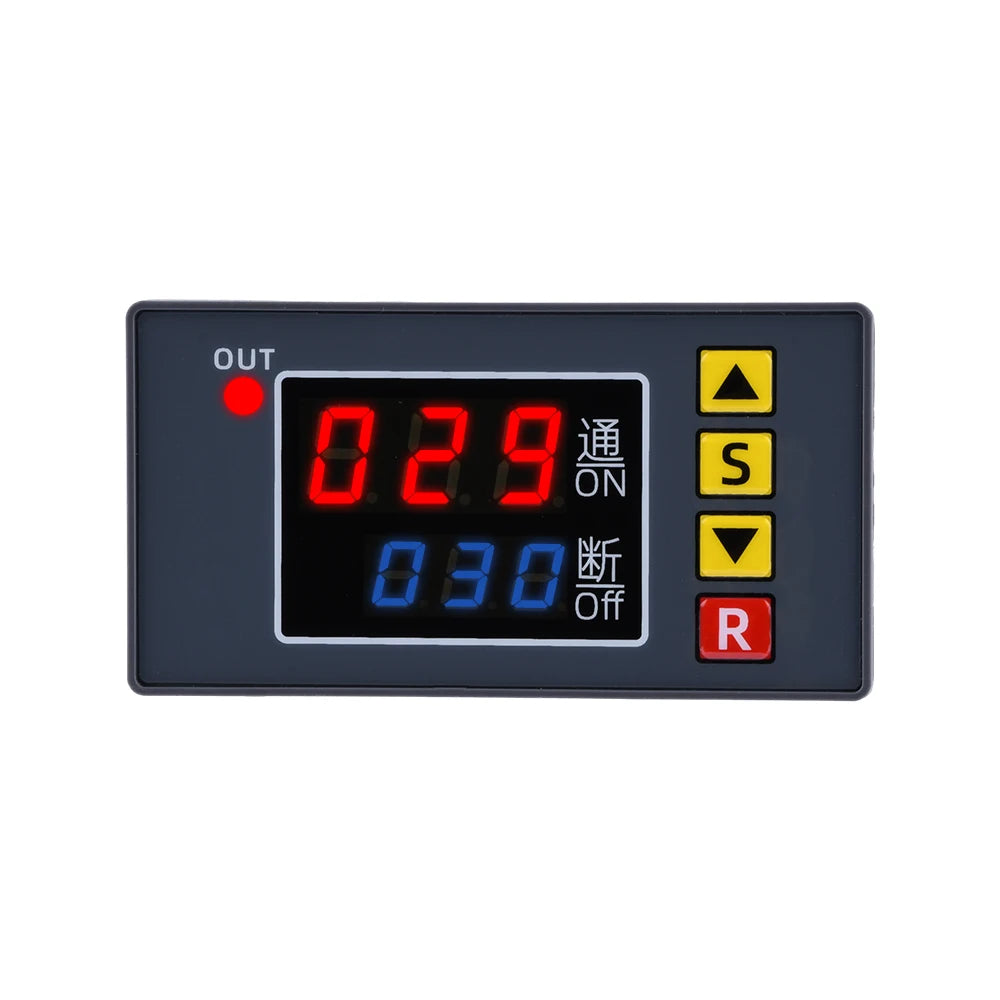

2. Dual LED display: red and blue dual LED display module and touch buttons, easy to set the delay time and working mode.
3. Supports various working modes, including timer, cycle and period working modes, meets most of your needs.
4. Switching output, 9 kinds of timing unit combinations, support manual triggering.
5. Installation size: 77 x 39.3mm, embedded installation, suitable for a variety of application scenarios

Parameter:

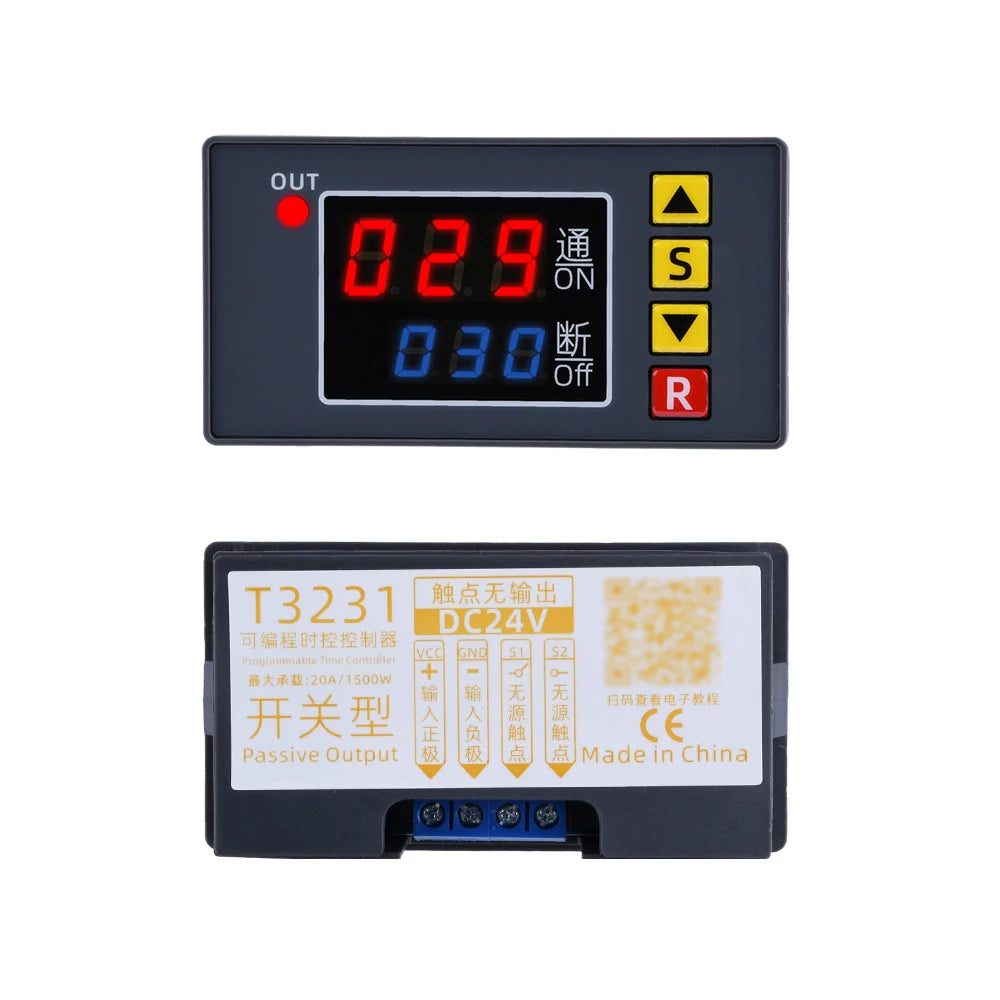

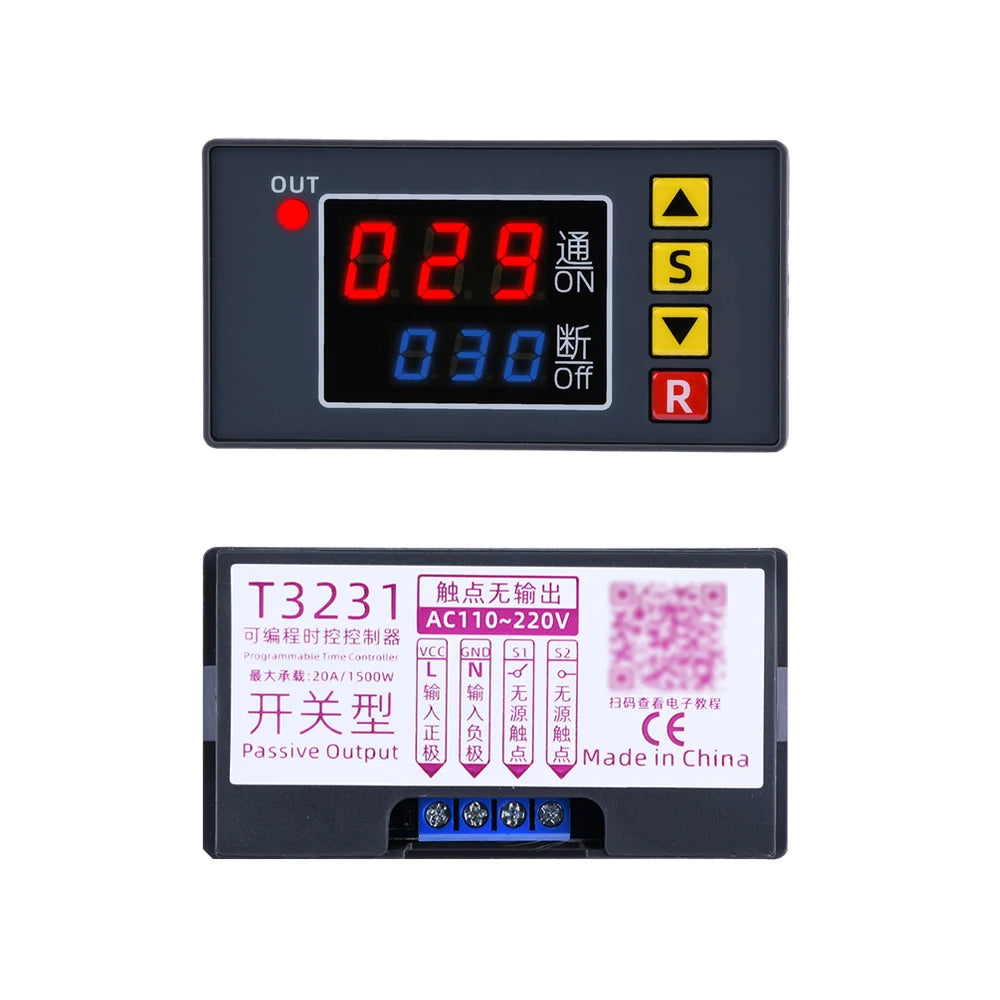

Product name: T3231 controller
Operating voltage: DC12V/DC24V/AC110~220V

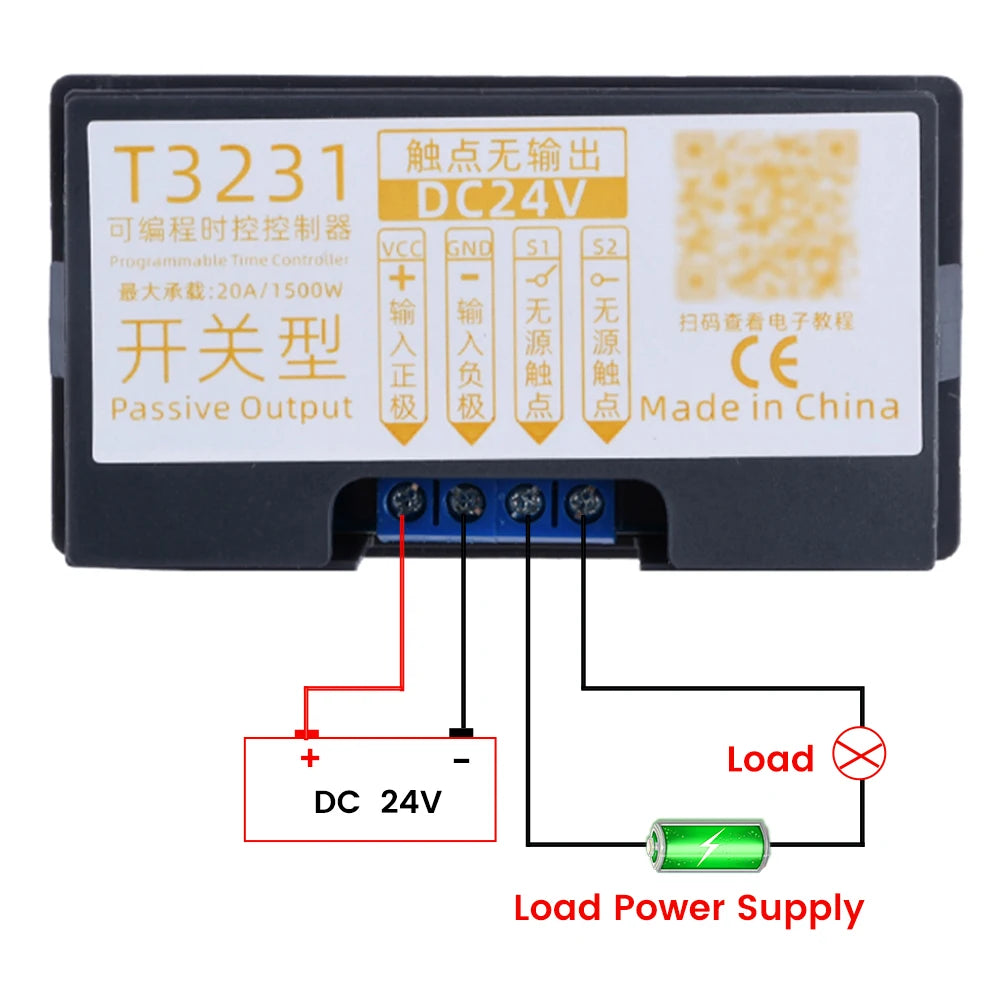

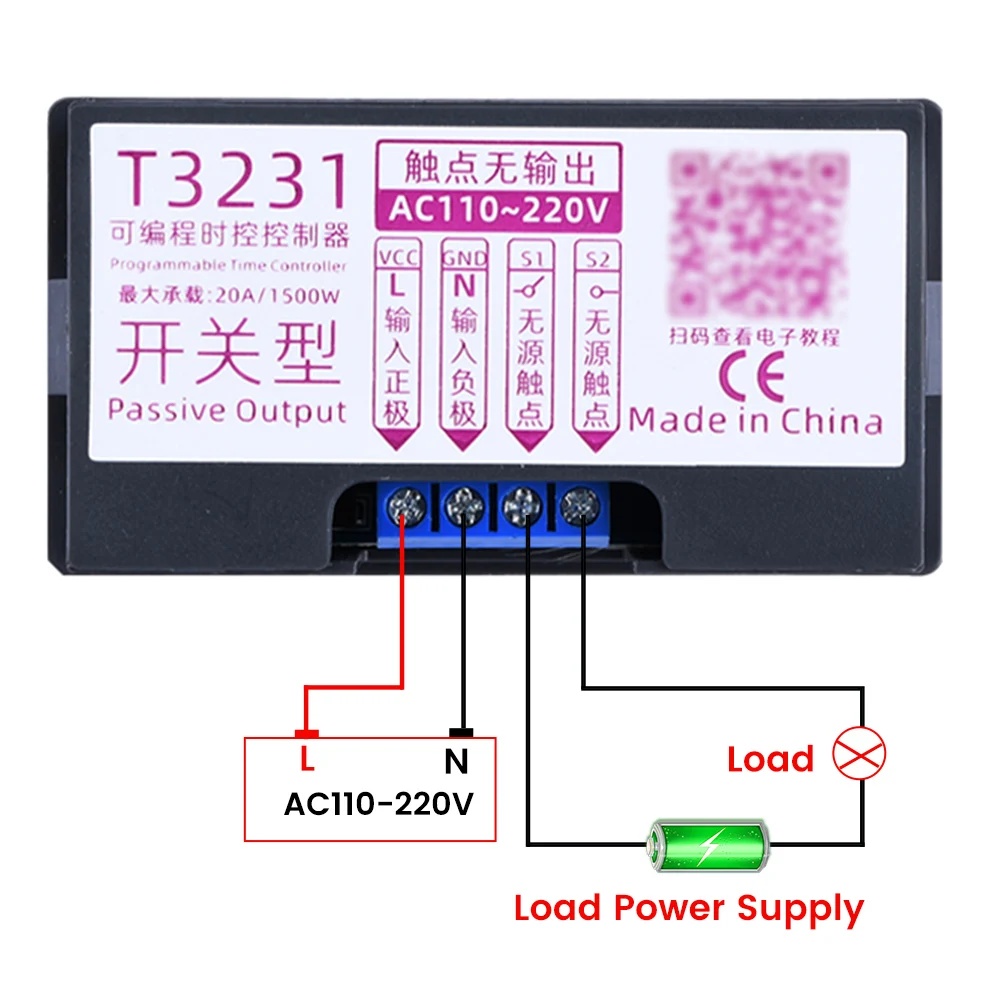

Output type: switch type, contact no output
Relay type: 1 way normally open relay
Timing unit: second/minute/hour
Timing range: 0~999, minimum measurement unit 1 second
Cycle Switch: Support
Delay switch on: Support
Delay switch off: Support
Infinite Cycle: Support
Power off save: Support, only save the setting, power on reset restart
Buzzer Alarm: No
Limit Cycle: 1~999 adjustable cycles
Trigger Mode: Auto trigger (default)/Manual trigger
External Trigger: External trigger port reserved, need to install trigger device by yourself.

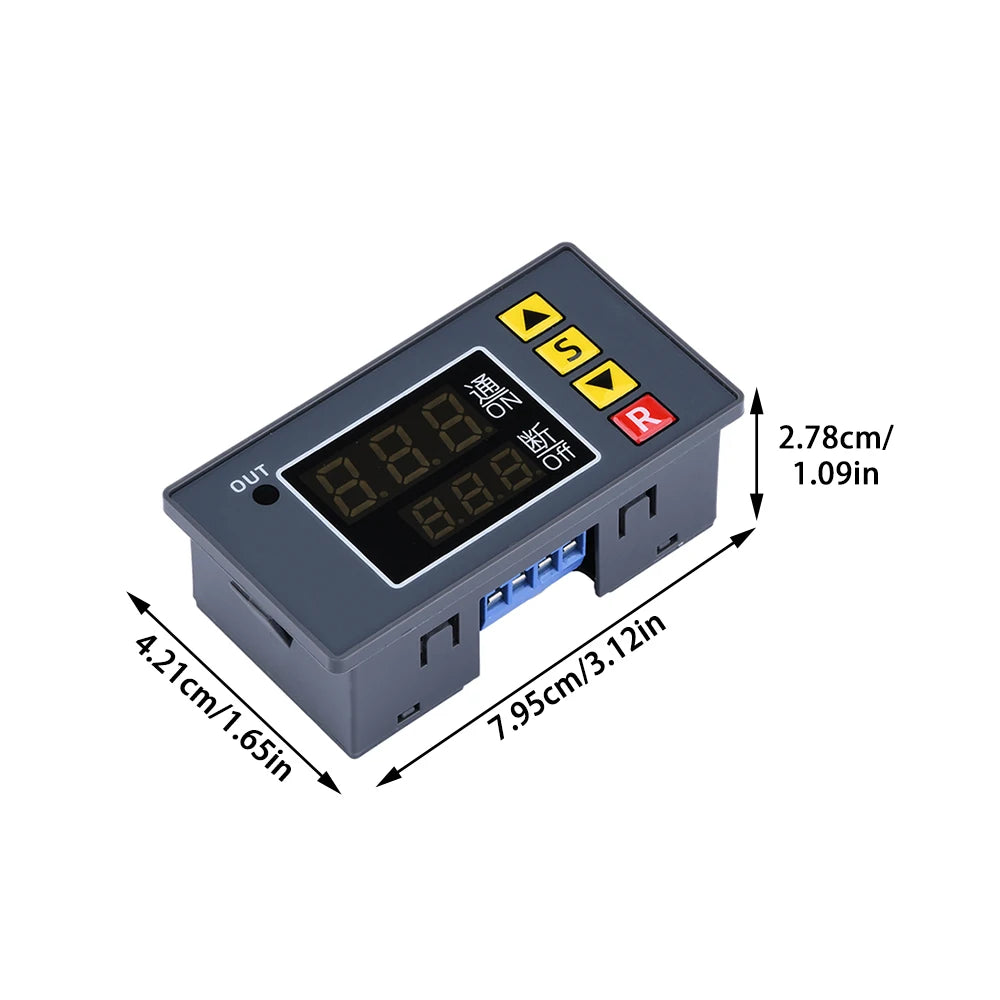

Product size: 79.5×42.1×27.8mm
Installation aperture: 77×39.3mm
