Digital Weighing Sensor Kit RS485 Modbus RTU Load Cell Amplifier Transmitter for Industrial Control System PLC PC

Digital Weighing Sensor Kit RS485 Modbus RTU Load Cell Amplifier Transmitter for Industrial Control System PLC PC

$287.60

$287.60 $0.00

Color 50KG Transmitter 200KG Transmitter 100KG Transmitter 5T Transmitter 3T Transmitter 500KG Transmitter 300KG Transmitter 2T Transmitter 1T Transmitter

Description

SPECIFICATIONS

0perating temperature: -20℃~+70℃

Brand Name: BENGBUZZYQ

Creep: 0.1%F.S.

High-concerned chemical: none

Impedance: 350Ω

Incentive voltage: 5V~12V

Input resistance: 380±30Ω

Insulation resistance: ≥2000MΩ/100VDC

Lag error: 0.3%F.S.

Material: Metal

Non-linearity: ±0.3~±0.5 %F.S

Origin: Mainland China

Output: Analog Sensor

Protection class: IP66

Rated load: 0kg~5T

Repeatability: 0.3%F.S.

Safe overload: 120 %F.S

Sensitivity: 1.0-2.0±0.05 mV/V

Sensitivity temperature coefficient: 0.1%F.S./10℃

Theory: Resistance Sensor

Type: Optical-Electronics Sensor

Use: Pressure Sensor

Zero temperature coefficient: 0.1%F.S./10℃

is_customized: Yes

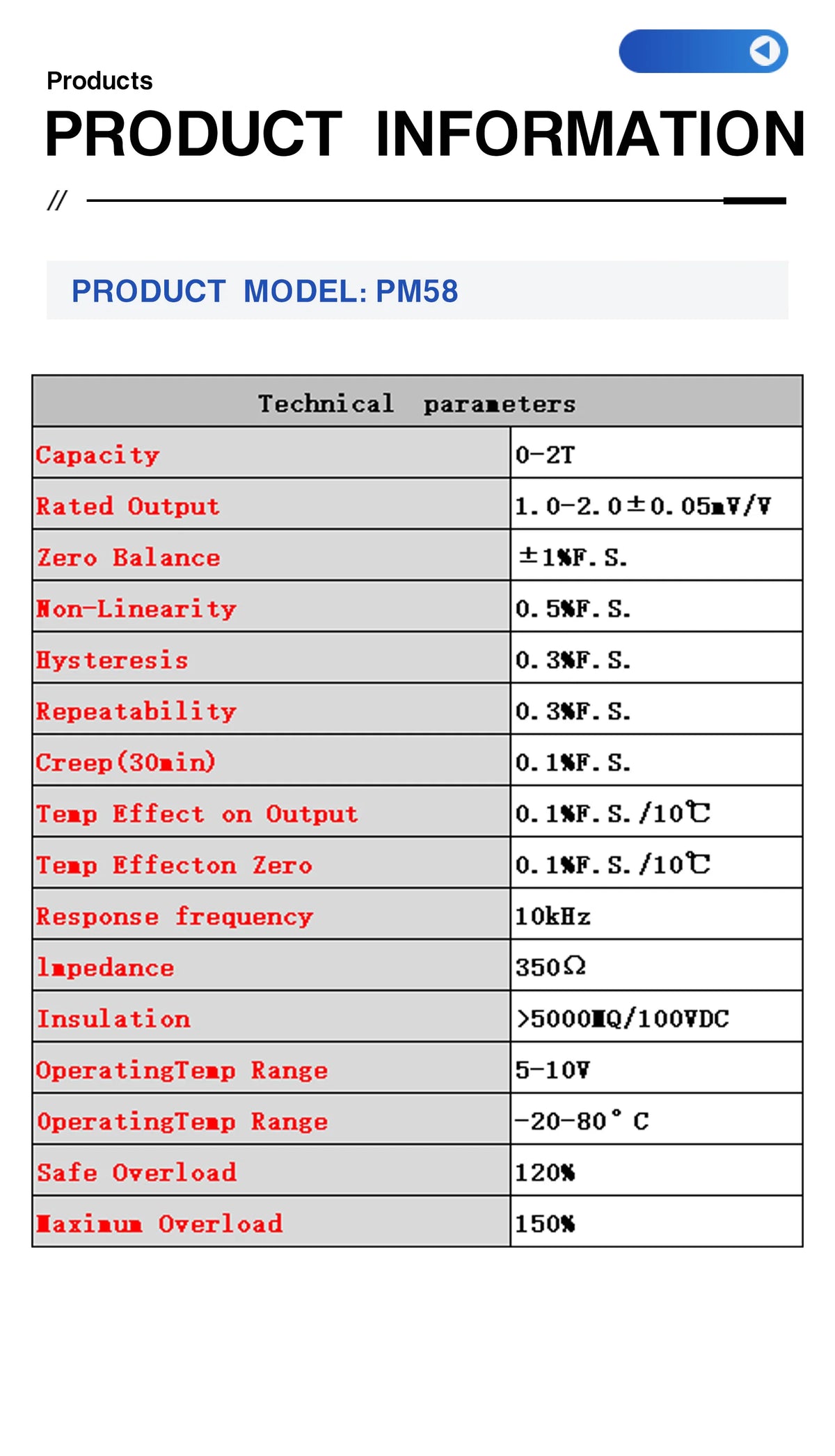

Technicalparameter
Rated load	10kg~5t
0utputsensitivity	1.0~2.0±0.05 mV/V
Non-linearity	±0.3~±0.5 %F.S
Lag error	±0.3 %F.S
Repeatability	±0.3 %F.S
Creep	±0.1 %F.S
Zerotemperaturecoefficient	±0.1%F.S/10℃
Sensitivitytemperaturecoefficient	±0.1%F.S/10℃
Inputresistance	380±30Ω
0utputresistance	350±5Ω
Workingtemperature	-20℃~+70℃
Safeoverload	120 %F.S
Insulationresistance	≥2000M2
Incentivevoltage	5V~12V
Protectionclass	IP66
Material	Alloy steel, stainless steel

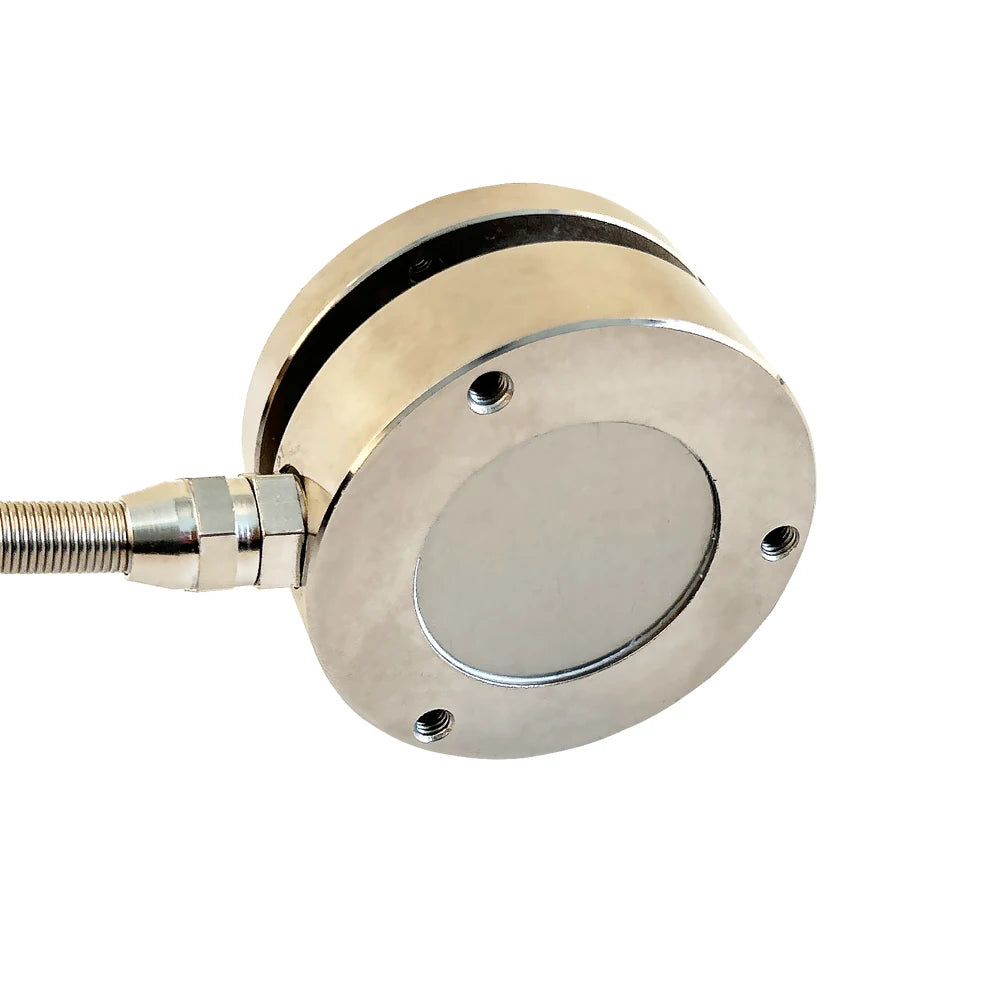

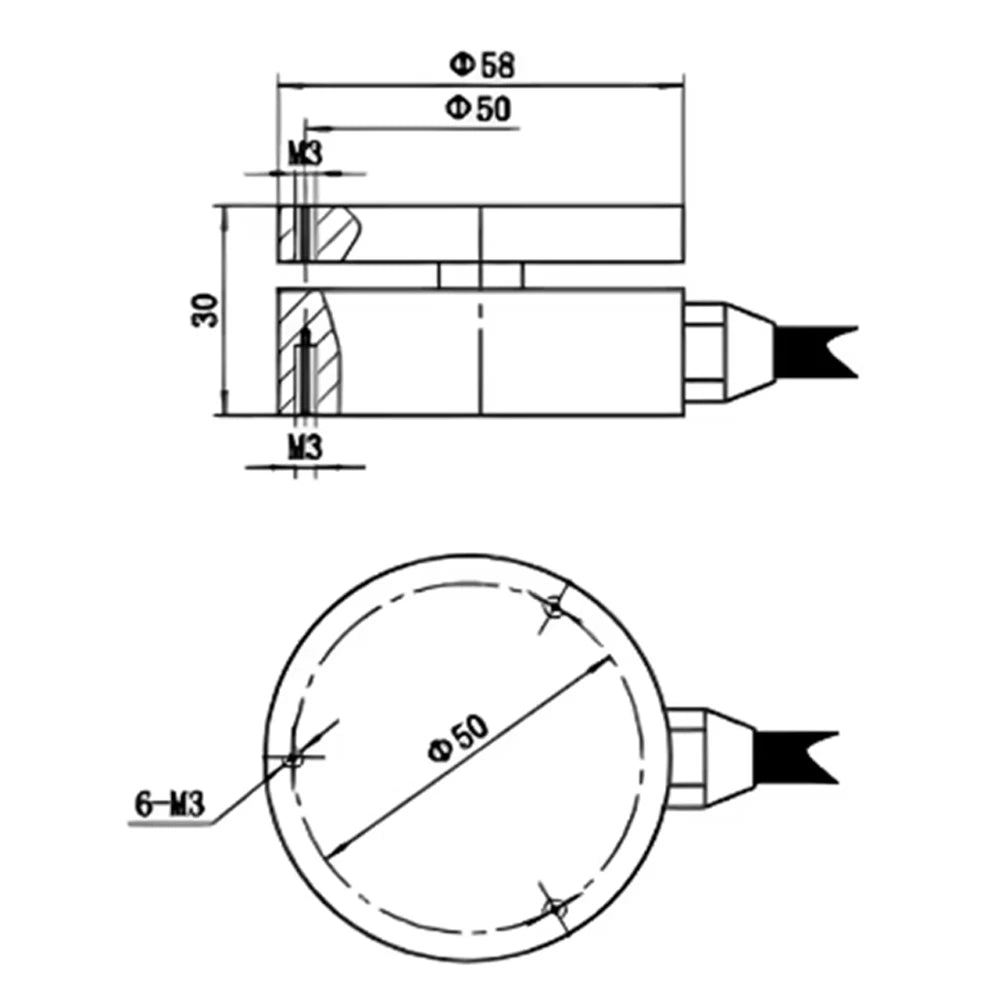

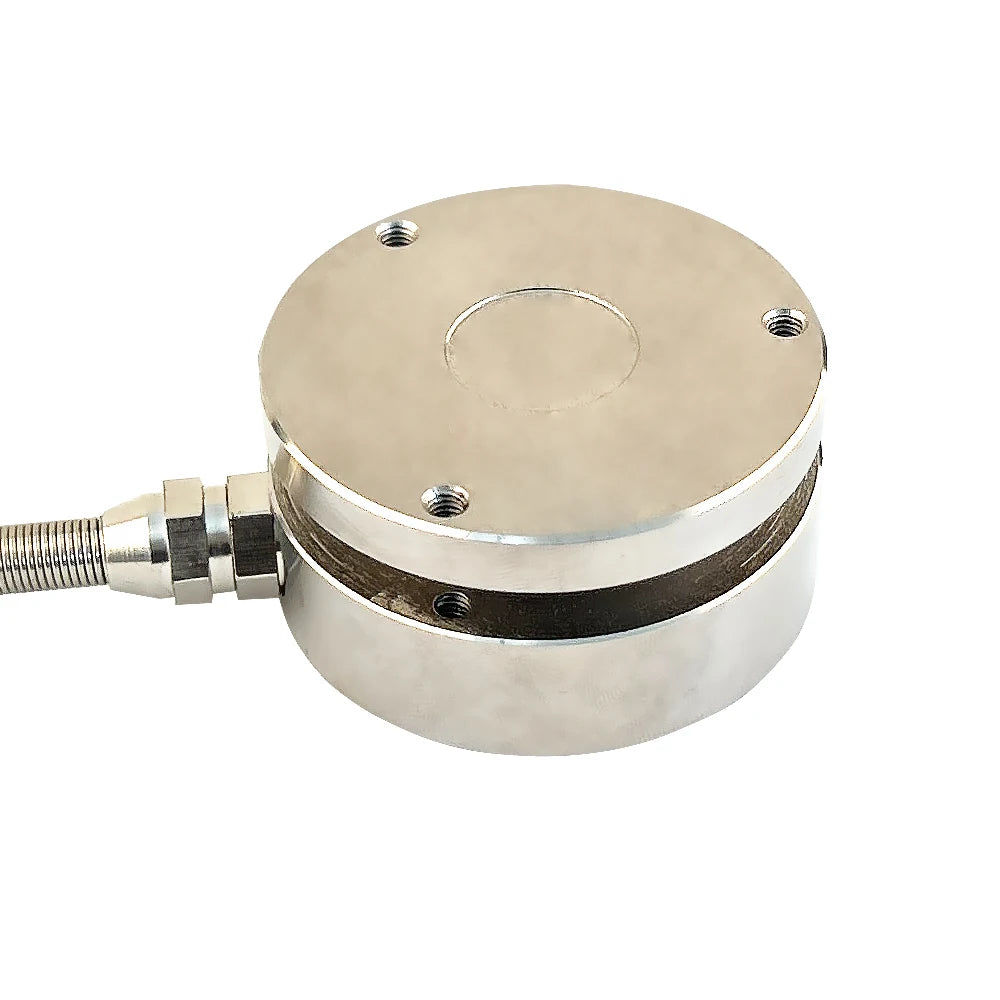

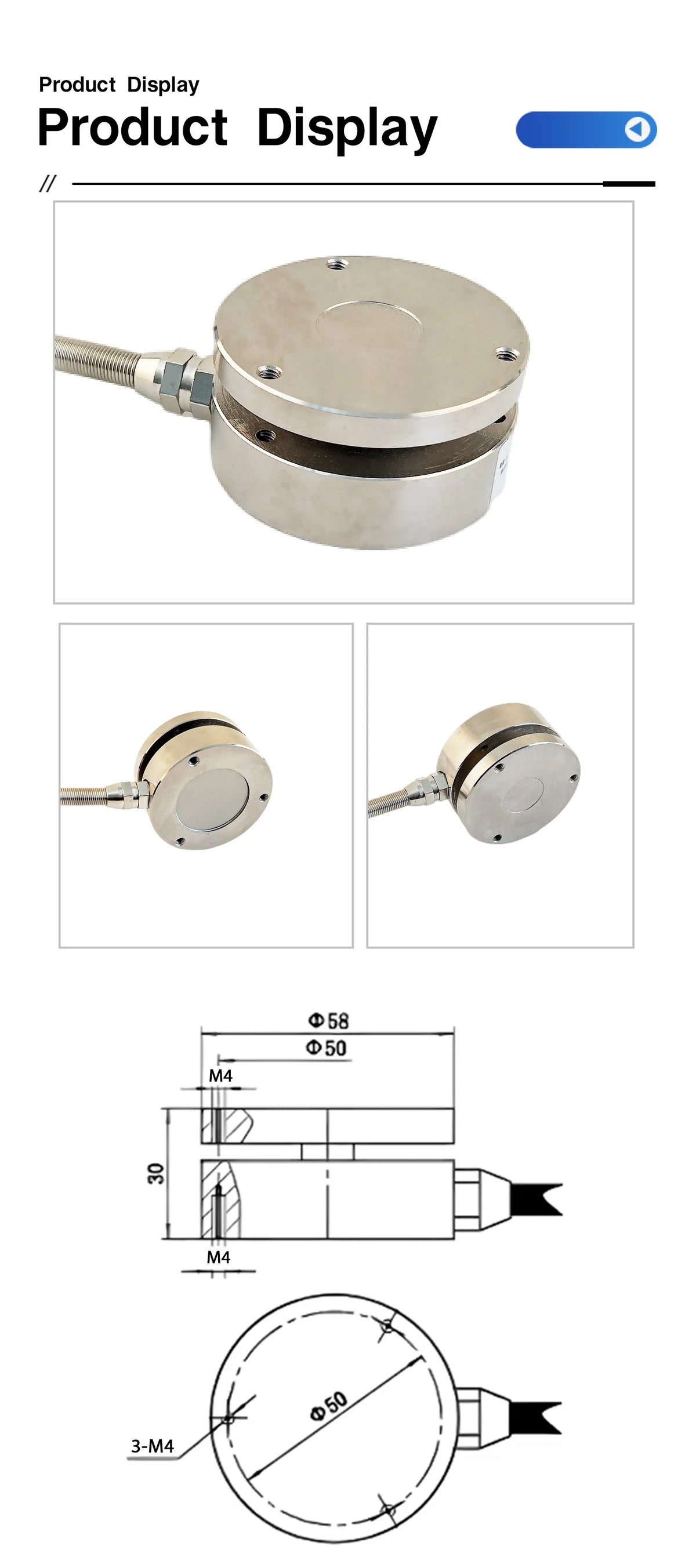

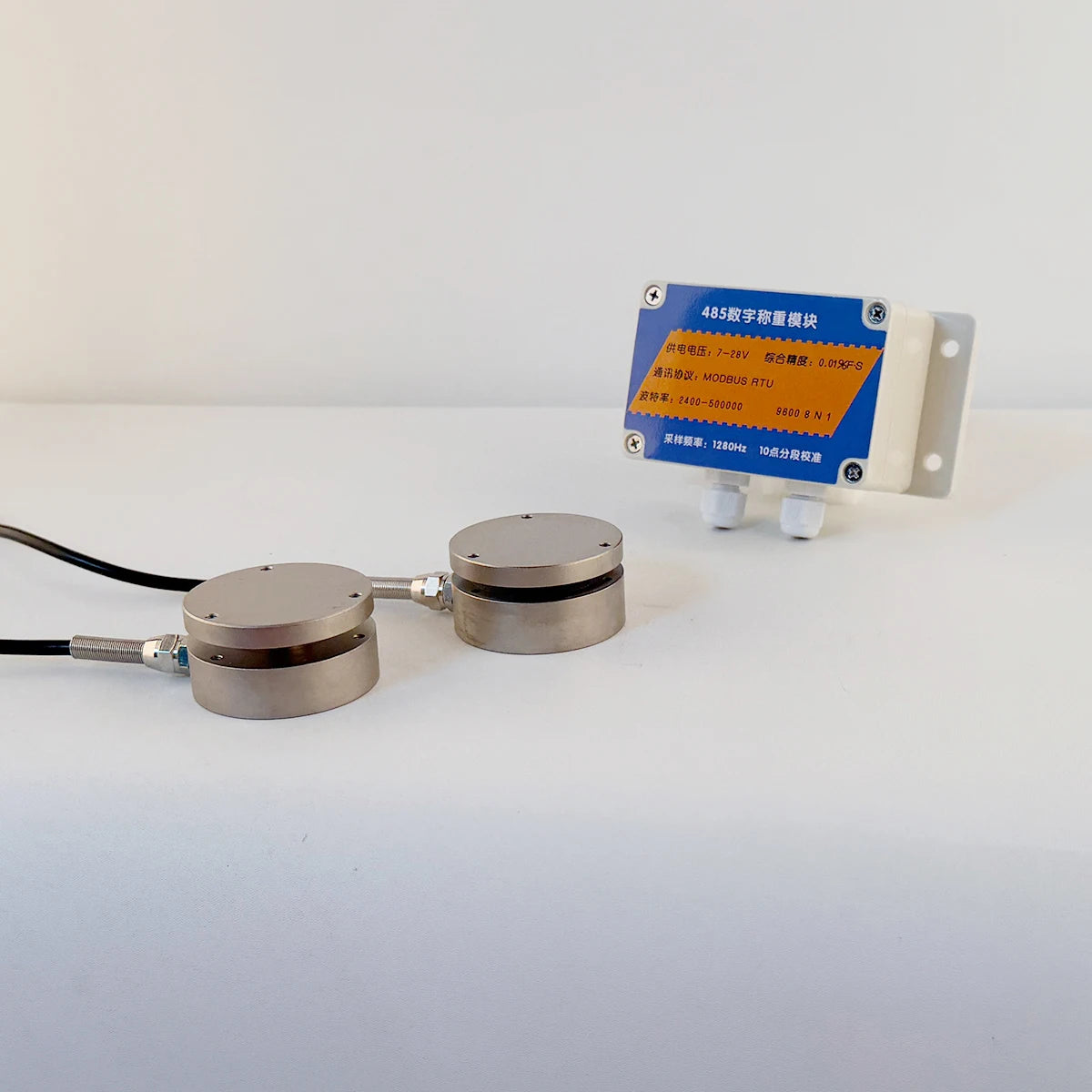

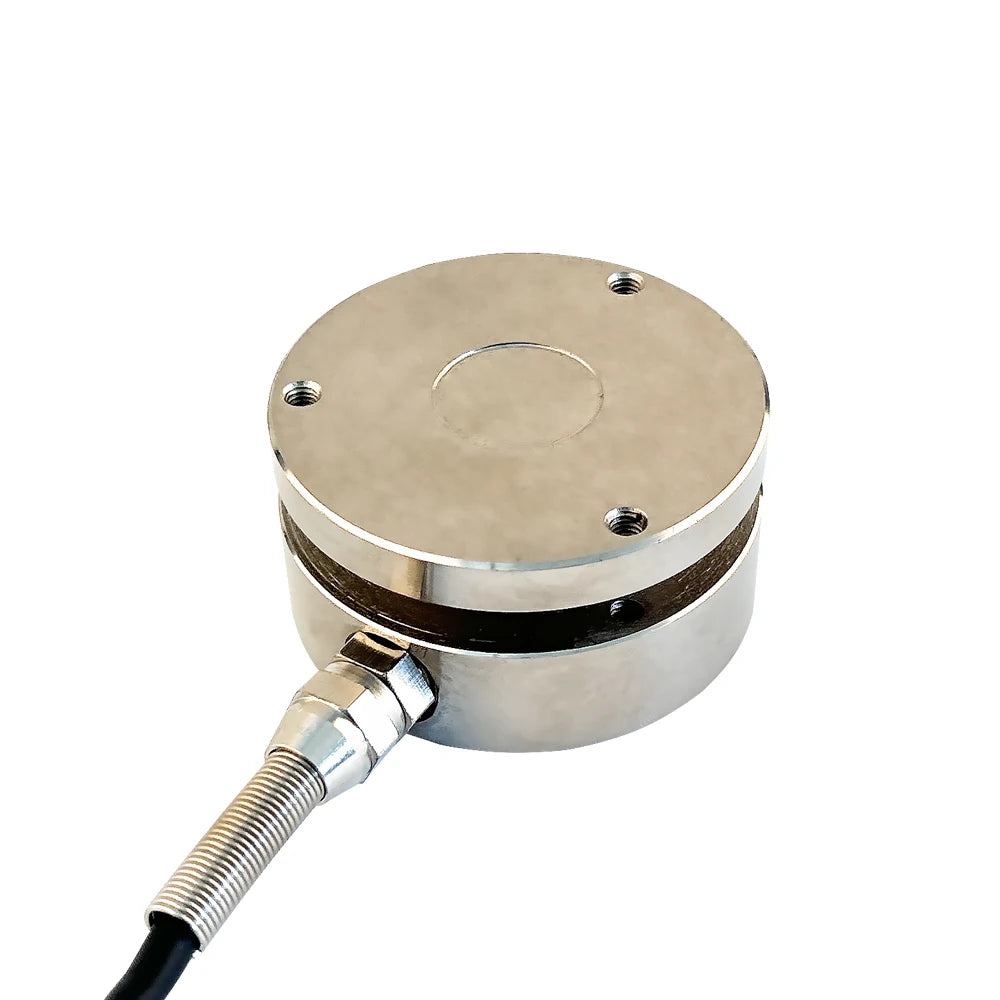

This industrial 58mm load cell paired with a digital indicator forms a complete force and weight measurement system. It is widely used in press machines, tension testing, filling equipment, and automation lines. The sensor is available in capacities from 10kg to 5 tons, offering high accuracy and stable performance. The indicator supports high resolution, analog output, relay control, and RS485 communication, making it suitable for various industrial applications. Durable construction and easy installation ensure reliable long-term operation.
