DIN Rail Mount RJ45 Module,Unshielded RJ45 8P8C Jack 4-Way Buss Breakout Board, Terminal Block, Connector.
Default Title
$46.24
Sale price
$46.24
Regular price
$0.00
Skip to product information
DIN Rail Mount RJ45 Module,Unshielded RJ45 8P8C Jack 4-Way Buss Breakout Board, Terminal Block, Connector.
$46.24
Sale price
$46.24
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Conductor Size: 21 - 30 AWG
Does it include a Battery?: No
Does it include wireless functionality?: No
High-concerned chemical: none
Model Number: RJ45-4B3-1
Number of Contacts: 1 - 10
Origin: Mainland China
Type: Power Distribution
is_customized: Yes

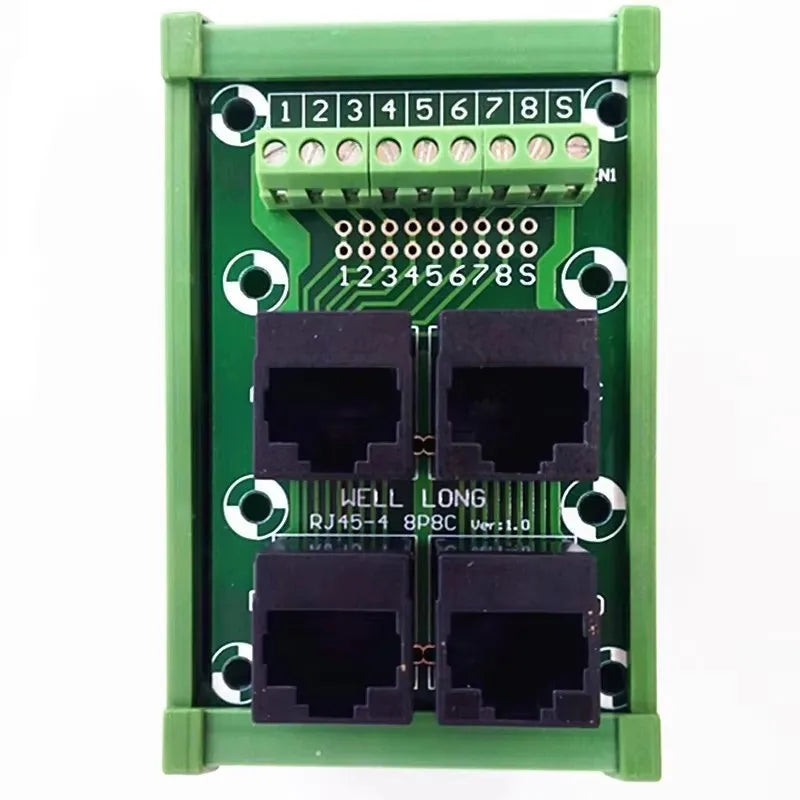

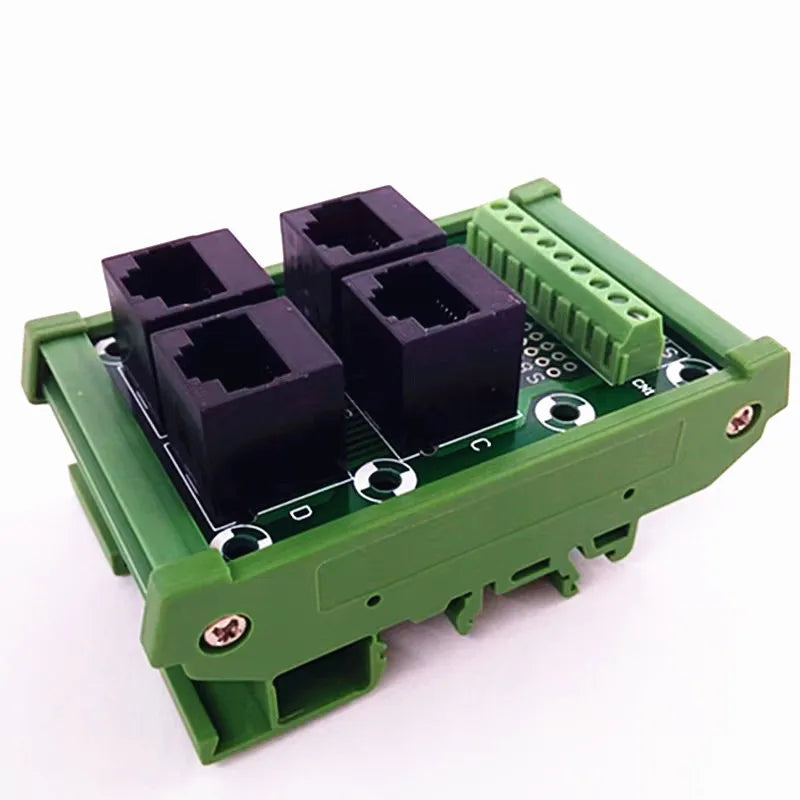

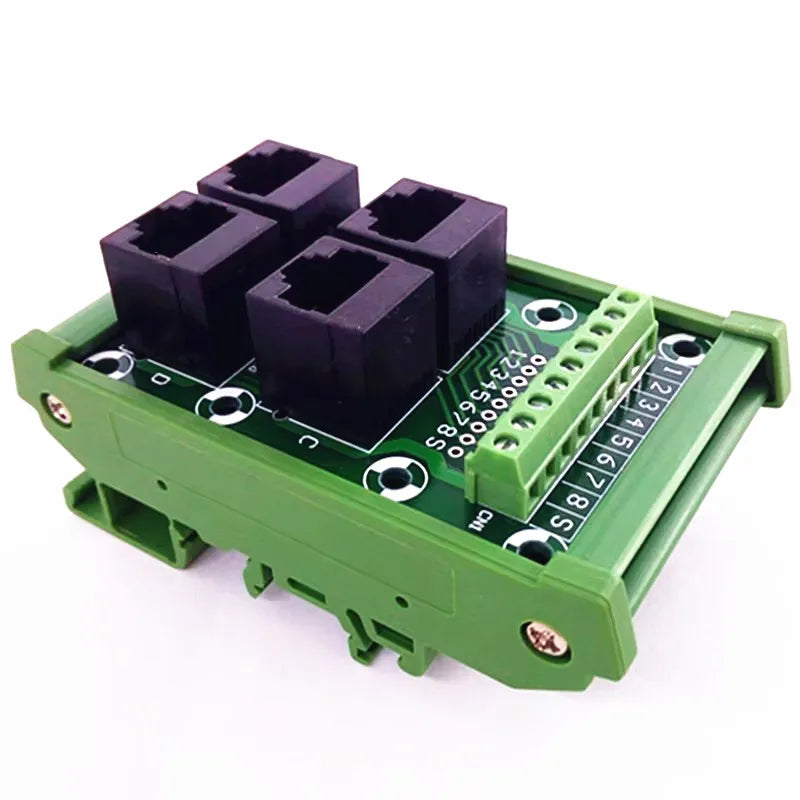

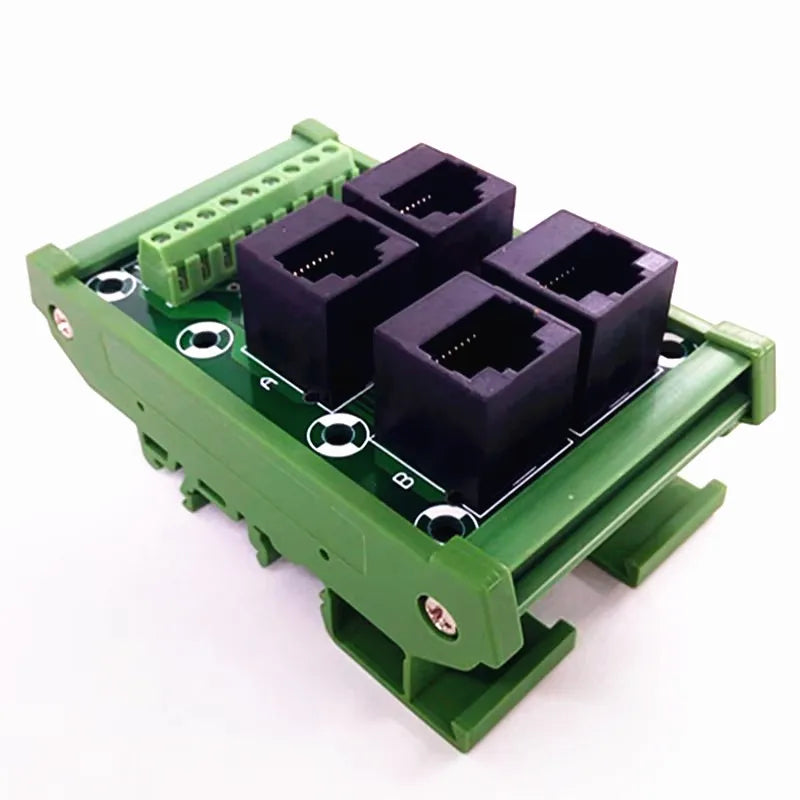

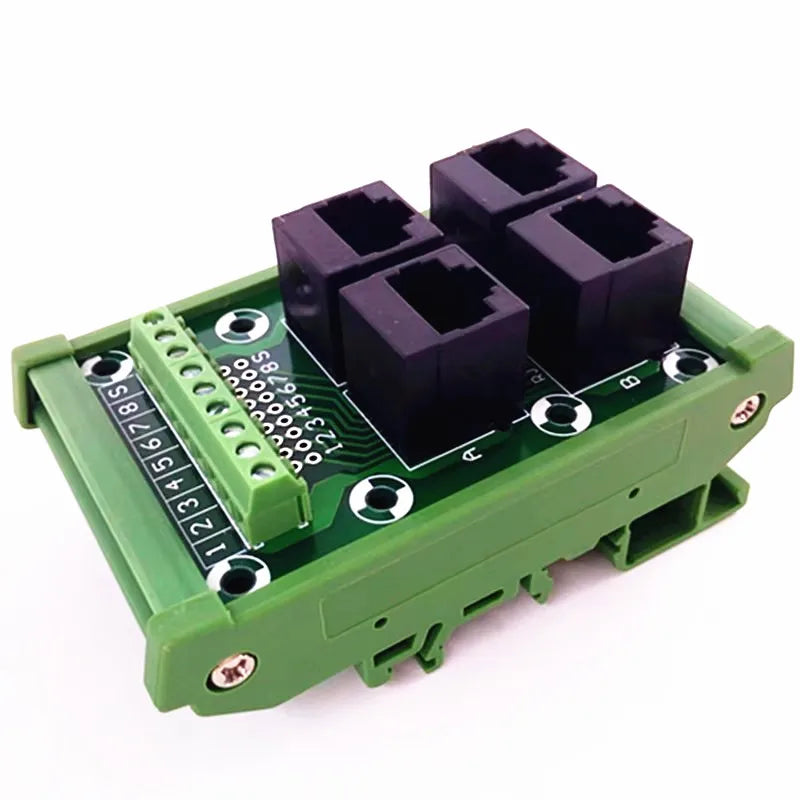

DIN Rail Mount RJ45 8P8C Jack 4-Way Module.

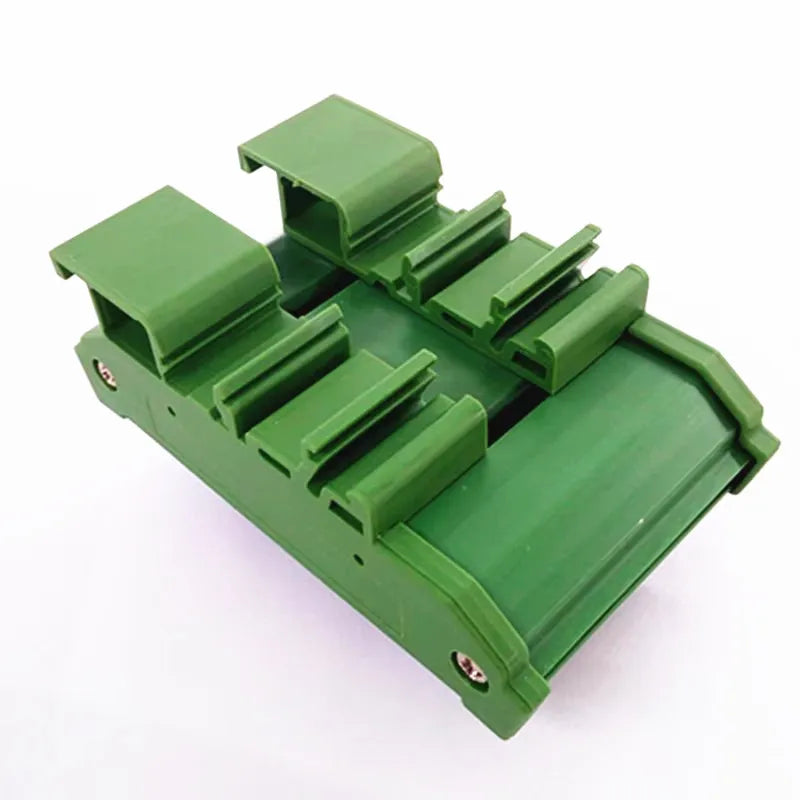

High quality PCB housing/carrier, DIN rail mountable - for width 35 / 32 / 15mm rails.
Part number: RJ45-4B3
RJ45 vertical 8P8C jacks.
FR-4 fiber glass PCB, dual copper layers.
PCB dimensions: 72.5 x 47.4mm(W x L).
100% new, never used.
Rated voltage: 100V.
Rated current: 500mA / per pin.
Operating Temperature: -20ºC to 50ºC.
Terminal block specifications:
Wire range: 26 ~ 16AWG.
Strip length: 5mm.
Screws: M2, steel, Cr3+ Zn plated.
Pin header and Cage: Brass.
