Size
Description

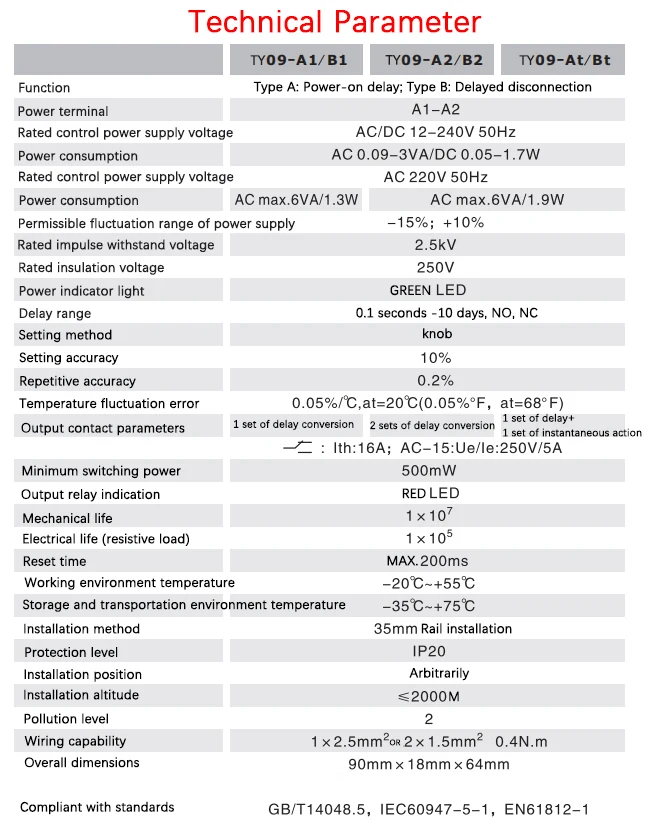

SPECIFICATIONS

A1 A2: power-on delay

B1 B2: Delay disconnection

Brand Name: NONE

Certification: NONE

Contact Load: High Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: TY09-A1A2B1B2

Origin: Mainland China

Output Contact: ne group conversion (A) Two groups conversion (B)

Power Source: Ac

Protect Feature: Sealed

Theory: Time Relay

Use: General Purpose

Voltage: 240V

is_customized: Yes

Application



Delay the connection or disconnection of the circuit, such as controlling the power on time of the heating element, the working time of the water pump, and delaying the new start of the fan.

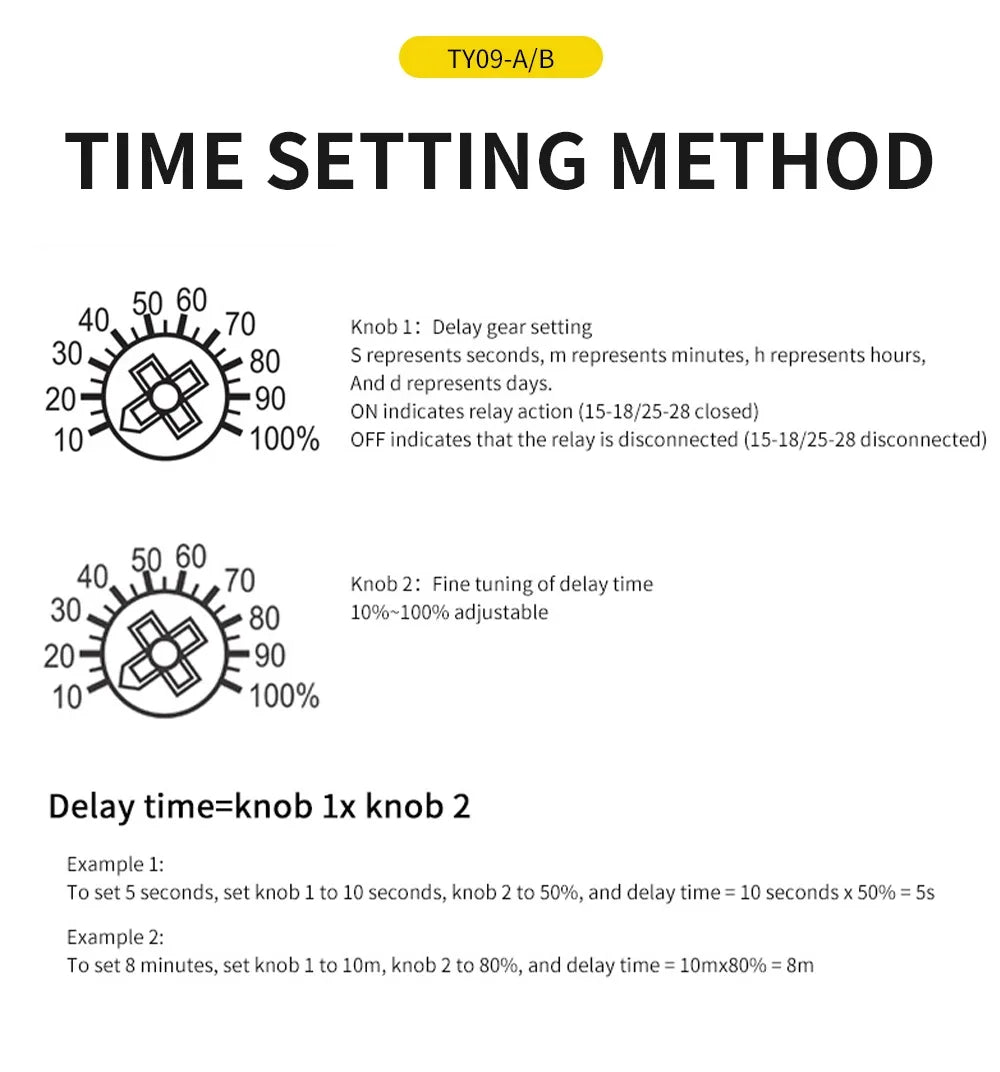

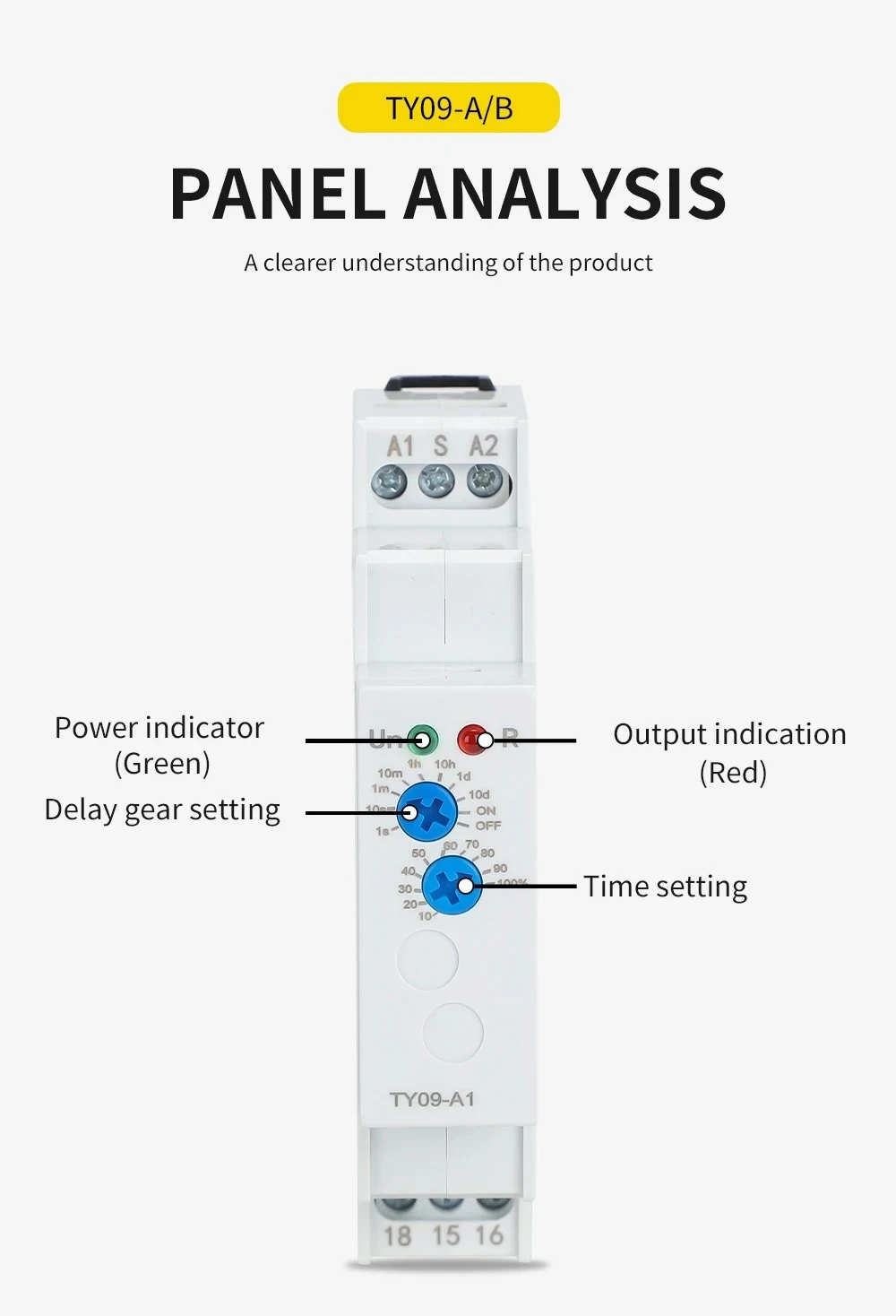

High cost-effectiveness, single function time relay, delay can be directly set through the panel knob, convenient and intuitive. Two function modes are available:



A: Power on delay

B: Delayed disconnection

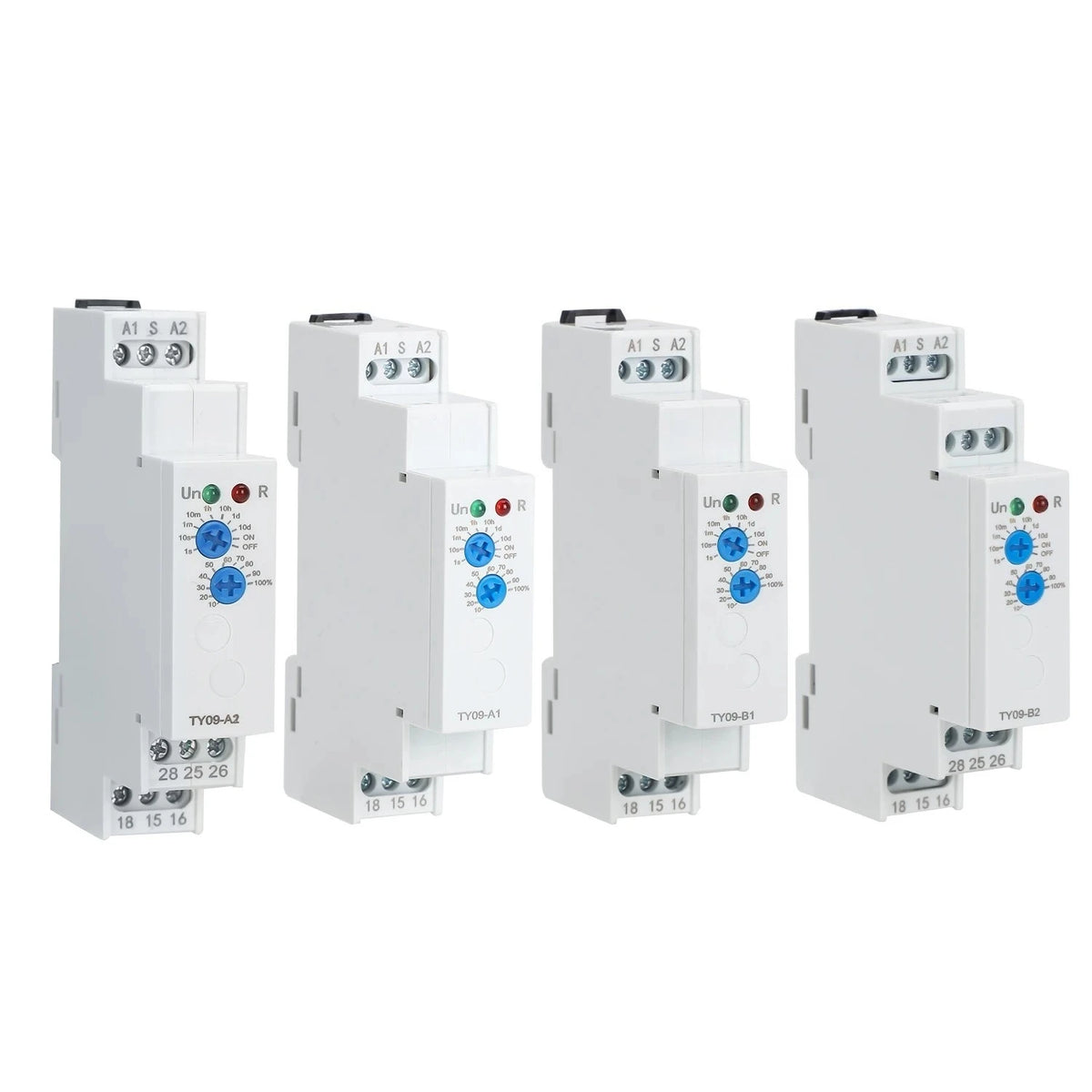

The specifications of 1 set of delay, 2 sets of delay, 1 set of delay+1 set of instantaneous action are optional.

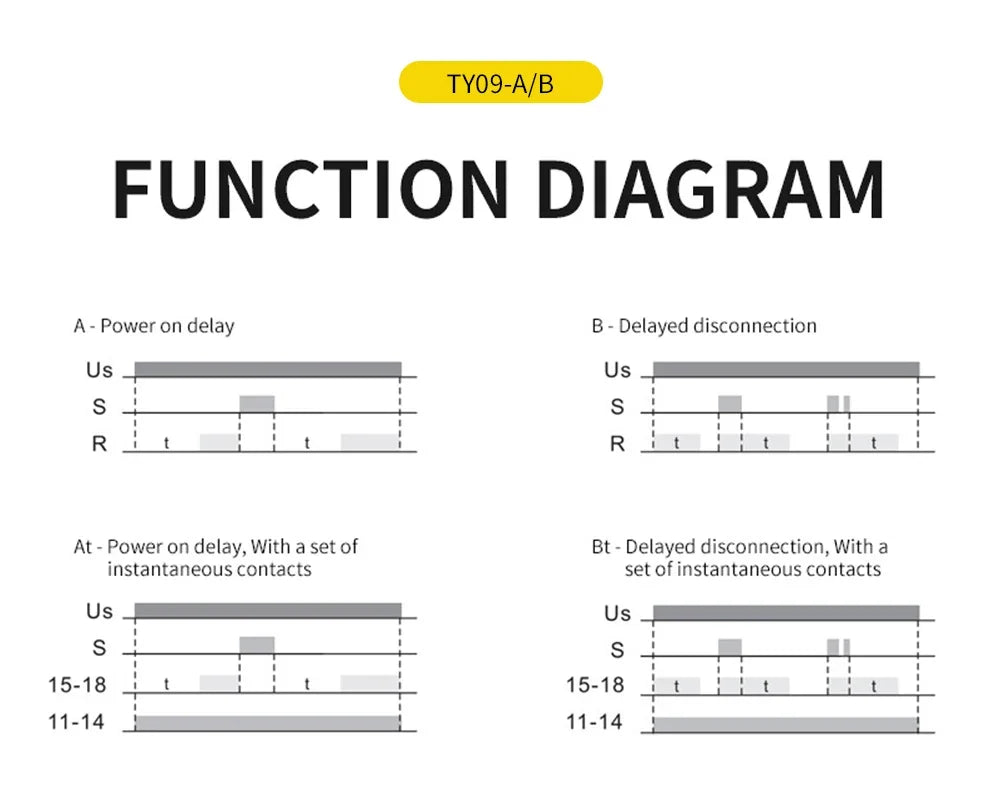

When the A-type power is turned on, the relay can start to delay. When the delay time reaches the preset value, the relay acts and the output contact is normally closed and converted to normally open



When the B-type power is turned on, the relay will start to delay. When the delay time reaches the preset value, the relay will act and the output contact will switch from normally open to normally closed
