SPECIFICATIONS

Application: Computer

Brand Name: EC Buying

Condition: New

Dissipation Power: low

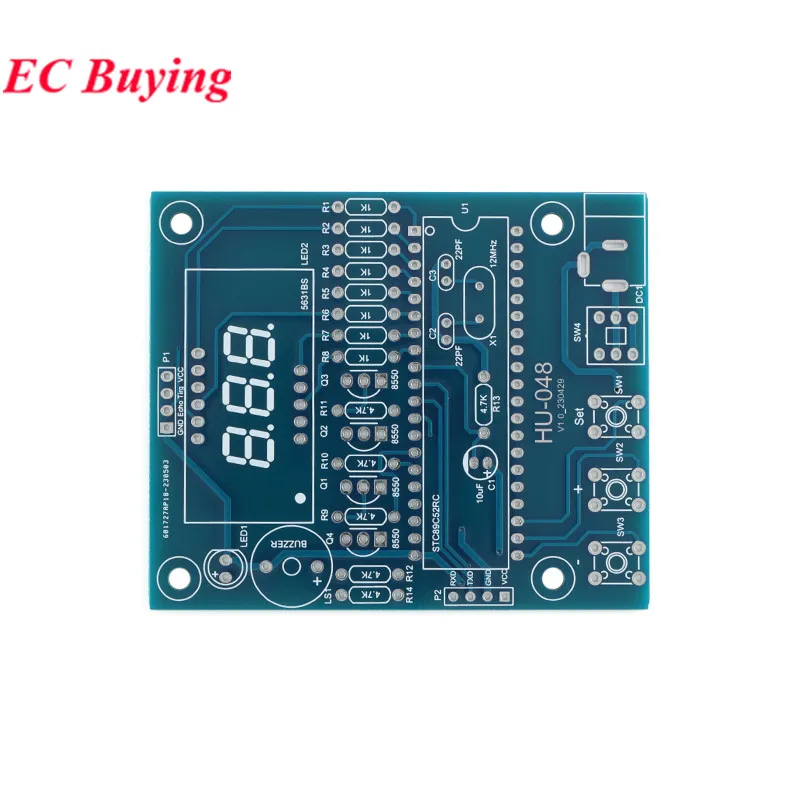

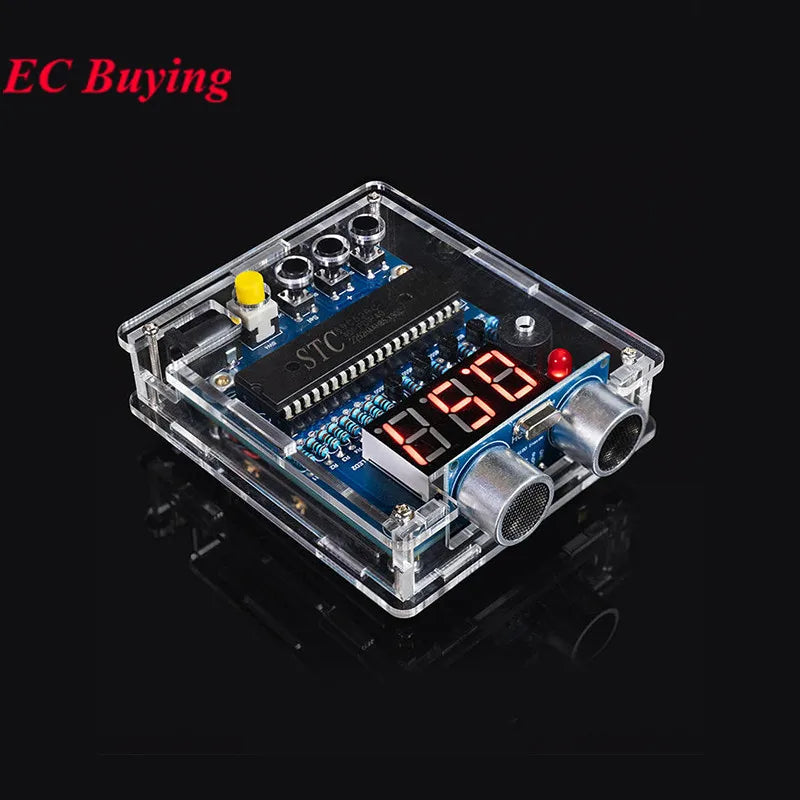

HU-048 Ultrasonic Distance Measuring Kit: 51 single-chip ultrasonic rangefinder reverse radar alarm DIY electronic module product

High-concerned chemical: none

Operating Temperature: normal

Origin: Mainland China

Package: DIY Kits

Smart Electronics Experiment: Switch And Sensor For Arduino STM32

Supply Voltage: DC 5V

Type: Voltage Regulator

is_customized: Yes

Product Information

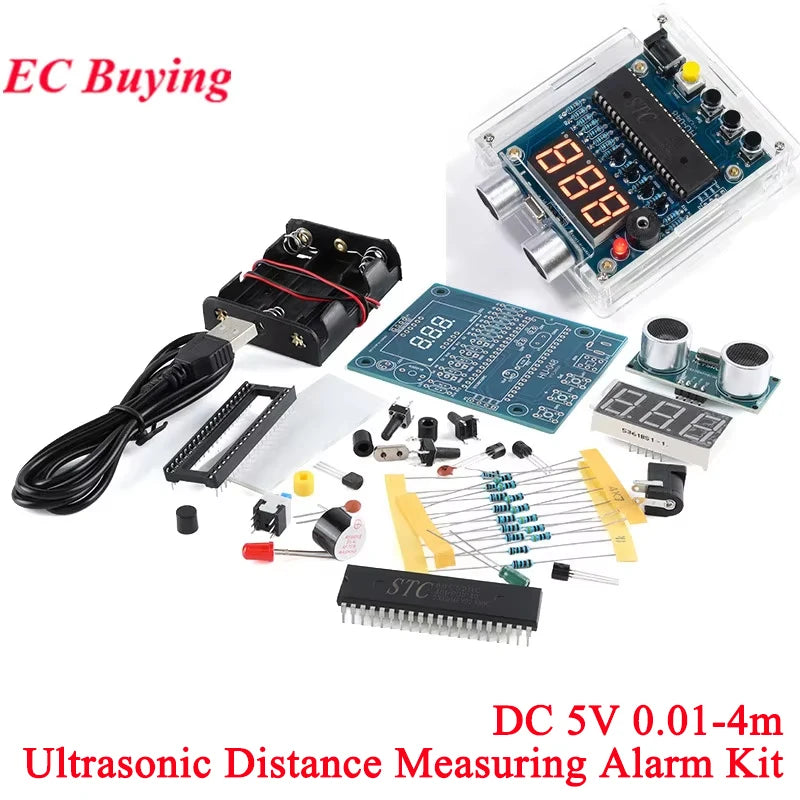

Kit name: ultrasonic distance measuring alarm kit

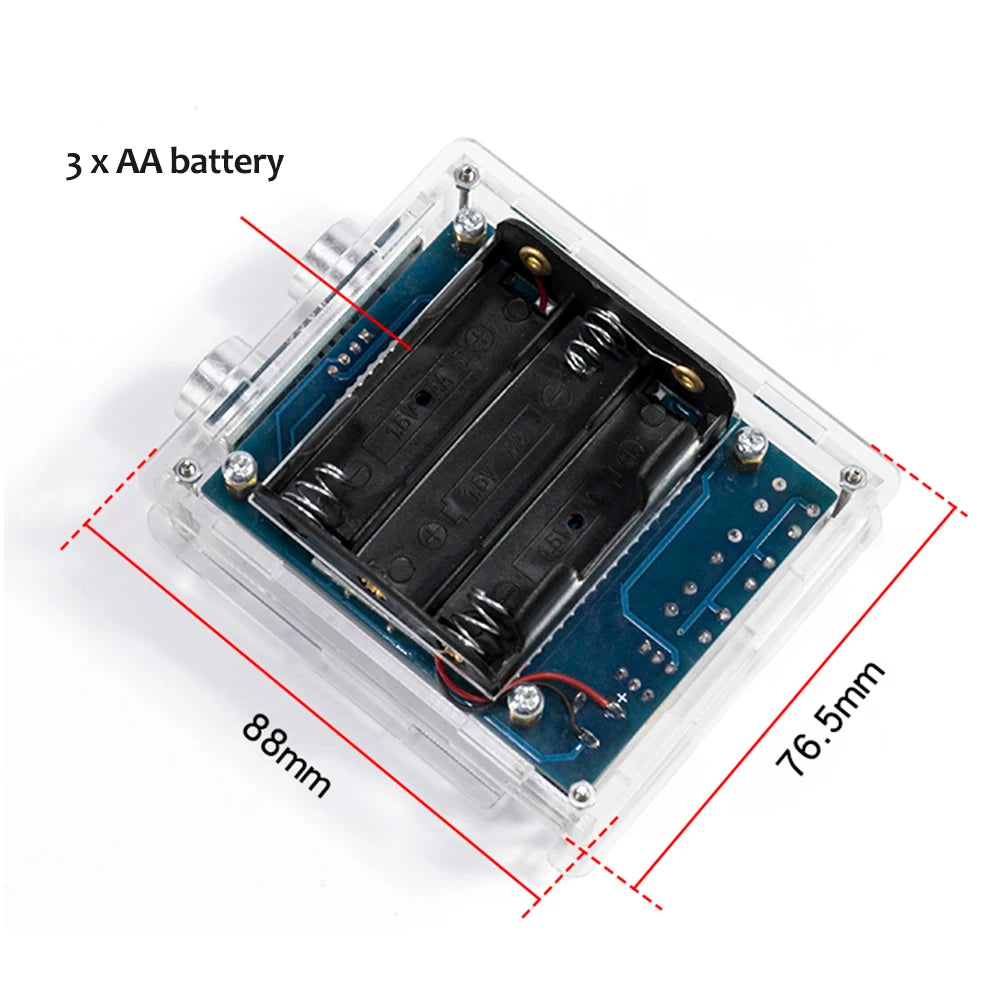

Power supply: DC power supply 5V or 3pcs 5 batteries

Working voltage: 5V

Working current: more than 30mA

PCB length: 72*62mm

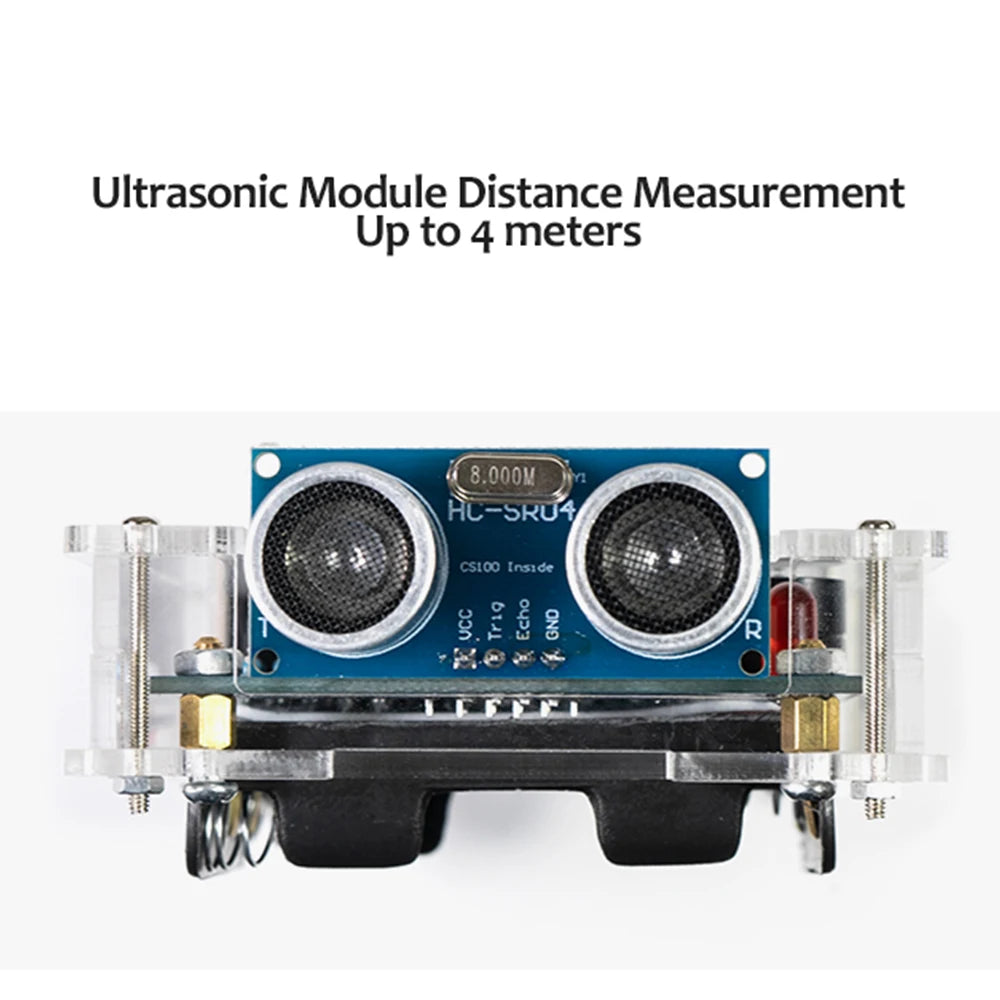

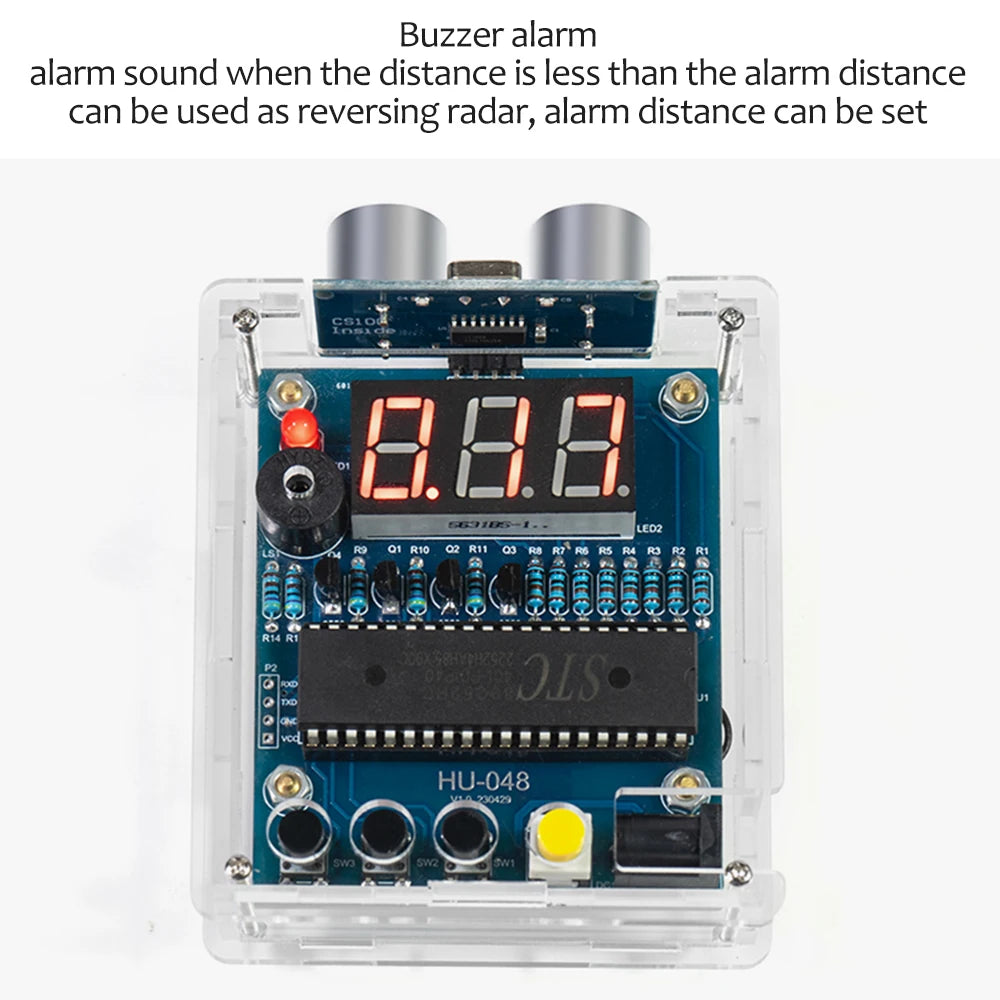

Measuring range: 0.01-4.00 meters, when the distance is less than the alarm distance, an alarm will be issued

Key setting: short press Set key, digital tube display alarm distance. Adjust the distance by "+" or "-" button, then press Set to save and exit.

Characteristics of the product

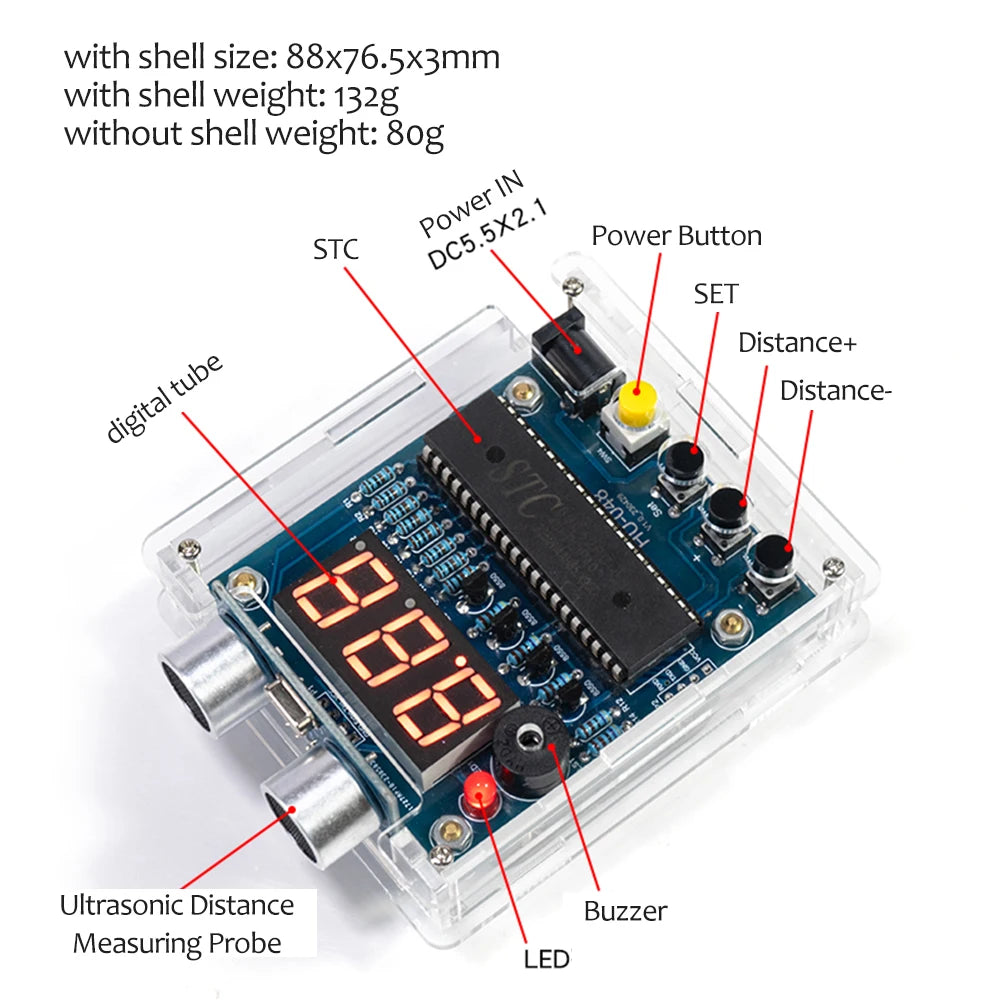

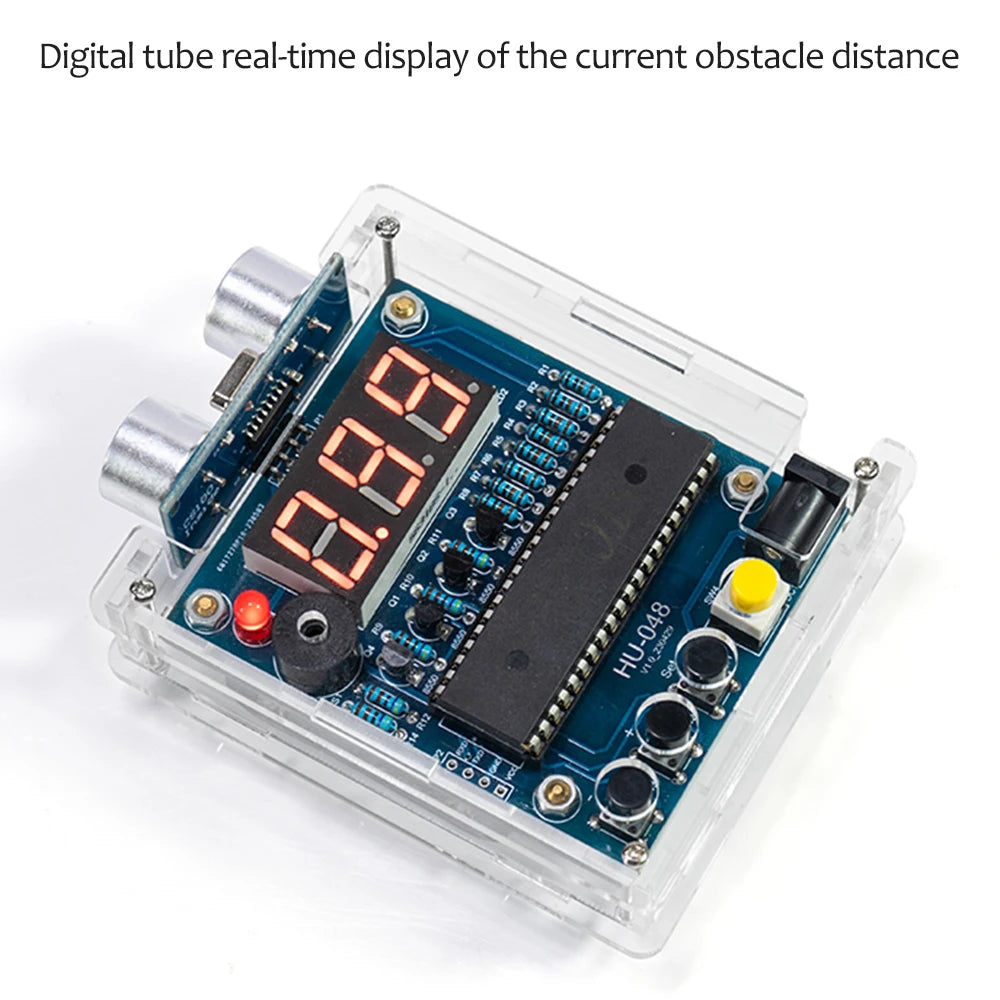

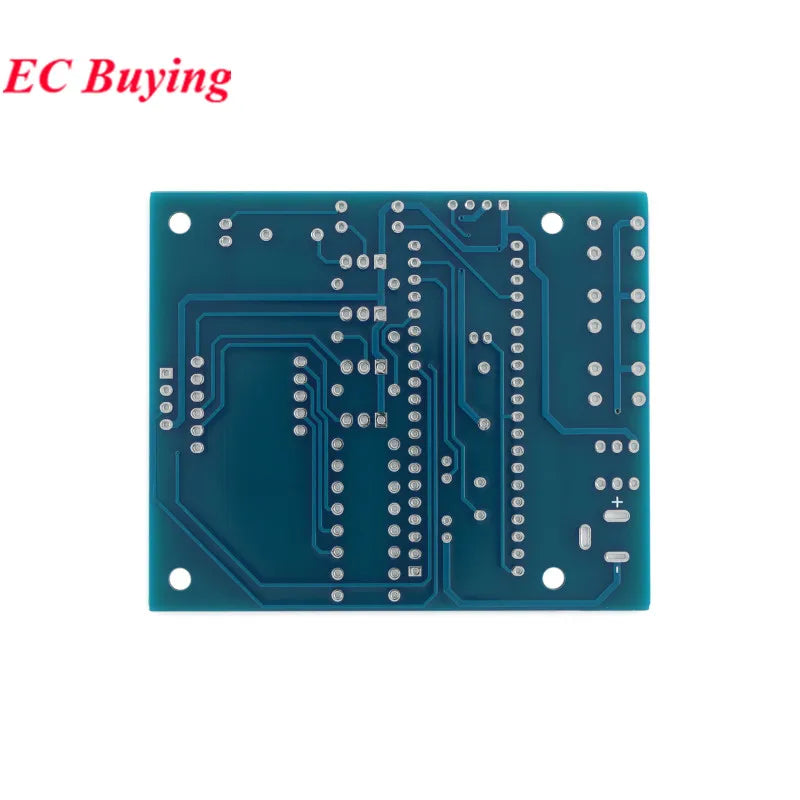

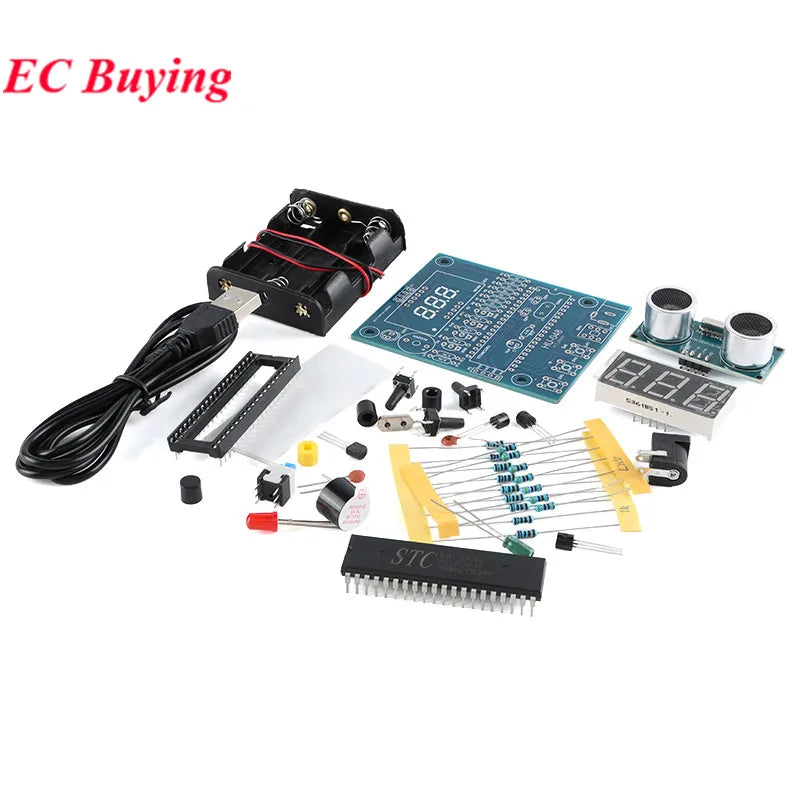

Composed of special circuit board, STC microcontroller, digital tube, ultrasonic distance measuring module, buzzer and other components, no need to be programmed and plugged into the power can be used, the distance can be adjusted.

IR reversing radar kit

Product Description:

The infrared reversing radar is composed of a multi-resonant circuit, an infrared signal transmitting and receiving circuit, an infrared signal amplifying and a voltage comparison circuit, and has the characteristics of simple circuit, low cost and stable circuit operation, and is widely used in various ranging occasions.

Installation and Debugging:

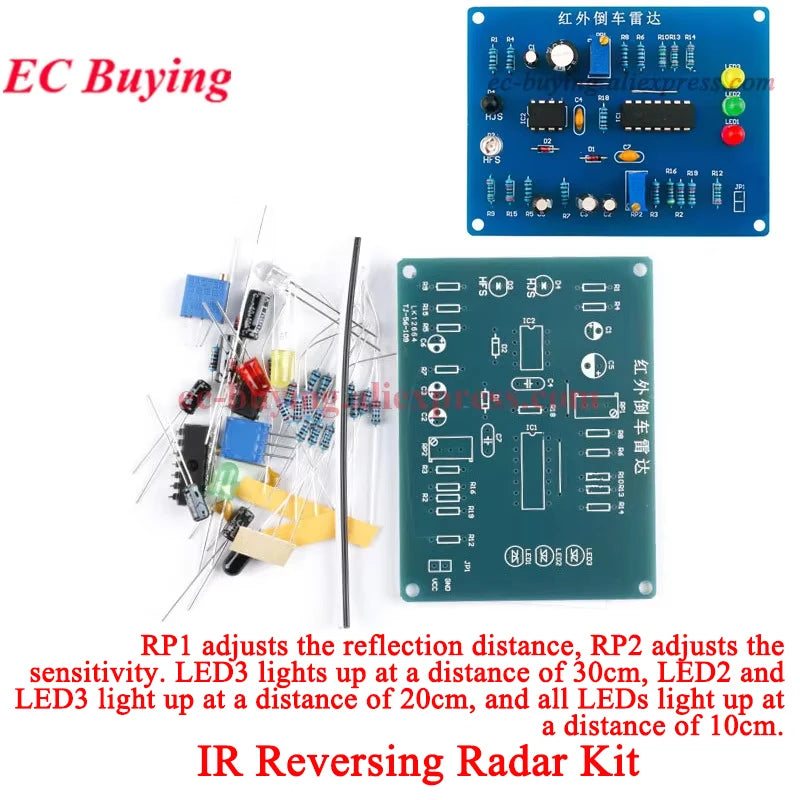

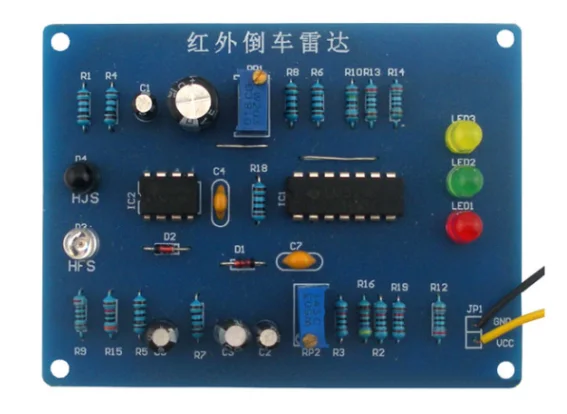

The infrared transmitting tube HF and the infrared receiving tube HJ have polarity (long legs are positive), please do not install the wrong ones, the mounting direction can be upwards or sideways. RP1 adjusts the reflection distance, RP2 adjusts the sensitivity, LED3 can be bright when the distance is 30cm, LED2 and LED3 are bright when the distance is 20cm, and fully bright when the distance is 10cm. It is better to use a white paper to block the reflection above the infrared sensor.

Principle:

The time base circuit NE555 and surrounding components form a multivibrator to generate an infrared wave signal, which is output through the third pin of IC2 and drives the infrared transmitting tube HF to emit an infrared signal.
