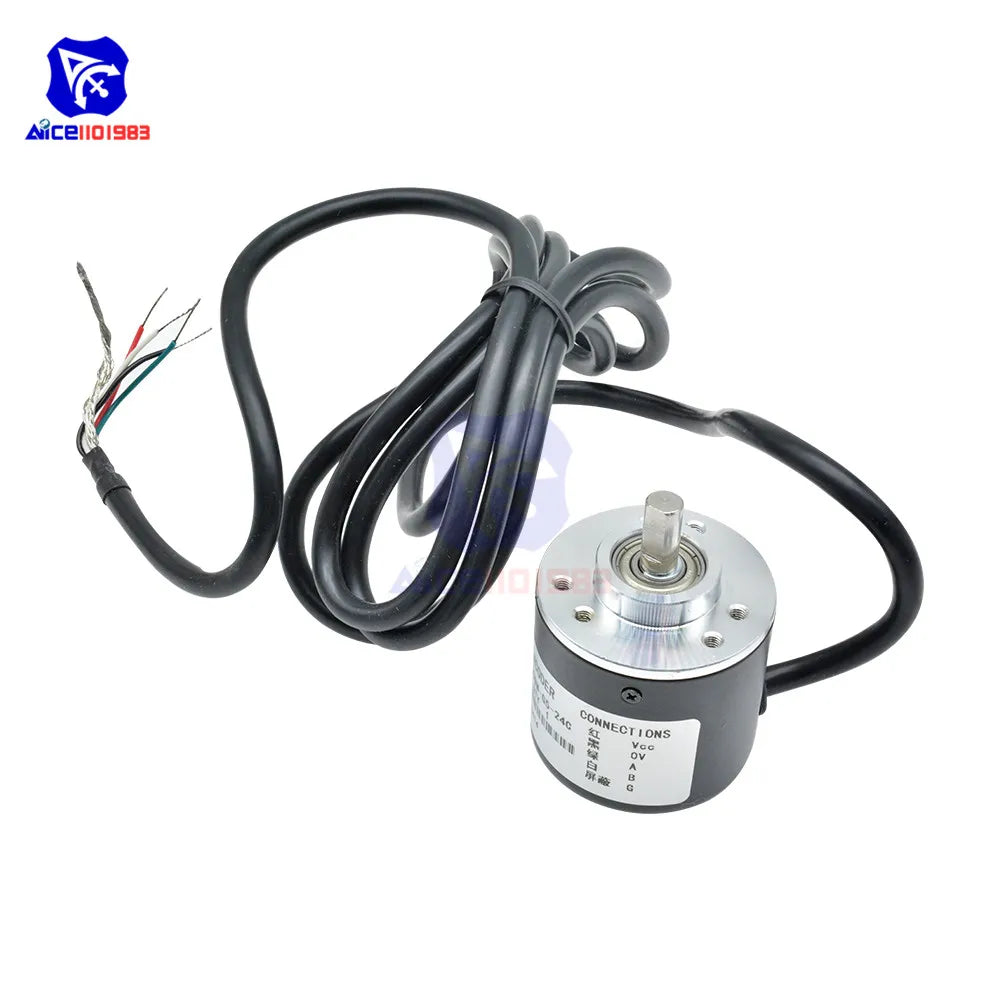

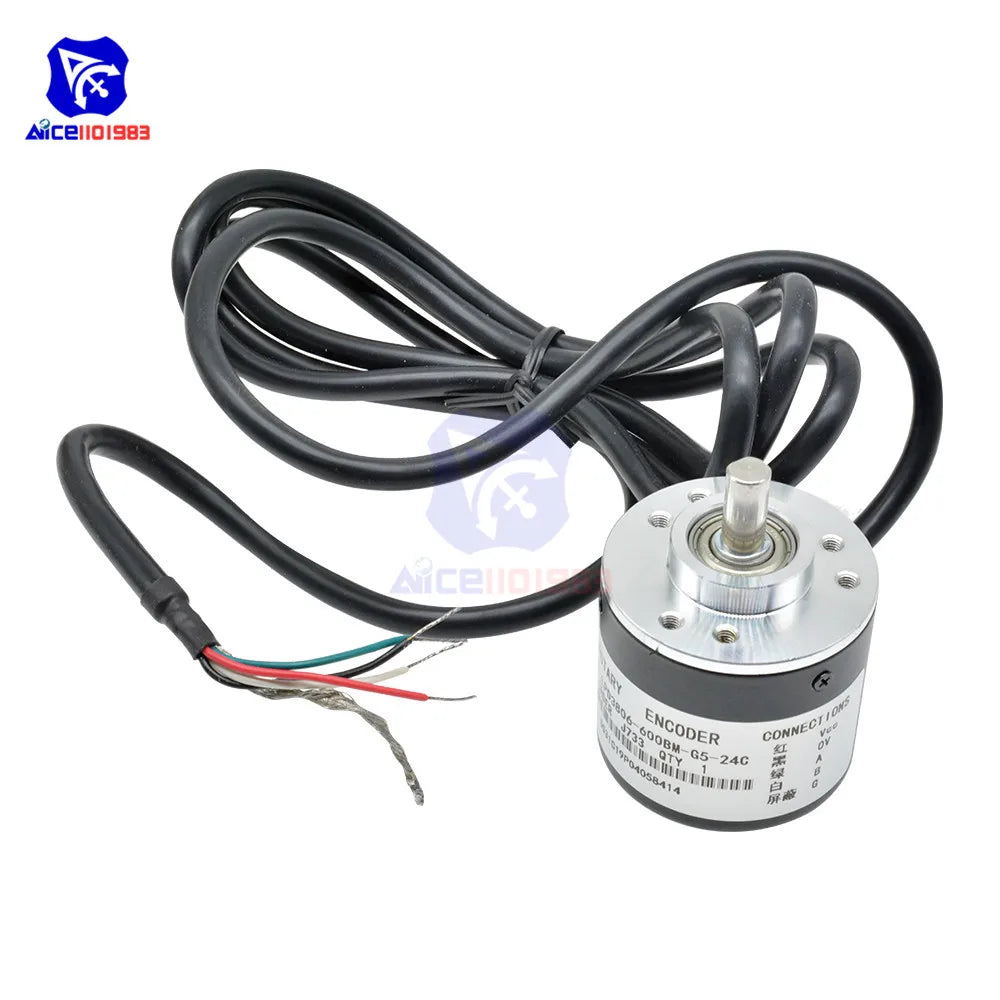

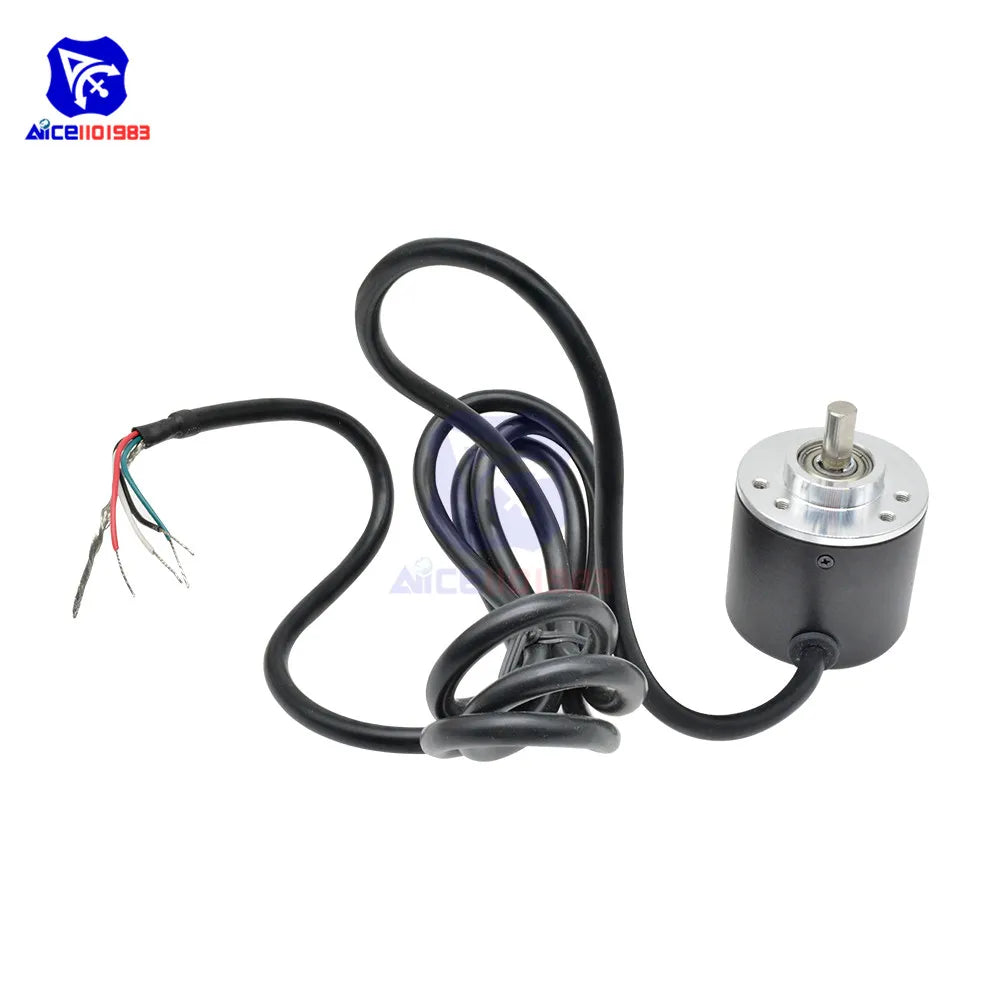

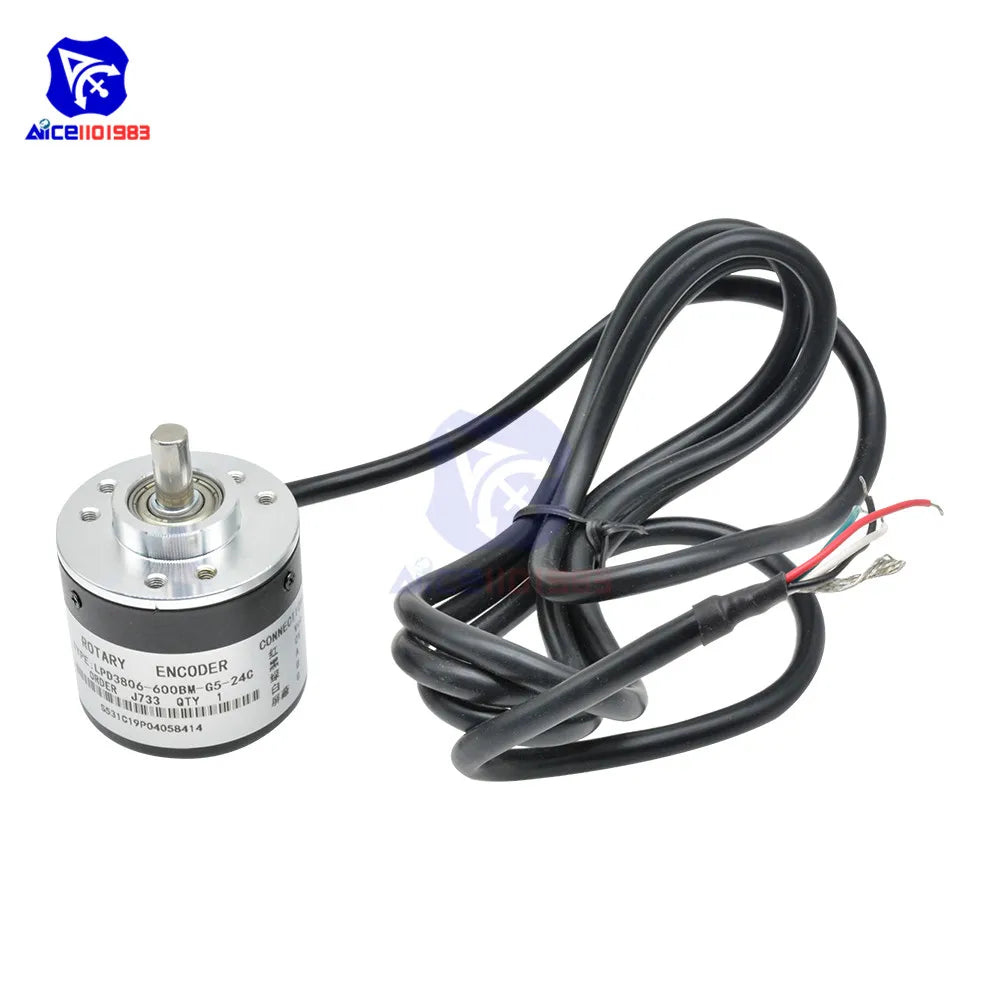

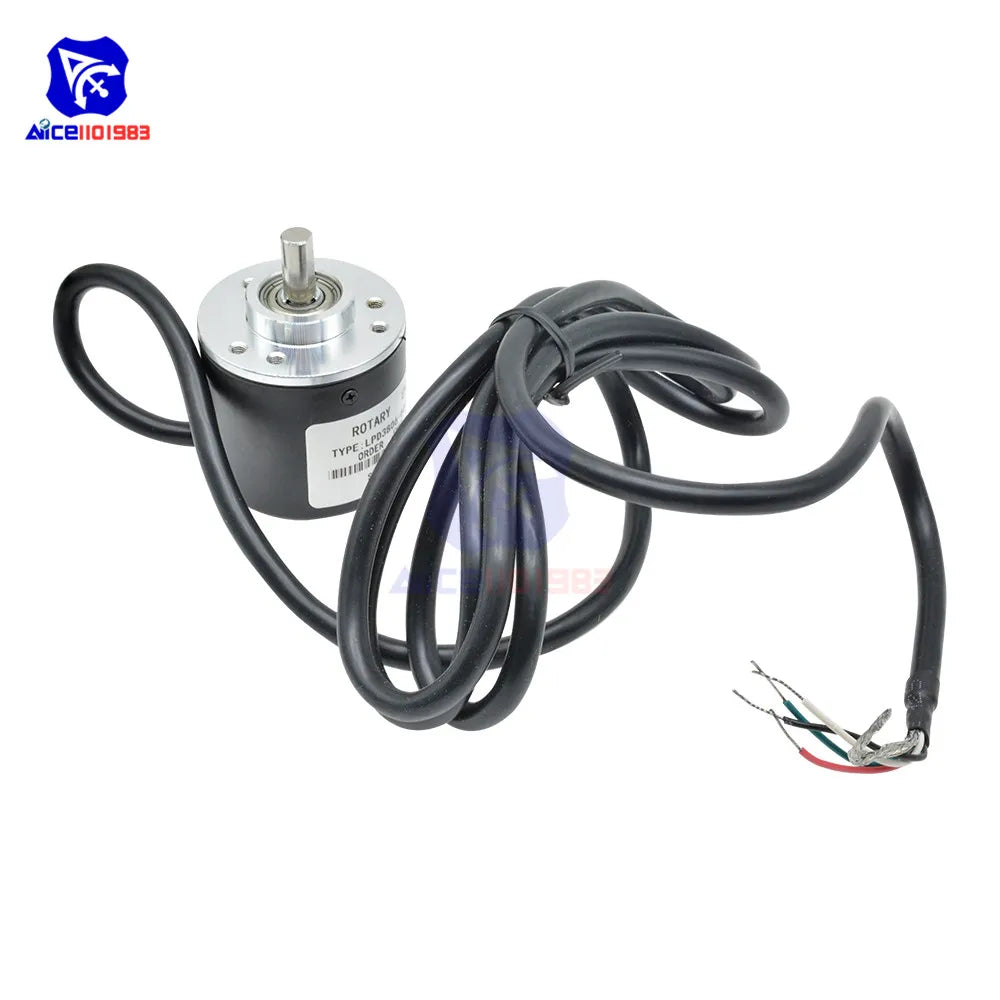

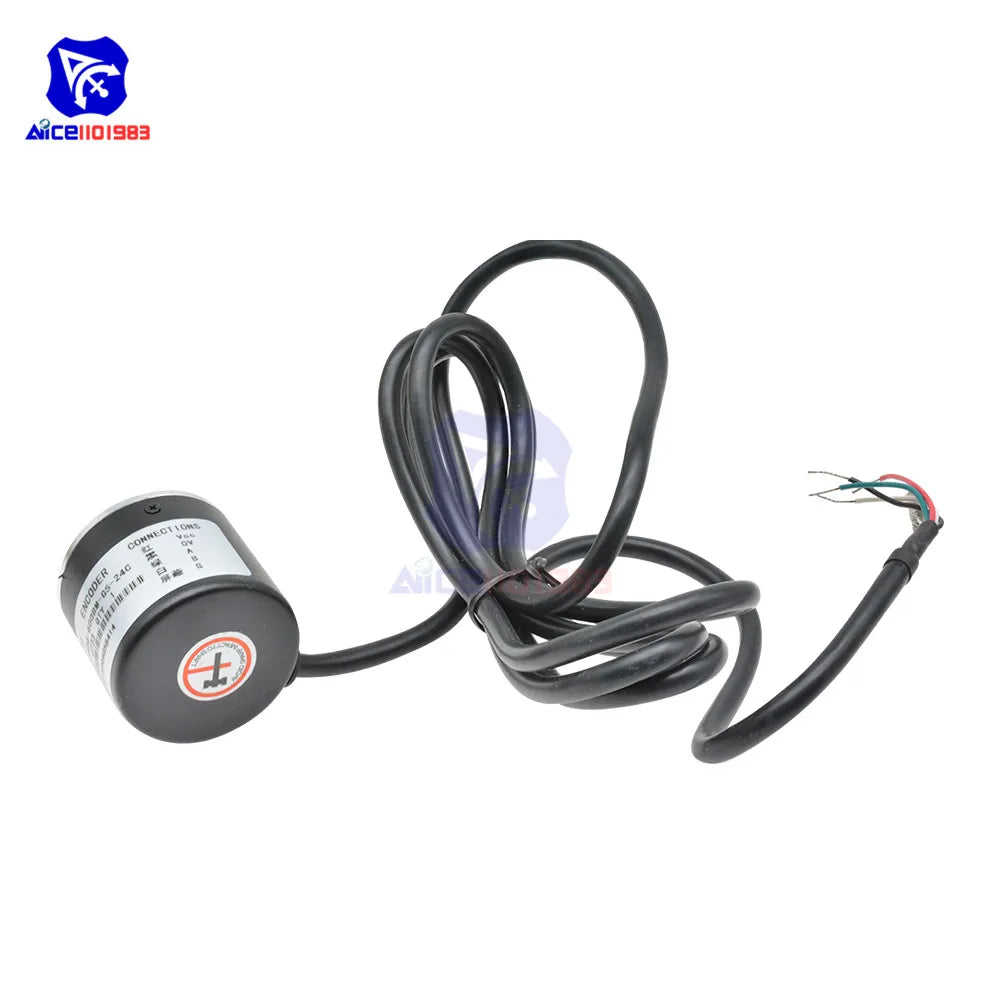

diymore Encoder 360 P/R / 600 P/R Photoelectric Incremental Rotary 5-24V AB Two Phases 6mm Shaft
600 P R
$77.72
Sale price
$77.72
Regular price
$0.00
Skip to product information
diymore Encoder 360 P/R / 600 P/R Photoelectric Incremental Rotary 5-24V AB Two Phases 6mm Shaft
$77.72
Sale price
$77.72
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: diymore
Choice: yes
Condition: New
Dissipation Power: Encoder 600 P/R
High-concerned chemical: none
Origin: Mainland China
Package: SOP
Supply Voltage: 5 -24V
Type: Voltage Regulator
is_customized: Yes
semi_Choice: yes
Description:
600 P/R (Single-phase 600 pulses /R,Two phase 4 frequency doubling to 2400 pulses)
360 P/R (Single-phase 360 pulses /R,Two phase 4 frequency doubling to 1440 pulses)
Power source: DC 5-24V
Shaft: 6*13mm/0.23*0.51"
Size: 38*35.5mm/1.49*1.39"
Output: AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
Maximum mechanical speed: 5000 R / min
Response frequency: 0-20KHz
Cable length: 1.5 meter
Notice:AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal
Connection:
Green = A phase, white = B phase, red = Vcc power +, black = V0
Application:
To measure the rotational speed, Angle and acceleration of the object and the length measurement
Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, Students racing robots
Package Included:
1 x EncoderIncremental Rotary Encoder
