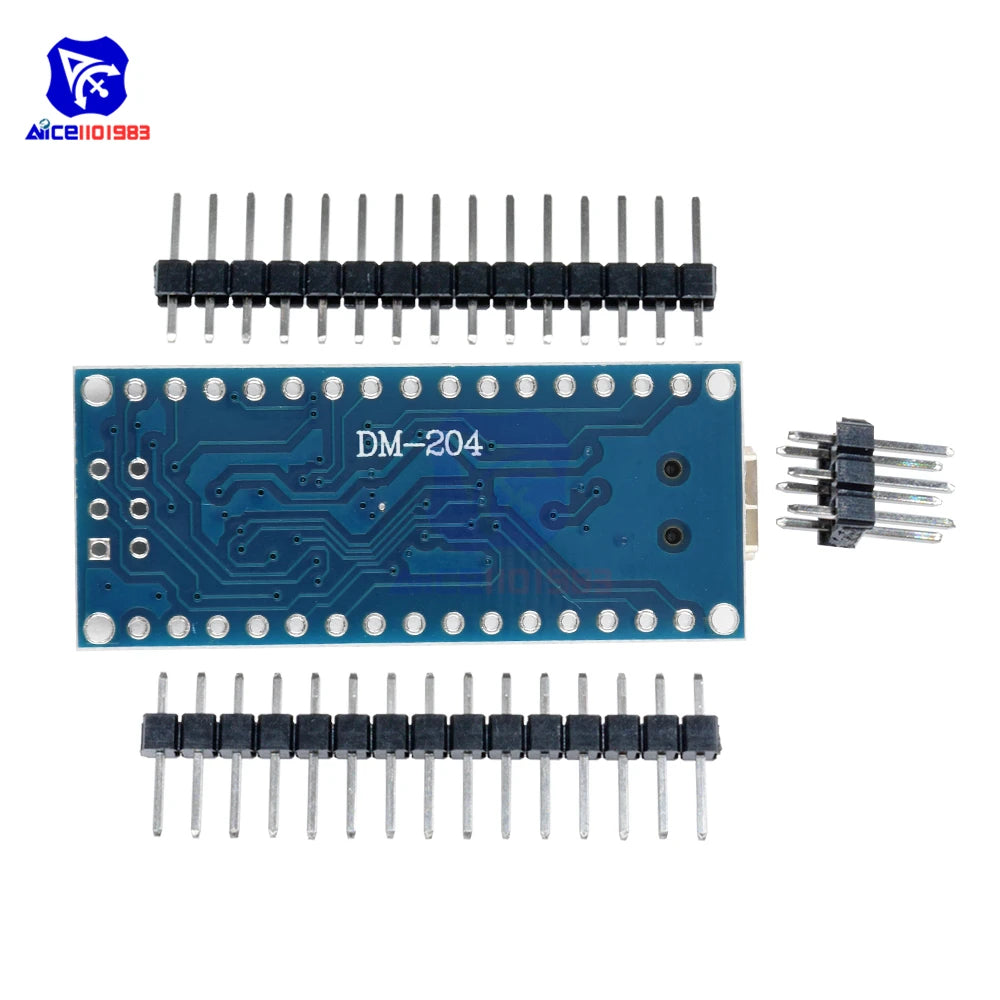

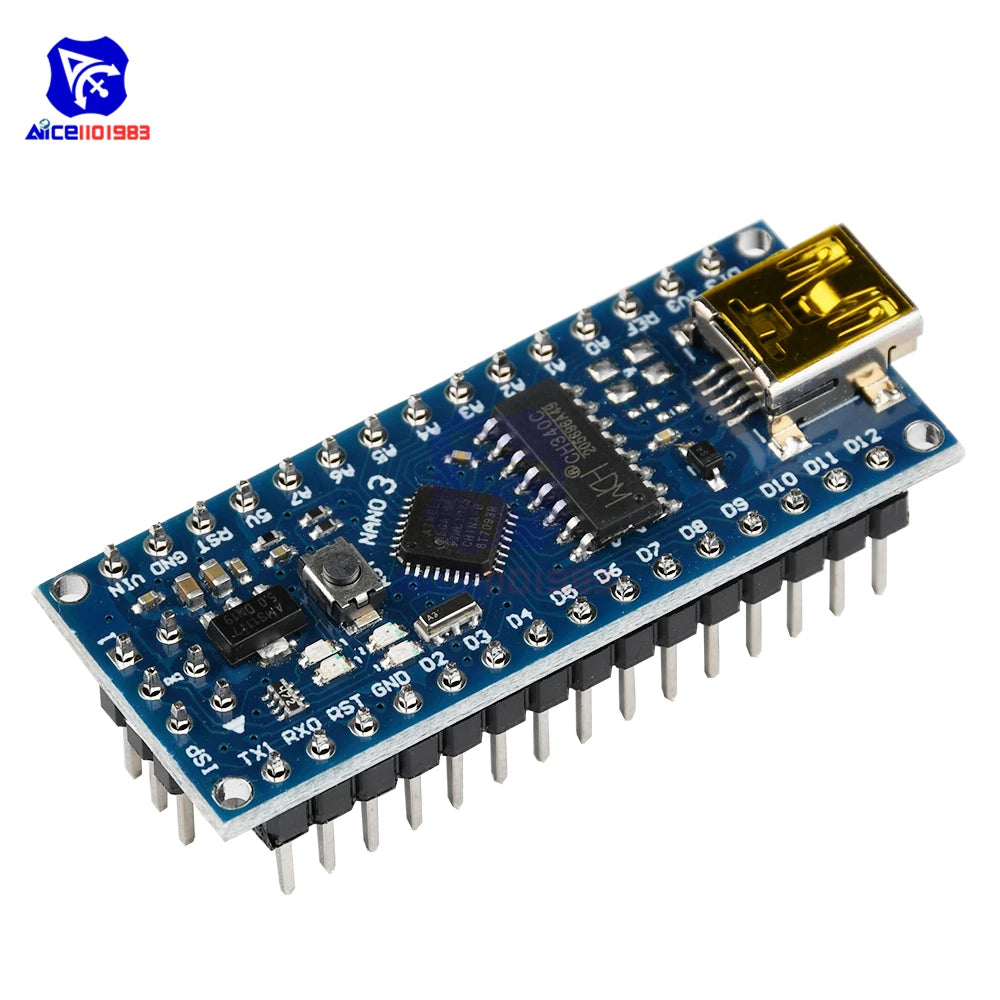

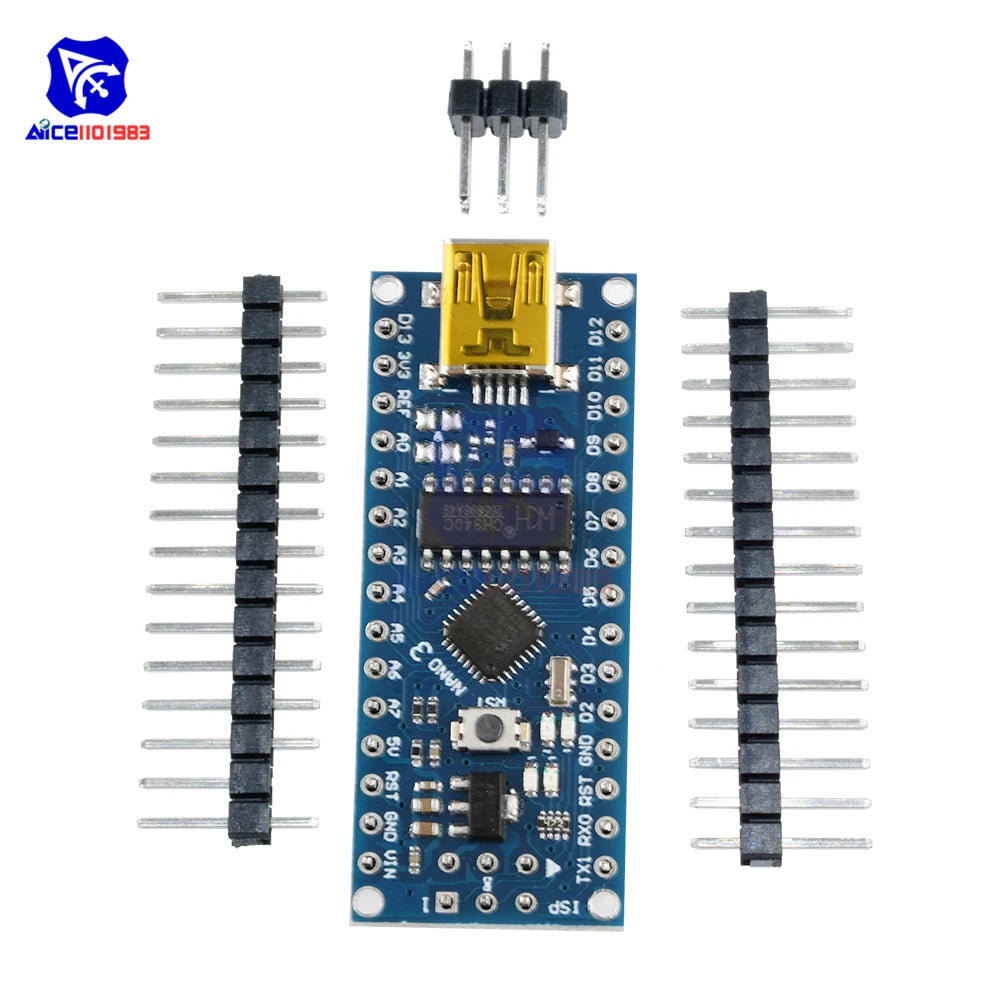

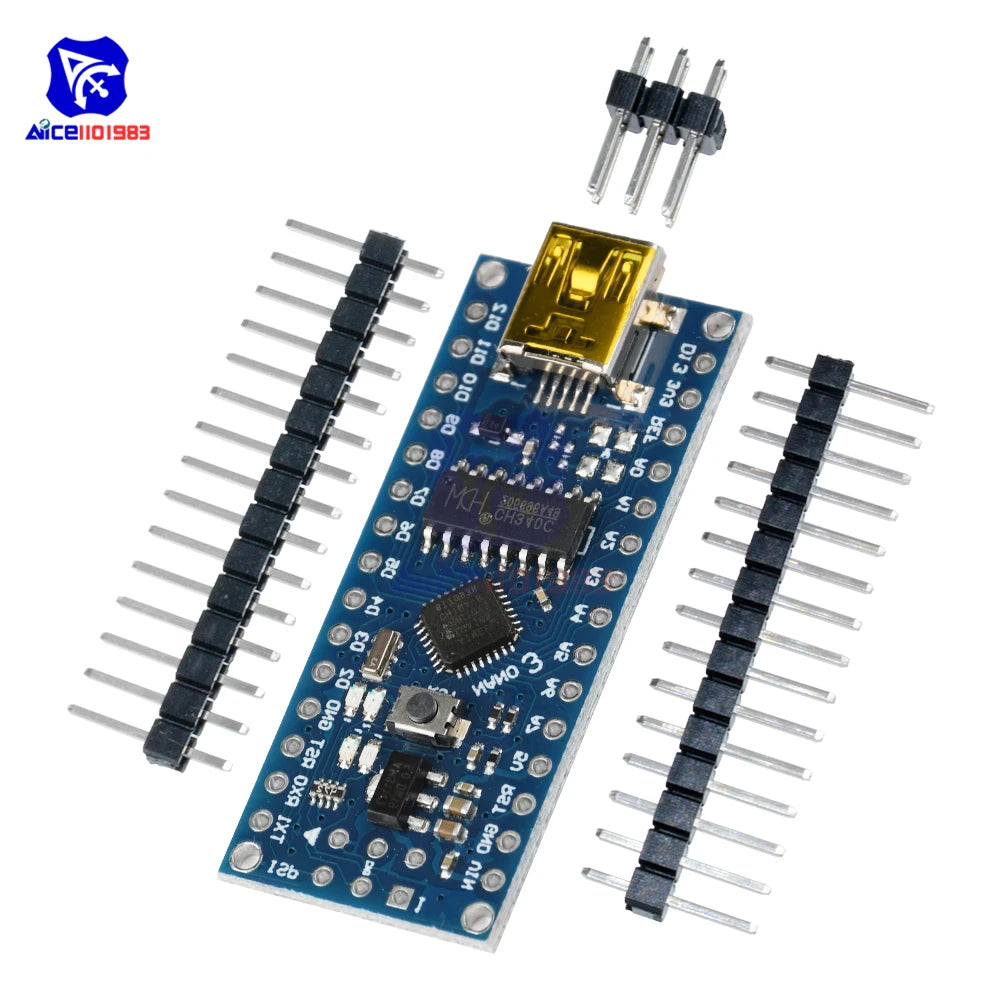

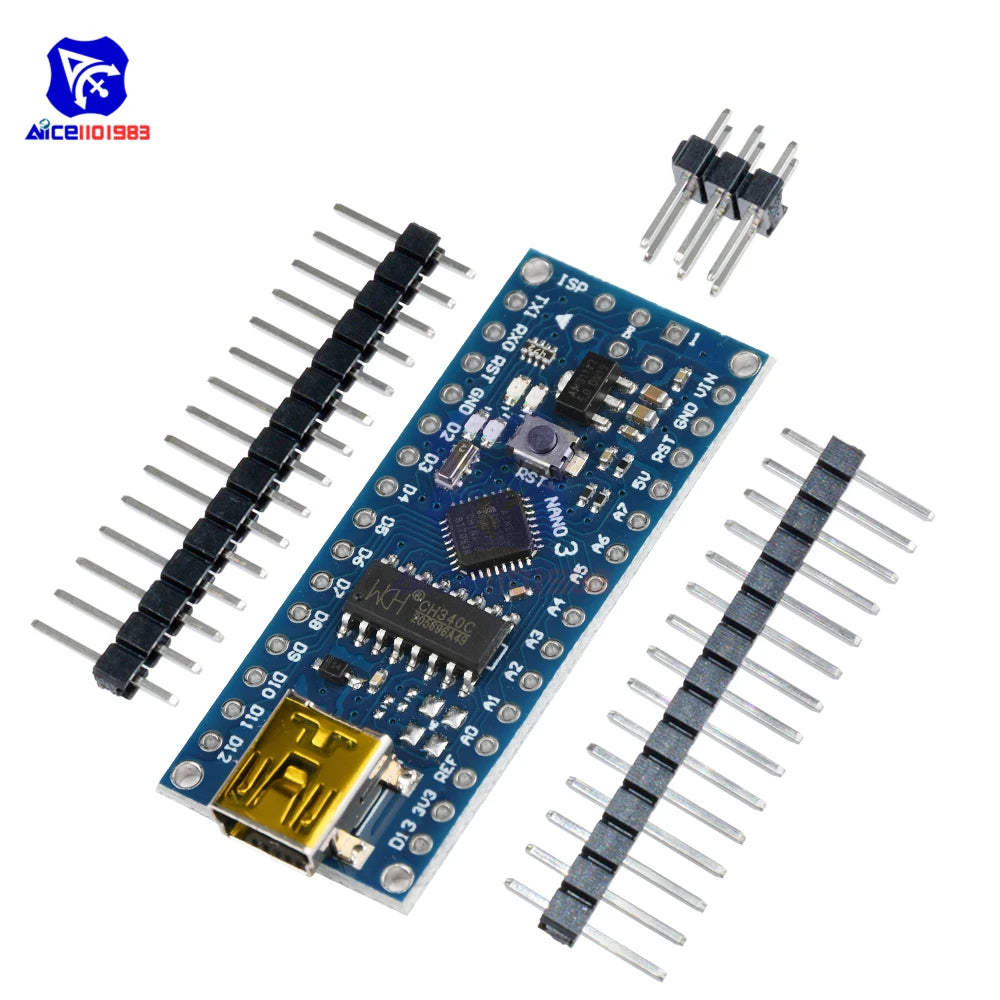

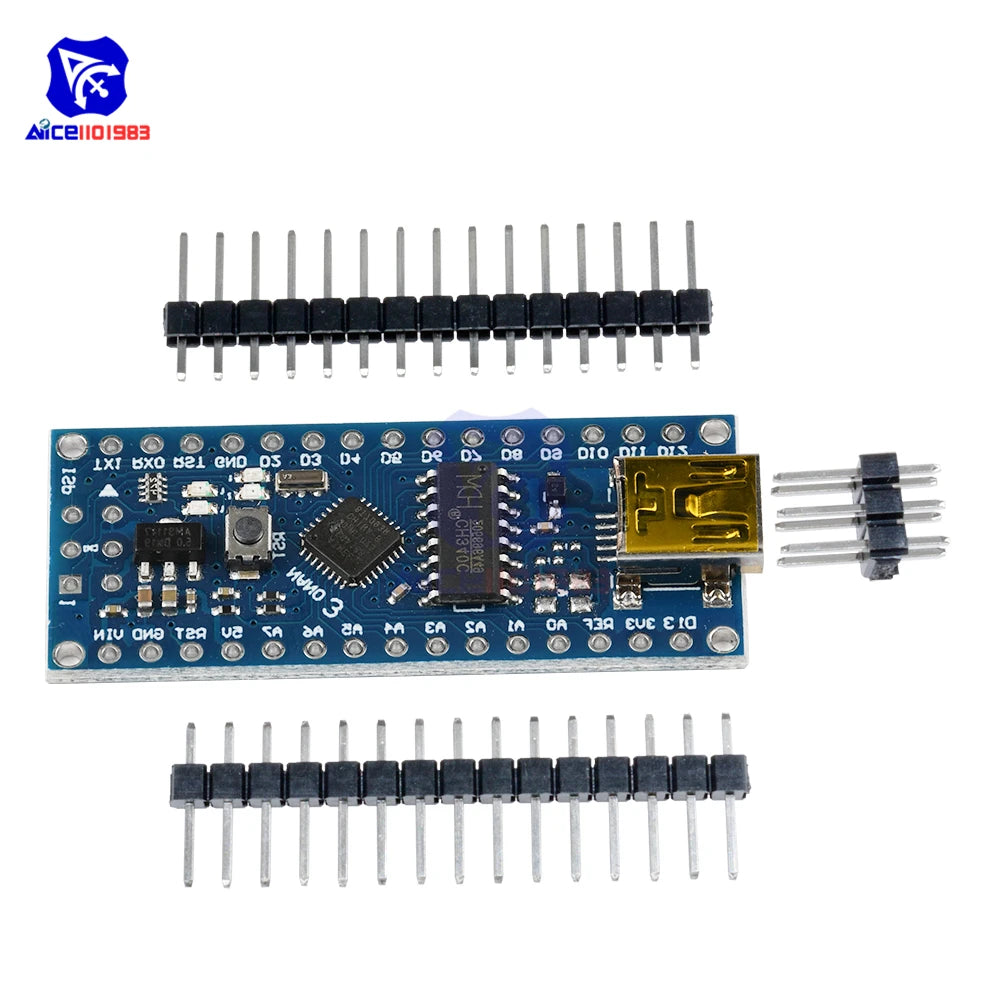

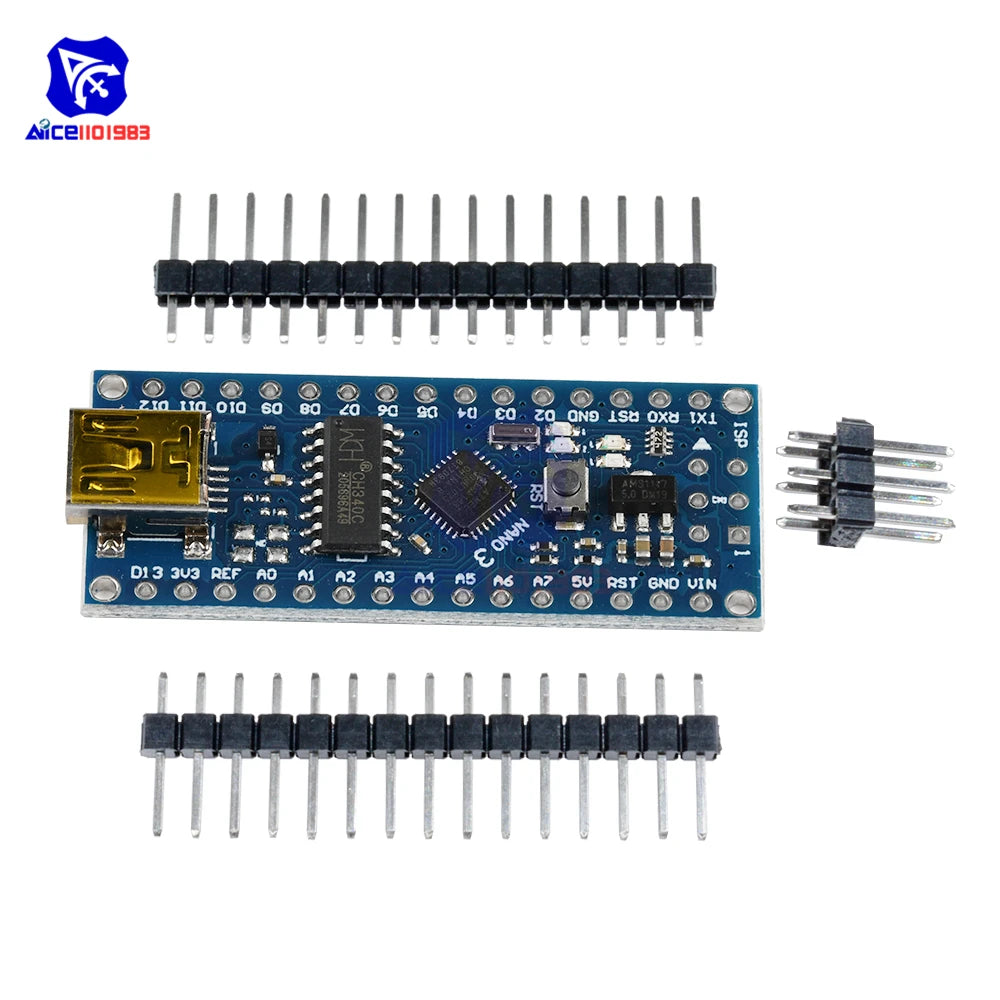

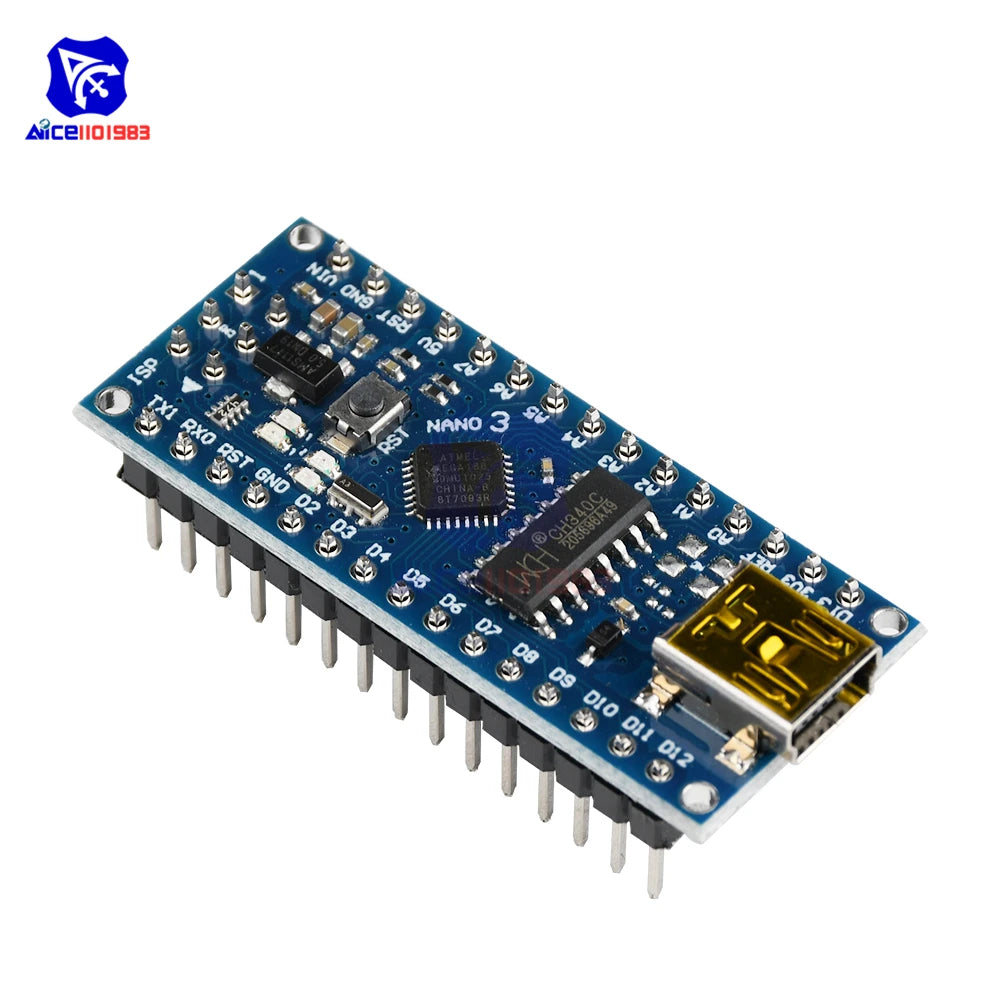

diymore for Arduino Nano V3.0 ATmega168 CH340 CH340G Mini USB Microcontroller Module Development Board for Arduino

diymore for Arduino Nano V3.0 ATmega168 CH340 CH340G Mini USB Microcontroller Module Development Board for Arduino

$8.46

$8.46 $0.00

Description

SPECIFICATIONS

Application: Computer

Brand Name: diymore

Condition: New

Dissipation Power: 4W

High-concerned chemical: none

Operating Temperature: -10 -65℃

Origin: Mainland China

Package: SOP

Supply Voltage: 3.3 -5V

Type: Module

is_customized: Yes

Nano V3.0 ATmega168 CH340 CH340G Mini USB Microcontroller Module Development Board for Arduino

Description:

NEW version - Nano V3 constructed on the ATmega168 minicontroller (16MHz) has the small size and can be used together with model boards for solderless wiring (breadboard). It has similar structure Diecimila/Duemilanove, but different size. To reduce the size, components are mounted on both sides of the PCB.

The board uses a chip CH340G as converter UART-USB. Chip CH340G - is a budget solution. With an operation frequency in 12Mhz, yields stable result of a data interchange (for correct installation of drivers on the computer follow the instruction).

Nano V3, can be powered via miniUSB-port (up to 500mA). External power supply 6-12V unregulated to output VIN, or 5V external power source to a regulate output of 5V. The power supply is automatically selected with the maximum voltage value.

* This Nano ATmega168 have PinOut for V3, not V2.

Specification:

Nano V3 form-factor,

ATmega168 (16Mhz) minicontroller,

CH340G - USB-UART interface,

Input voltage 6-12V,

Output voltage 5V/800mA, 3.3V/180mA (Only in NEW vesrion),

MiniUSB - connection socket, 500mA resetable Fuse on USB port

Package Included:

1 * Nano V3.0 ATmega168 CH340G mini USB Microcontroller for Arduino
