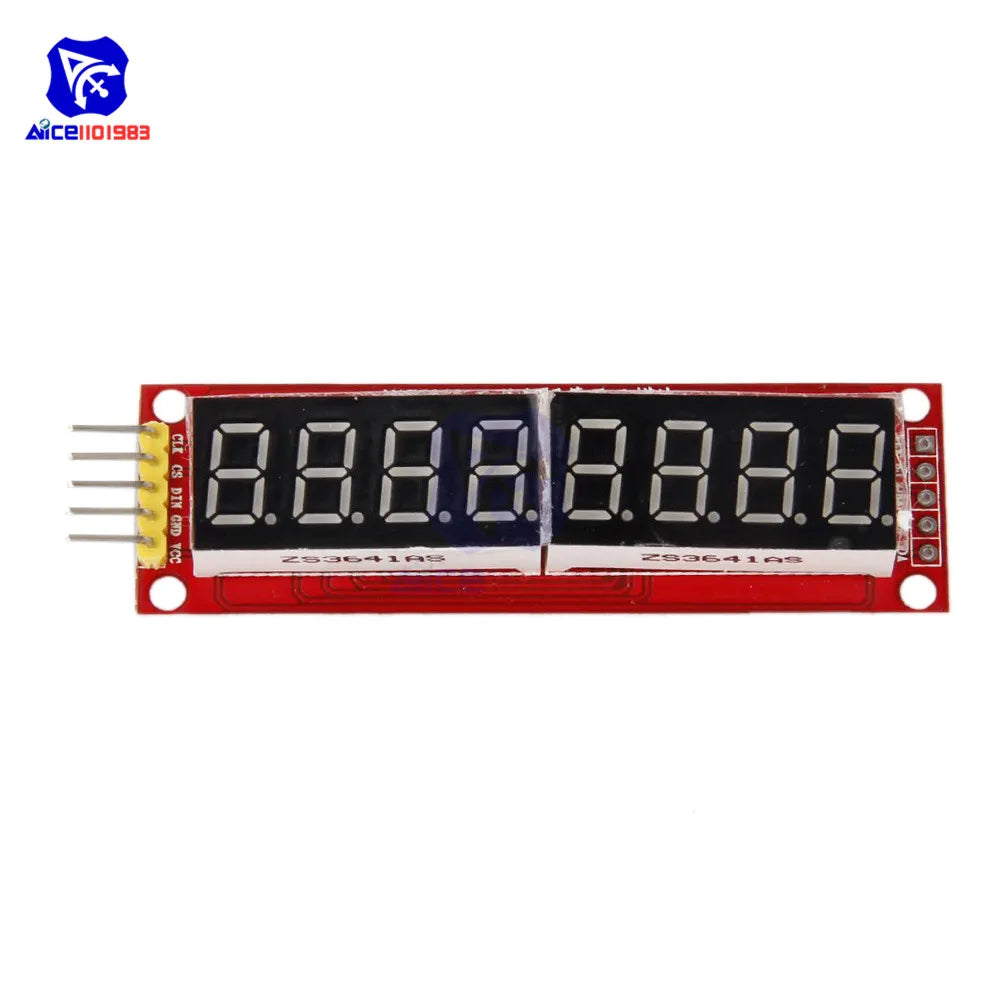

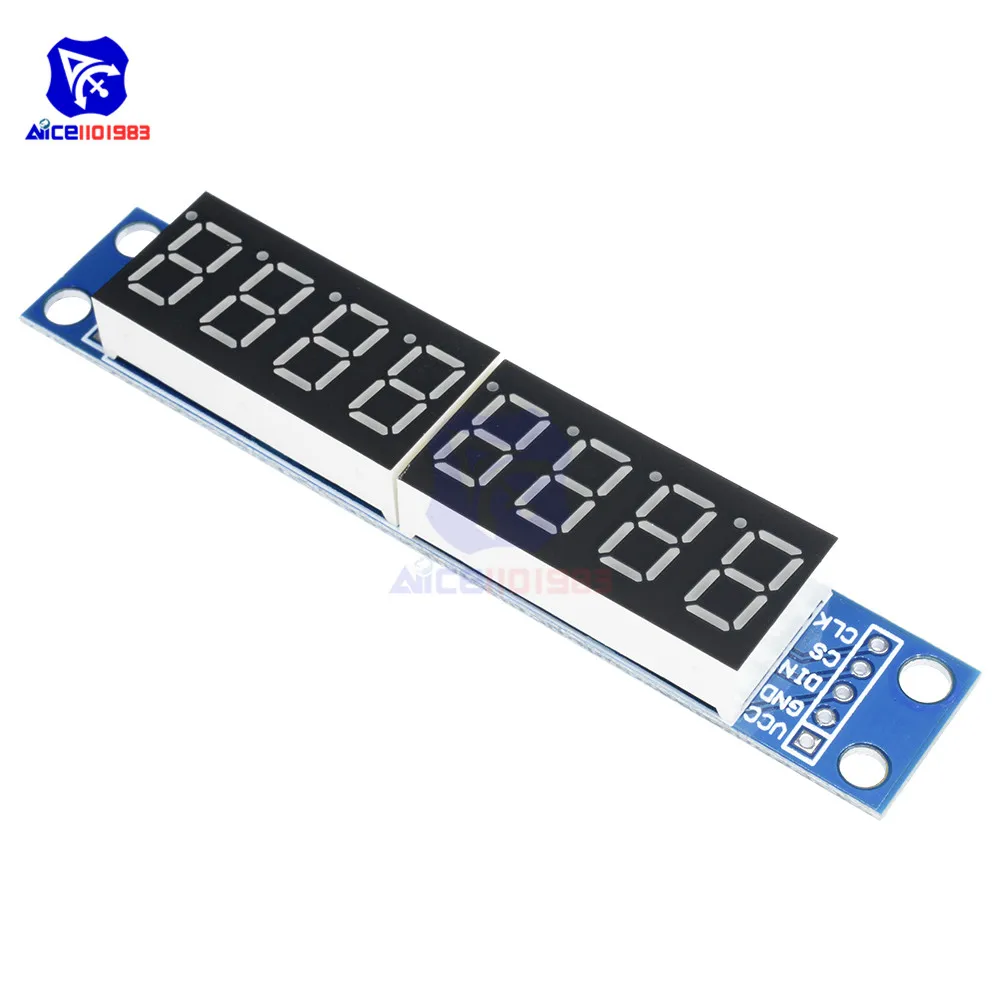

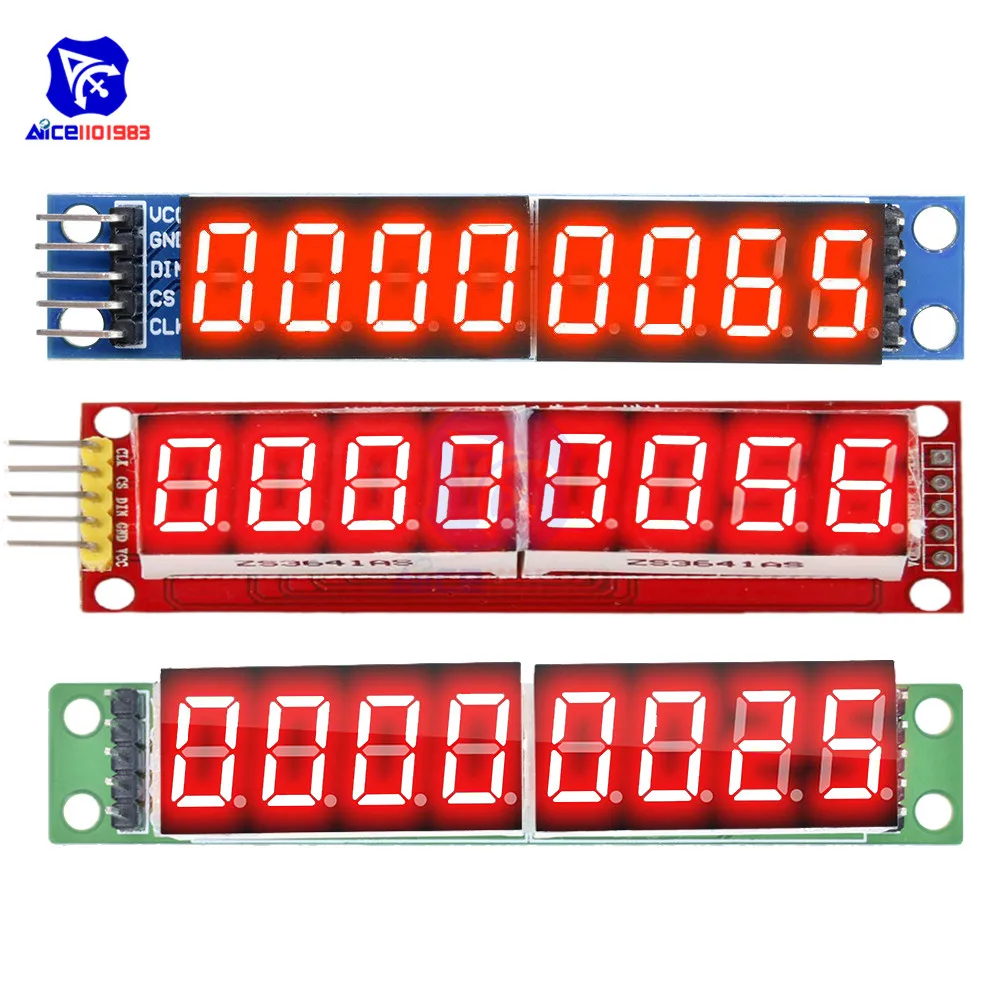

diymore MAX7219 8 Digit LED Tube Display Control Module for Arduino 3.3V 5V Microcontroller Serial Driver 7-segment
BLUE
$9.99
Sale price
$9.99
Regular price
$0.00
Skip to product information
diymore MAX7219 8 Digit LED Tube Display Control Module for Arduino 3.3V 5V Microcontroller Serial Driver 7-segment
$9.99
Sale price
$9.99
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: diymore
Choice: yes
Display Function: Graphics
High-concerned chemical: none
Model Number: MAX7219
Origin: Mainland China
Pixels: 7mm
Tube Chip Color: Red
Use: Indoor
is_customized: Yes
semi_Choice: yes
diymore MAX7219 8 Digit LED Tube Display Control Module for Arduino 3.3V 5V Microcontroller Serial Driver 7-segment
Description:
MAX7219 digital display control module
This module is compatible with 5V and 3.3V microcontrollers.
You you can use it for Arduino

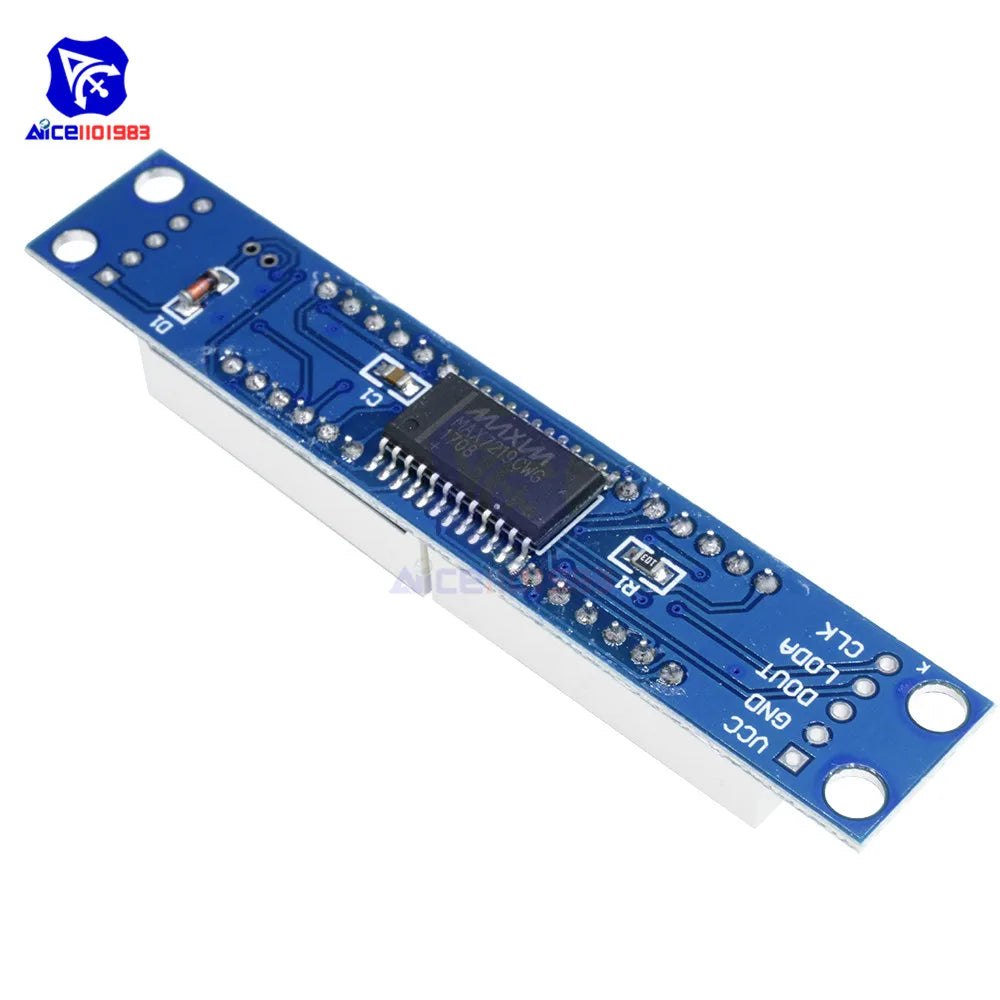

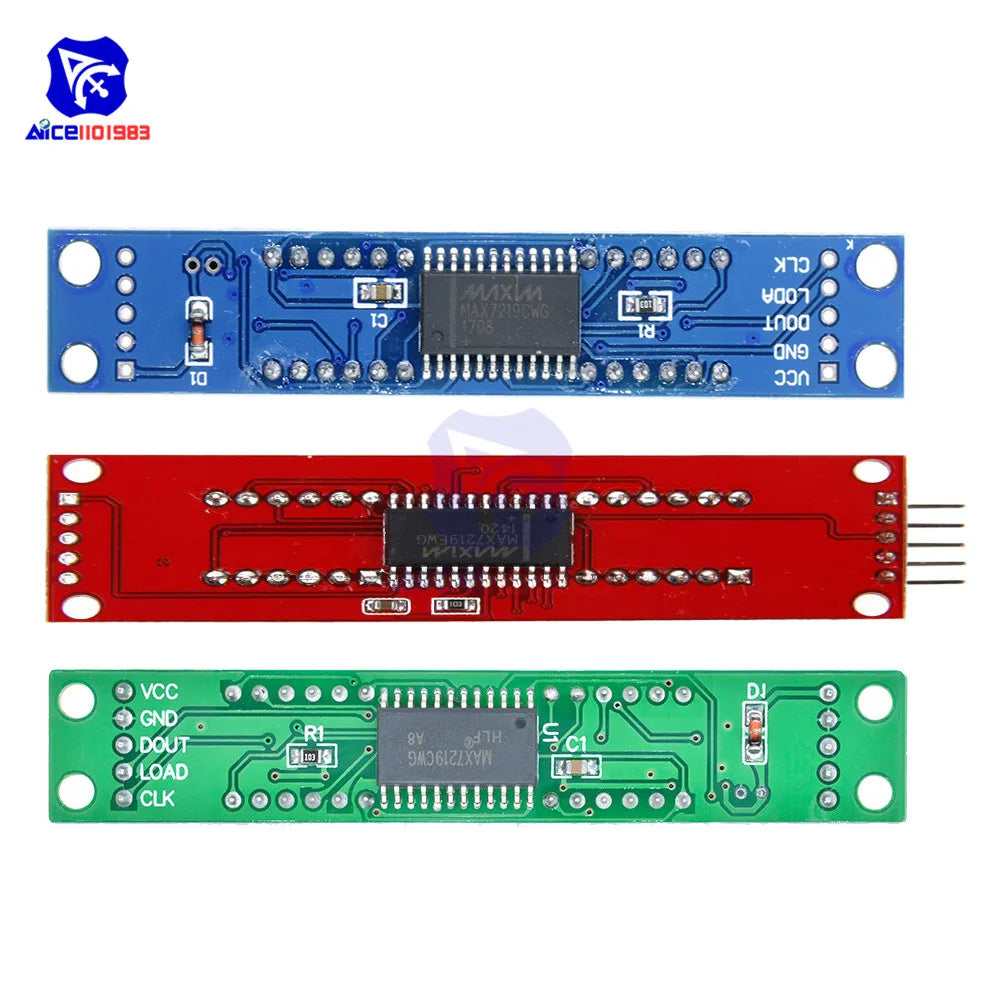

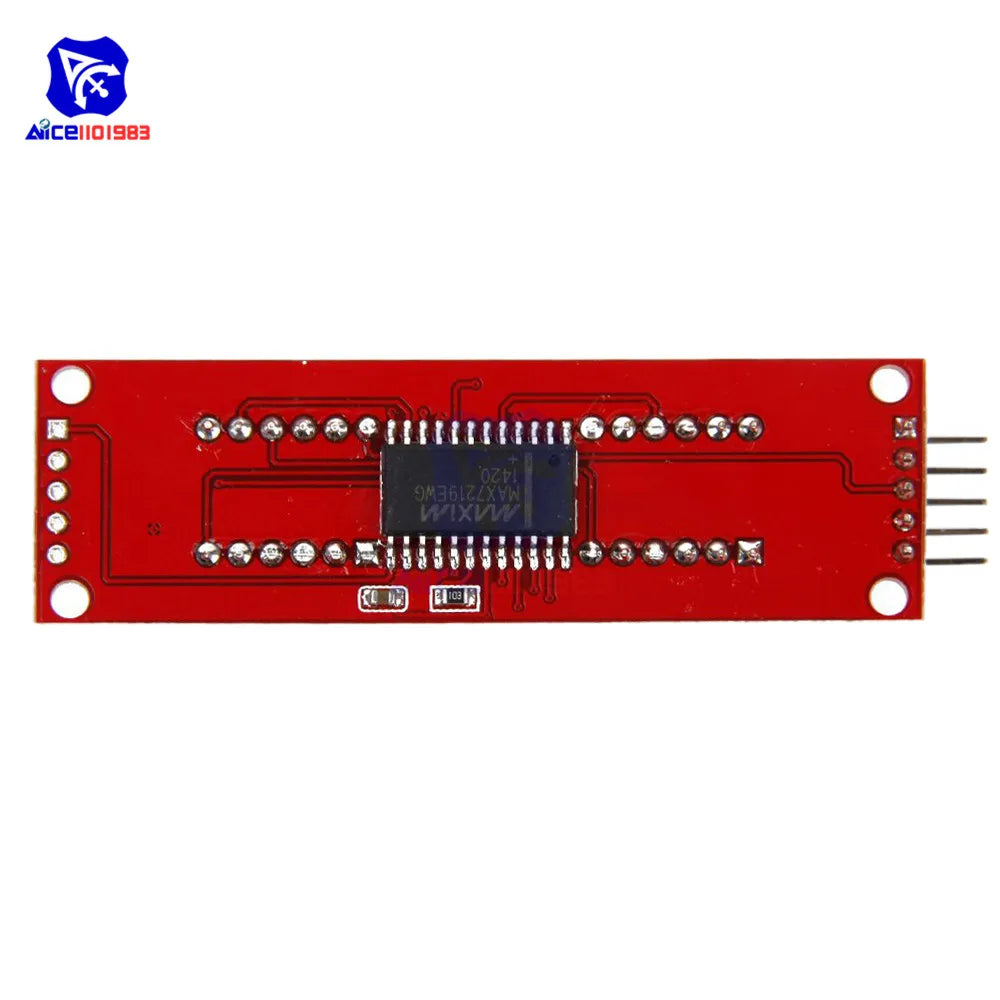

MAX7219 is an integrated serial input / output common-cathode display driver, which connects your microprocessor to a 7-segment digital LED display with 8 digits.
Only three IO ports are used to drive the eight digit display. MAX7219 supports flicker free displays as well as cascading displays.

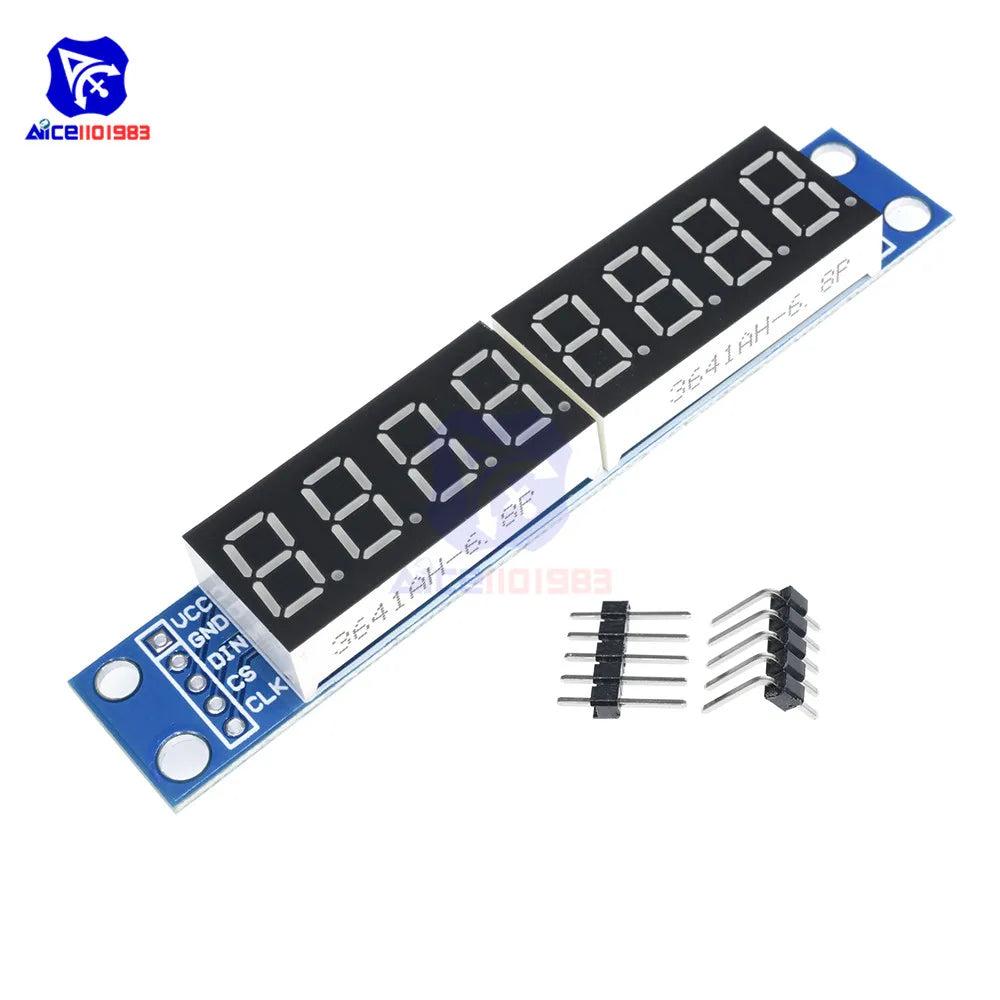

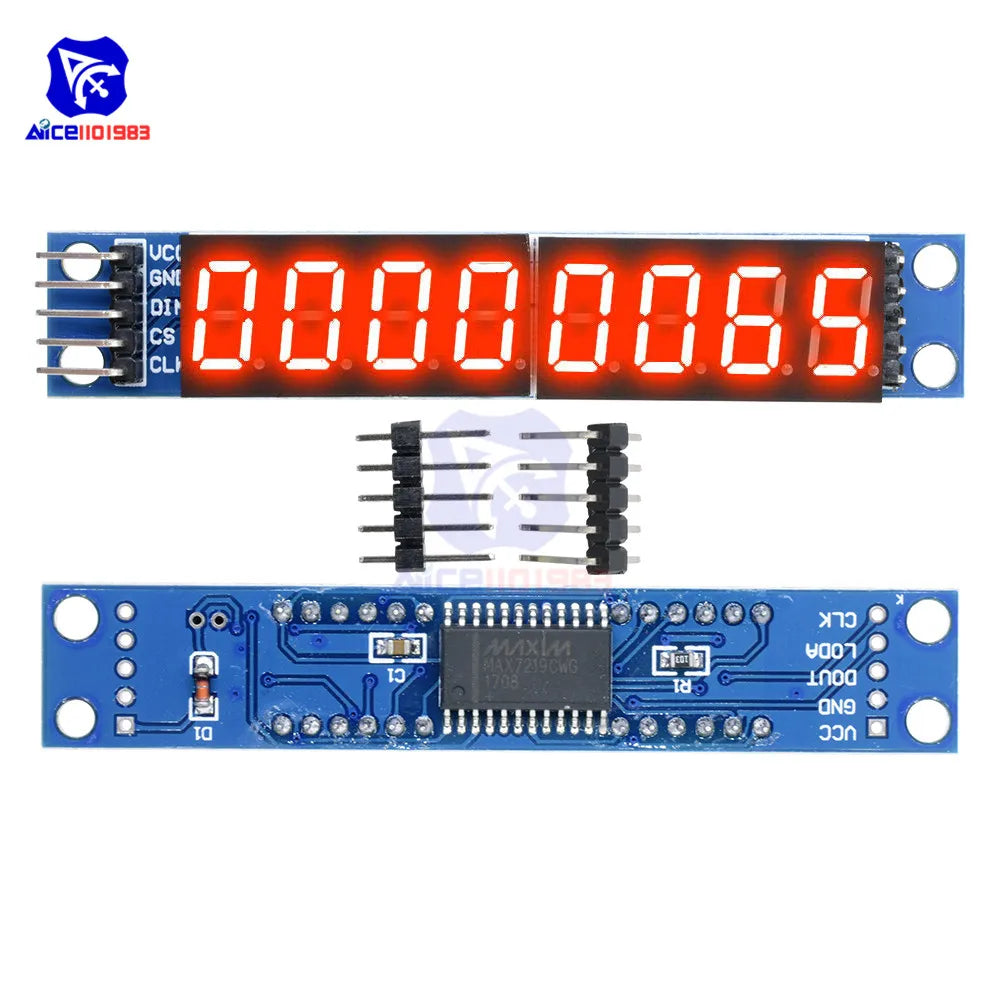

Wiring instructions(for example, it can connect any IO port, modified the Port Definition in the program):
VCC: 5V
GND: GND
DIN: P00
CS: P01
CLK: P02
Note:
VCC and GND should not be connected reversed, so as not to burn the chip
Specification:
Material: PCB + Electronic Components
Power: 5V
Size: 82*15*12mm(L*W*H)
LED Color: Red
Package included:

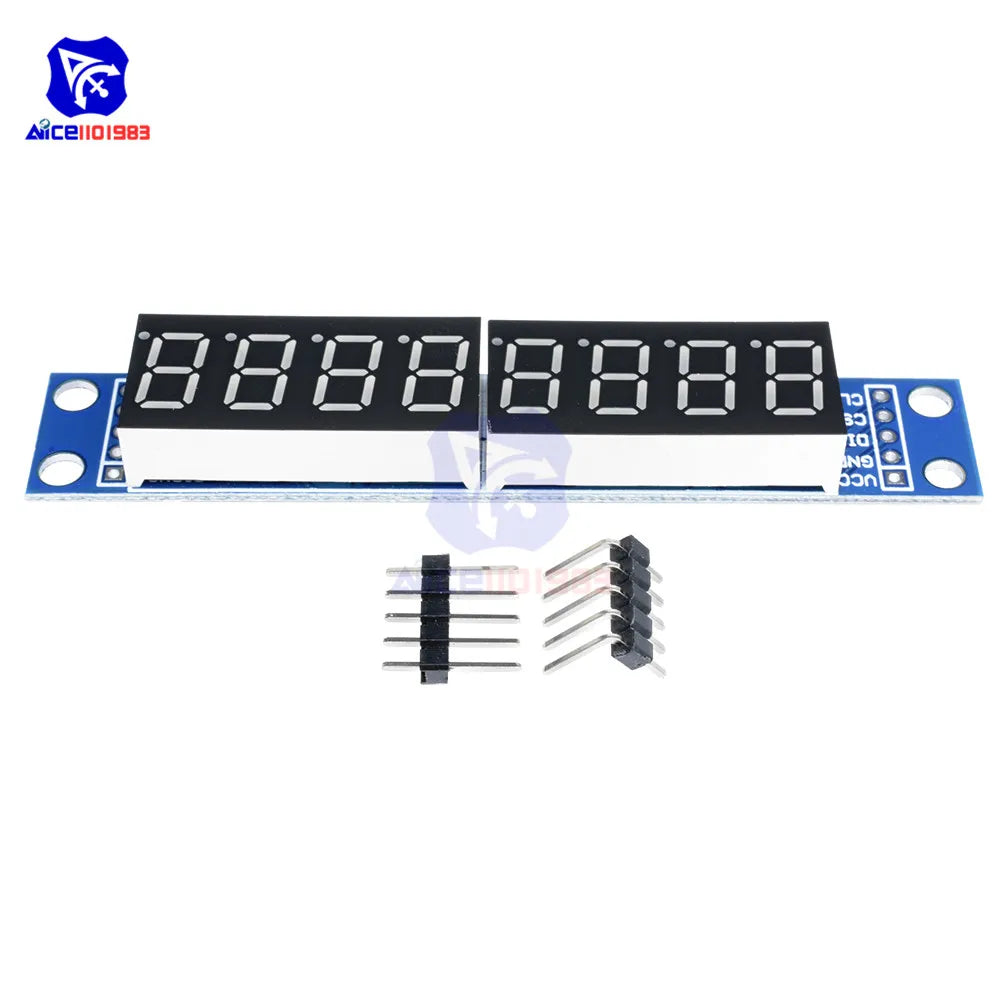

1 * MAX7219 8-Digit LED Display Module 7 Segment Digital Tube for Arduino
