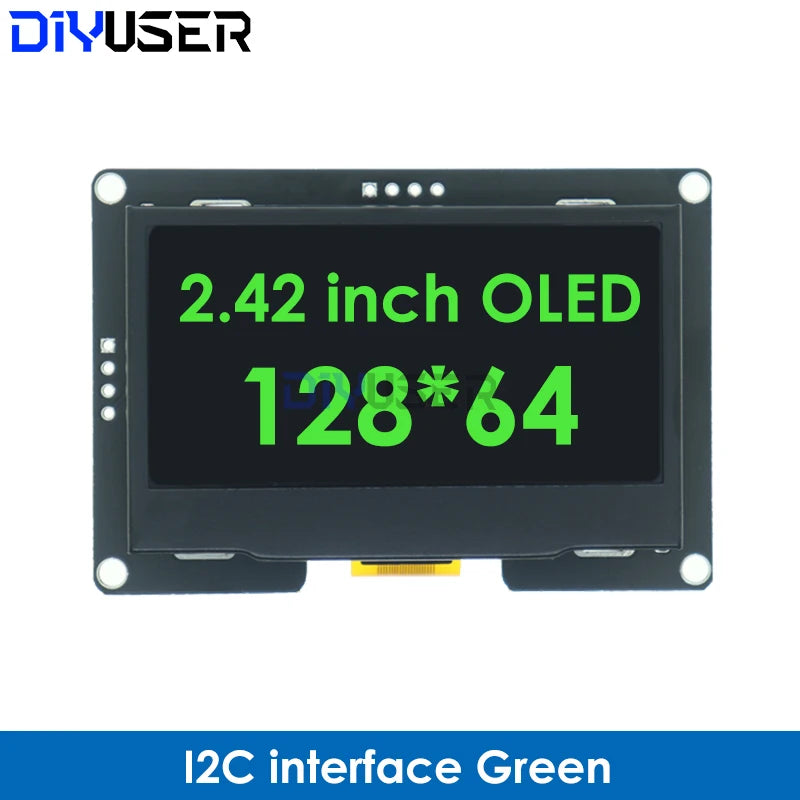

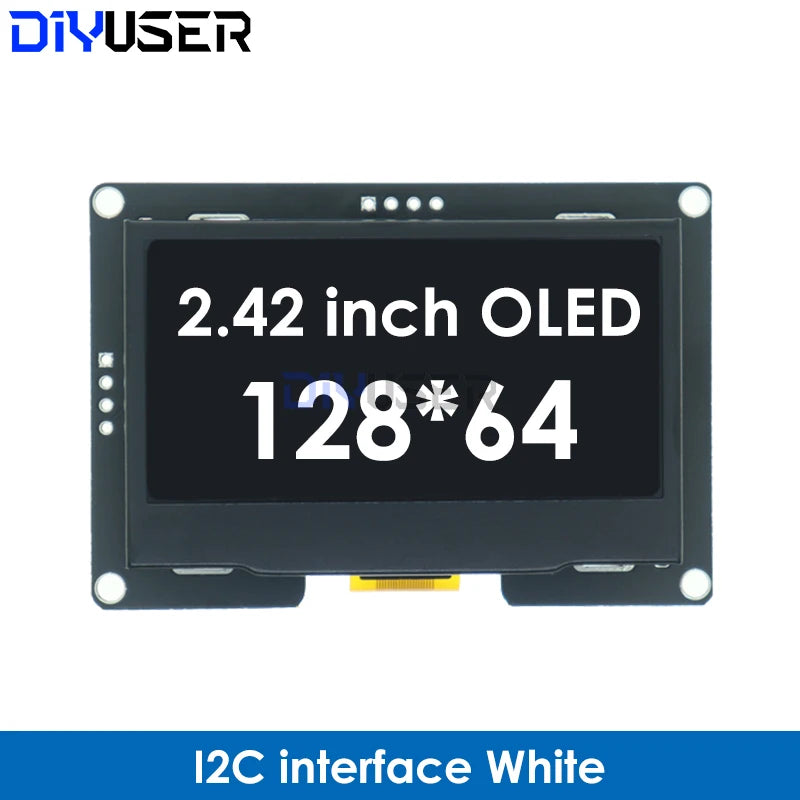

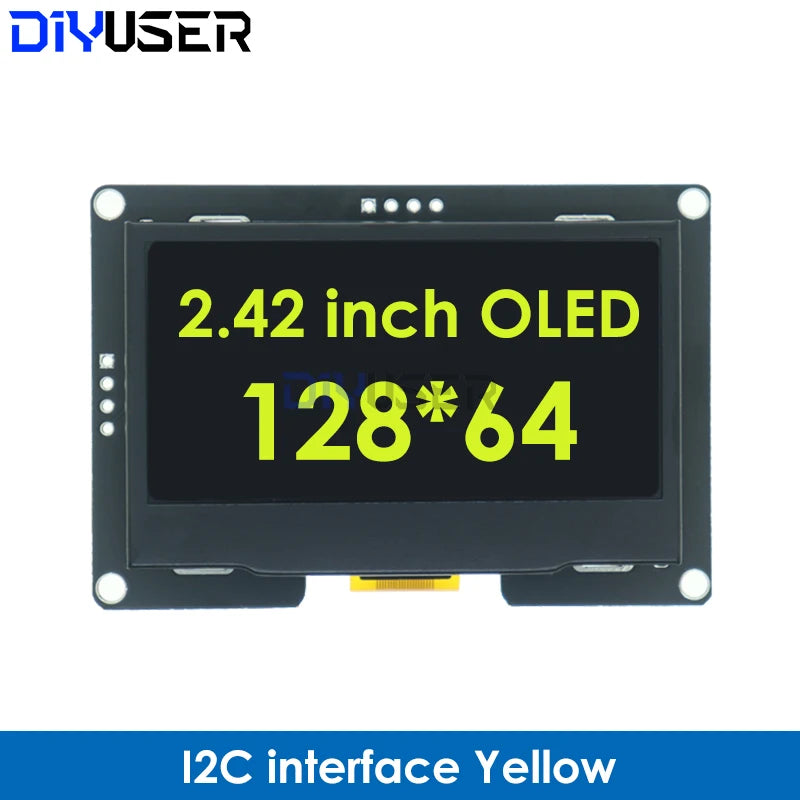

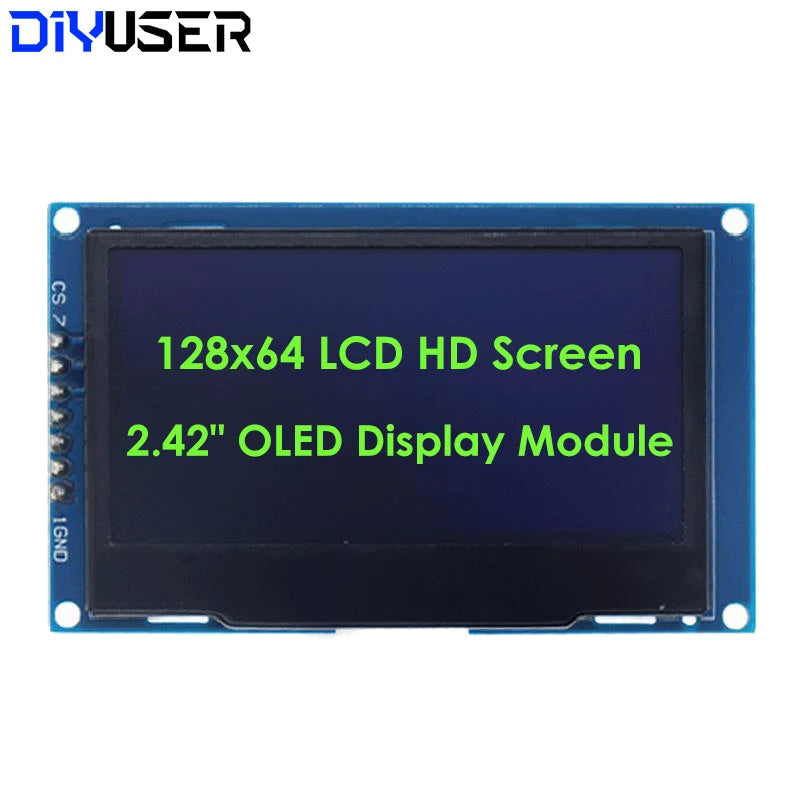

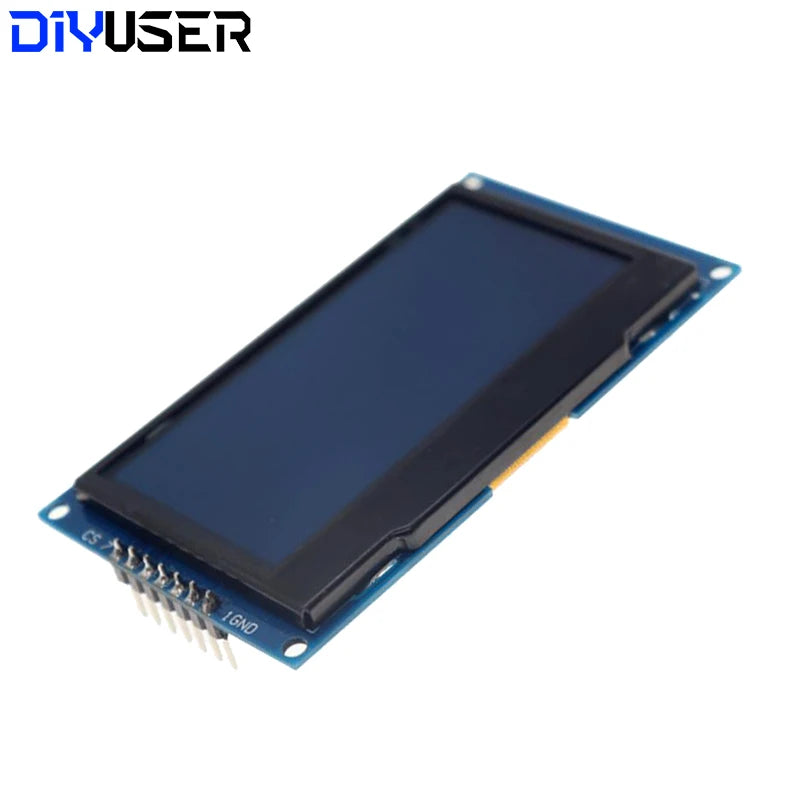

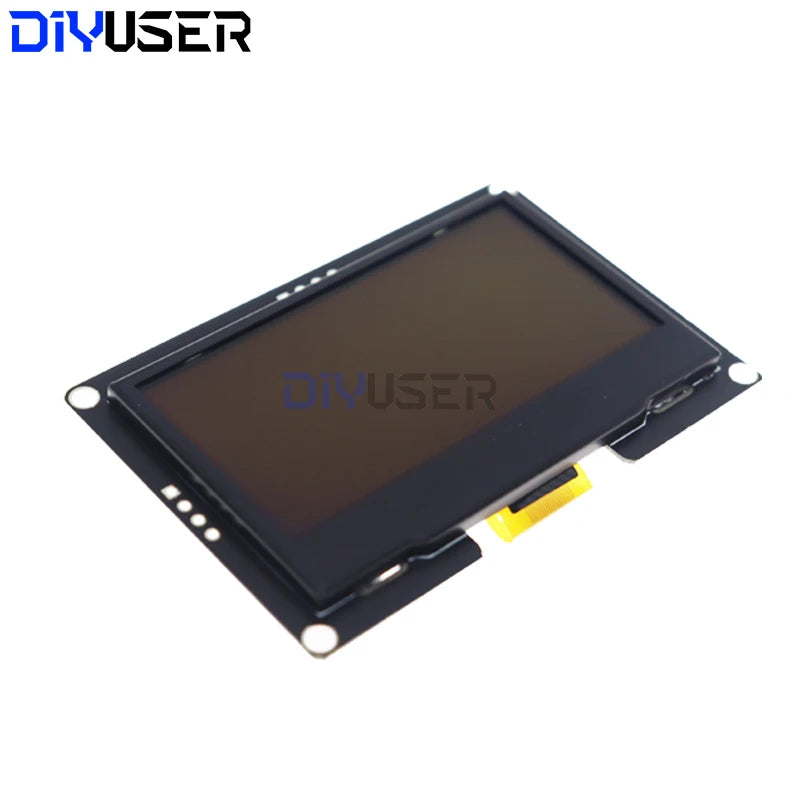

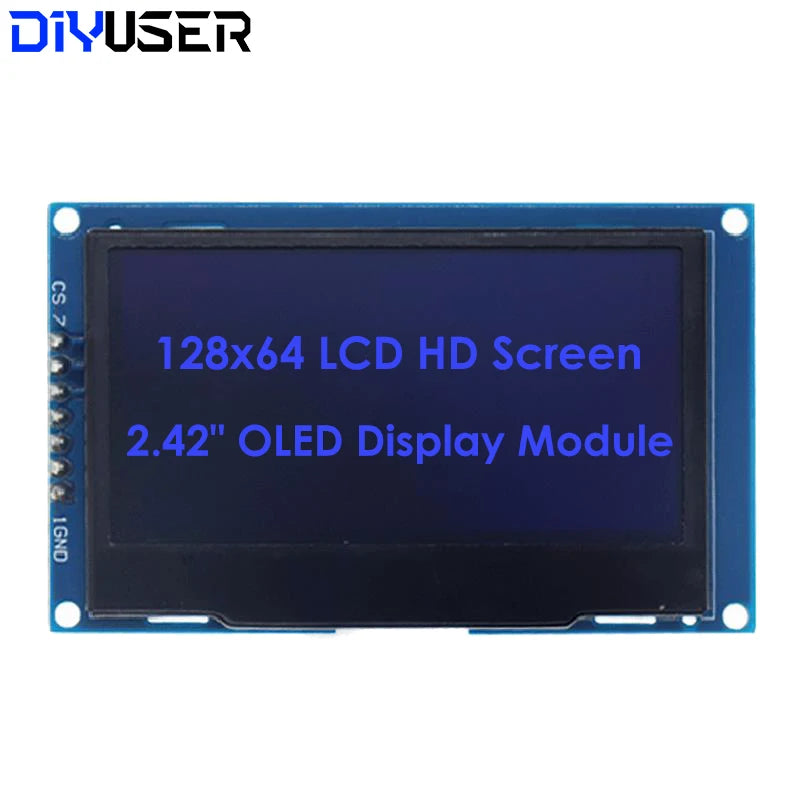

DIYUSER 2.4" 2.42 Inch 128x64 OLED LCD Display Module SSD1309 12864 4 Pin IIC I2C SPI Serial Interface C51

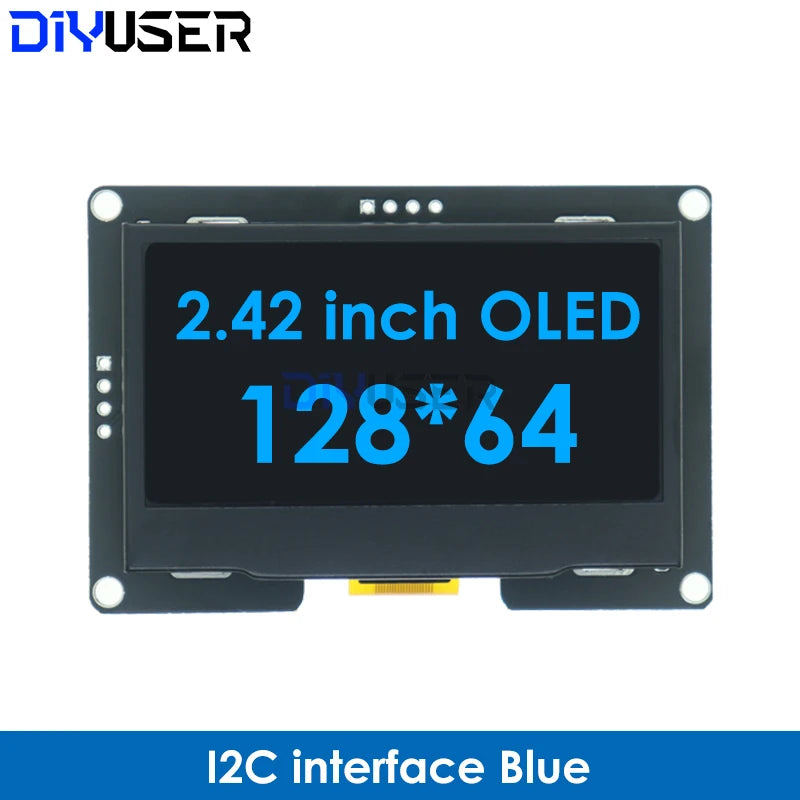

I2C interface Blue
$71.60
Sale price
$71.60
Regular price
$0.00
Skip to product information
DIYUSER 2.4" 2.42 Inch 128x64 OLED LCD Display Module SSD1309 12864 4 Pin IIC I2C SPI Serial Interface C51
$71.60
Sale price
$71.60
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: DIYUSER
Choice: yes
Display Mode: 1
High-concerned chemical: none
Model Number: 2.42 Inch
Origin: Mainland China
Resolution: 128*64
Type: OLED
is_customized: Yes

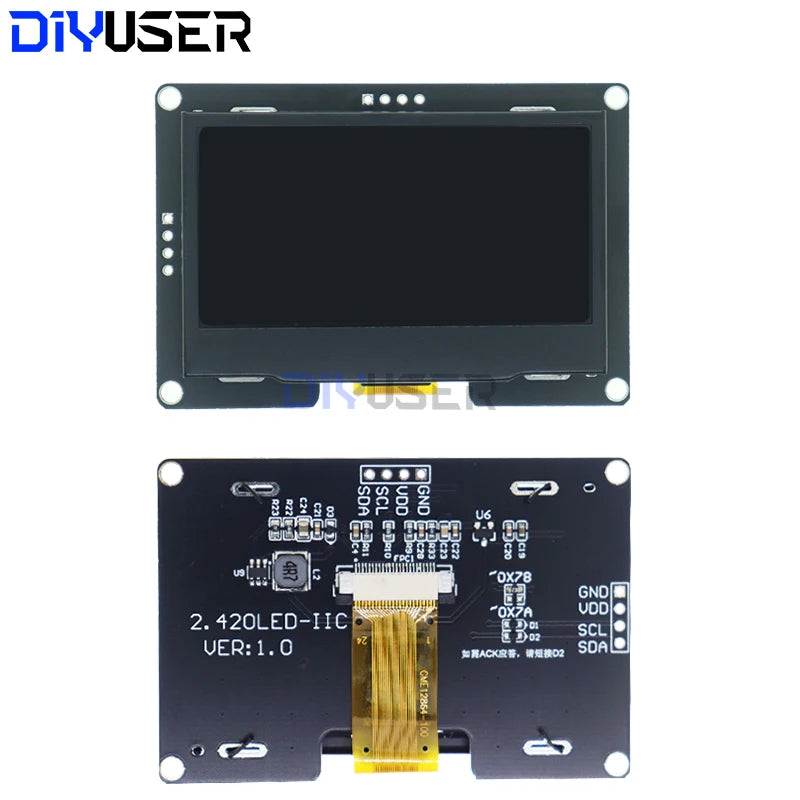

2.42" OLED Display Module

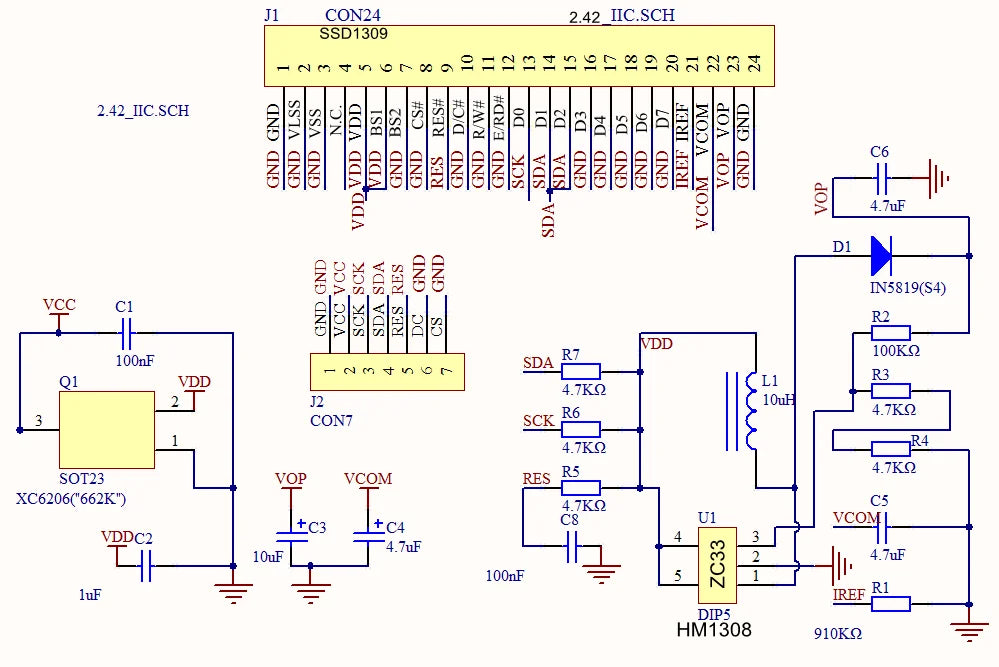

Driver chip SSD1309

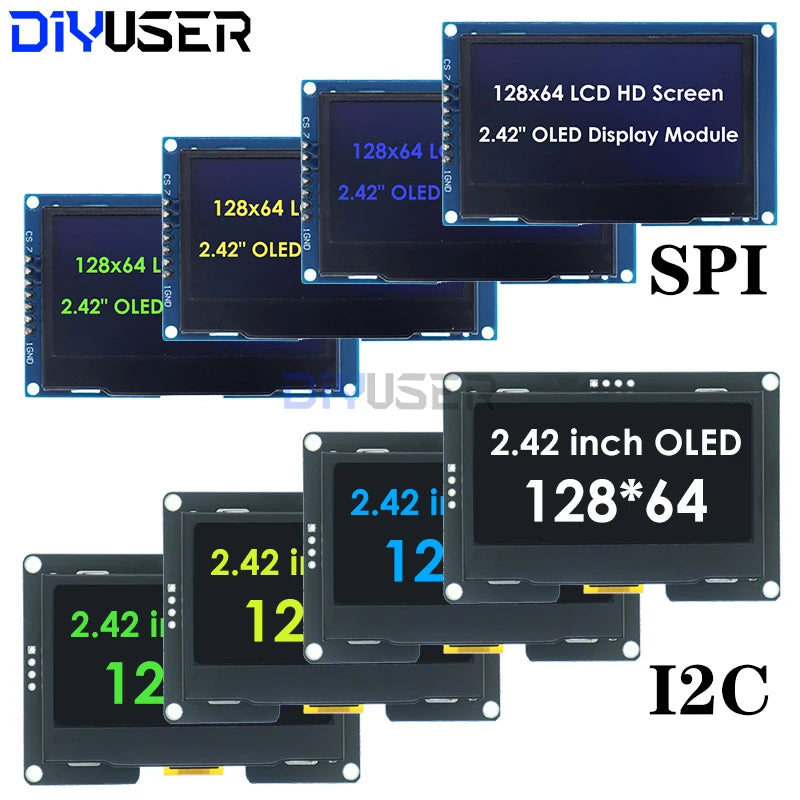

Support interface IIC/SPI
Resolution 128×64
Display size 2.42 inches
Display color: white/blue/yellow/green
Module size 71×43.5 (mm)
Glass size 60.5×37.00× (mm)
Display area 55.02×27.49 (mm)
Drive voltage 3.3-5V
Number of pins 7PIN
Viewing angle >160°
Working temperature -40℃~70℃
Storage temperature -40℃~80℃

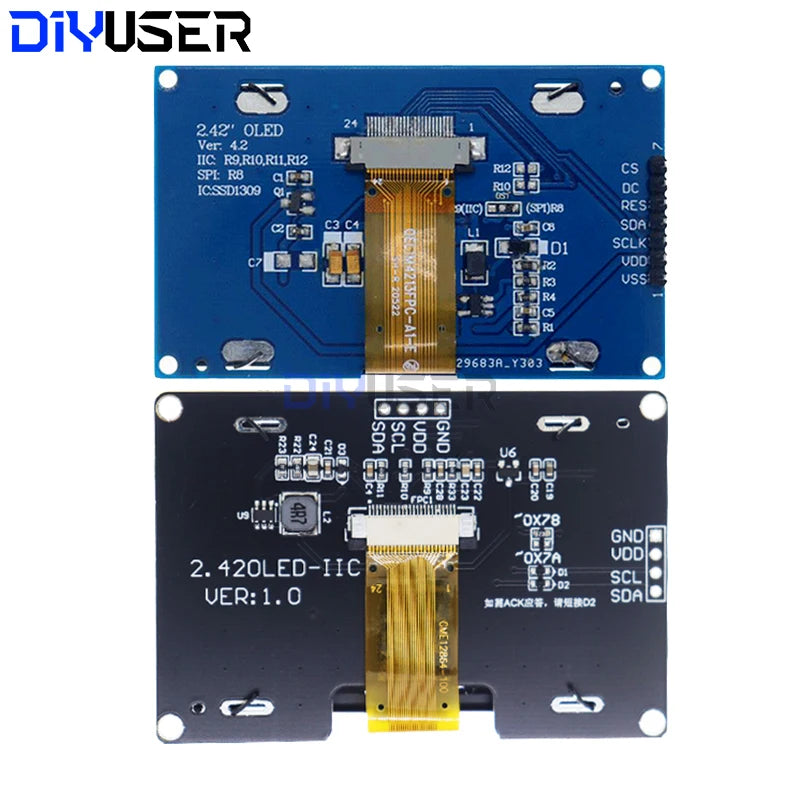

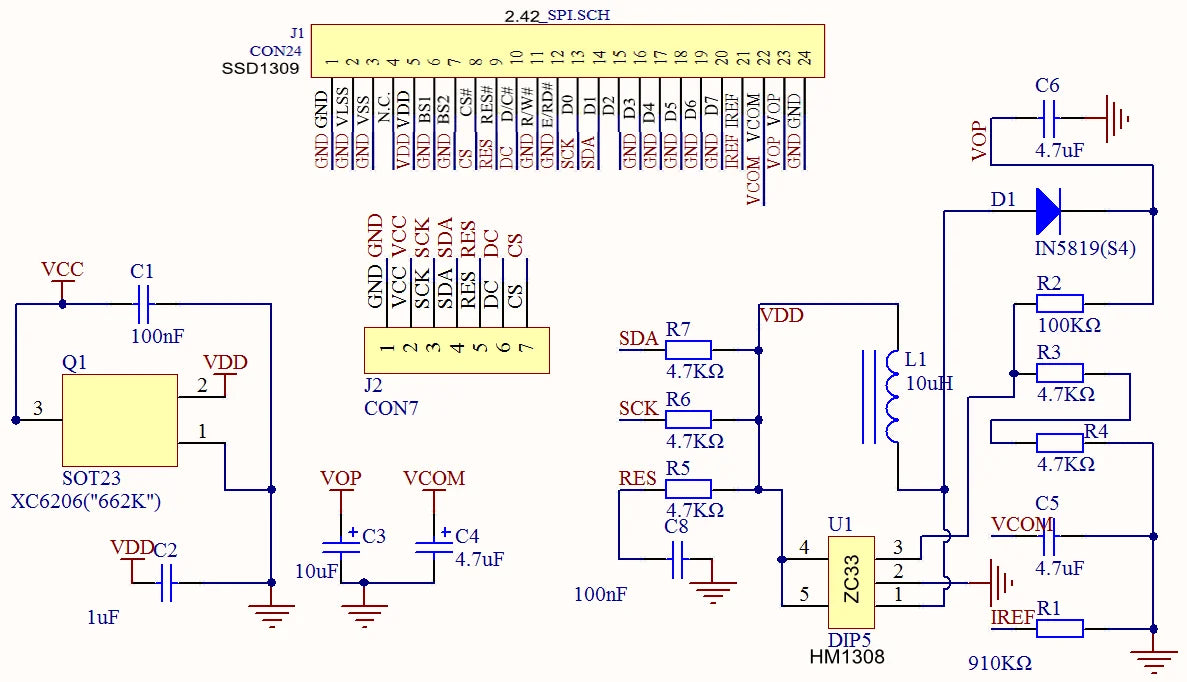

SPI Interface Definition:
1 GND - Power Ground
2 VDD - Power Supply Positive (2.8-5.5V)
3 SCK - Clock Line
4 SDA - Data Line
5 RES - Reset Line
6 DC - Data/Command
7 CS - Chip Select
