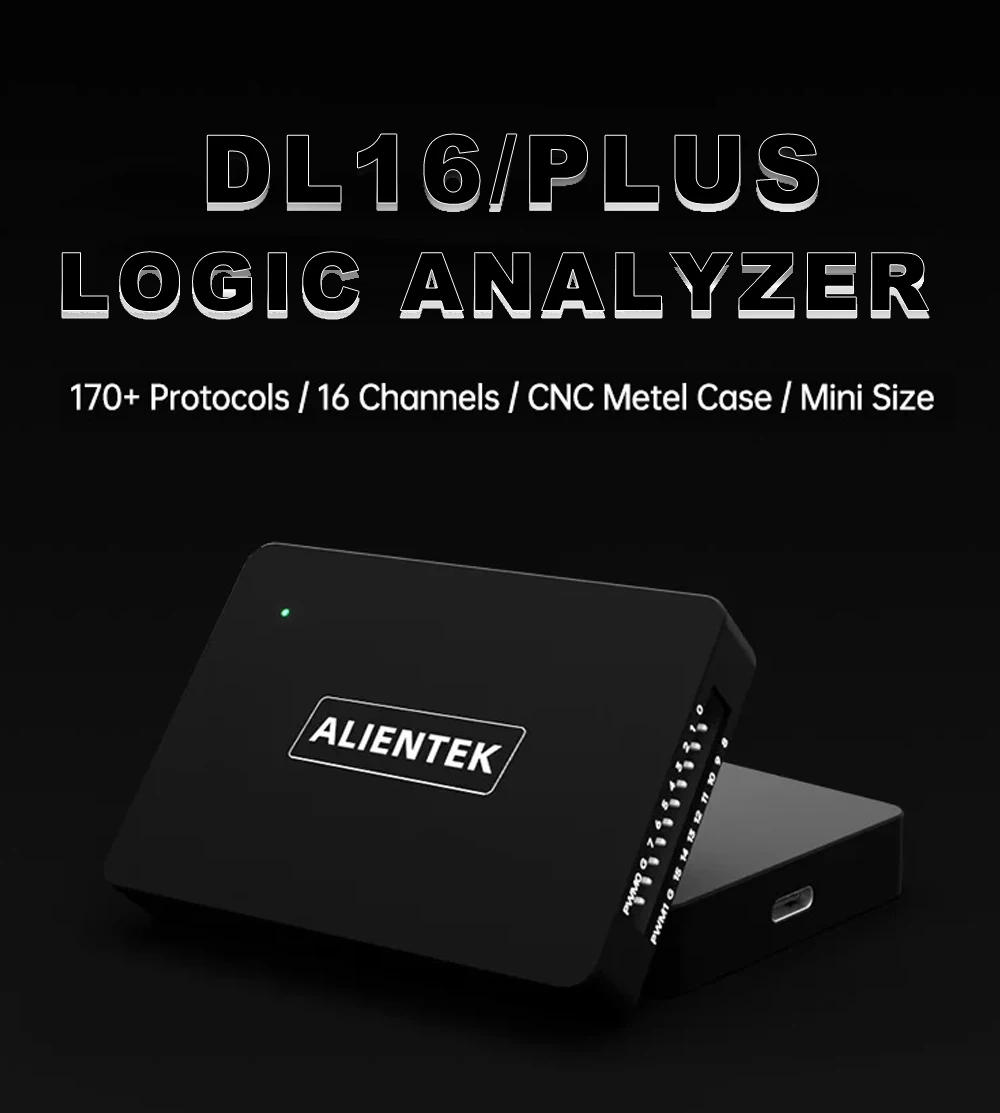

DL16 Logic Analyzer 250MHz Max Sample Rate 16Channels DSLogic USB Logic Analyzer Tools ARM FPGA Debug Protocol Decoding Software

DL16 Logic Analyzer 250MHz Max Sample Rate 16Channels DSLogic USB Logic Analyzer Tools ARM FPGA Debug Protocol Decoding Software

$575.44

$575.44 $0.00

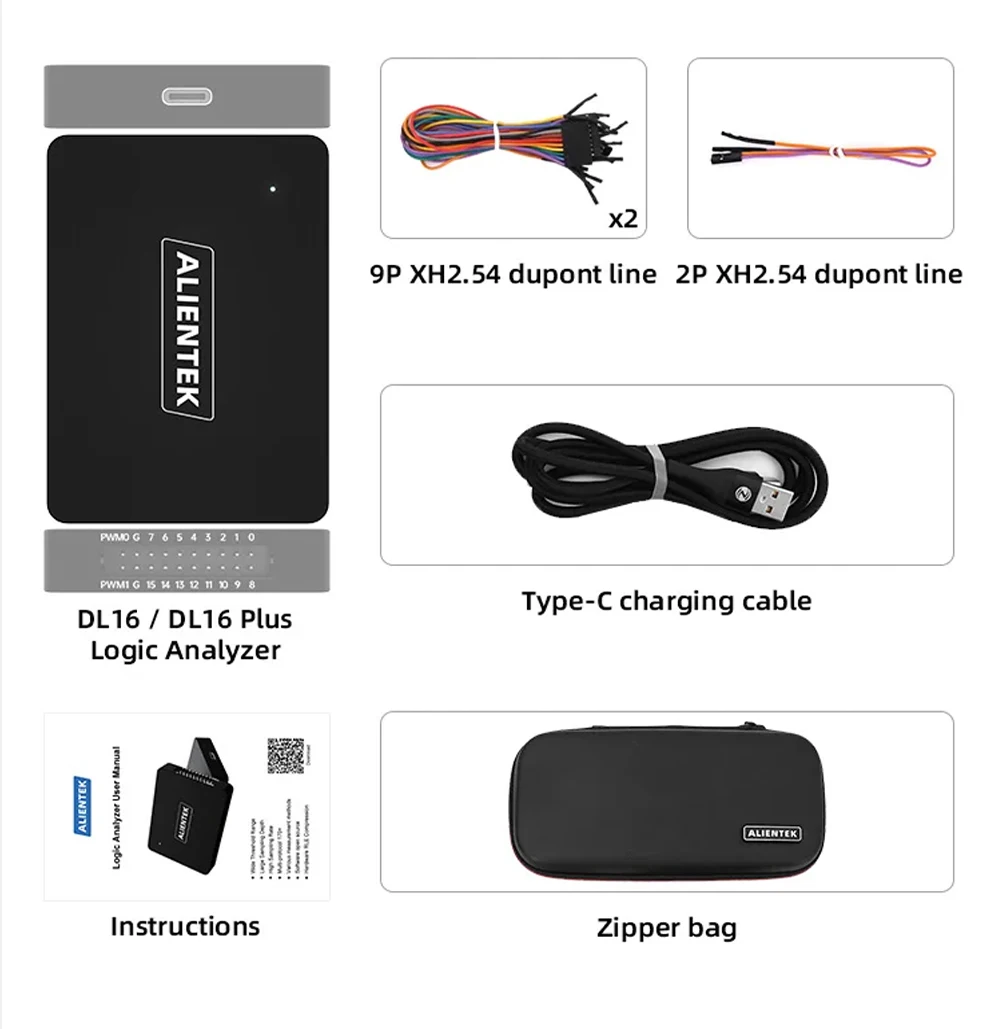

Color DL16 Plus standard DL16 Plus set 1 DL16 set 2 DL16 set 3 DL16 standard DL16 set 1 DL16 Plus set 2 DL16 Plus set 3

Description

SPECIFICATIONS

Battery Included: no

Brand Name: ALIENTEK

Certification: CE,FCC

DIY Supplies: Electrical

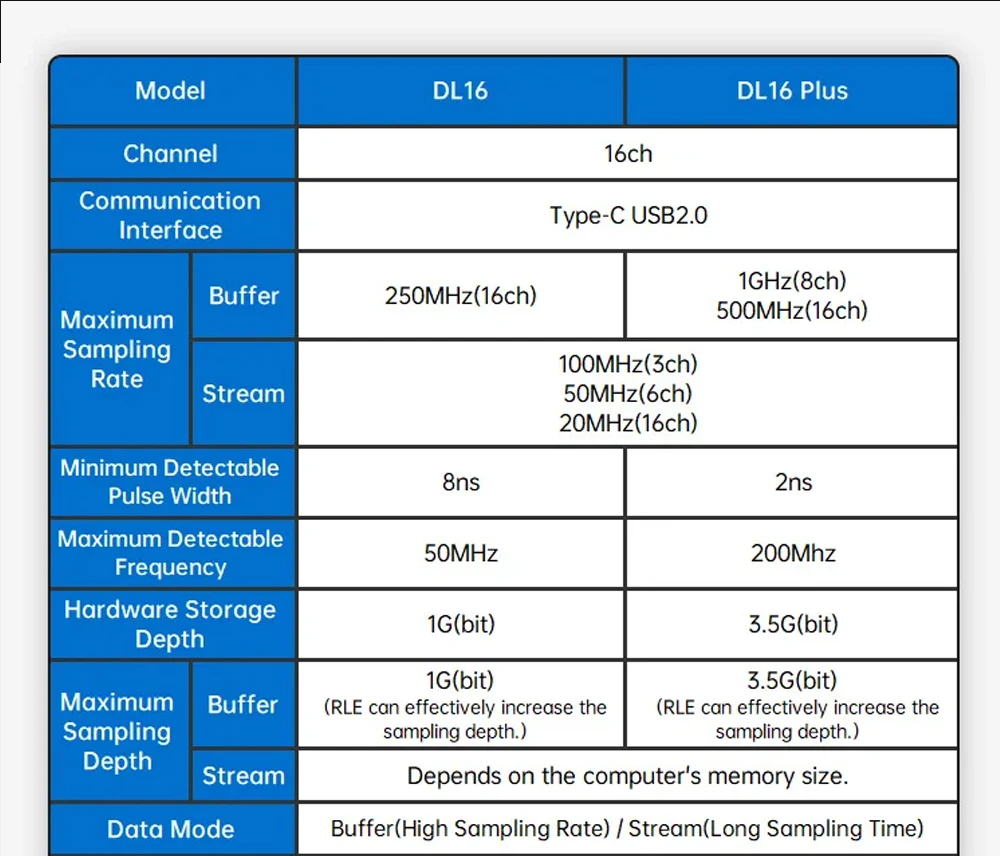

DL16 Plus Real Time Sampling Rate: 1GMHz

DL16 Real Time Sampling Rate: 250MHz

Display resolution: USB Logic Analyzer

High-concerned chemical: none

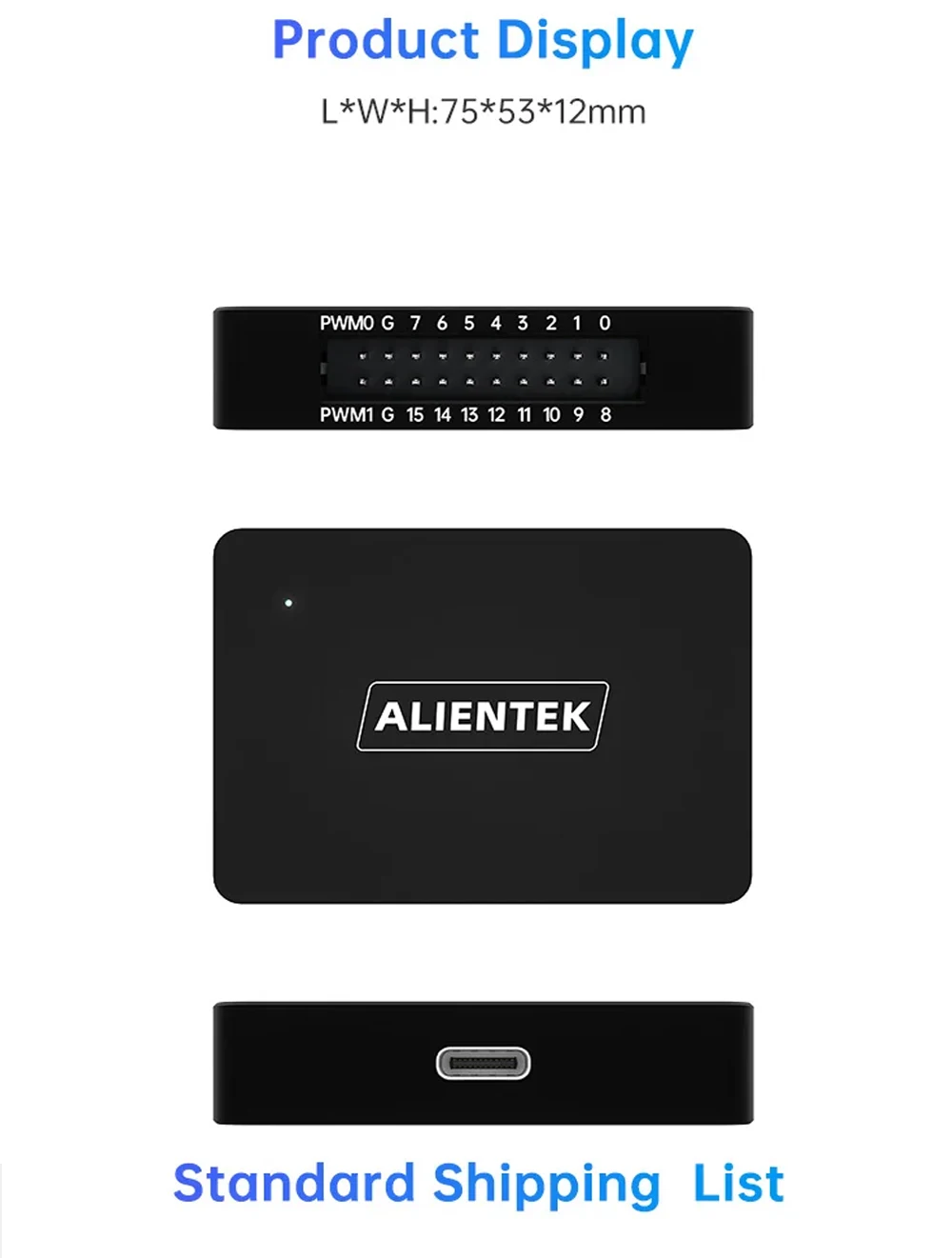

Model Number: DL16

Origin: Mainland China

Semi-finishedproduct: No

Logic Analyzer is an instrument for testing and analyzing digital circuit signals. It is mainly used to capture, display and analyze timing and waveform data of digital signals to help engineers diagnose faults, verify circuit designs and optimize system performance.

DL16 product features:

1, The maximum hardware storage depth is 1G

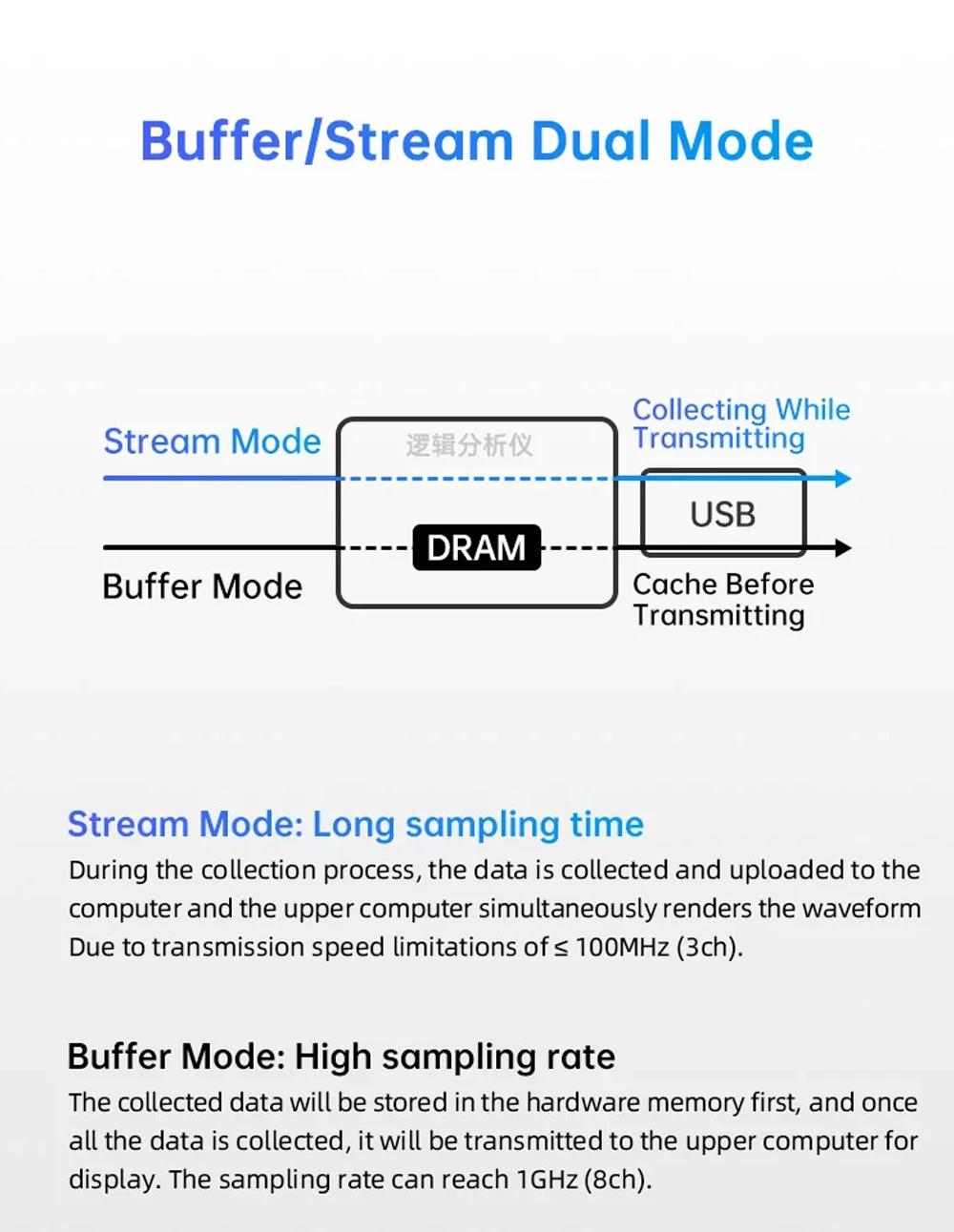

2, Support Stream mode, sampling time can be longer
3, Support RLE hardware data compression, higher efficiency

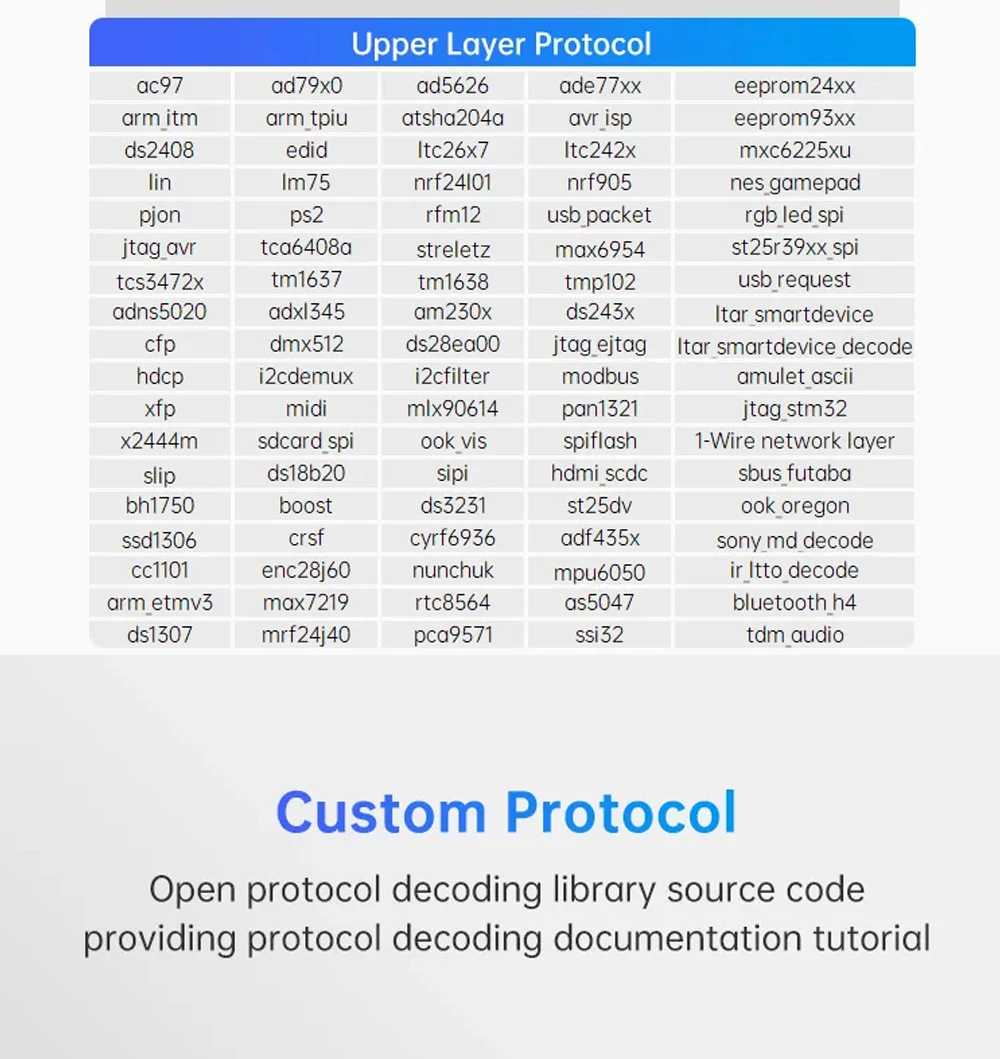

4, Support more than 120 protocols, and continue to update

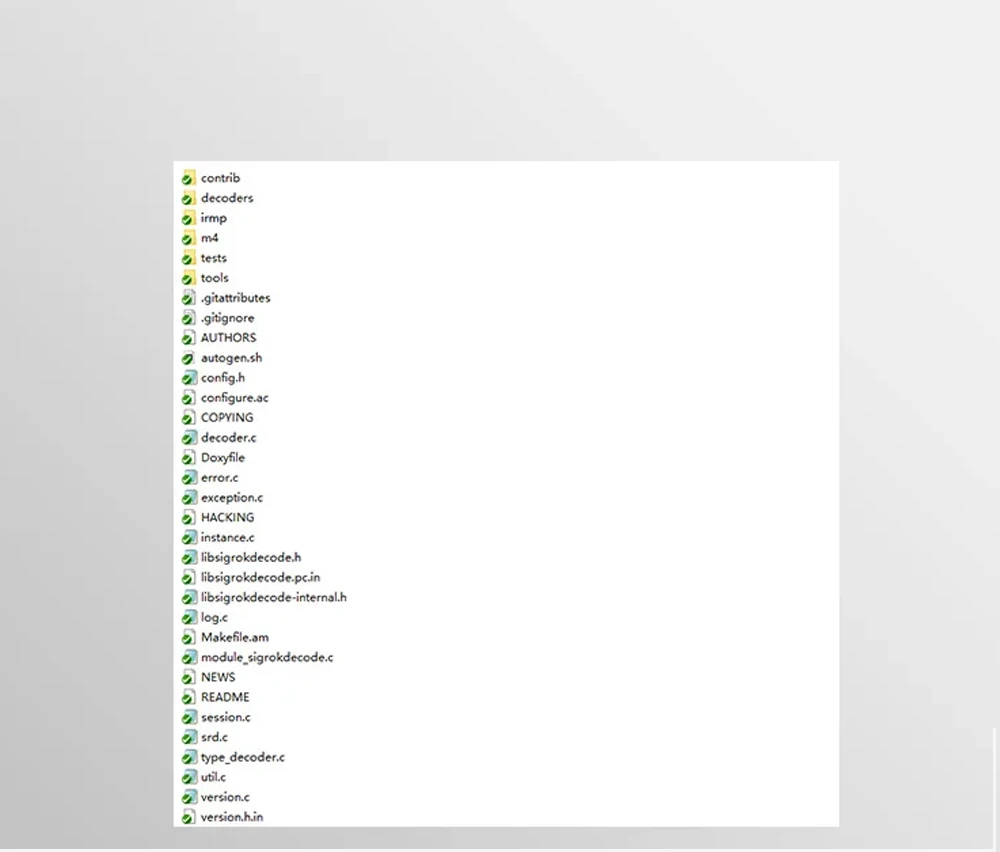

5, Open protocol decoding library, can customize the protocol
6, Can output 2 PWM channels at the same time, 1Hz~20MHz adjustable

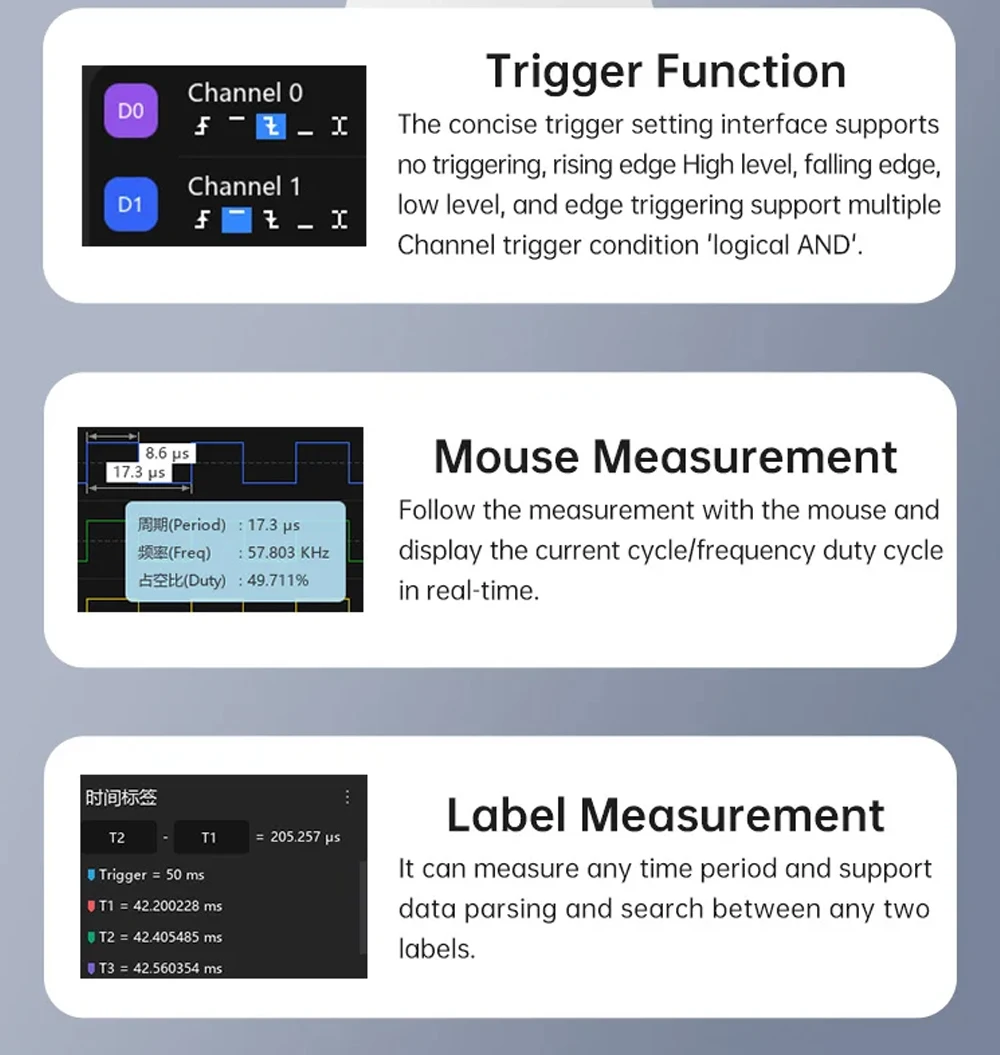

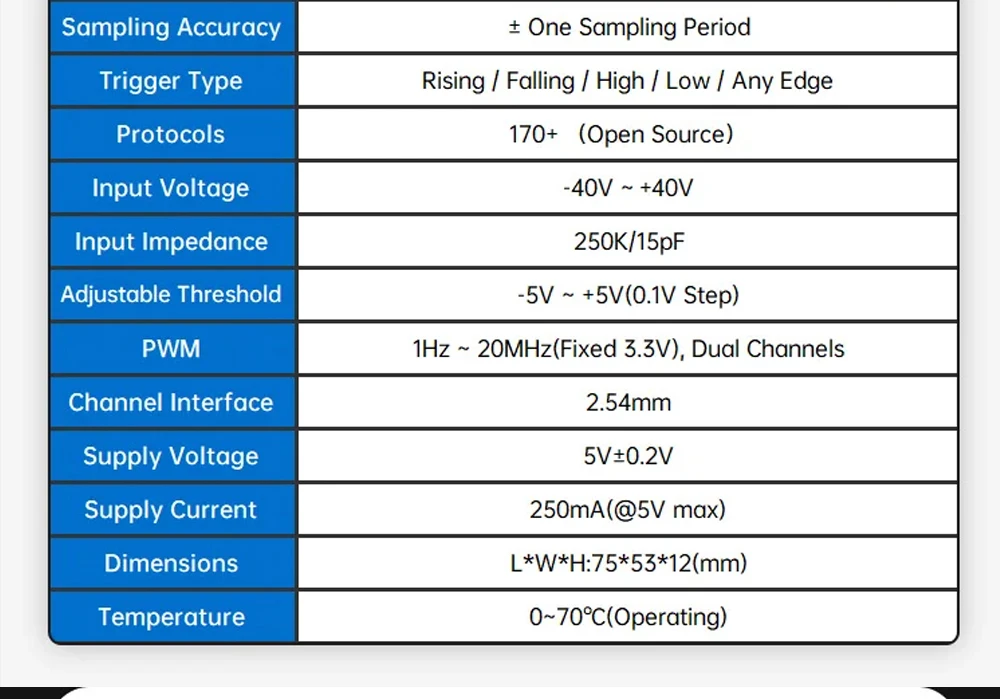

7, Support a variety of trigger modes and acquisition modes

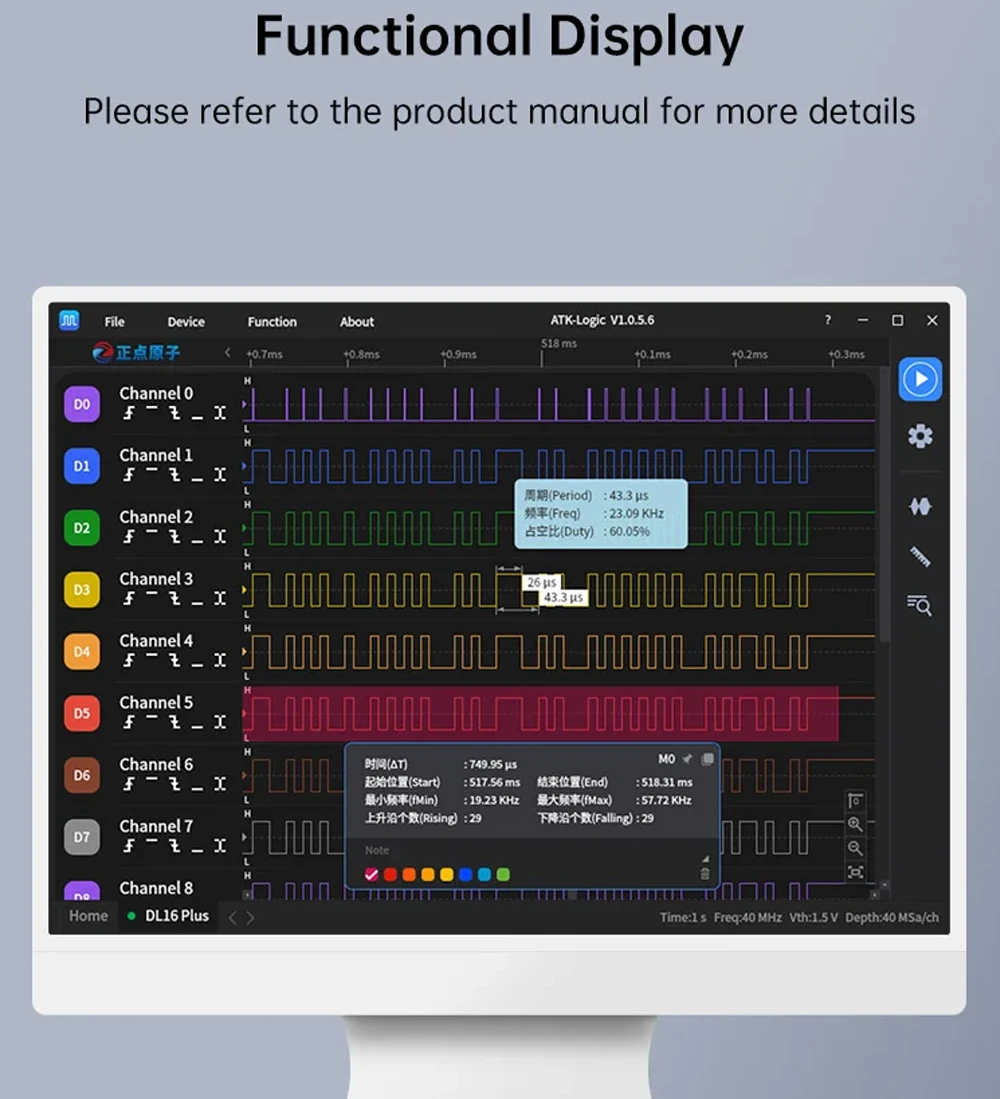

8, Simple and easy to operate visual software operation

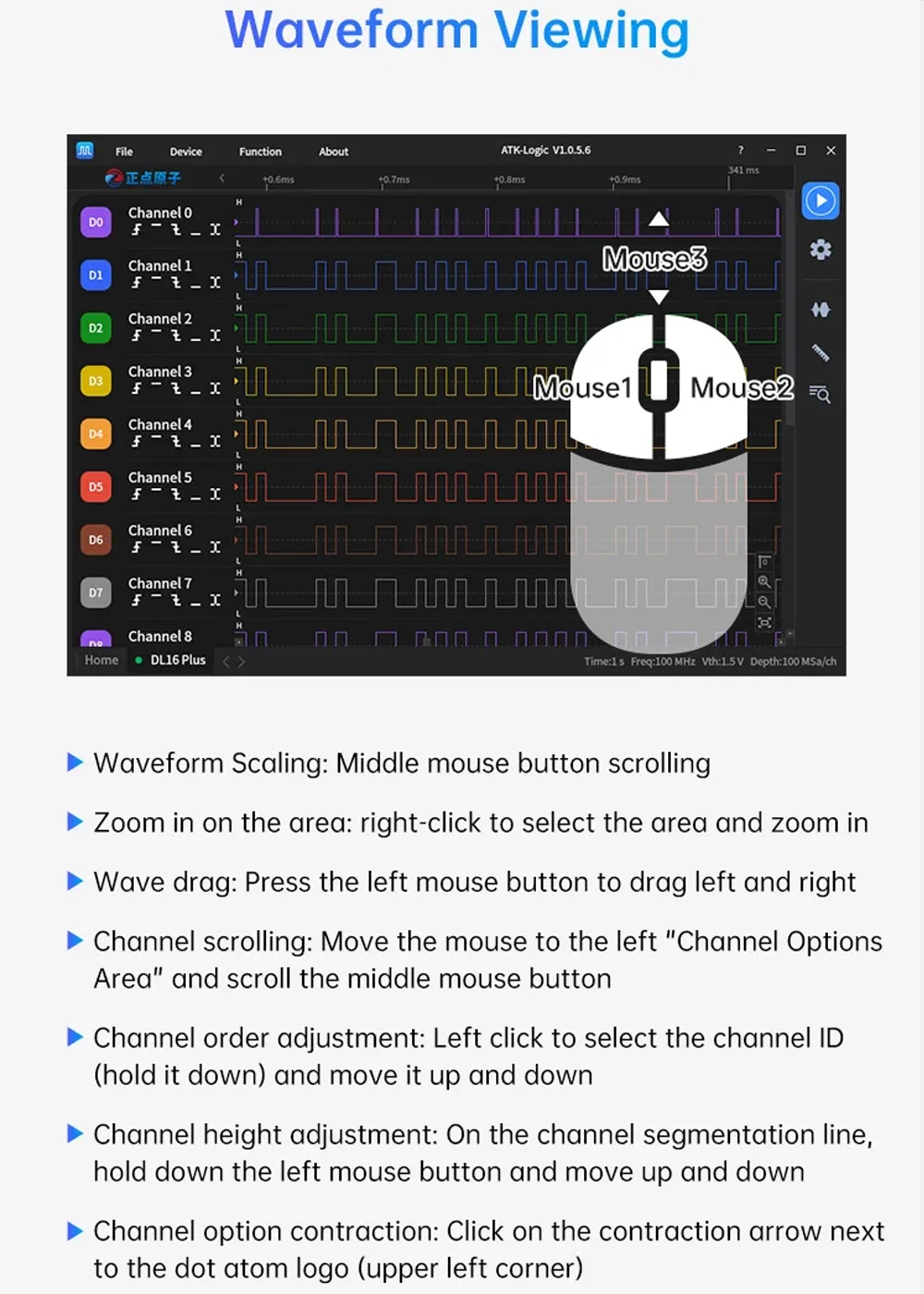

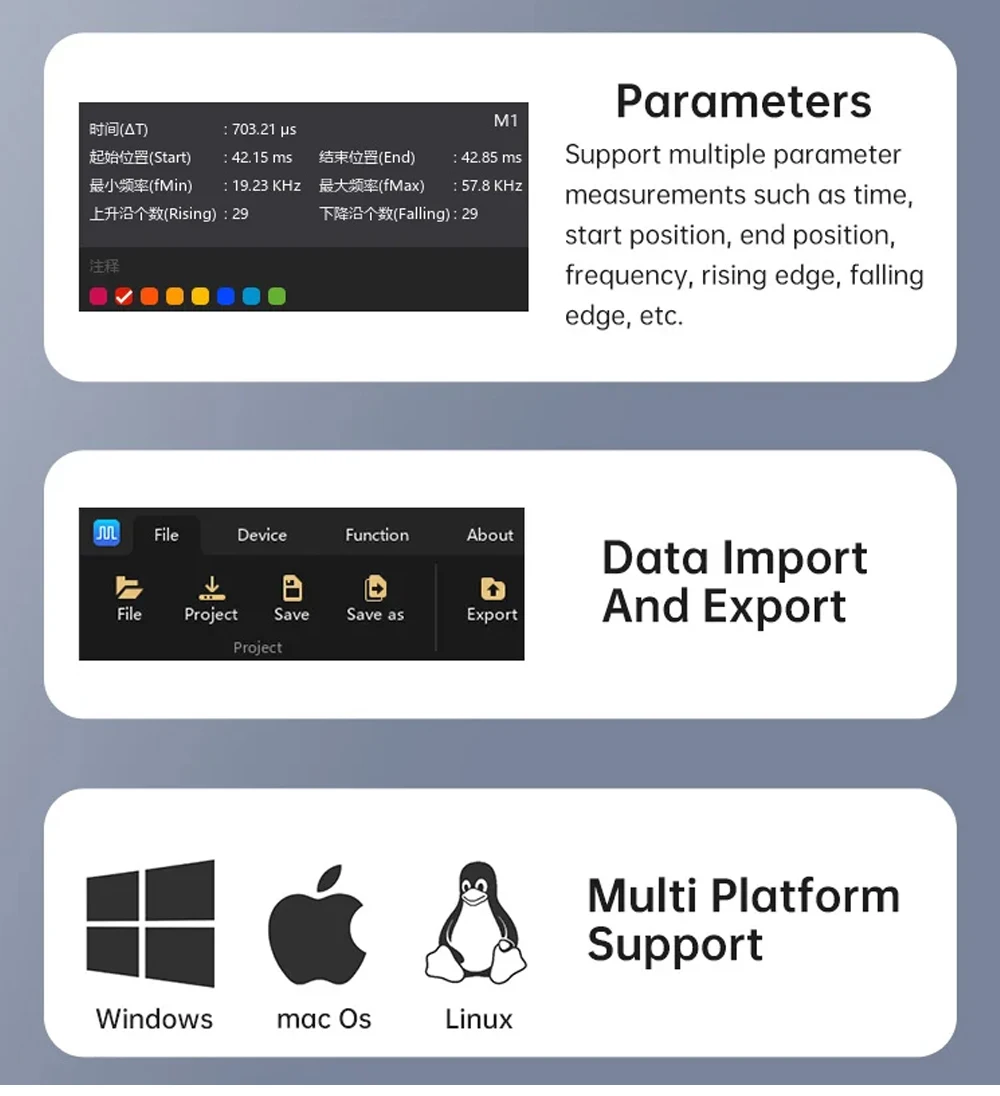

9, Support mouse/label/parameter measurement, data search and other functions
10, Support Windows/Ubuntu/Mac three platforms
11, All metal CNC shell, shielding heat feel first-class

Product information download:http://www.alientek.com/download
