SPECIFICATIONS

Brand Name: W

Choice: yes

Condition: New

Origin: Mainland China

Type: Module

semi_Choice: yes

support protocols are list here

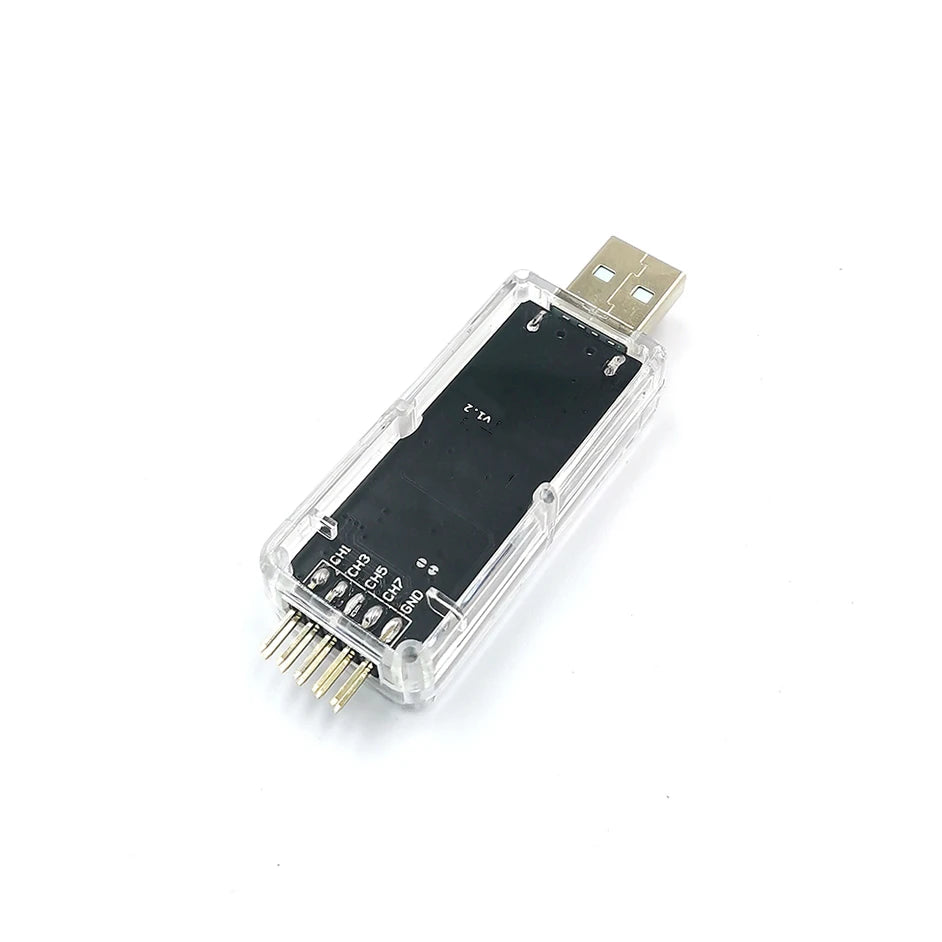

Introduction

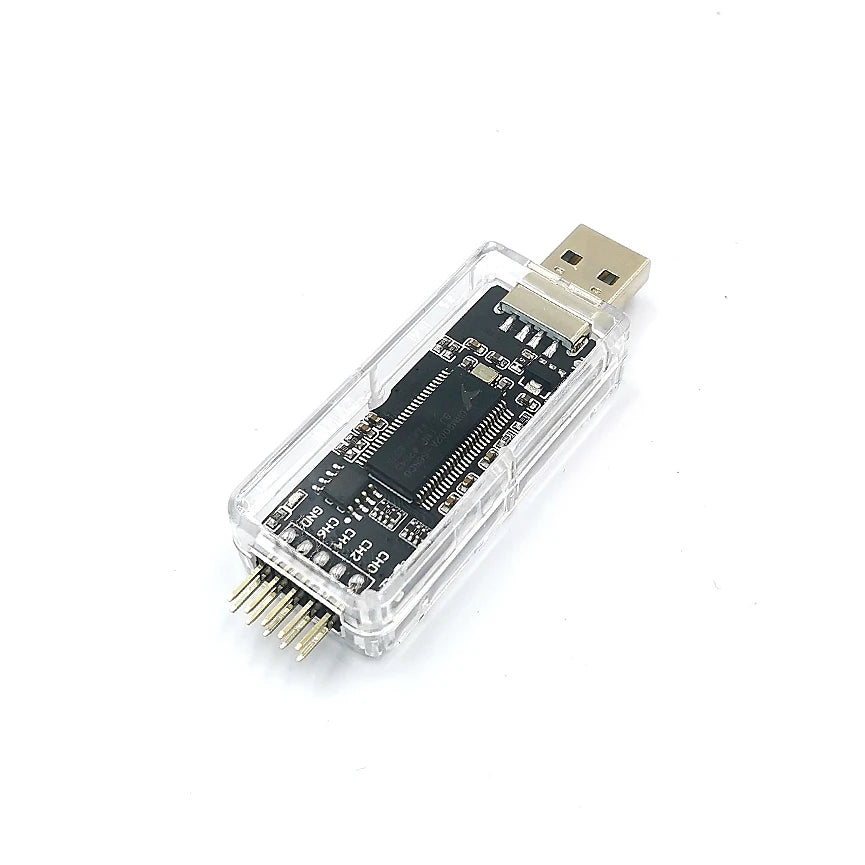

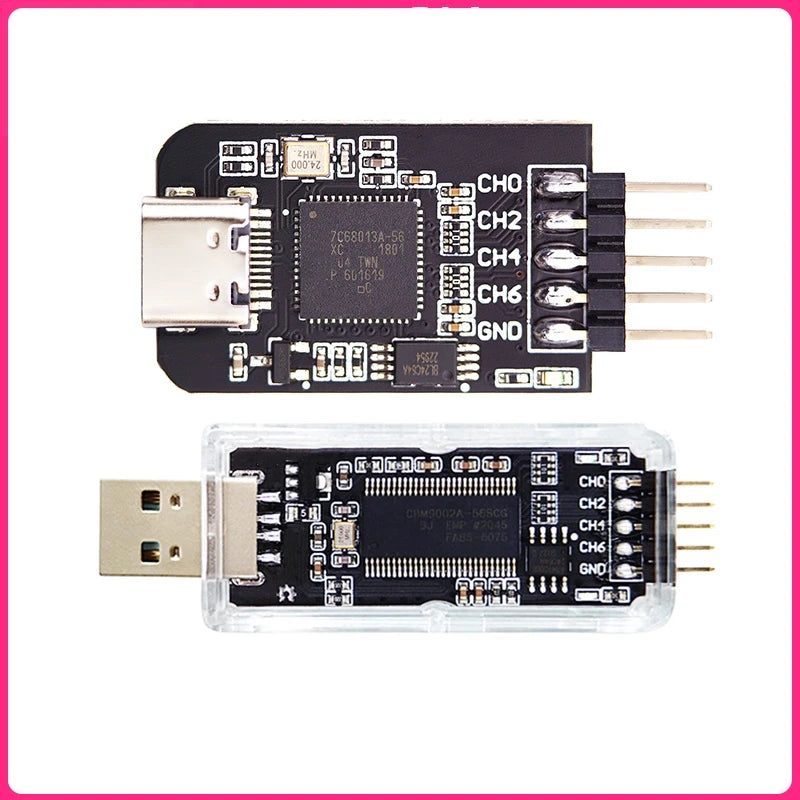

DLA is a hardware and software open source logic analyzer developed and produced by Muse Lab. It is exquisite and compact in appearance with rich functions. It supports up to 24Mhz sampling rate and more than 100 kinds of protocol analysis. 8 channels can sample data simultaneously. Efficiency could be greatly improved in scenarios such as problem location, complex systems with multiple components, timing analysis and performance

Features&Specification

● Open source hardware , provide hardware schematic
● Open source software :
1. provide source code to compile firmware by yourself

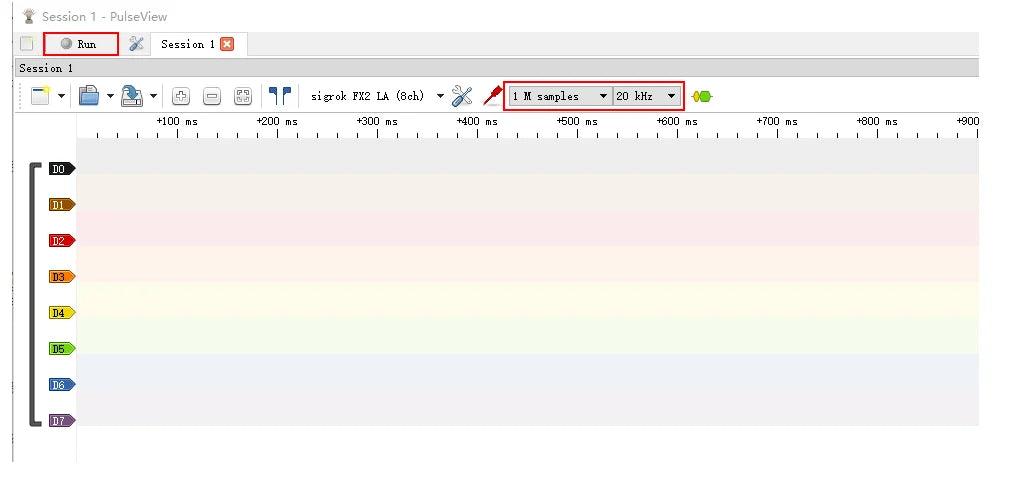

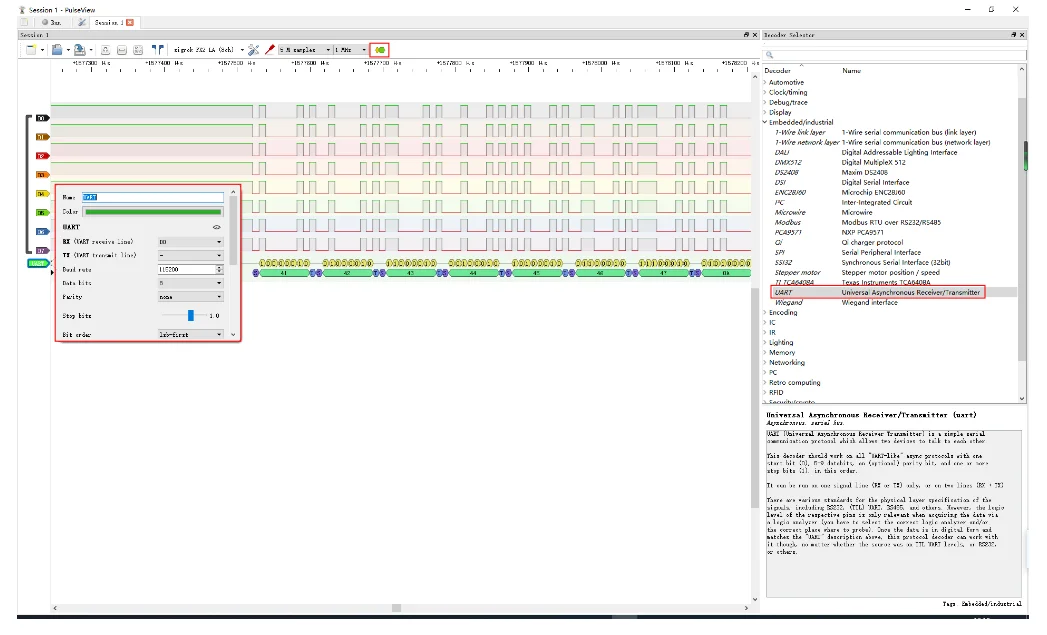

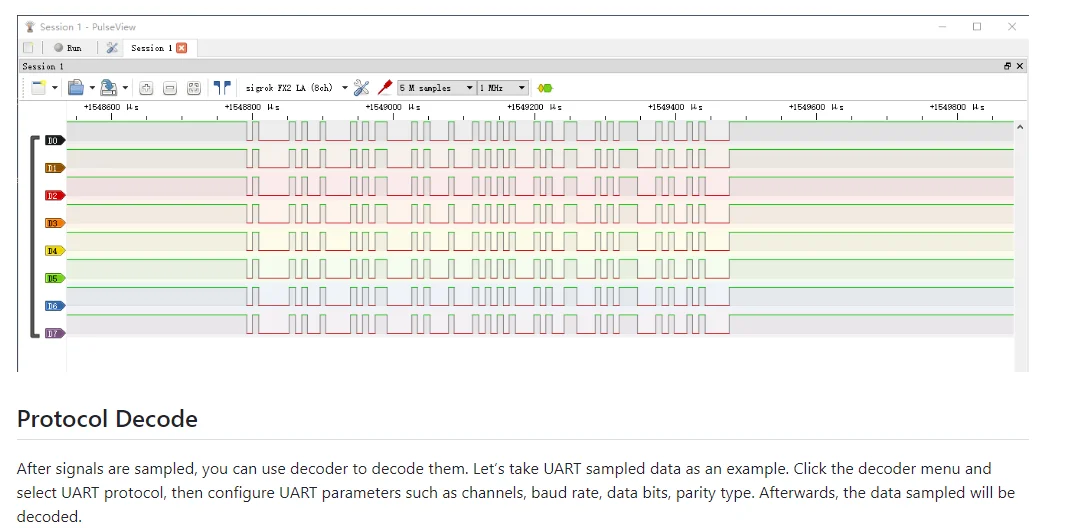

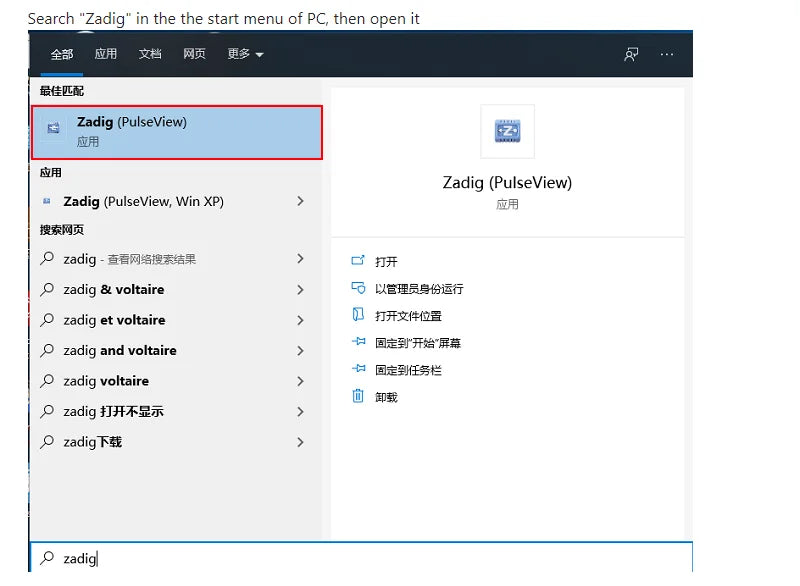

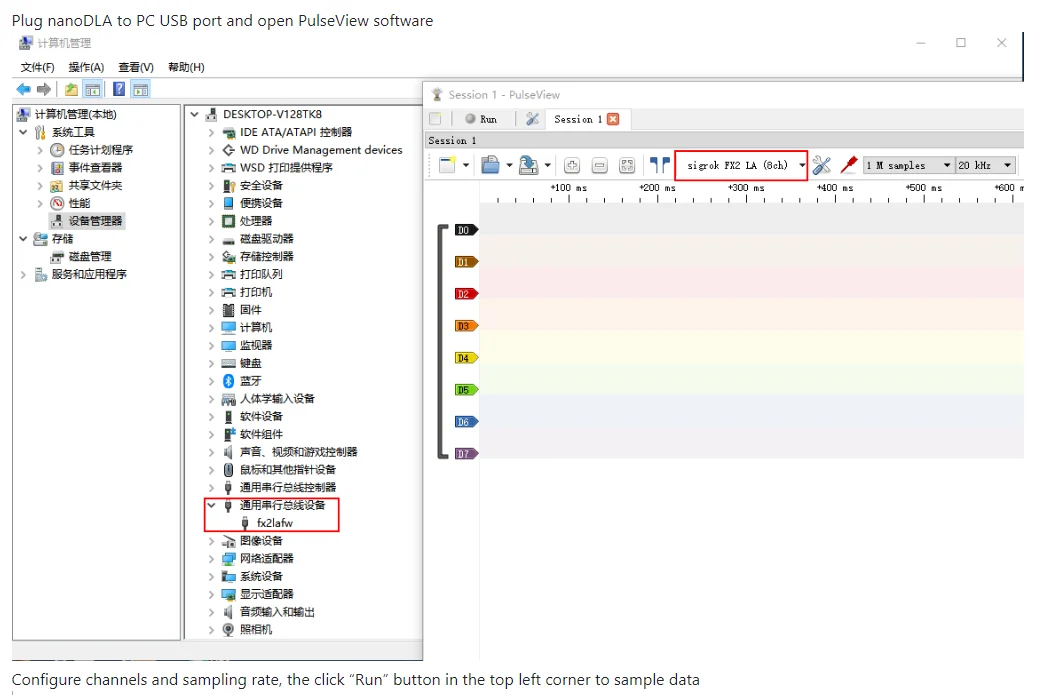

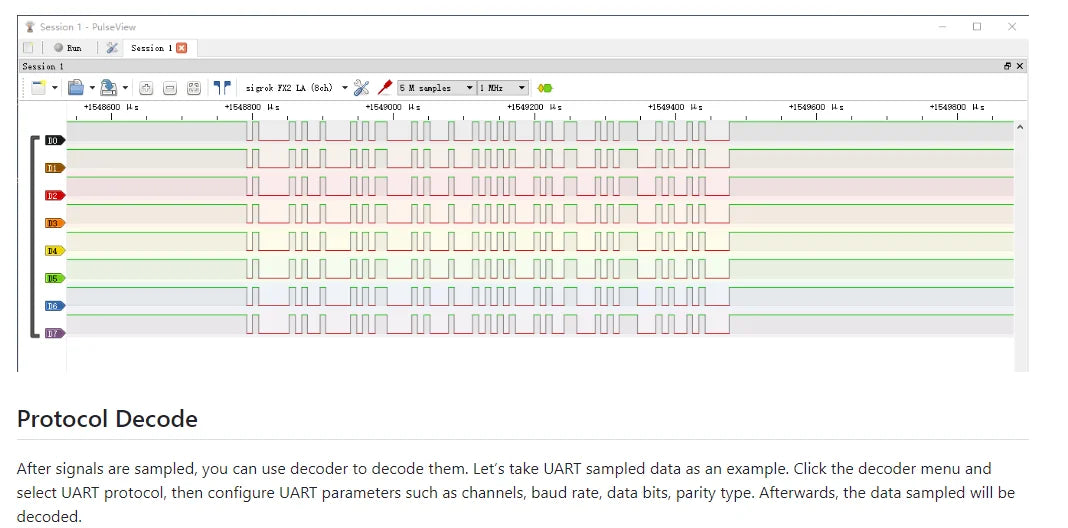

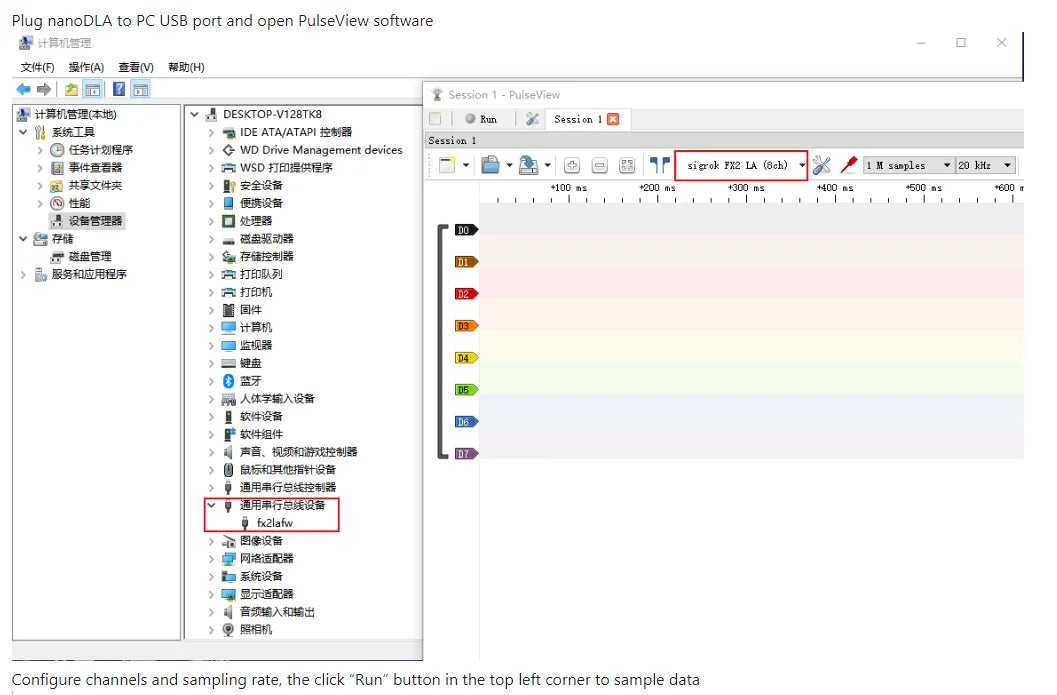

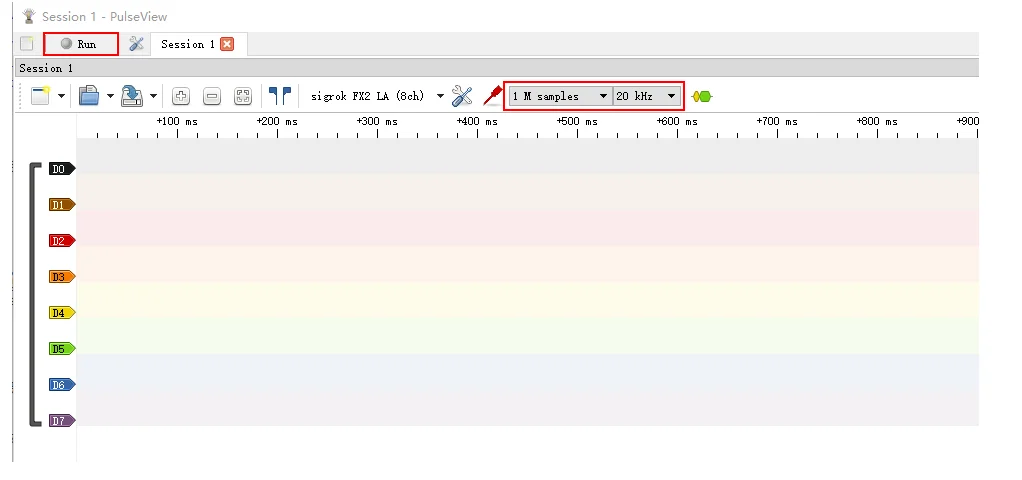

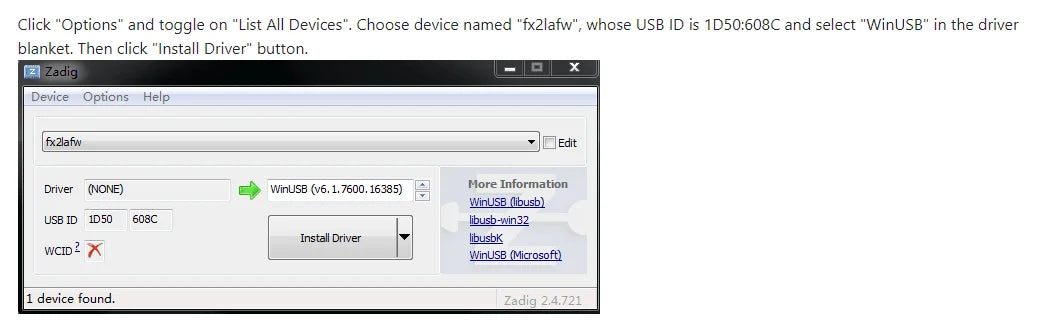

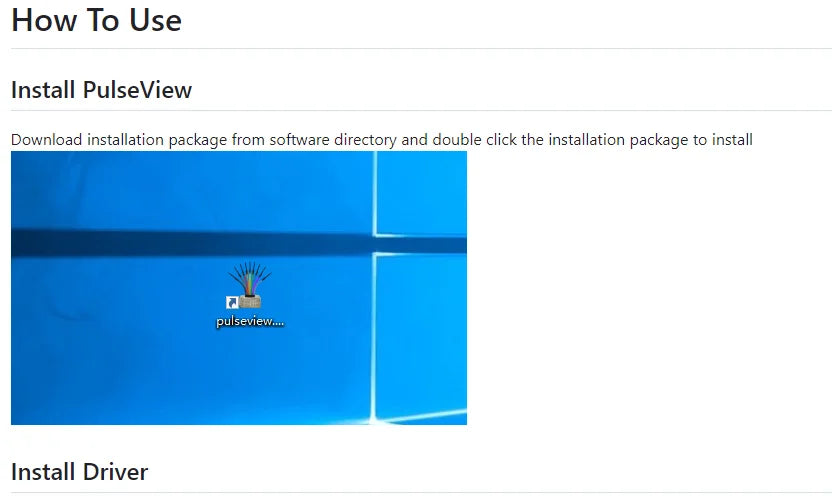

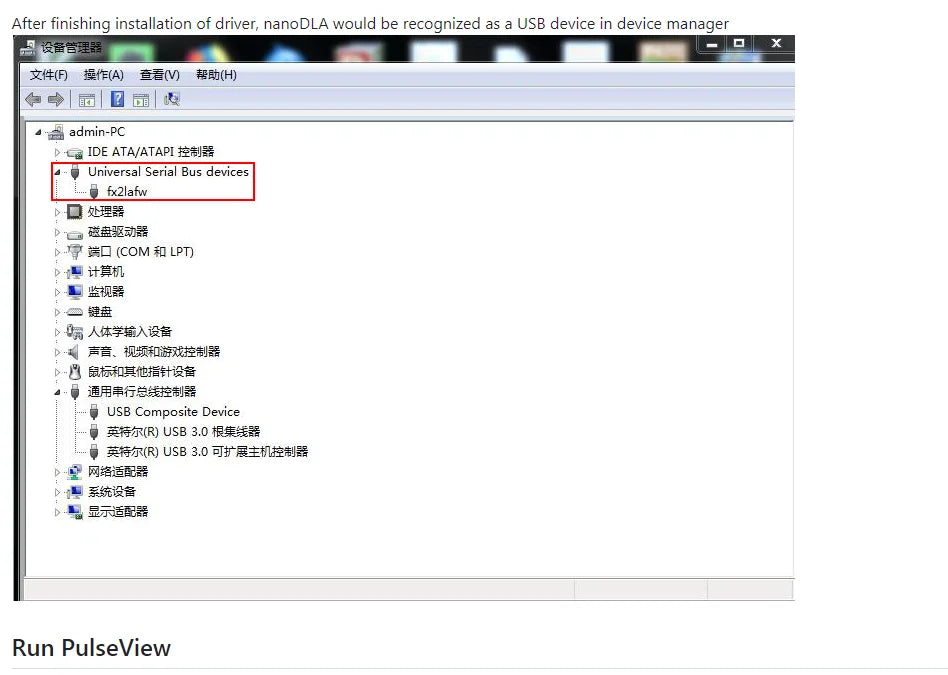

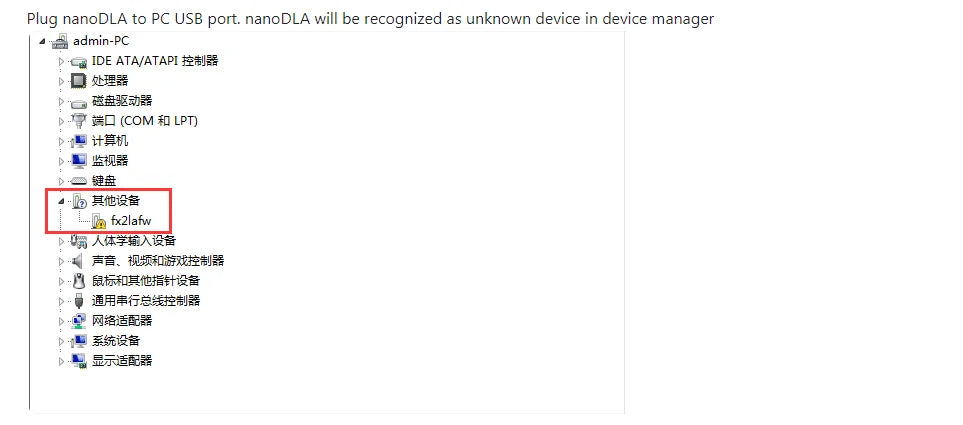

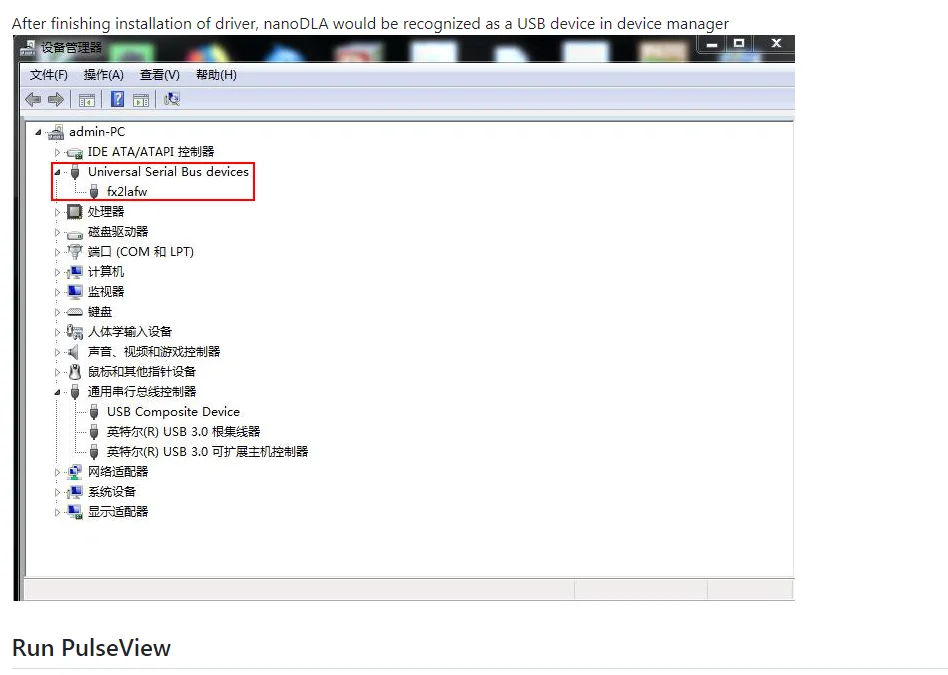

2. use open source PulseView as PC software to analyze sampling data, which is rich in functions and easy to use, supports more than 100 kinds of protocol analysis
● Support up to 24Mhz sampling rate and 8 channels can sample data simultaneously
● Support input logic level [-0.5v,5.25v]. low level is [-0.5v, 0.8v], high level is[2v, 5.25v]
● Support operating system like Windows, Linux, Mac, Android
● Size: 7.2cm * 2.4cm * 1.4cm

analysis.

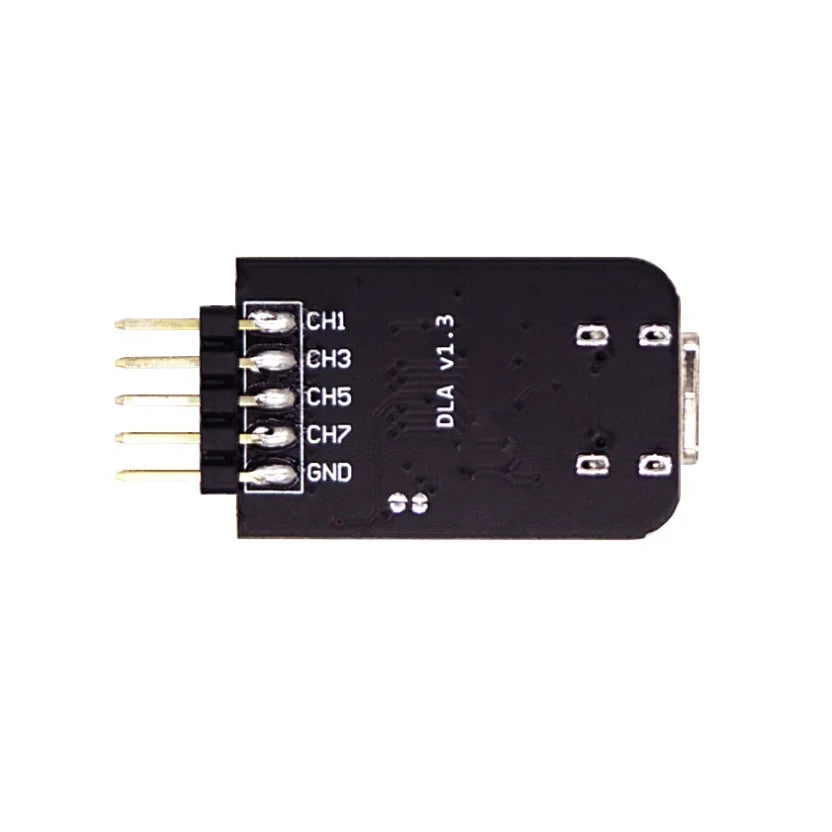

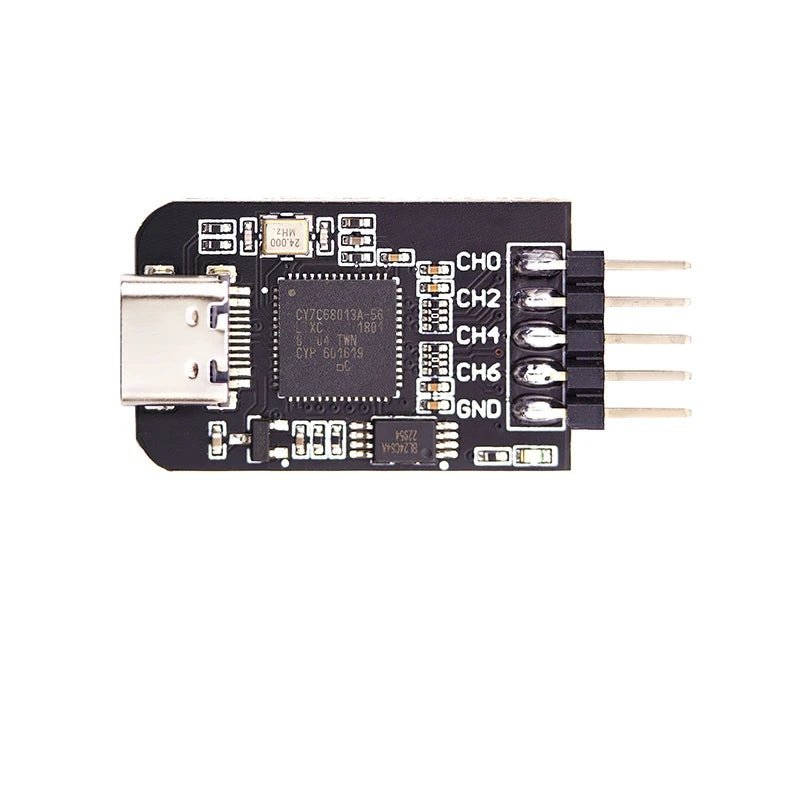

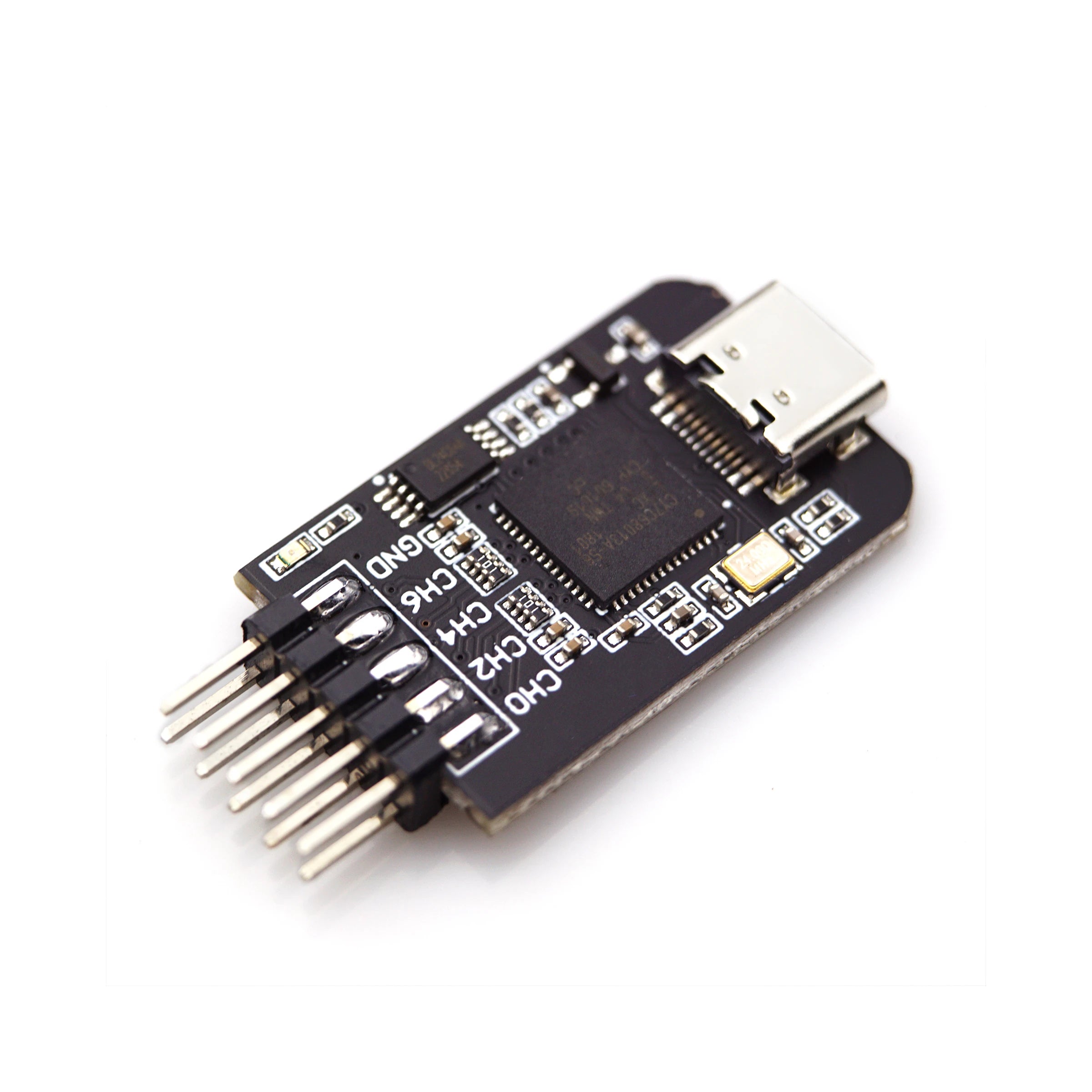

TYPE-C DLA is a hardware and software open source logic analyzer developed and produced by Muse Lab. It is exquisite and compact in appearance with rich functions. It supports up to 24Mhz sampling rate and more than 100 kinds of protocol analysis. 8 channels can sample data simultaneously. Efficiency could be greatly improved in scenarios such as problem location, complex systems with multiple components, timing analysis and performance analysis.

Features&Specification

● Open source hardware , provide hardware schematic
● Open source software :
1.provide source code to compile firmware by yourself
2.use open source PulseView as PC software to analyze sampling data, which is rich in functions and easy to use, supports more than 100 kinds of protocol analysis
● Support up to 24Mhz sampling rate and 8 channels can sample data simultaneously
● Support input logic level [-0.5v,5.25v]. low level is [-0.5v, 0.8v], high level is[2v, 5.25v]
● Support operating system like Windows, Linux, Mac, Android
● Small Size: 3.9cm * 2.0cm

support protocols are list here
