SPECIFICATIONS

Air Volume: 83

Application 1: Computer Case

Application 2: Server Case

Application 3: Power equipment,CNC machine tools, welding machines

Application 4: Charging piles, network cabinets

Application 5: Small Hear Radiating Communication equipment plate cooling heat

Application 6: Intelligent industrial control equipment plate cooling heat

Application 7: PC CPU Server Cooling Dissipation

Application 8: Anywhere & electronic that need cooling

Bearing: Two Ball Bearing

Blade Quantity: 7

Brand Name: YOUNUON

Certification: CE,FCC,RoHS,weee

Choice: yes

Fan Life: 50000 hrs

Fan Size: 120mm

Fan Speed: 1500 - 3000

High-concerned chemical: none

Lines: 2 lines

Model Number: 12025

Noise: 30dBA

Origin: Mainland China

Package: No

Power Interface: 3PIN,2pin,4PIN,USB,others

Series: DC BRUSHLESS COOLING FAN

Used For: Case,Radiator

Voltage: 12V

semi_Choice: yes

Features：

• Widely Used in: Computer Case;Btc Device; DIY-Server Fan

•  Humidifier/ Aromatherapy and other Small Appliances Series

•  Small Hear Radiating Communication equipment plate cooling heat

•  Intelligent industrial control equipment plate cooling heat

•  High Precision Medical equipment cooling

•  PC CPU Server Cooling Dissipation

•  Anywhere & electronic that need cooling

•  Item name: 12025 Cooling Fans

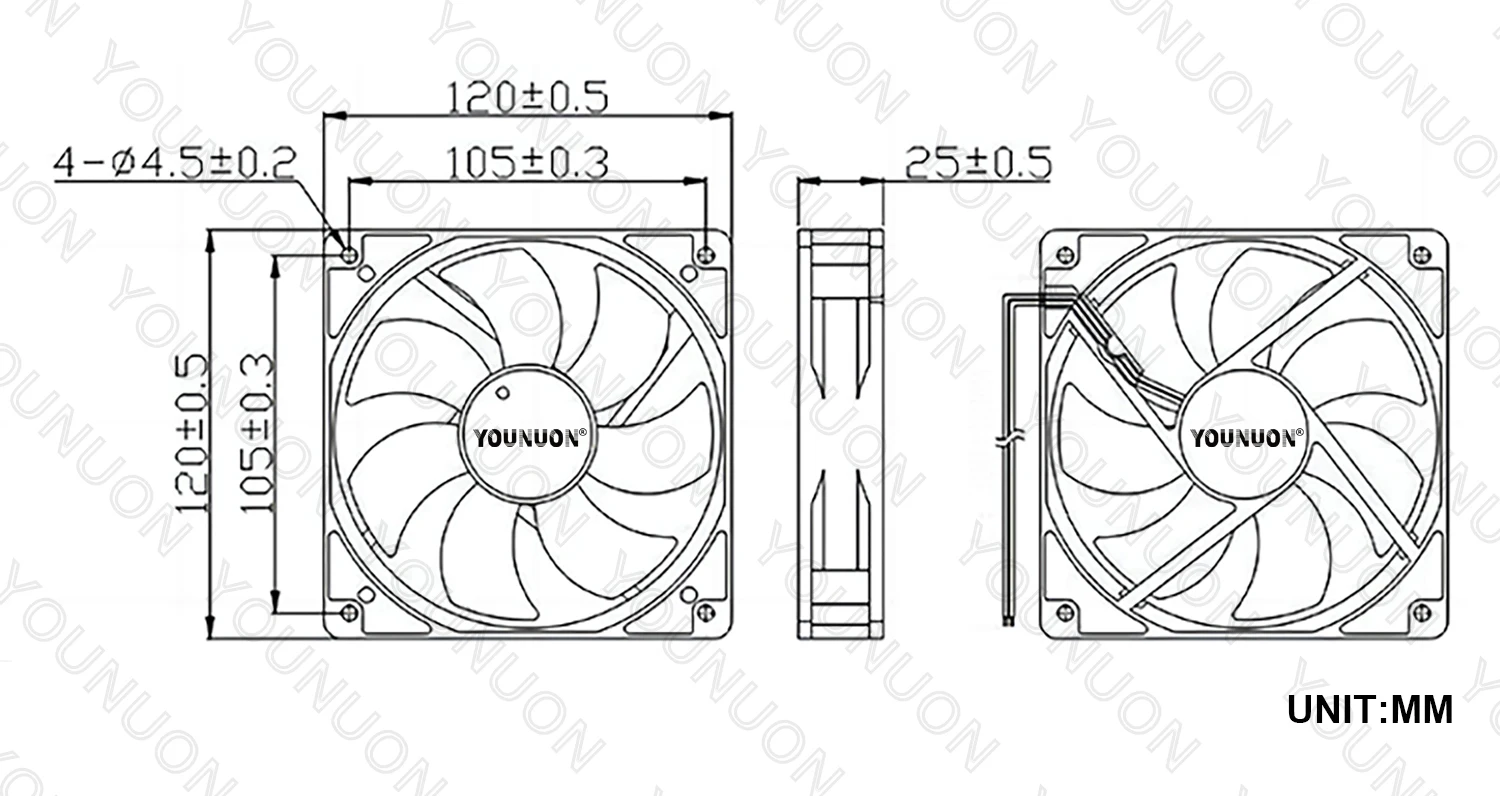

•  Dimension: 120x120x25mm

•  Bearing type:Sleeve/Hydraulic/Dual Ball Bearing

• Fan Speed: 1500RPM-3000RPM

•  Rated Voltage: DC 5V/12V/24V/48V

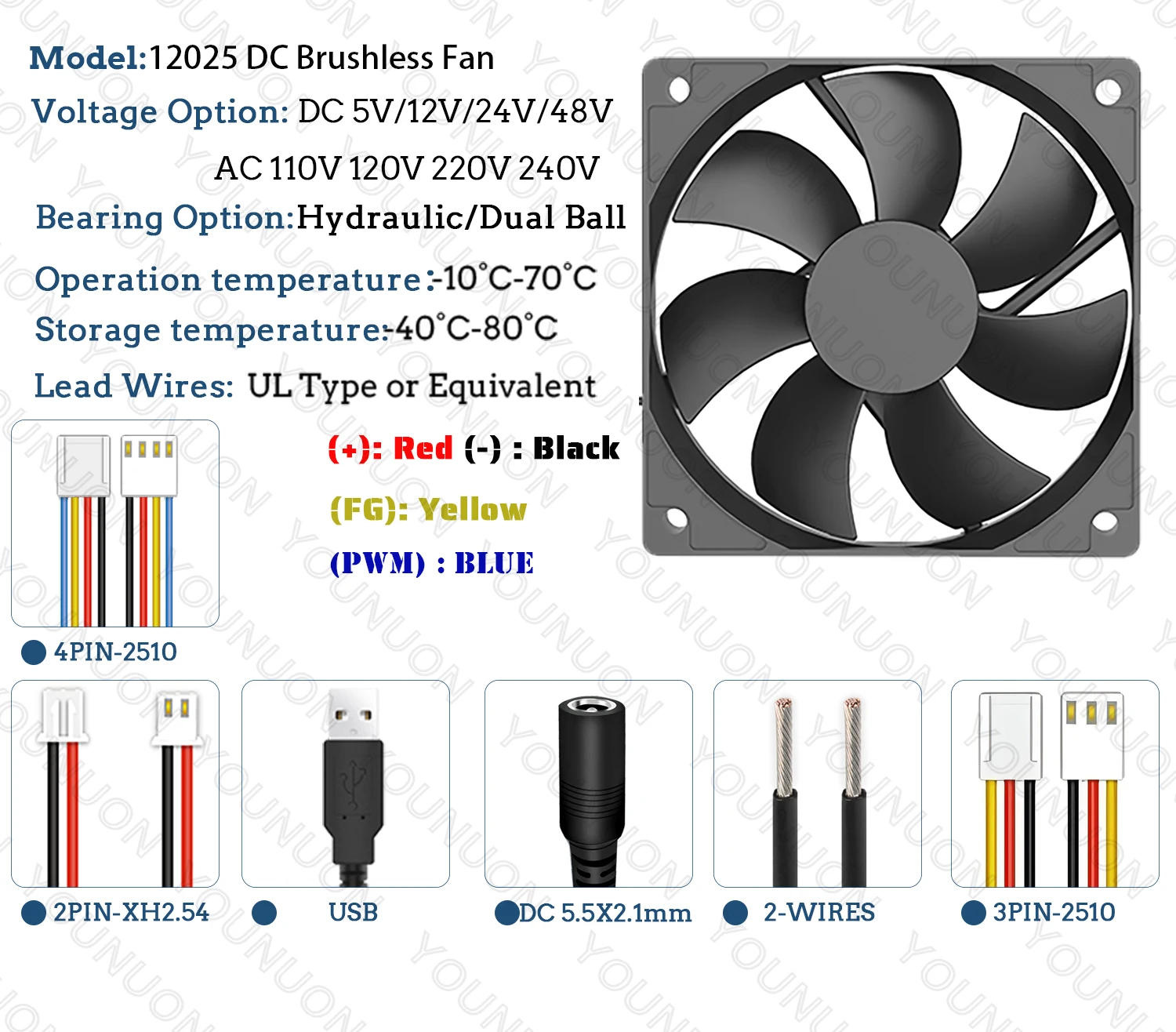

•  Power Connector: USB/2PIN-XH2.54/3PIN-2510/4PIN-2510/DC-5521 Female

•  Cable length:25cm-35CM

•  Life: 35000hrs-Sleeve Bearing;40000hrs-Hydraulic Bearing;50000hrs-Dual Ball Bearing

Package Include:(Pls make sure the volts and bearing type as your demand,we only send the actual voltage out as the same as your choice)

• 1PCS 12025 Cooling Fan
