SPECIFICATIONS

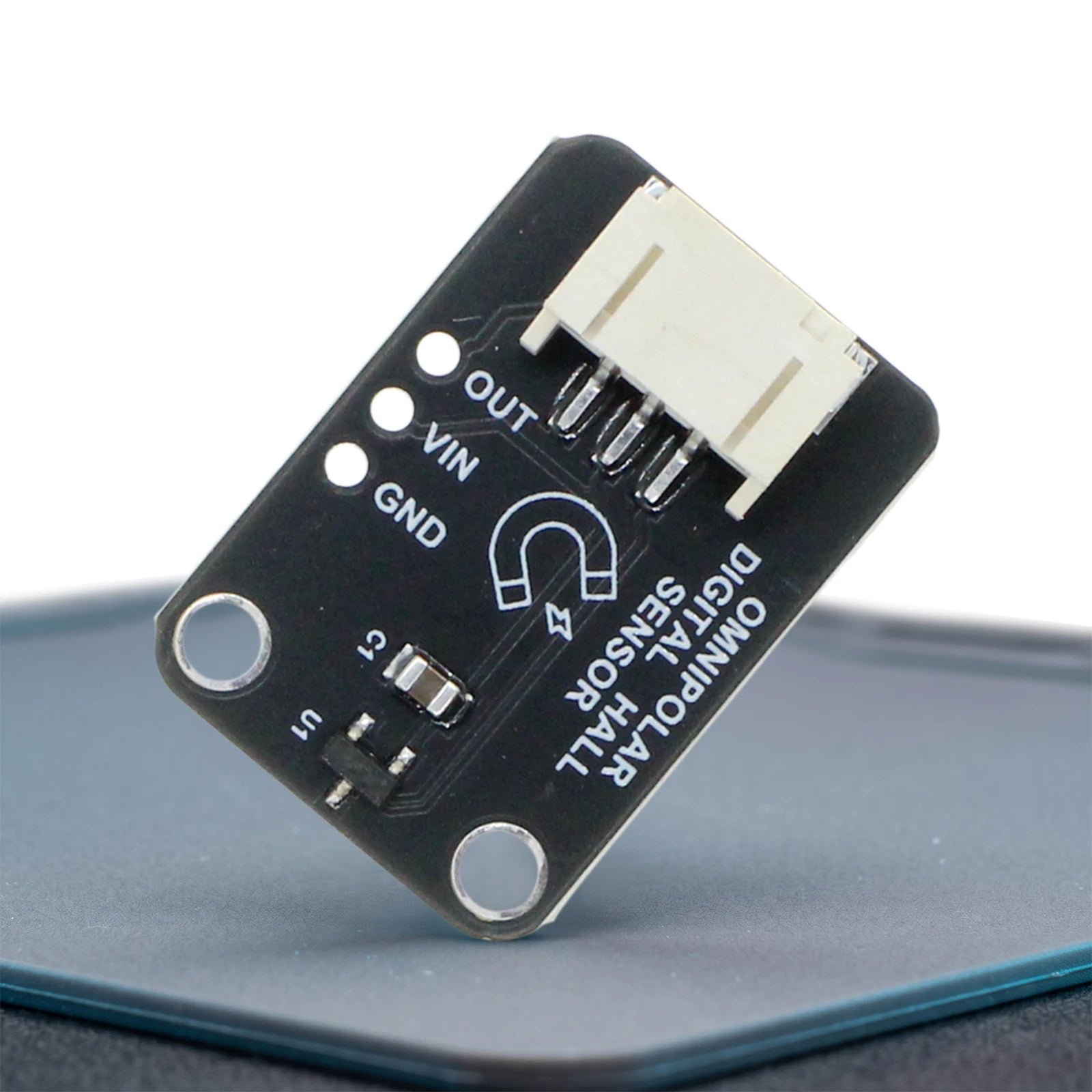

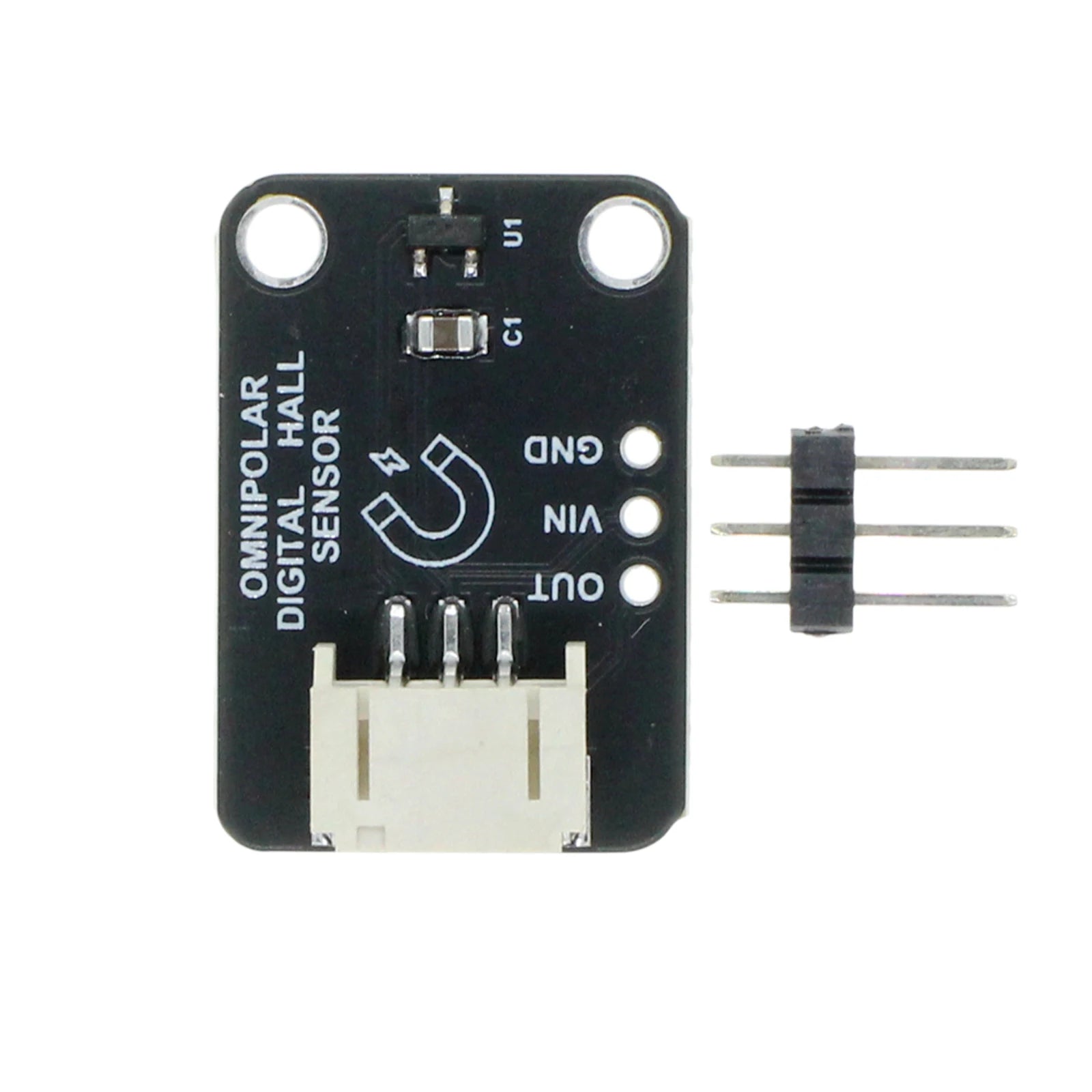

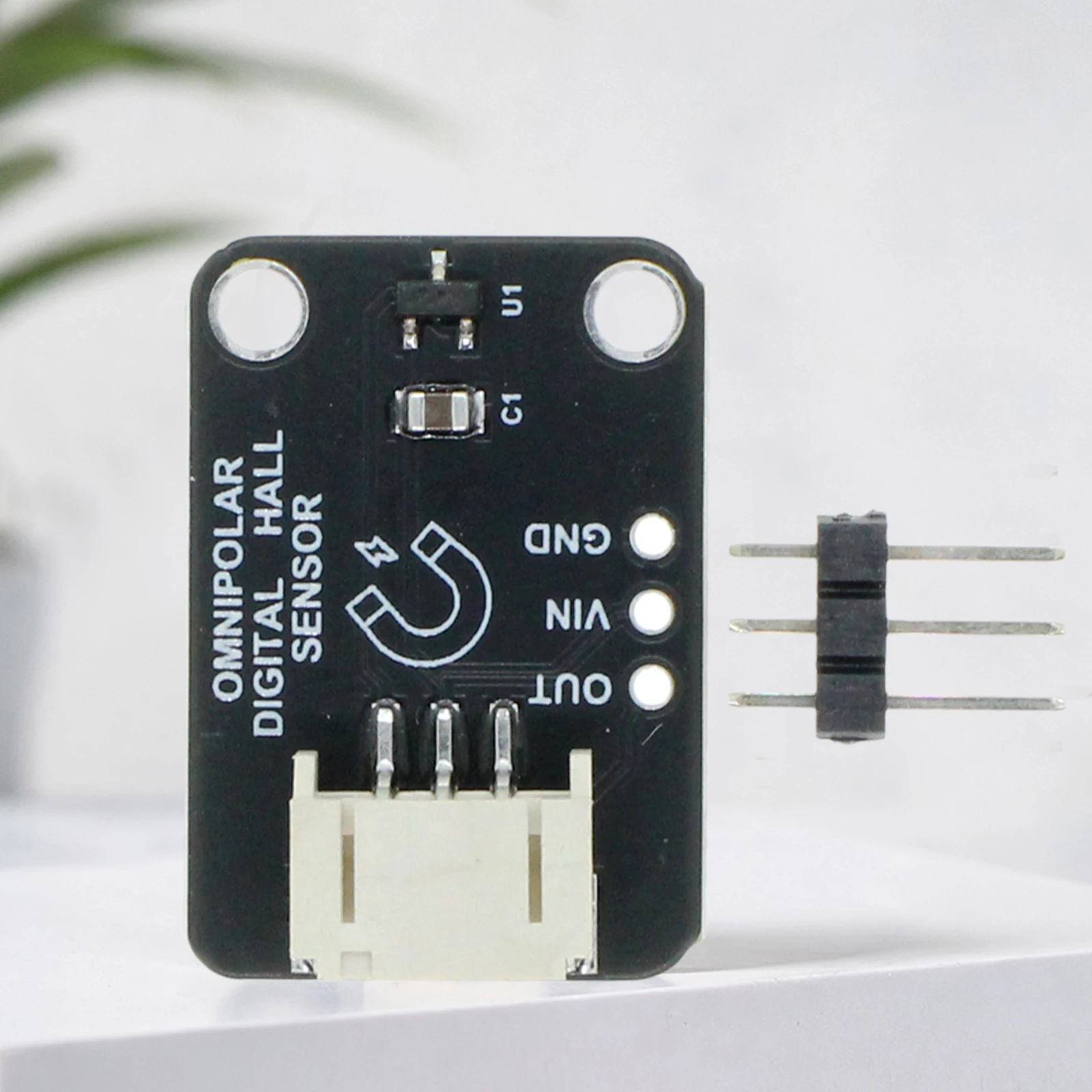

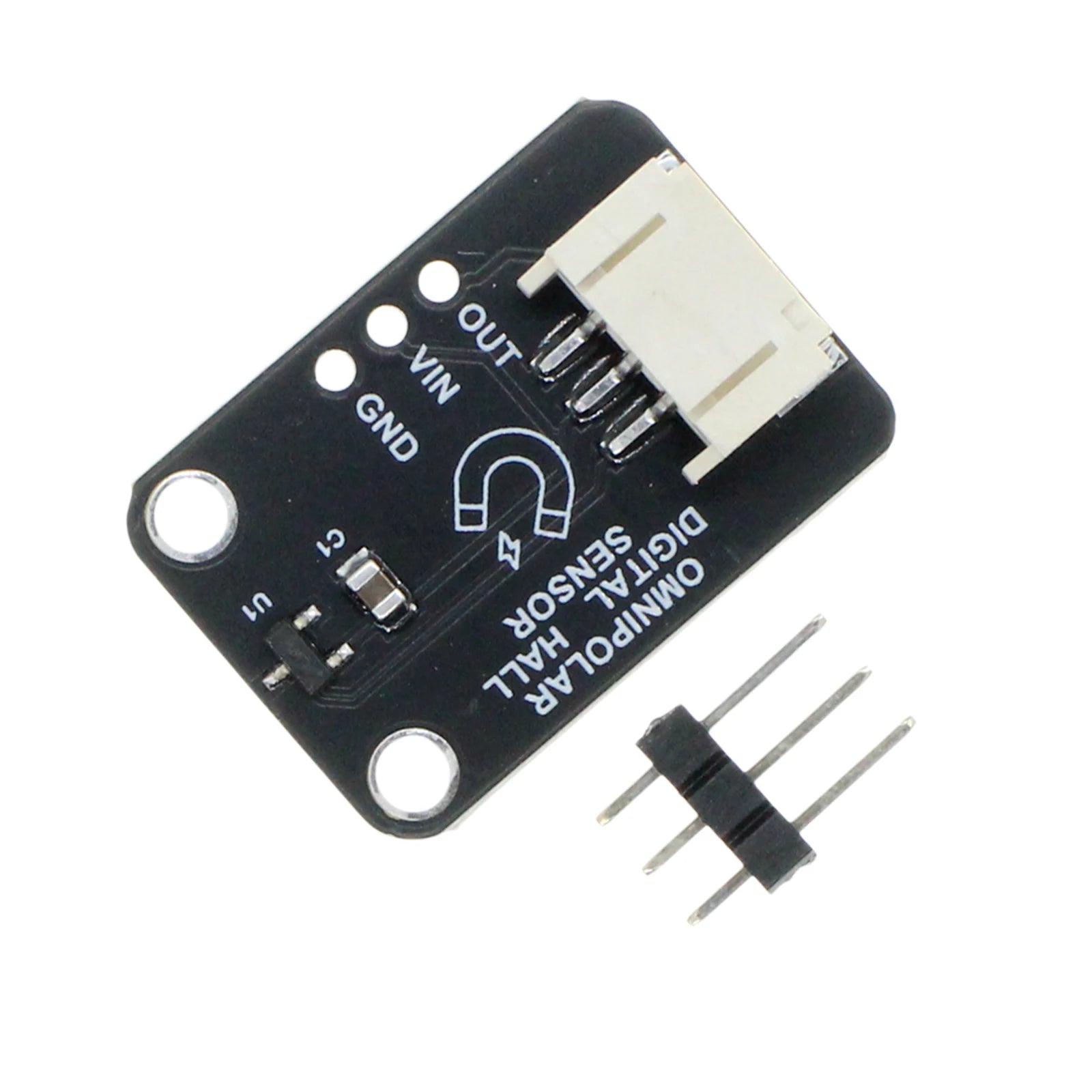

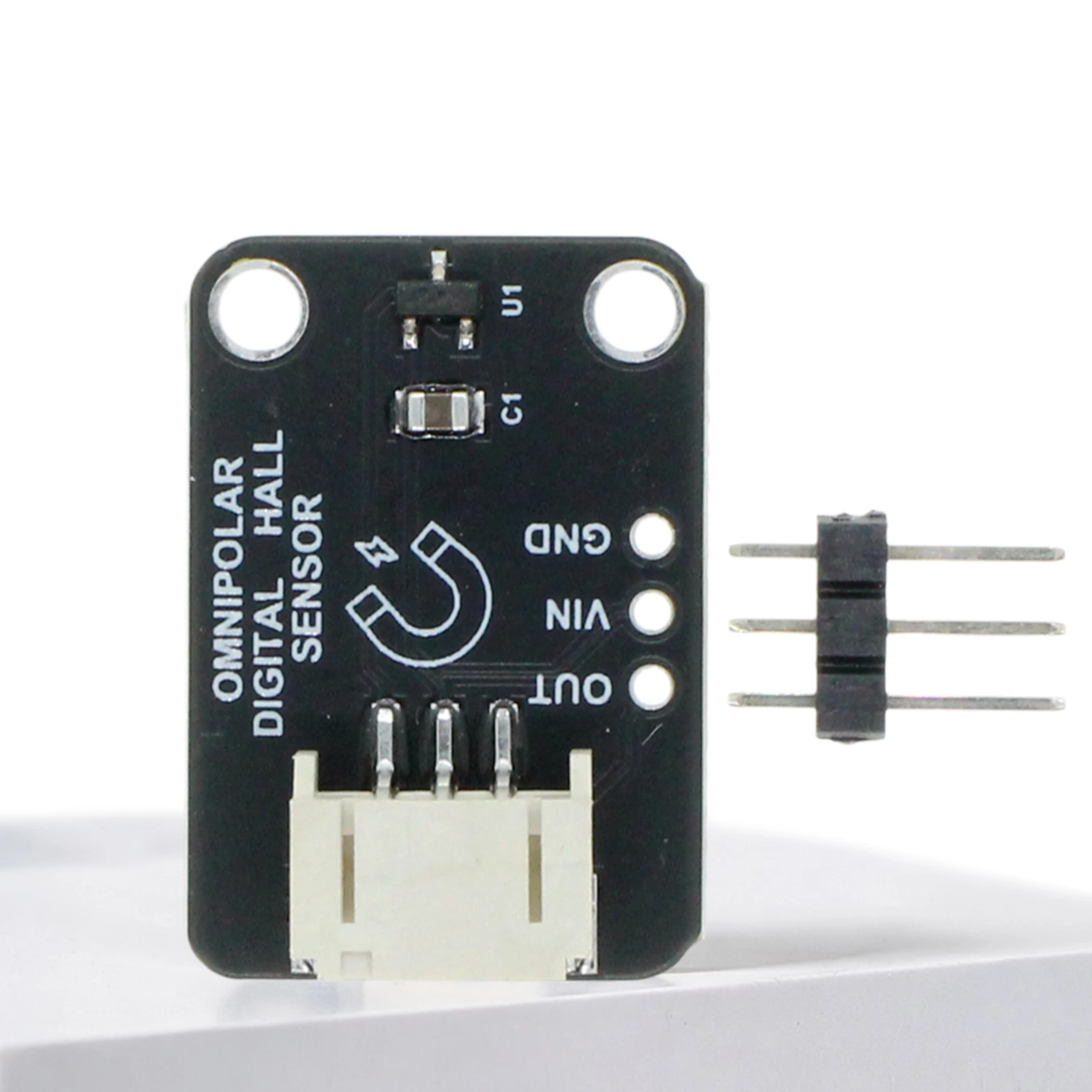

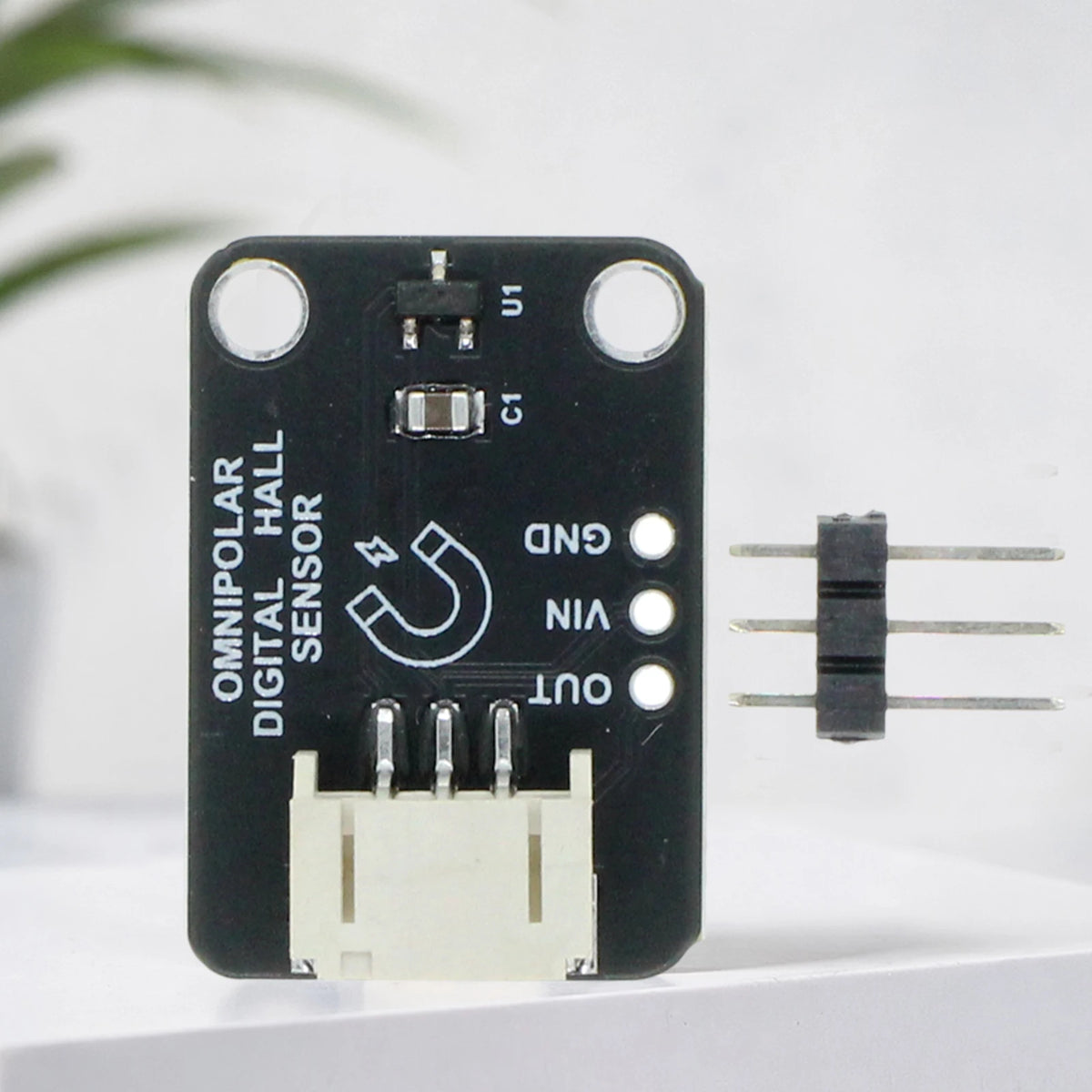

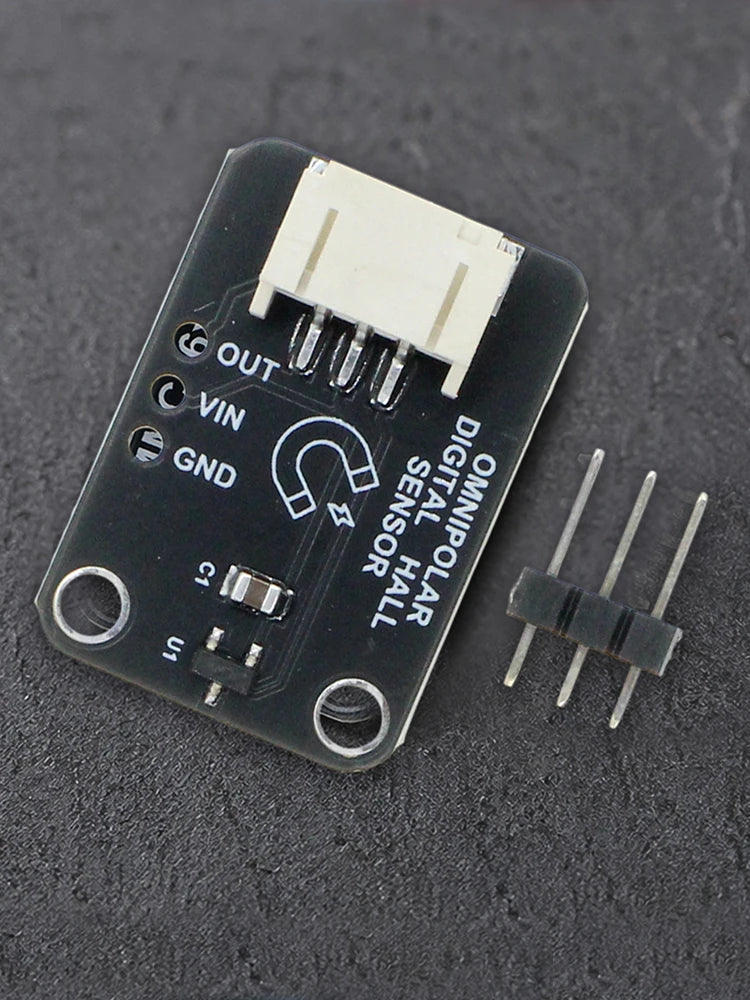

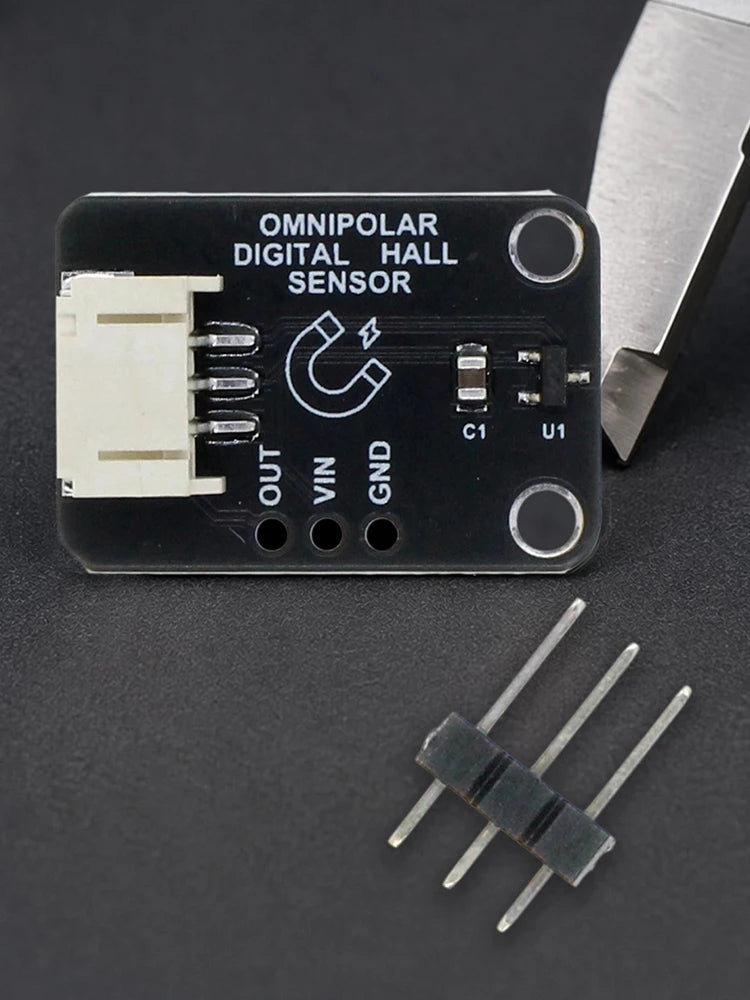

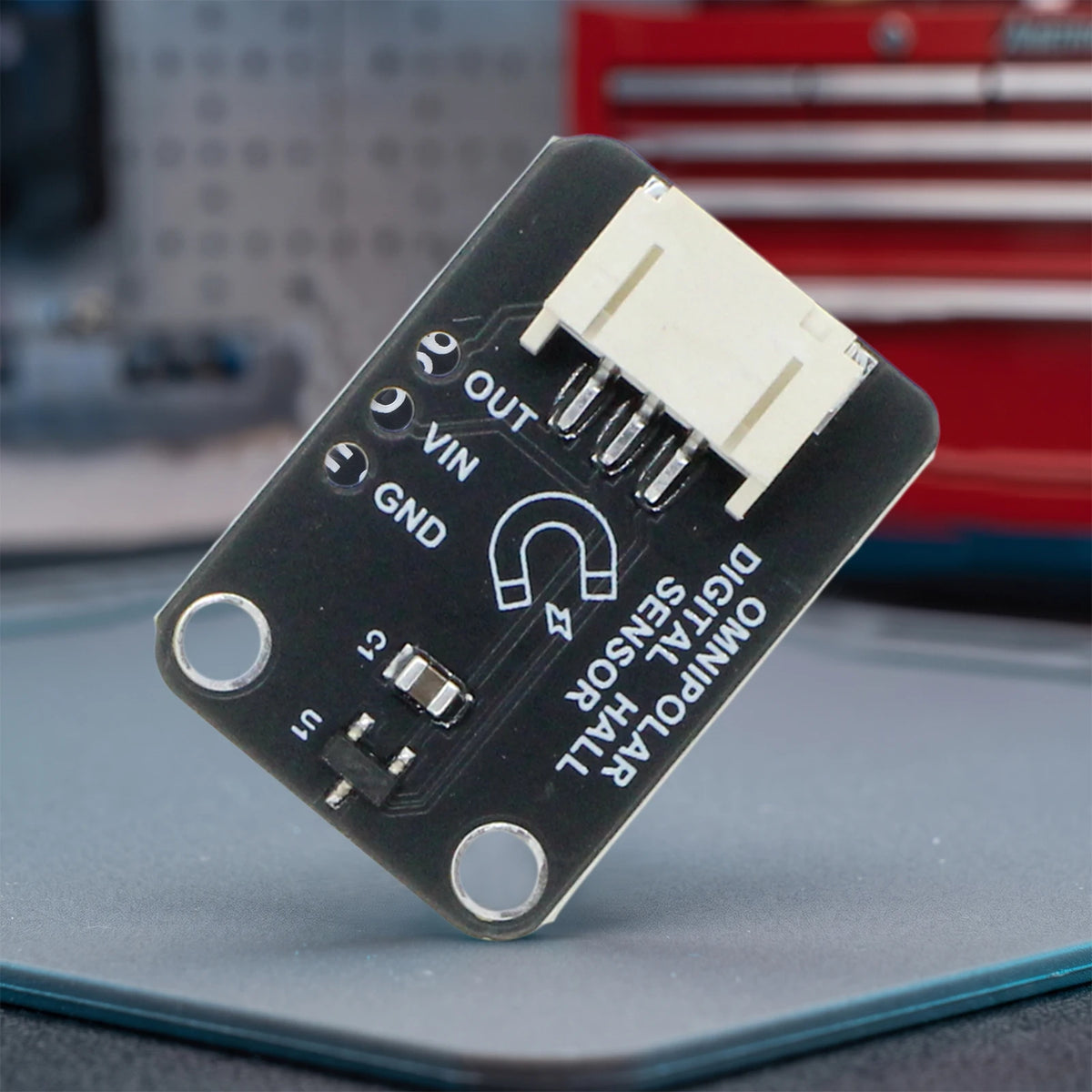

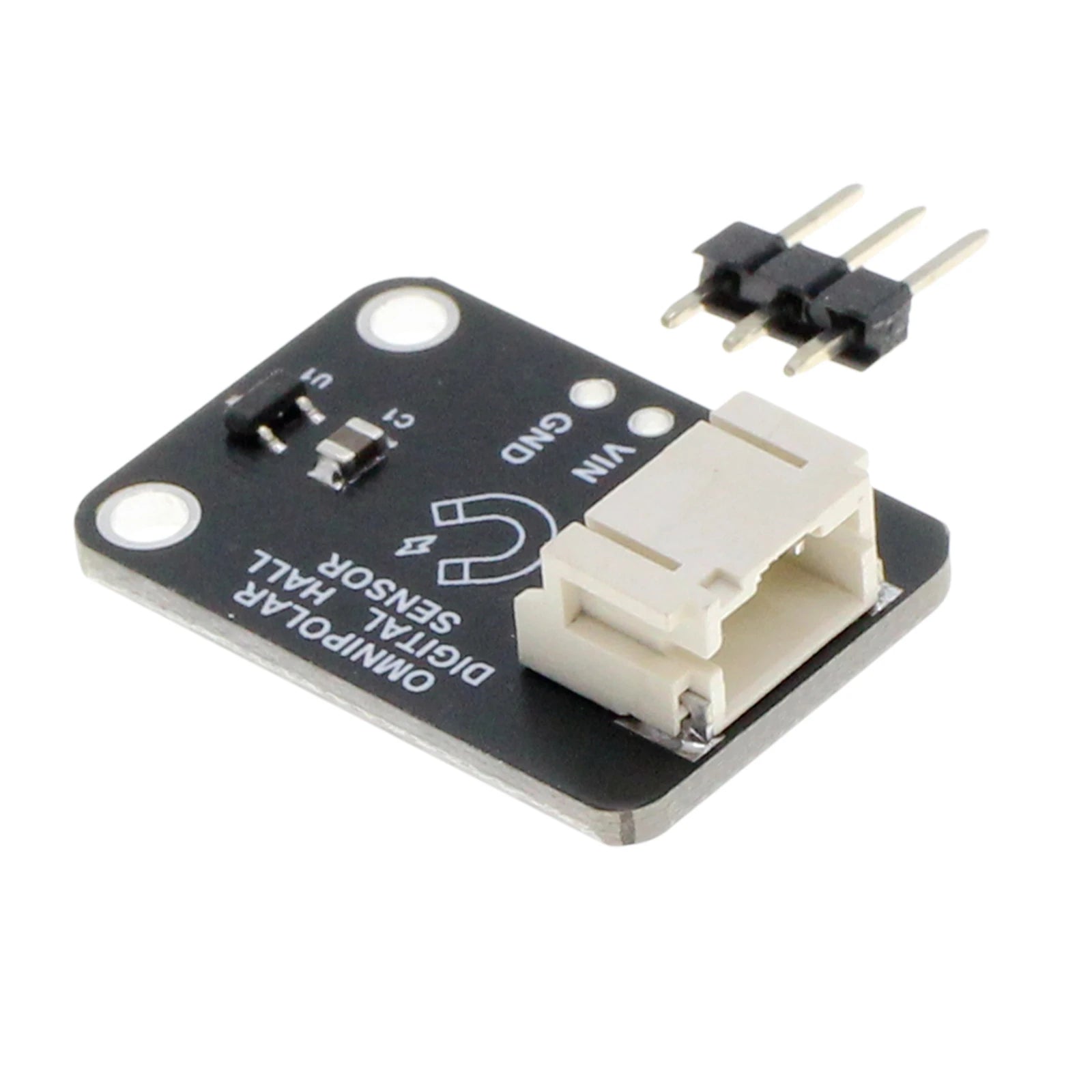

Digital Hall Sensor Module DRV5032 Open Drain PCB Board 1.65-5.5V

Features:

1.Digital Magnetic Sensor: This Digital Magnetic Sensor provides a logic-level output directly readable by microcontrollers, eliminating the need for analog comparators or additional signal processing hardware.

2.Proximity Sensor: Functioning as a Proximity Sensor, this module enables non-contact detection of magnetic targets for rotary encoder, linear position, and flow measurement instrumentation designs.

3.Hall Sensor Module: The Hall Sensor Module is ideal for detecting the open or closed state of magnetic reed switch replacements in smart home and industrial IoT sensing applications.

4.±20mT To ±150mT: The adjustable sensitivity from ±20mT to ±150mT ensures this module can be configured for applications requiring detection of both small and large permanent magnets.

5.1.65V-5.5V: The 1.65V-5.5V operating voltage ensures compatibility with a broad range of power management ICs and regulated supply rails used in modern electronic product designs.

Material: PCB

Operating voltage: 1.65V ~ 5.5V

Output type: digital (open drain output)

Sensing distance: ±20mT to ±150mT (multiple sensitivities optional)

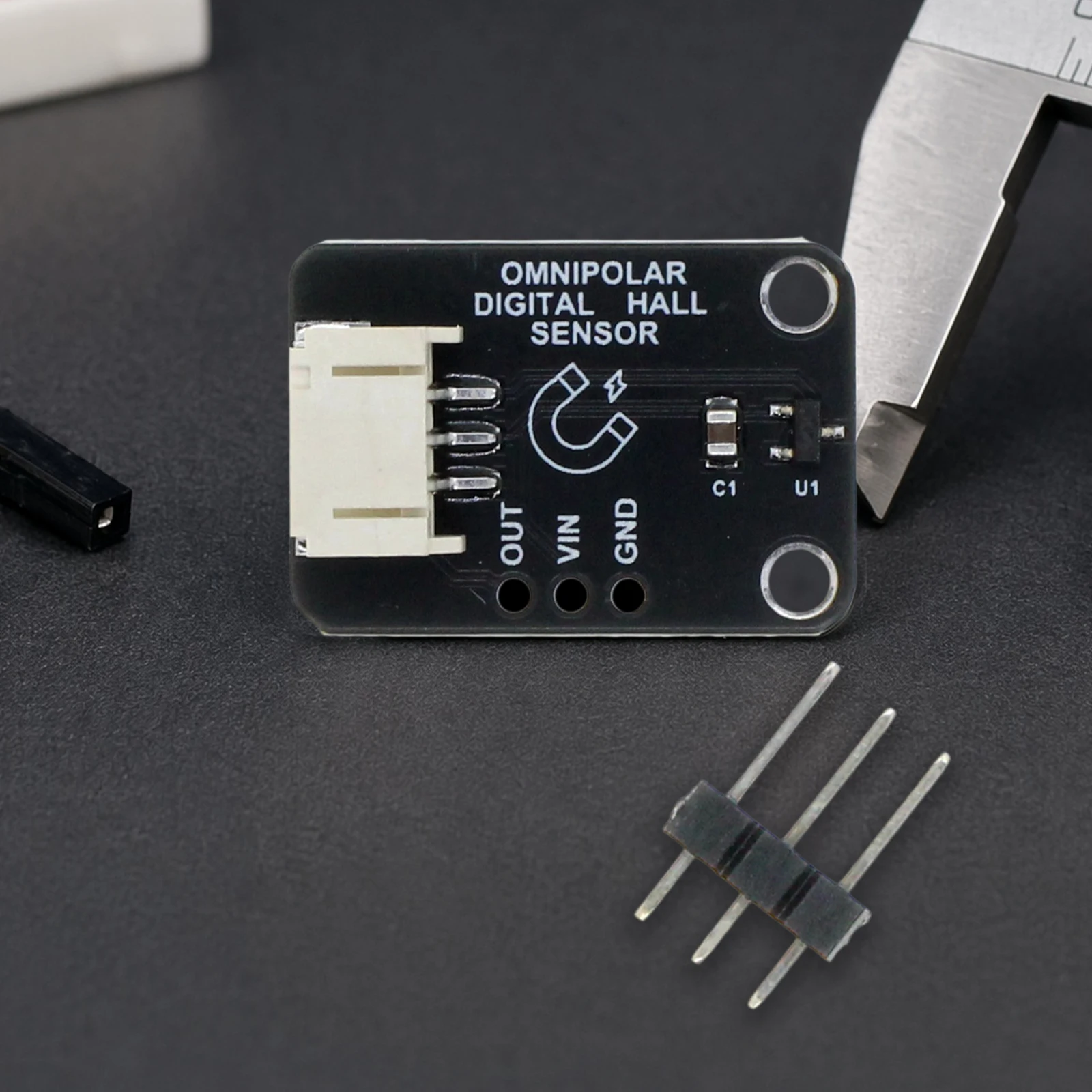

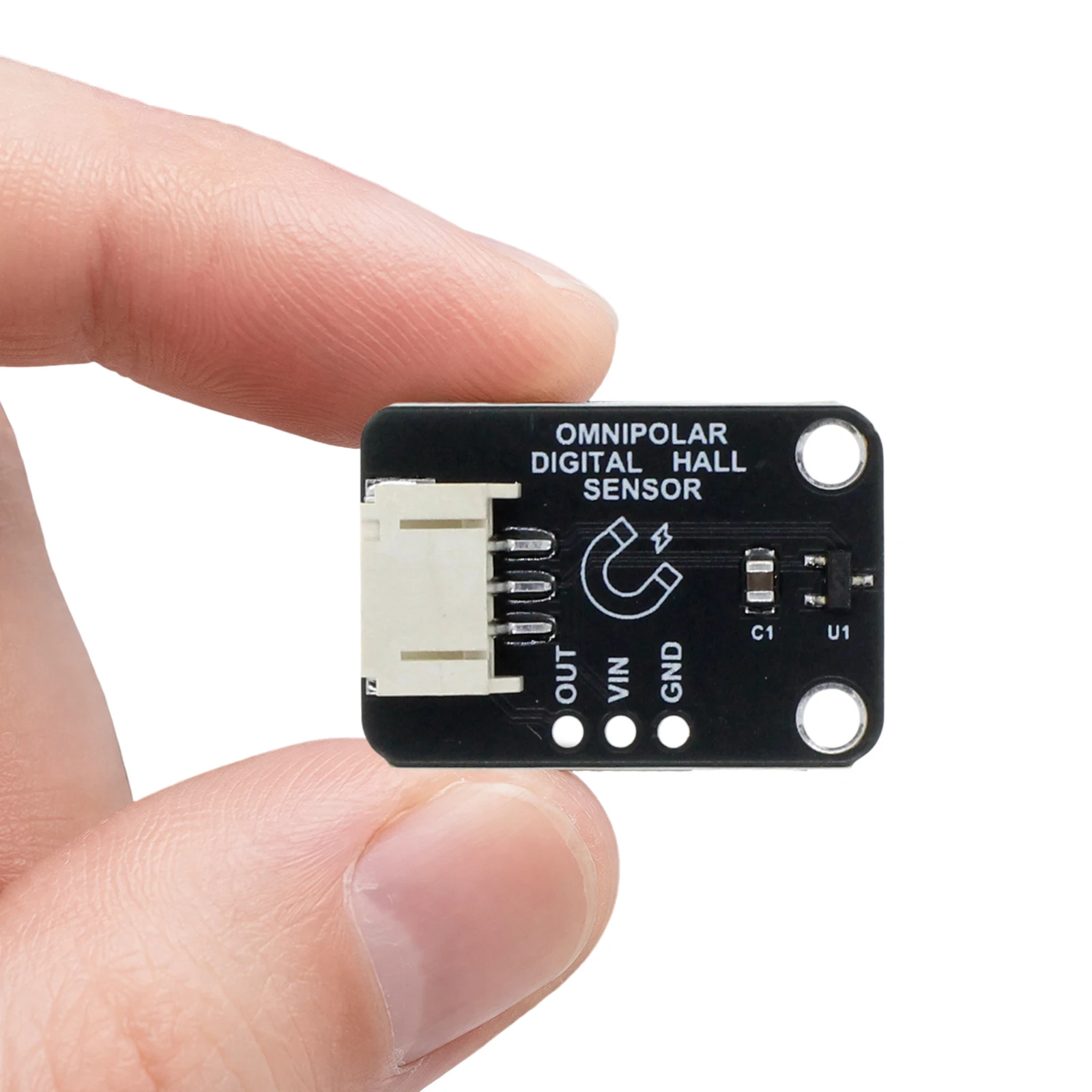

Product size: 25.00x18.00x7.00mm

Product size: 0.98x0.71x0.28inch

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color shown in the images. Thank you!
Please allow a 1-2 cm difference in measurements due to manual measuring.

1 x Component Module
