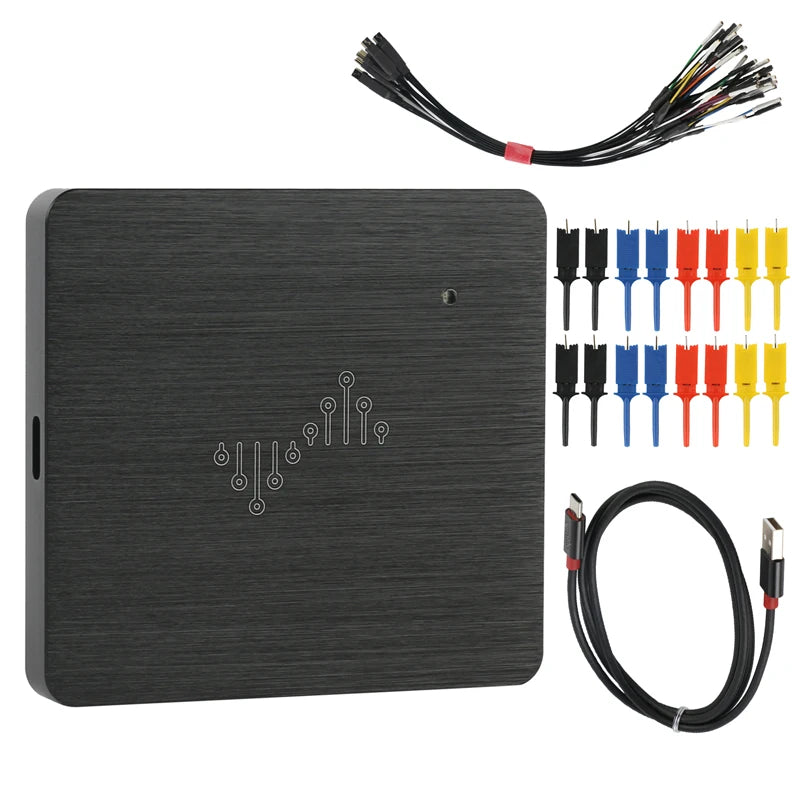

DSLogic Basic Plus Pro Logic Analyzer 16 Channels 100M 400M 4G Sampling Type-C USB2.0 480Mbps For Windows/MacOS/Linux

DSLogic Basic Plus Pro Logic Analyzer 16 Channels 100M 400M 4G Sampling Type-C USB2.0 480Mbps For Windows/MacOS/Linux

$668.00

$668.00 $0.00

Description

SPECIFICATIONS

Band Width: Less than 60MHz

Battery Included: no

Brand Name: Eakins

Certification: CE

Channels: 16

Choice: yes

DIY Supplies: Electrical

Digital Channels: 16

Display Resolution: other

Display Size: None

High-concerned chemical: none

IS Battery Demountable: No

Max Waveform Capture Rate: 30,000wfm/s

Model Number: DSLogic

Origin: Mainland China

Real Time Sampling Rate: other

Record Length: 16G@stream 64M 256M 4G@buffer

Sampling Rate: 100MHz 400MHz 1GHz

Semi-finishedproduct: No

semi_Choice: yes

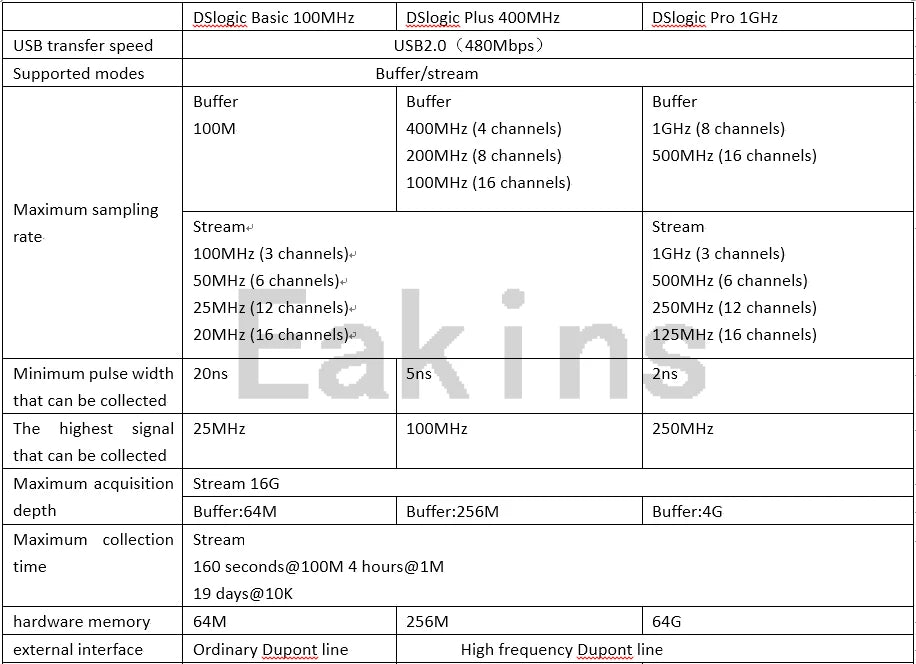

Parameters of DSlogic Basic:
- Mode:stream+buffer
- Maximum sampling rate:
1. Buffer mode: 100M@16 channels
2.Stream mode: 100MHz (3 channels) 50MHz (6 channels) 25MHz (12 channels) 20MHz (16 channels)
- The max depth:16G@stream; 64M@buffer
- Hardware storage: 64Mbits
- Trigger:Simple trigger+
- Threshold value:Fixed threshold:0-5v adjustable
- Voltage range:+-30V
- Input impedance:250K//~20pF

Parameters of DSlogic Plus:
- Mode:stream+buffer
- Maximum sampling rate:
1. Buffer mode: 400M@4 channels 200M@8 channels 100M@16 channels
2. Stream mode: 100MHz (3 channels) 50MHz (6 channels) 25MHz (12 channels) 20MHz (16 channels)
- The max depth:16G@stream; 256M@buffer
- Hardware storage: 256Mbits

- Trigger:Simple trigger+
- Sixteen level hardware trigger+
- Protocol trigger
- Threshold value:Fixed threshold:0-5v adjustable
- Voltage range:+-30V
- Input impedance:250K//~13pF

Parameters of DSlogic Pro:
- Mode:stream+buffer
- Maximum sampling rate:
1. Buffer mode: 1GHz (8 channels) 500MHz (16 channels)
2.Stream mode: 1GHz (3 channels) 500MHz (6 channels) 250MHz (12 channels) 125MHz (16 channels)
- The max depth:16G@stream; 4G@buffer
- Hardware storage: 4Gbits
- Trigger:Simple trigger+ 16-level hardware trigger
- Sixteen level hardware trigger+
- Protocol trigger
- Threshold value:Fixed threshold:0-5v adjustable
- Voltage range:+-30V
- Input impedance:250K//~13pF

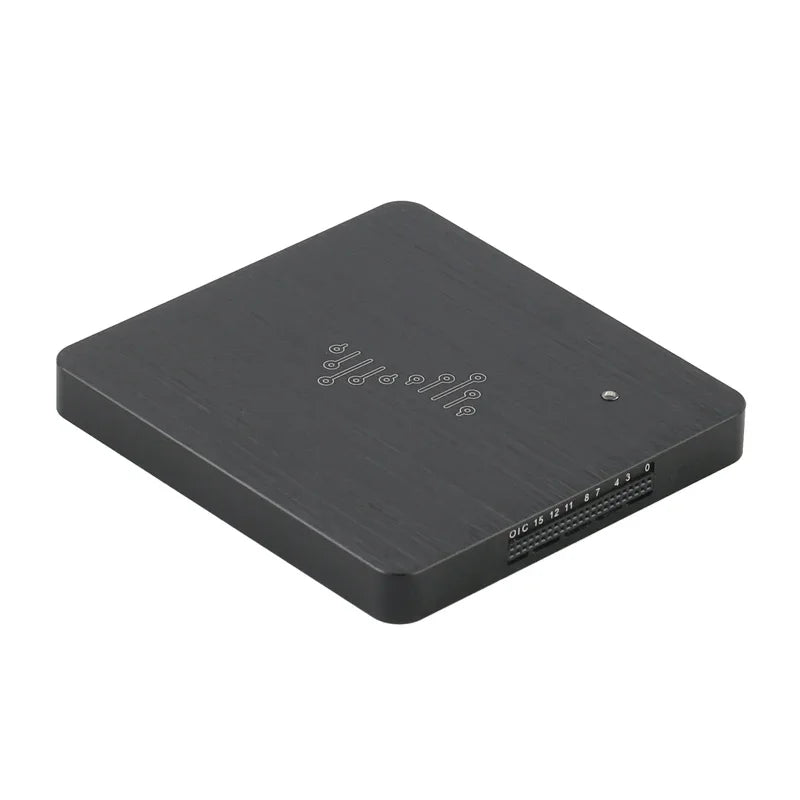

Designed to make your work enjoyable
DSLogic Plus is an USB-based logic analyzer, which has a portable size (79x74x9mm), but powerful performance (up to 400MHz sample rate). With the easy-to-use and cross platform software, DSView, you can use your favorite computer to debug and analysis your circuits, observe the digital wave and decoder various protocols at anywhere and anytime.

Technical Specifications
Input Voltage and Thresholds
Operation voltage range: -0.9v ~ 6v
Threshold voltage: 0v ~ 5v (0.1v step)
Work with most of logic voltage level (such as: 5v, 3.3v, 2.5v, 1.8v, 1.5v, 1.2v, 1.0v, etc.)
Input Impedance
250KΩ // ~10pF
Max Sample Rates
Buffer mode: 400MHz when using 4 channels, 200MHz when using 8 channels, 100MHz when using 16 channels
Stream mode: 100MHz when using 3 channels, 50MHz when using 6 channels, 25MHz when using 12 channels, 20MHz when using 16 channels
Max Sample Depth
Buffer mode (without RLE compression): 256M
Buffer mode (with RLE compression): 16G
Stream mode: 16G
Error/Accuracy
Minimum acquisition pulse: 5ns
Acquisition Accuracy: ±sample interval (for example: ±10ns@100M sample rate, ±1us@1M sample rate)
Noise Immunity
Each channel provides independent shielding ground.
System Requirements
Windows XP, Vista, Win7, Win8 & Win10
Mac OS X 10.8 or above
Linux: recent Ubuntu, Fedora, Arch, etc.
USB 2.0 Host port

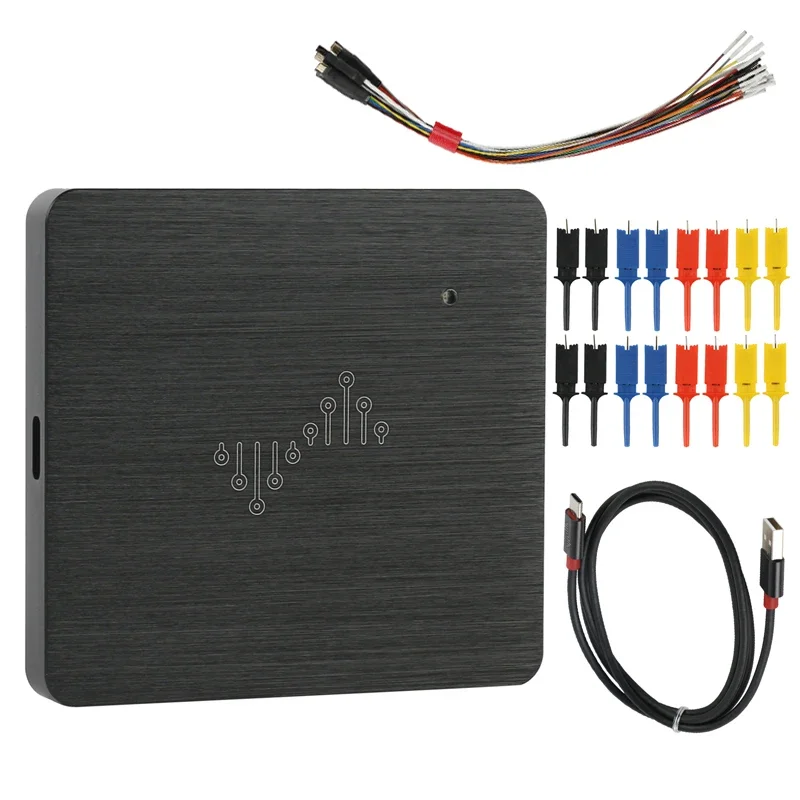

Product Details:
- State sampling:the max 30M state sampling
- The max sampling rate:400MHz
- It can collect and observe digital signal within 100MHz.
- Overvoltage protection,electrostatic protection,long life
- Support double mode:stream mode,USB real-time transmission to PC,ultra large sampling depth;buffer mode,wide bandwidth hardware storage,ultra high sampling rate
- Adjustable threshold value:support various voltage:1.2V/1.8V/2.5V/3.3V/5.0V
- All metal shell
- 360 degree noise shielding,quick heat dissipation,circuit operation is more stable.

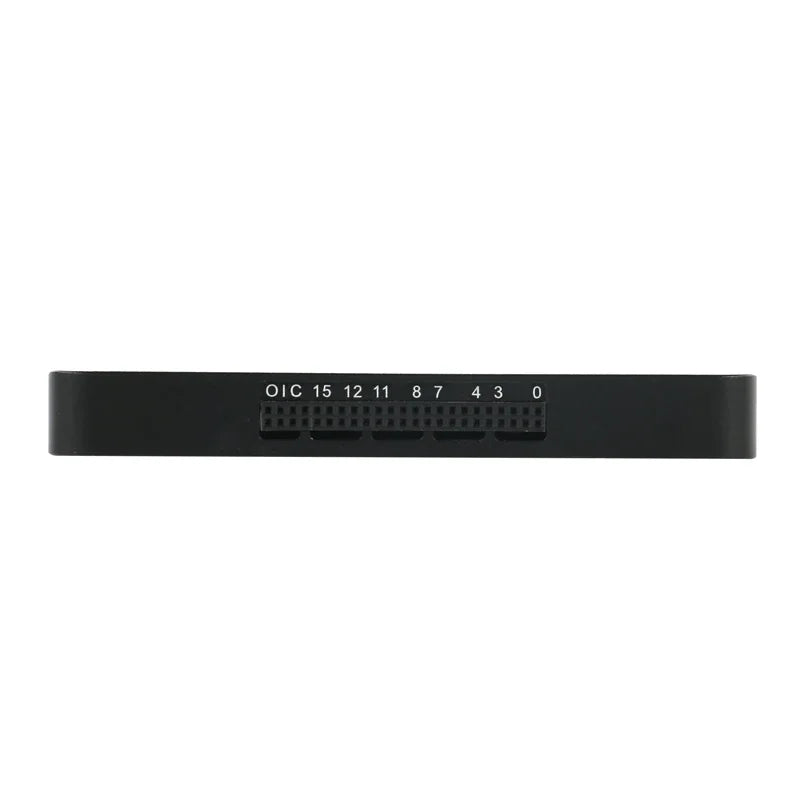

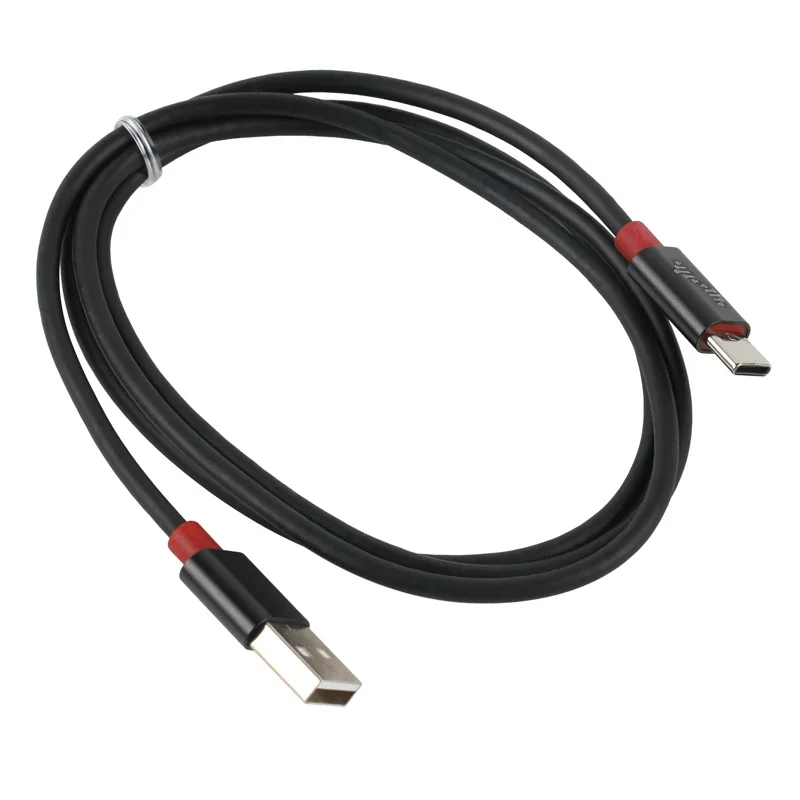

- USB tYPE-C interface
- The max support 16G depth
- 100M sampling rate can collect 160 seconds wave form
- 20M sampling rate can collect 13minutes wave form

- 1M sampling rate can collect 4 hours wave form
- Window system(xp/vista/win7/win8/win10)
- Multilayer protocol,date is more intuitive
- Support Protocol content triggering

DSLogic different from the logic analyzer features other entry level are mainly the following aspects:

- 256Mbit onboard memory to ensure that real-time sampling data up to 1.6Gbps storage. Entry-level logic analyzer Metropolitan bandwidth or memory depth indicators compromise, while greatly reducing the usefulness of such a logic analyzer. For example, real-time transmission through saleae USB memory to store data utilizing the host computer, a good solution to the problem of memory depth, but because of USB bandwidth is limited, can only reach 200-300Mbps sampling bandwidth; Open Workbench Logic Sniffer is used the internal FPGA BRAM as storage space, also has a sampling 1.6Gbps bandwidth, but the memory depth is only 216Kbit.

- 16 Stage Combined advanced triggering functions, easy to set complex trigger conditions. As a logic analyzer trigger the most important characteristics of a direct impact on the accuracy of the sampling location. Most entry-level logic analyzers do not have the advanced triggering functions, allowing users to find and locate the problem in a lot of useless information, wasting valuable time.

- Continuously adjustable threshold level. Based on the level of high-speed comparator sampling circuit, not only can adjust the level of the threshold level to accommodate different signal standards (1.2V / 1.5V / 1.8V / 3.3V / 5.0V), and can determine the level of accuracy to the level of less than 100mV for maximum noise margin, greatly reduces the possibility of false positives and sampling burrs. Most entry-level logic analyzer using a standard interface chip fixed voltage level judgment, can not guarantee the accuracy of the sampling results.

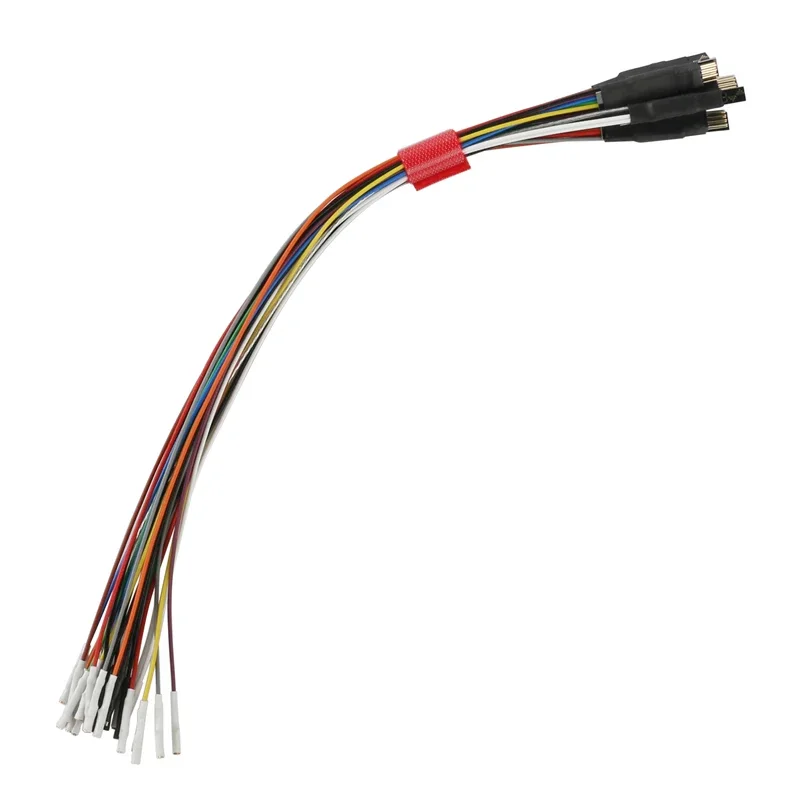

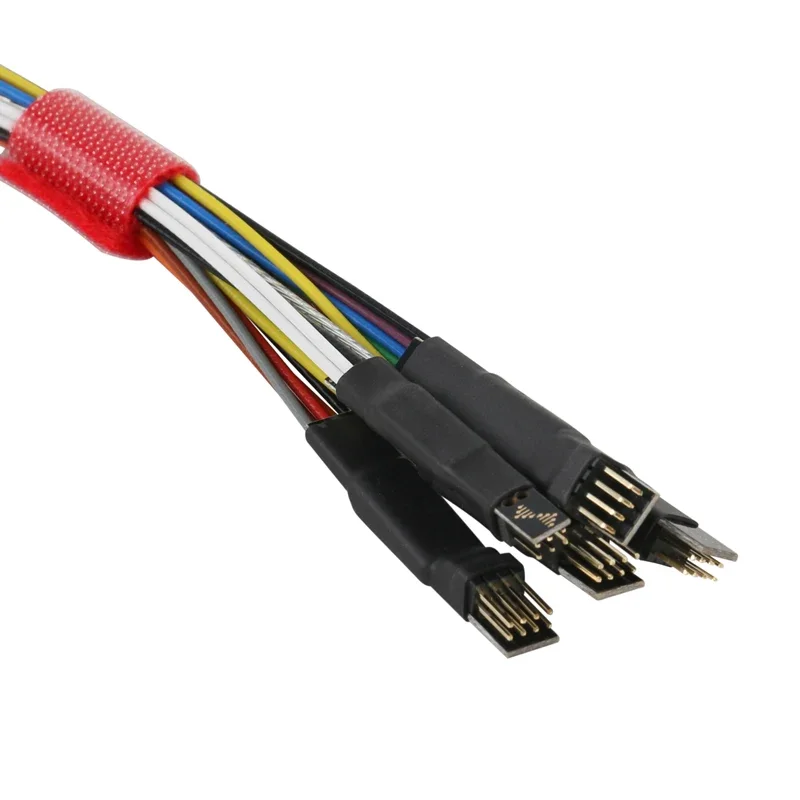

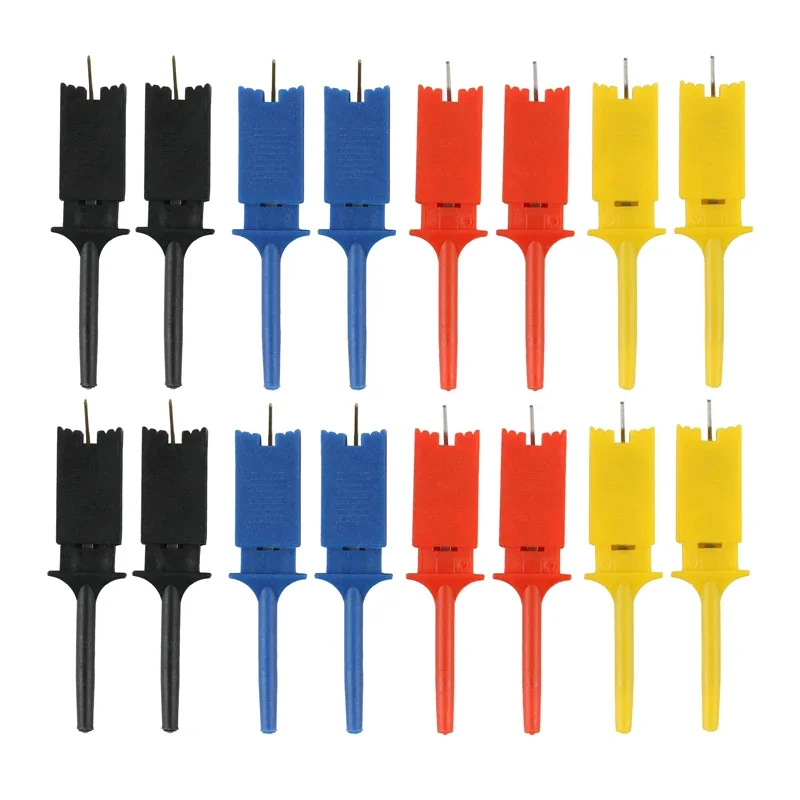

- Use shielded cable fly line connector. Shielded cable is standard on high-end logic analyzer, you can ensure the integrity of the sampled signal circuits, reducing the extent of the sampled signal distortion. Most entry-level logic analyzer using ordinary DuPont cable to connect the logic analyzer and the measured signal, impedance discontinuities and ground bounce problems make a serious distortion of the signal, which affects the logic analyzer on the measured signal level judgment.

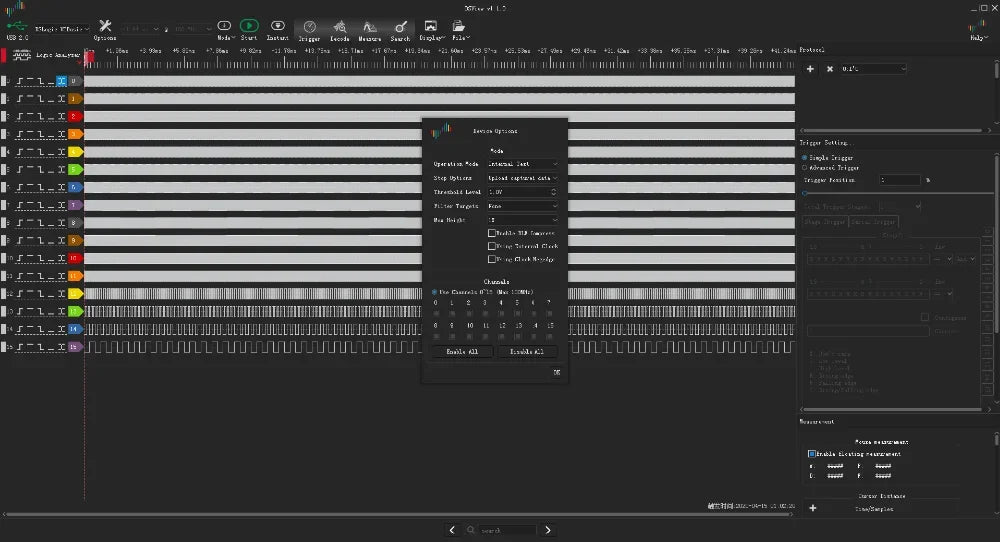

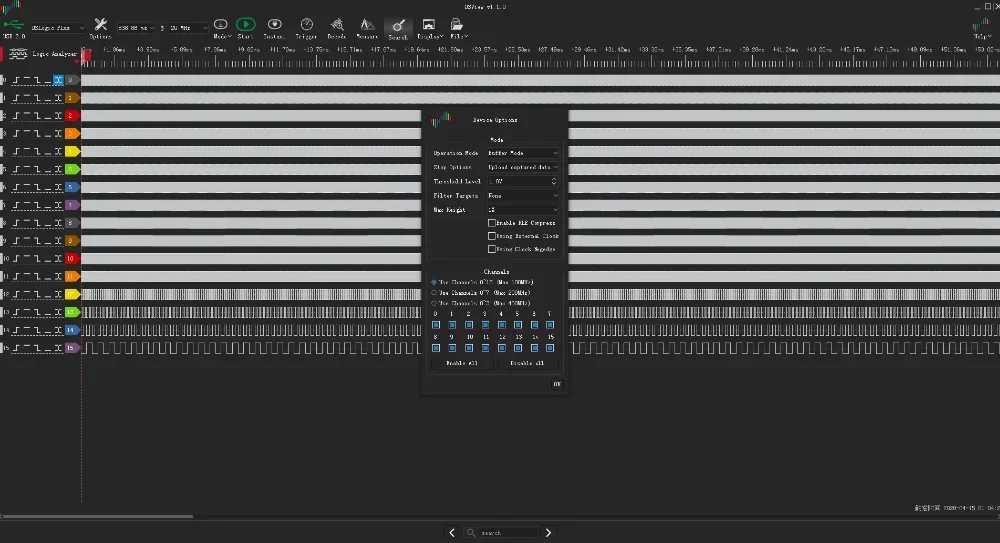

Our PC software uses the same open-source architecture, now support up to 44 kinds of protocol analysis capabilities. Under the support of the open source community, this number will continue to grow. Everyone thought that this free protocol parsing library to make their own contribution.
