DSO138 Mini Handheld Digital Oscilloscope DIY Kit ARM Cortex-M3 12-Bit TFT LCD Oscilloscope 10:1 with Alligator Probe Test Clip
Only Board / China Mainland
$148.08
Sale price
$148.08
Regular price
$0.00
Skip to product information
DSO138 Mini Handheld Digital Oscilloscope DIY Kit ARM Cortex-M3 12-Bit TFT LCD Oscilloscope 10:1 with Alligator Probe Test Clip
$148.08
Sale price
$148.08
Regular price
$0.00
Description
SPECIFICATIONS
Band Width: 100-349MHz
Battery Included: no
Brand Name: Gaqqee
Certification: CE
DIY Supplies: Electrical
Digital Channels: 1
Display Resolution: 320*240 Pixels
Display Size: 2.9 Inches & Under
Dropship: Support
High-concerned chemical: none
IS Battery Demountable: No
Key Word: ARM Cortex-M3 12-Bit Oscilloscope
Max Waveform Capture Rate: 30,000wfm/s
Model Number: ARM Cortex-M3 12-Bit Oscilloscope
Origin: Mainland China
Real Time Sampling Rate: As Description
Record Length: As Description
Type: Oscilloscope DIY Kit
Type 1: oscilloscope
Type 2: portable oscilloscope
Type 3: Digital oscilloscope
feature 1: digital oscilloscope
feature 2: dso138
feature 3: dso138 mini
feature 4: oscilloscope digital
feature 5: portable oscilloscope
feature 6: digital oscilloscope
feature 7: dso138 oscilloscope
feature 8: mini oscilloscope
DSO138 Mini Handheld Digital Oscilloscope DIY Kit ARM Cortex-M3 12-Bit TFT LCD Oscilloscope 10:1 with Alligator Probe Test Clip
eature:
Acrylic Case
Material: Acrylic
Product weight: 156 g / 5.52 oz
Packing size: 16* 10 *4 cm / 6.3*3.94*1.57in
Oscilloscpoe:

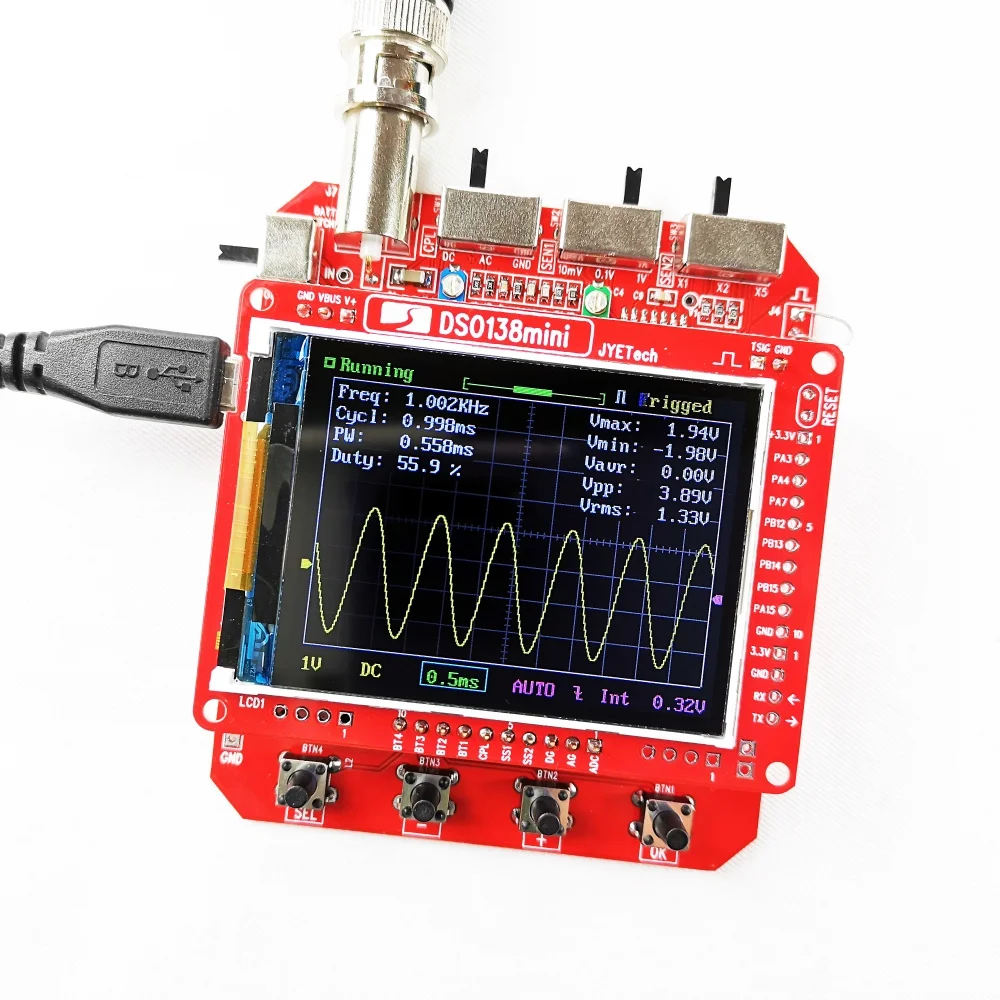

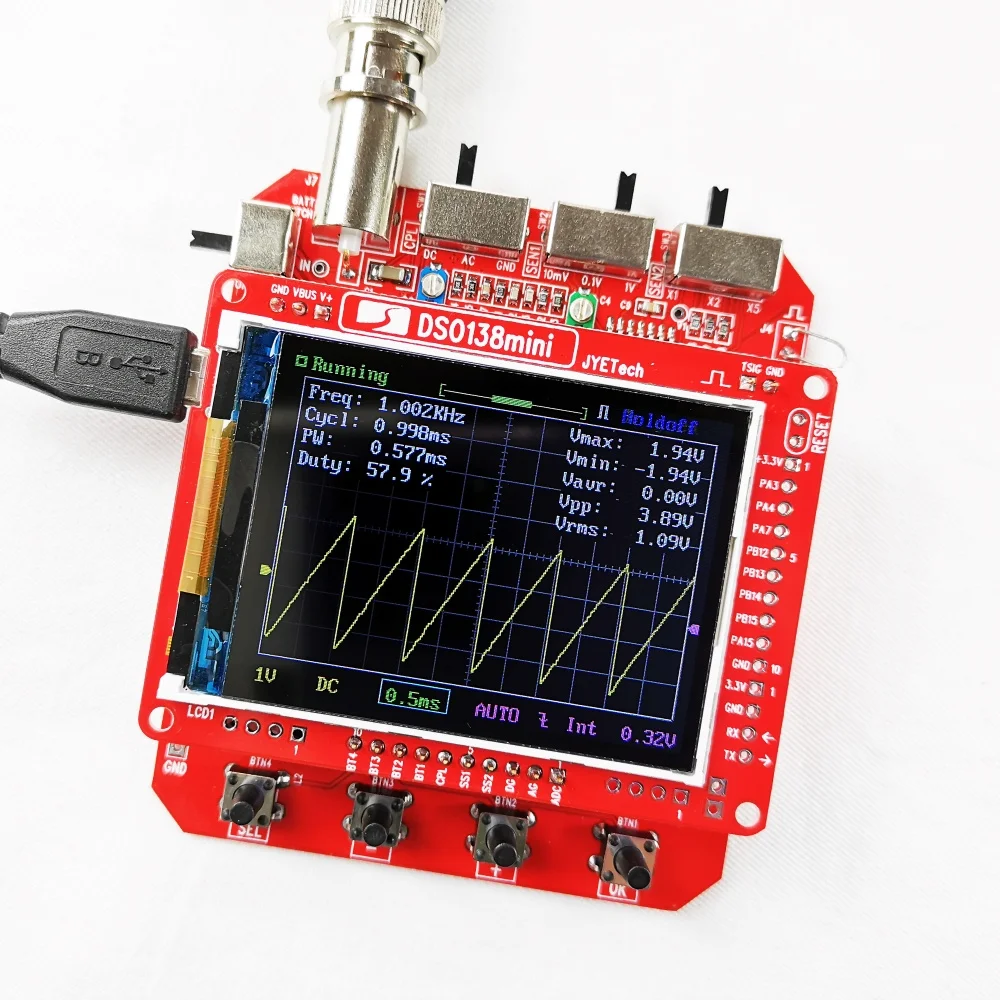

This digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen. It's easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values. This boost converter is an great match for Oscilloscope kit. It can be connected directly to the motherboard(not included), make oscilloscope to be a portable oscilloscope for better use.
Features:

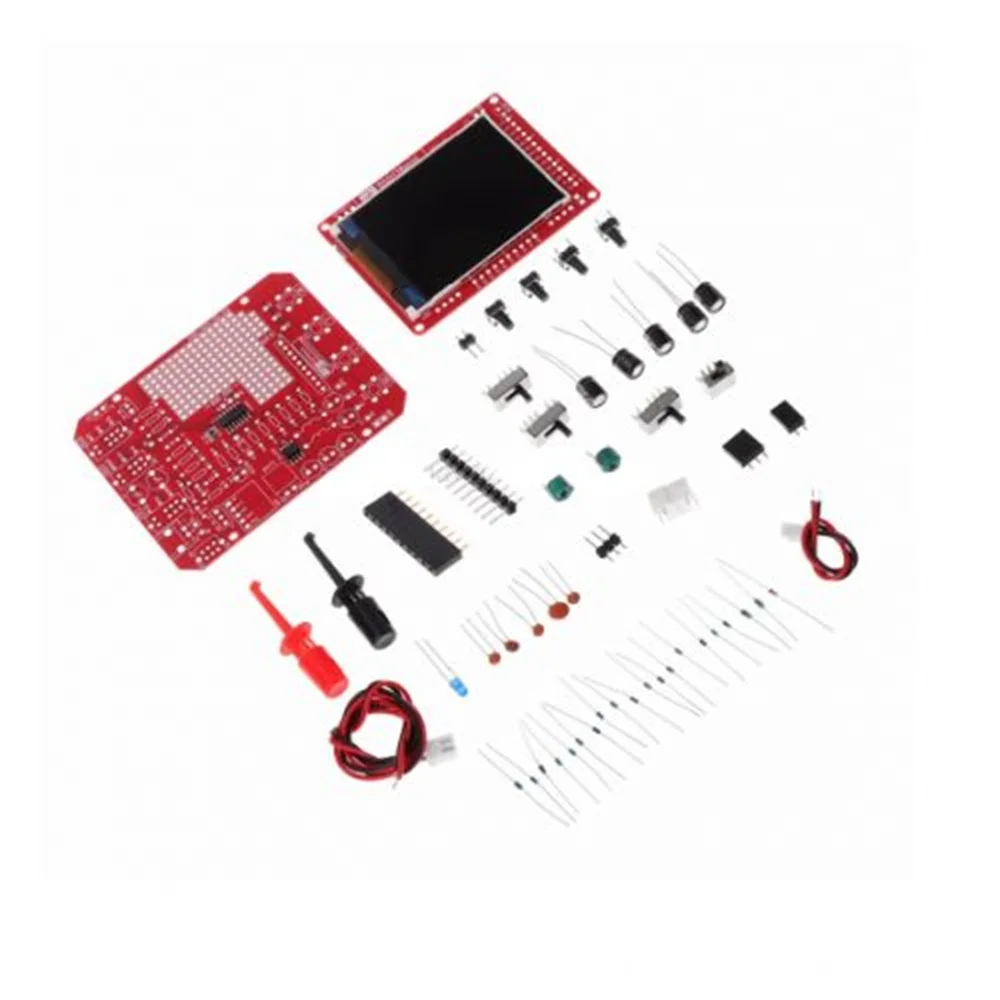

DIY Kit:
This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as ARM test development board.
Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
Adjustable vertical displacement, and with instructions.
With automatic, regular and one-shot modes, easy to capture the moment waveform.
Available rising or falling edge trigger.
Observable previous trigger waveform (negative delay).
Can freeze at any time waveform display (HOLD function).
Comes 1Hz /3.3V square wave test signal source.
With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
Waveform storage function: will not lose the waveform after power off.
Short-circuit and open-circuit detection: can help the user find out the soldering error.
TFT controller recognition function.
The SMD has been soldered, more suitable for electronic beginner.
Power Input: DC 9V(Power adapter is not included)
Maximum real-time sampling rate: 1Msps
Accuracy: 12Bit
Sampling buffer depth: 1024 bytes
Analog bandwidth: 0 -200KHz
Vertical Sensitivity: 10mV/Div -5V/Div (1-2-5 progressive manner)
Adjustable vertical displacement, and with instructions
Input impedance: 1MΩ
Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
Coupling modes include DC/AC/GND
The horizontal time base range: 10μs/Div - 50s/Div (1-2-5 progressive manner)
With automatic, regular and one-shot mode,easy to capture the moment waveform
Available rising or falling edge trigger
Adjustable trigger level position,and with instructions
Observable trigger waveform before (negative delay)
Can freeze at any time waveform display (HOLD function)
Comes 1Hz /3.3V square wave test signal source
