DSO138 Oscilloscope Kit DIY Learning Kit Teaching Competition Kit Dso Oscilloscope Probe

DSO138 Oscilloscope Kit DIY Learning Kit Teaching Competition Kit Dso Oscilloscope Probe

$125.08

$125.08 $0.00

Description

SPECIFICATIONS

Application: Other

Brand Name: KAI TUO DA

Condition: New

Dimensions: 118 * 88 * 28 (mm)

Dissipation Power: datasheet

High-concerned chemical: none

Number of channels: 2

Operating Temperature: datasheet

Origin: Mainland China

Record length: 12Bit (k)

Sampling Rate: 1Msps (GS / s)

Supply Voltage: datasheet

Type: Other

Types of: Digital oscilloscope

Waveform capture rate: 50s (wfms / s)

bandwidth: 200KHz (MHz)

is_customized: Yes

specification: Oscilloscope dedicated power supply, 10: 1 oscilloscope probe

weight: 0.16 (kg)

Oscilloscope Kits & Accessories:

1.	Oscilloscope 60 g power supply
2.	10: 1 probe 48.8 g
3.	Old section of 170 grams of shell

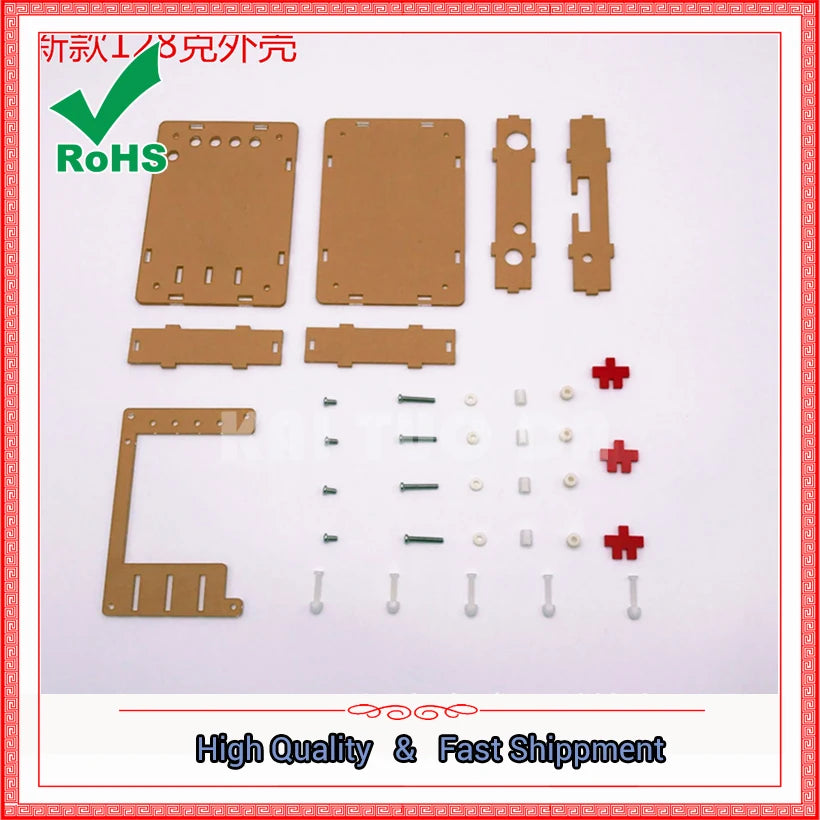

4.	New 128 g shell
5.	Black 135g shell
6.	Oscilloscope132 gramsSpare parts
7.	Oscilloscope137 gramsWelding

Product Image:

Features:

Highest real-time sampling rate: 1Msps
Accuracy: 12Bit
Sampling buffer depth: 1024 bytes
Analog band width: 0 - 200KHz
Vertical Sensitivity: 10mV / Div - 5V / Div (Progress by 1-2-5)
The vertical displacement is adjustable with an indication
Input impedance: 1M
Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
The coupling method includes DC / AC / GND
Horizontal time base range: 10s / Div - 50s / Div (progressive by 1-2-5)
With automatic, conventional and single trigger mode, easy to capture instantaneous waveform
Can be triggered by rising or falling edge
The trigger level is adjustable with an indication
Can be observed before the trigger waveform (negative delay)
Can be frozen at any time waveform display (HOLD function)
Comes with 1KHz /3.3V square wave test signal source
With the statistical parameters of digital display, can display the parameters are:Frequency, Cycle, pulse width, duty cycle, maximum, minimumValue, average valuePeak value, rms value
Save / tune out the waveform, turn off the waveform does not disappear

Turn on / off the track parameter display method:Place the cursor at the time base and press the {OK} key.

Save the waveform method:Press [SEL] and [+] key at the same time.

Recall the saved waveform:Press [SEL] and [-] at the same time.

Enter the test mode method:Press [RESET] key and press [RESET] key, if you see the LED flash quickly, then the microcontroller PB or PC port (these ports contain connection with the LCD connection) there is a short circuit, need to find out after the removal ; To the LED to flash for about 4 seconds, you can use the voltmeter to find the possible connection with the mouth port in the open circuit, the specific method please refer to the manual.

English information:

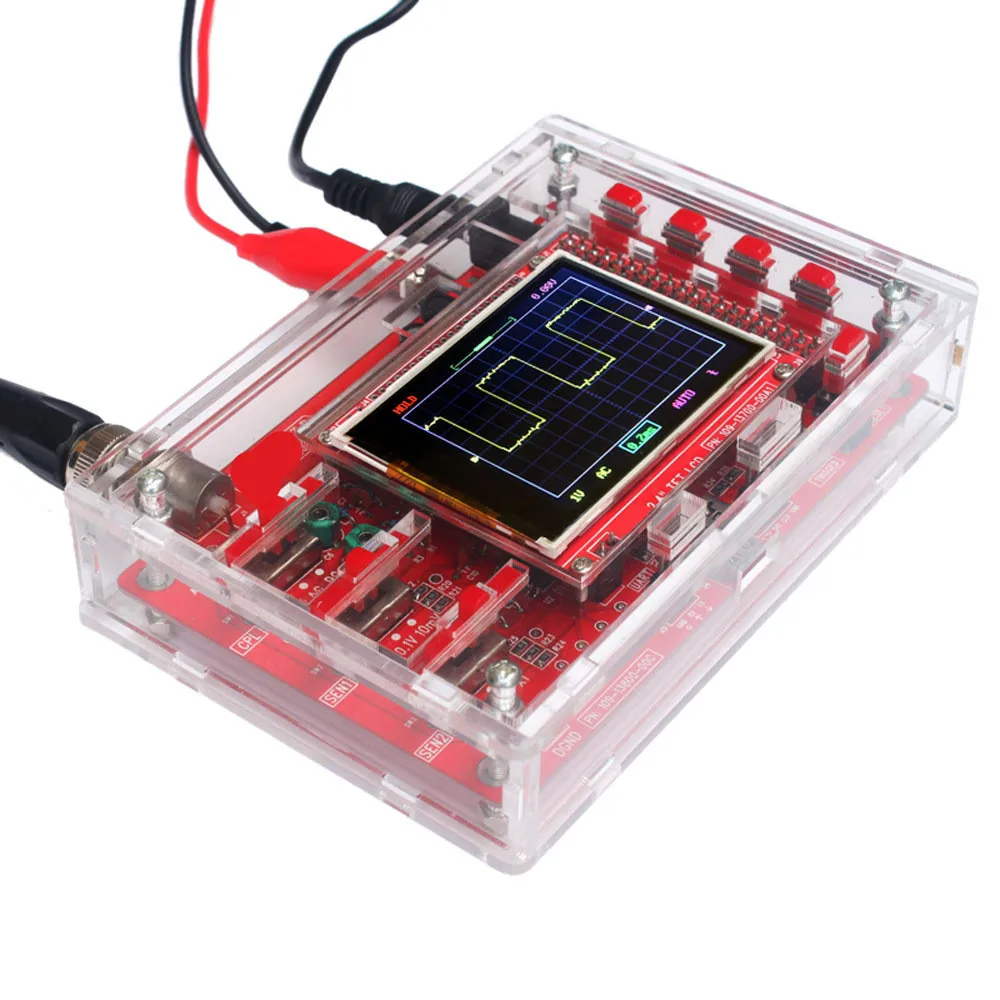

This DSO138 digital oscilloscope kit interference ARM Cortex-M3 processor and with 2.4-inch TFT screen. It's easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak -Peak / virtual values.

Features:
This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as ARM test development board.
Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
Adjustable vertical displacement, and with instructions
With automatic, regular and one-shot modes, easy to capture the moment waveform
Available rising or falling edge trigger
Observable previous trigger waveform (negative delay).
Can freeze at any time waveform display (HOLD function).
Comes 1Hz /3.3V square wave test signal source.
With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
Waveform storage function: will not lose the after after power off.
Short-circuit and open-circuit detection: can help the user find out the soldering error.
TFT controller recognition function

Note:
This DIY kit is not soldered yet!

Specifications:
Maximum Real-time Sampling Rate: 1Msps
Accuracy: 12Bit
Sampling Buffer Depth: 1024 bytes
Analog Bandwidth: 0-200KHz
Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
Input Impedance: 1M
Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
Coupling Modes: DC / AC / GND
The Horizontal Time Base Range: 10s / Div - 50s / Div (1-2-5 progressive manner)
Supply Voltage: DC 9V
PCB Size: 117 * 76mm / 4.6 * 3in
Screen Size: 52 * 40mm / 2 * 1.57in
Package Size: 18 * 12.5 * 3cm / 7.08 * 4.92 * 1.18in
Package Weight: 119g / 4.21oz

Package List:
1 * DSO138 DIY Digital Oscilloscope Kit
1 * Probe
3 * User Manual (English)
