SPECIFICATIONS

Battery Included: no

Brand Name: NONE

DIY Supplies: Electrical

High-concerned chemical: none

Origin: Mainland China

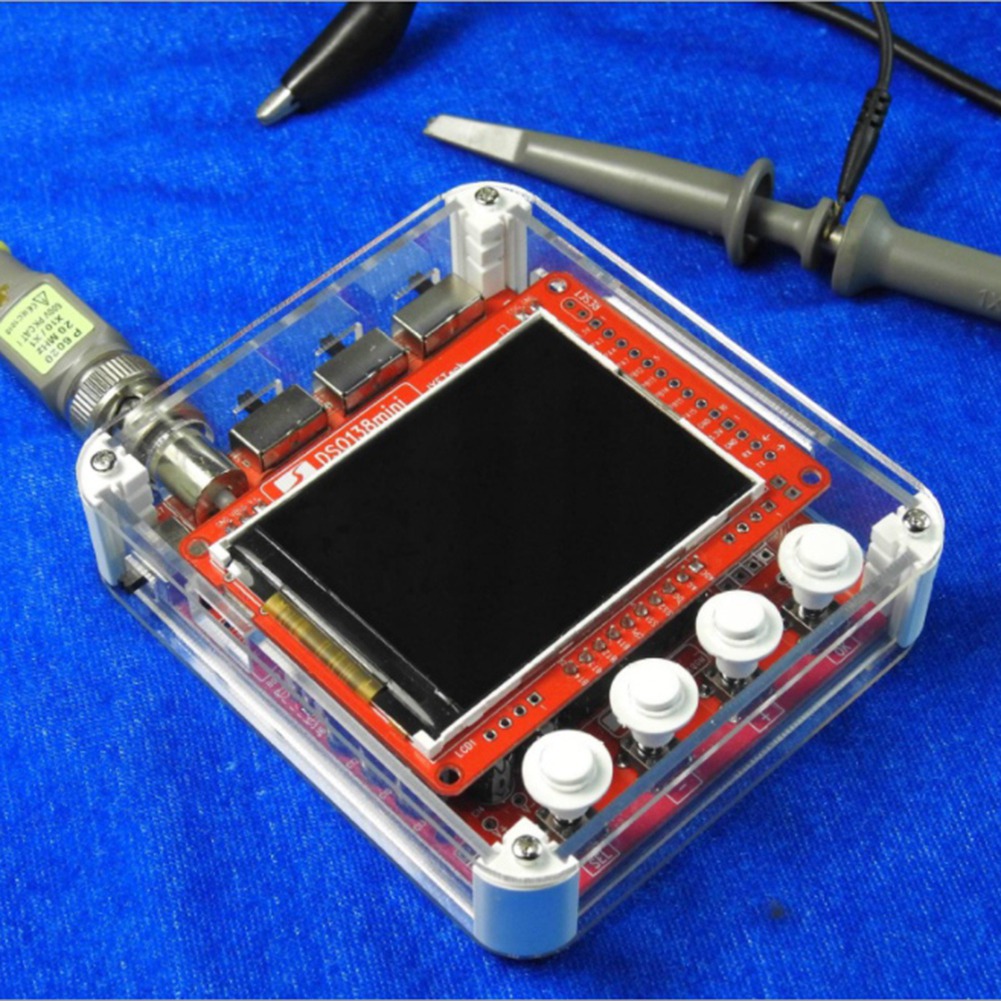

DSO138mini brings in the following improvements: 1. Better structure and smaller size
2. USB or battery powered. 3. External trigger input.
4. Serial output of waveform data. 5. universal controller.

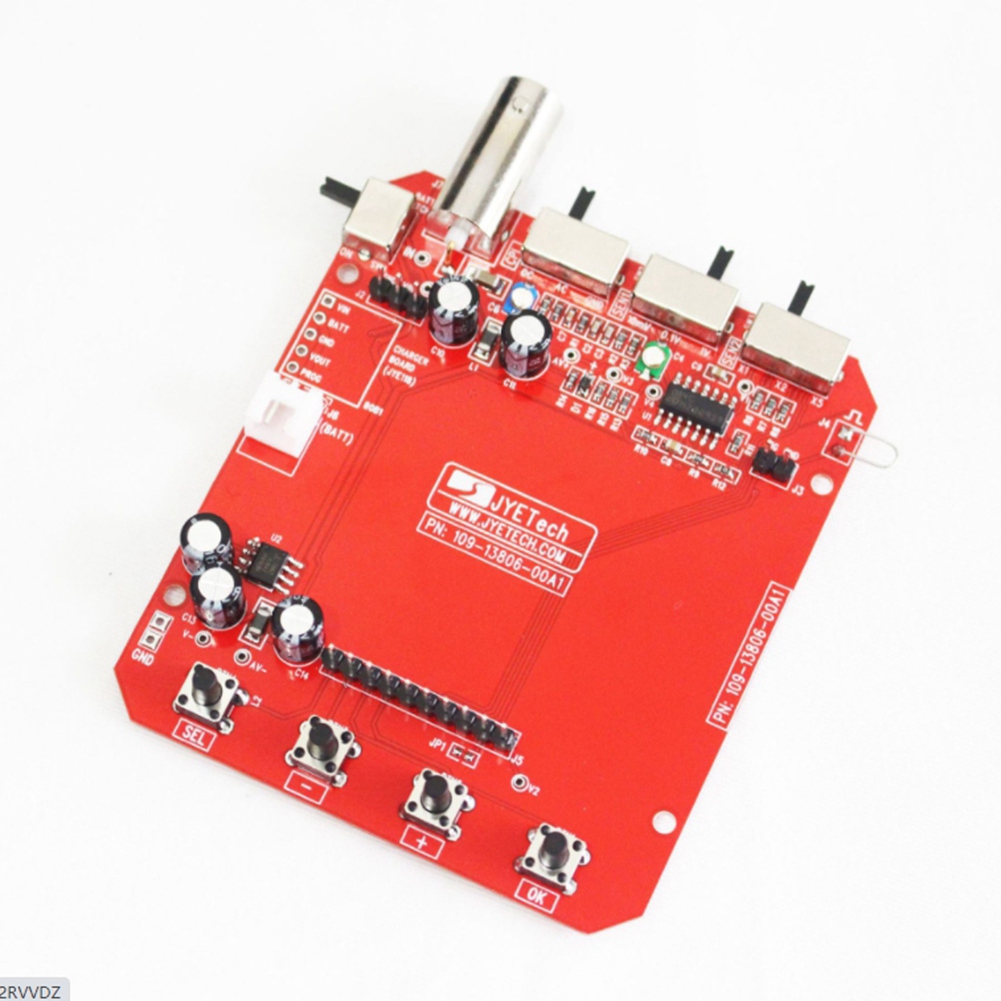

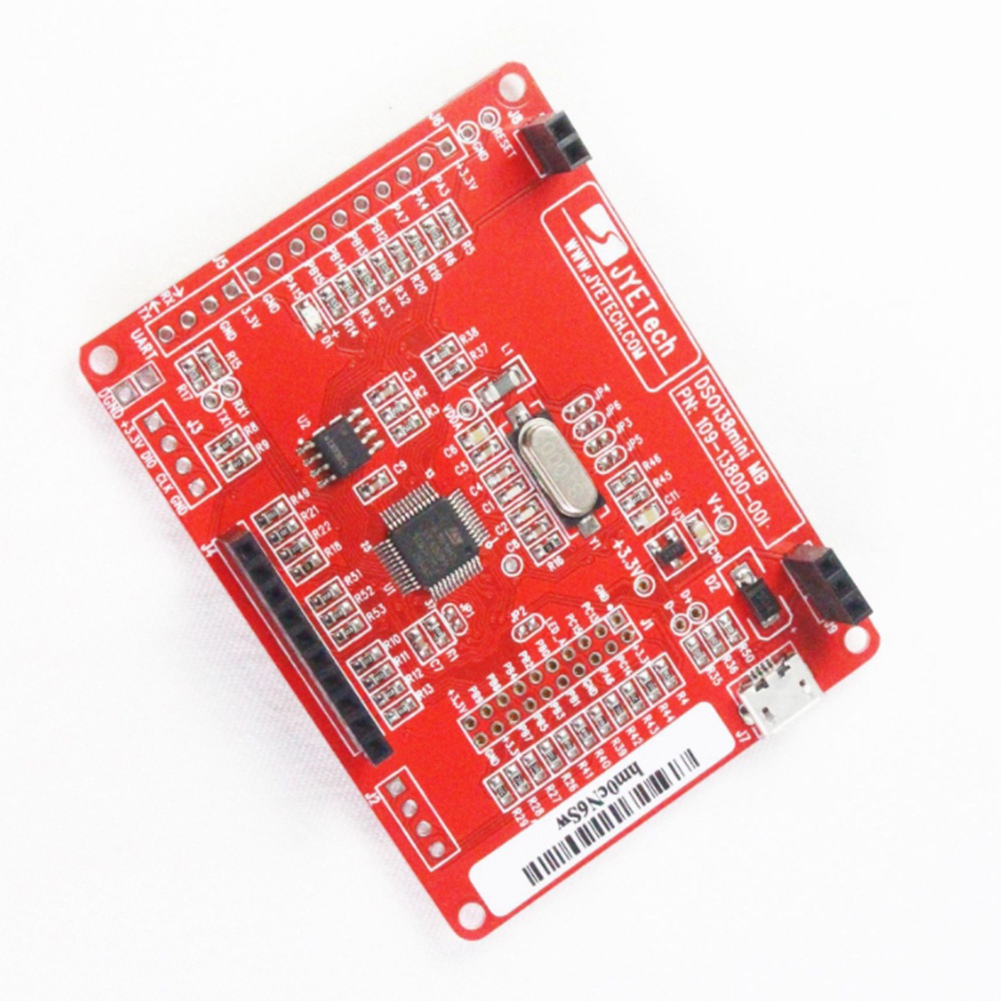

DSO138mini make MCU and LCD stay in one PCB to avoid problematic pin-header connections that was used in DSO138. This not only increase product reliability but also allow the main board to become a flexible universal purpose controller.
DSO138mini's trigger can work reliably under 10us and 20us timebase settings.Waveform data can be outputted through serial port and the data can be easily displayed on PC with help of other software like Gnuplot. This photo shows the same waveform displayed on PC using Gnuplot.

Specification:
Major features of DSO138
Sampling rate: 1Msps max

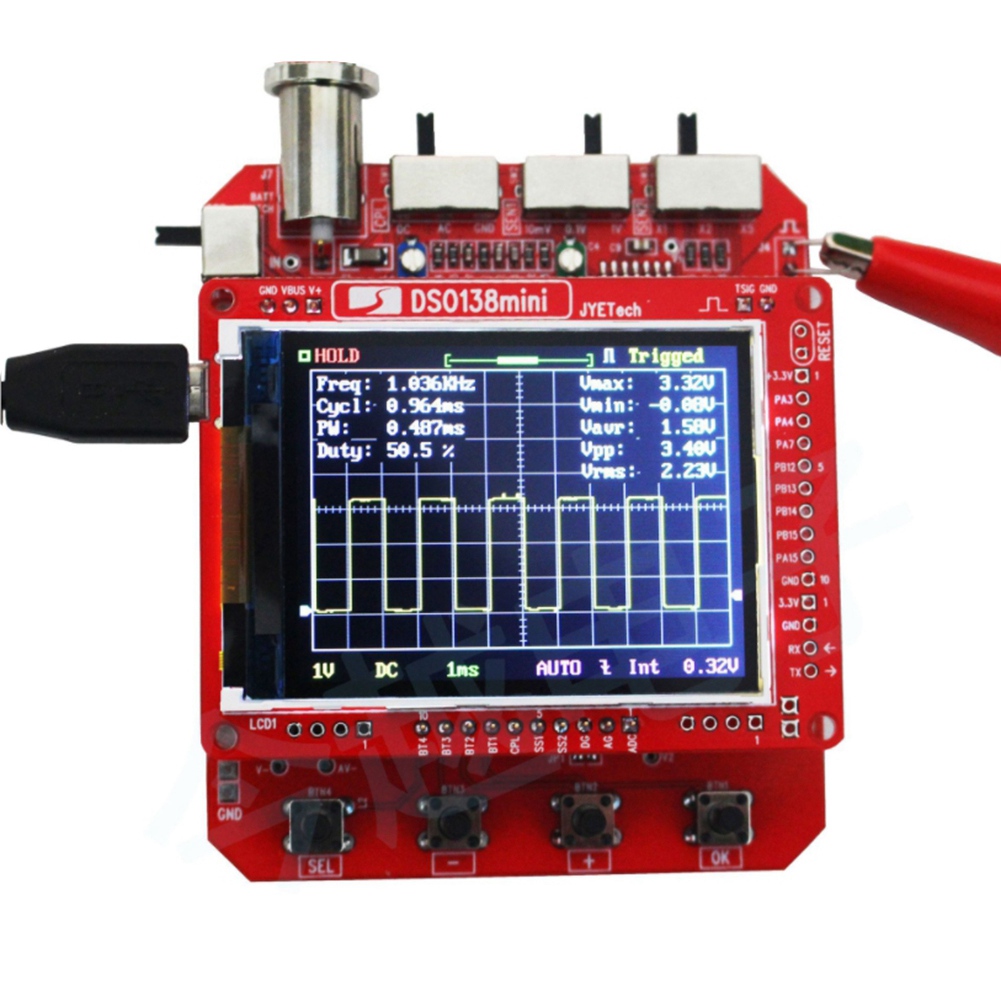

Built-in 1KHz/3.3V test signal
Waveform freeze (HOLD) function available
Save/recall waveform
Serial waveform data output
Vertical:
Number of Channel: 1
Analog Bandwidth: 0 - 200KHz
Sensitivity: 10mV/Div - 5V/Div
Sensitivity error: less than 5%
Resolution: 12-bit
Input Impedance: 1M ohm
Maximum Input voltage: 50Vpk
Coupling: DC, AC, GND
Horizontal:
Max Real-time Sampling Rate: 1Msps
Timebase: 10us/Div - 500s/Div
Record Length: 1024 points
Trigger:
Trigger Modes: Auto, Normal, Single
Trigger Types: Rising/falling edge
Trigger Position: 1/2 of buffer size fixed
Display: 2.4-inch color TFT LCD with 320 x 240 resolution
Power Supply: 3.5V - 6V DC
Supply Current: 120mA@5V
Physical Dimensions: 7 x 8cm/2.76 x 3.15inch
Type: Spare Parts
Colour: Red
Material: plastic

Package Contents:

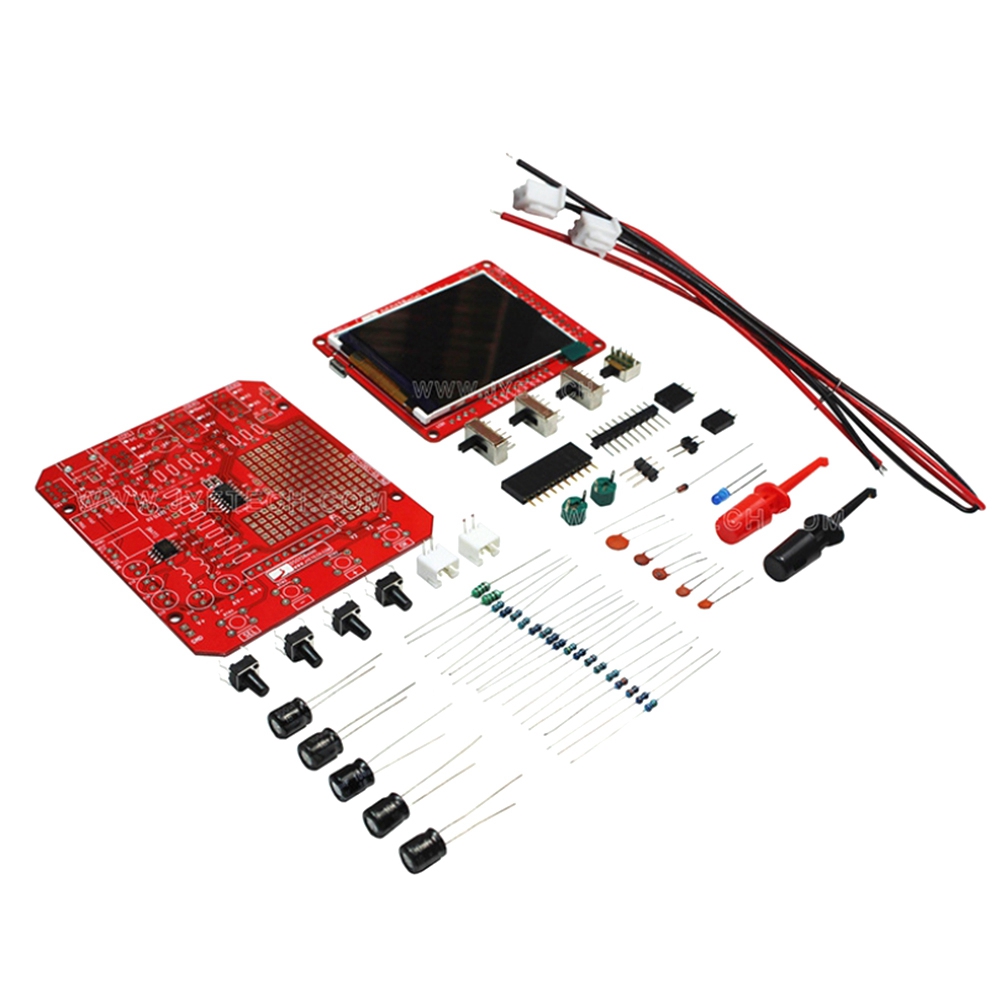

1 set x DSO138mini oscilloscope kit

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
