SPECIFICATIONS

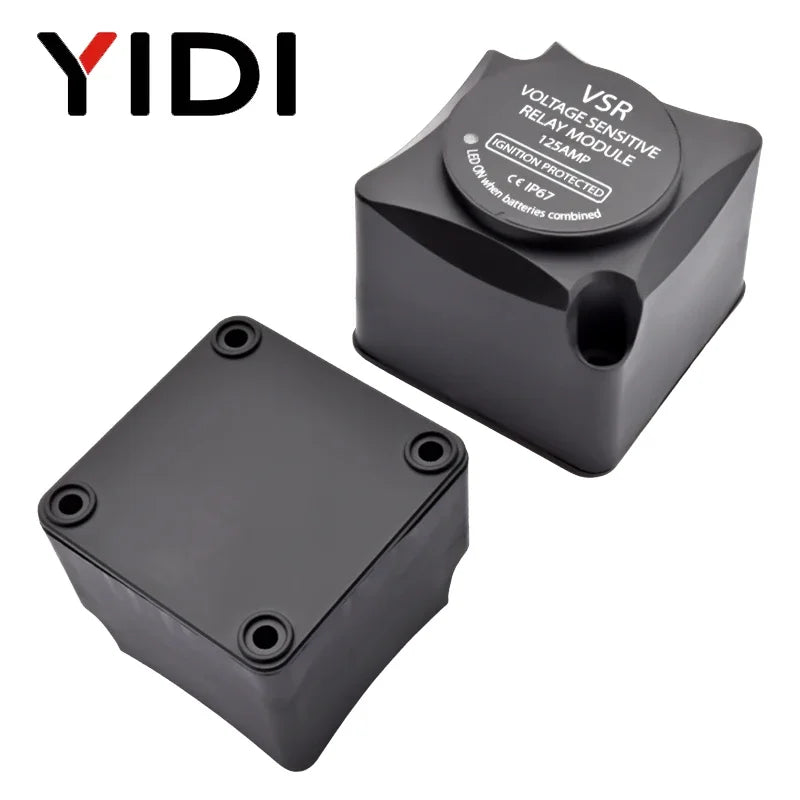

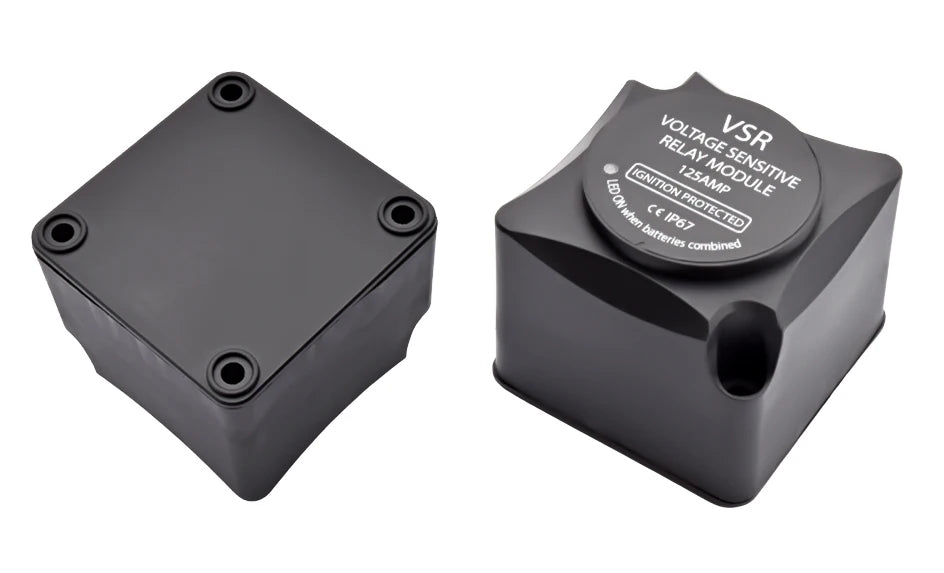

YIDI VSR Dual Battery Protection Smart Isolator 12V 140A Split Charge Voltage Sensitive Relay Module IP67 for Car Truck Marine Boat

Description:

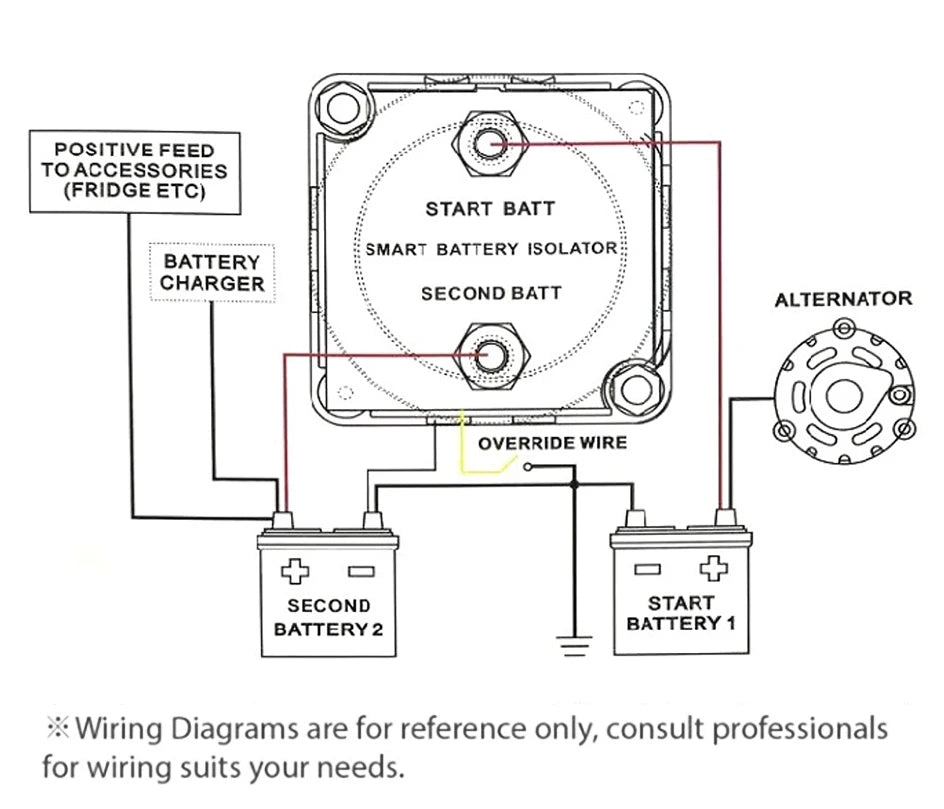

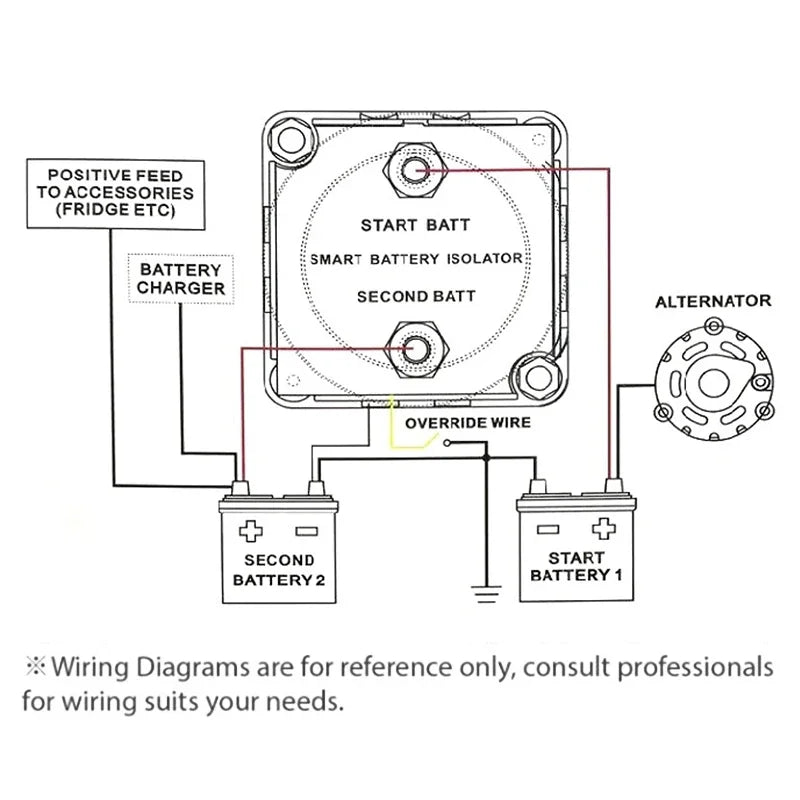

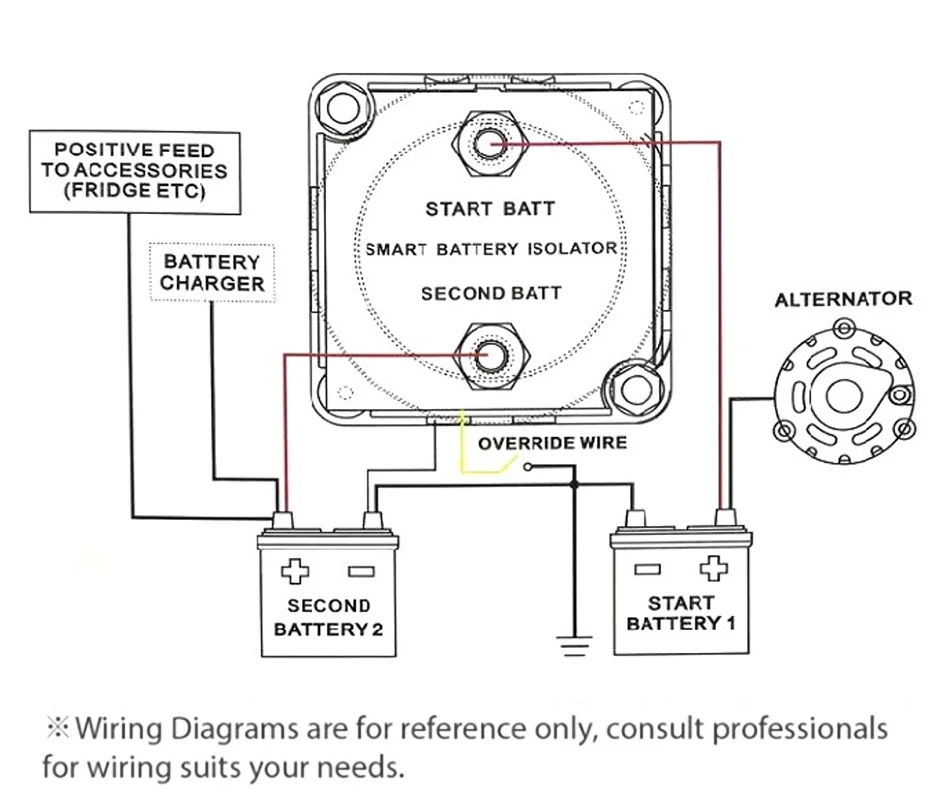

A Voltage Sensitive Relay (VSR) allows two batteries to be charged simultaneously. When the engine starts and the starter battery reaches 13.3 volts, the VSR kicks in, allowing two battery packs (starter and second) to be charged simultaneously.

When the voltage drops below 12.8 volts (such as when the engine is stopped), the VSR disengages and the battery disengages. The system eliminates the possibility of depleted starting batteries and protects sensitive electronics powered by the second batteries from harmful engine starting spikes.

Allow split charging of the second battery pack without discharging the main/starting battery. The relay turns on at 13.3 volts and turns off at 12.8 volts.

Features:
- Strong waterproof, low loss, good heat dissipation, high efficiency.


- Automatically combines two batteries when charging and isolates the two batteries when not charging.


- No voltage drops comparing to battery isolator diodes (0.6V).


- Robust glass fiber reinforced nylon enclosure ensures long durability.

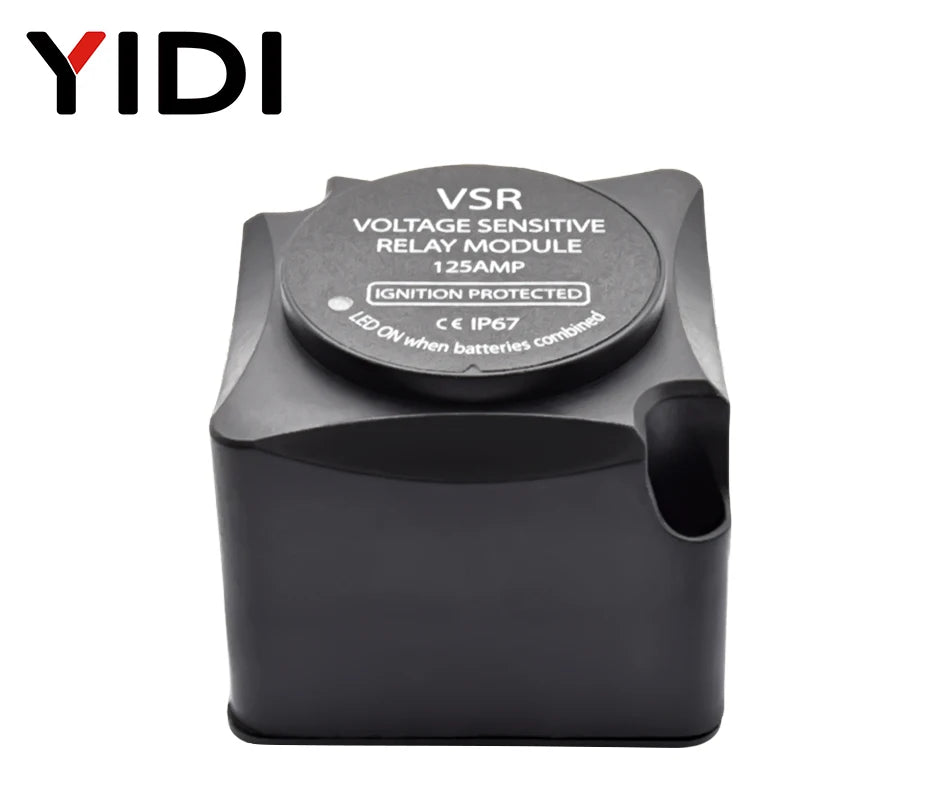

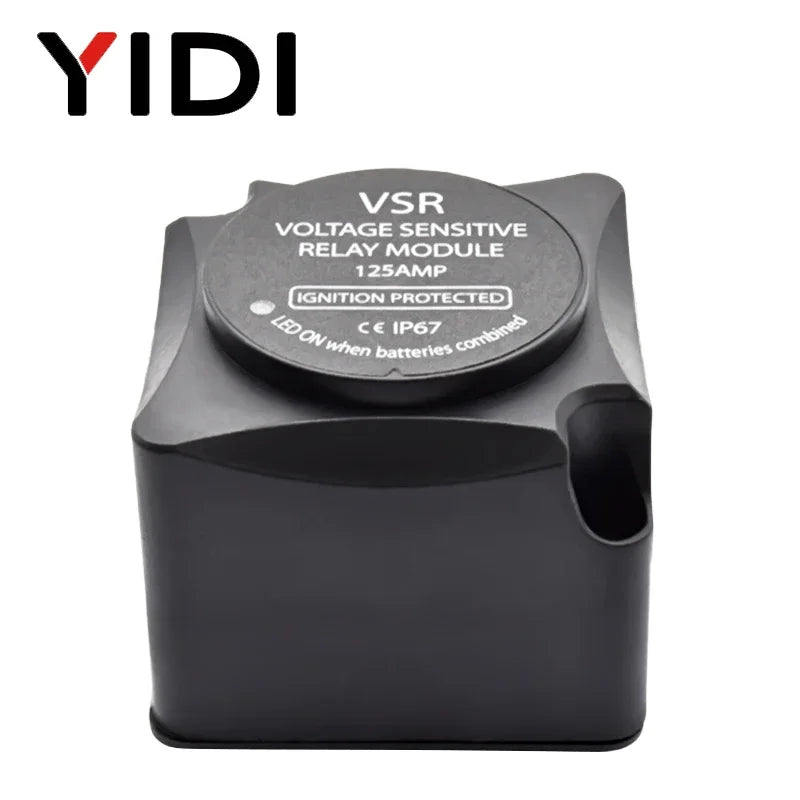

- Built-in LED indication (ON when VSR engages).


- Surface or panel mount options provides flexibility when installing

Specifications:
Color: Black
Nominal Voltage: DC 12V
Combine Voltage: DC 13.3V
Open Voltage: DC 12.8V
Continuous Rating: DC 125A
Intermittent Rating: DC 140A
Power Consumption: 10mA (Standby)


                                       330mA(Engage)
Terminal Studs: M6(1/4")

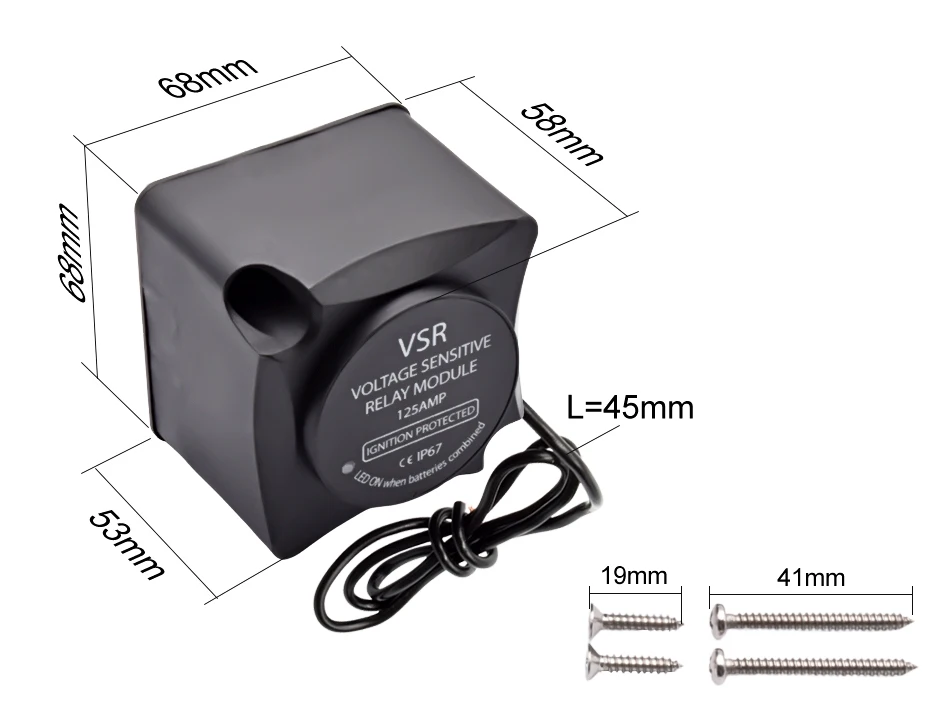

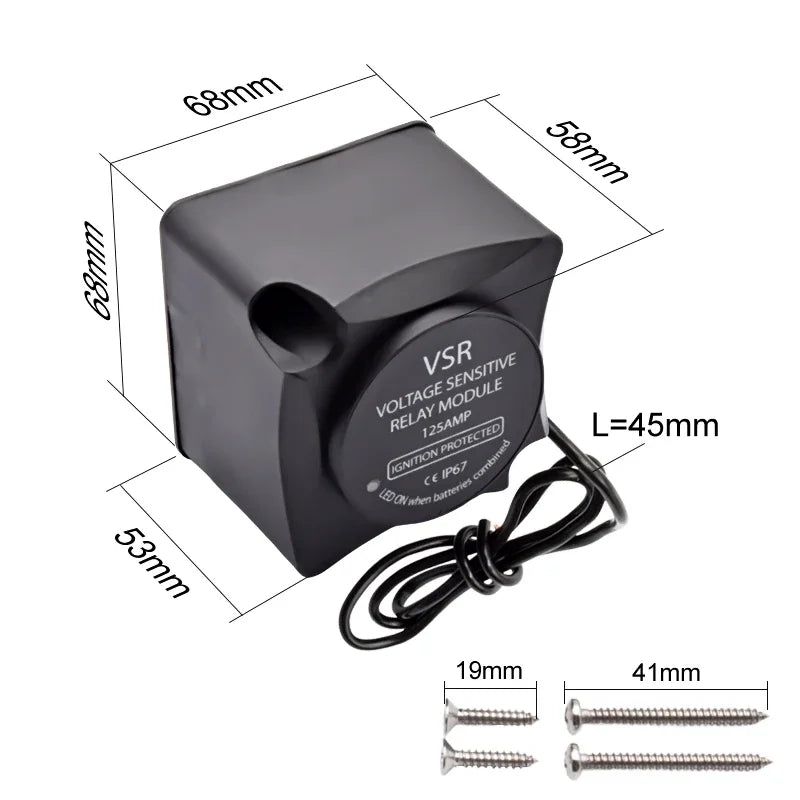

VSR Size: 68 * 68 * 58mm
Cable Length: 45mm
Waterproof Level: IP67

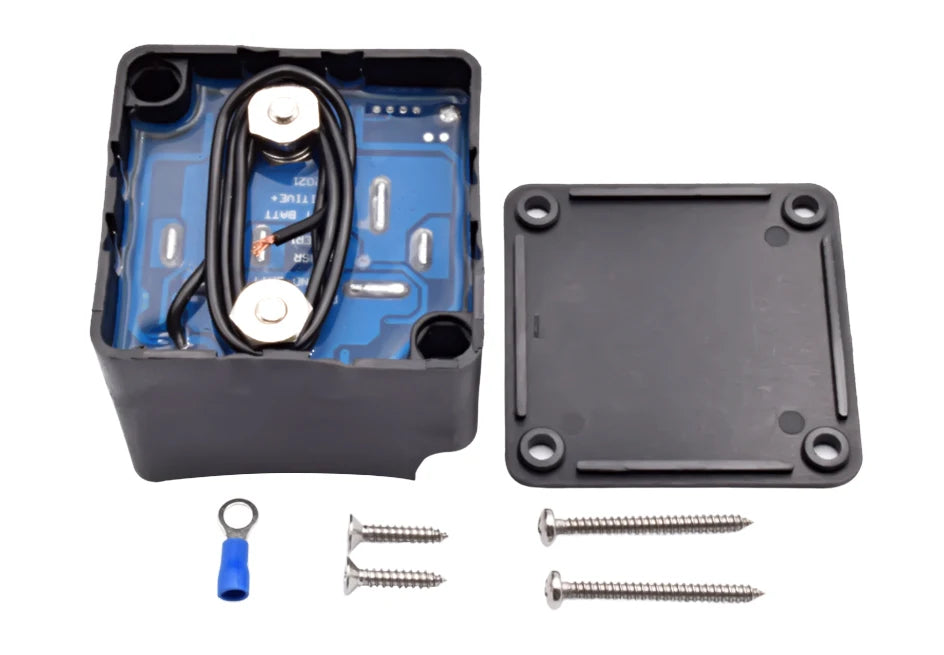

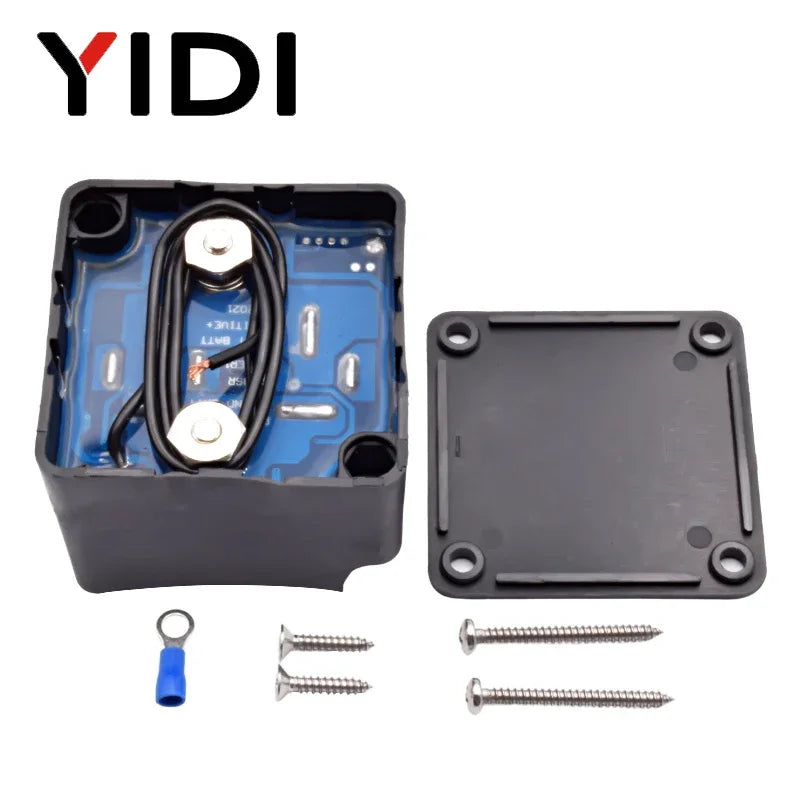

Packing:
1 x Voltage Sensitive Relay
1 x Blue Ring Terminal
4 x Screw
