Dual-channel Oscilloscope Rechargeable 50MHz Bandwidth 200MSa/s Sampling Smart Automatic 3-in-1 Detector 25000 Count ANENG AOS05

Dual-channel Oscilloscope Rechargeable 50MHz Bandwidth 200MSa/s Sampling Smart Automatic 3-in-1 Detector 25000 Count ANENG AOS05

$571.80

$571.80 $0.00

Color AOS05 Blue pro Blue pro - PT2003 Red pro - PT2003 AOS05 Blue Blue pro - PT2002 AOS05 Red AOS05 Red pro Red pro - PT2002

Description

SPECIFICATIONS

Band Width: Less than 60MHz

Battery Included: no

Brand Name: ANENG

Certification: NONE

DIY Supplies: Electrical

Digital Channels: 2

Display Resolution: 320*240 Pixels

Display Size: None

High-concerned chemical: none

IS Battery Demountable: No

Max Waveform Capture Rate: 30,000wfm/s

Model Number: ANENG AOS05 Oscilloscope Digital Multimeter

Origin: Mainland China

Real Time Sampling Rate: 200MSa/s

Record Length: /

Semi-finishedproduct: No

Dual-channel Oscilloscope Rechargeable 50MHz Bandwidth 200MSa/s Sampling Smart Automatic 3-in-1 Detector 25000 Count ANENG AOS05

Attention:
If there is a lag or crash during use, please restart!

Product Introduction :

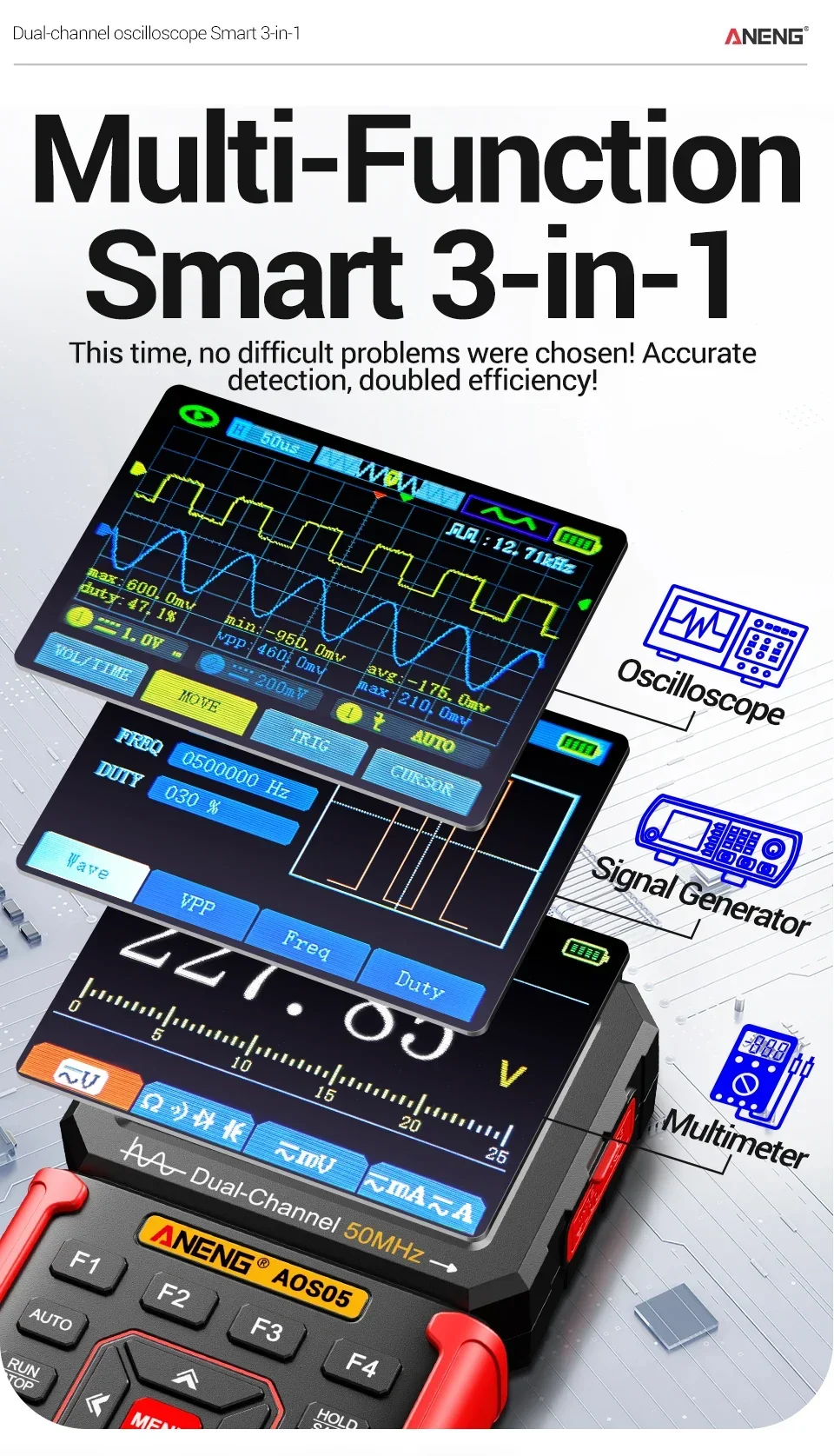

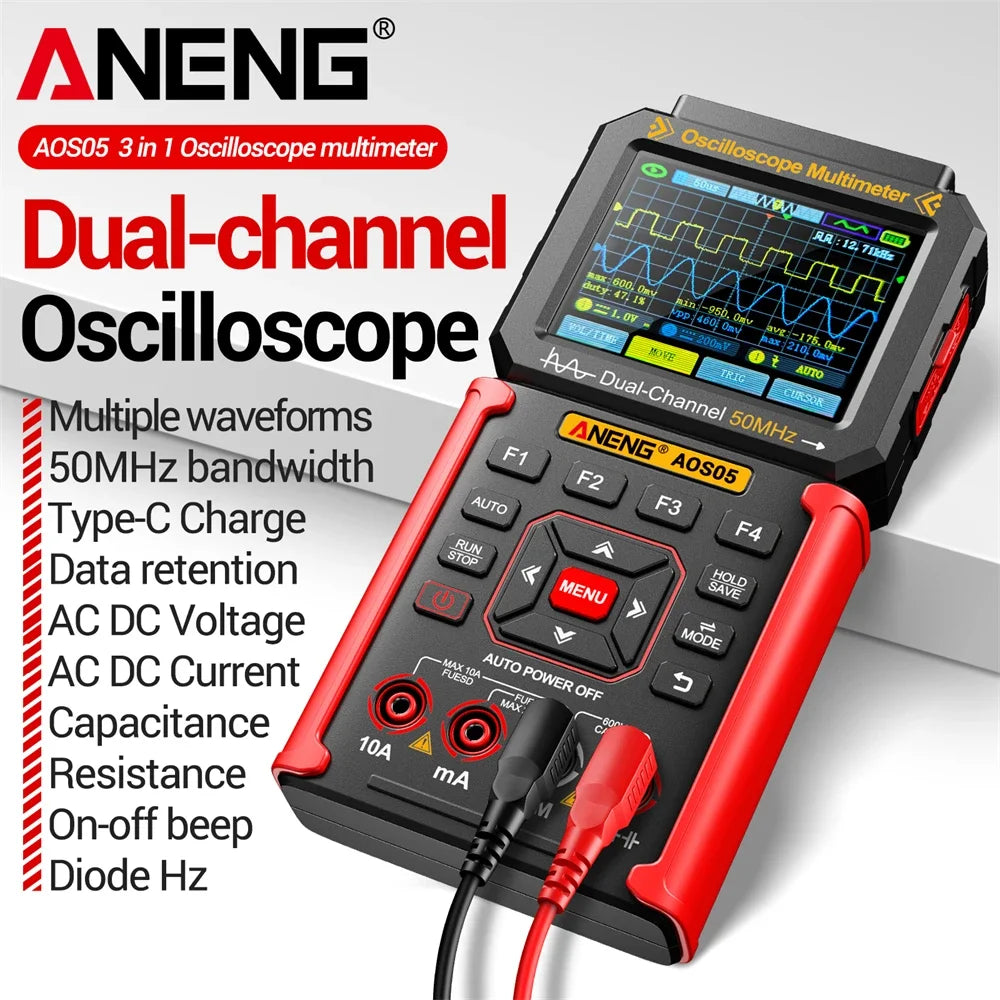

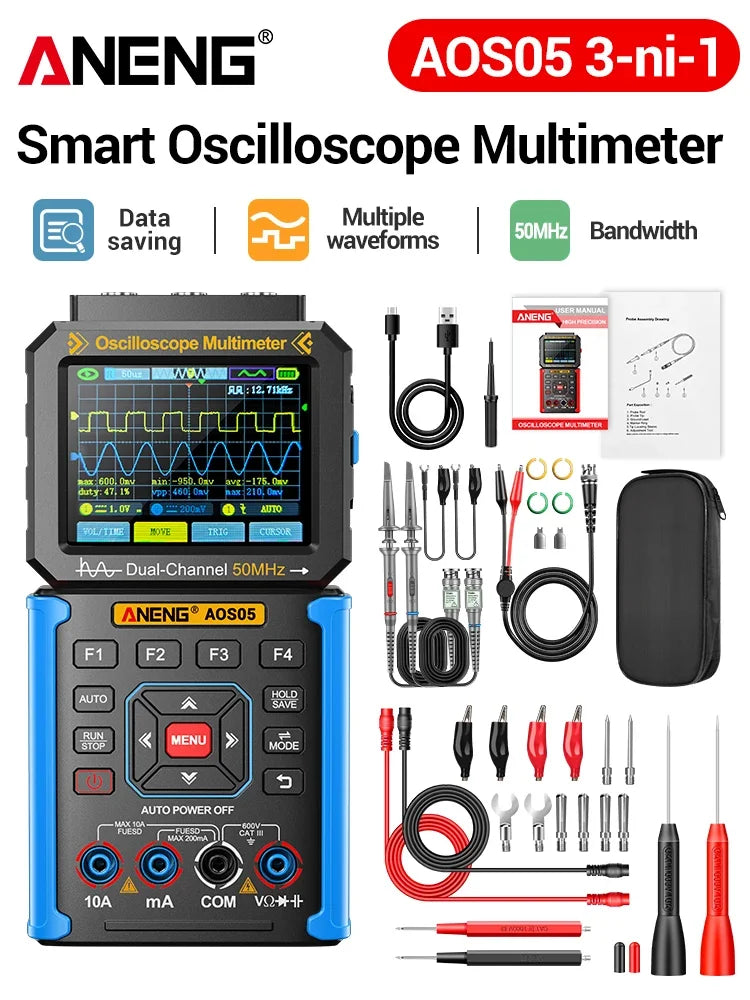

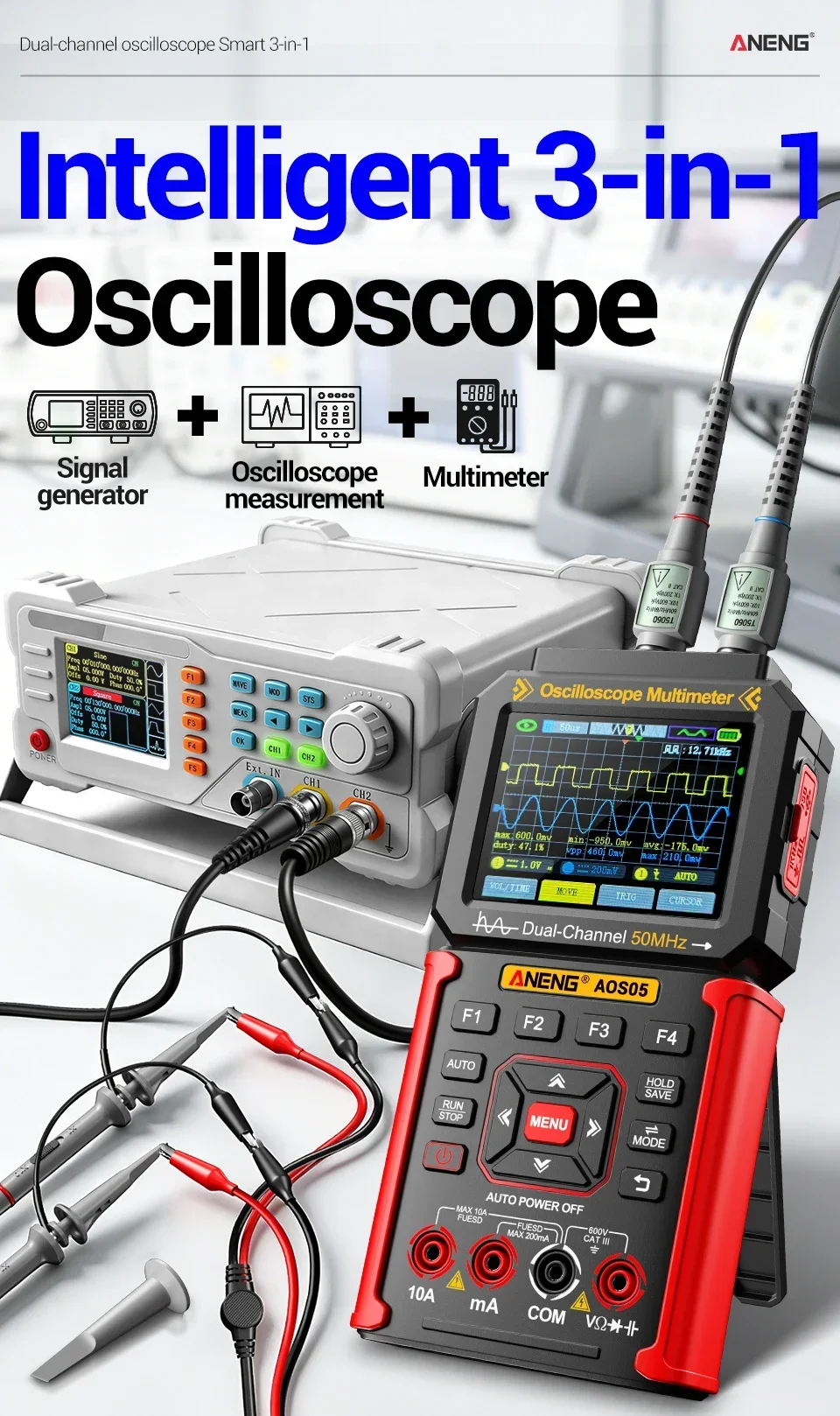

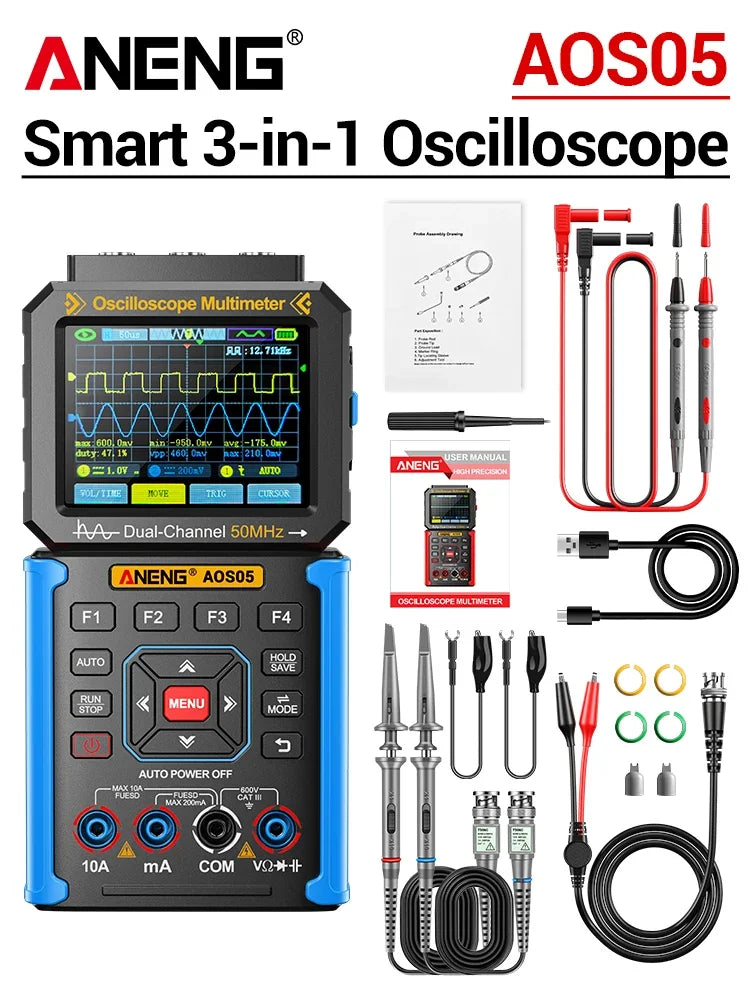

This ANENG 3-in-1 multifunctional test tool integrates a digital oscilloscope, signal generator, and multimeter in one compact device. It features a 50MHz bandwidth dual-channel oscilloscope with 200MSa/s real-time sampling rate, a 6-waveform signal generator, and a 25000-count high-precision multimeter.

The device comes with a 3.2-inch color LCD display, built-in rechargeable battery, and USB charging support, making it portable and convenient for both indoor and outdoor use. It is widely used in electronic circuit repair, home appliance maintenance, DIY projects, laboratory teaching, and field engineering work.

Simple operation, stable performance, and strong practicability make it an ideal tool for engineers, technicians, and electronic enthusiasts.

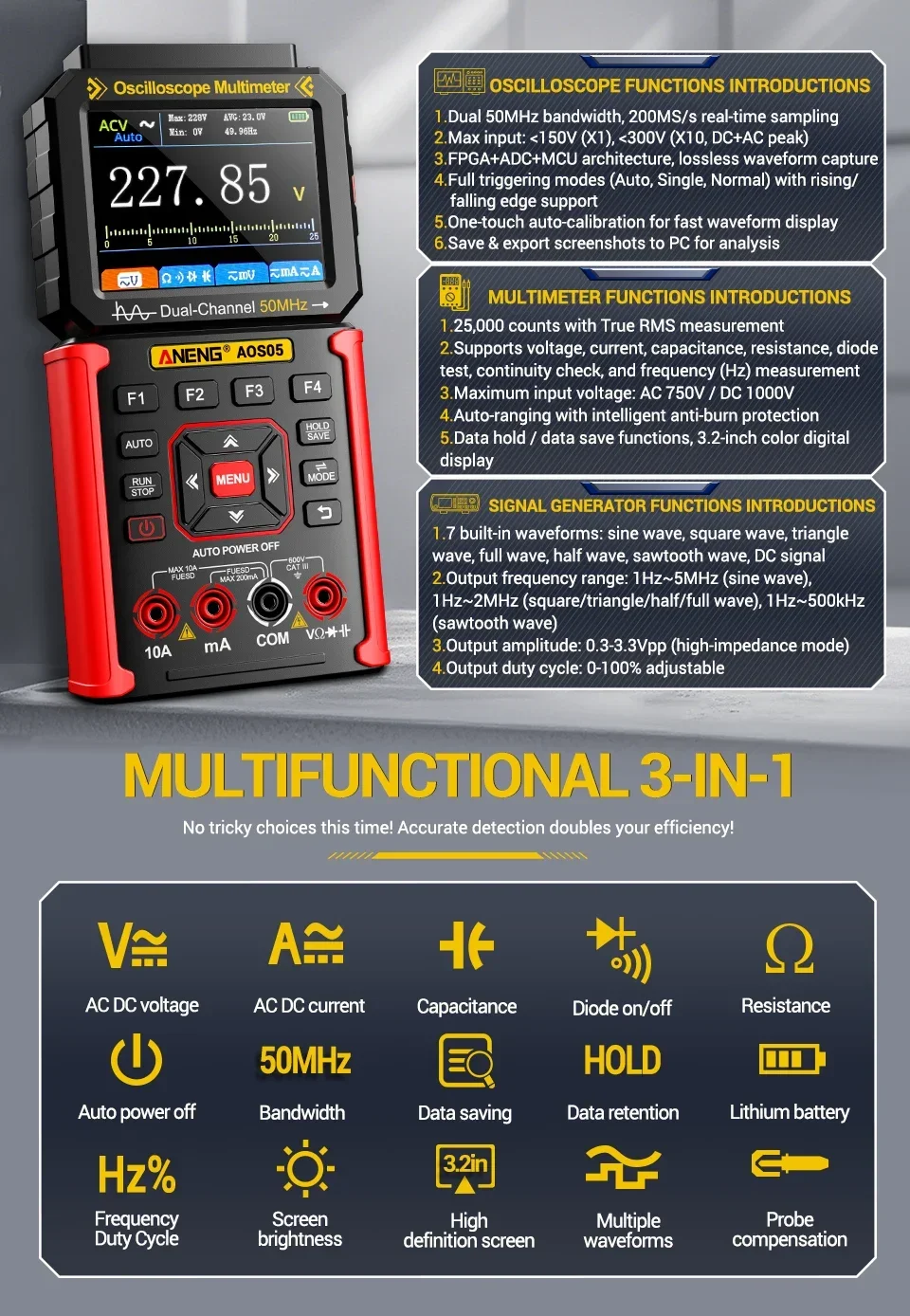

Core Selling Points：

3-in-1 Design, Saves Your Cost & Space

50MHz Oscilloscope + 200MSa/s Sampling Rate

6-Waveform Signal Generator

25000 Counts High-Precision Multimeter

Portable & Rechargeable for Field Work

3-in-1 Device Full Technical Specifications：

Category	Feature	Specification
Oscilloscope	Bandwidth	50MHz
	Sampling Rate	200MSa/s Real-time
	Channels	Dual Channel
	Input Coupling	DC / AC
	Input Impedance	1MΩ @ 16pF
	Probe Attenuation	X1 / X10 / X100
	Max Input Voltage	X1: <150V, X10: <300V (DC+AC peak)
	Sensitivity	20mV/div ~ 10V/div
	Sweep Speed	10ns/div ~ 20s/div
	Auto Measurement	Period, Frequency, Peak-to-Peak, RMS, Max/Min, Duty Cycle, Average
	Trigger Type	Auto / Normal / Single
	Display Mode	YT / XY
	Persistence Mode	500ms / 1s / 10s / Infinite
Multimeter	Display Count	25000 Counts
	DC Voltage	0mV ~ 1000.0V, ±(0.1%+10)

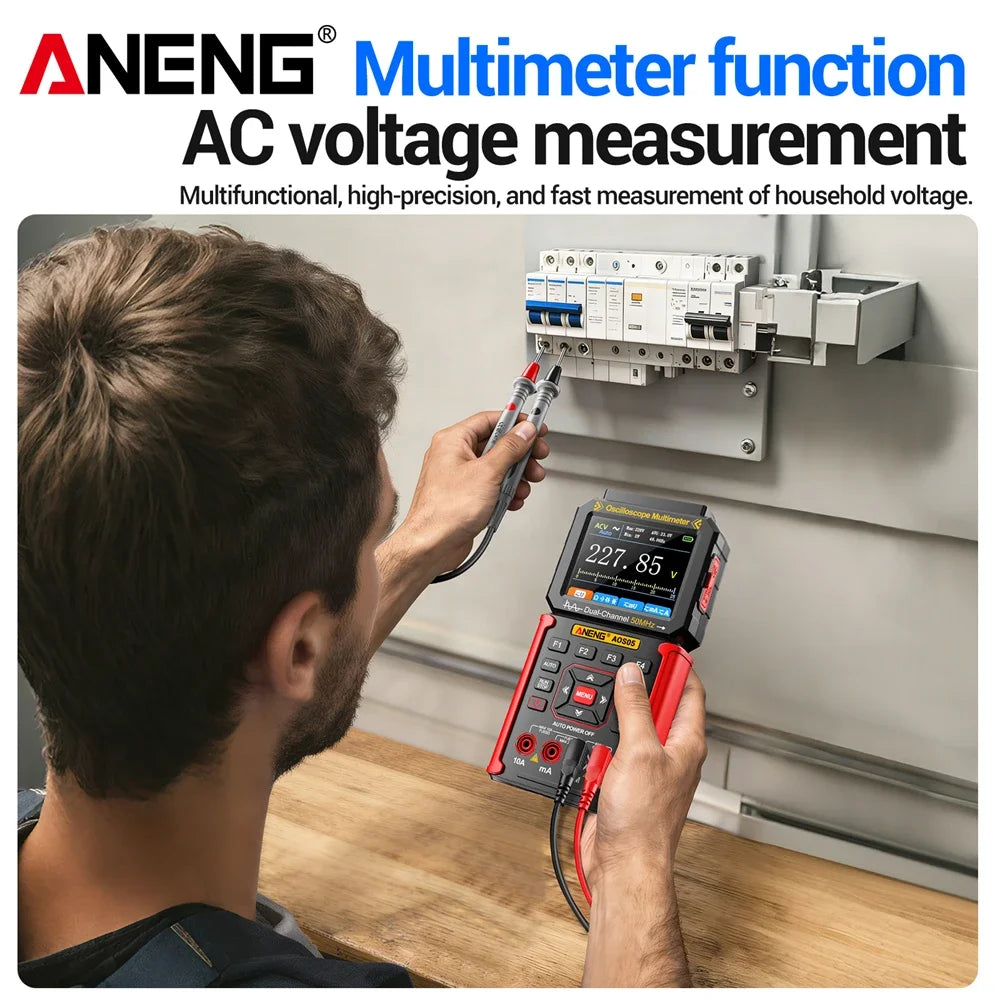

	AC Voltage	0mV ~ 750.0V, ±(0.5%+10)

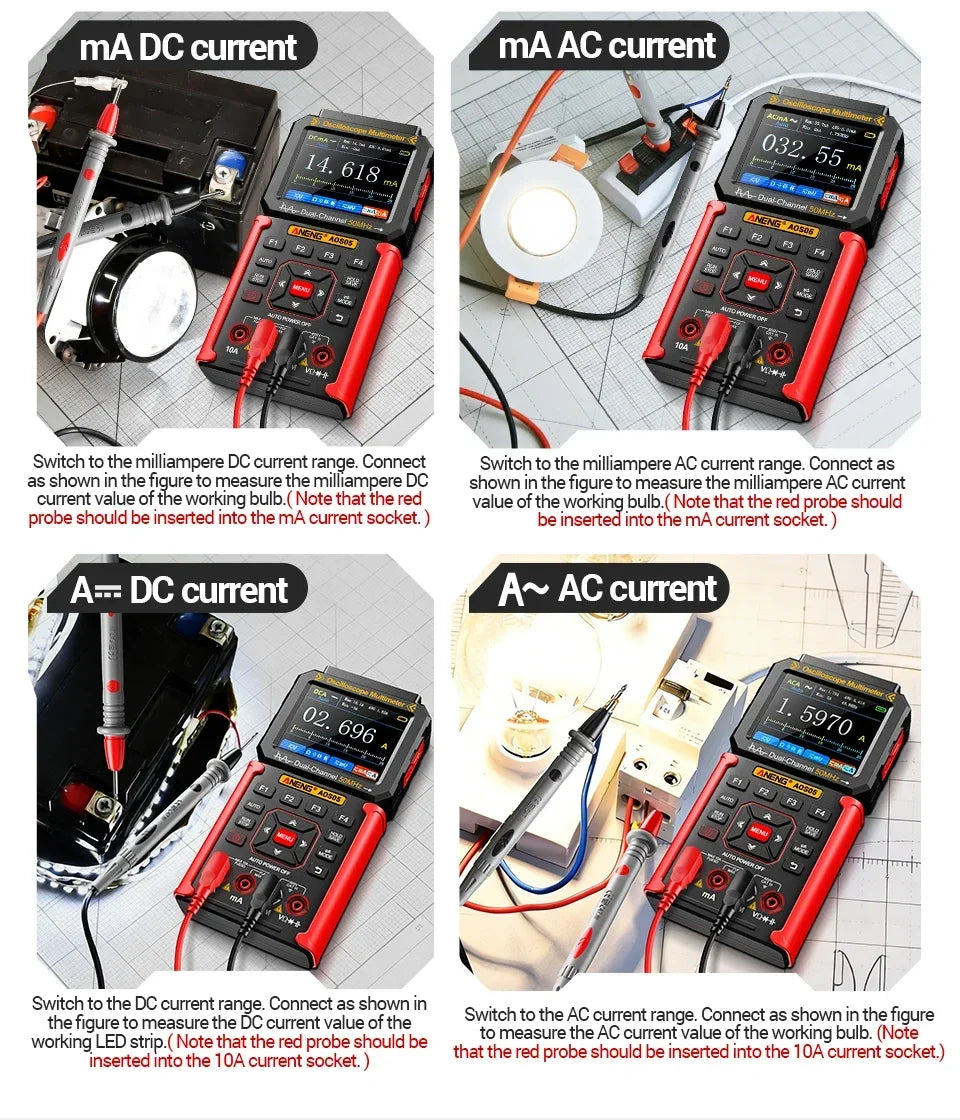

	DC Current	0mA ~ 20.00A, ±(1.0%+3)
	AC Current	0mA ~ 20.00A, ±(1.2%+3)
	Resistance	0Ω ~ 250.0MΩ, ±(5%+20)
	Capacitance	0nF ~ 99.99mF, ±(5%+10)
	Frequency	0Hz ~ 999.9kHz, ±(0.1%+2)

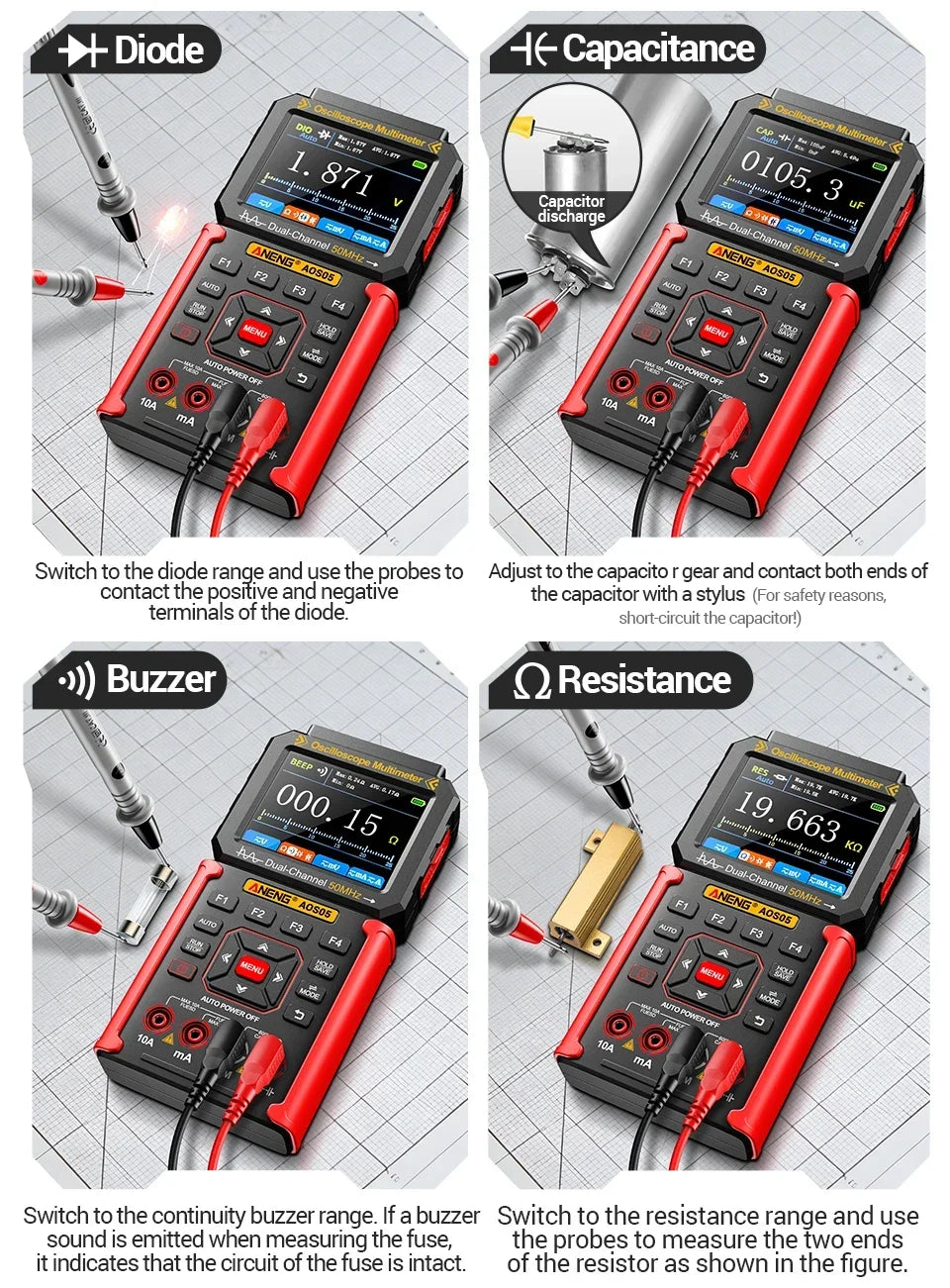

	Functions	Diode Test / Continuity Test / Data Hold / Data Save
	Battery	3.7V 2000mAh 103450 Li-ion
	Power	USB Charging, Auto Power Off
	Selectable Language	Chinese/English
	Screen Display	3.2inch ColorLCD Display

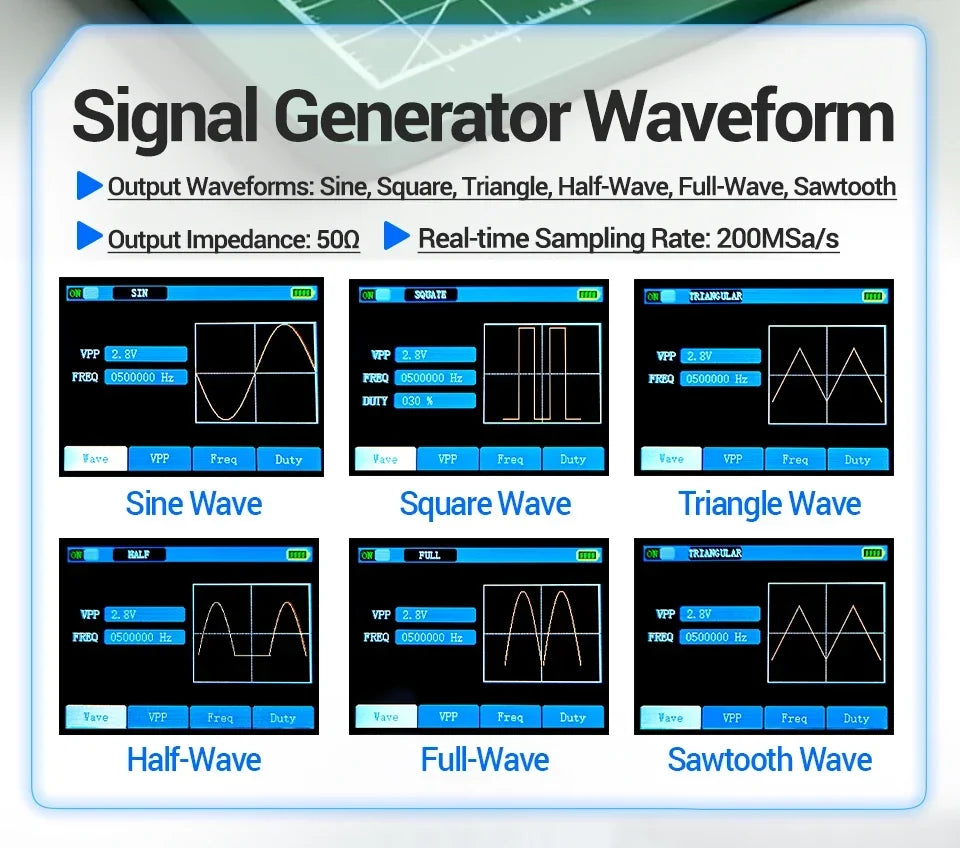

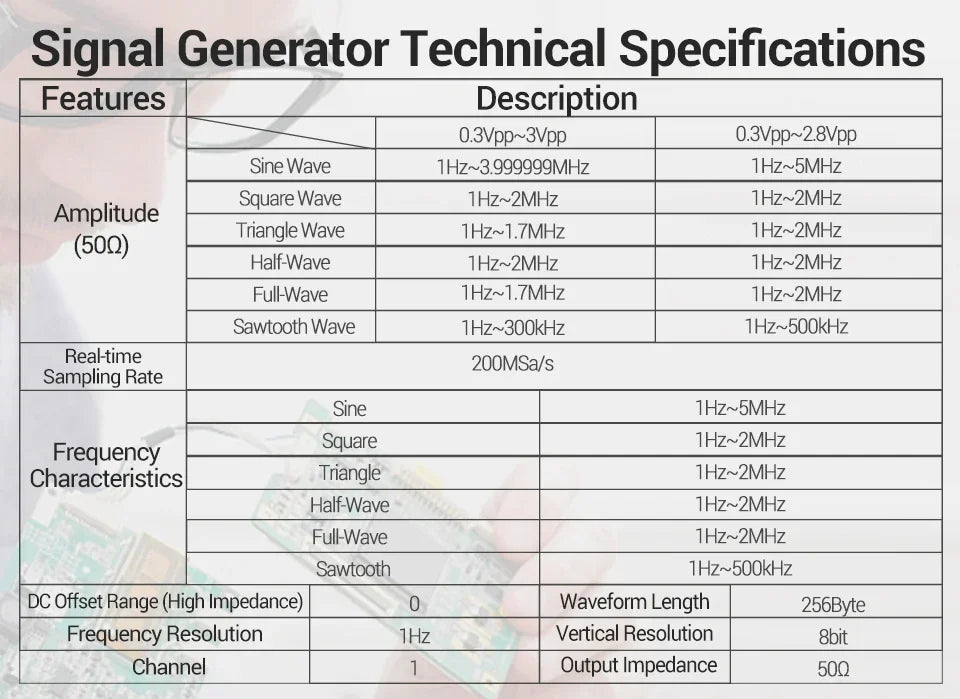

Signal Generator	Output Waveforms	Sine / Square / Triangle / Half-Wave / Full-Wave / Sawtooth
Amplitude (50Ω)		0.3Vpp ~ 3Vpp / 0.3Vpp ~ 2.8Vpp
	Sine Wave Freq	1Hz~3.999999MHz / 1Hz ~ 5MHz
	Square Wave Freq	1Hz ~ 2MHz / 1Hz ~ 2MHz
	Triangle Wave Freq	1Hz~1.7MHz / 1Hz ~ 2MHz
	Half Wave Freq	1Hz ~ 2MHz / 1Hz ~ 2MHz
	Full Wave Freq	1Hz~1.7MHz / 1Hz ~ 2MHz
	Sawtooth Wave Freq	1HZ~300kHz / 1Hz ~ 500kHz
Sampling Rate	200MSa/s
	Output Impedance	50Ω
	Frequency Resolution	1Hz
	Vertical Resolution	8bit
	Waveform Length	256Byte
	Channel	1 Channel
	DC Offset Range (High Impedance)	0
