SPECIFICATIONS

Brand Name: HAXNFIELEC

Certification: NONE

Compatible Audio & Video Equipment Style: Amplifier,Professional Audio Equipment

Frequency Response: 0-100KHz

High-concerned chemical: none

OP AMP Height: 25MM (not contain pins)

Origin: Mainland China

Quiescent Current: about 15mA

Voltage Range: ±5V ~ ±22V

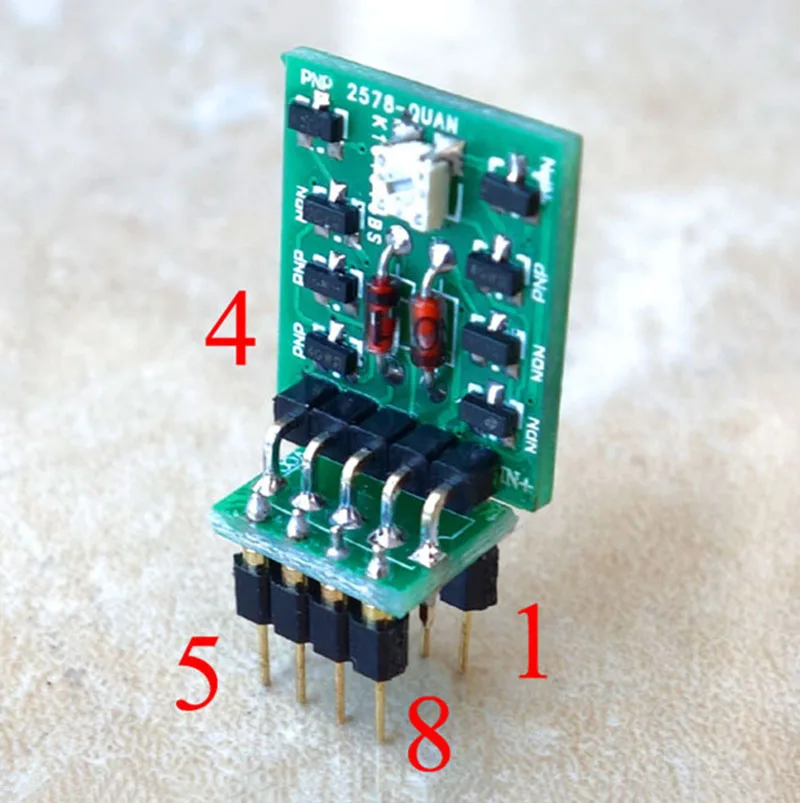

Dual Differential Full Symmetry Complement Discrete

Single OP AMP Module 5V-22V

Description:

Fully symmetrical dual-differential discrete circuits, low frequency jumping ability is very good, full, high-frequency penetrating, high performance cost ratio, Compatibility is very good, the midpoint is also stable.

Well-designed, and the bottom area is the same of single op amp, pin is fully compatible with NE5534, LME49710 OPA627, AD797 op amp, etc.

OP AMP Features:

1. Lower open loop gain, it is not necessary that the depth of the op amp negative feedback, the sounds more natural and delicate;

2. Op amp power supply may be higher, it can work under ±28V(Max), more dynamic (±5V also can work better)

3. The higher output current, Usually the op amp output current within about 40MA, this op amp maximum output current 100MA.

You can also through a single to double board to transfer it into dual op amp.

By contrast AD797 LME49710HA, Vocal roundness and Naiting have improved.

OP AMP Height: 25MM (not contain pins)

Voltage Range: ±5V ~ ±22V

Quiescent Current: about 15mA

Frequency Response: 0-100KHz

Packing List:

1pcs x Single OP AMP Module
