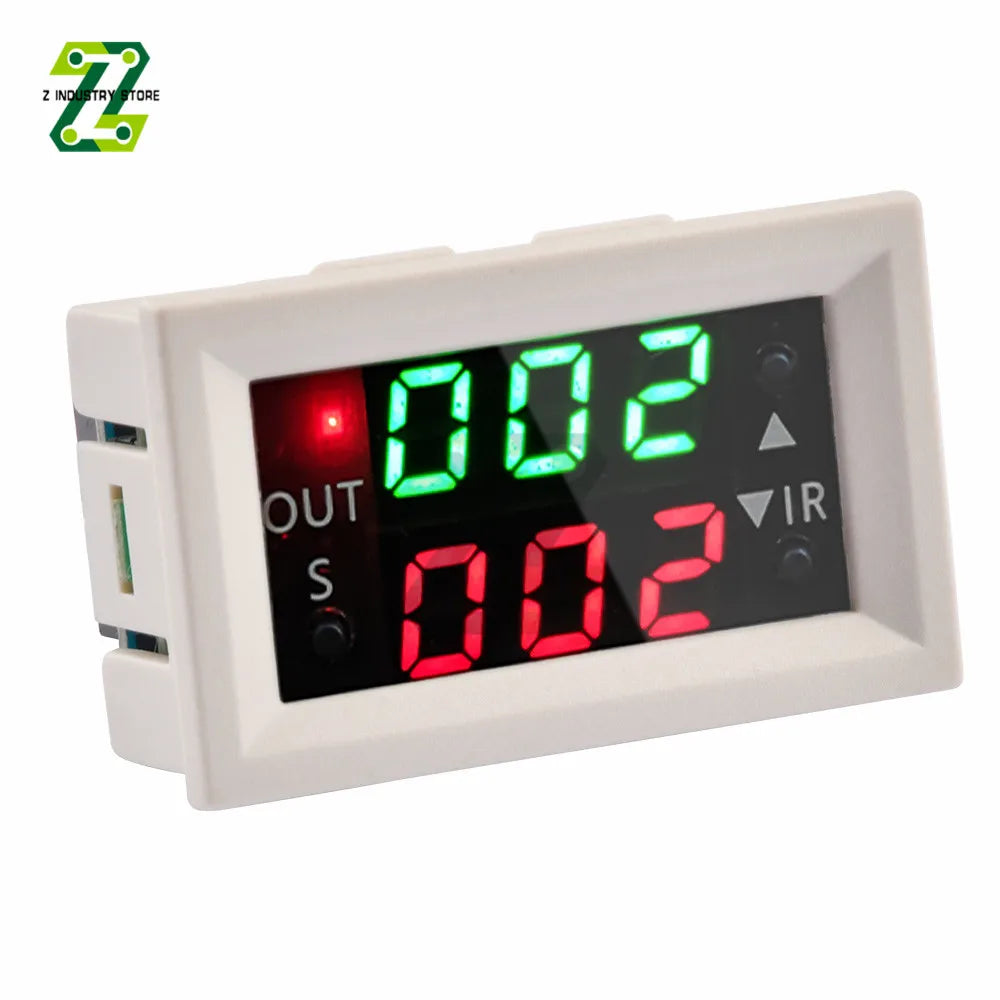

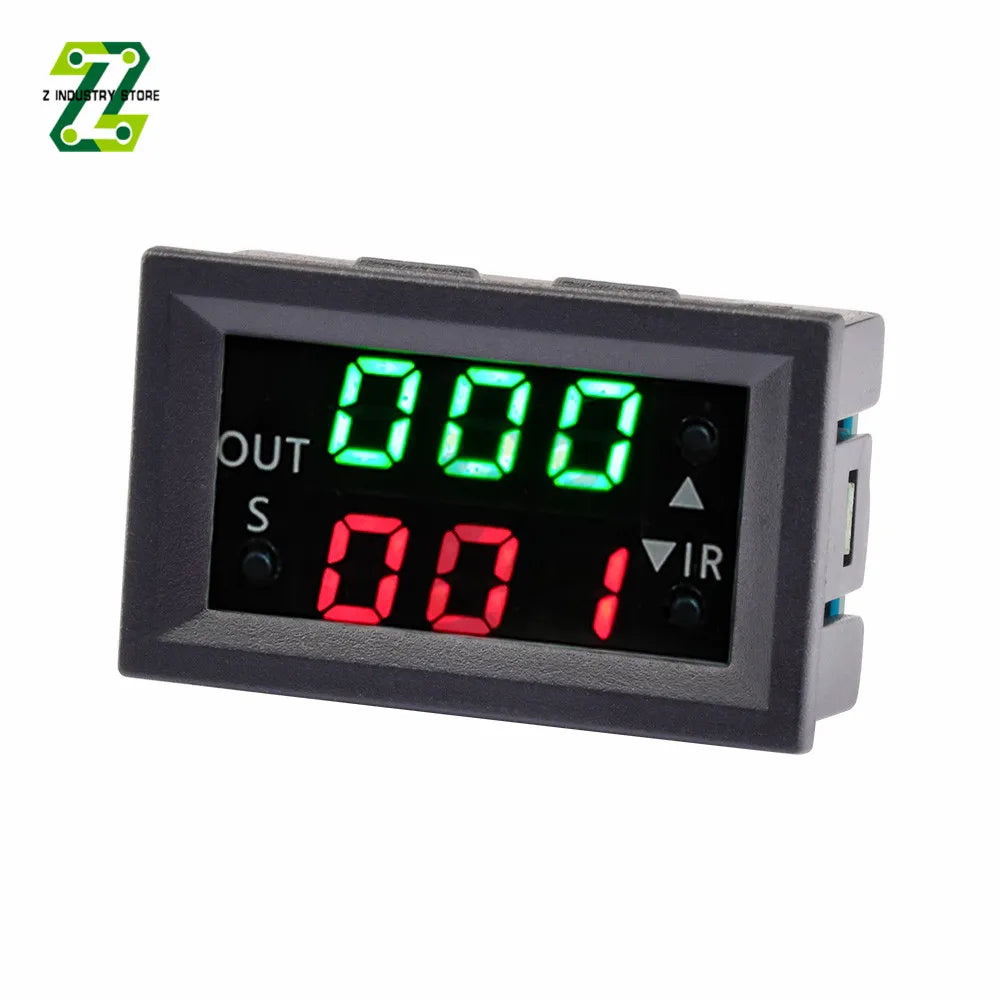

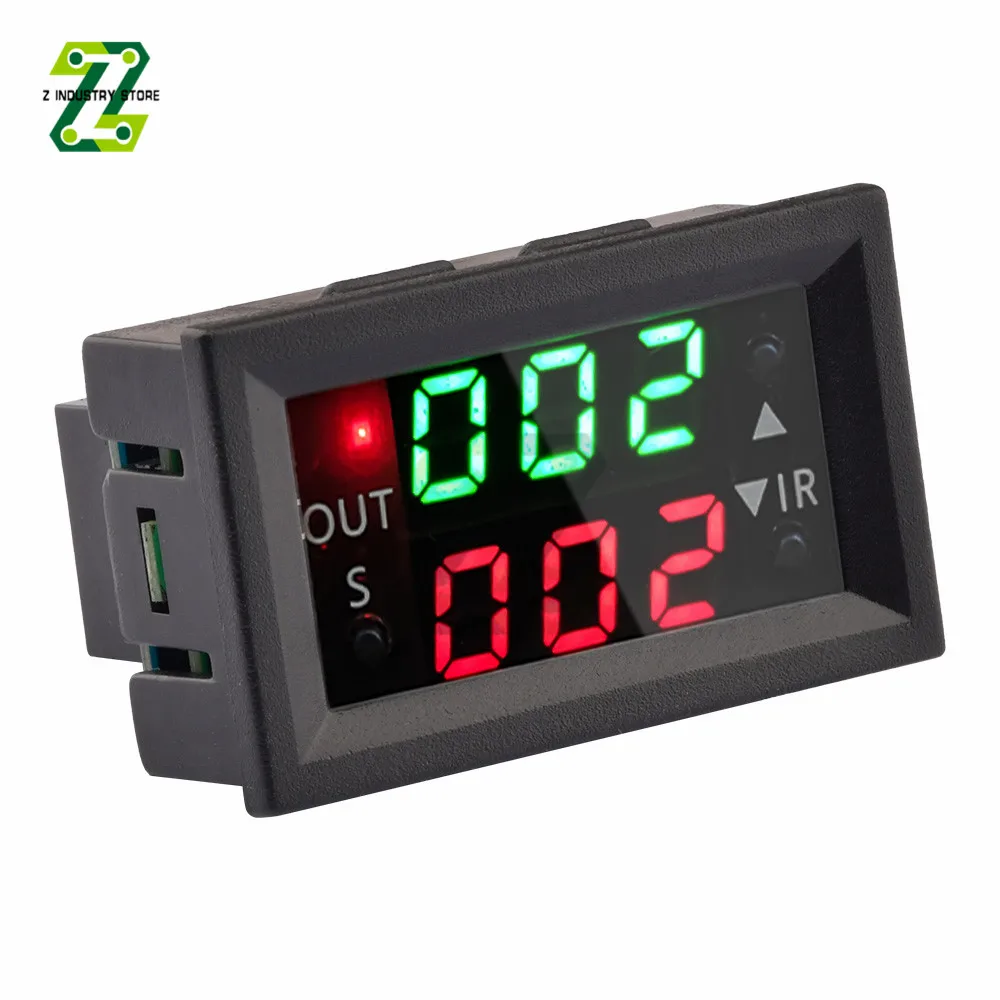

Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output

Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output

white
$19.58
$19.58 $0.00
Skip to product information
Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
  • Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output
$19.58
$19.58 $0.00
Size
Description

SPECIFICATIONS

Brand Name: Aideepen

Certification: NONE

Choice: yes

Contact Load: Low Power

High-concerned chemical: none

Model Number: T2401-N

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Theory: Time Relay

Use: General Purpose

Voltage: 12V

is_customized: Yes

semi_Choice: yes

Dual Display Time Relay Module DC 12V Time Delay Relay Relay Timing Delay Cycle Time Control Switch 20A Passive Output


Product selling point

1: Wide range of applications

2: Exquisite appearance

3: Small size

4: Simple to use

5: Passive output


Parameter

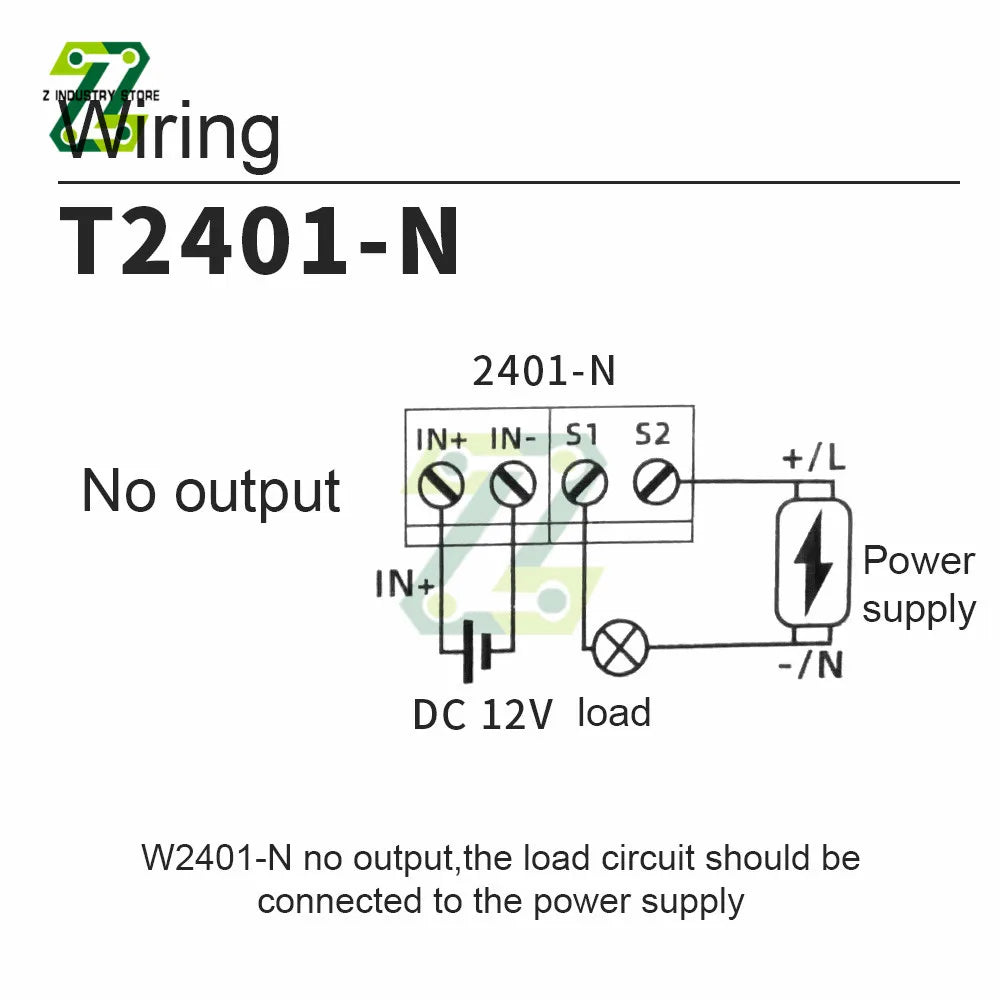

Contacts de-energized No output

Can be connected to loads other than 12V

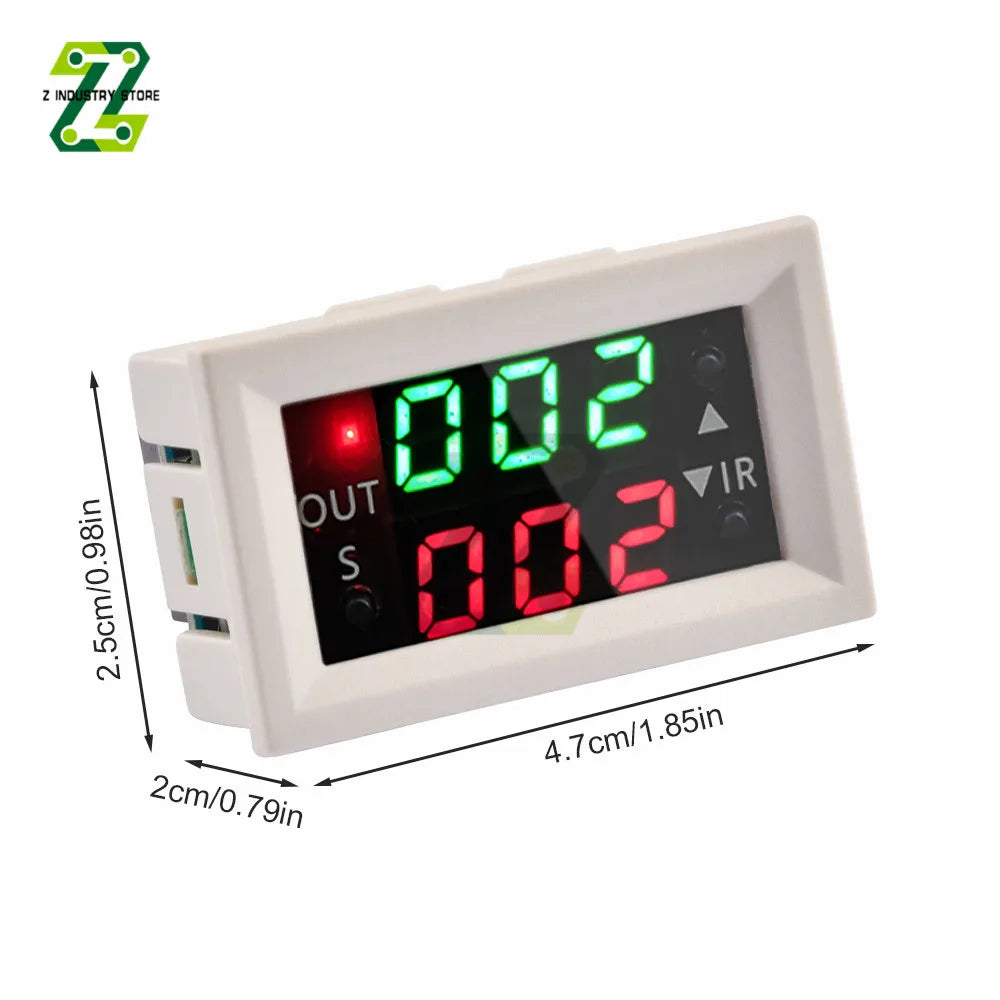

Size: 47.6×28.6×33.2mm

Embedded installation

Mounting opening: 45×26.1mm

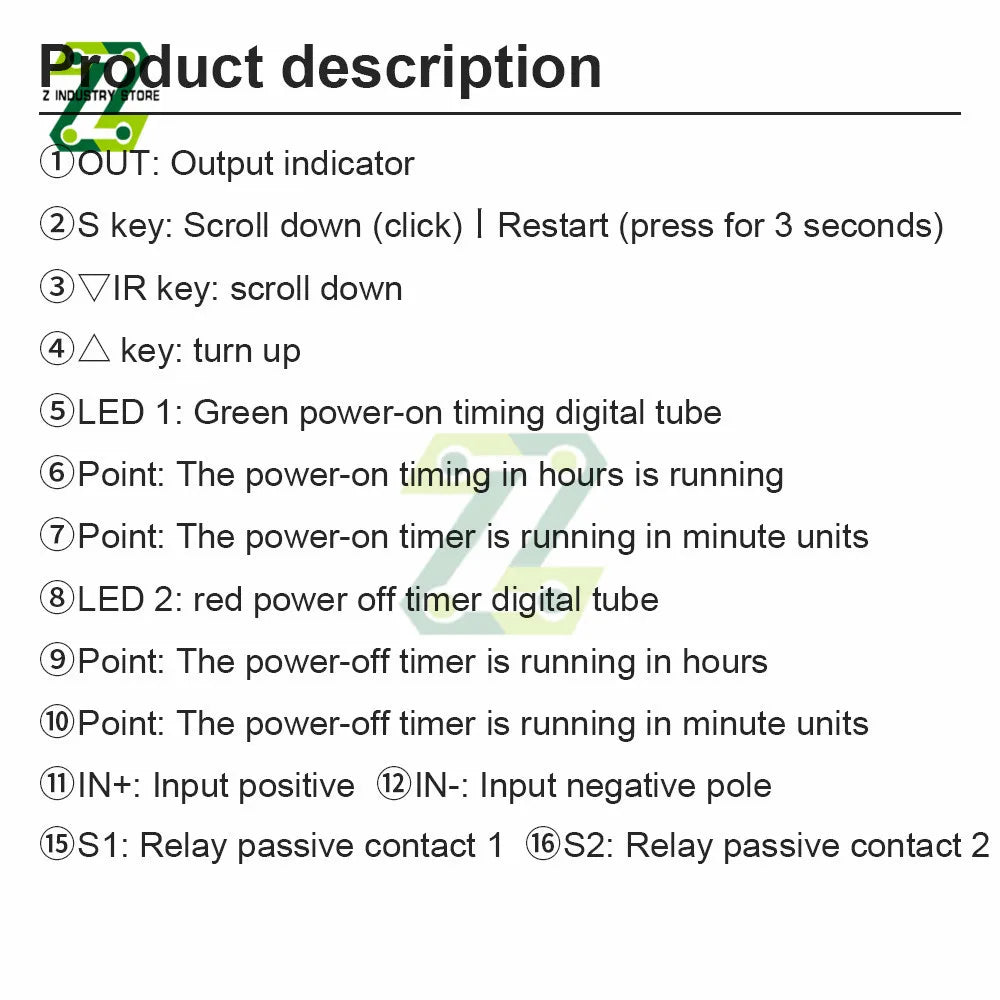

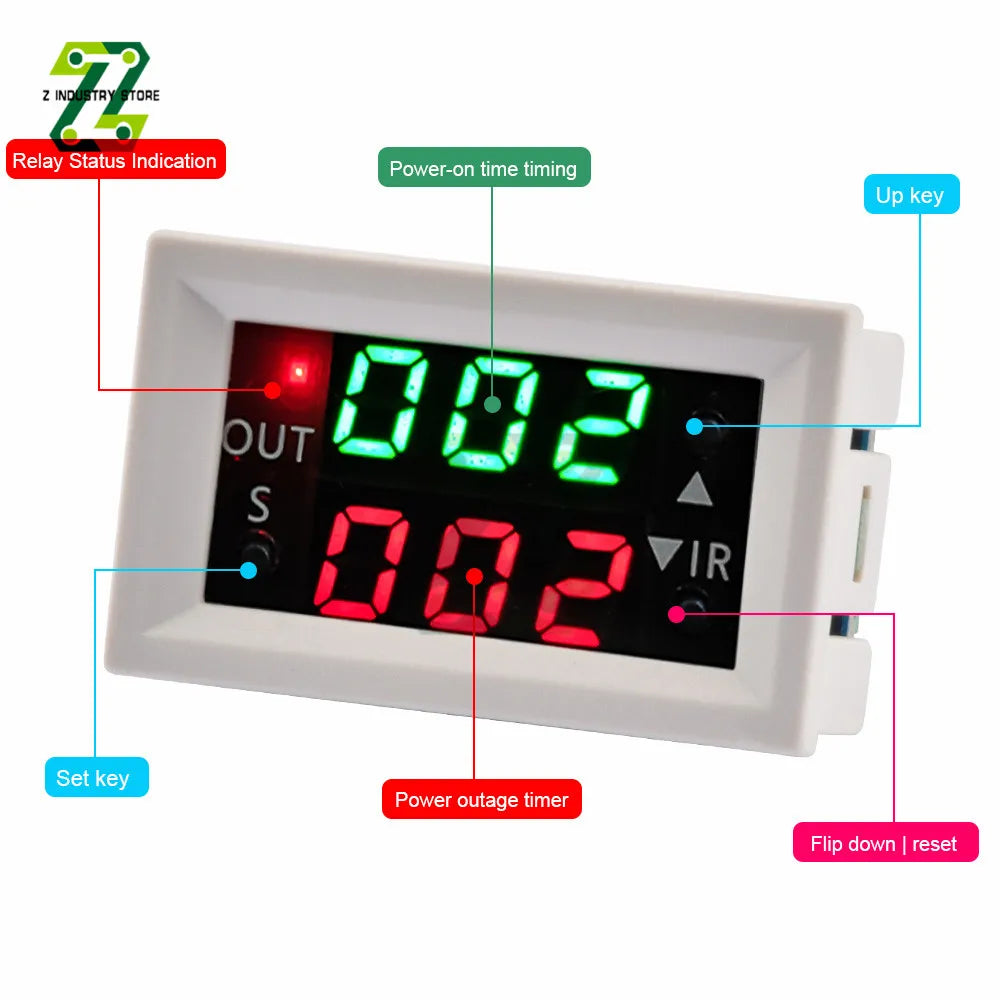

Green on and red off and the timing display starts. The stop timer unit is easy to set independently and easy to use

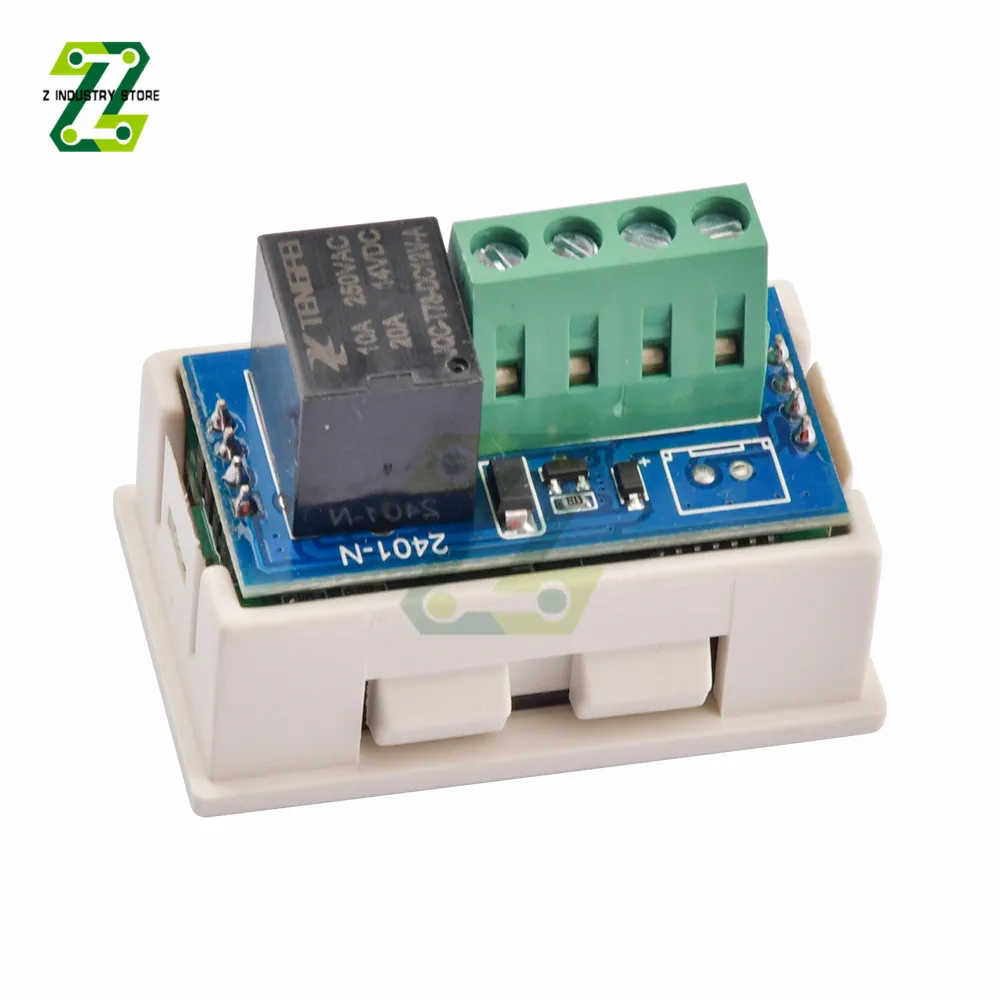

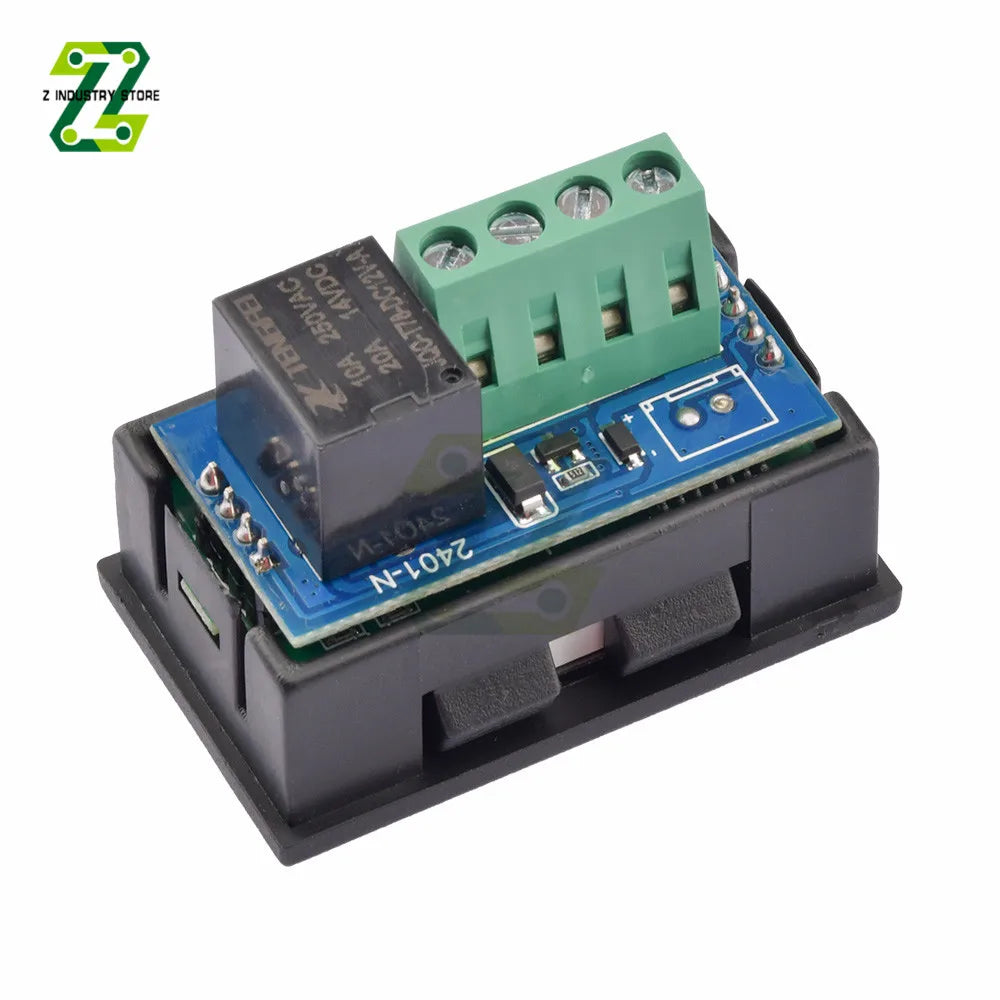

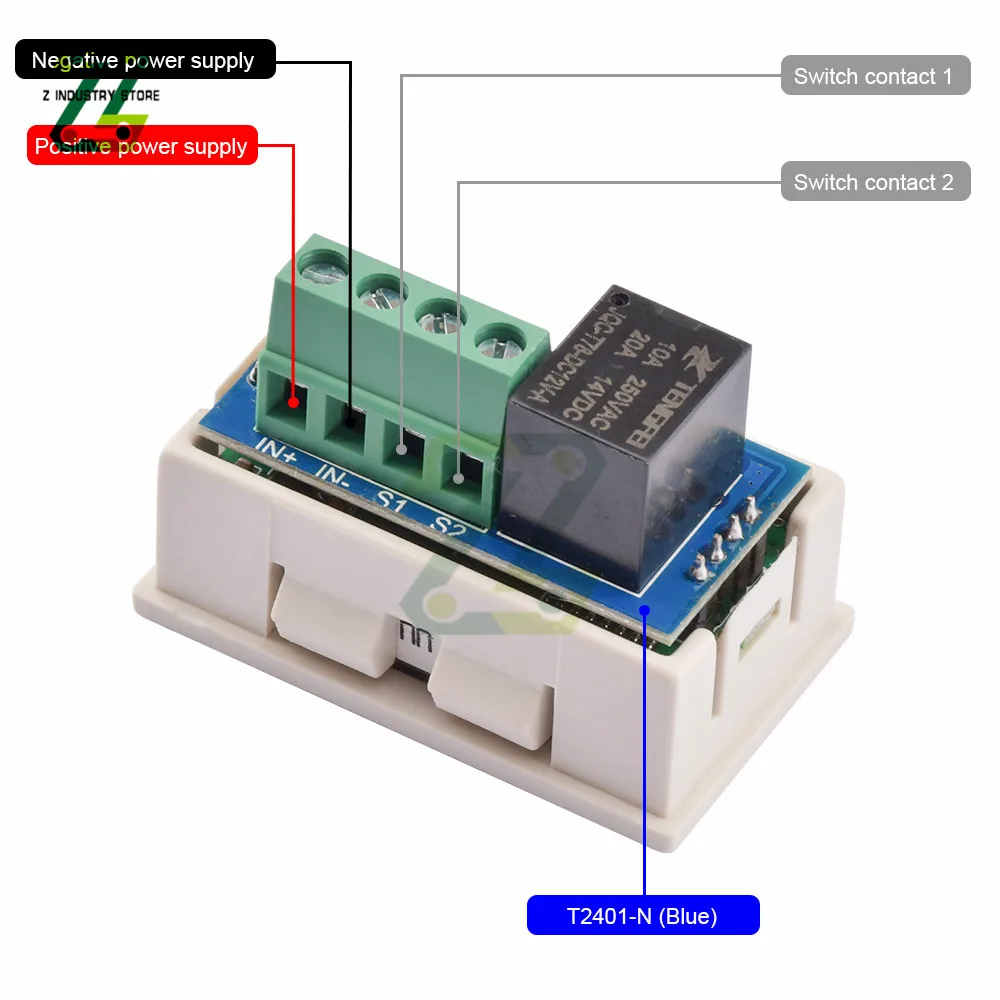

1-way normally open relay control on-off

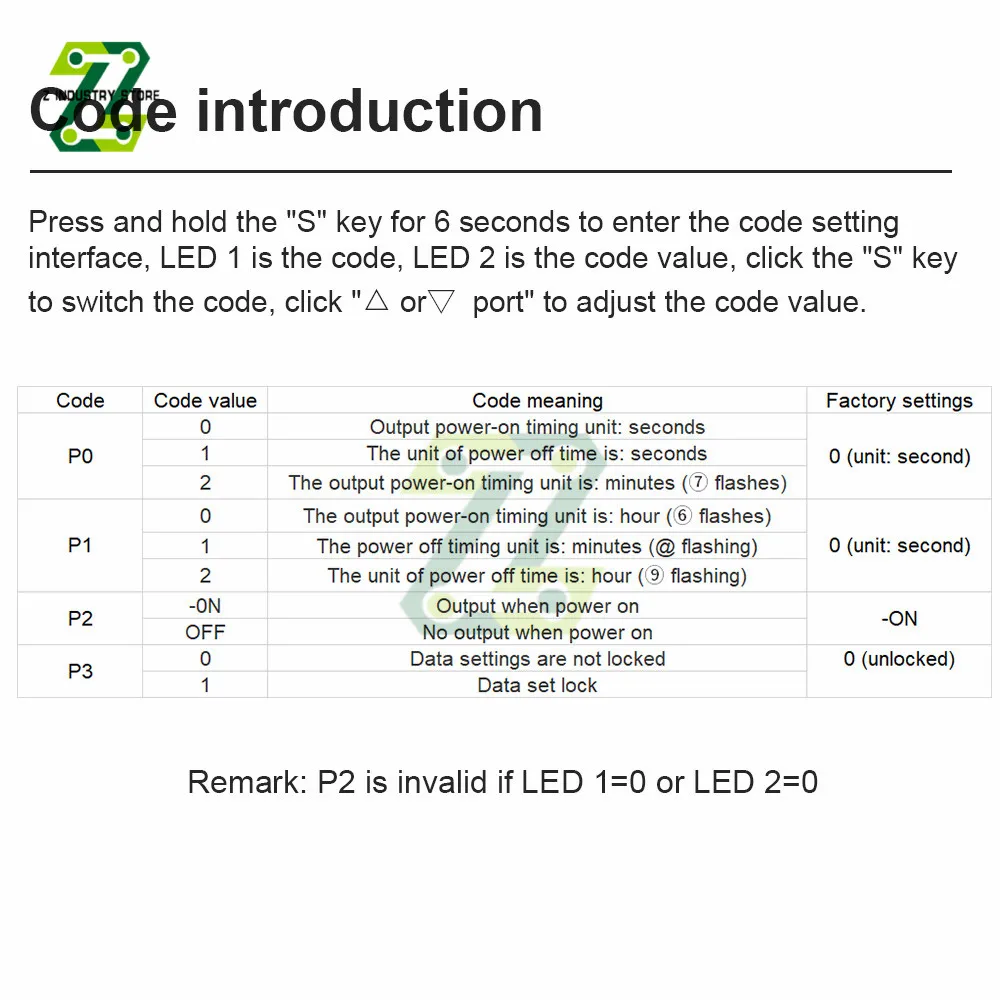

There is a setting lock to prevent accidental touch

Adjustable timing range

0~999 (seconds, minutes, hours) Minimum timing unit: 1 second

Timing error: ±4.5%

Integrated crystal oscillator

Power-on auto-run power-off save settings

Working voltage: DC12V

load power

DC12V 20A240wAC220V 150ow ( max )

Loop switch supported

Alternate 1 switch is not supported


List:

1*DC12V delay dual display digital time relay module
