SPECIFICATIONS

Brand Name: diymore

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

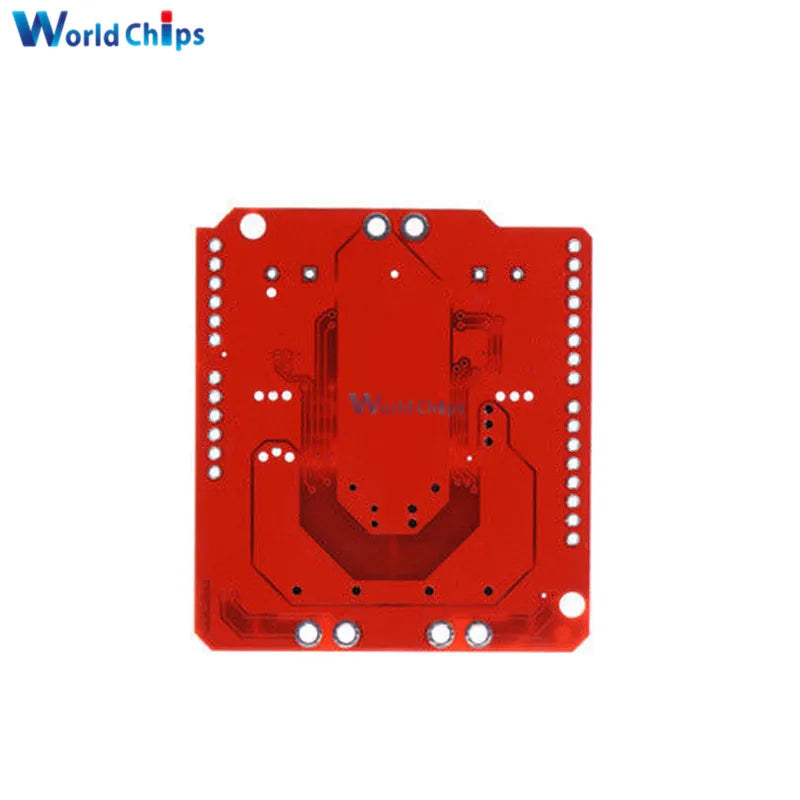

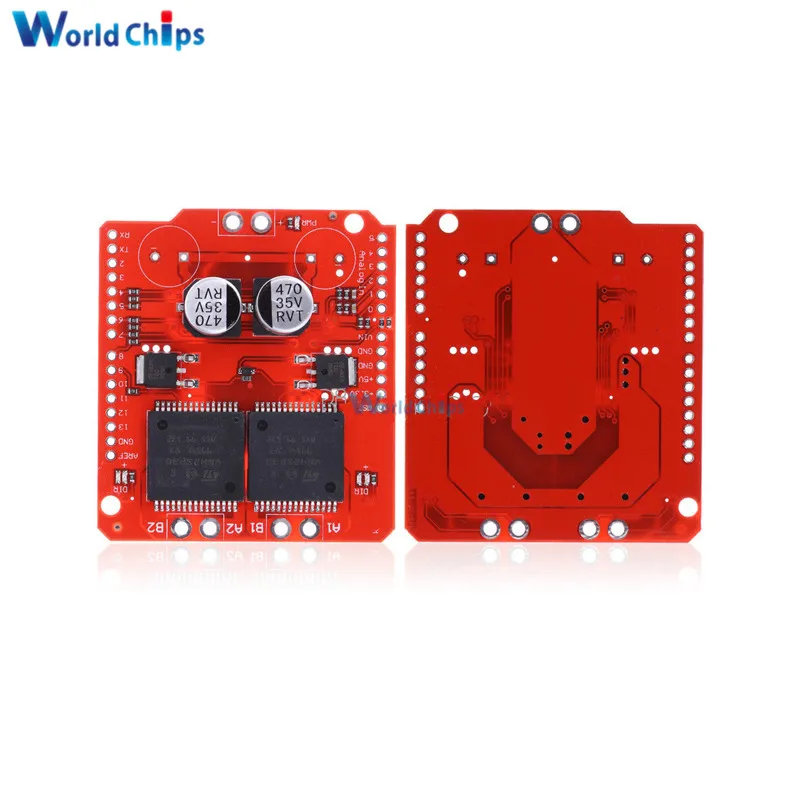

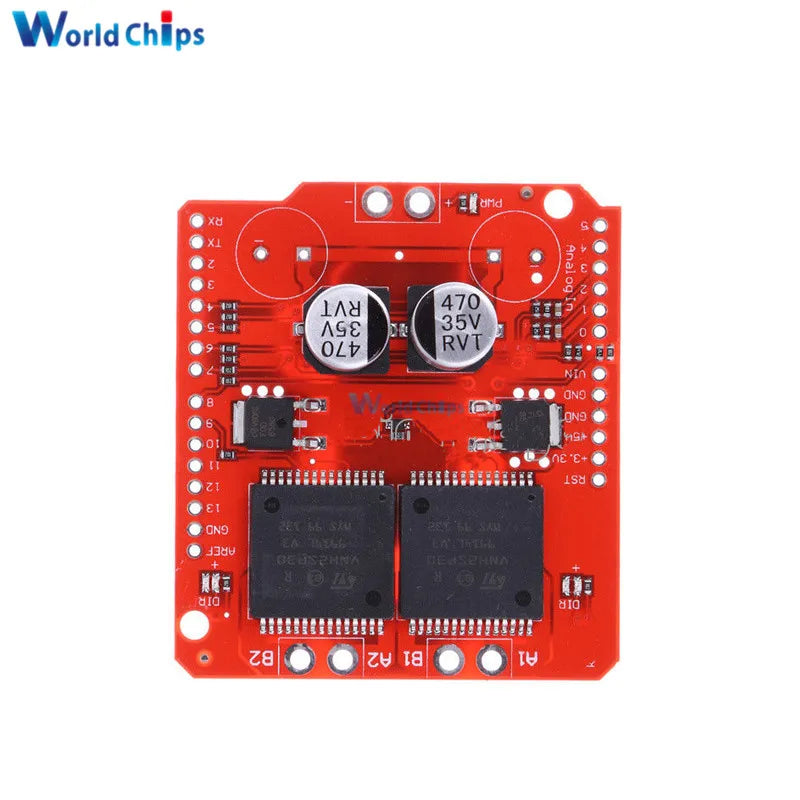

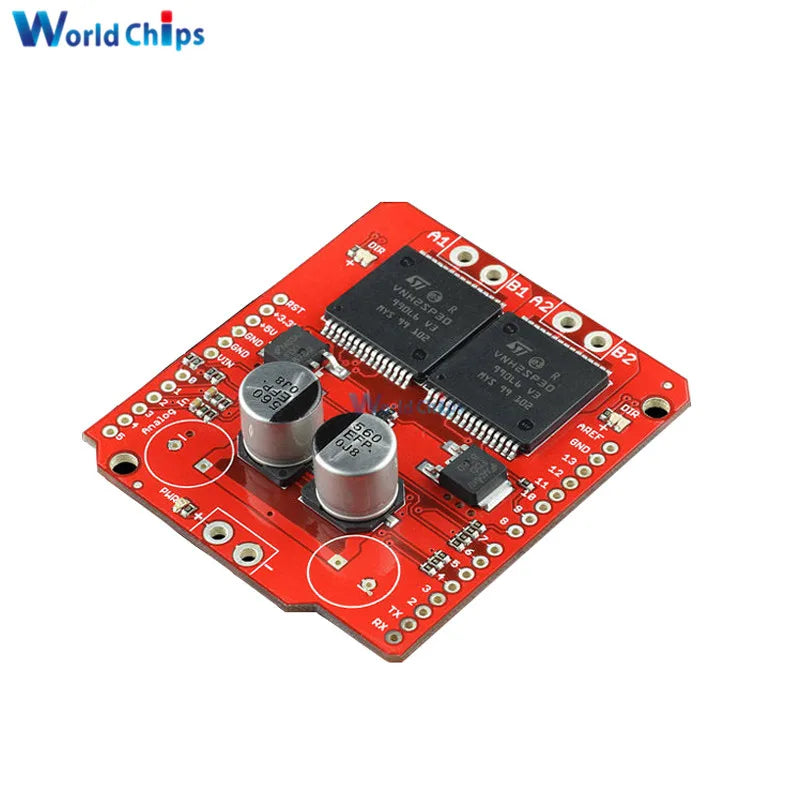

this is essentially a ramped up version of motor driver shield. For this shield we've replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers. We've also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.

Note:When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm.

Features:

Voltage max: 16V

Maximum current rating: 30 A

Practical Continuous Current: 14 A

Current sensing available to for Arduino analog pin

MOSFET on-resistance: 19 m (per leg)

Maximum PWM frequency: 20 kHz

Thermal Shutdown

Undervoltage and Overvoltage shutdown

package include:

1*Dual VNH2SP30 Stepper Motor Driver Module 30A Moto Shield Replace L298N
