SPECIFICATIONS

Application: Computer

Brand Name: TZT

Condition: New

Dissipation Power: ..

Functions: Electronic Module

High-concerned chemical: none

Operating Temperature: -40-+85

Origin: Mainland China

Range of application: Switch And Sensor For Arduino STM

Supply Voltage: 7-12V

Type: Voltage Regulator

is_customized: Yes

Note:This is not the same as other Arduino boards, the Arduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I/O pin could damage the board.
ARM core strengths
The use of 32 bit ARM core Due compared to the previous use of the other Iduino core 8 AVR more powerful.

The main differences are:
* 32 bits at a clock can process 32 bits of data.
* CPU clock frequency of 84Mhz
* 96 SRAM KBytes
* 512 Flash KBytes
* A DMA controller, can reduce the pressure on the CPU to do a lot of computing

Features:

Microcontroller: AT91SAM3X8E
Operating Voltage: 3.3V
Input Voltage (recommended): 7-12V
Input Voltage (limits): 6-16V
Digital I/O Pins: 54 (of which 12 provide PWM output)
Analog Input Pins: 12
Analog Outputs Pins: 2 (DAC)
Total DC Output Current on all I/O lines: 130 mA
DC Current for 3.3V Pin: 800 mA
DC Current for 5V Pin: 800 mA
Flash Memory: 512 KB all available for the user applications
SRAM: 96 KB (two banks: 64KB and 32KB)
Clock Speed: 84 MHz

Package Includes:

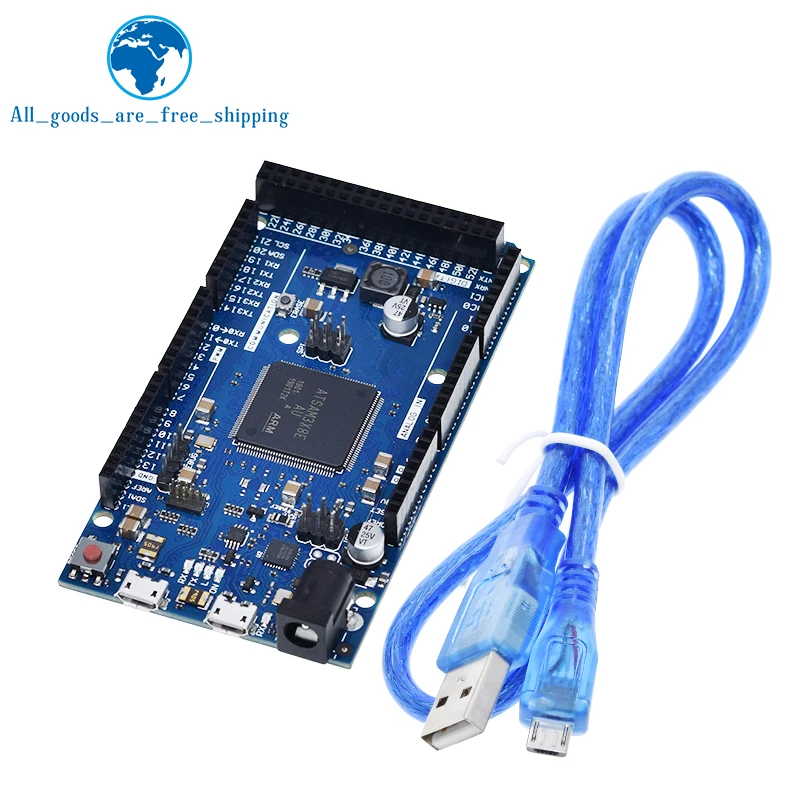

•1 x AT91SAM3X8E DUE Board
