Description

SPECIFICATIONS

Battery Included: no

Brand Name: DWEL

Certification: CE,RoHS

High-concerned chemical: none

Max Measuring Range: 400 Bar & Above

Model Number: GPE410

Origin: Mainland China

Semi-finishedproduct: No

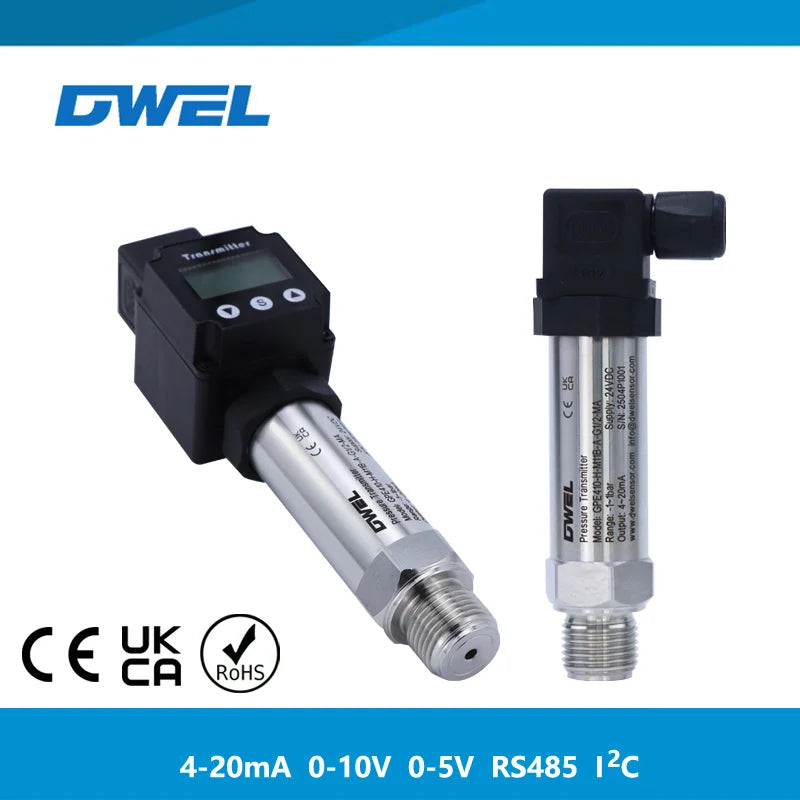

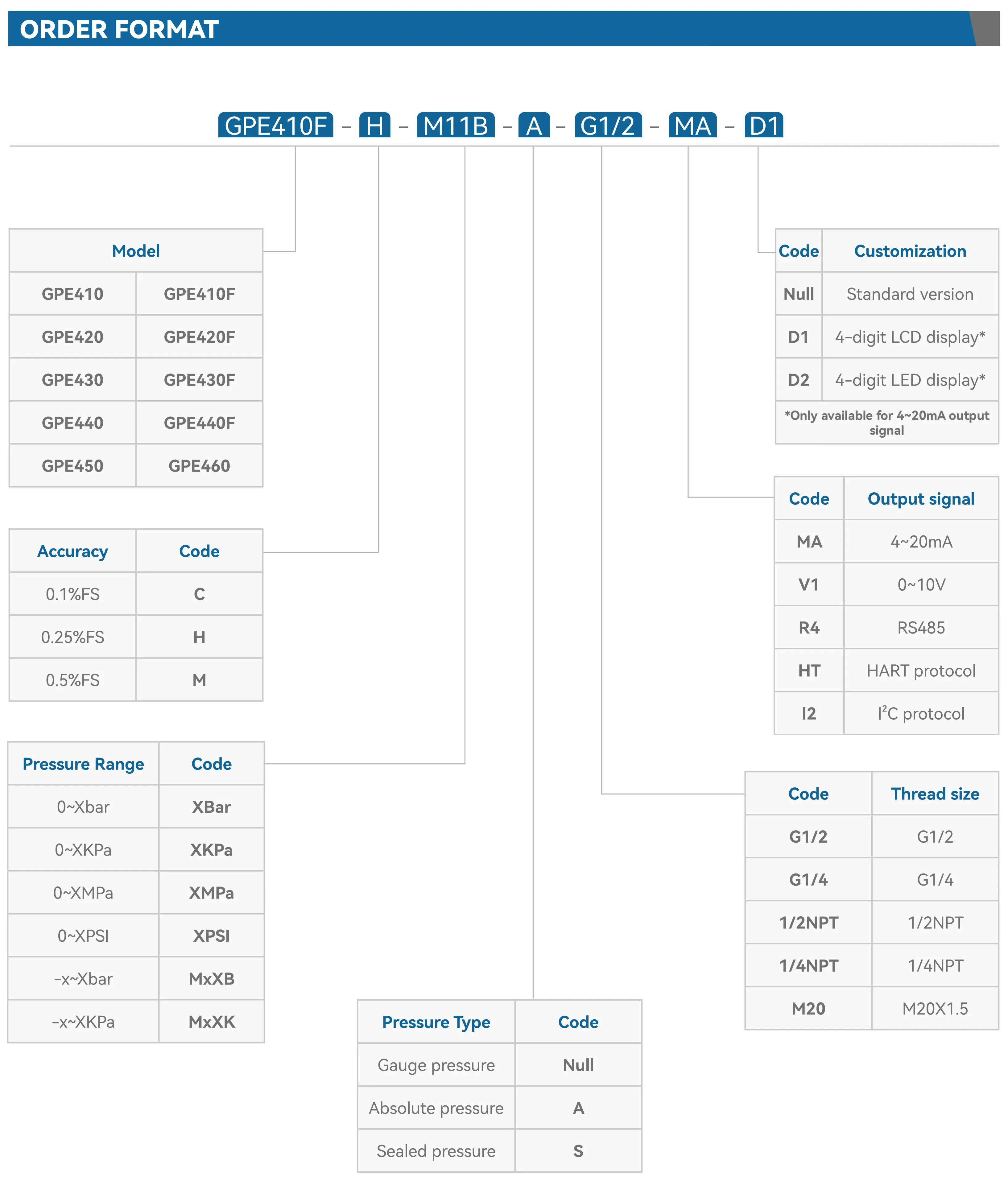

Order note: The display only available with 4-20mA output, if the extra display is needed, please order sensor + display together (two items)

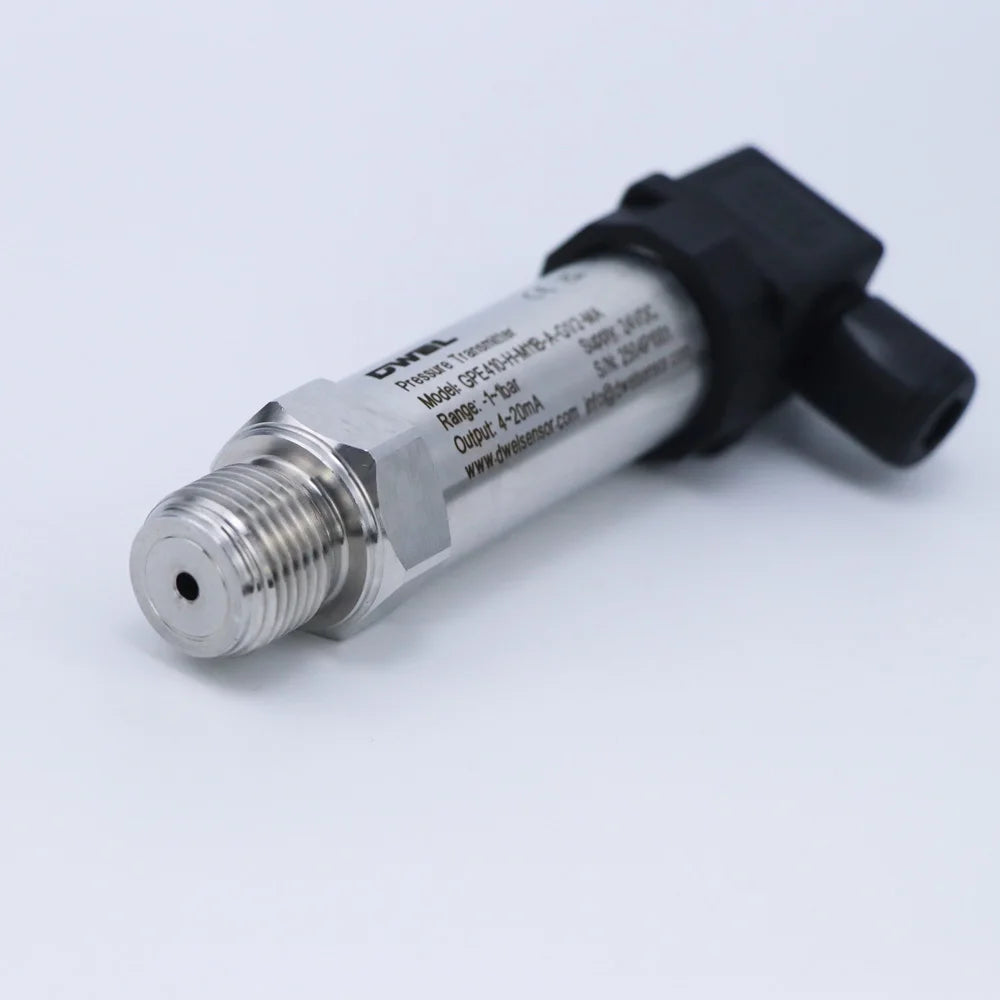

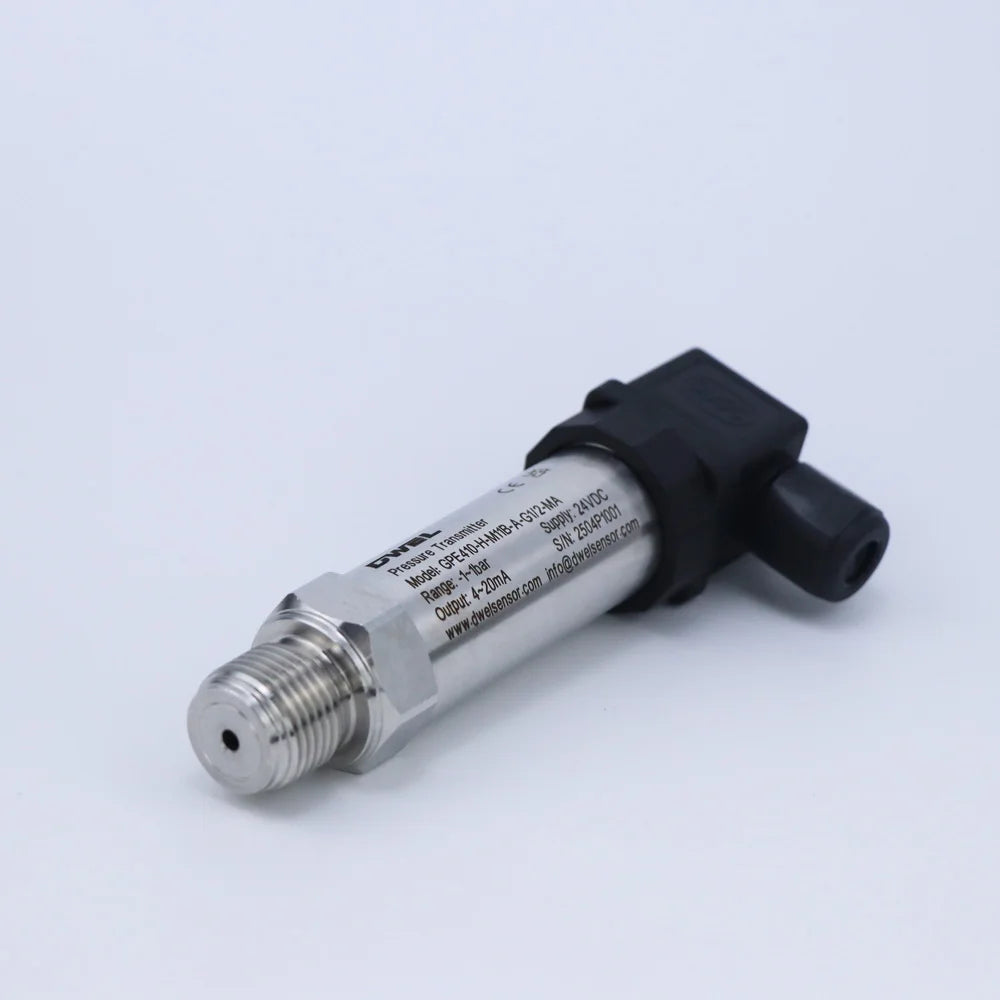

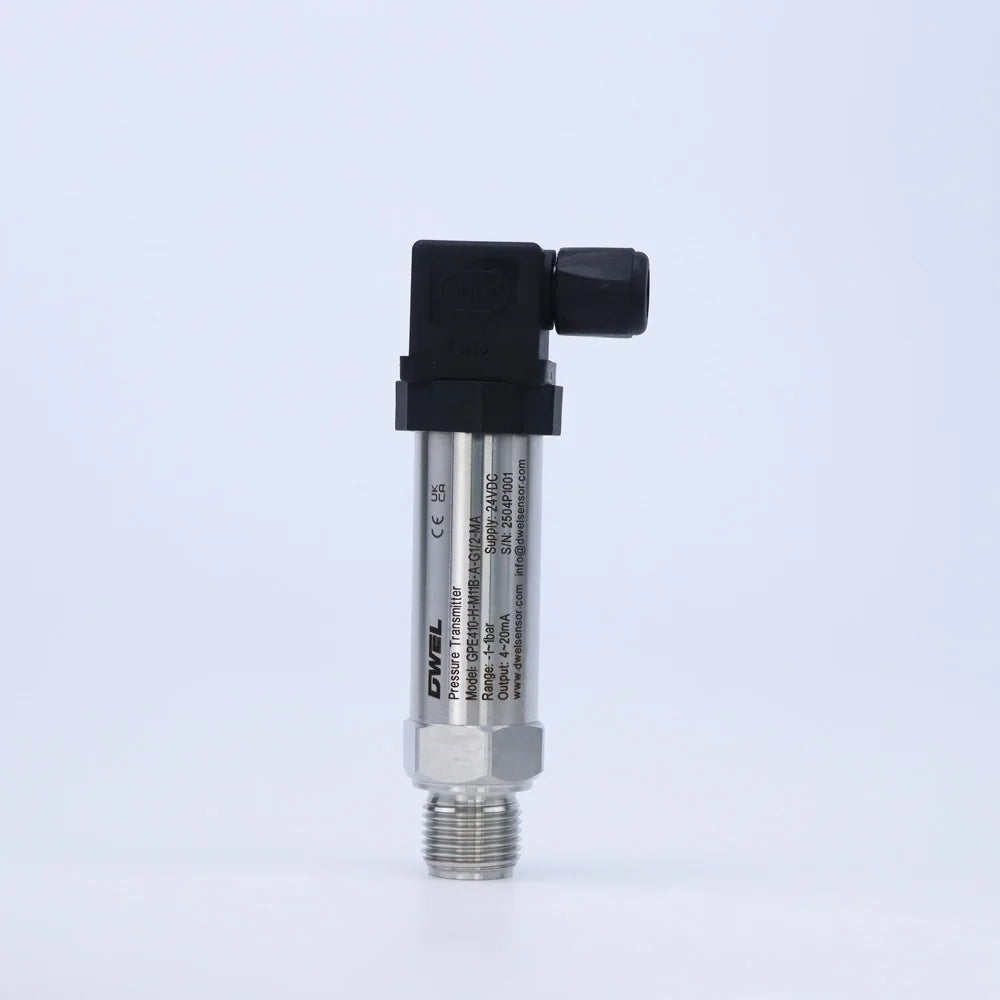

GPE400 Series General Type Pressure Transmitter

Features

l Easy installation

l Designed for various industries

l Full range options

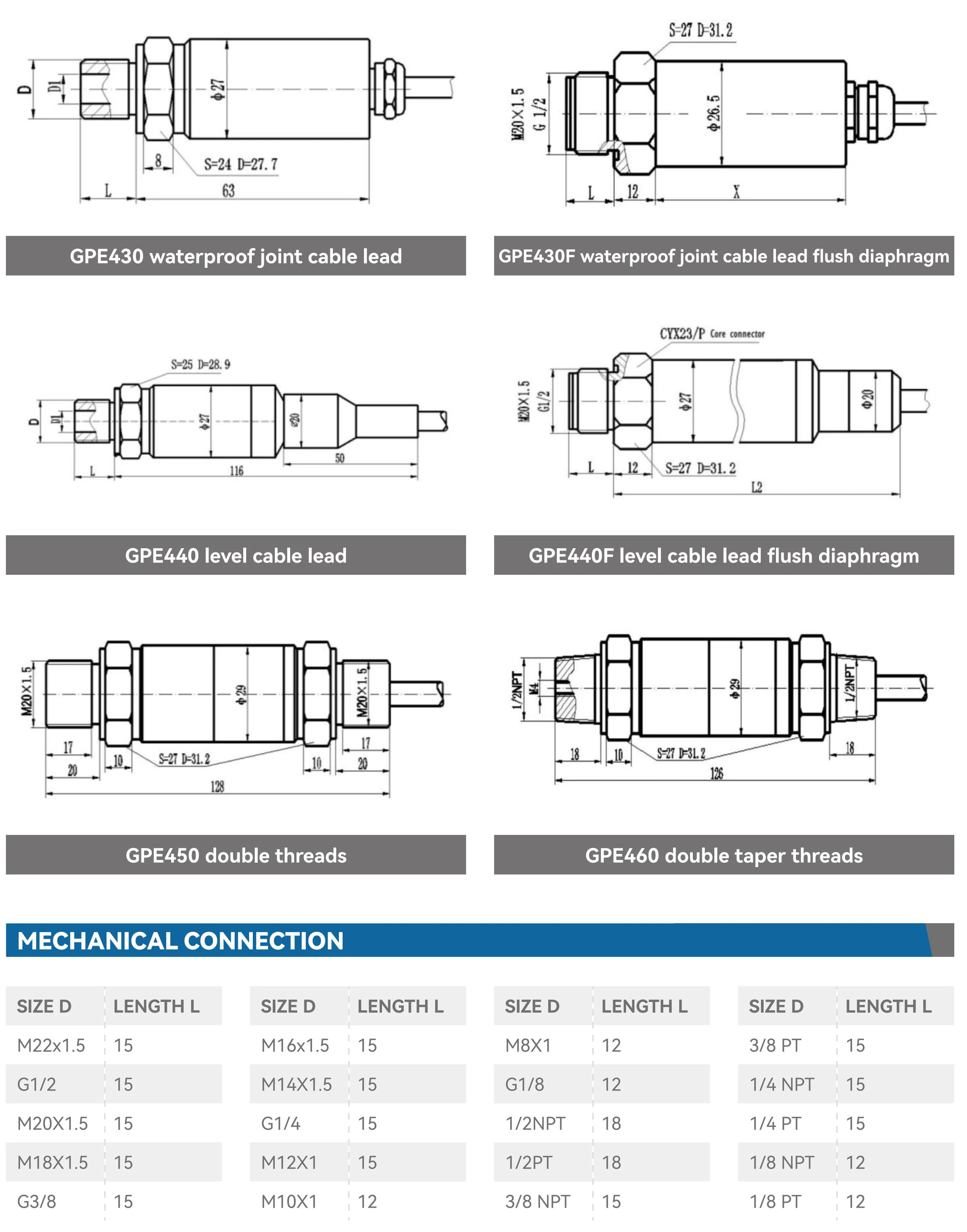

l Various structures optional

Introduction

The GPE400 series pressure transmitters utilize highly reliable silicon piezoresistive pressure sensors as the core sensing element. Through temperature compensation, digital circuit correction, and signal conditioning, they output standard signals for industrial applications and networking. Each product undergoes a thorough development process, including careful design, component selection, process validation and curing, cyclic loading, stress relief, aging, environmental simulation testing, and more, ensuring the stability and reliability of every unit.

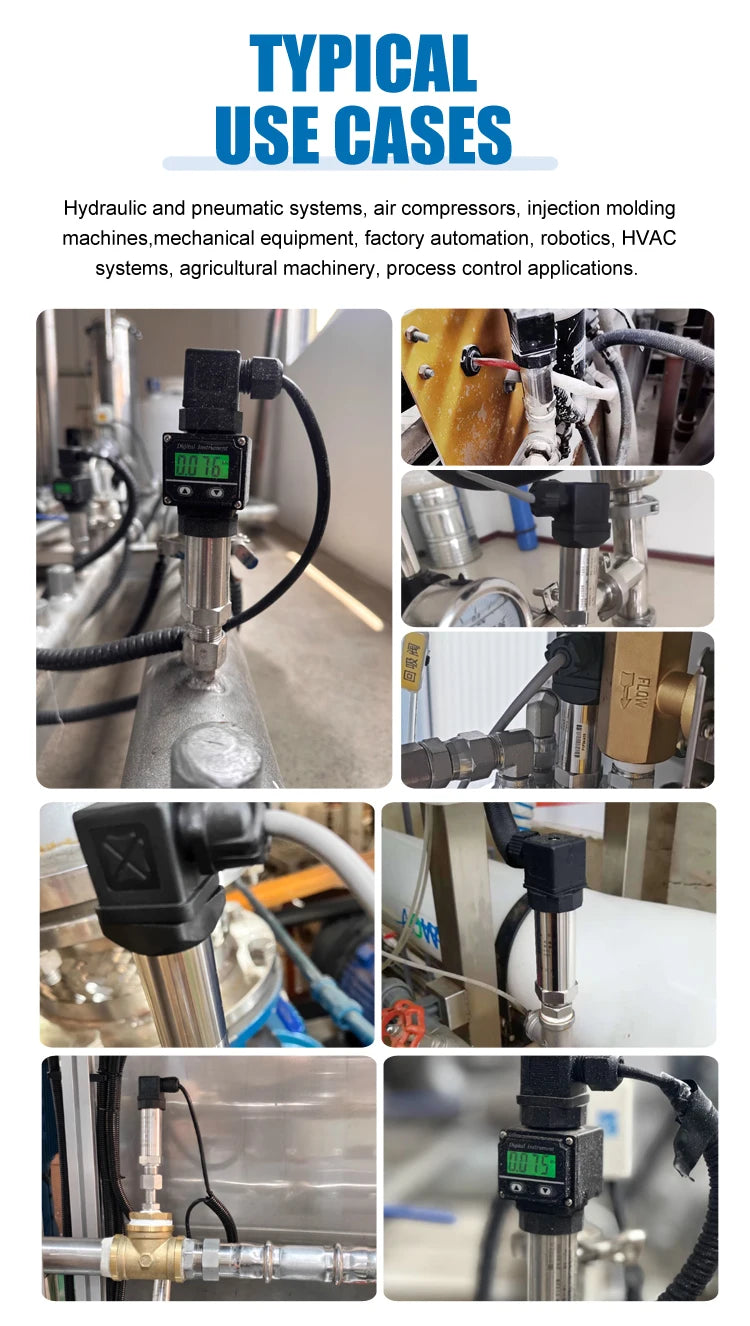

Applications

The GPE400 series pressure transmitters are widely used in industries such as coal mining, oil fields, environmental protection, pharmaceuticals, water management, shipping, and more.

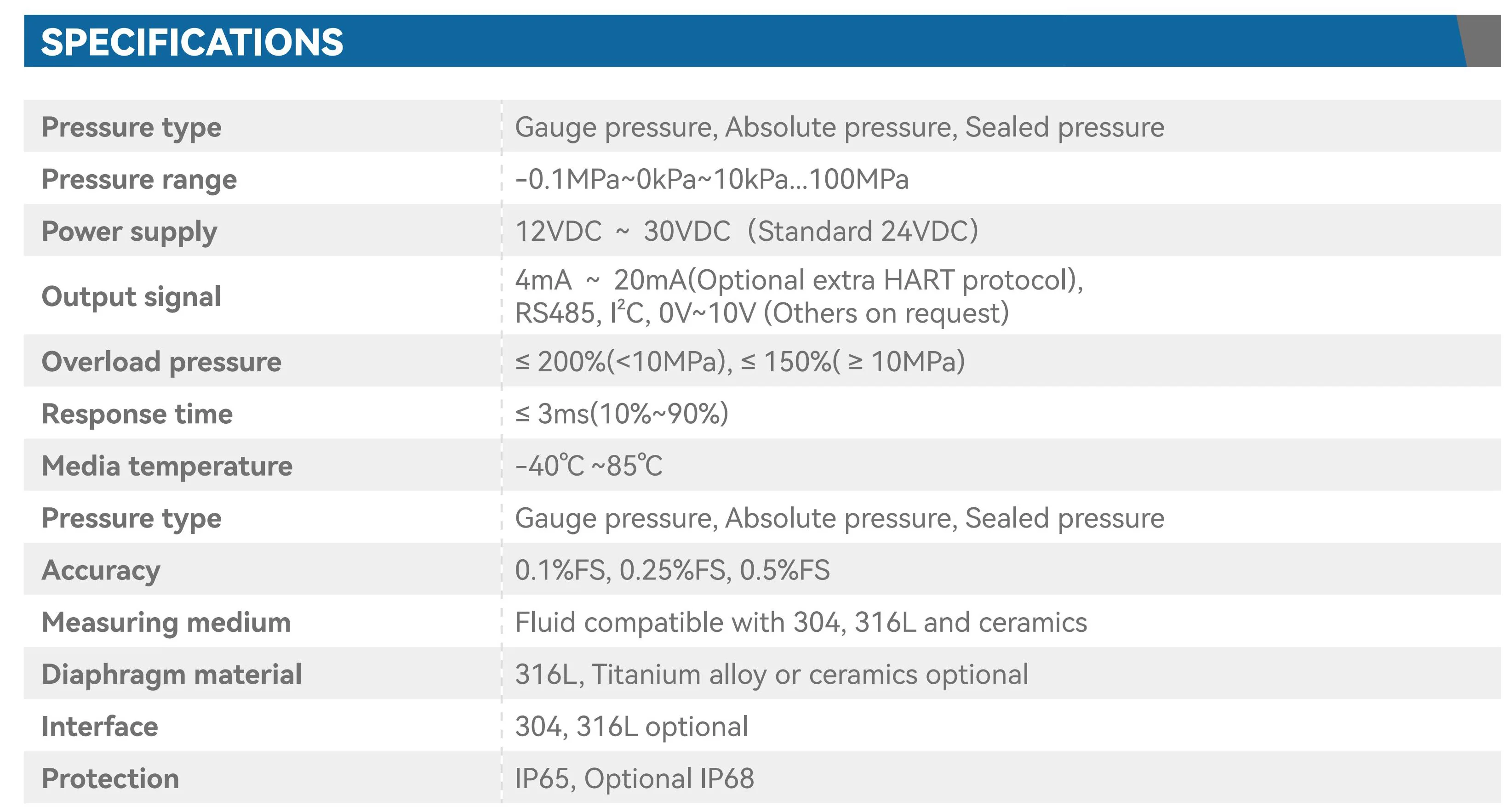

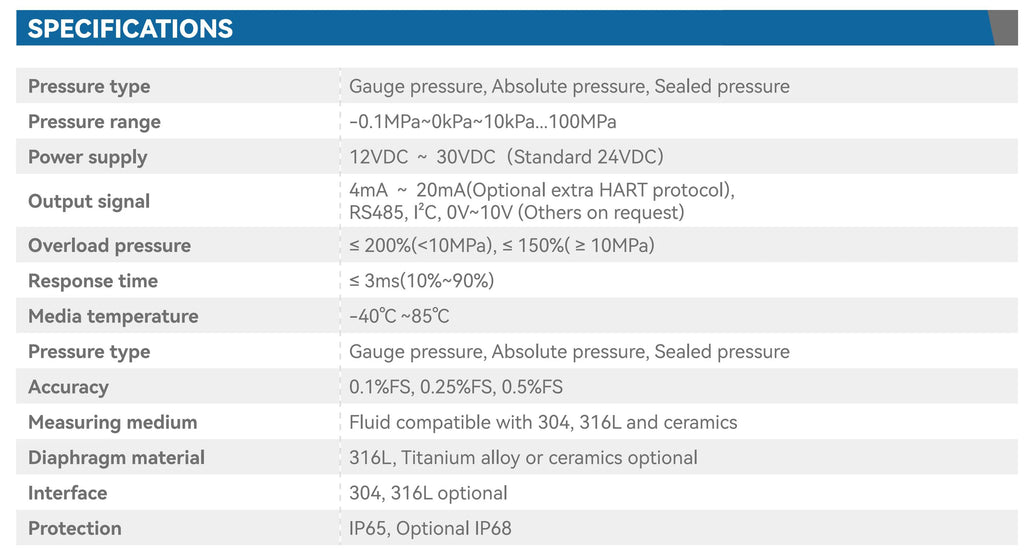

Pressure type	Gauge pressure, Absolute pressure, Sealed pressure
Pressure range	-0.1MPa~0kPa~10kPa...100MPa
Power supply	12VDC～30VDC（Standard 24VDC）

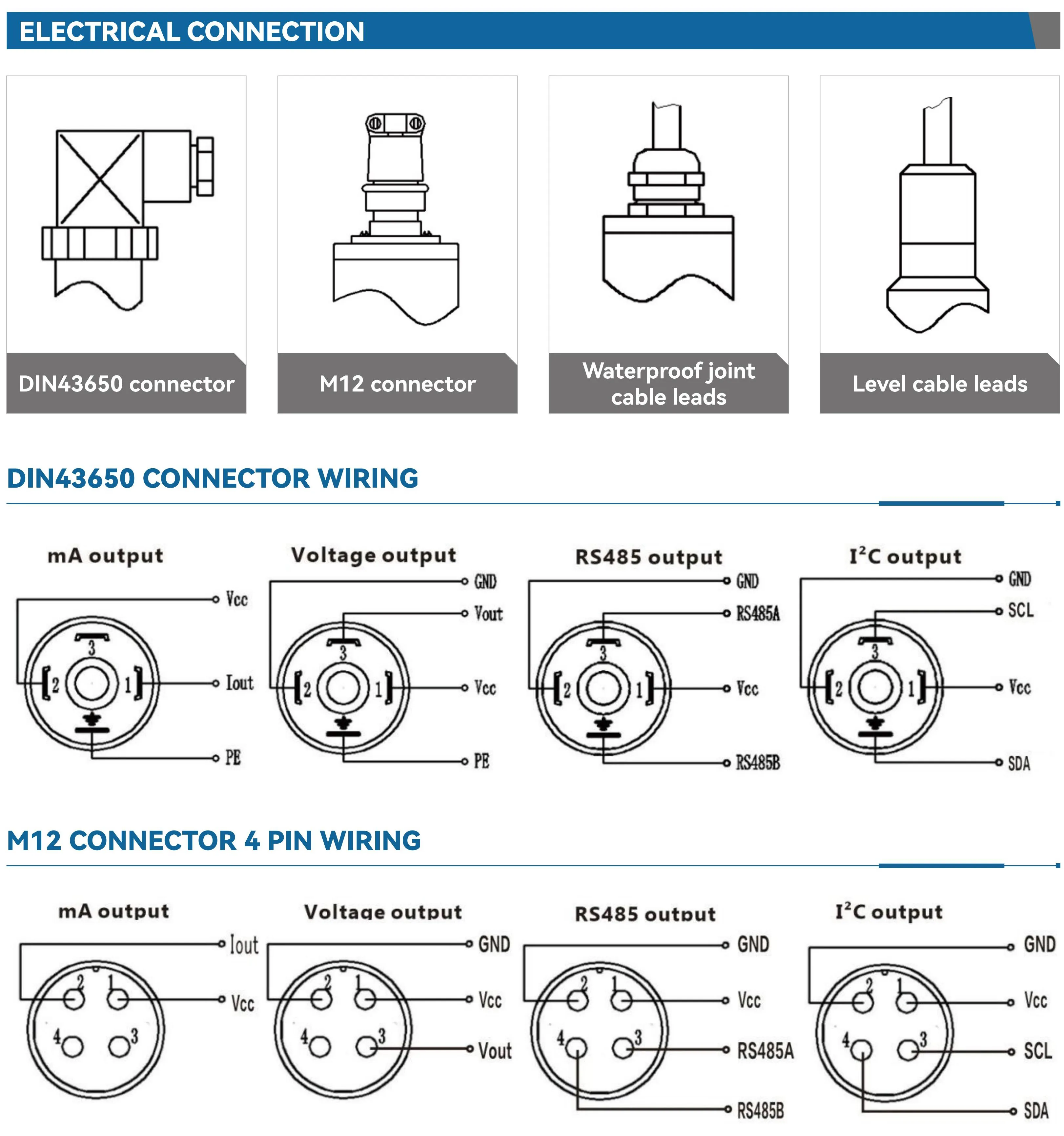

Output signal	4mA～20mA(Optional extra HARTprotocol), RS485, I²C, 0V~10V (Others on request)
Overload pressure	≤200%(<10MPa), ≤150%(≥10MPa)
Response time	≤3ms(10%~90%)
Media temperature	-40℃~85℃
Accuracy	0.1%FS, 0.25%FS, 0.5%FS
Measuring medium	Fluid compatible with 304, 316Land ceramics
Diaphragm material	316L, Titanium alloy or ceramics optional
Interface	304, 316L optional
Protection	IP65, Optional IP68
