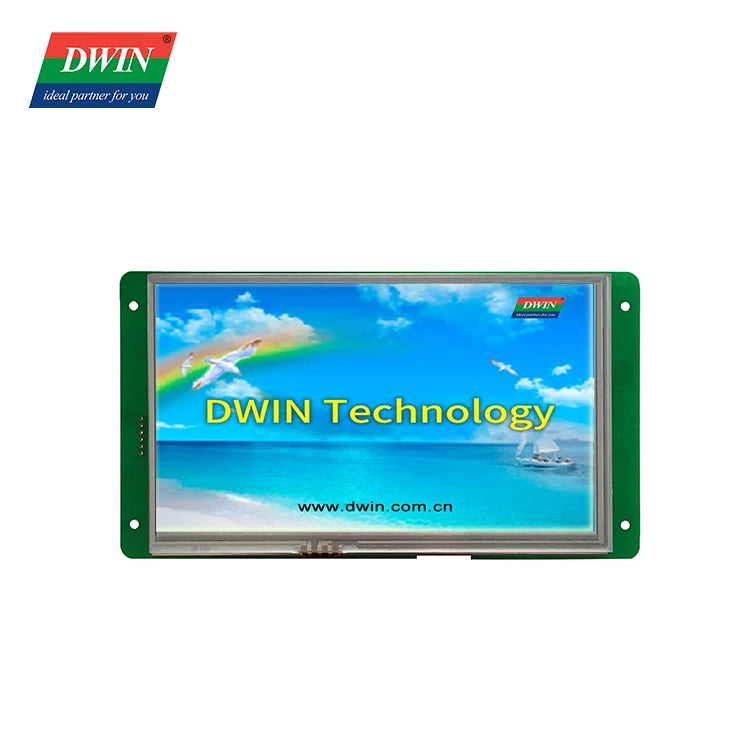

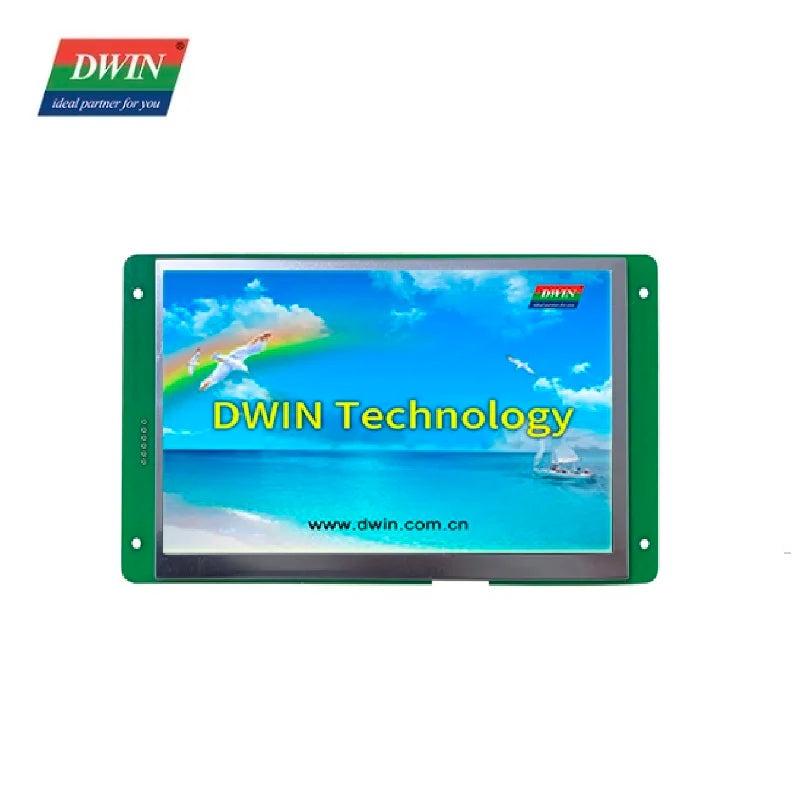

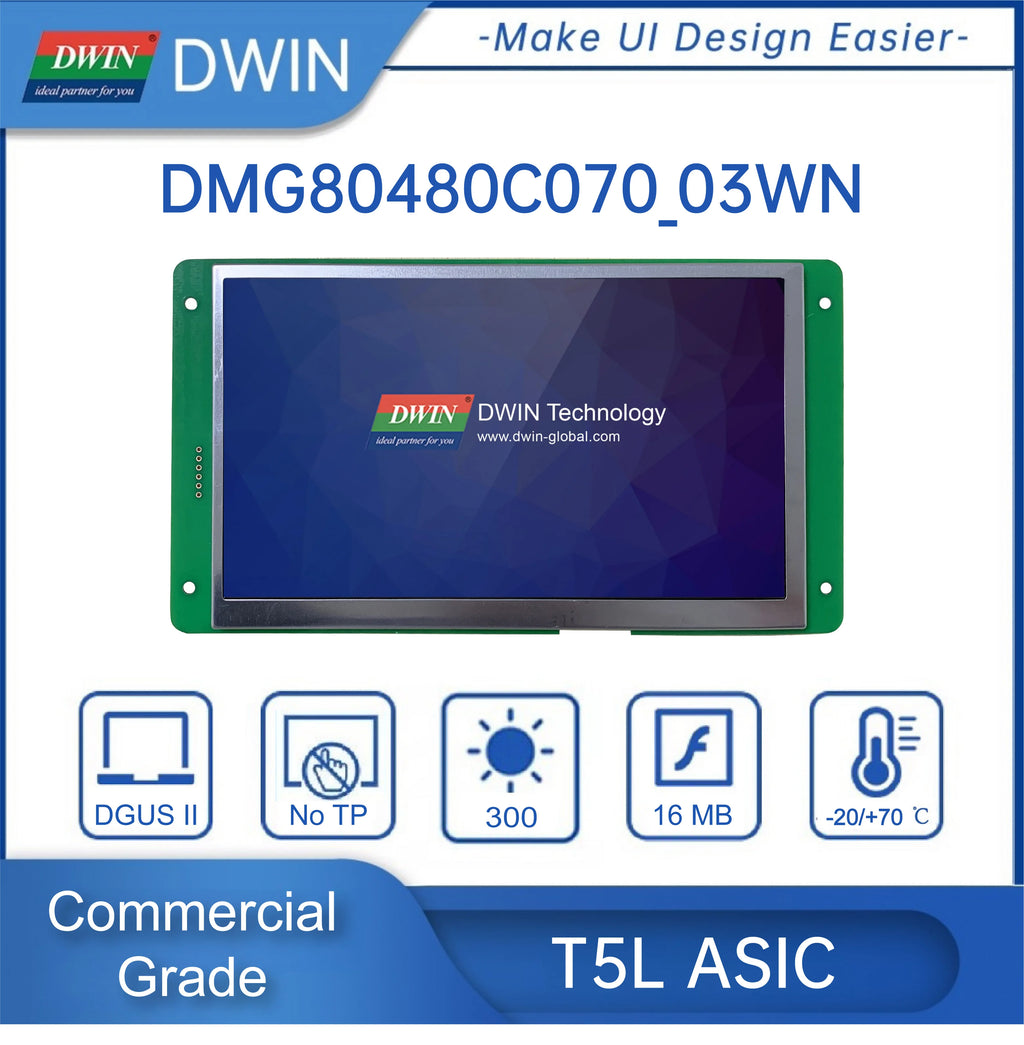

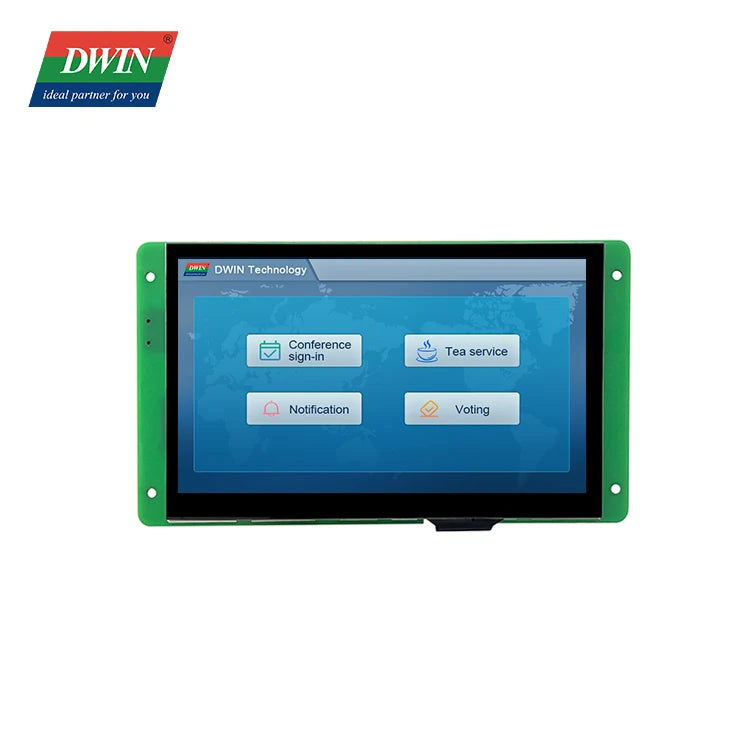

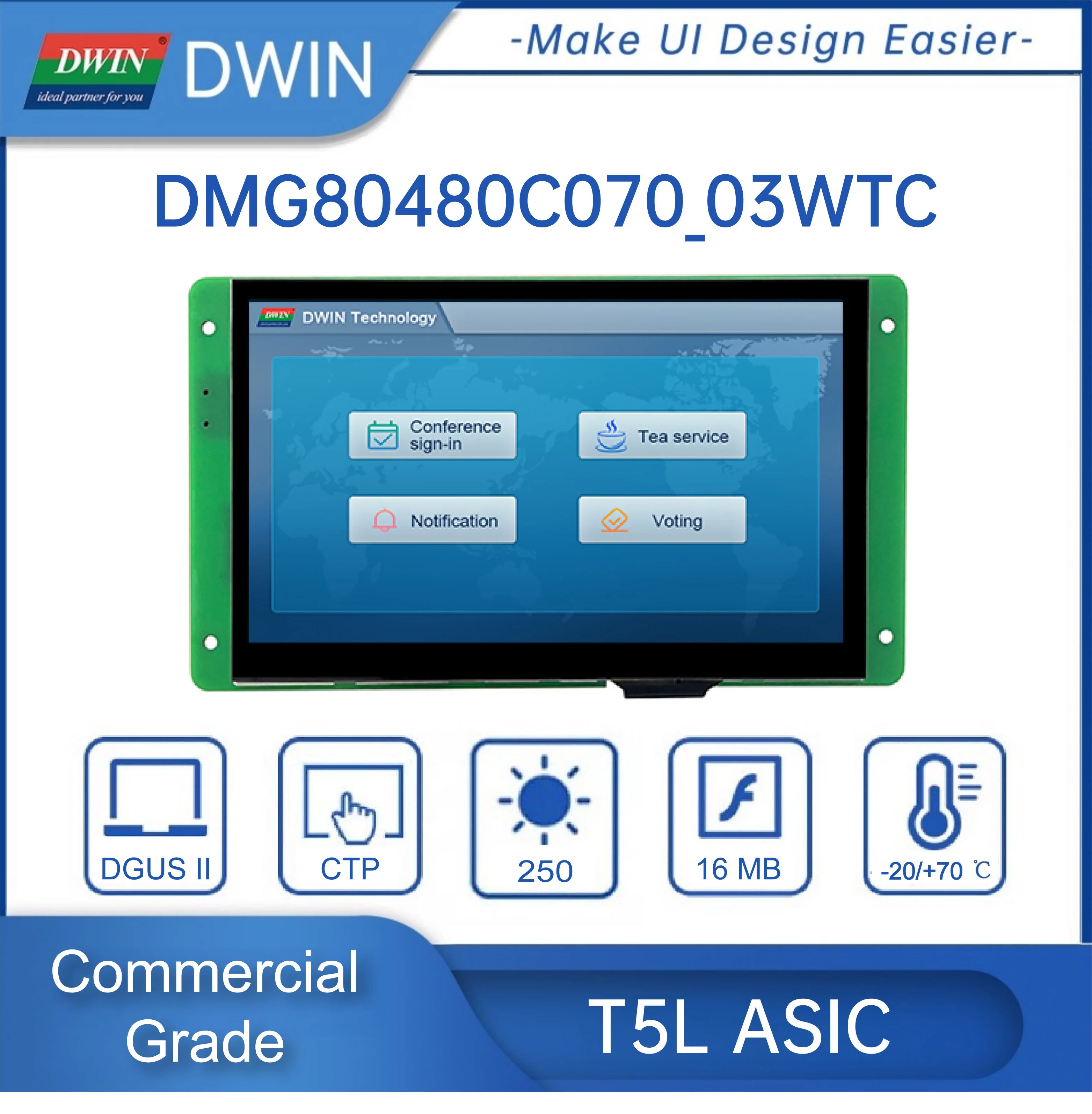

DWIN 7 Inch 800*480 HMI Intelligent TN TFT LCD Display Module UART Commercial Grade Capacitive Touch Screen DMG80480C070_03W

DWIN 7 Inch 800*480 HMI Intelligent TN TFT LCD Display Module UART Commercial Grade Capacitive Touch Screen DMG80480C070_03W

$103.41

$103.41 $0.00

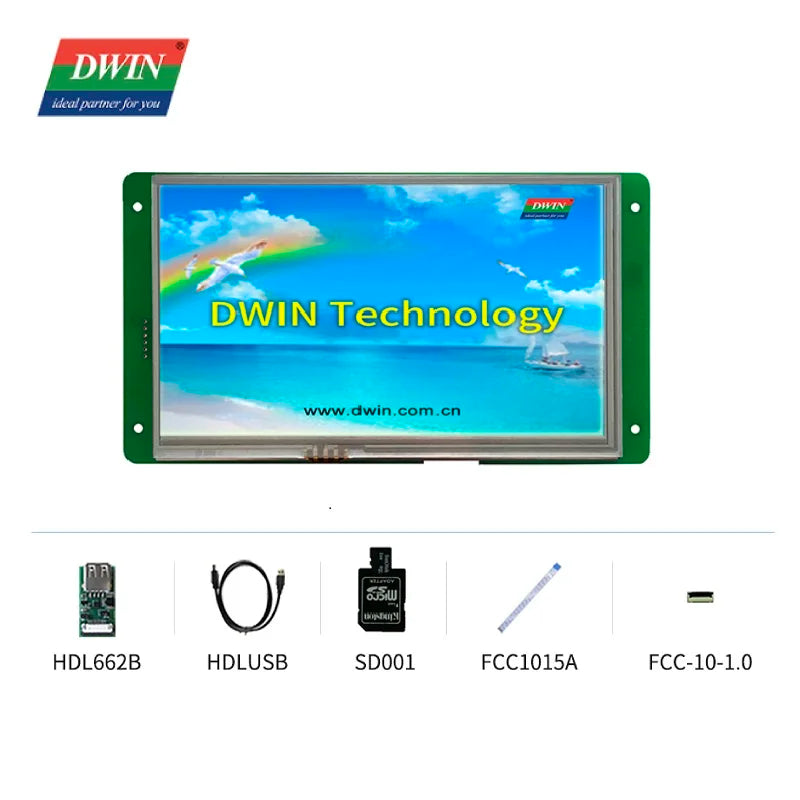

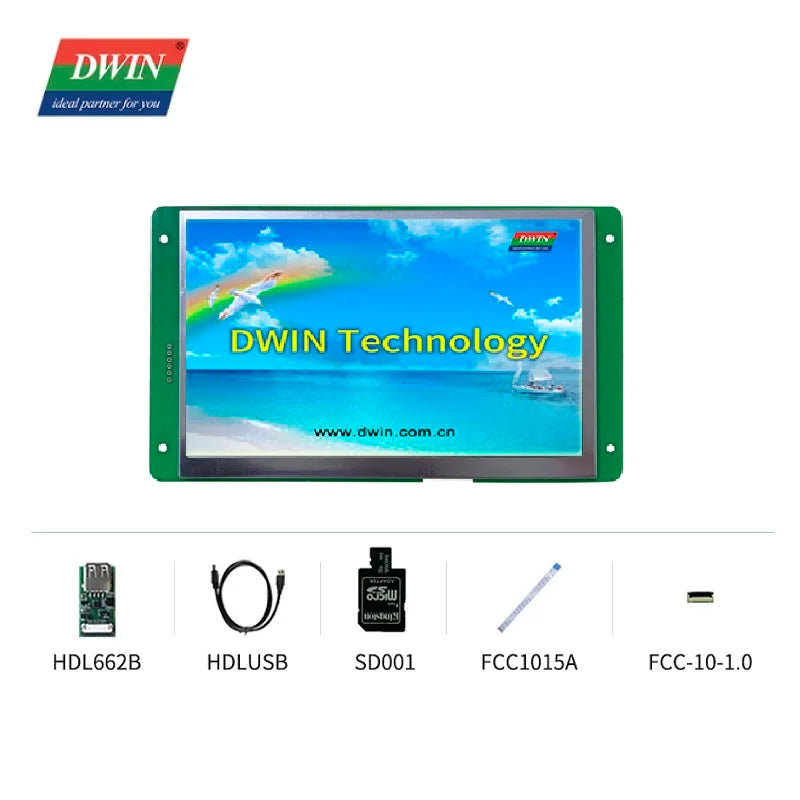

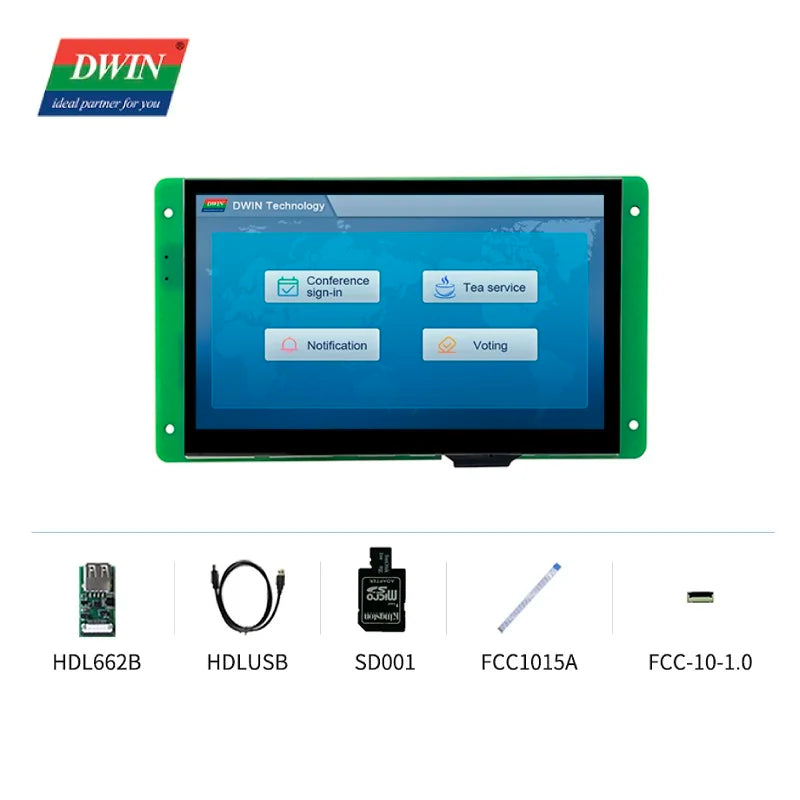

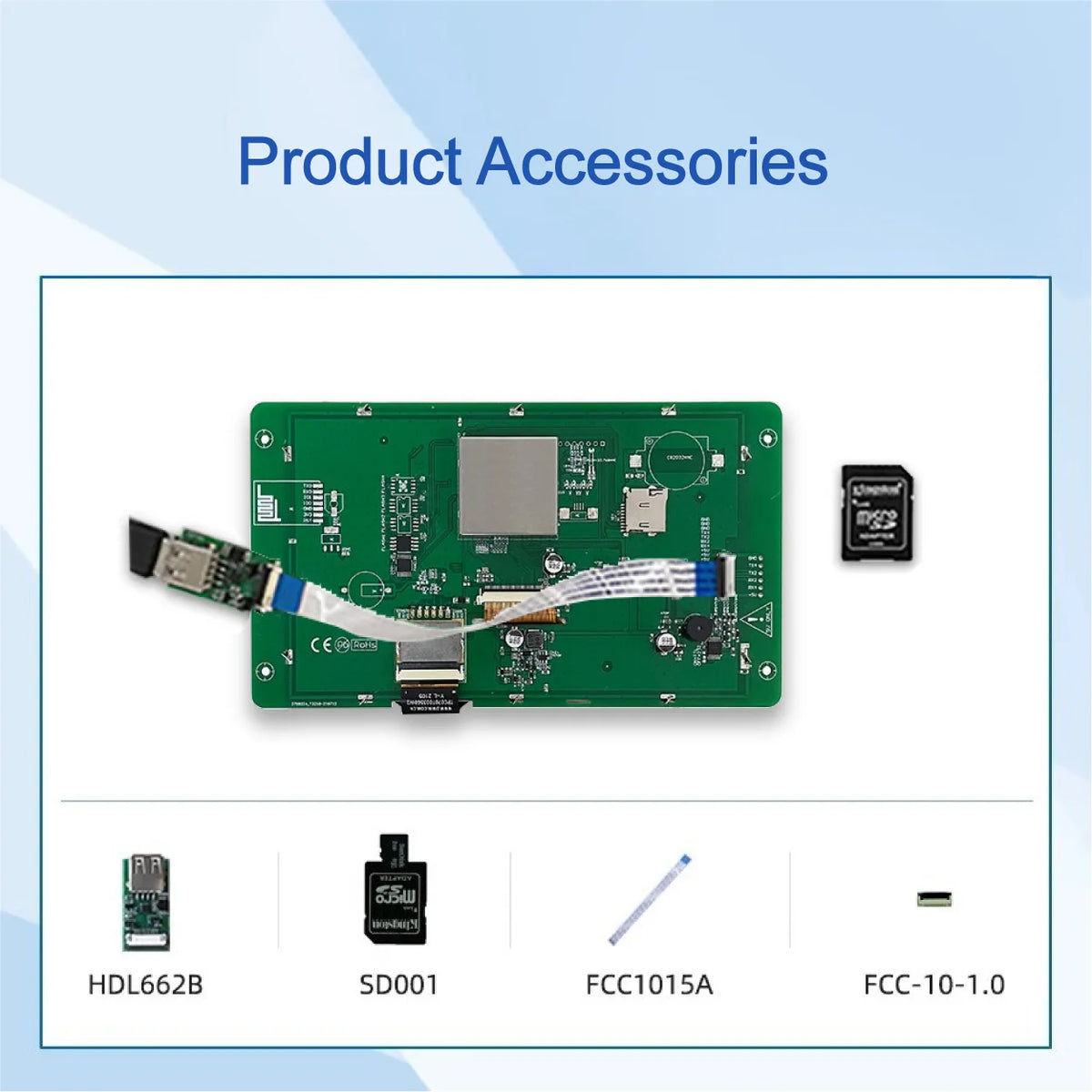

Color RTP CTP No TP No TP with accessory RTP with accessories CTP with accessories

Description

SPECIFICATIONS

Active area(mm): 154.1x85.9

Application: Commercial grade

Brand Name: DWIN

Connector socket: 10Pin_1.0mm FCC Socket

Display Mode: None

FLASH: 16MB

High-concerned chemical: none

LCD Technique: TN

Model Number: DMG80480C070_03W

Operating Humidity: 10%~90%

Operating Temperature (℃): -20/+70

Origin: Mainland China

Power supply voltage (V): 4.5/5.5

Resolution: 480x800

Resolution(H*V): 800x480

Size: 7inch

Touch panel type: Resistive or Capacitance touch panel

Type: TN(防护工具)

Viewing angle: 70/70/50/70

interface: TTL

is_customized: Yes

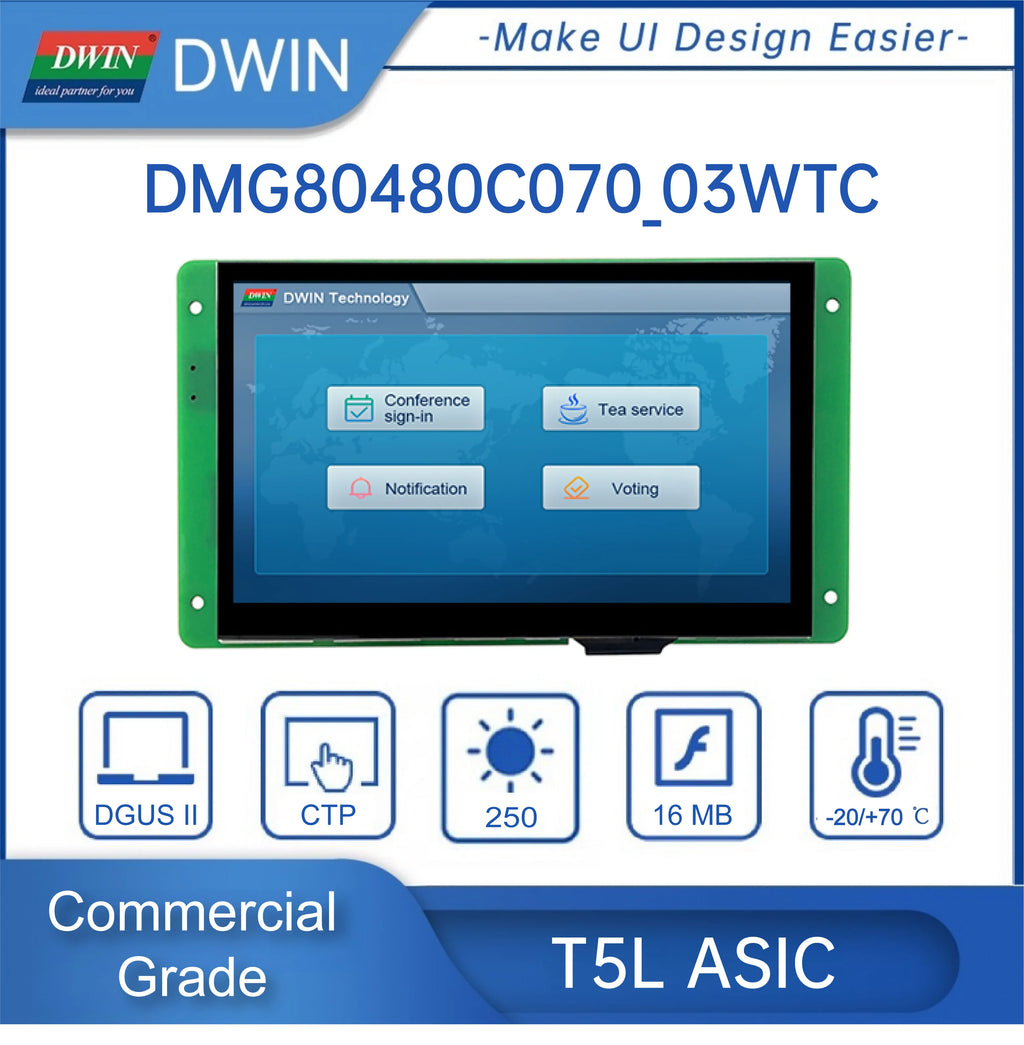

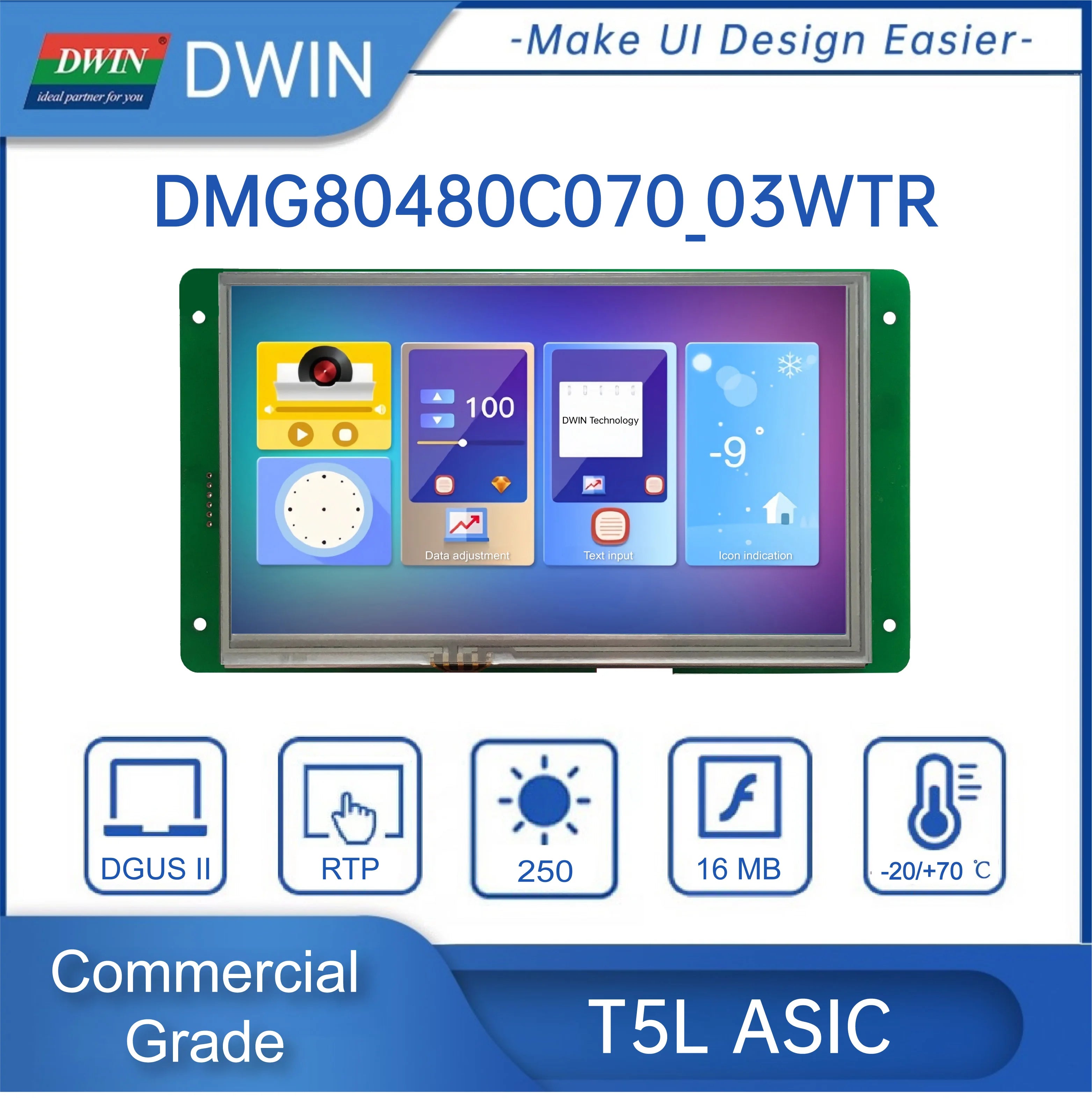

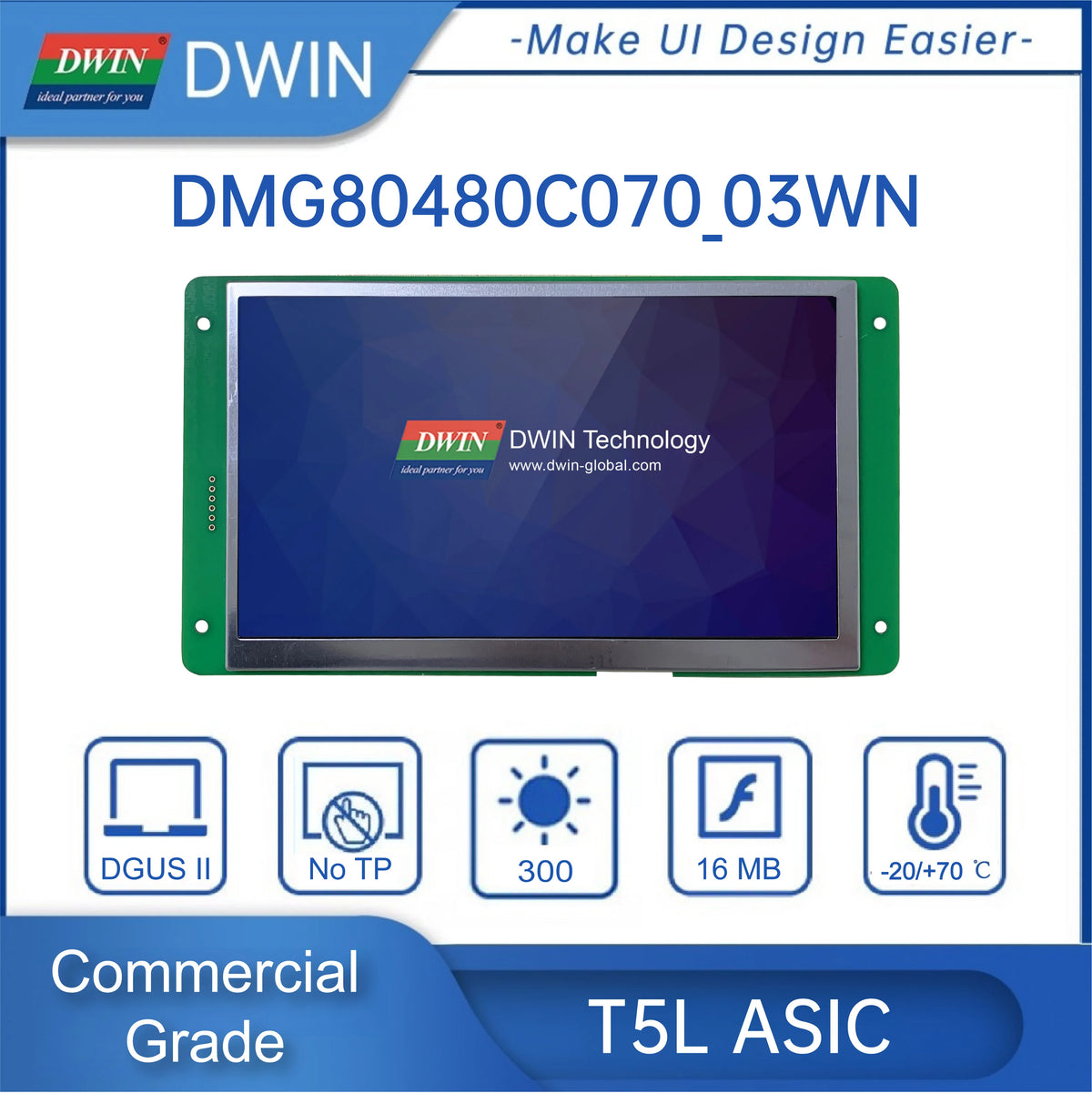

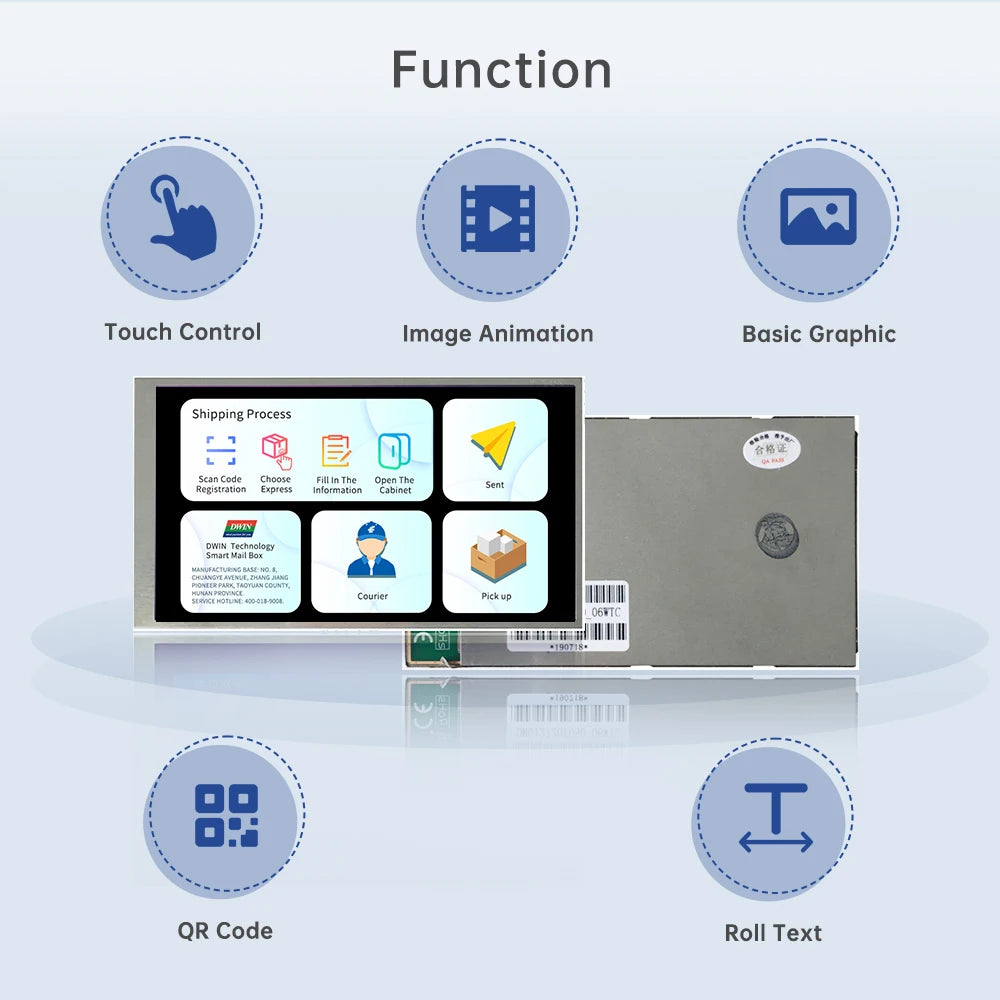

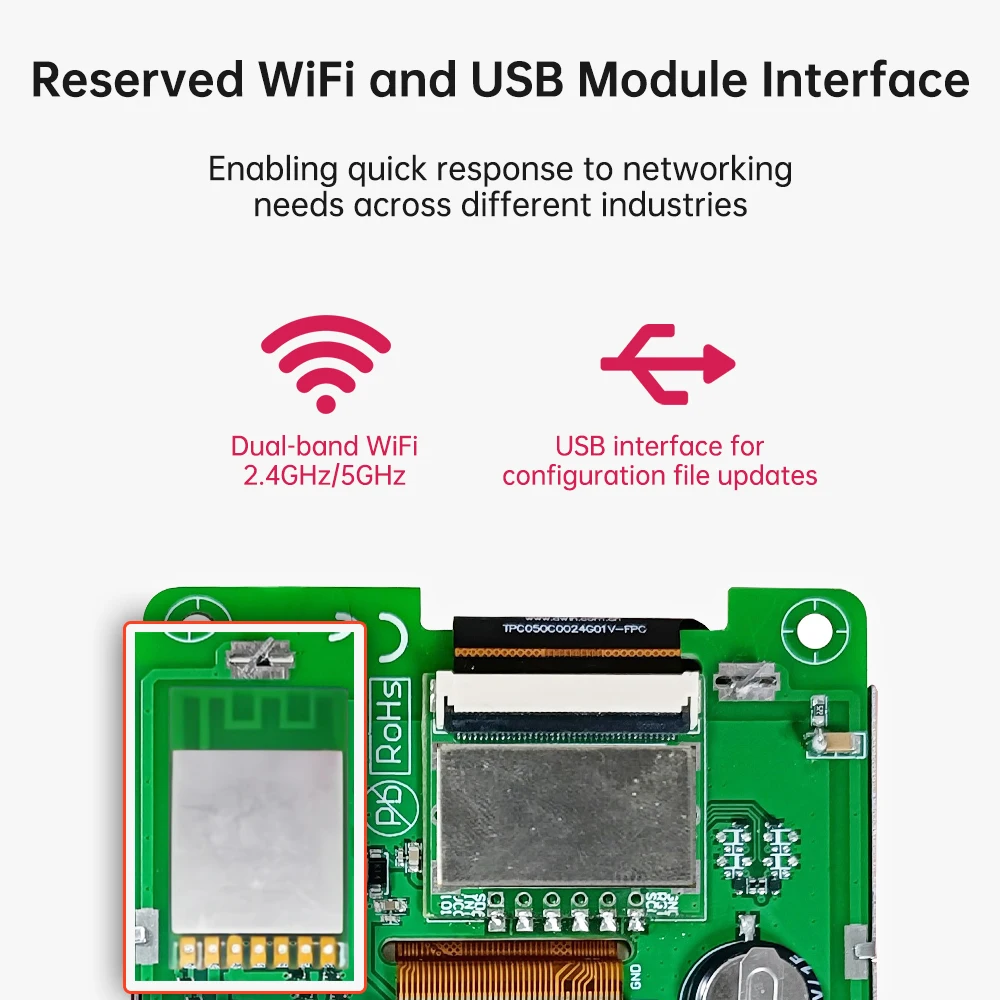

Features

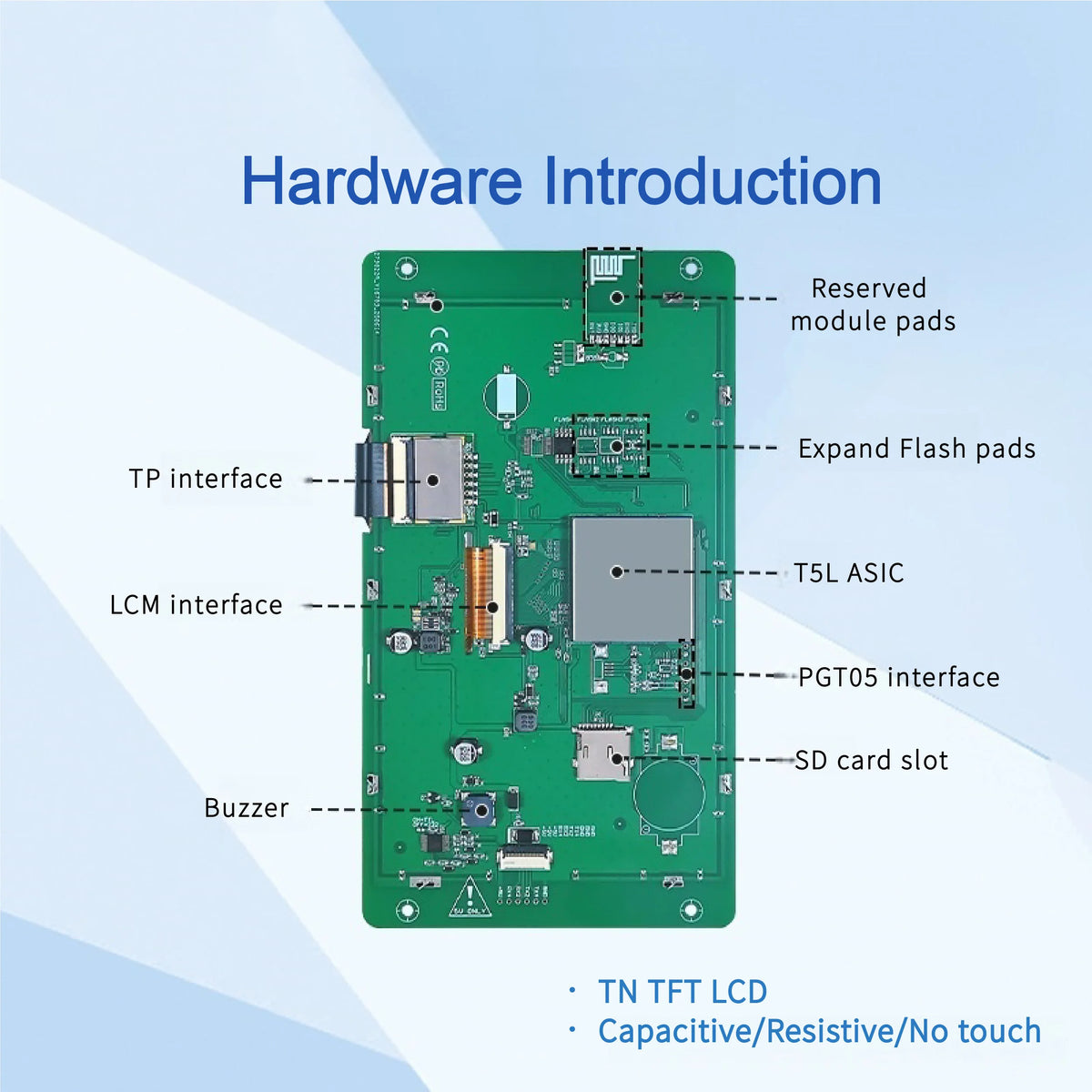

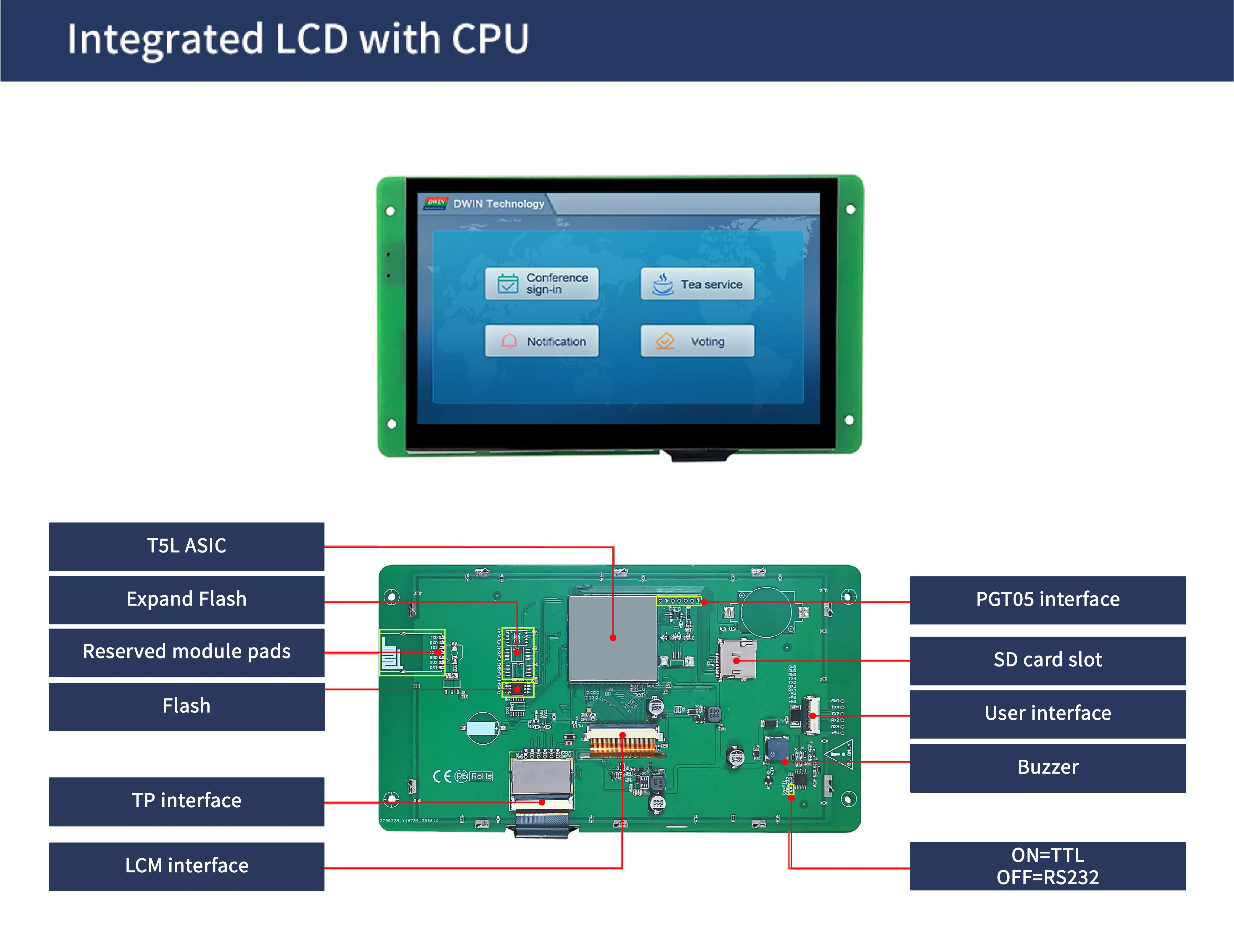

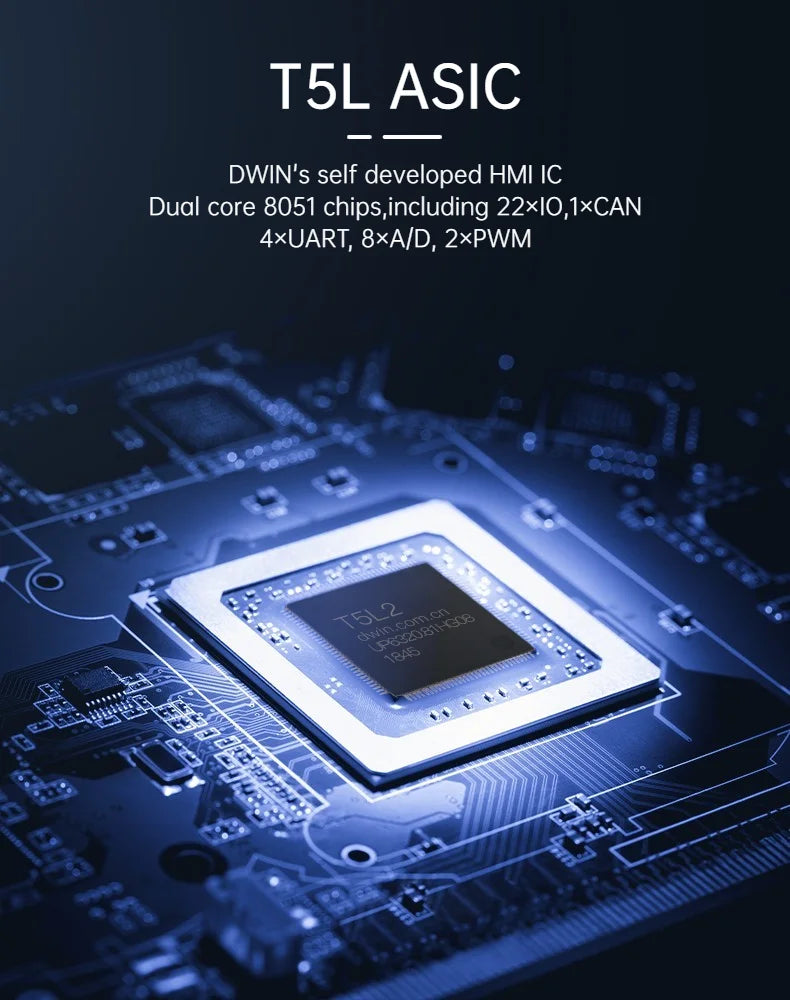

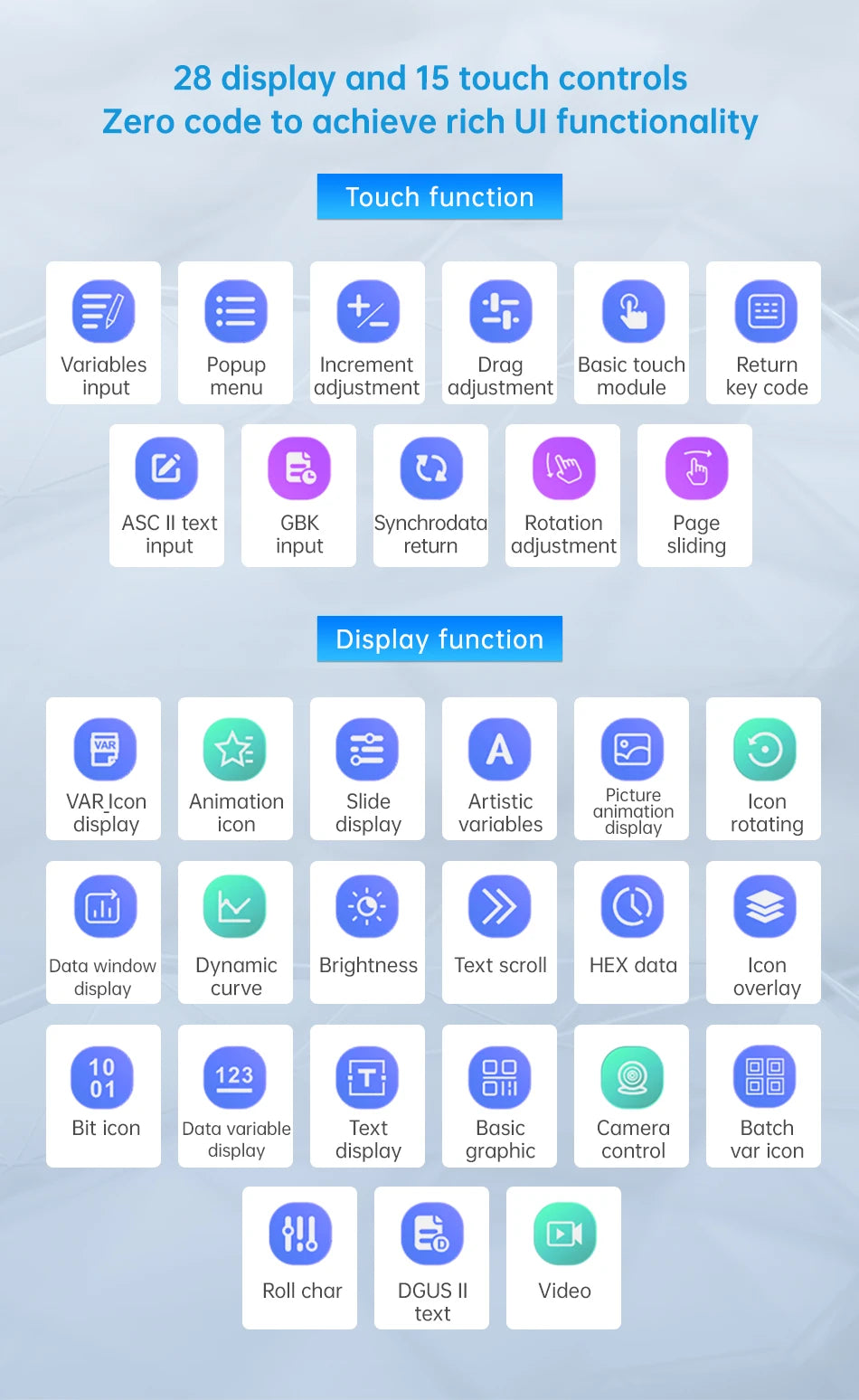

Based on T5L1, running DGUS II system, commercial grade.
7.0-inch, 800*480 pixels resolution, 16.7M colors, TN-TFT-LCD, normal viewing angle.
Capacitive/ Resistive/ No touch screen

DMG80480C070_03W

Display parameters
LCD Type		TN, TFT LCD
Viewing Angle		Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
Resolution		800×480 pixels (support 0°/90°/180°/270°)
Color		24-bit 8R8G8B
Active Area (A.A.)		154.10mm (W)×85.90mm (H)
Backlight Mode		LED
Backlight Service Life		>20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)
Brightness		WTC:250nit WTR:250nit WN:300nit
Brightness Control		0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range)

Serial interface parameters
Mode	UART2: ON=TTL/CMOS; OFF=RS232 UART4: ON=TTL/CMOS; OFF=RS232 (Only available after OS configuration)
Voltage Level	Test Condition		Min	Typ	Max	Unit
	Output 1, Iout = 1mA		3.0	3.3	-	V
	Output 0, Iout = -1mA		-	0	0.3	V
	Input 1, Iin = 1mA		2.4	3.3	5.0	V
	Input 0, Iin = -1mA		0	-	0.5	V
Baud Rate	3150~3225600bps, typical value of 115200bps
Data Format	UART2: N81 UART4: N81/E81/O81/N82 , 4 modes (OS configuration)
Interface Cable	10Pin_1.0mm

Electrical specifications
Rated Power		<5W
Operating Voltage		4.5~5.5V, typical value of 5V
Operating Current		610mA	VCC=5V, max backlight
		160mA	VCC=5V, backlight off
Recommended power supply: 5V 1A DC

Operating environment
Operating Temperature		-20℃~70℃(5V @ 60% RH)
Storage Temperature		-30℃~80℃
Conformal Coating		None
Operating Humidity		10%~90%RH, typical value of 60% RH
Anti-UV		None (Not recommended for outdoor use)

Dimensions
Form Factor		WTC:190.50mm (W)×105.40mm (H)×13.40mm (T) WTR:190.50mm (W)×105.40mm (H)×13.30mm (T) WN:190.50mm (W)×105.40mm (H)×11.80mm (T)
Installation Dimensions		Positioning hole: 166.20 (+0.3mm)×101.50(+0.3mm)
Net Weight		WTC:319g WTR:310g WN:284g

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD at first, and then assemble it.

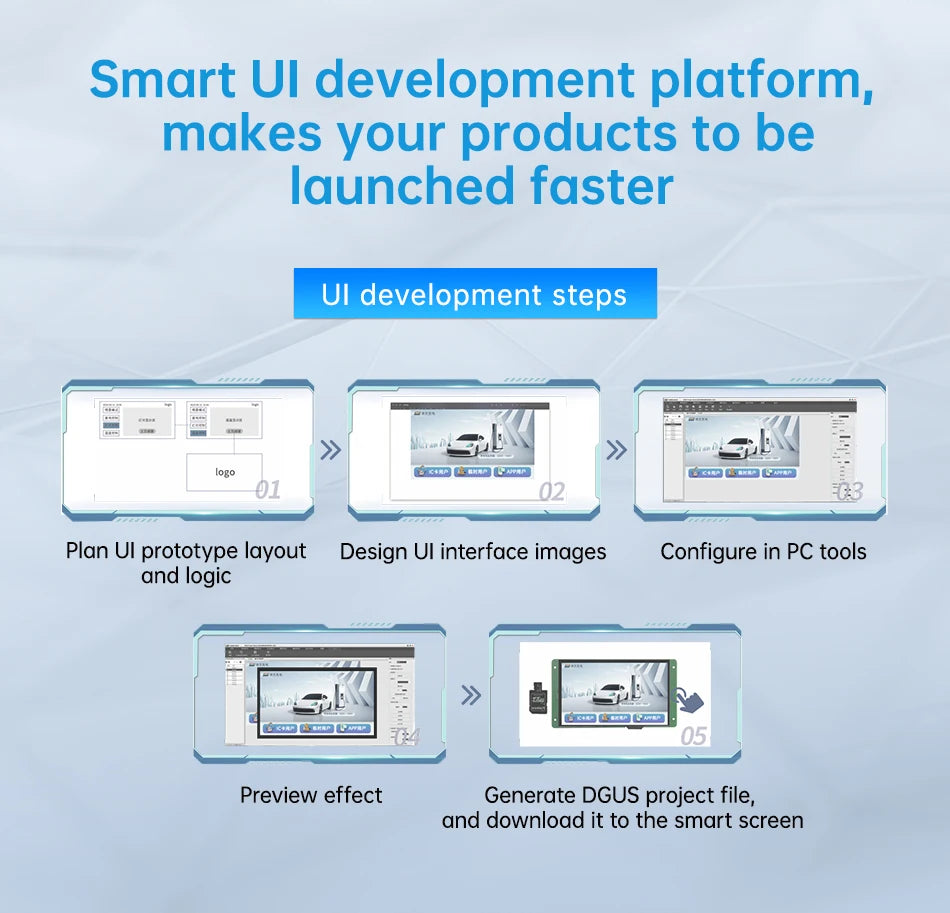

Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes,of course, below ways you can get technical support.

- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum:https://forums.dwin-global.com/

-International website:https://www.dwin-global.com/

- Development tool:https://www.dwin-global.com/tool-page/

- Development guide:https://www.dwin-global.com/development-guide/

- DGUS video tutorial:https://www.dwin-global.com/t5l-dgus-v7-6-video-tutorial/
- Leave messages to us on Aliexpress.
