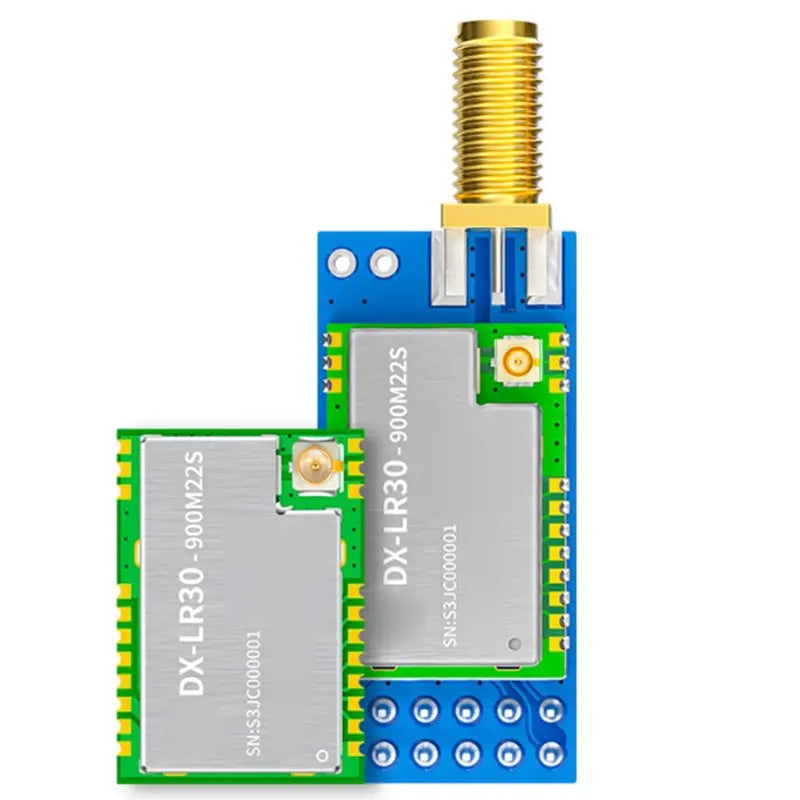

DX-LR30 8Km 22Dbm 900M22SP Development Kit SX1262 Chip Lora Module RF Module UART Long Range Lora 868-915Mhz

DX-LR30 8Km 22Dbm 900M22SP Development Kit SX1262 Chip Lora Module RF Module UART Long Range Lora 868-915Mhz

$61.56

$61.56 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Compatible Audio & Video Equipment Style: Amplifier

Electronic: no

High-concerned chemical: none

Origin: Mainland China

Specification 1: LoRa Module

Specification 2: SX1262 LoRa Module

Specification 3: LoRa Module

Specification 4: ISM Band LoRa Module

Specification 5: LoRa Module 900M22SP

Type: IR

DX-LR30 8Km 22Dbm 900M22SP Development Kit SX1262 Chip Lora Module RF Module UART Long Range Lora 868-915Mhz

Support Dropshipping and Wholesaling.

100% Original and Good Quality with Free After-sale Warranty.

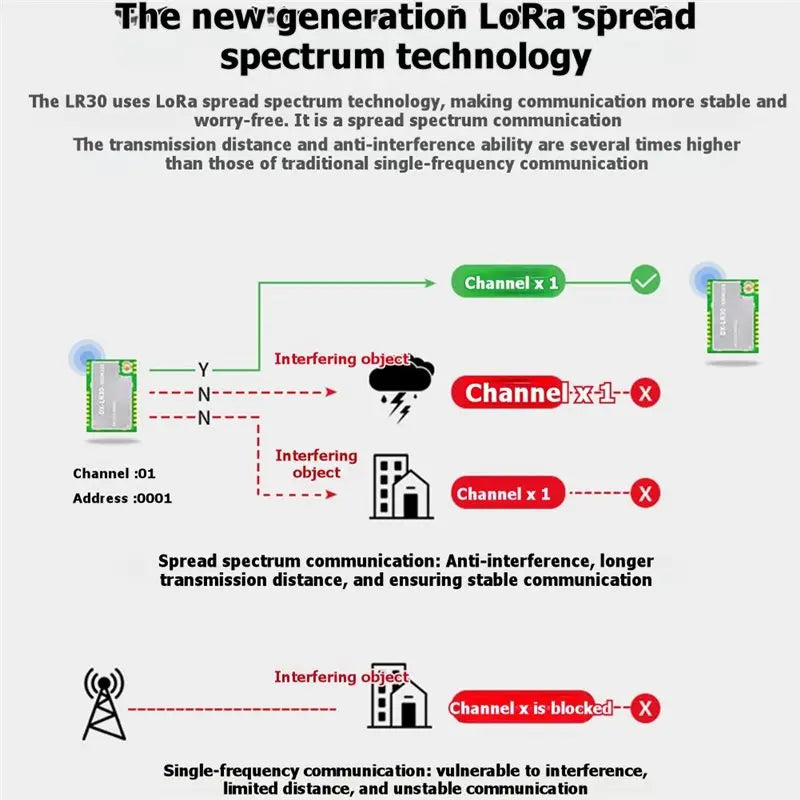

Long-Range Connectivity: Equipped with the SX1262 LoRa technology, this wireless module offers an impressive range of up to 8 kilometers, ensuring reliable communication over vast distances.
Versatile Frequency Support: Supports multiple frequencies 850-930Mhz, including 868Mhz and 915Mhz, making it highly adaptable for global use in various applications.
High Power Output: With a power output of 22dBm, this module provides robust signal strength that penetrates through obstacles, enhancing connectivity in challenging environments.

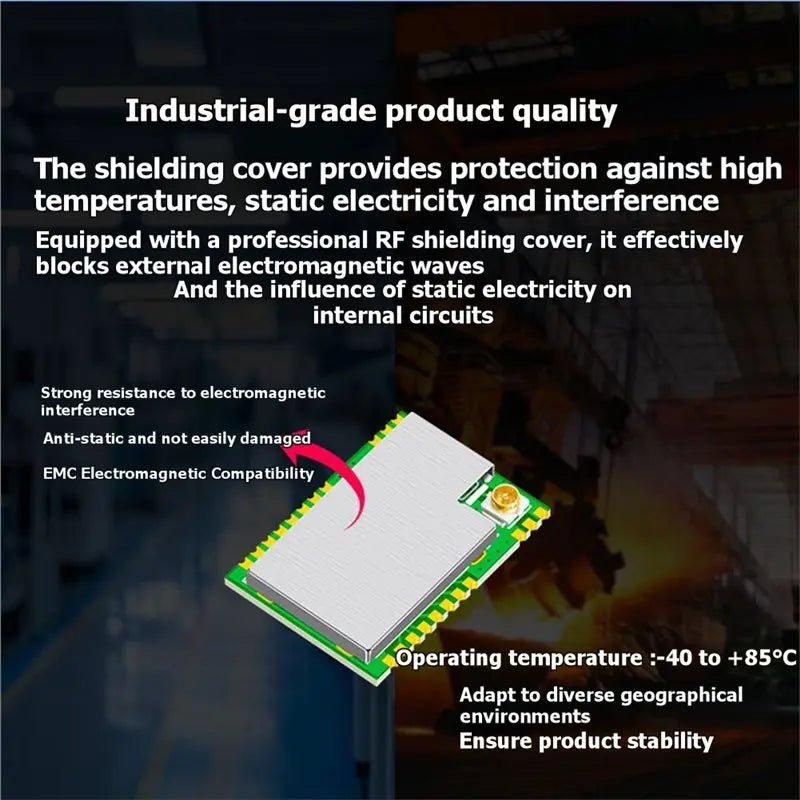

Compact Design: The small form factor and surface-mount design make it easy to integrate into a wide range of devices, from industrial equipment to consumer electronics, without compromising on performance.

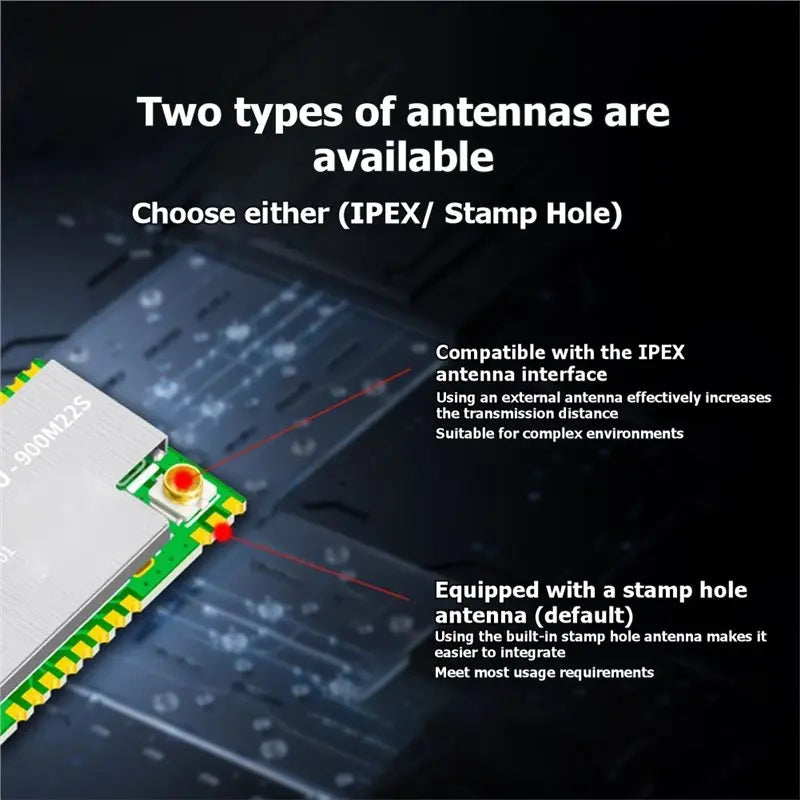

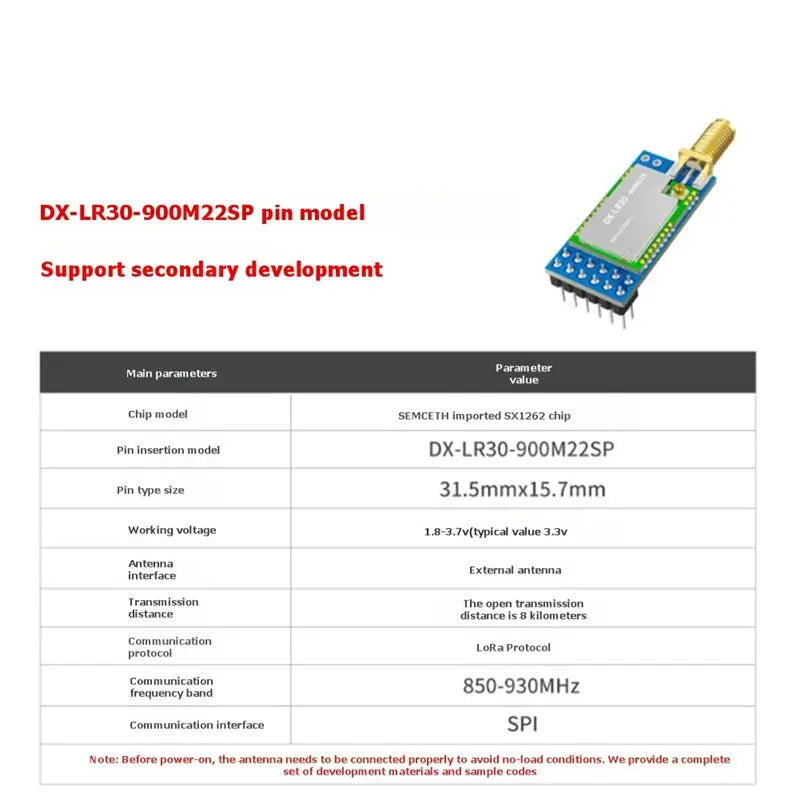

Specification: Chip Model: SX1262, Module Dimensions: 20x14x2.3mm, Communication Protocol: LoRa Protocol, Transmit Power: 0~+22dBm, RF Interface: Stamp Hole/PEX, Hardware Interface: SPI, Modulation Method: LoRa and GFSK, Operating Voltage: 1.8V-3.7V.

The product printed words may vary depending on the batch, but this does not affect use.
Color: As Shown
Material: PCB

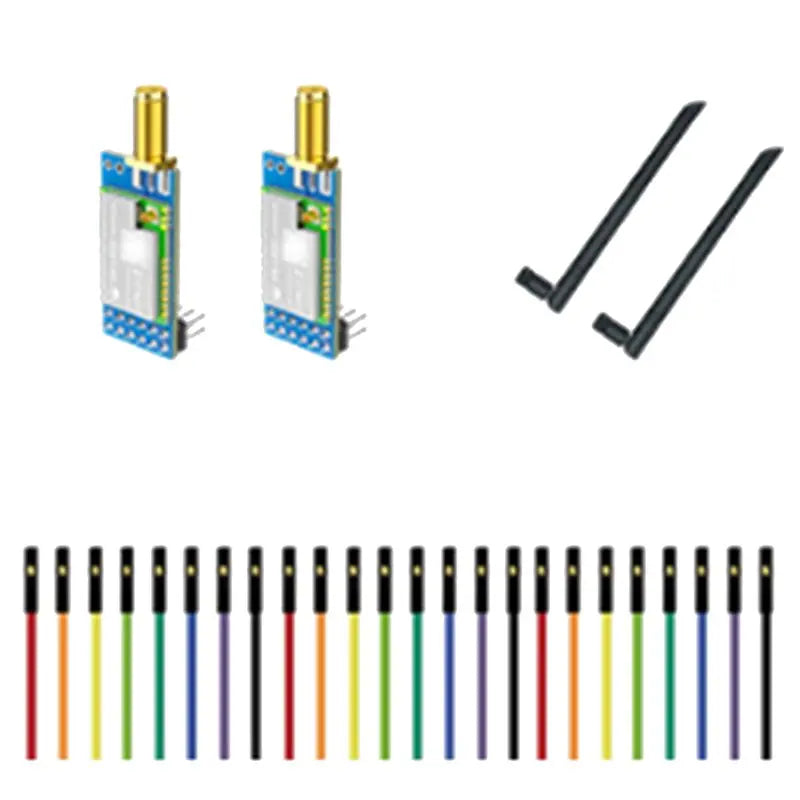

Package Contents:
2* development boards
20* connecting wires (random colors)
2 *antennas

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
