E18-D50NK 3-50cm 50nk Infrared Obstacle Displacement Sensor Proximity Switch Voltage DC5v Infrared Adjustable

E18-D50NK 3-50cm 50nk Infrared Obstacle Displacement Sensor Proximity Switch Voltage DC5v Infrared Adjustable

$40.95

$40.95 $0.00

Description

SPECIFICATIONS

Brand Name: Snow brocade

Choice: yes

High-concerned chemical: none

Material: Polymer

Origin: Mainland China

Output: Digital Sensor

Theory: Optical Sensor

Type: Optical-Electronics Sensor

Use: Position Sensor

is_customized: Yes

semi_Choice: yes

This is a photoelectric sensor that integrates emission and reception. The detection distance can be adjusted as per requirements. This sensor has the characteristics of long sensing distance, low visible light interference, low cost, easy assembly and convenient use. It can be widely used in many occasions such as robot obstacle avoidance and assembly line counting part.

Application case:

1.Automatic counting equipment for goods in production lines

2. multifunctional reminder

3. Labyrinth walking robot

4. Kitchen automation system

5. Security and anti-theft systems, etc.

Electrical characteristics:

U: 5VCC

I: 100mA

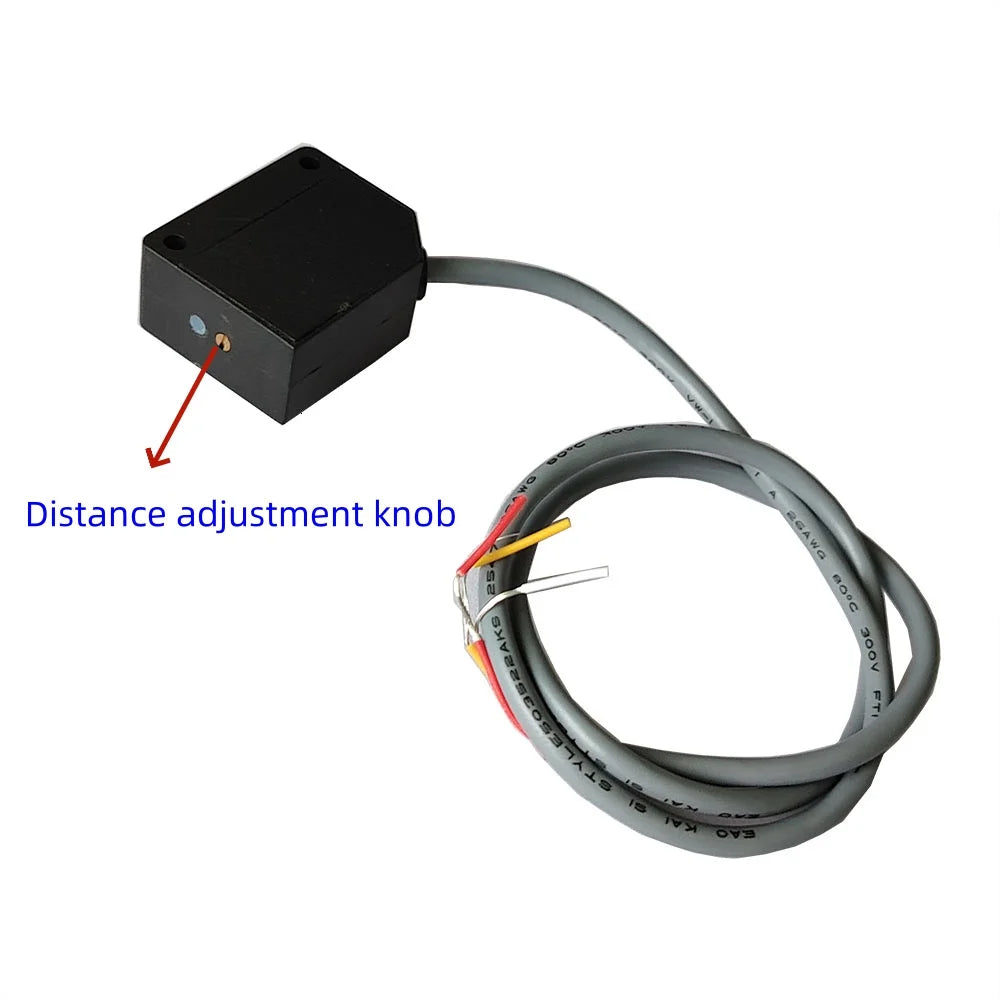

Sn: 3-50cm

Size: 31*25*13MM

Distance between two hole positions: 24.5mm

Lead length: 45CM

Technical parameters:

1. Output current DC/SCR/Relay Control output: 100mA/5V power supply

2. Consumption current DC<25mA

3. Response time<2ms

4. Pointing angle: ≤ 15 °, effective distance 3-50CM adjustable

5. Detect objects: transparent or opaque bodies

6. Working environment temperature: -25 ℃~+55 ℃

7. Standard detection object: sunlight below 10000LX, incandescent lamp below 3000LX

8. Shell material: plastic

This sensor is a modified version of E18-D80NK, mainly due to a change in shape. It has been changed from a circular shape to a square shape, resulting in a much smaller volume. The installation and fixation of this new sensor is more convenient than the previous one, and the lead part is angled, making it much simpler to install the lead! The performance is similar to the previous E18, very stable! Another difference is that the Boguang 50NK adds protection on the circuit, and even if the positive and negative poles are connected incorrectly, it will not burn (E18 did not have this protection before, and buyers who do not understand the circuit or do not understand it usually burn instantly when they accidentally connect the wrong positive and negative poles)
