SPECIFICATIONS

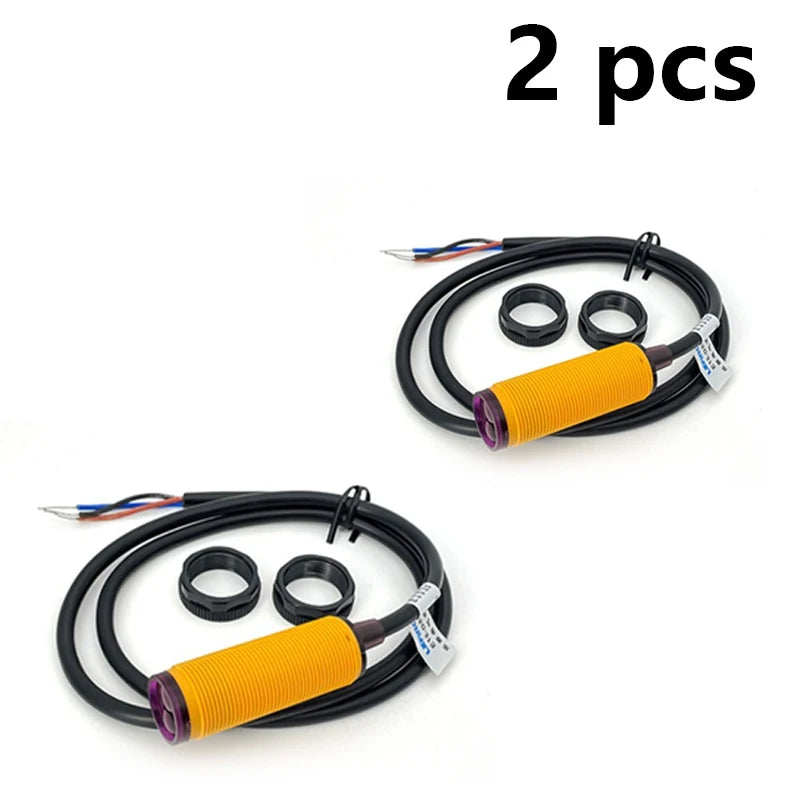

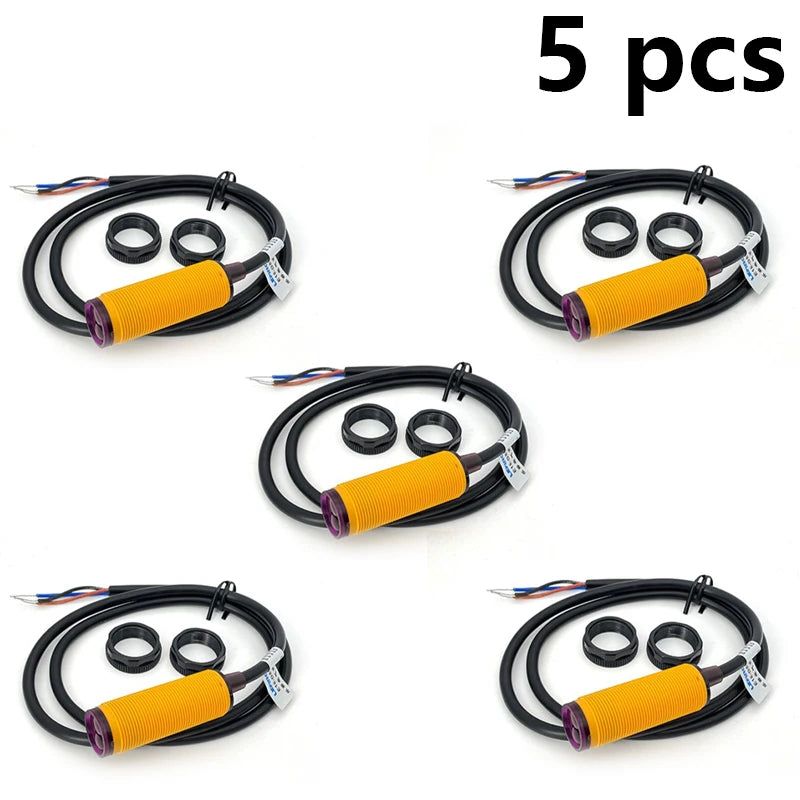

🛡️ Precise Avoidance, Adjustable Range! E18-D80NK Infrared Sensor – Reliable Choice for Smart Cars & Robots

Adjustable detection range from 3cm to 80cm, immune to ambient light interference, fast response <2ms! Integrated transmitter & receiver, NPN normally open output, easy wiring. Ideal for robot obstacle avoidance, production line counting, automatic sensing, and more.

✨ Key Features & Benefits

Flexibly Adjustable Range: Detection distance can be continuously adjusted from 3cm to 80cm via a potentiometer, meeting various application needs.

Strong Anti-Interference Capability: Uses modulated infrared light to effectively suppress interference from ambient light (≤10000LX) and incandescent lamps (≤3000LX). Stable performance both indoors and outdoors.

Fast Response, Real-Time Detection: Response time <2ms enables real-time object detection, suitable for high-speed counting or quick obstacle avoidance.

All-in-One Design, Easy Installation: Integrated transmitter and receiver eliminate alignment hassles. Simple to install and saves space and setup time.

NPN Output, Widely Compatible: NPN normally open (NO) output (goes LOW when object detected). Can connect directly to microcontroller I/O, PLC, or relays with strong compatibility.

📝 Product Description

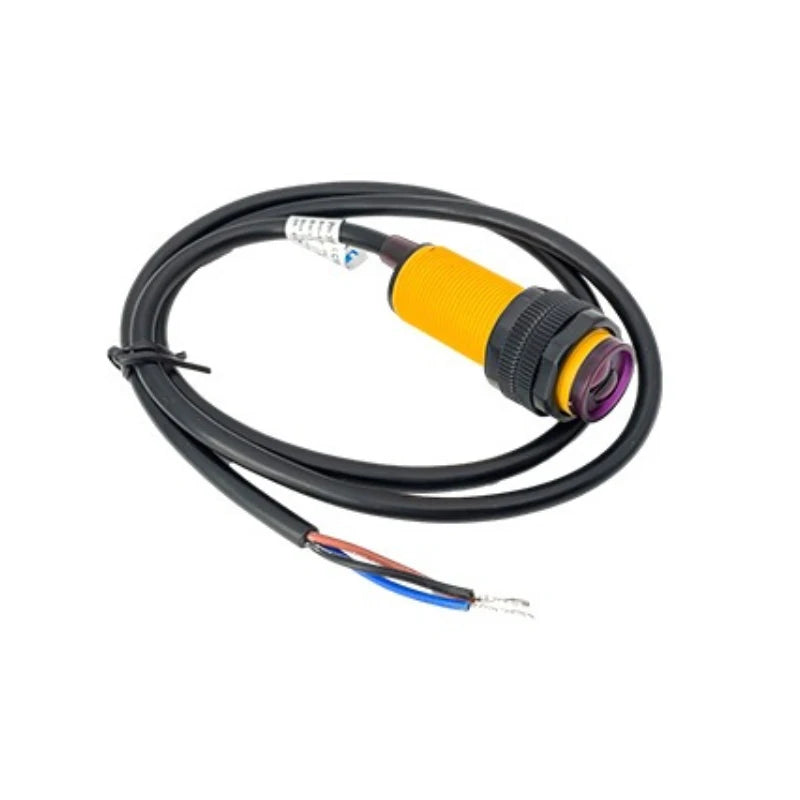

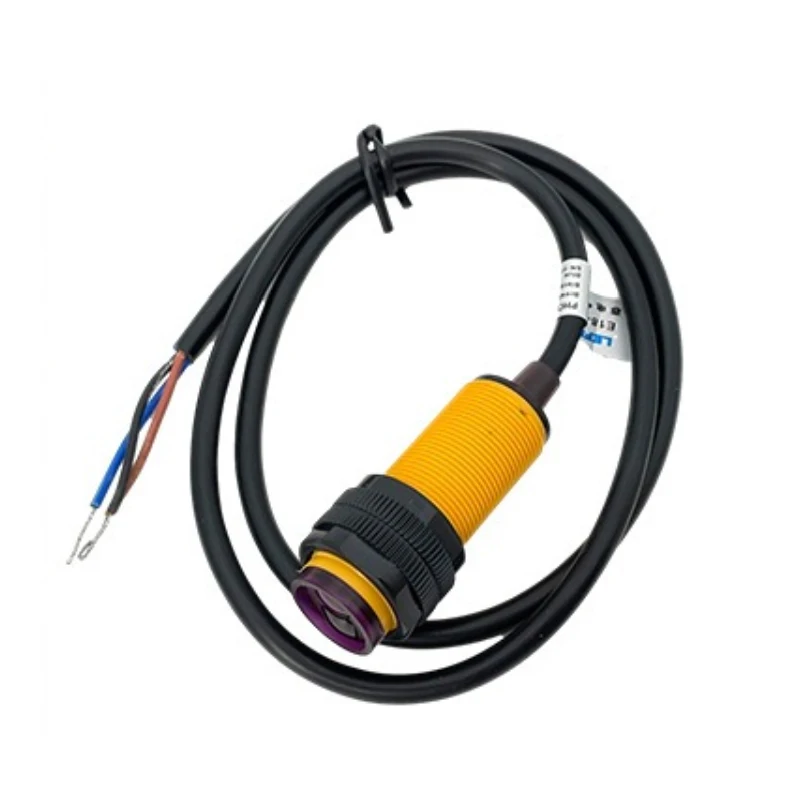

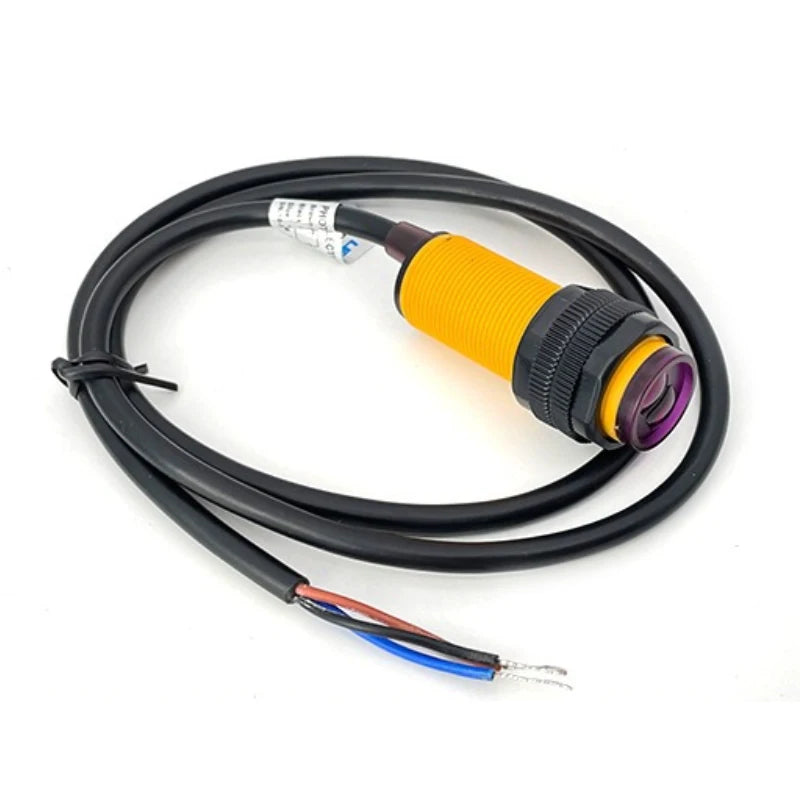

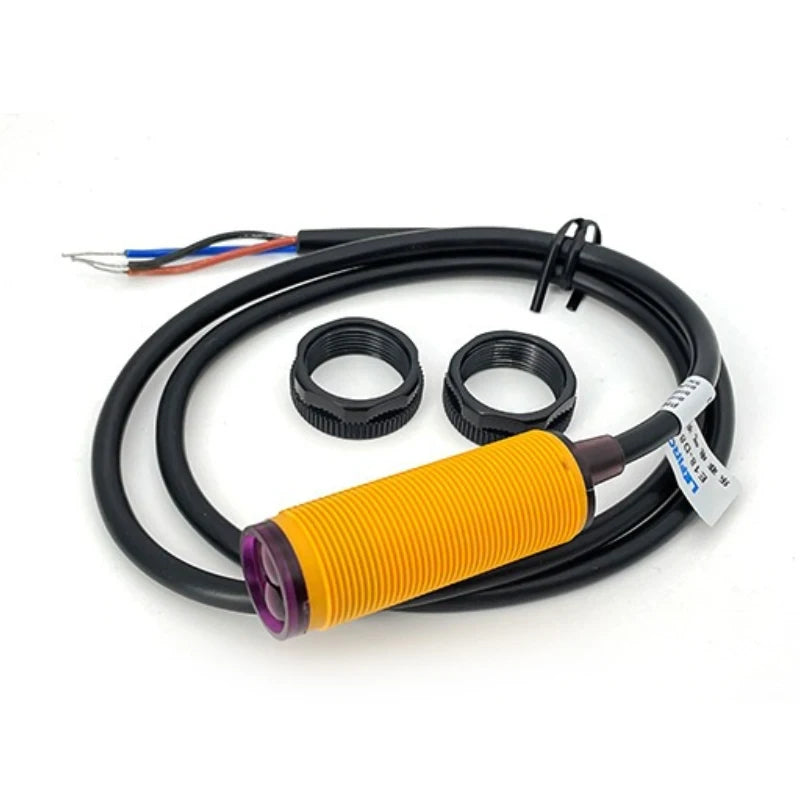

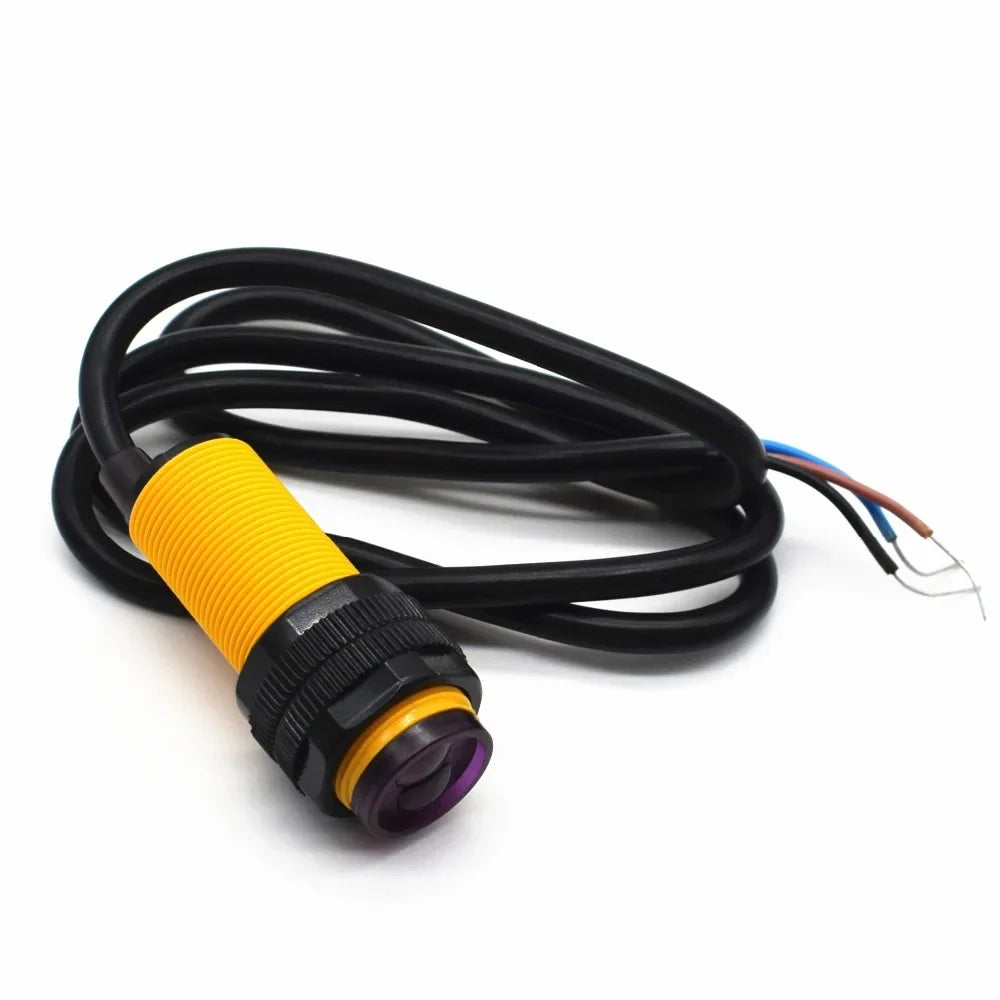

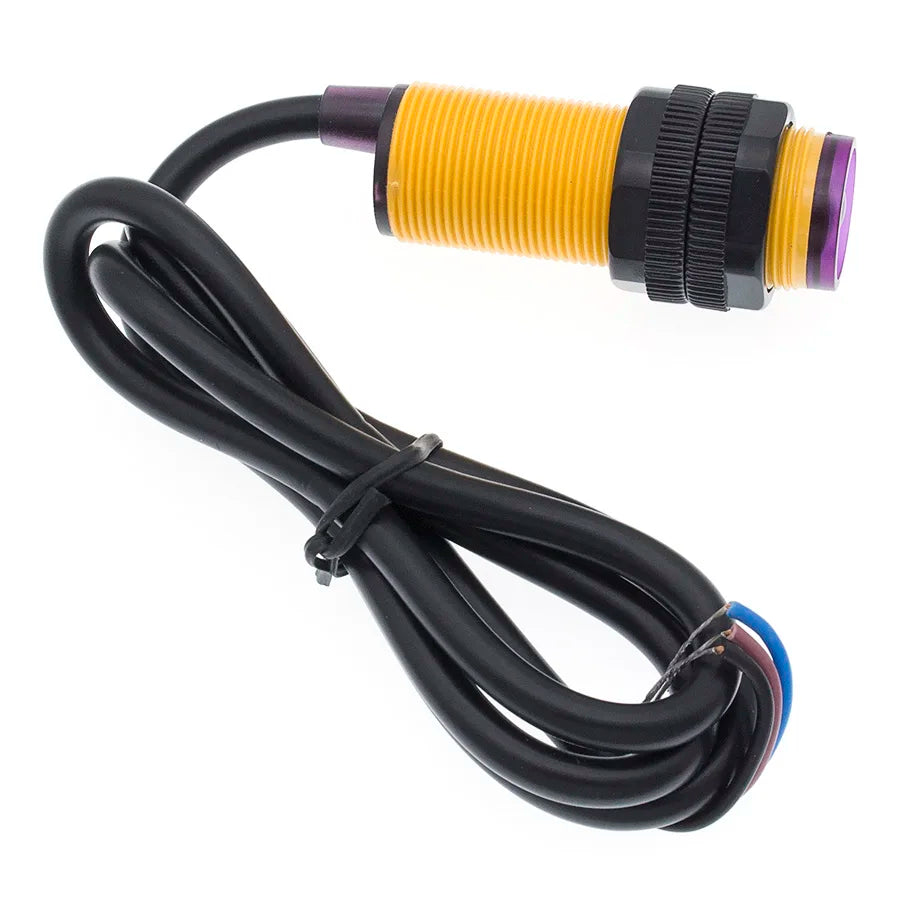

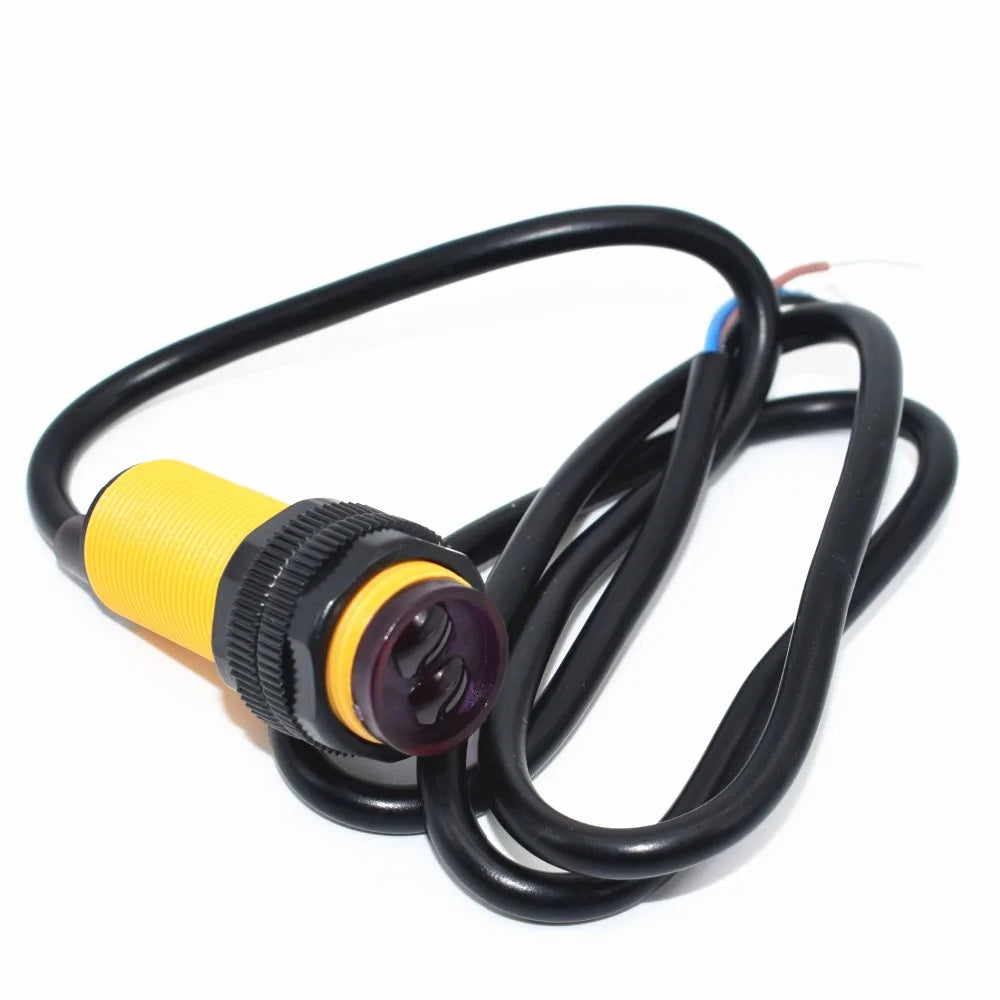

The E18-D80NK is a cost-effective diffuse-reflective infrared photoelectric sensor. It detects object presence by emitting an infrared beam and receiving the light reflected from the object. It can detect both transparent and opaque objects. An ideal solution for smart car obstacle avoidance, production line product counting, security alarms, automatic door sensors, and various DIY projects.

⚠️ Important Notes / How to Use (Ensure Proper Operation!)

Correct Power Supply: Operating voltage is 5V DC. Do not exceed 5.5V or go below 4.5V, which may damage the sensor or cause instability.

Target Object & Background Requirements: The detected object surface should preferably be diffuse reflective (e.g., paper, wood). Avoid glossy or black light-absorbing surfaces, as performance will degrade. Keep the sensor’s background farther than the set detection distance.

Avoid Direct Strong Light: Although resistant to interference, avoid pointing the sensor lens directly at sunlight or strong light sources to maintain optimal performance.

Understand Output Signal: This is an NPN normally open (NO) sensor. Output is HIGH (≈Vcc) when no object is detected, and switches to LOW (≈0V) when an object is detected. Design your microcontroller reading logic accordingly (e.g., use a pull-up resistor or configure as pull-down input).

Adjustment Method: Power on, place the target object at the desired detection distance. Slowly rotate the potentiometer on the back until the signal LED changes state when the object enters/leaves the detection zone.

🔧 Wiring Guide (3-Wire)

Brown Wire: Connect to VCC (+5V)

Blue Wire: Connect to GND (0V)

Black Wire: Signal output (OUT) – Outputs LOW when object is detected.

📋 Specifications

Model: E18-D80NK

Detection Method: Diffuse Reflective Infrared Photoelectric Switch

Output Type: NPN Normally Open (NO)

Operating Voltage: 5V DC ±0.5V

Detection Range: 3cm - 80cm (continuously adjustable)

Response Time: < 2ms

Output Current: ≤ 100mA

Quiescent Current: < 25mA

Detectable Object: Transparent or opaque diffuse reflective objects

Ambient Light Immunity: Sunlight ≤10000 Lux, Incandescent ≤3000 Lux

Operating Temperature: -25°C ~ +55°C

Beam Angle: > 15°

Dimensions: Ø17mm, Length 45mm

Cable Length: Approx. 45cm

📦 Package Includes
1 × E18-D80NK Infrared Photoelectric Sensor
