SPECIFICATIONS

Brand Name: RCmall

Display: 2.90 Inch Black and White E-Ink Display Screen

Display Color: Black&White(2 Grayscale)

E-Ink: 2.90 Inch, 128(H)x296(V) Pixel, 29x67mm,

High-concerned chemical: none

LoRa Node Chip: SX1262

Master Chip: ESP32-S3R8

Origin: Mainland China

Type: ESP Series

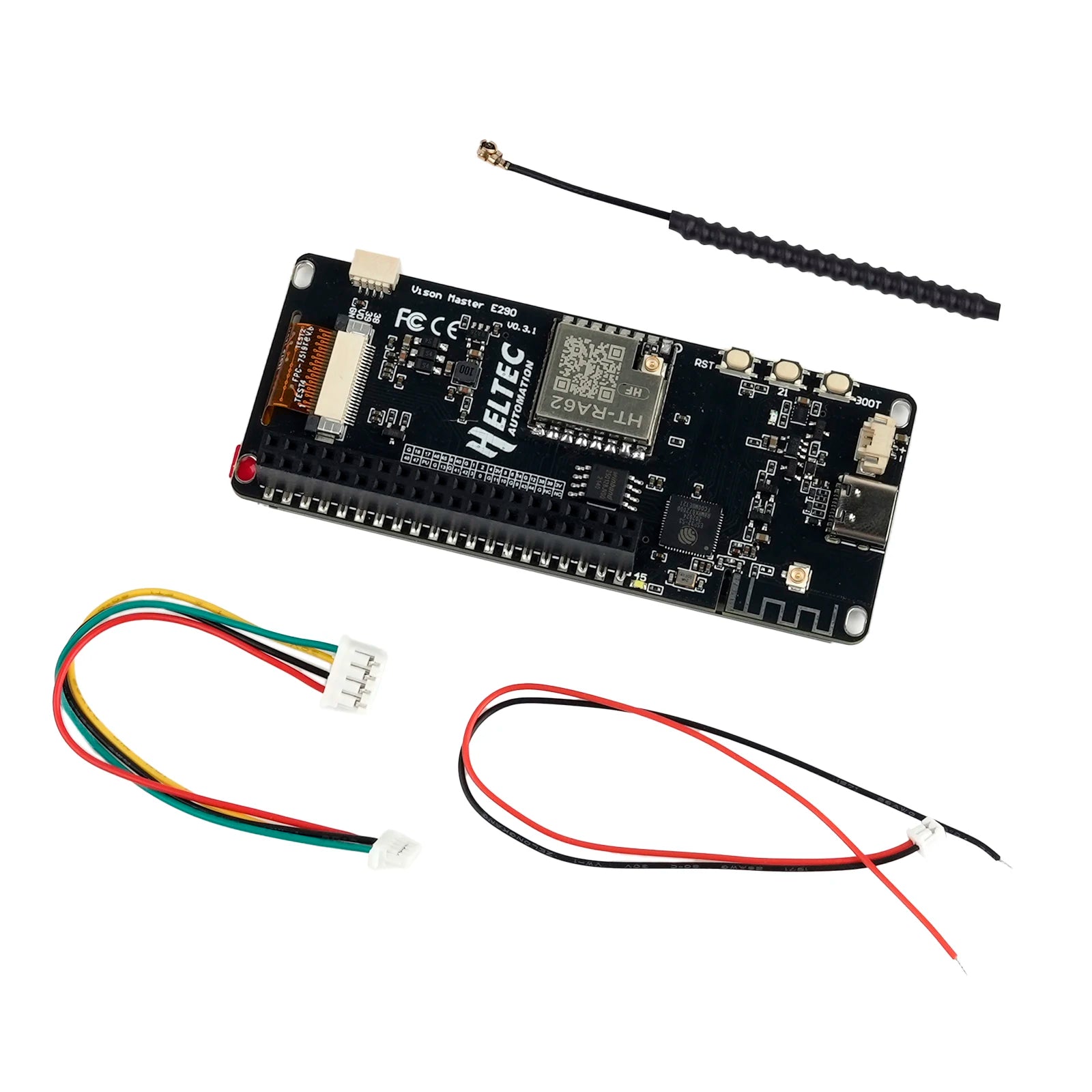

E290 IoT Development Board with 2.9" E-Ink Display Screen Low Power ESP32-S3R8 WiFi+BLE Optional LoRa for Mashtastic Arduino RPI

Summary
Vision Master E290 (HT-VME290) is an E-Ink development kit with multiple wireless drive methods. Collaborate with the sample programs and development tools we provide, users can operate the display via Bluetooth, Wi-Fi and LoRa.

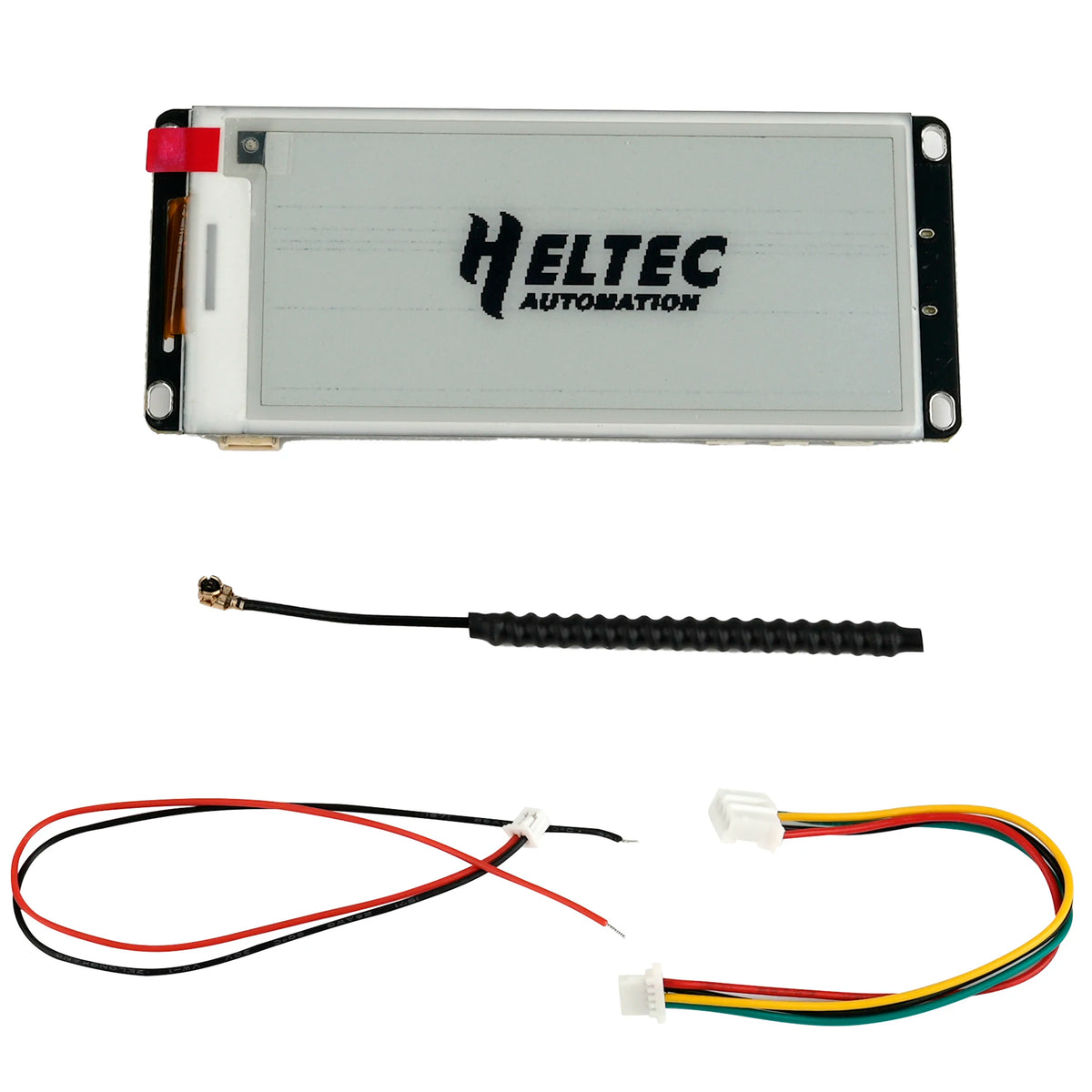

This board is equipped with a default 2.90-inch black-white E-Ink display screen, continuous display for 180 days after power outage. It is compatible with Arduino, PlatformIO, Micpython and other development frameworks, can be used to develop applications such as electronic tags and identity tags, it is also possible to run open source projects like Meshtastic.

Main Features
- ESP32-S3R8 MCU, support Wi-Fi and BLE.
- LoRa module is optional, compatible with Mashtastic.
- Low power consumption, 18uA in deep sleep, continuous display for 180 days after power outage.
- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
- Onboard 2.90 inch 296 x 128 pixels display, support for partial refresh.
- Storage condition: -25 ~ 70℃, ≤45%RH.
- Optimal operating condition:0~50℃, 55±10%RH.

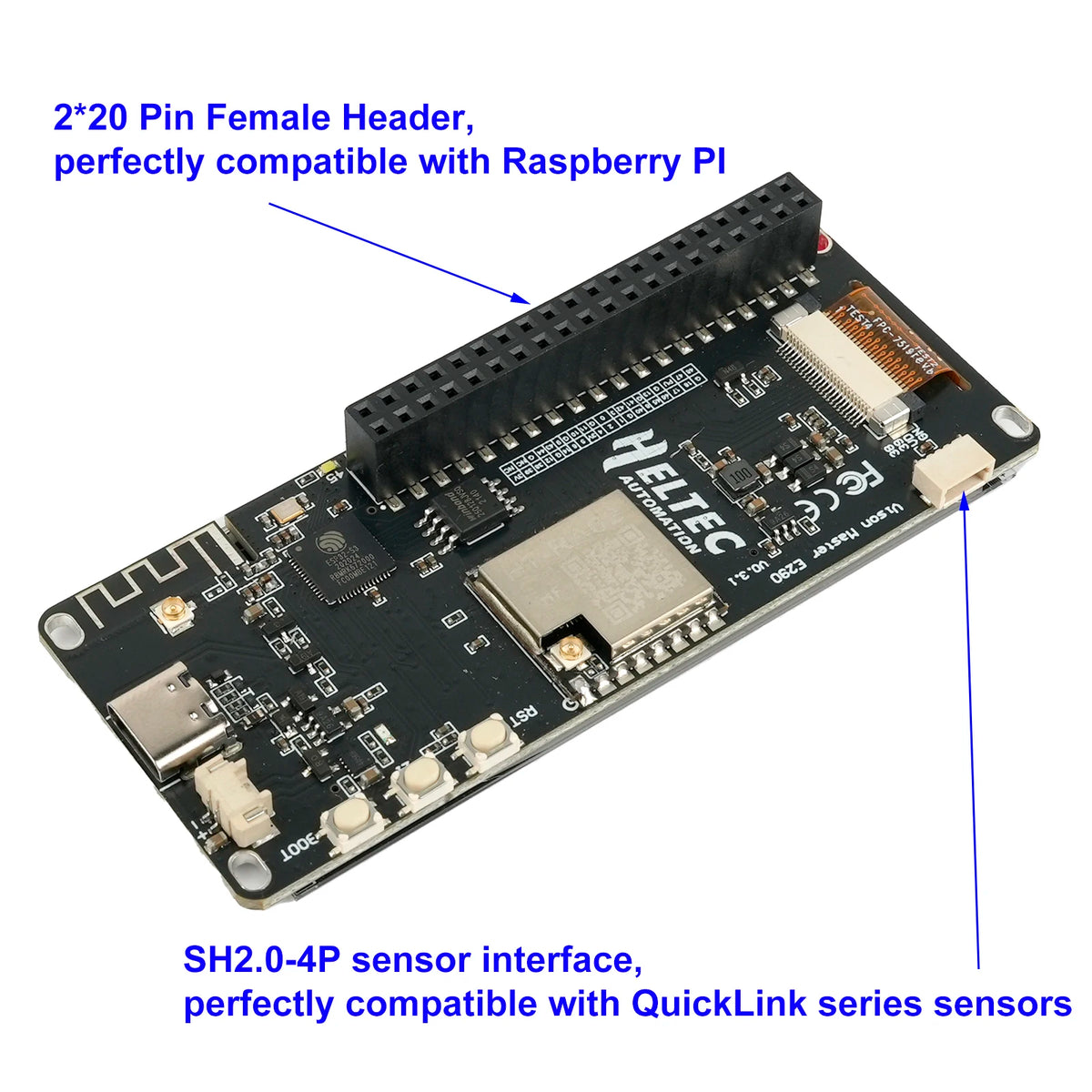

- SH2.0-4P sensor interface is perfectly compatible with QuickLink series sensors.

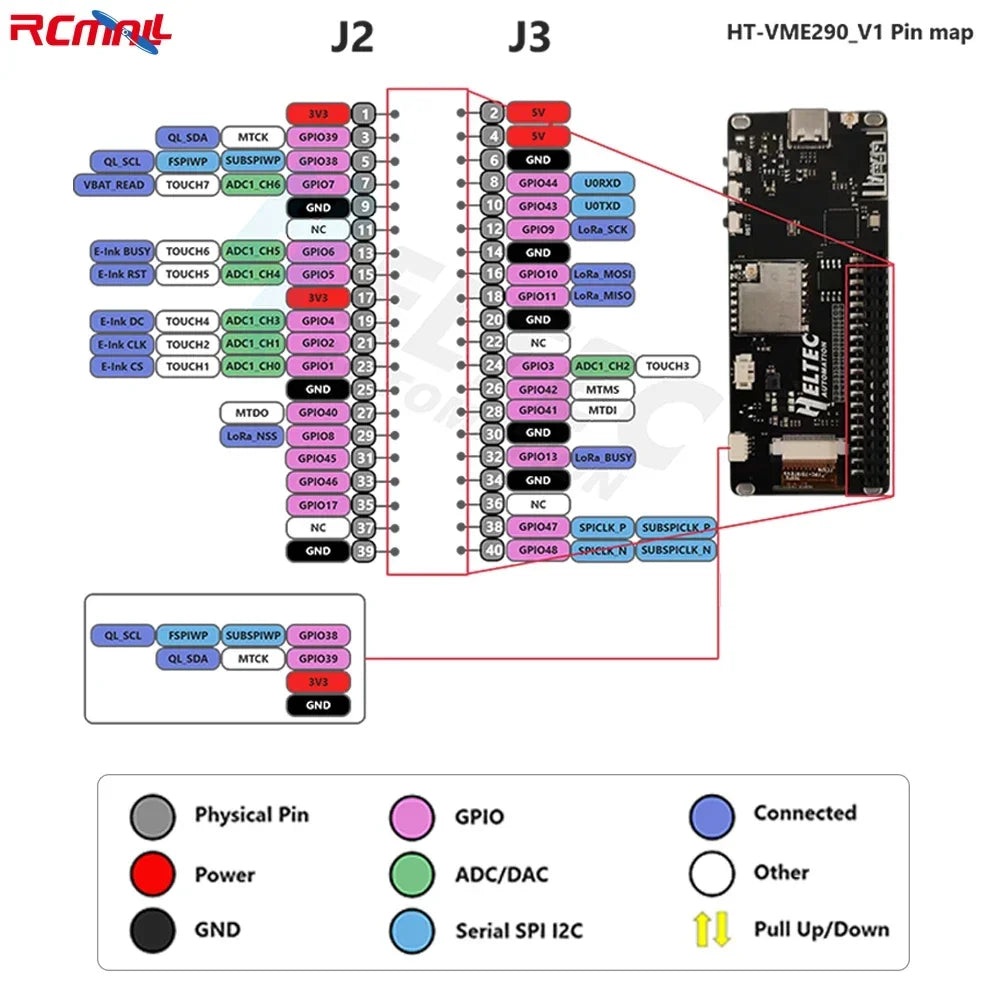

- 2*20 Pin Female Header, perfectly compatible with Raspberry PI.
- Compatible with Arduino, we provide development frameworks and libraries.

Specifications
Parameters	Description
Master Chip	ESP32-S3R8
LoRa Node Chip	SX1262
Frequency	470~510MHz,
	863~928MHz
Max. TX Power	21±1dBm
Max. Receiving sensitivity	-136dBm@SF12 BW=125KHz
Wi-Fi	802.11 b/g/n, up to 150Mbps
Bluetooth	Bluetooth 5 (LE)
Hardware Resource	6ADC_1, 1ADC_2, 6Touch, 8MPSRAM, 3UART; 2I2C; 2*SPI. Etc
Memory	384KB ROM;
	512KB SRAM;
	16KB RTC SRAM;
	8MB SiP Flash

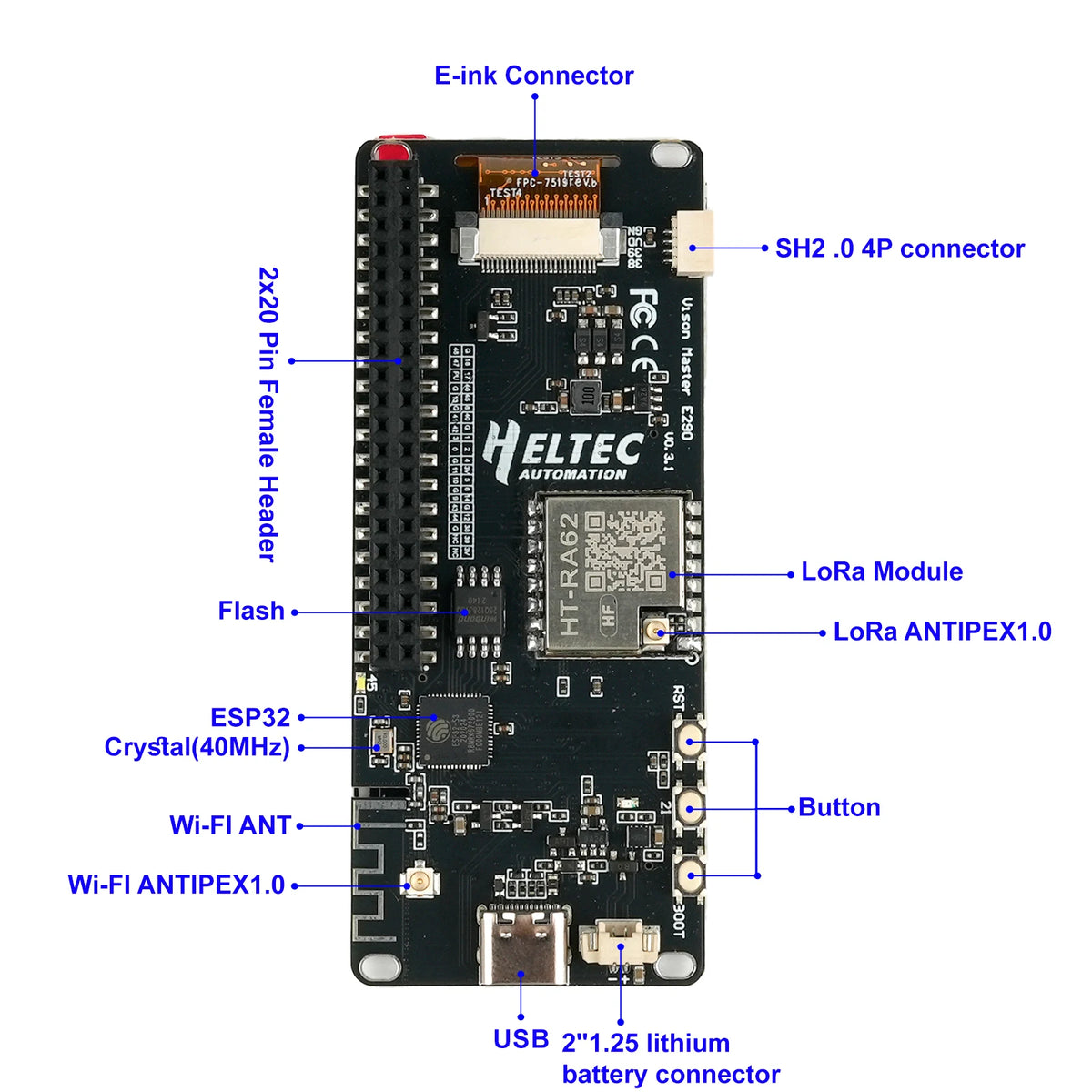

Interface	Type-C USB;
	2*1.25 lithium battery interface;
	LoRa ANT(I-PX1.0);
	Wi-Fi ANT(I-PX1.0);
	2*20 Pin Famle Header;
	SH2.0-4P sensor interface.
Battery	3.7V lithium battery power supply and charging
Operating Temperature	-20 ~ 70 ℃
E-Ink	2.90 Inch, 128(H)x296(V) Pixel, 29x67mm,
Display Color	Black&White(2 Grayscale)

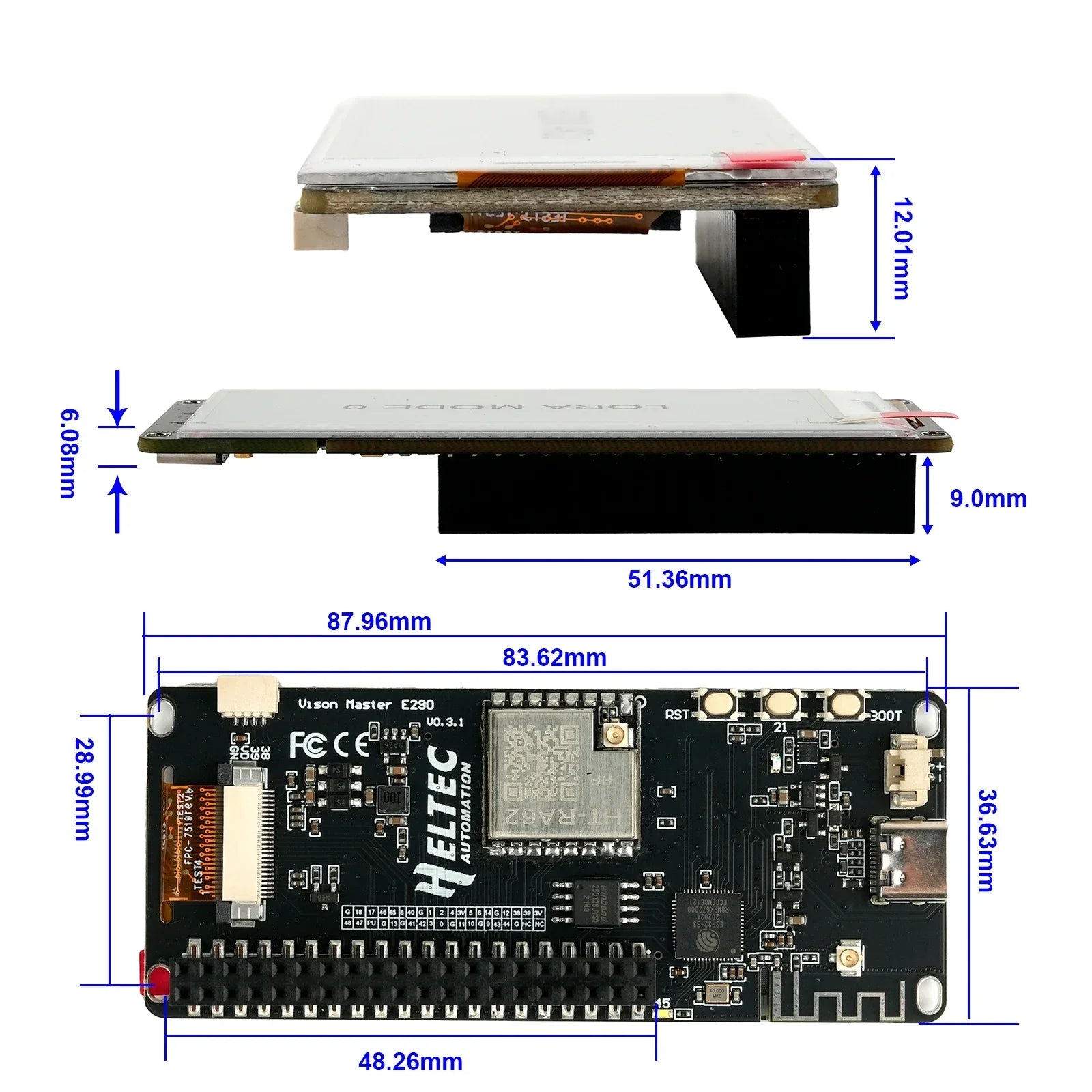

Dimensions	87.9636.6312mm
Display	2.90 Inch Black and White E-Ink Display Screen
