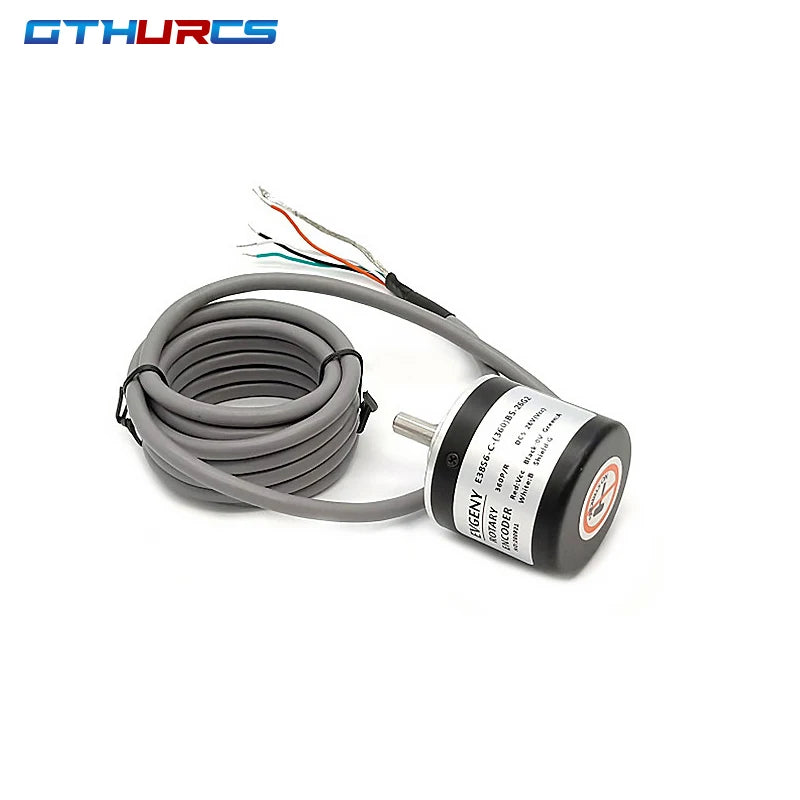

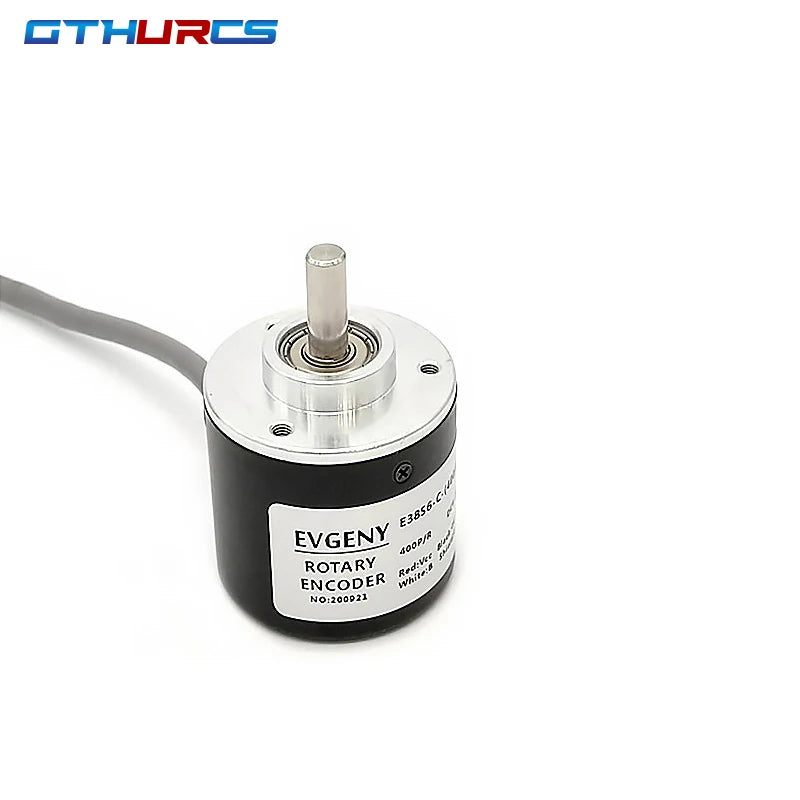

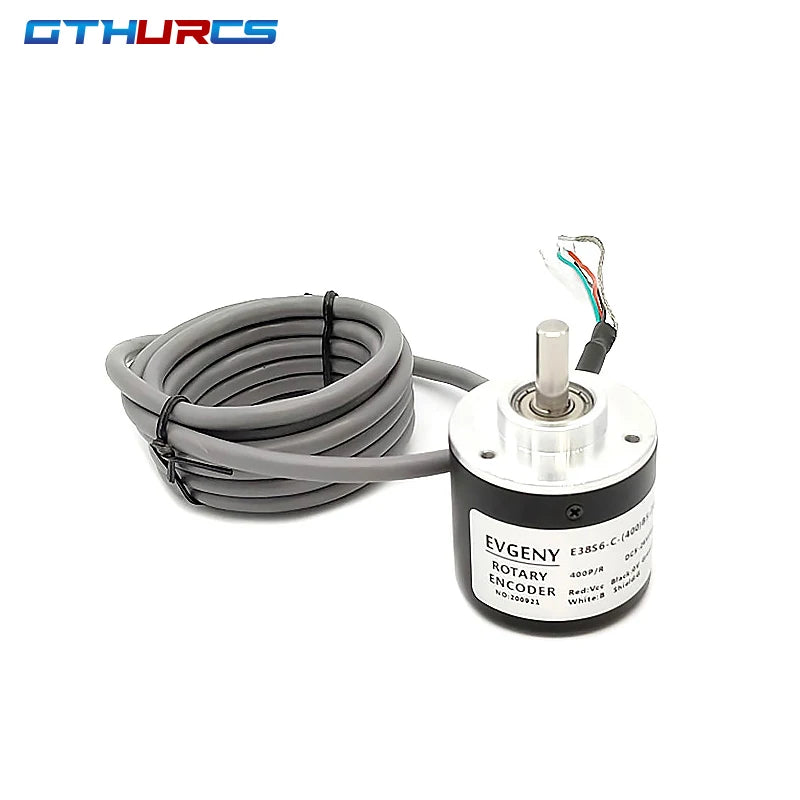

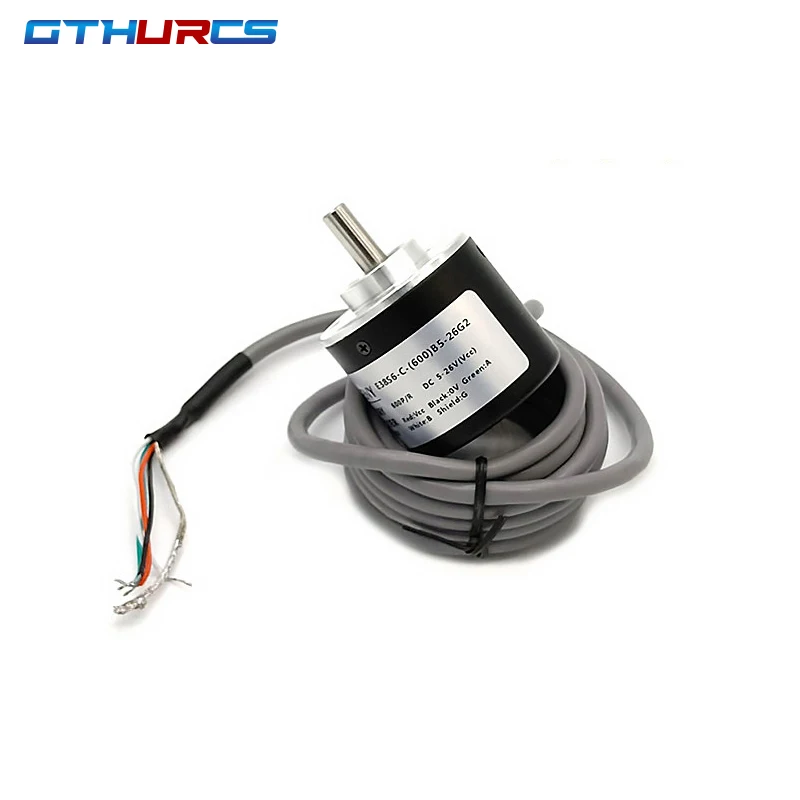

Encoder 360 P/R 400P/R 600P/R Incremental Rotary Encoder AB phase encoder 6mm Shaft + coupling DC 5V -24V

Encoder 360 Incremental Rotary

360 p/r (Single-phase 360 pulses /R,Two phase 4 frequency doubling to 1440 pulses)

Power source: DC5-24V

Shaft: 6*13mm/0.23*0.51"

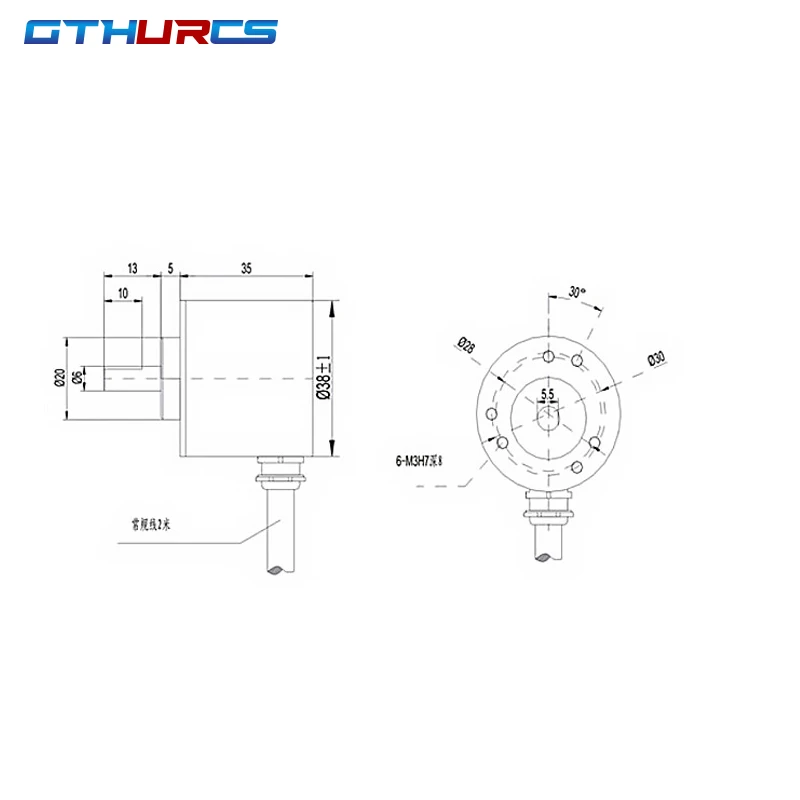

Size: 38*35.5mm/1.49*1.39"

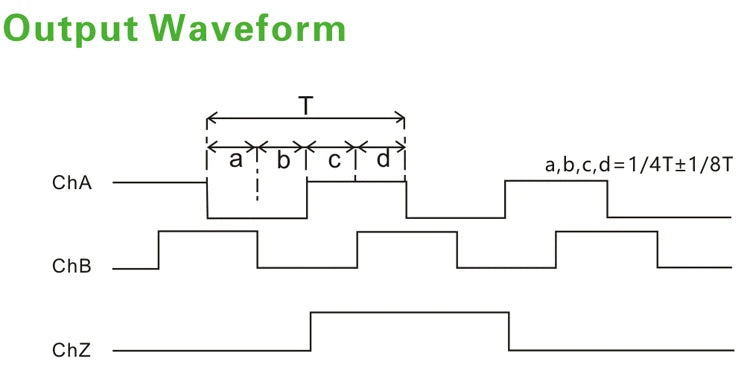

Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type

Maximum mechanical speed: 5000 R / min

Response frequency: 0-20KHz

Cable length: 1.5 meter

Notice:AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal

connection:

Green = A phase, white = B phase, red = Vcc power +, black = V0

Application:

Is used to measure the rotational speed, Angle and acceleration of the object and the length measurement

Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, Students racing robots

Package includes:

1 x Encoder 360P/R Incremental Rotary Encoder

Encoder 600 Incremental Rotary

600 p/r (Single-phase 600 pulses /R,Two phase 4 frequency doubling to 2400 pulses)

Power source: DC5-24V

Shaft: 6*13mm/0.23*0.51"

Size: 38*35.5mm/1.49*1.39"

Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type

Maximum mechanical speed: 5000 R / min

Response frequency: 0-20KHz

Cable length: 1.5 meter

Notice:AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal

connection:

Green = A phase, white = B phase, red = Vcc power +, black = V0

Application:

Is used to measure the rotational speed, Angle and acceleration of the object and the length measurement

Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, Students racing robots

Package includes:

1 x Encoder 600P/R Incremental Rotary Encoder
