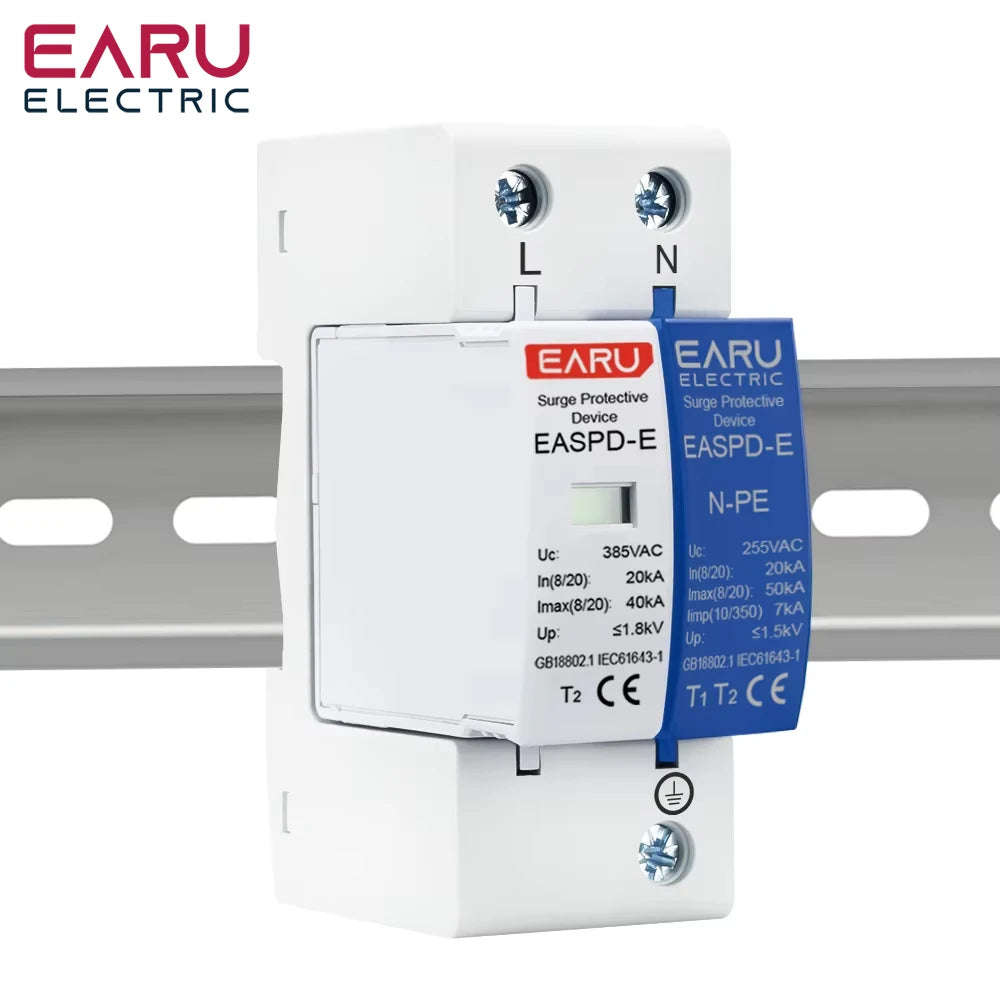

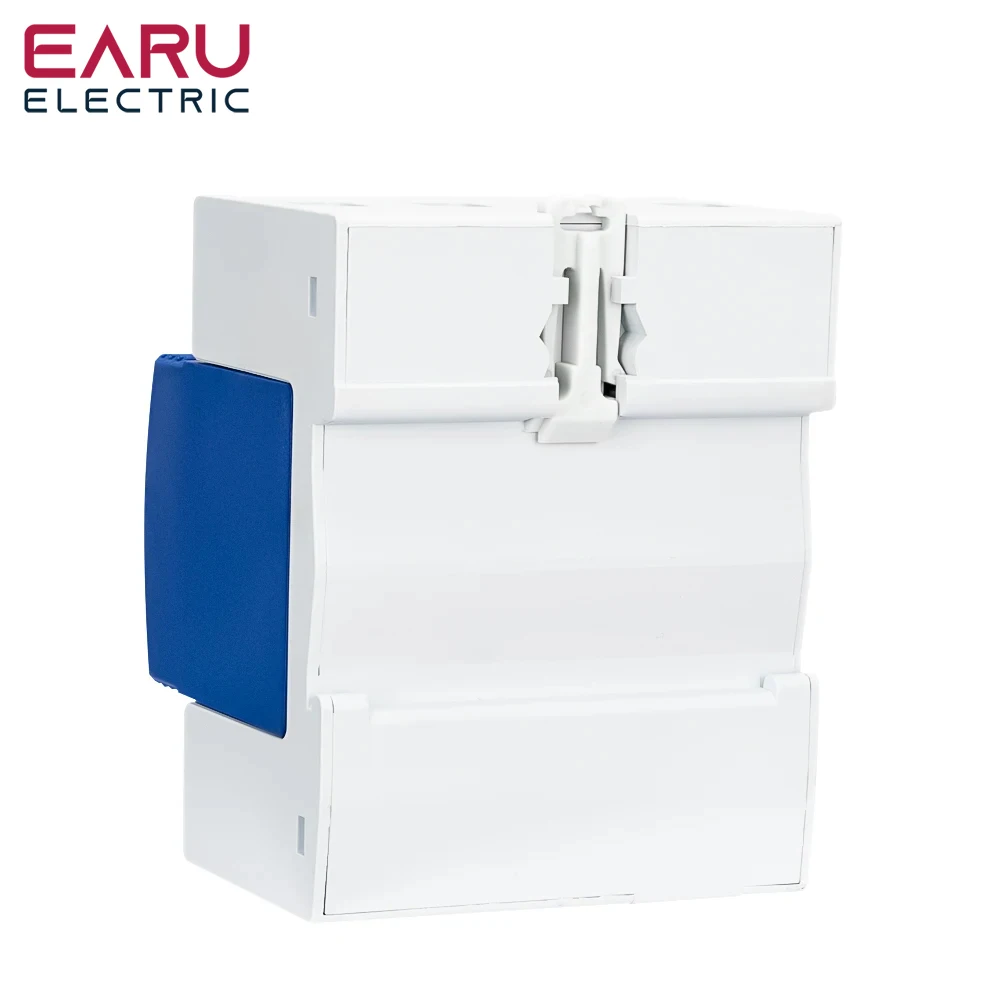

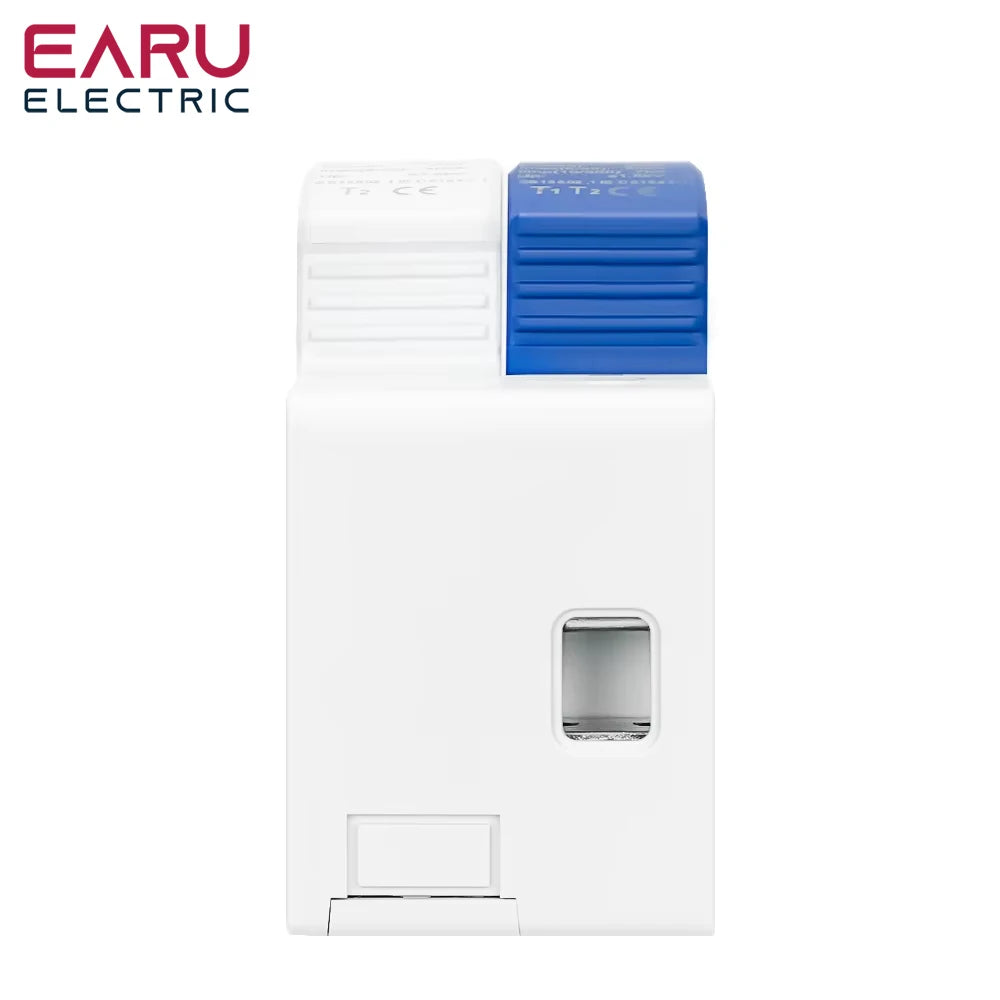

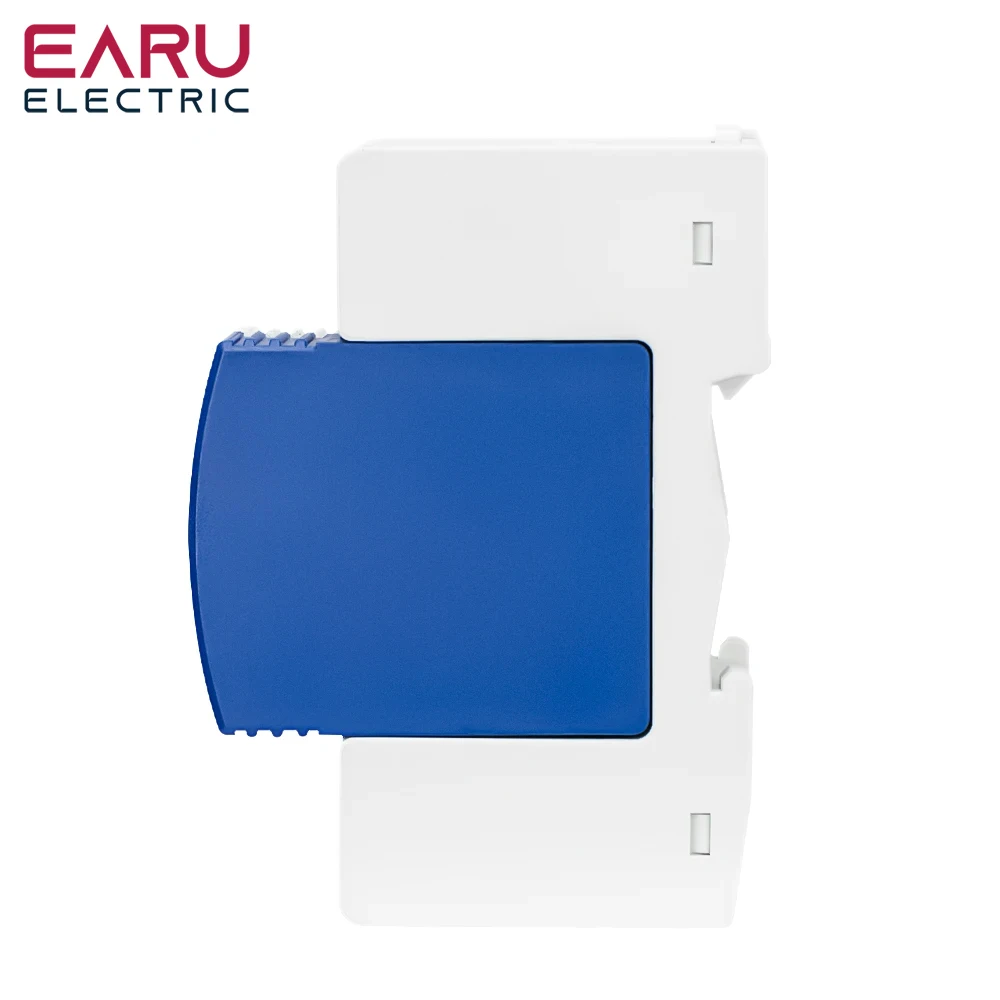

EARU AC SPD 1P/3P+NPE 50KA T1 T2 385V 275V House Lightning Surge Protector Protective Solar Low-Voltage Arrester Device Din Rail

EARU AC SPD 1P/3P+NPE 50KA T1 T2 385V 275V House Lightning Surge Protector Protective Solar Low-Voltage Arrester Device Din Rail

$43.74

$43.74 $0.00

Rated Current AC 275V AC 385V

Poles Number 2P 4P

Description

SPECIFICATIONS

Brand Name: EARU

Certification: CE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Input Voltage: 275V/385V

Is Smart Device: no

Max. Discharge Current: 40KA

Model Number: EASPD-E

Nominal Discharge Current: 20KA

Origin: Mainland China

Rated Voltage: 220/380V

Type: Surge Protector,Circuit breaker

is_customized: Yes

semi_Choice: yes

Electric ratings: 275V/385V, AC50/60Hz,
Application: Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage;
Standard: IEC/EN 61643-1

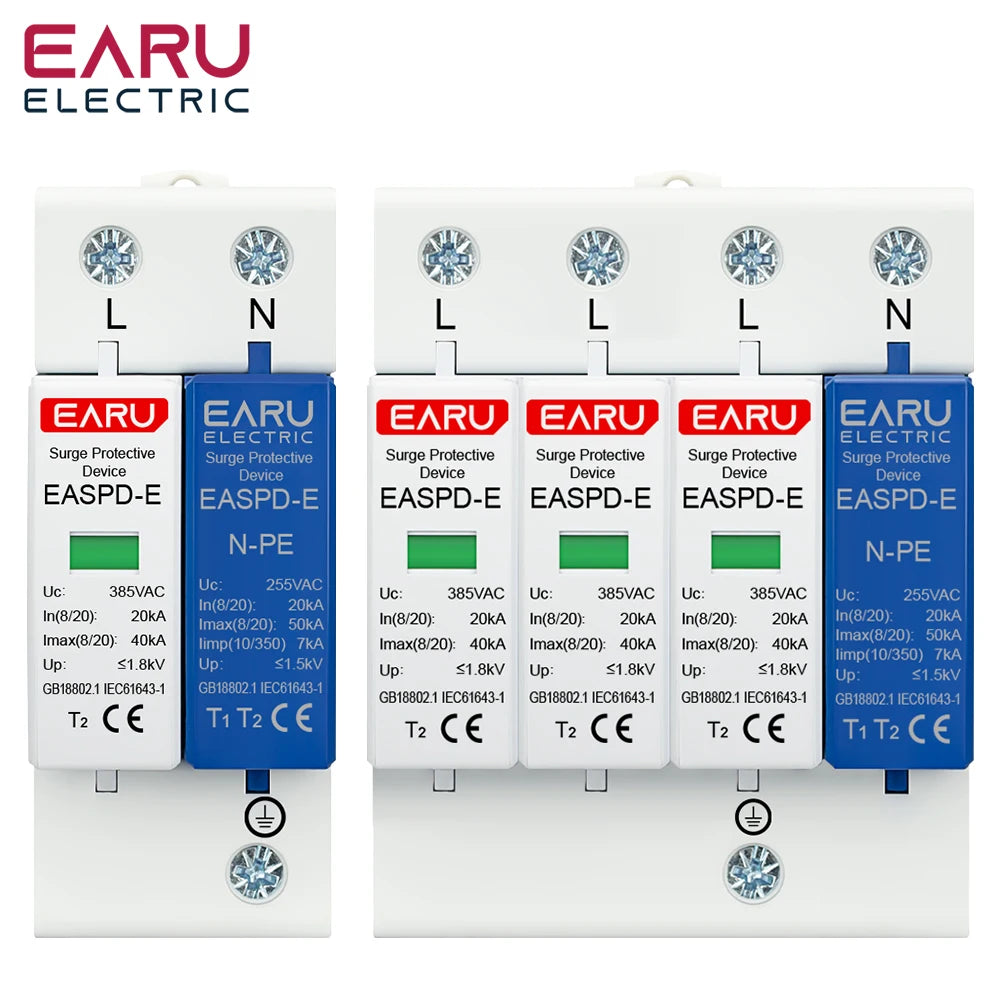

Number of poles: 2P 4P
Electric ratings: Single phase power distribution and control system of AC50/60Hz, 230V;
Short circuit current: up to 10kA (8/20μs);
Application: Protect electric system and on-loading electrical apparatus from lightening and instantaneous over-voltage;

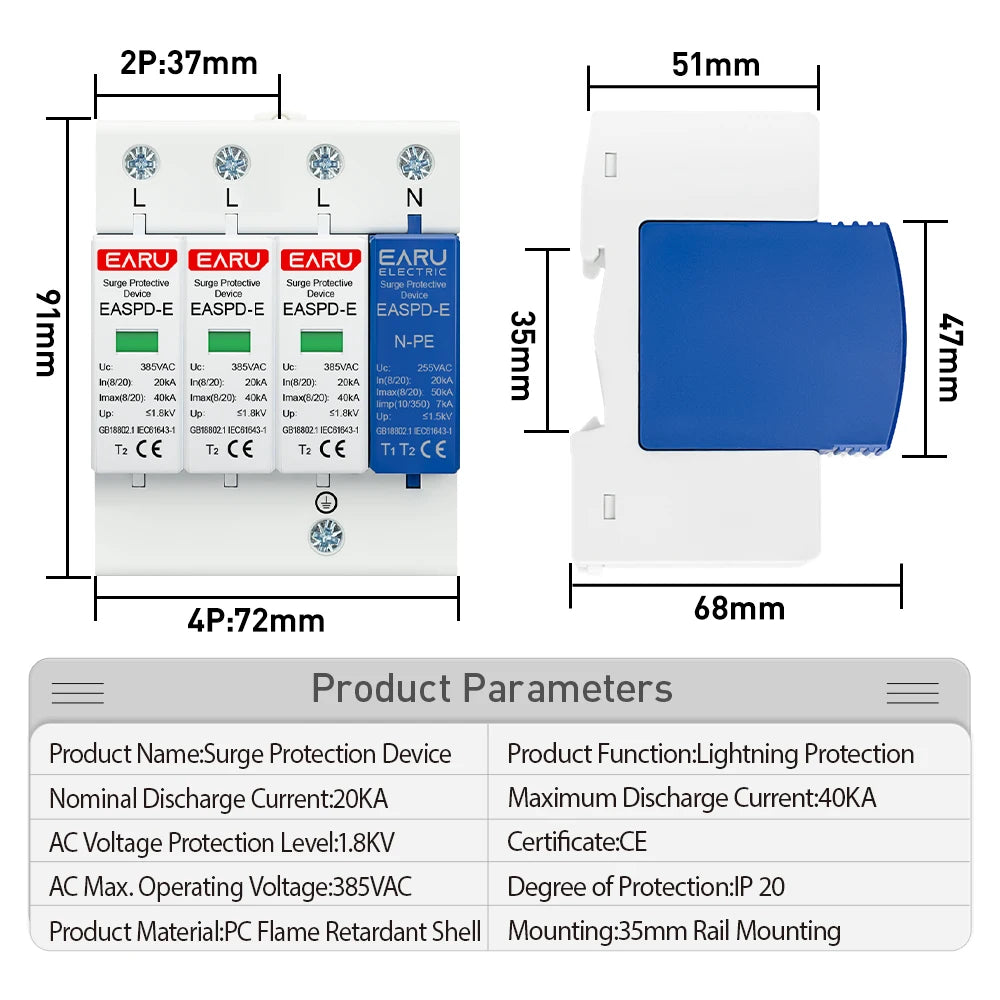

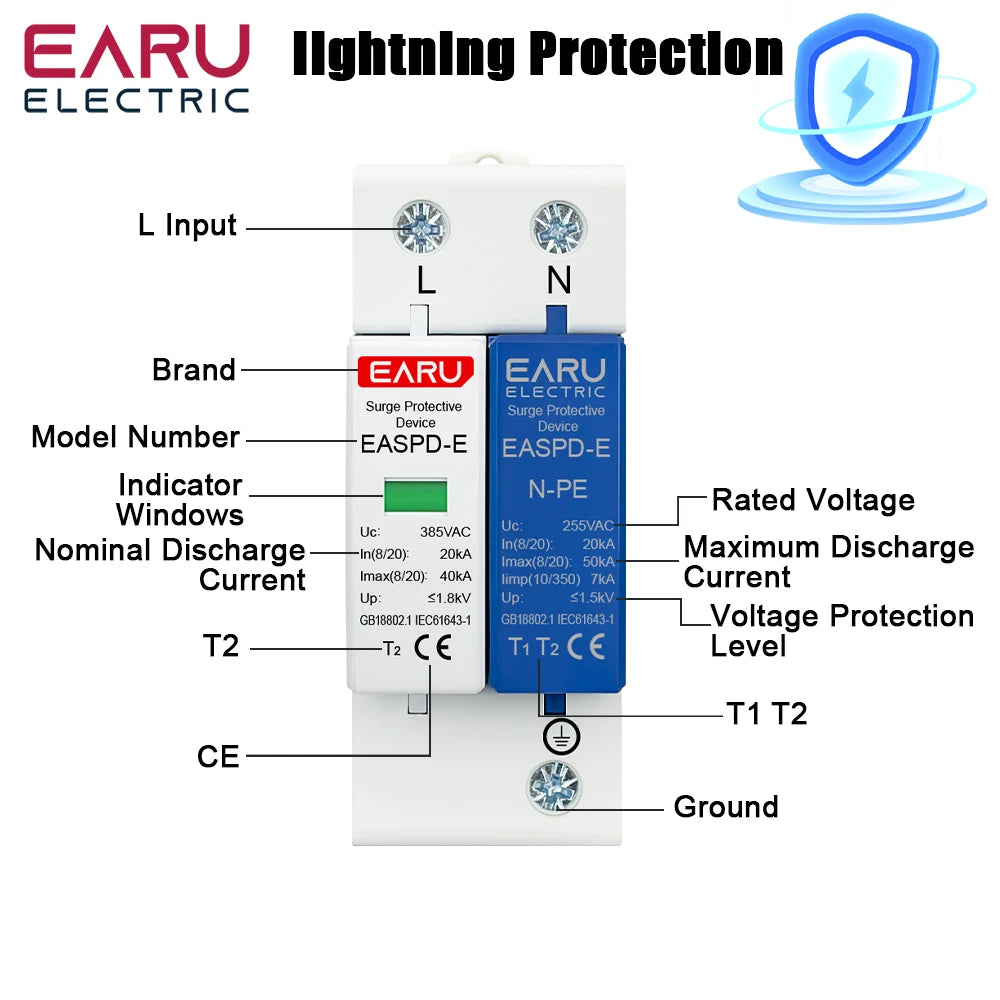

Technical parameters:

Max.Continuous Operating Voltage (Uc):	~275VAC	~385VAC
Nominal Discharge Current (8/20μs) (In):	20KA	20KA
Max. Discharge Current (8/20μs) (Imax.):	40KA	40KA
Voltage Protection Level( Up):	≤1.8KV	≤1.8KV
Response Time:	< 25ns
Leakage current:	≤20μA
Working Environment:	Temperature -40°C +80°C;
	Relative humidity<95%;

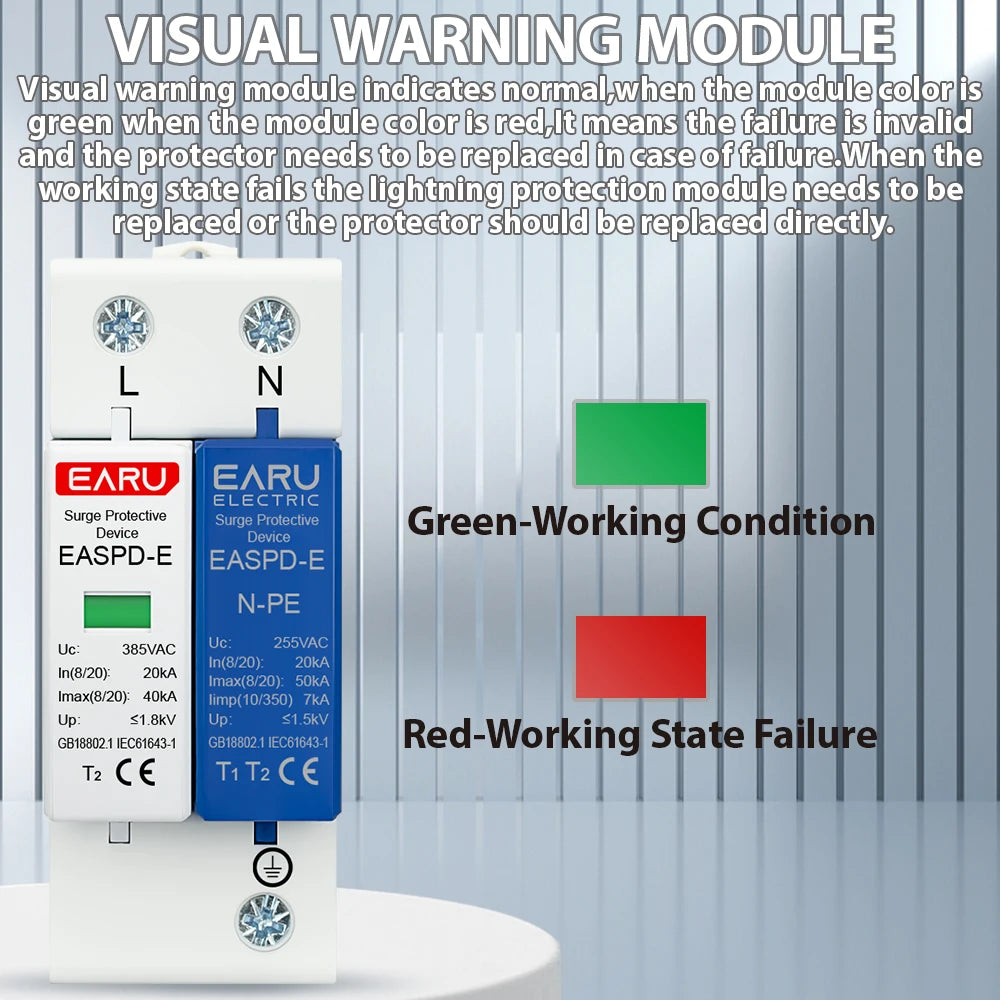

indicate deterioration:	green(normal),red(malfunction)
Protection Mode:	L+N-PE
Material of Outer Shell:	Flame retardant materials
