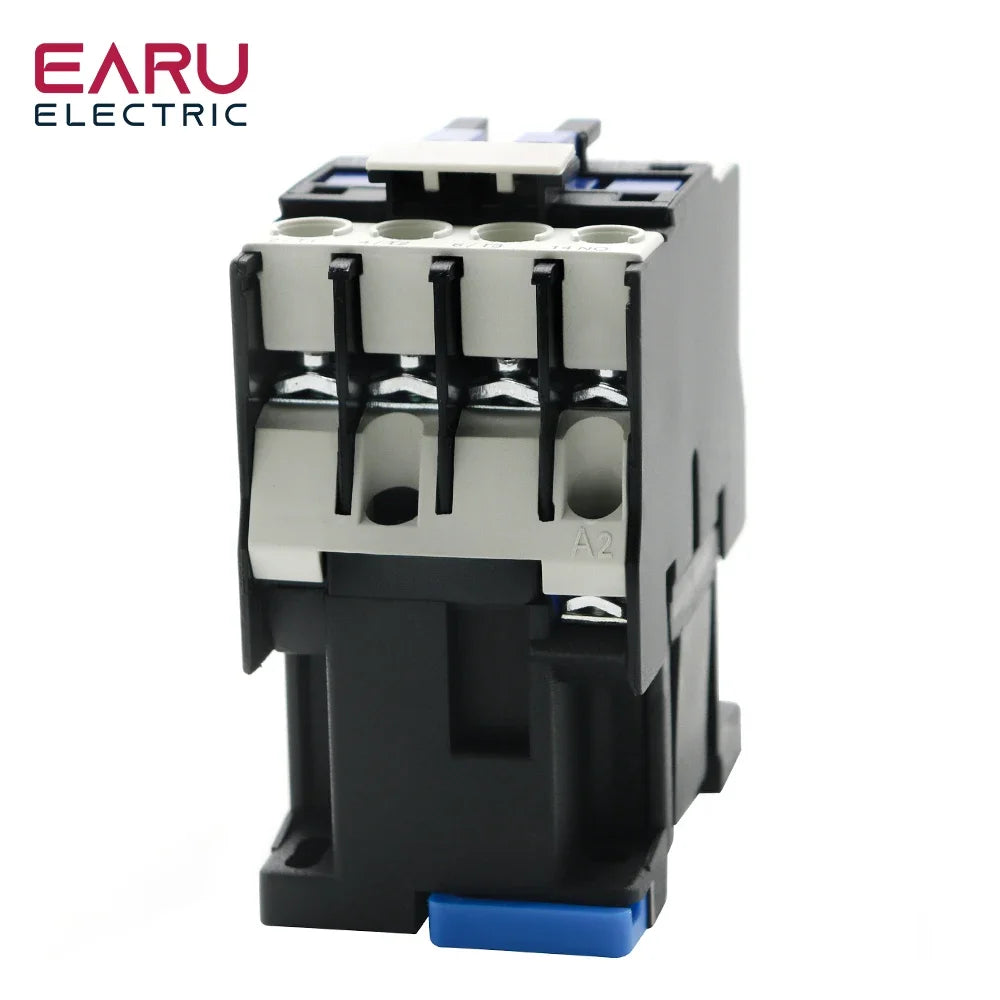

EARU Three Phase LC1 CJX2-1810 18A NO Coil Voltage AC Contactor 380V 220V 110V 24V 50/60Hz Din Rail Mount 3Pole+1NO Normal Open
AC 380V
$56.25
Sale price
$56.25
Regular price
$0.00
Skip to product information
EARU Three Phase LC1 CJX2-1810 18A NO Coil Voltage AC Contactor 380V 220V 110V 24V 50/60Hz Din Rail Mount 3Pole+1NO Normal Open
$56.25
Sale price
$56.25
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: EARU
Certification: NONE
Choice: yes
Does it include a Battery?: No
Does it include wireless functionality?: No
Electricity Type: AC
High-concerned chemical: none
Main Circuit Rating Current: 18A
Main Circuit Rating Voltage: 660V
Model Number: CJX2-1810
Number of Pole: 3

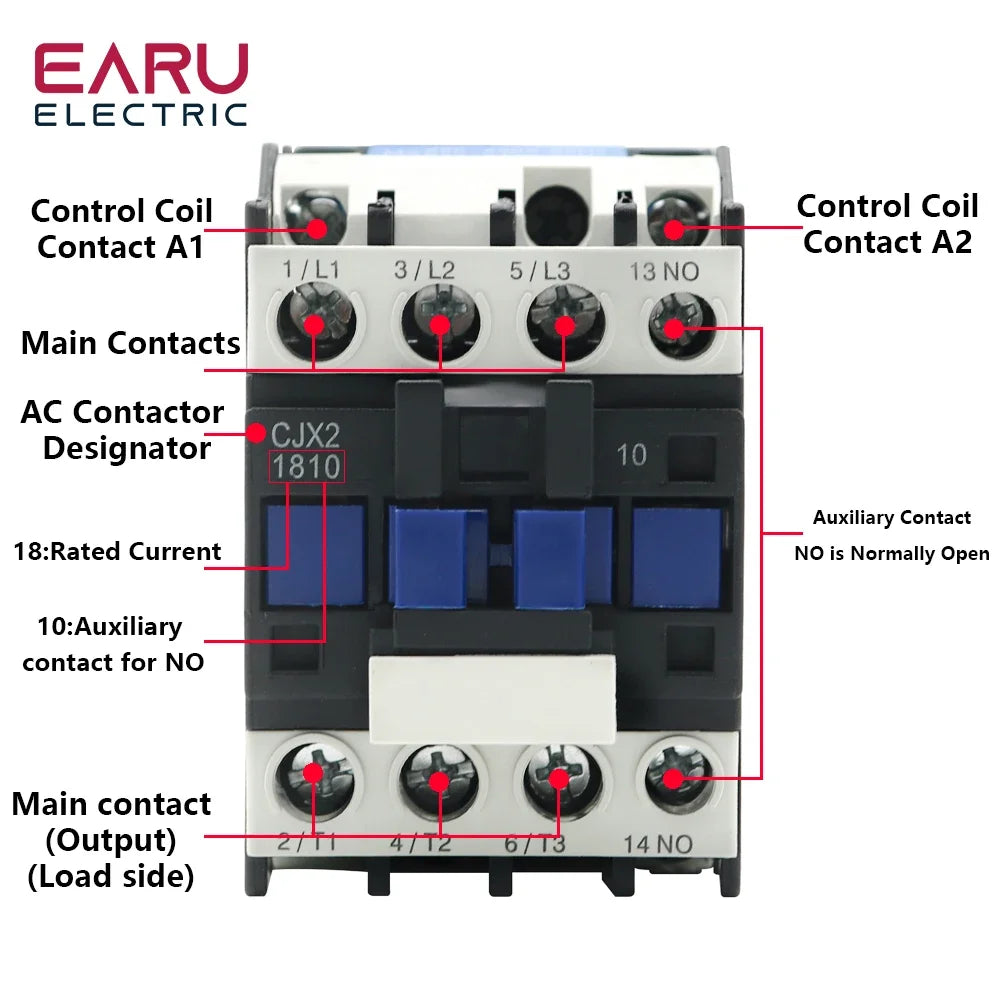

Number of the contacts: 3P+1NO
Origin: Mainland China
Phase: 3
Select the voltage: 380V 220V 110V 24V
is_customized: Yes
semi_Choice: yes
CJX2-1810 LC1 AC Contactor 18A 3 Phase 3-Pole NO Coil Voltage 380V 220V 110V 36V 24V 50/60Hz Din Rail Mounted 3P+1NO Normal Open
Product Name : AC Contactor;
Model Number : CJX2-1810;

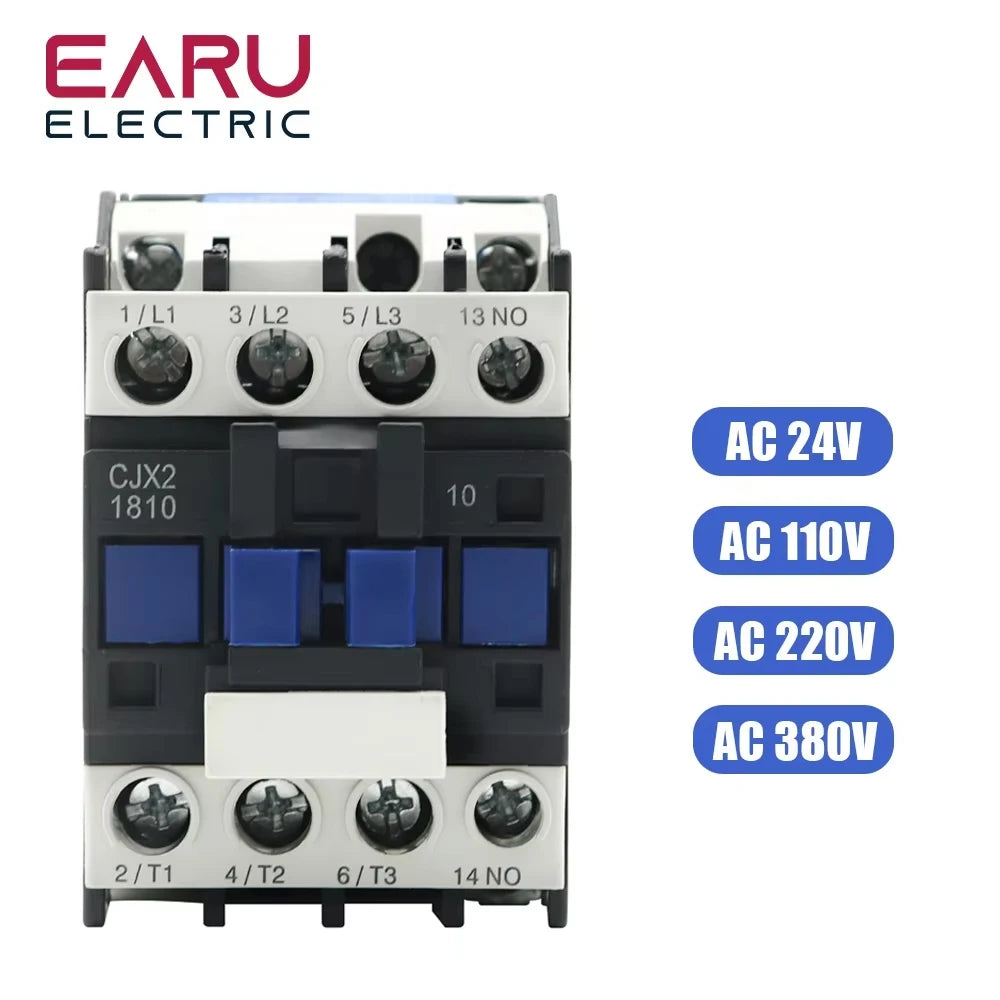

Rated Coil Voltage : AC 380v,220V,110V,24V;
Frequency : 50/60Hz
Contact Type : 1NO;

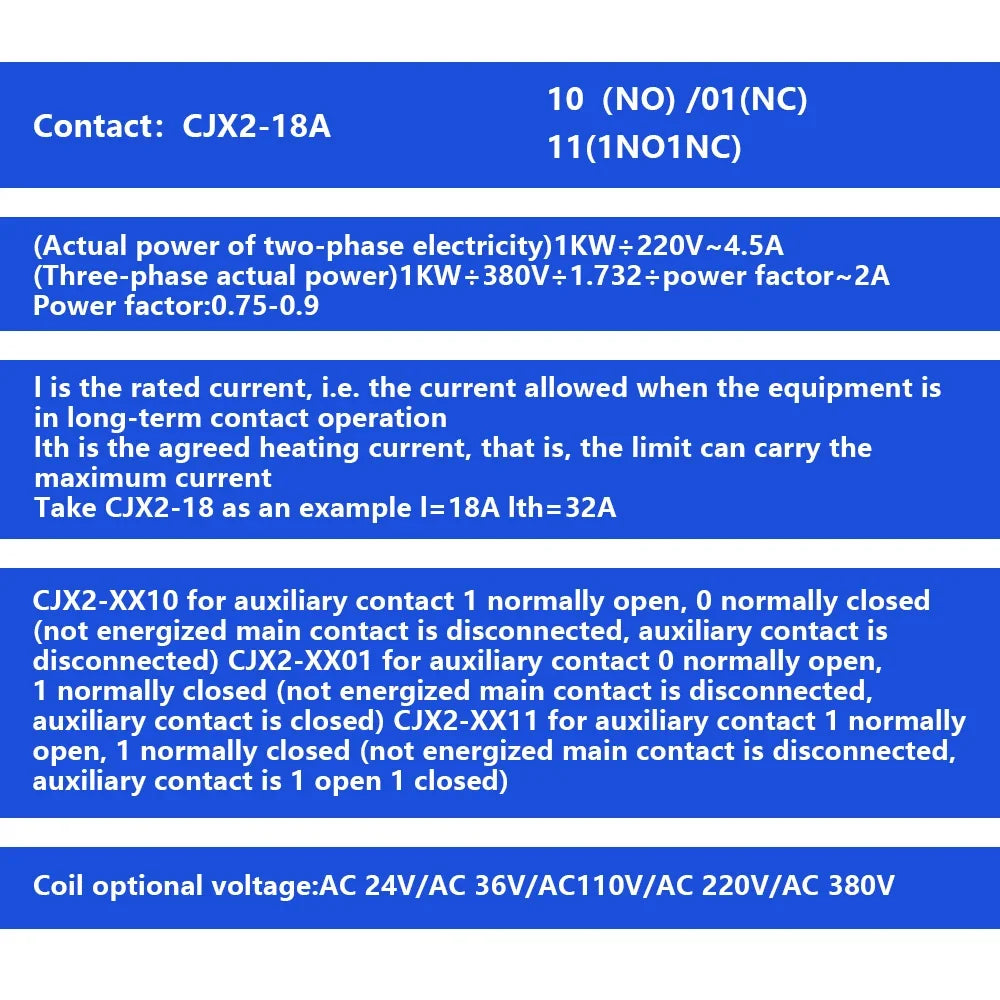

Pole Number : 3 Pole;Conventional Thermal Current(Ith) : 32A

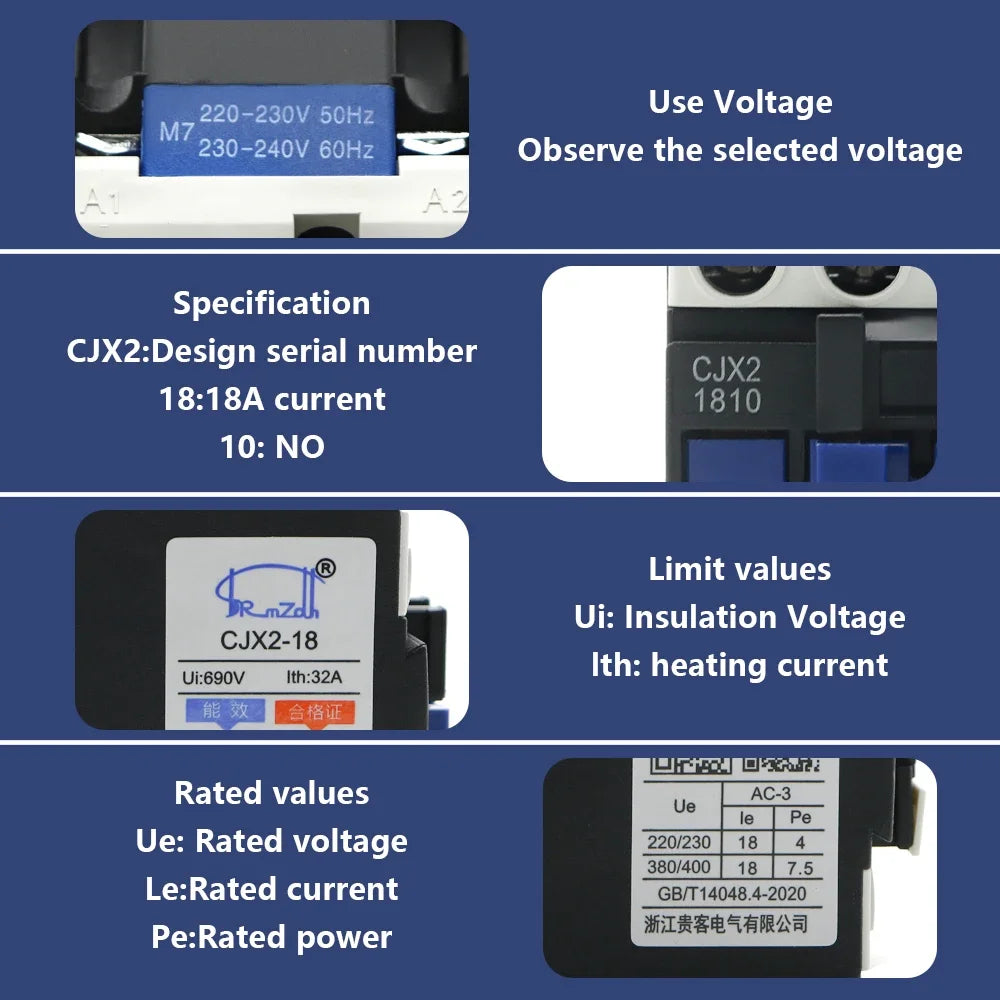

Rated Insulation Voltage(Ui) : AC 660V;
AC-3 Rated Voltage(Ue) : 220/380;
AC-3 Controled Power(Pe) : 4/7.5KW

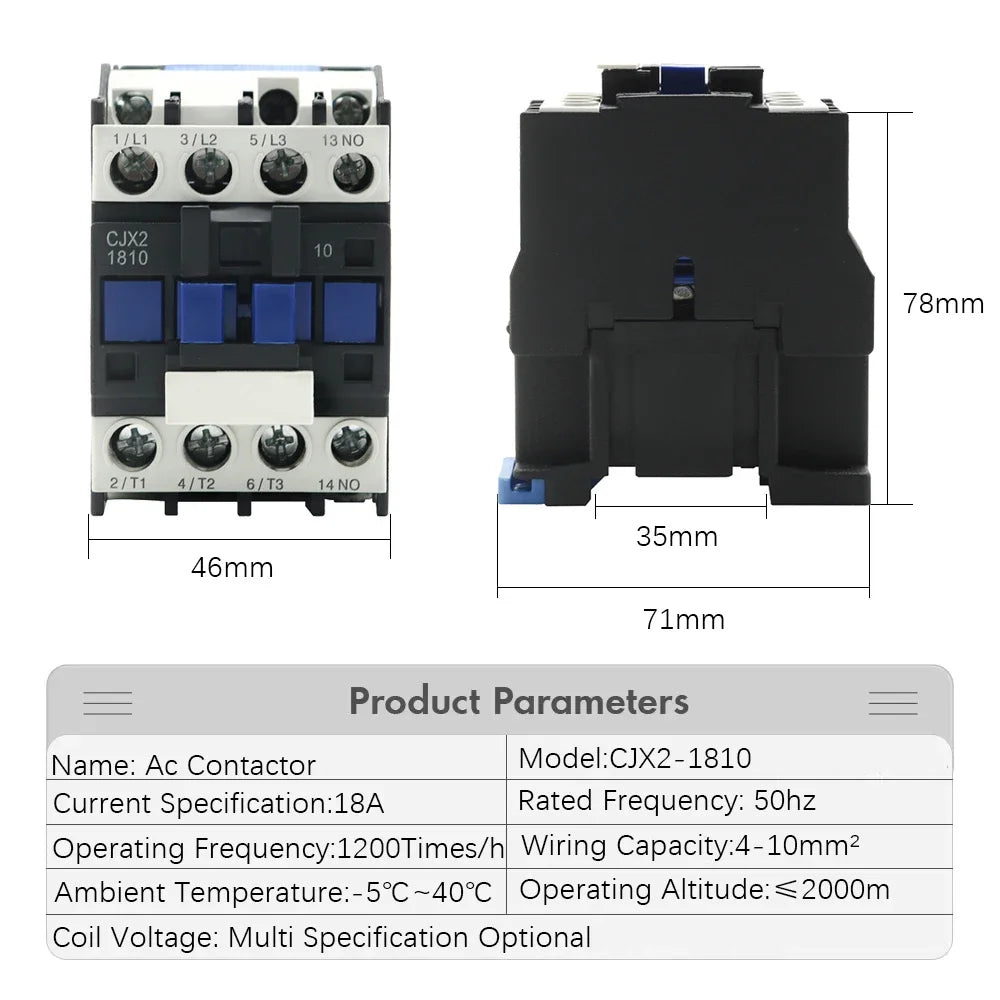

Total Size(Approx) : 79 x 44 x 71mm/ 3.1" x 1.7" x 2.8" (L*W*H);

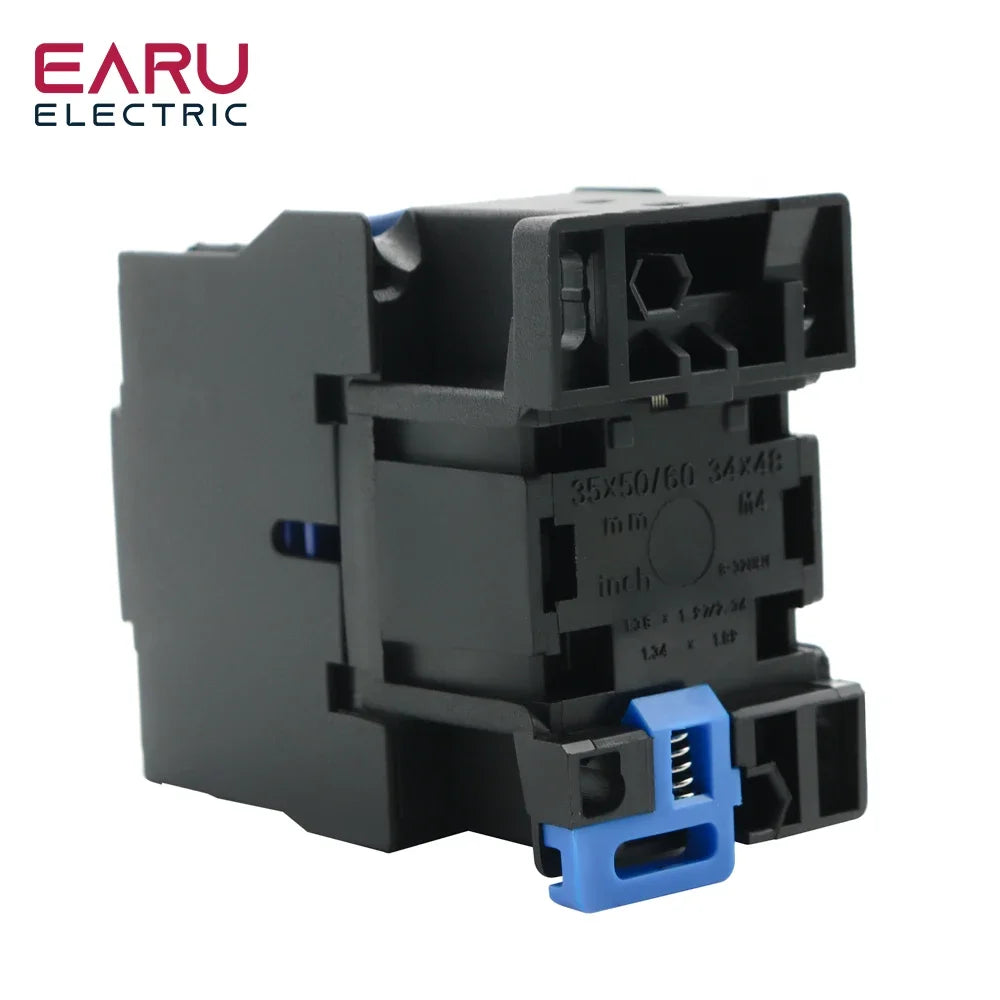

Rail Mounting : 35mm DIN Rail;
Material : Plastic, Electrical Parts
Main Color : Black;
Net Weight : 351g;
Package Content : 1 x AC
