Description

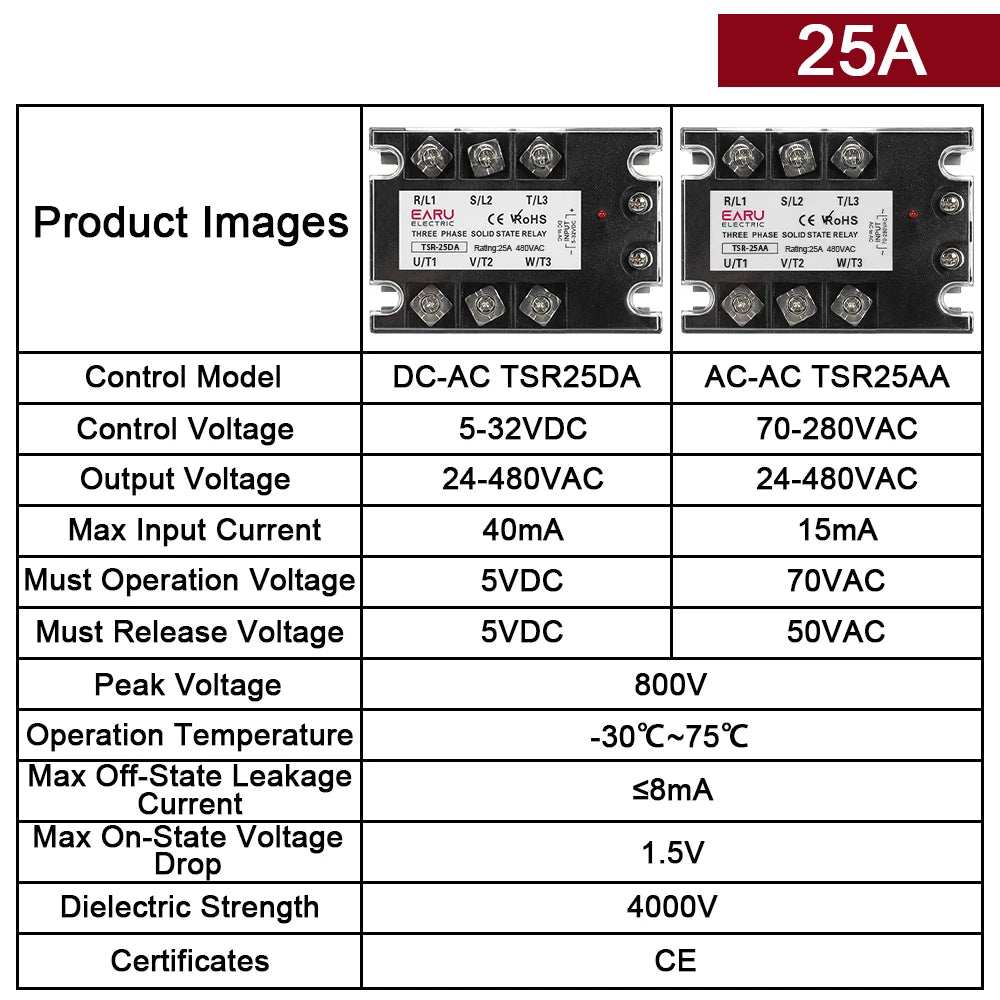

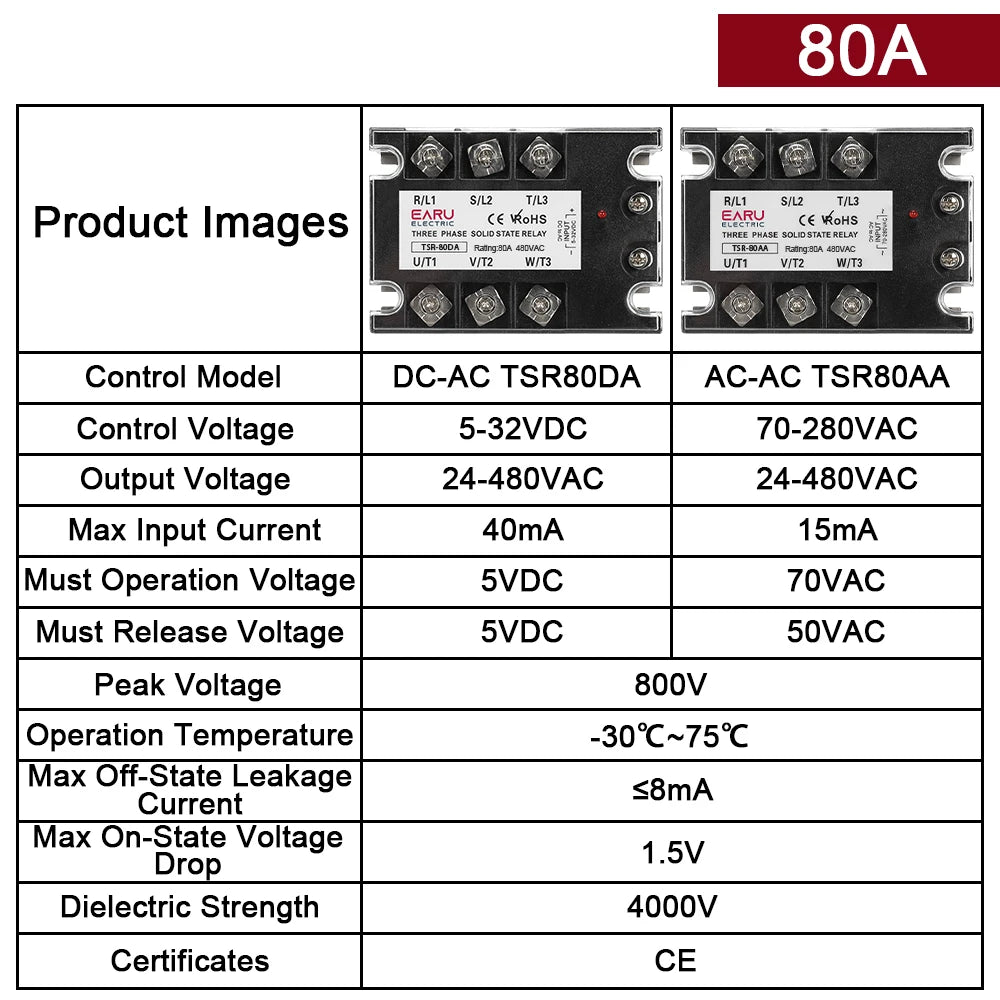

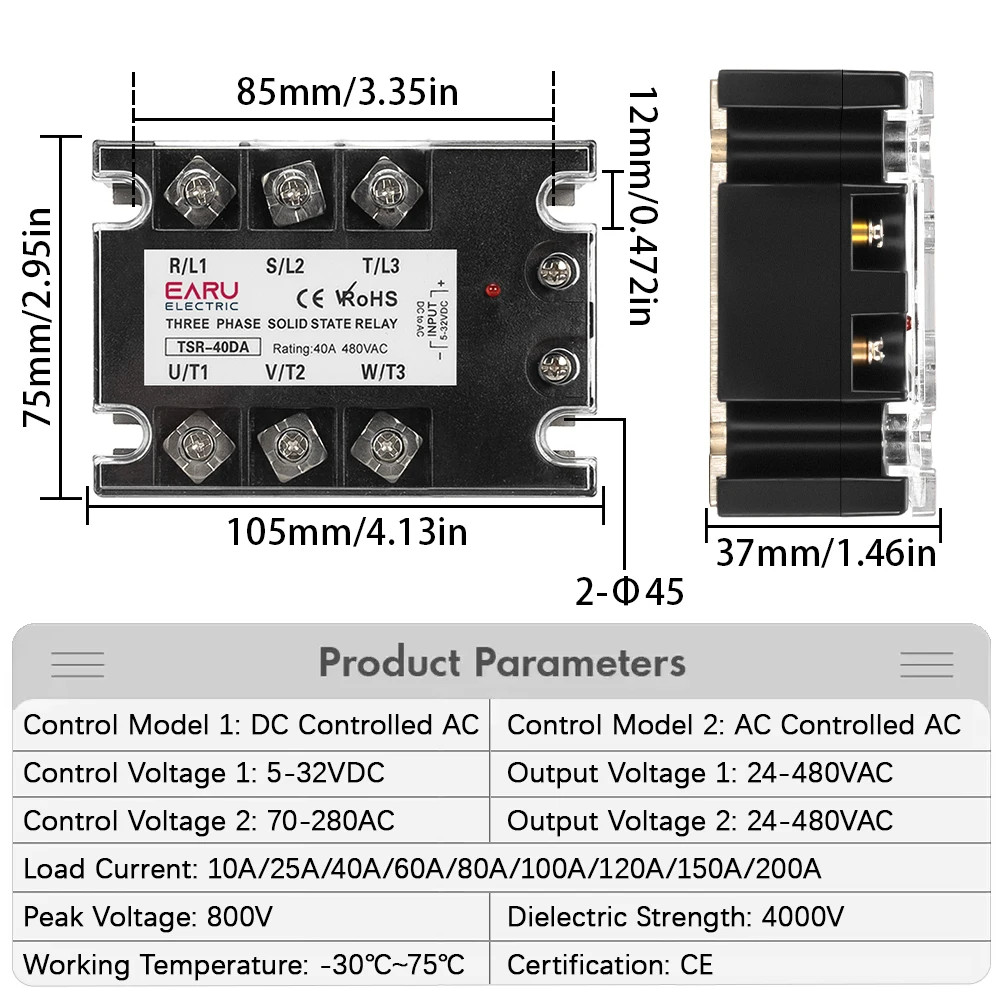

SPECIFICATIONS

Brand Name: EARU

Certification: CE,RoHS

Choice: yes

Contact Load: Low Power

Control Type 1: DC Control AC

Control Type 2: AC Control AC

Control Voltage 1: 5-32VDC

Control Voltage 2: 70-280VAC

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Load Current: 10A/25A/40A/60A/80A/100A/120A/150A/200A

Model Number: TSR-40AA

Origin: Mainland China

Output Voltage 1: 24-480VAC

Output Voltage 2: 24-480VAC

Power Source: DC,Ac

Protect Feature: Sealed

Theory: Solid State Relay

Usage: General Purpose

Use: Protective

Voltage: 380V

Working Temperature: -30℃~75℃

is_customized: Yes

semi_Choice: yes

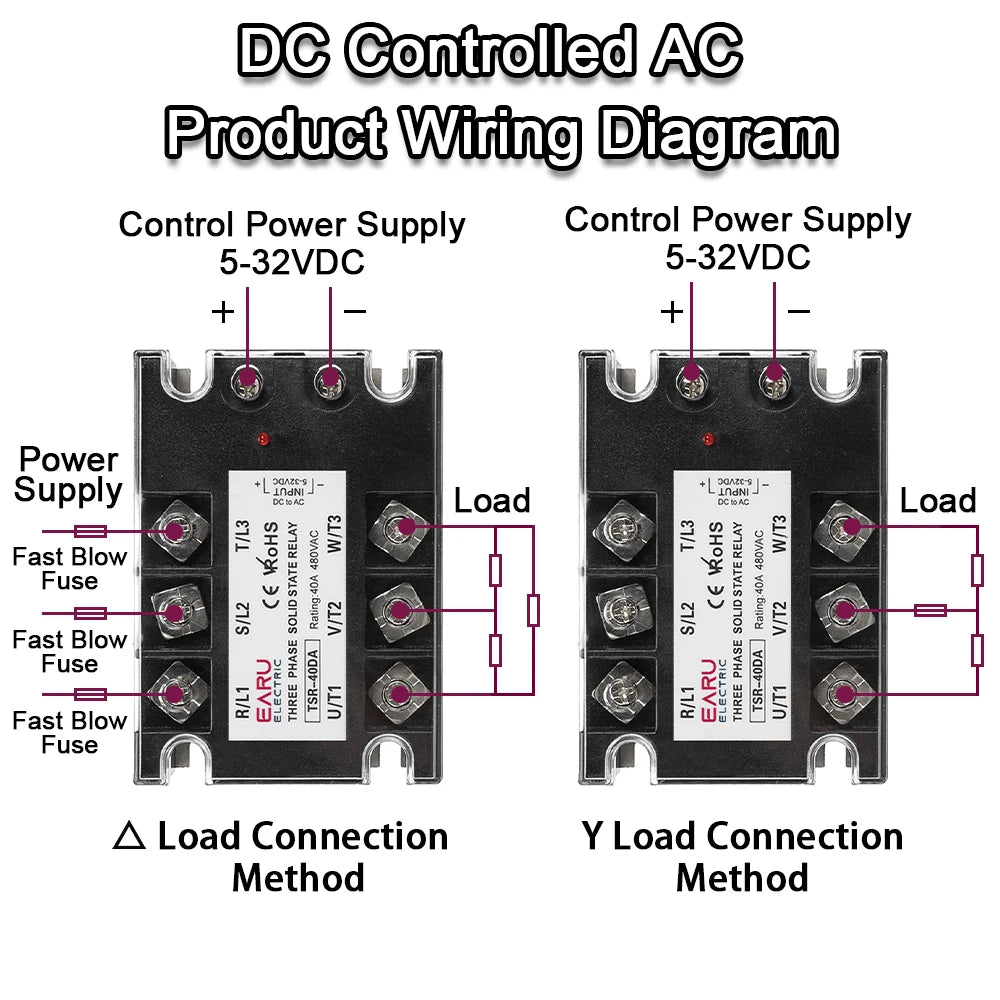

STEP 1: Choose a Correct Control Mode

DA- DC Control AC

AA- AC Control AC

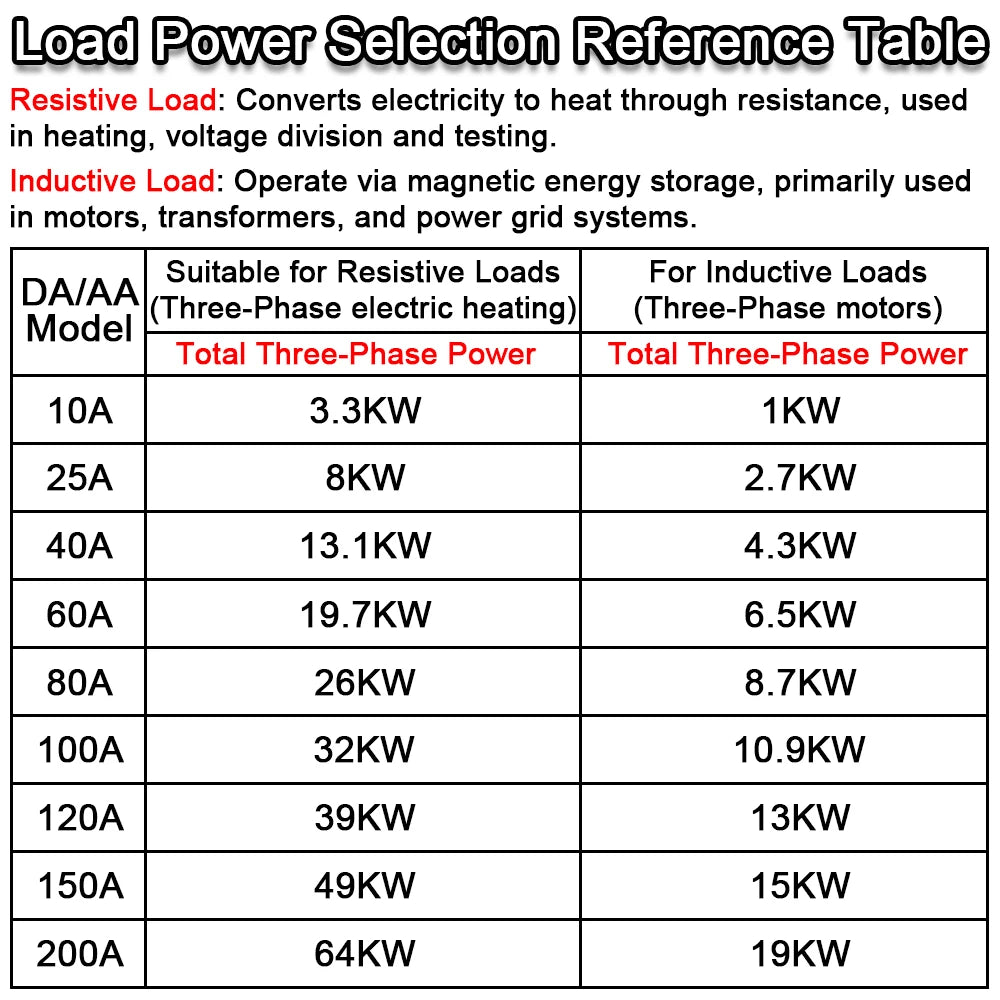

STEP 2: Choose a Correct Type

Device Current/Factor = Selection Current

Selection Current * Factor = Device Current

PS: The coefficient is determined by the type of load you want to bring the equipment

Resistive Load:40~50% Inductive Load12%

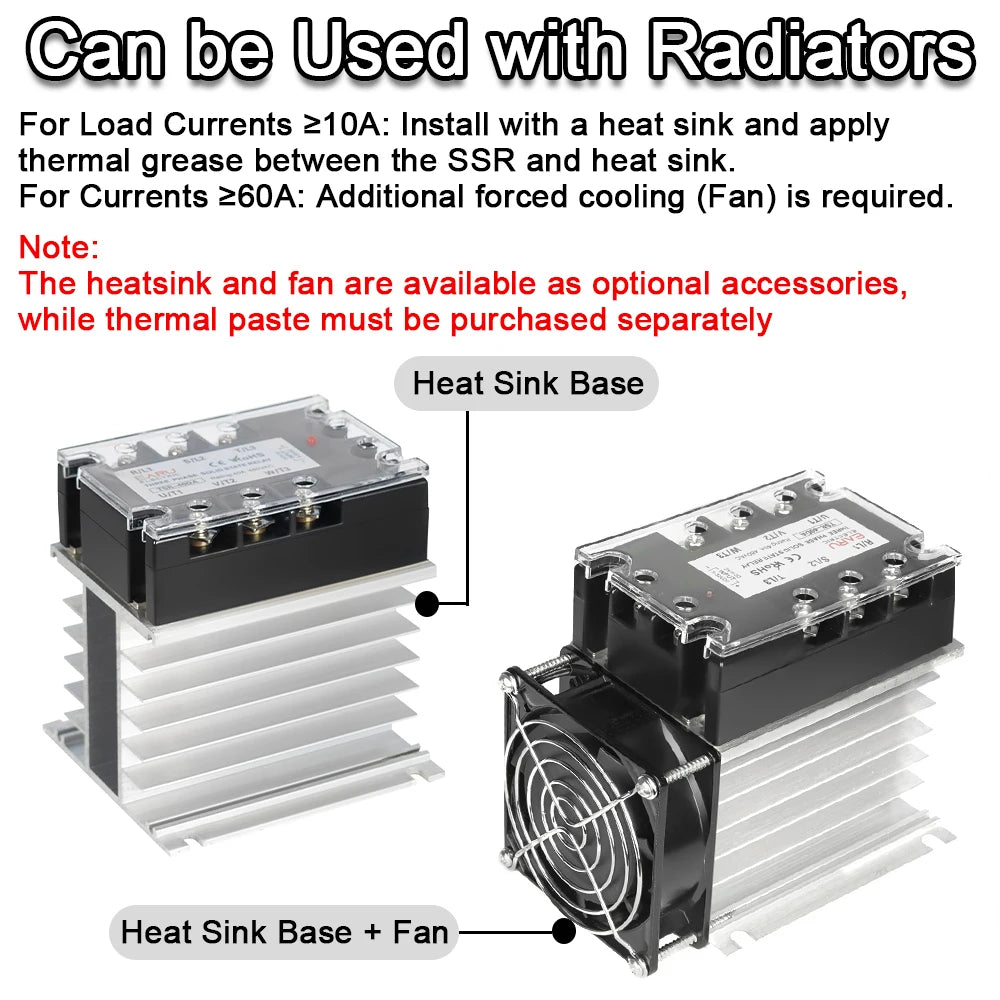

STEP 3: Choose a Suitable Heat Sink

If you need to buy a heat sink base and fan please click here！

During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.

PS: Our Heat Sink include screws (for install heat sink)

NOTICE:

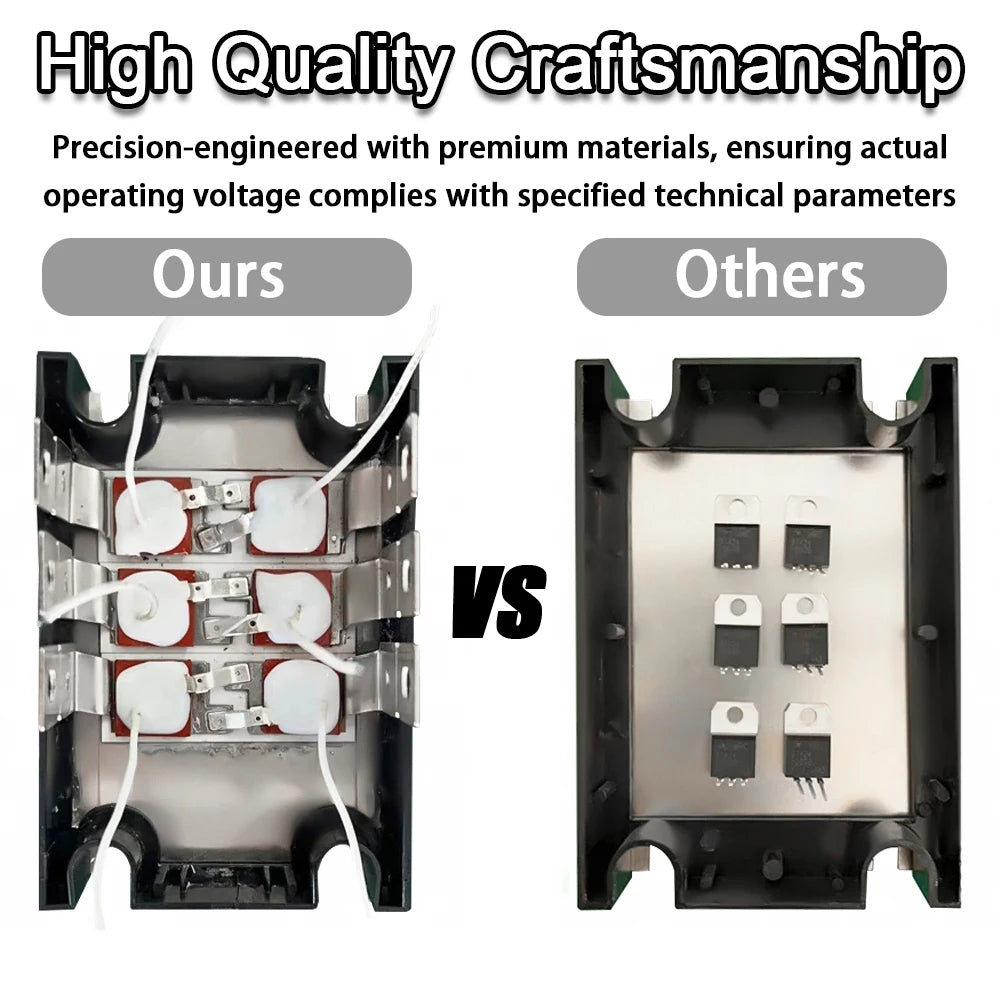

1.The inside of the solid-state relay is a semiconductor. A semiconductor switch is a non-physical contact switch. if use a multimeter diode or resistor to test ,it always show a high-impedance state, (multimeter light red).

2.According to the conventional detection methods of solid state relays: a load is required to test the switching state. Using an incandescent lamp as a dummy load is an obvious way to test continuity.
