SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Compatible Audio & Video Equipment Style: Amplifier

Electronic: Yes

High-concerned chemical: none

Origin: Mainland China

Specification 1: LoRa Wireless Module

Specification 2: E220900T22D

Specification 3: UART RSSI Transmitter Receiver

Specification 4: Wireless UART Module

Specification 5: LoRa Module

Type: IR

EBYTE E220-900T22D Lora LLCC68 Wireless Module 22Dbm Long Range 5Km SMA-K UART RSSI Transmitter Receiver DIP With 868Mhz Antenna

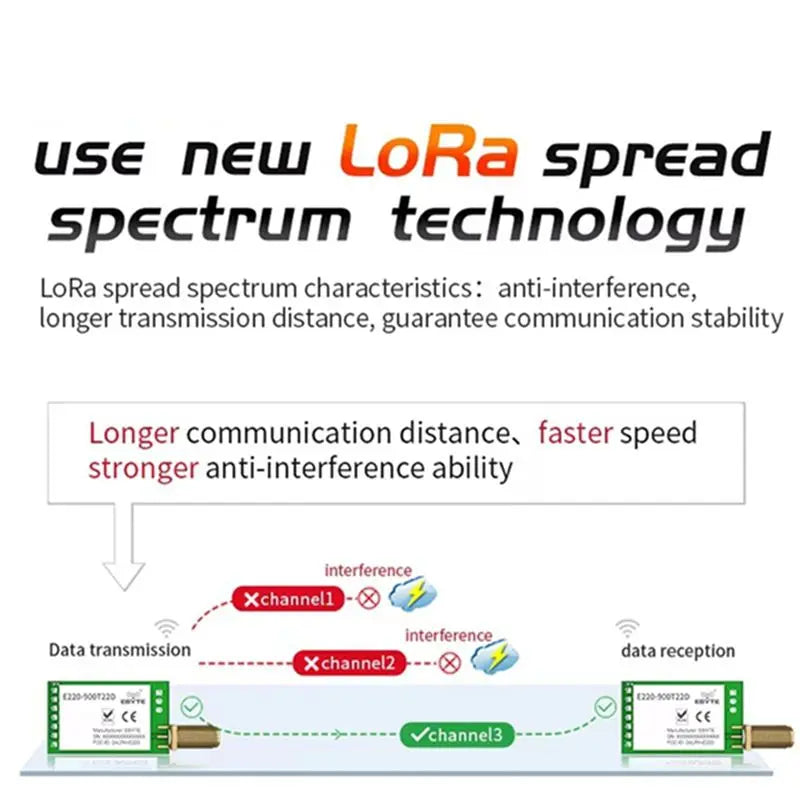

Use chips LLCC68. Compared with the SX1278/SX1276 solution, the transmission distance is longer,the speed is faster ,and the power consumption is lower.

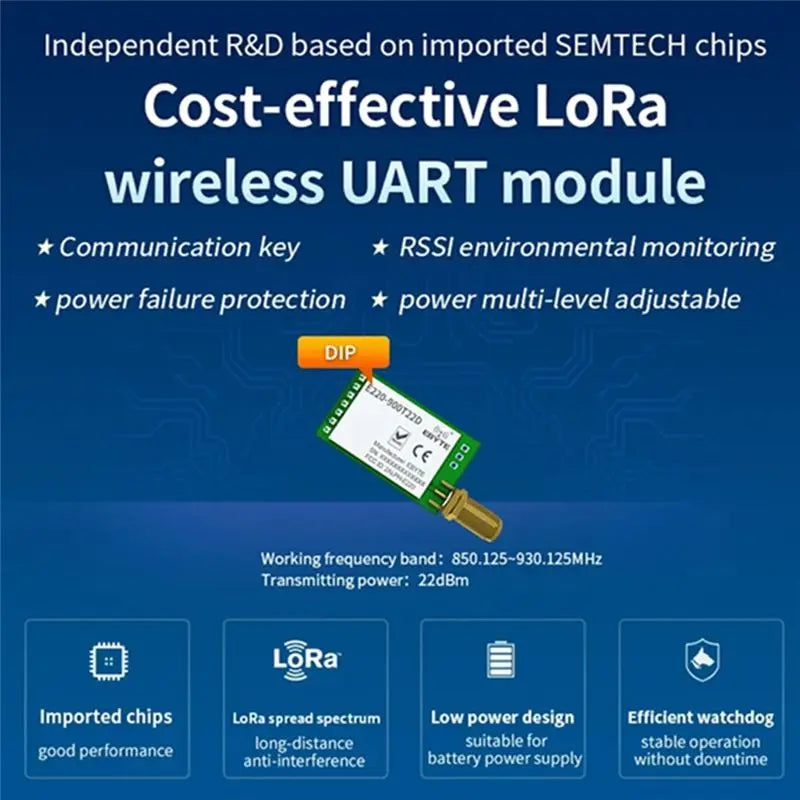

Cost-effective LoRa wireless UART module.
Communication key. RSSI environmental monitoring.
Power failure protection.
Power multi-level adjustable.

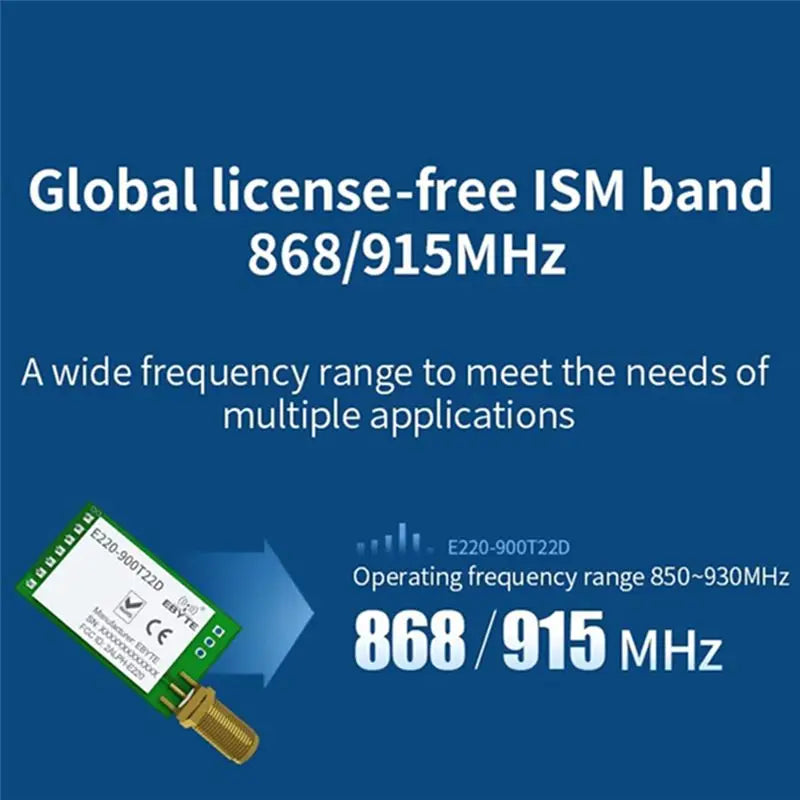

Working Frequency band:850.125-930.125MHZ (Support ISM band)
Transmitting Power:22dBm
Air rate: 2.4k-62.5kbps (user-configured)
Reference distance: 5000m
Transmitting current: 110mA (instantaneous power consumption)
Receiving current: 16.8mA
Operating voltage: 3.0-5.5V (Greater than 5.0V can guarantee output power)
Operating temperature: -40°C-+85°C (industrial grade design)
Communication interface: UART serial port (TTL level)
Color: As Shown
Material: Plastic+Metal

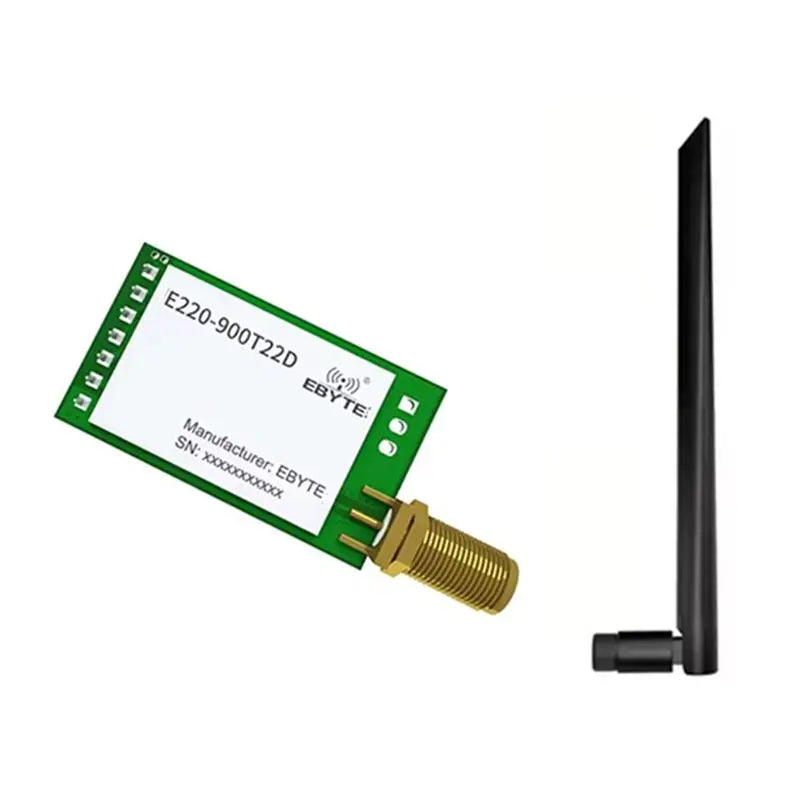

Package Contents:
1 * E220-900T22D Module
1 * 868MHz Antenna

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
