SPECIFICATIONS

Brand Name: NONE

Compatible Audio & Video Equipment Style: Amplifier

Electronic: Yes

High-concerned chemical: none

Origin: Mainland China

Specification 1: LoRa Wireless Module

Specification 2: 24G RF Transceiver

Specification 3: Long Range Communication

Specification 4: LoRa Module

Specification 5: 12dBm RF Module

Type: IR

EBYTE Lora Wireless Module E280-2G4T12S SX1280 2.4G 12Dbm RF UART Support Lora FLRC GFSK Long Distance Range 3Km Transceiver

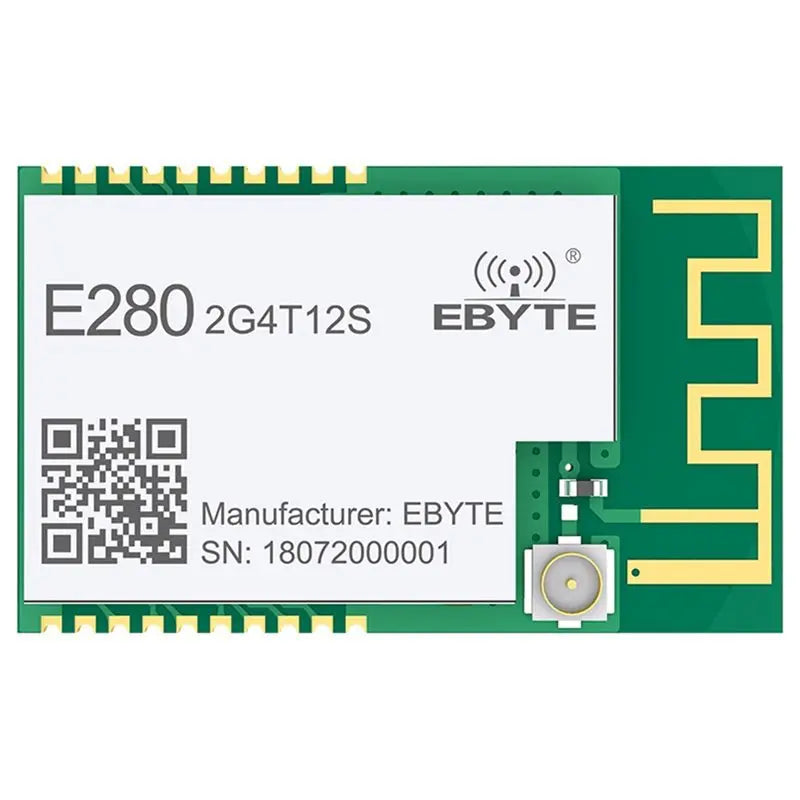

Crafted with precision in Mainland China, this module is identified by its unique model number E280-2G4T12S, ensuring authenticity and quality standards met by CDEBYTE.
The module's stamp hole SMD design allows for seamless integration into various electronic devices, supporting UART interface for easy connectivity and programming.
The E280-2G4T12S is a wireless serial port module (UART) based on the SEMTECH SX1280 RF chip.

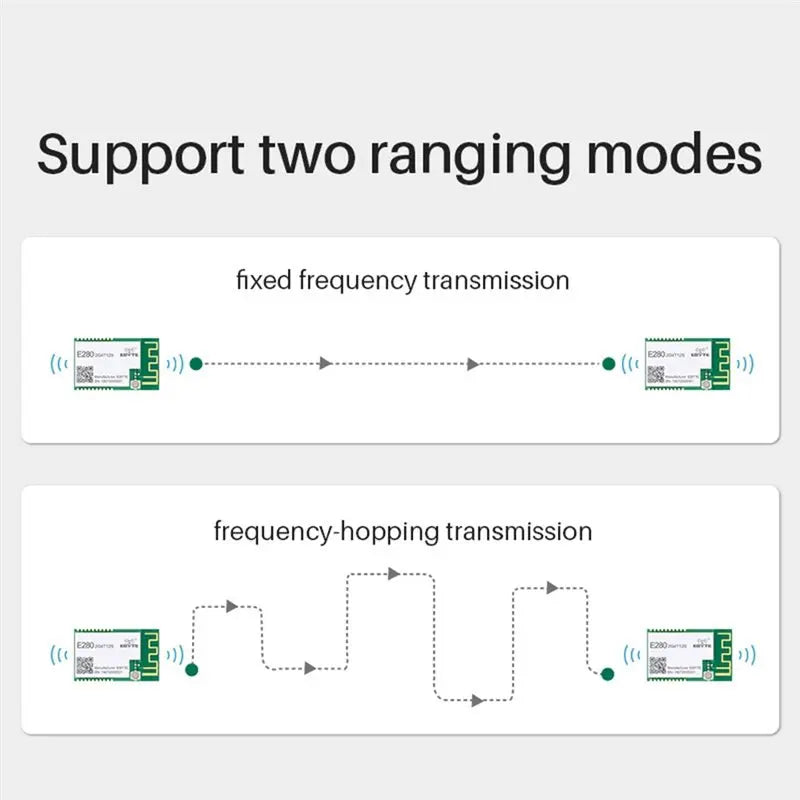

It supports wireless ranging, transparent transmission, operates in the 2.4GHz band, and features LoRa, FLRC, and GFSK modulation/demodulation technologies.
It has TTL level output and is compatible with 10-pin voltages of 3.3V and 5V.

Color: White & Green
Material: Plastic
Chip Solution: SX1280

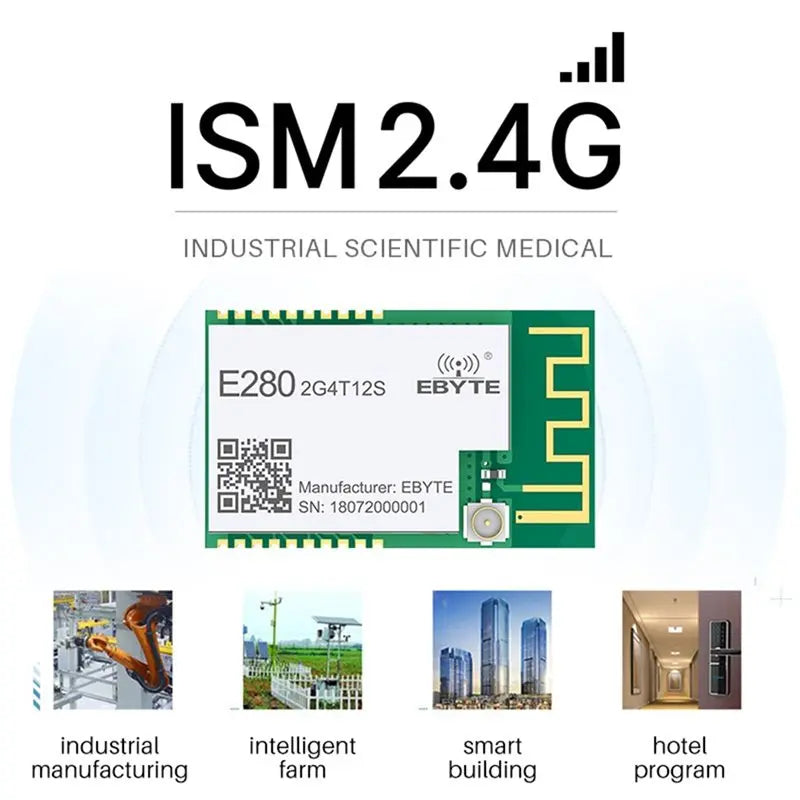

Operating Frequency: 2400~2500MHz

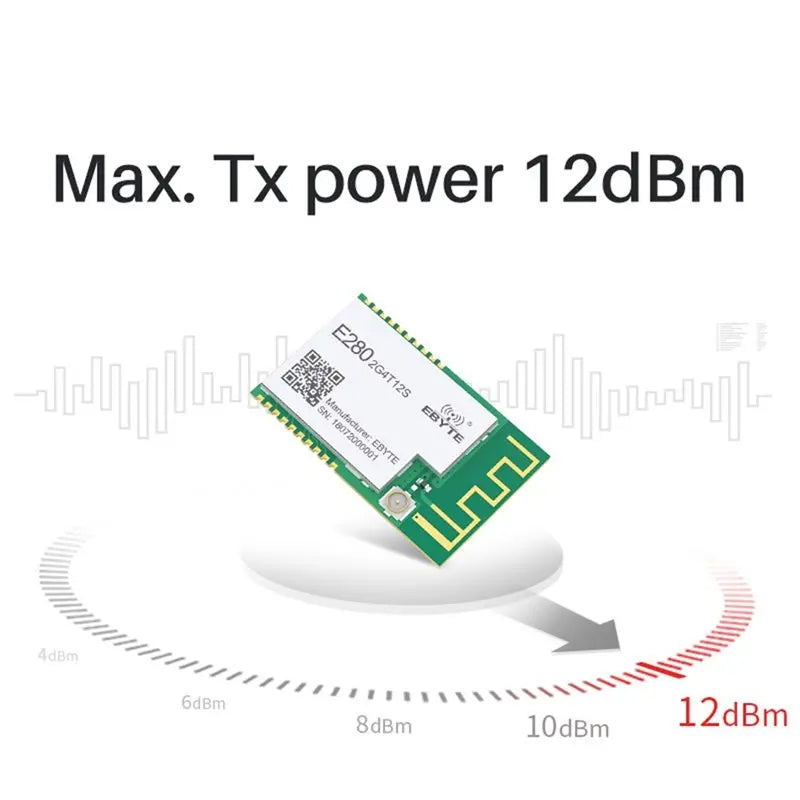

Transmit Power: 12dBm
Communication Distance: 3km

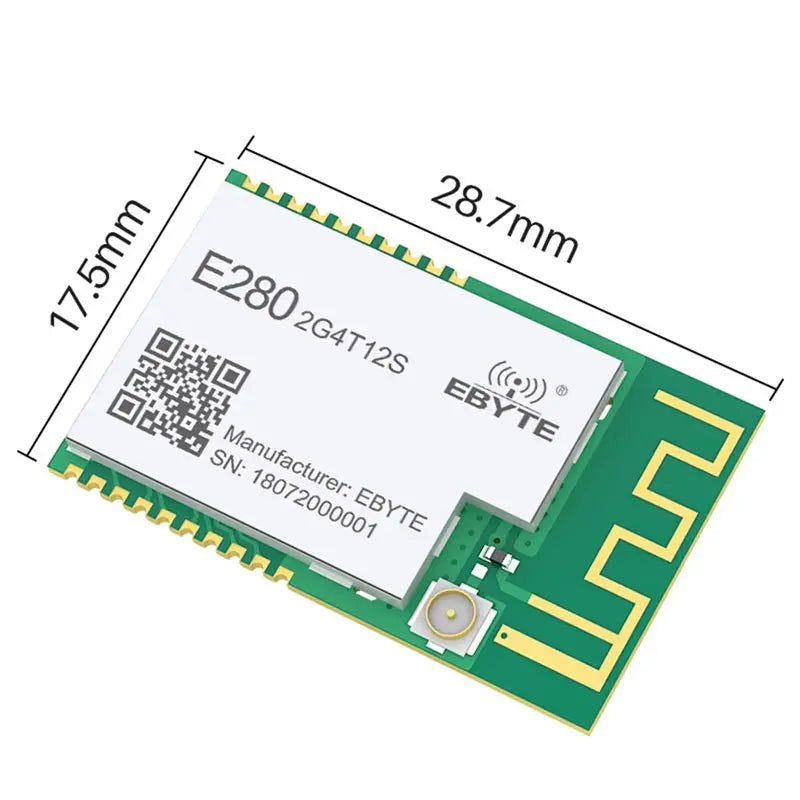

Product Dimensions: 17.5*28.7mm

Package Contents:
1*LoRa Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
