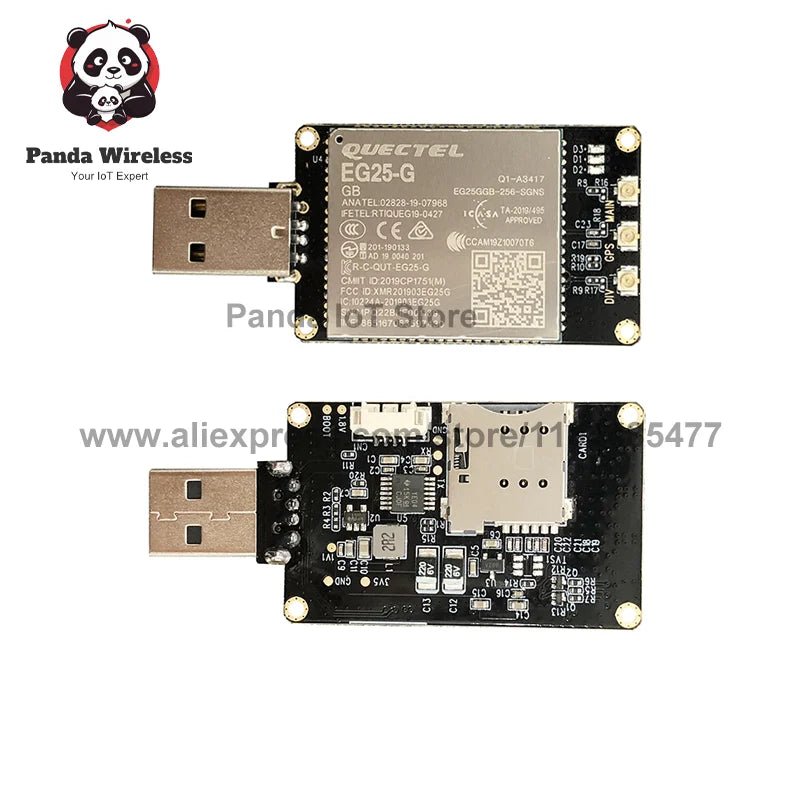

EC25 series Quectel 4G USB Dongle Cat4 Module with SIM card slot Worldwide Global Band with fpc,pigtail,adapter and GPS Antenna
only EC25 dongle / EC25-EU
$210.44
Sale price
$210.44
Regular price
$0.00
Skip to product information
EC25 series Quectel 4G USB Dongle Cat4 Module with SIM card slot Worldwide Global Band with fpc,pigtail,adapter and GPS Antenna
$210.44
Sale price
$210.44
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
High-concerned chemical: none
Model Number: Quectel,EC25 series EC25-E EC25-A EC25-J EG25-G EC25-AF EC25-AU EC25-EU EC25-EC
Origin: Mainland China
Plug Type: None
Size: 0
Quectel 4G USB Dongle Cat4 Module EC25 series with SIM card slot Worldwide Global Band with fpc,pigtail,adapter and GPS Antenna
Key Benefits
●LTE Cat 4 module optimized for M2M and IoT applications
●Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage
●Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
●Feature refinements: supports DFOTA and DTMF
●MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
●Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage
●Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
●Feature refinements: supports DFOTA and DTMF
●MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
Quectel EC25 is a series of LTE Cat 4 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers maximum data rates up to 150 Mbps downlink and 50 Mbps uplink. Designed in the compact and unified form factor, EC25 series is compatible with Quectel multi-mode LTE Standard EC21 series/EC20 R2.1/EG25-G/EG21-G modules and UMTS/HSPA+ UC200T series modules, which allows for flexible migration among them in design and manufacturing.

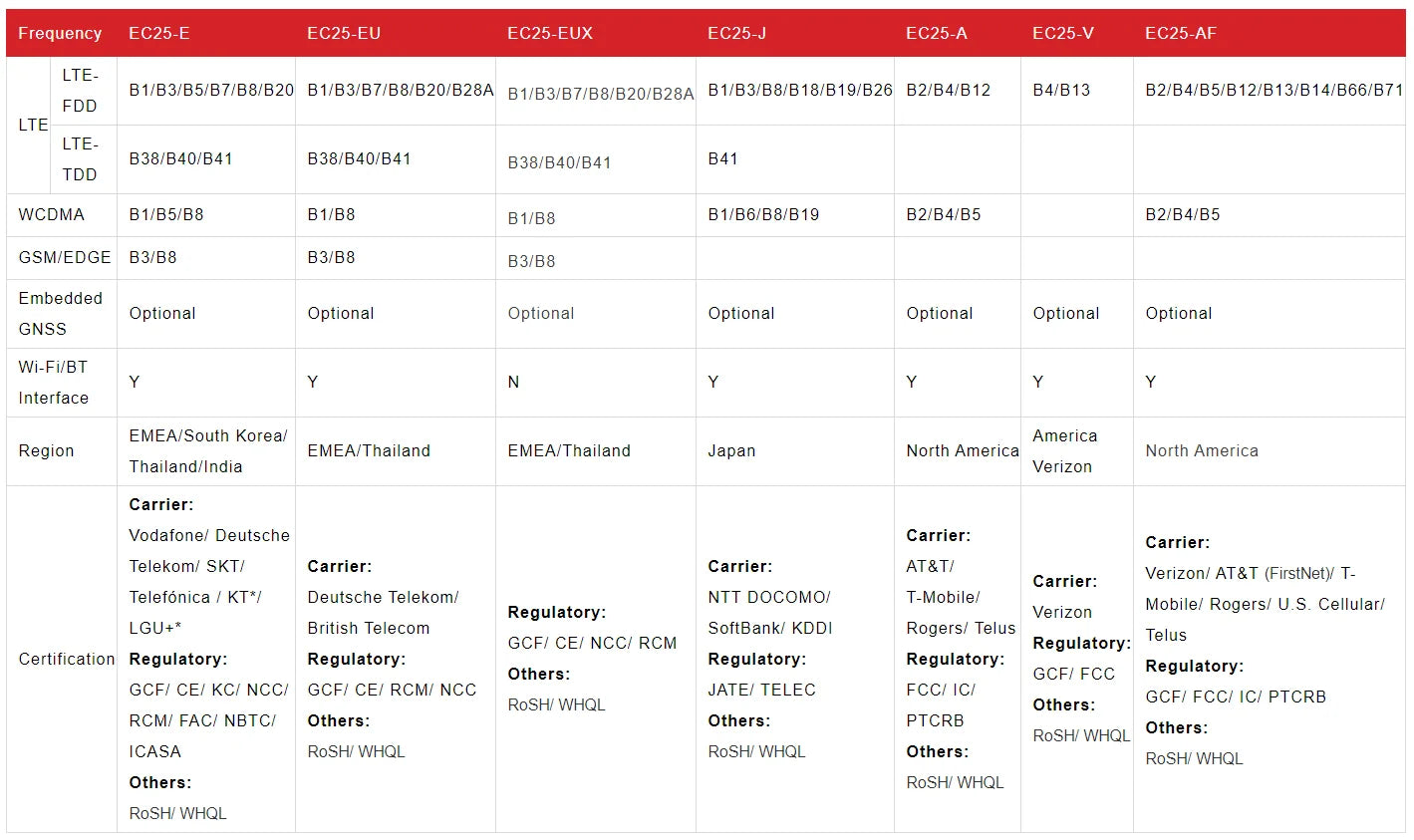

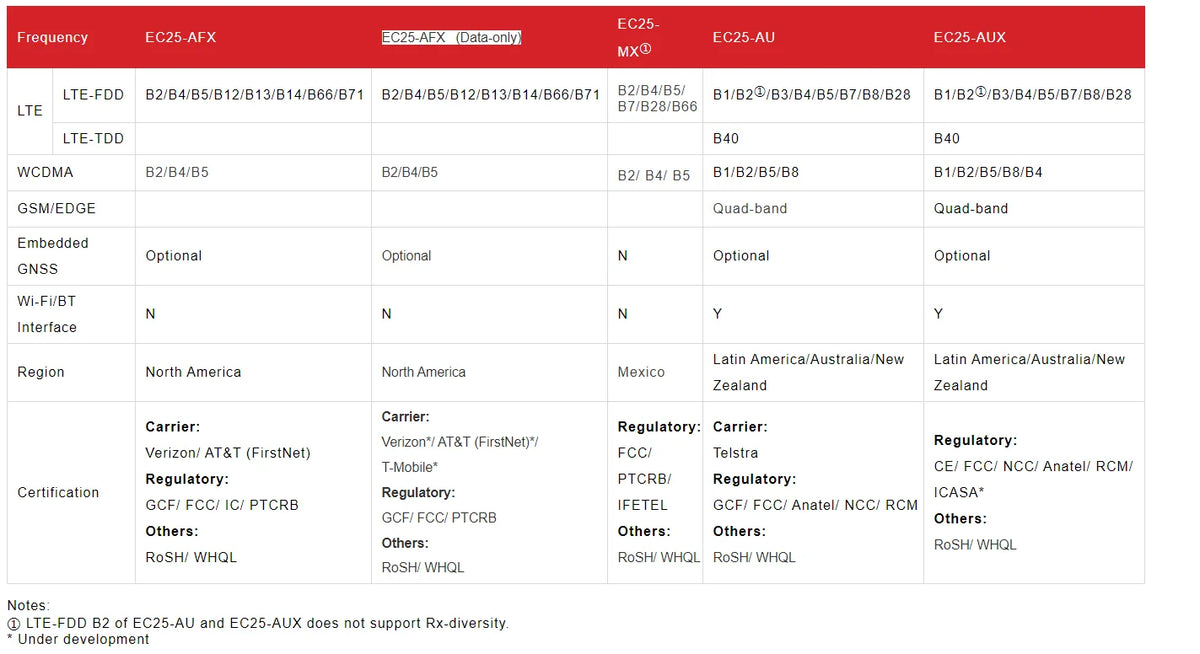

EC25 series contains 12 variants: EC25-E, EC25-EU, EC25-EUX, EC25-J, EC25-A, EC25-V, EC25-AF, EC25-AFX, EC25-AFXD(Data-only), EC25-MX, EC25-AU and EC25-AUX. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.
EC25 series supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance, and digital signage.

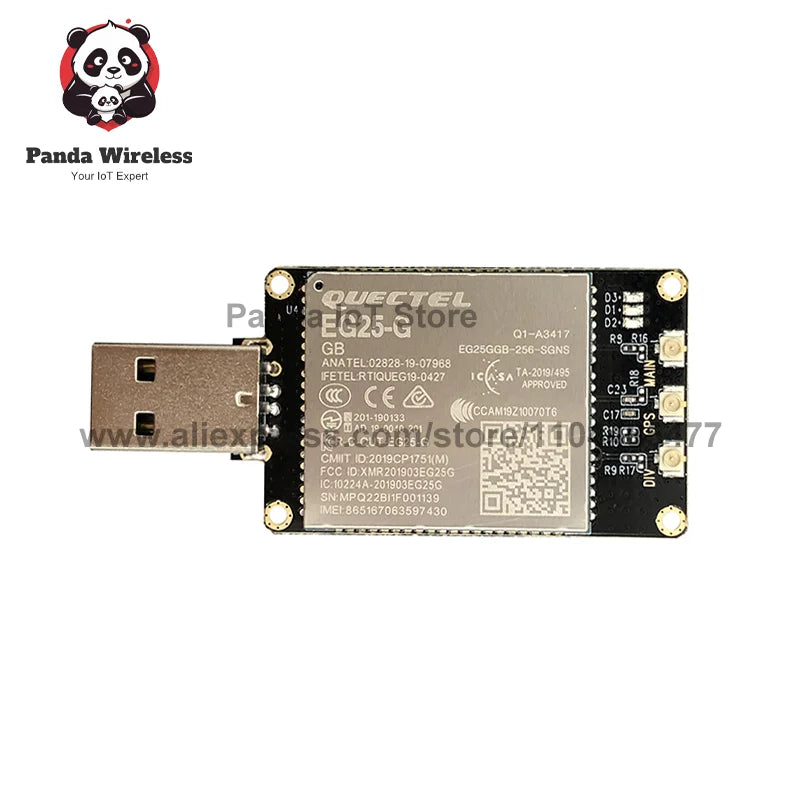

Option1: 1pcs EG25-G USB Dongle
Option2: 1pcs EC25-E USB Dongle
Option3: 1pcs EC25-A USB Dongle
Option4: 1pcs EC25-J USB Dongle
Option5: 1pcs EC25-AF USB Dongle
Option6: 1pcs EC25-AU USB Dongle
Option7: 1pcs EC25-EU USB Dongle
Option8: 1pcs EC25-ECGA USB Dongle
Option9: 1pcs EC25-EUXGR USB Dongle
Option10: 1pcs EC25-AUGC USB Dongle
Option11: 1pcs EC25-AUXGA USB Dongle
Option12: 1pcs EC25-AFXGA USB Dongle

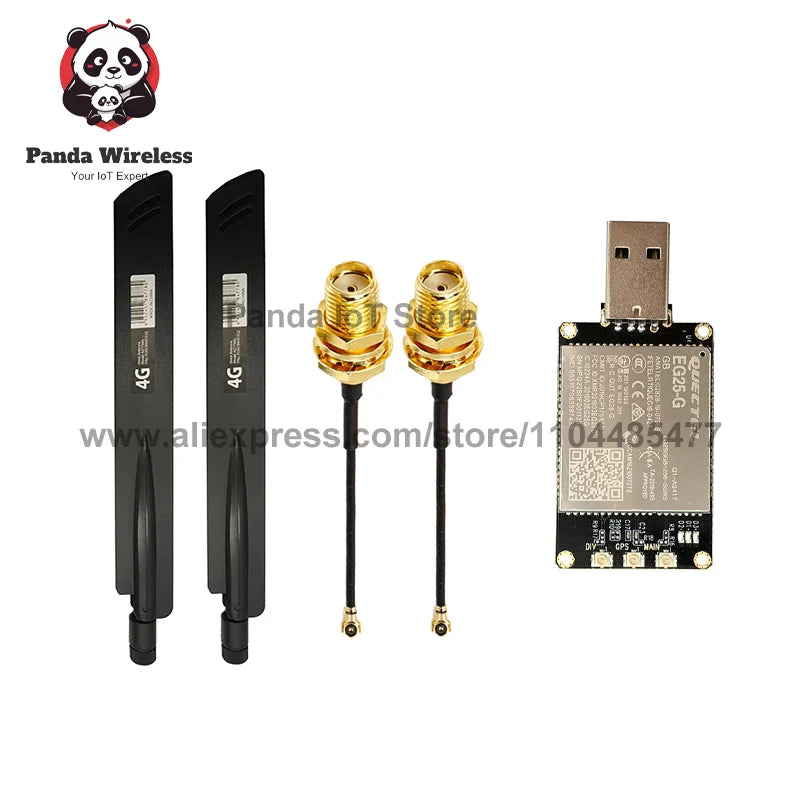

Option13: 1pcs EG25-G US Dongle +2pcs external antenna +2pcs U.FL to SMA female pigtials
Option14: 1pcs EC25-E USB Dongle+2pcs external antenna +2pcs U.FLto SMA female pigtials
Option15: 1pcs EC25-A USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials
Option16: 1pcs EC25-J USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials
Option17: 1pcs EC25-AF USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials
Option18: 1pcs EC25-AU USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials
Option19: 1pcs EC25-EU USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials
Option20: 1pcs EC25-ECGA USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials
Option21: 1pcs EC25-EUXGR USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials
Option22: 1pcs EC25-AUGC USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials
Option23: 1pcs EC25-AUXGA USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials
Option24: 1pcs EC25-AFXGA USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials

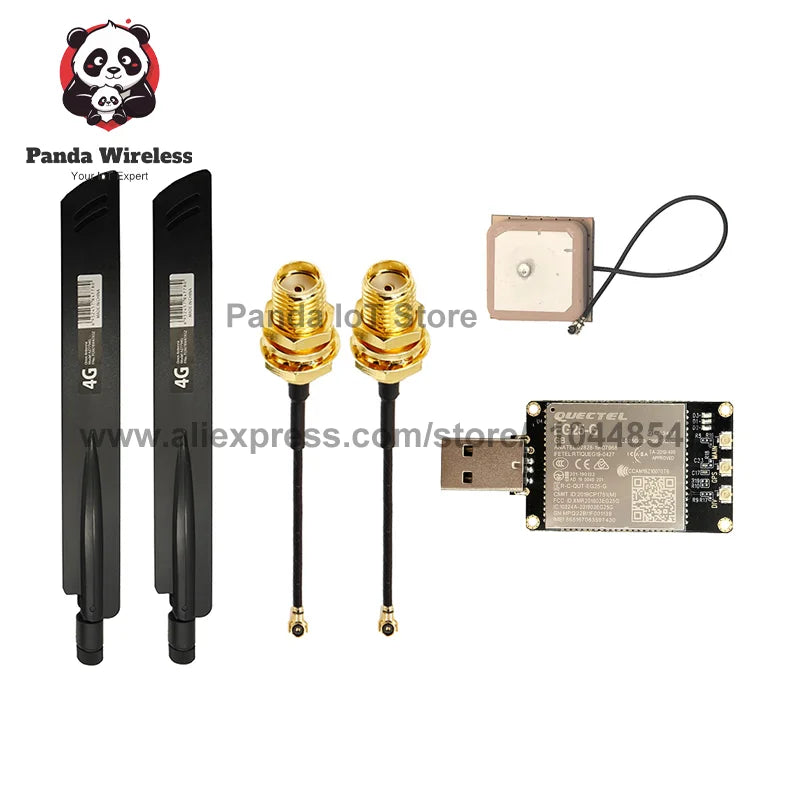

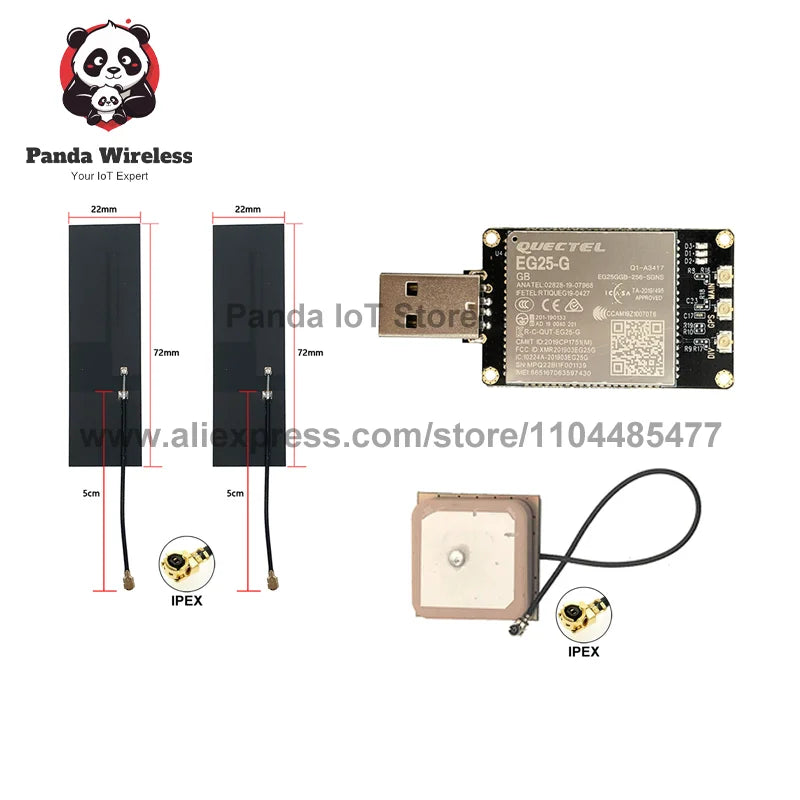

Option25: 1pcs EG25-G US Dongle +2pcs FPC antenna 12cm +1pcs GPS antenna 12cm
Option26: 1pcs EC25-E USB Dongle+2pcs FPC antenna 12cm +1pcs GPS antenna 12cm
Option27: 1pcs EC25-A USB Dongle+2pcs FPC antenna 12cm +1pcs GPS antenna 12cm
Option28: 1pcs EC25-J USB Dongle+2pcs FPC antenna 12cm +1pcs GPS antenna 12cm
Option29: 1pcs EC25-AF USB Dongle+2pcs FPC antenna 12cm +1pcs GPS antenna 12cm
Option30: 1pcs EC25-AU USB Dongle+2pcs FPC antenna 12cm +1pcs GPS antenna 12cm
Option31: 1pcs EC25-EU USB Dongle+2pcs FPC antenna 12cm +1pcs GPS antenna 12cm
Option32: 1pcs EC25-ECGA USB Dongle+2pcs FPC antenna 12cm +1pcs GPS antenna 12cm
Option33: 1pcs EC25-EUXGR USB Dongle+2pcs FPC antenna 12cm +1pcs GPS antenna 12cm
Option34: 1pcs EC25-AUGC USB Dongle+2pcs FPC antenna 12cm +1pcs GPS antenna 12cm
Option35: 1pcs EC25-AUXGA USB Dongle+2pcs FPC antenna 12cm +1pcs GPS antenna 12cm
Option36: 1pcs EC25-AFXGA USB Dongle+2pcs FPC antenna 12cm +1pcs GPS antenna 12cm

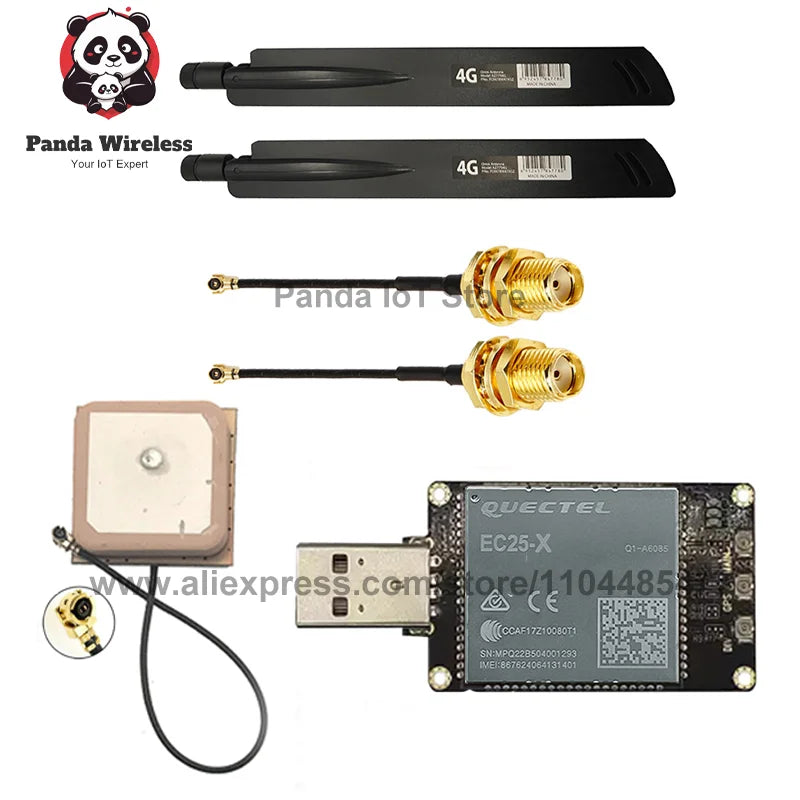

Option37: 1pcs EG25-G US Dongle +2pcs external antenna +2pcs U.FL to SMA female pigtials +1pcs GPS antenna 12cm
Option38: 1pcs EC25-E USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials +1pcs GPS antenna 12cm
Option39: 1pcs EC25-A USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials +1pcs GPS antenna 12cm
Option40: 1pcs EC25-J USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials +1pcs GPS antenna 12cm
Option41: 1pcs EC25-AF USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials +1pcs GPS antenna 12cm
Option42: 1pcs EC25-AU USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials +1pcs GPS antenna 12cm
Option43: 1pcs EC25-EU USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials +1pcs GPS antenna 12cm
Option44: 1pcs EC25-ECGA USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials +1pcs GPS antenna 12cm
Option45: 1pcs EC25-EUXGR USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials +1pcs GPS antenna 12cm
Option46: 1pcs EC25-AUGC USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials +1pcs GPS antenna 12cm
Option47: 1pcs EC25-AUXGA USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials +1pcs GPS antenna 12cm
Option48: 1pcs EC25-AFXGA USB Dongle+2pcs external antenna +2pcs U.FL to SMA female pigtials +1pcs GPS antenna 12cm
