Ecowitt WS68 4-in-1 Wireless Solar Powered Anemometer Sensor, Measure Wind Speed, Direction, UV, Light - Sensor Only

Ecowitt WS68 4-in-1 Wireless Solar Powered Anemometer Sensor, Measure Wind Speed, Direction, UV, Light - Sensor Only

$485.28

$485.28 $0.00

Description

SPECIFICATIONS

Backup Power Supply: 1 x AA 1.5V LR6 Alkaline ( NOT Included ), or 1 x AA 1.5V Lithium battery ( NOT Included )

Battery Included: no

Brand Name: ECOWITT

Certification: CE,FCC

Display Type: DIGITAL

Electronic: No

High-concerned chemical: none

Light Accuracy: ± 15%

Light Range: 0 - 120 kLux

Max Measuring Temperature: 50°C - 69°C

Model Number: WS68

Origin: Mainland China

Power Supply of Outdoor Sensor: Solar panel ( built-in ): 6.5V/4mA

RF Frequency: 915/868/433 MHz

Semi-finishedproduct: No

Sensor Reporting Interval: 16.5 seconds

Theory: Frequency

Transmission Distance: 100 m / 330 ft in open field

UV-Index Range: 0 - 15

Use: Outdoor

Wind Speed Accuracy: ±1 m/s (speed < 5 m/s); ±10% (speed ≥ 5 m/s). Or ±0.1 mph (speed < 11 mph); ±10% (speed ≥ 11 mph)

Wind Speed Range: 0 - 50 m/s (0 ~ 100 mph)

Ecowitt WS68 4-in-1 Wireless Solar Powered Anemometer Sensor, Measure Wind Speed, Wind Direction, UV, Light - Sensor Only, Can Not Be Used Alone

About this item

【Multi-Functional Anemometer】Ecowitt WS68 Wireless Solar Powered Anemometer with UV & Light Sensor measures wind direction, wind speed, wind gust, UV & light. The data can be received by the Wi-Fi gateway(sold separately) and can be viewed using the WSView Plus/ Ecowitt App mobile application (after Wi-Fi configuration on the gateway has been completed).

【Live Data on APP】Requires to pair with GW1100 W gateway(sold separately) and complete the Wi-Fi configuration. The live wind, UV & light data can be viewed directly on the WSView Plus or Ecowitt App after the Wi-Fi configuration; supports uploading to our free Ecowitt Weather server(ecowitt.net) to view the sensor data graph and download the history records on the website; it's recommended to add a shortcut of the website on the home screen of your phone for quick access.

【Publish to Internet Weather Services】Except for uploading the data to our ecowitt server, WS68 Anemometer can also supports uploads to WU/WeatherCloud/WOW. The sensor history graph of your WU station ID can be viewed on the WSView Plus/ Ecowitt App.

【Long Transmission Range】The sensor data is transmitted every 16.5 seconds via frequency wireless signal up to 330 feet (100 meter) range; solar powered outdoor sensor and needs 1 AA battery( NOT Included) as backup power.

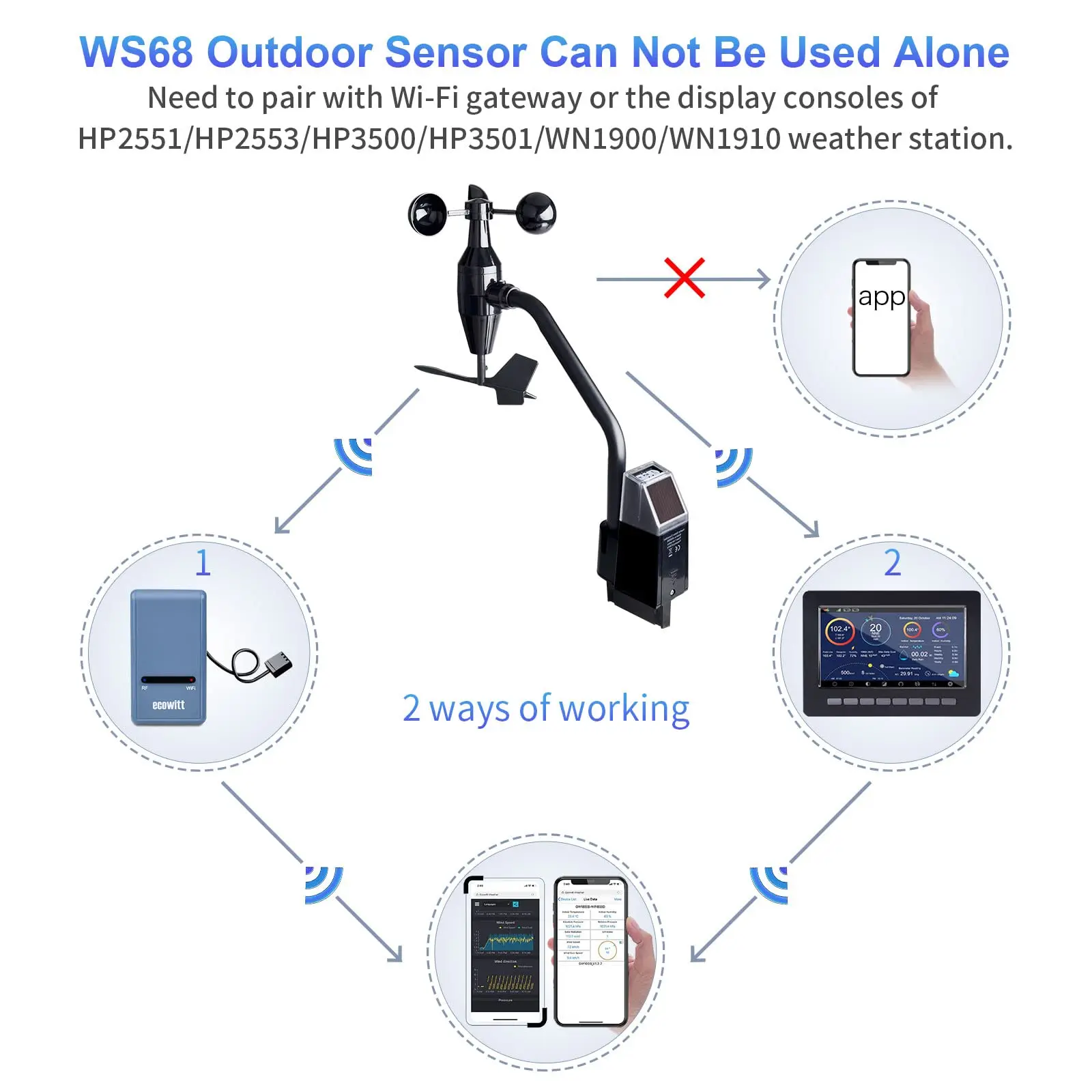

【Please Note Before Purchase】①This WS68 Wireless Solar Powered Anemometer is a sensor ONLY, No display, Could Not Be Used Alone. It needs to work with the Wi-Fi gateway(sold separately) or HP2551/HP2561/WN1900/HP3501 display console(sold separately) after Wi-Fi

configuration. ②This WS68 sensor requires to pair with the same frequency gateway or console to use.

Features

Measures wind direction, wind speed, wind gust, UV & light data.
No display, need to work with GW1100 Wi-Fi Hub( sold separately ) and complete the Wi-Fi configuration on our WSView Plus App or Ecowitt APP.
After the Wi-Fi configuration, the live wind, UV & light data can be viewed directly on the WSView Plus or Ecowitt App.
Supports uploads to WU/WeatherCloud/WOW. The history graph of your WU station ID can be viewed on the WU Dashboard on the WSView Plus App.
Wind and UV & light sensor calibration functions available on the WSView Plus or Ecowitt App.
Works with HP3501 Weather Station display console(sold separately). The outdoor sensor and display console should be at the same frequency.
All the history records can be viewed and downloaded after uploading data to our own weather server.
Note: The stainless steel pole on the photo is not included

Specifications

Transmission Distance	100 m / 330 ft in open field
RF Frequency	915/868/433 MHz
Wind Speed Range	0 – 50 m/s (0 ~ 100 mph)
Wind Speed Accuracy	±1 m/s (speed < 5 m/s); ±10% (speed ≥ 5 m/s). Or ±0.1 mph (speed < 11 mph); ±10% (speed ≥ 11 mph)
UV-Index Range	0 - 15
Light Range	0 – 120 kLux
Light Accuracy	± 15%
Sensor Reporting Interval	16.5 seconds
Power Supply of Outdoor Sensor	Solar panel ( built-in ): 6.5V/4mA
Backup Power Supply	1 x AA 1.5V LR6 Alkaline ( NOT Included ), or 1 x AA 1.5V Lithium battery ( NOT Included )

Package List

1 × WS68 Outdoor Sensor Body with built-in: Wind Speed Sensor/ Wind Direction Sensor, Light and UV sensor, Solar panel
1 × Wind speed cups (to be attached to outdoor sensor body)
1 × Wind vane (to be attached to outdoor sensor body)
2 × U-Bolts for mounting on a pole
4 × Threaded nuts for U-Bolts (M5 size)
1 × Metal mounting plate to be used with U-Bolts
1 × Wrench for M5 bolts
1 × User Manual
