Ecowitt WS80 6-in-1 Solar Powered Ultrasonic Anemometer with Light & UV, Thermo-hygrometer Weather Station Sensor - Sensor Only

Ecowitt WS80 6-in-1 Solar Powered Ultrasonic Anemometer with Light & UV, Thermo-hygrometer Weather Station Sensor - Sensor Only

$849.60

$849.60 $0.00

Description

SPECIFICATIONS

Anemometer sensor: Solar panel (built-in): 6.5V/4mA

Anemometer sensor (backup): 2 x AA 1.5V Lithium battery(not included)

Battery Included: no

Brand Name: ECOWITT

Certification: CE,FCC

Display Type: DIGITAL

Electronic: No

High-concerned chemical: none

Humidity Accuracy: ±5%

Humidity Range: 1~99%

Humidity Resolution: 1%

Is Smart Device: Yes

Light Accuracy: ±15%

Light Range: 0~300Klux

Light Resolution: 10Lux

Max Measuring Temperature: 50°C - 69°C

Model Number: WS80

Origin: Mainland China

Semi-finishedproduct: No

Sensor reporting interval: 4.8 seconds

Style: Standing Station

Temperature Accuracy: ±1°C

Temperature Range: -40~60°C

Temperature Resolution: 0.1°C

Theory: Frequency

Transmission distance: 150m(492 ft) in open field

UVI Accuracy: ±2

UVI Range: 1~15

UVI Resolution: 1

Use: Outdoor

Wind direction Accuracy: <10m/s, TBA; ≥10m/s, ±15°

Wind direction Range: 0~359°

Wind direction Resolution: 1°

Wind speed Accuracy: <10m/s, ±0.5m/s; ≥10m/s, ±5%

Wind speed Range: 0~40m/s

Wind speed Resolution: 0.1M/S

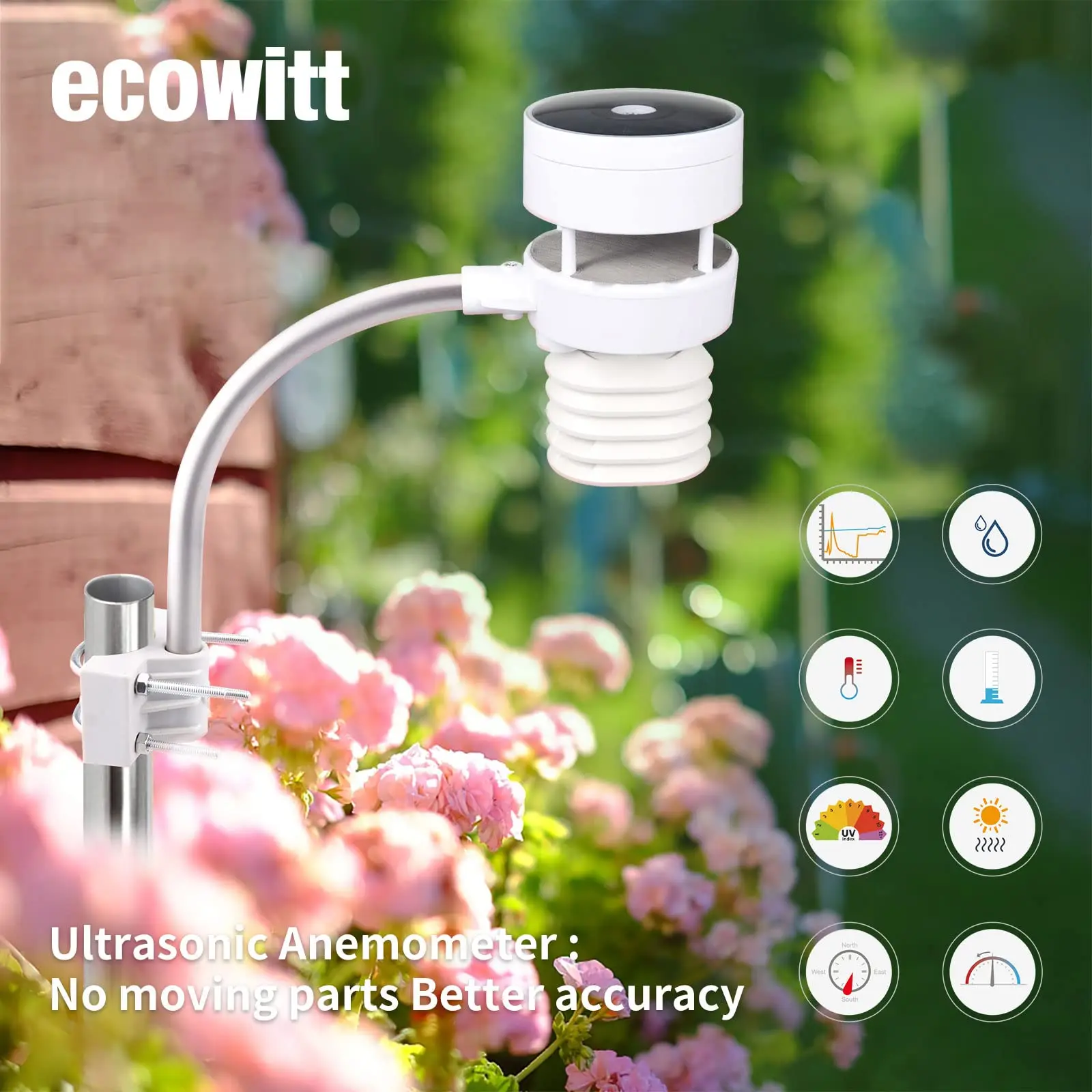

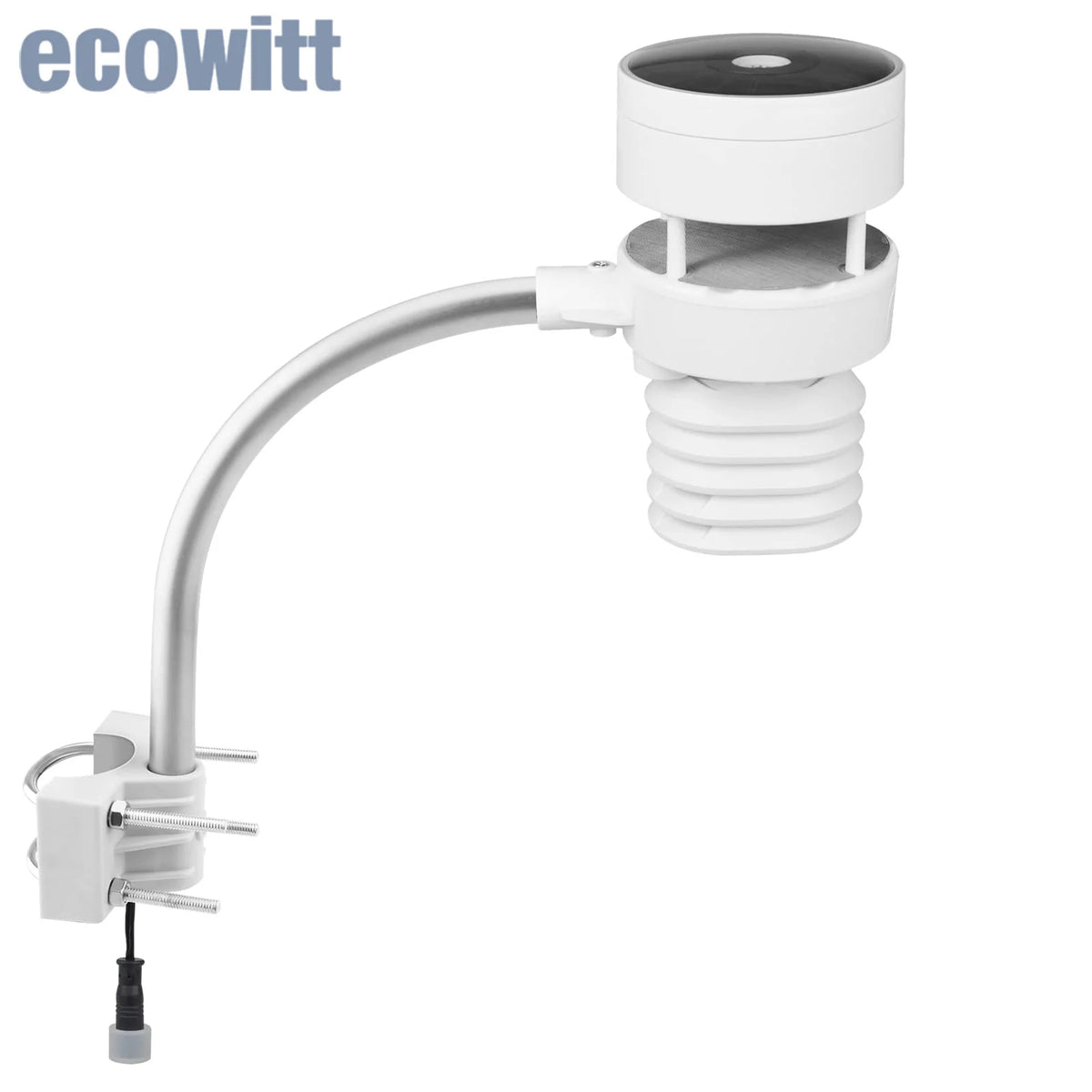

Ecowitt WS80 6-in-1 Solar Powered Ultrasonic Anemometer with Light & UV, Thermo-hygrometer Weather Station Sensor - Sensor Only

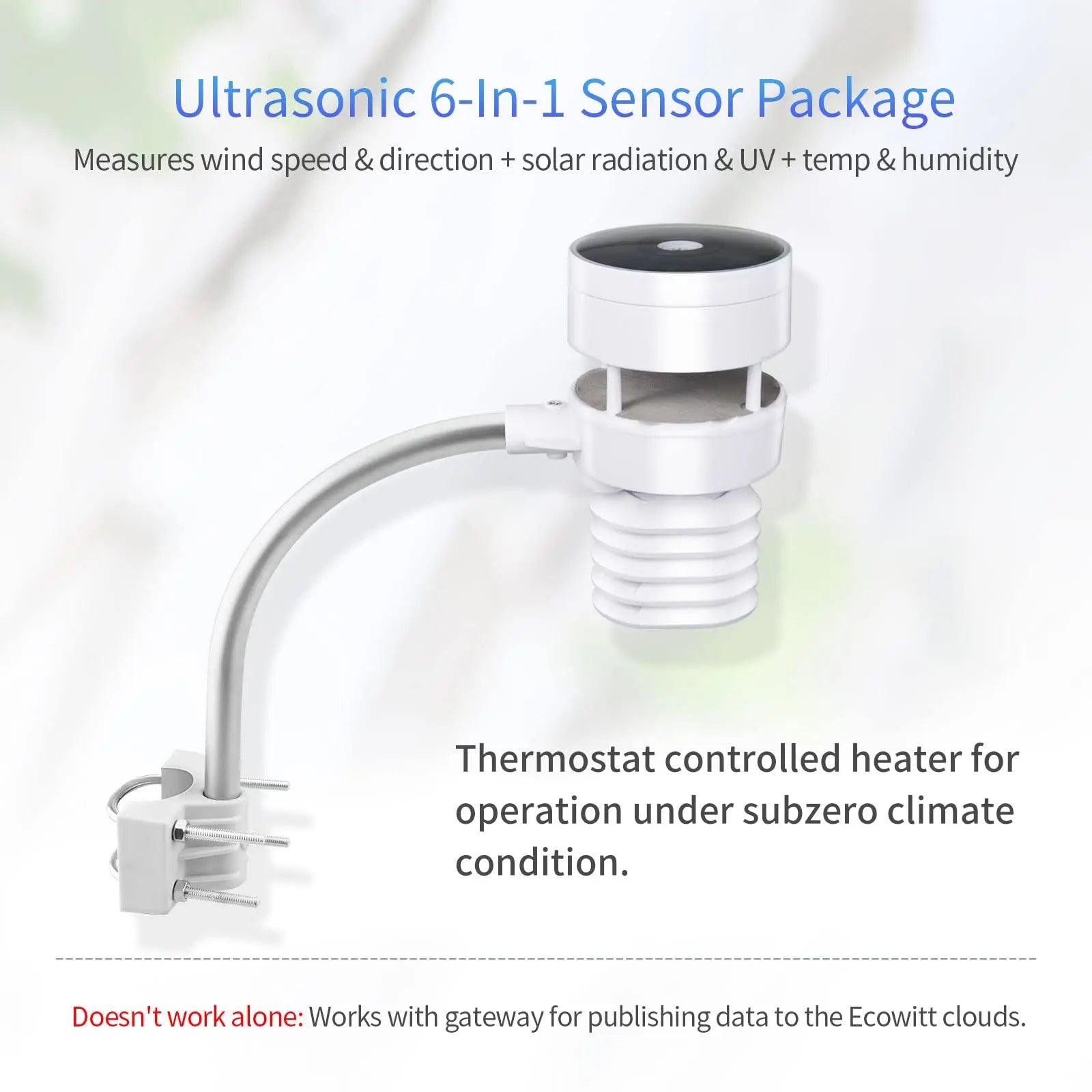

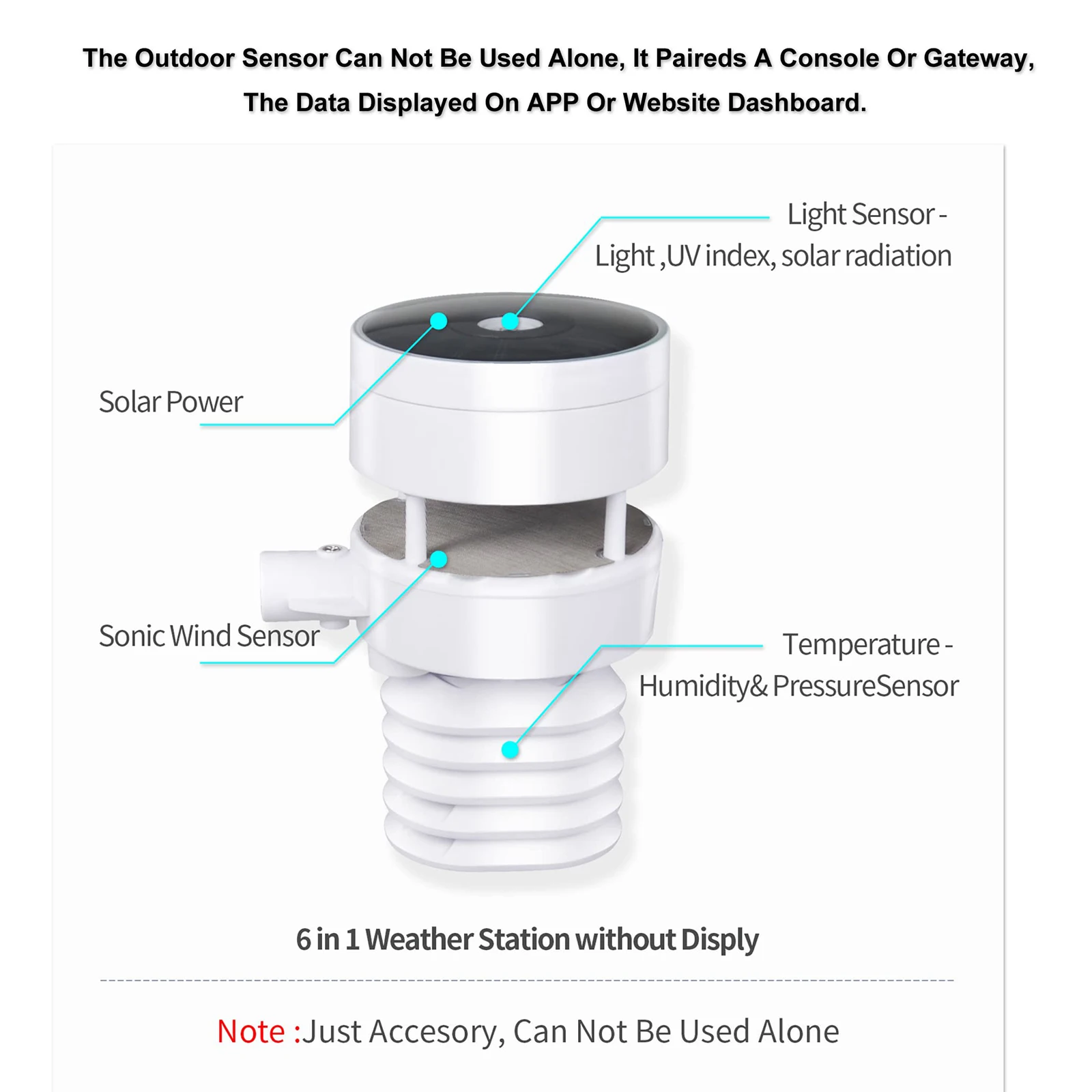

Ultrasonic 6-in-1 Sensor Package

Measures wind direction, wind speed, UV & light, temperature and humidity data.[Accessory Only, Can Not Be Used Alone].

Note

After setup and during normal operation, the unit is getting its power from solar cell. Note: There's a built-in heat plate in the 6-in-1 sensor package body, if the lowest temperature at your place is below -3°C, or 26.6°F, and the weather is mostly snowy or rainy, then you may need to activate the heater by supplying an external 12v~18v 1A power to the sensor heating element for melting accumulated snow or ice, which can influence wind measurement accuracy significantly.

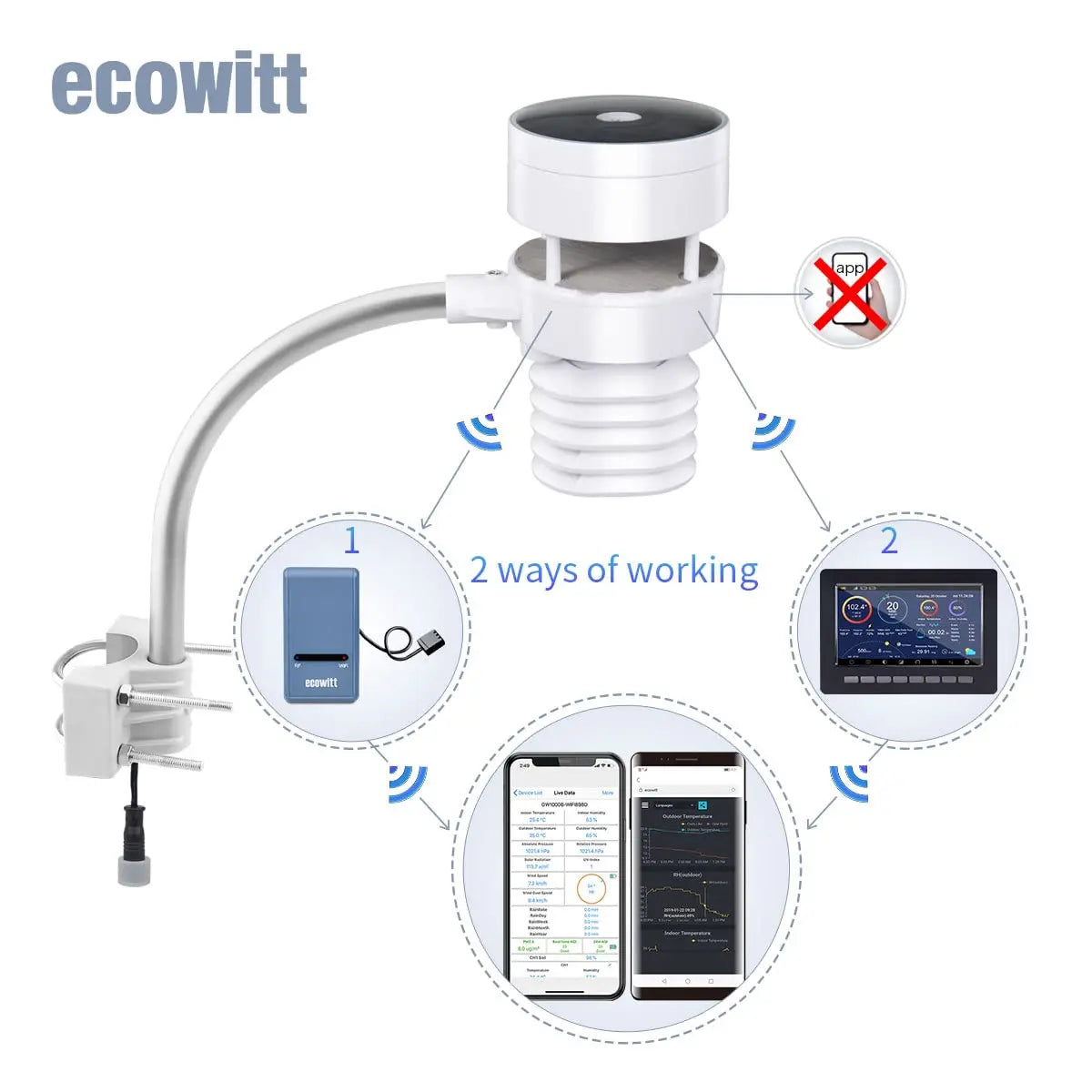

Wi-Fi Configure with gateway

If you want to view the Ultrasonic Sensor data on your mobile application, you need to pair this device with our GW1100 Wi-Fi Gateway or HP2551/HP2553 display console (sold separately).

Pair with gateway or display console Please follow the tips to pair your sensor(s) with the Wi-Fi Gateway or HP2550/HP2551 display console:

Power on the gateway first (with USB connection) or HP2551/HP2553 display console (with adaptor connection)
Power on the Ultrasonic sensor.
The RF status indicator of the gateway will light on steady, and light off once when it receives the data from the optional sensor(s) once.
If work normally, you can forward to the Wi-Fi connection operation.

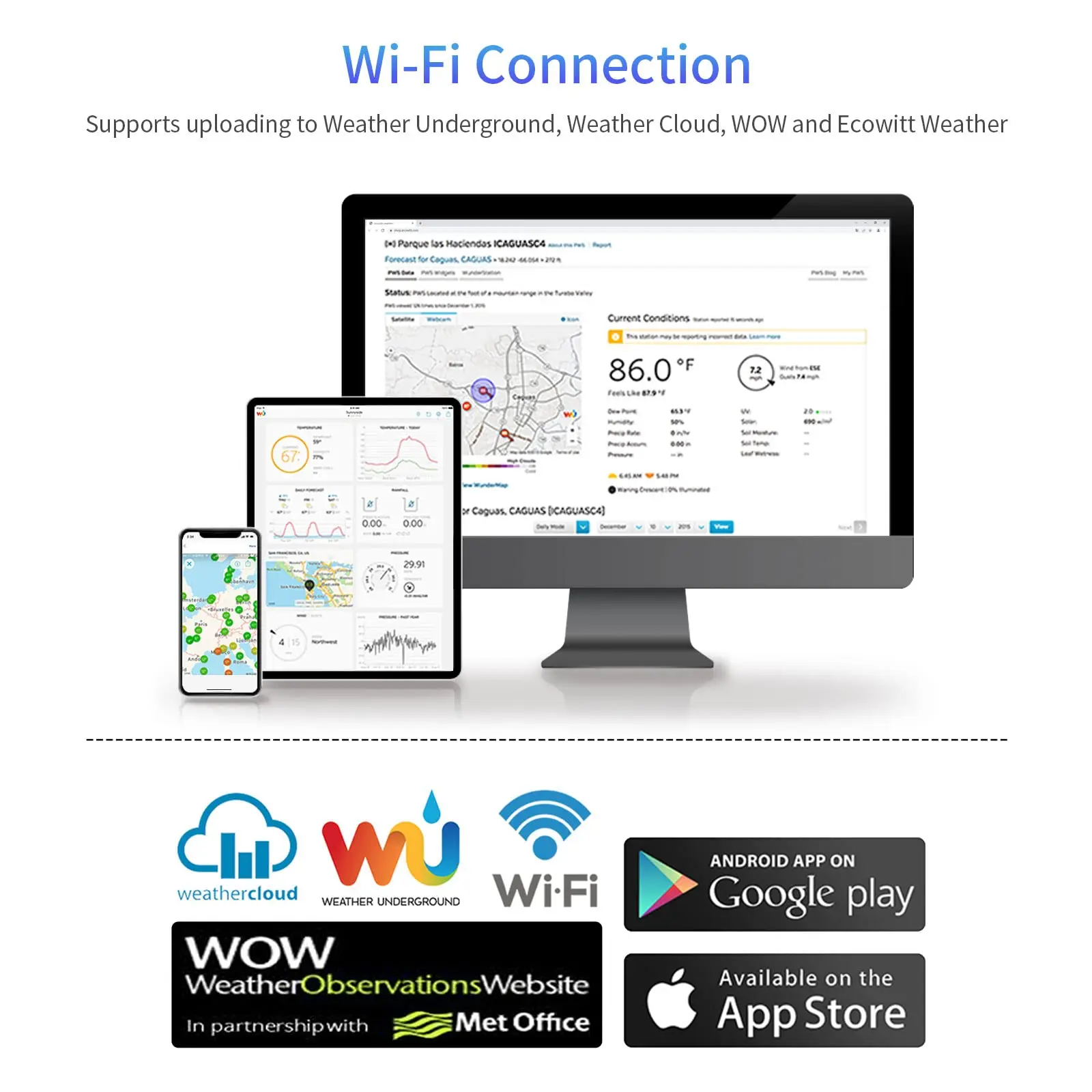

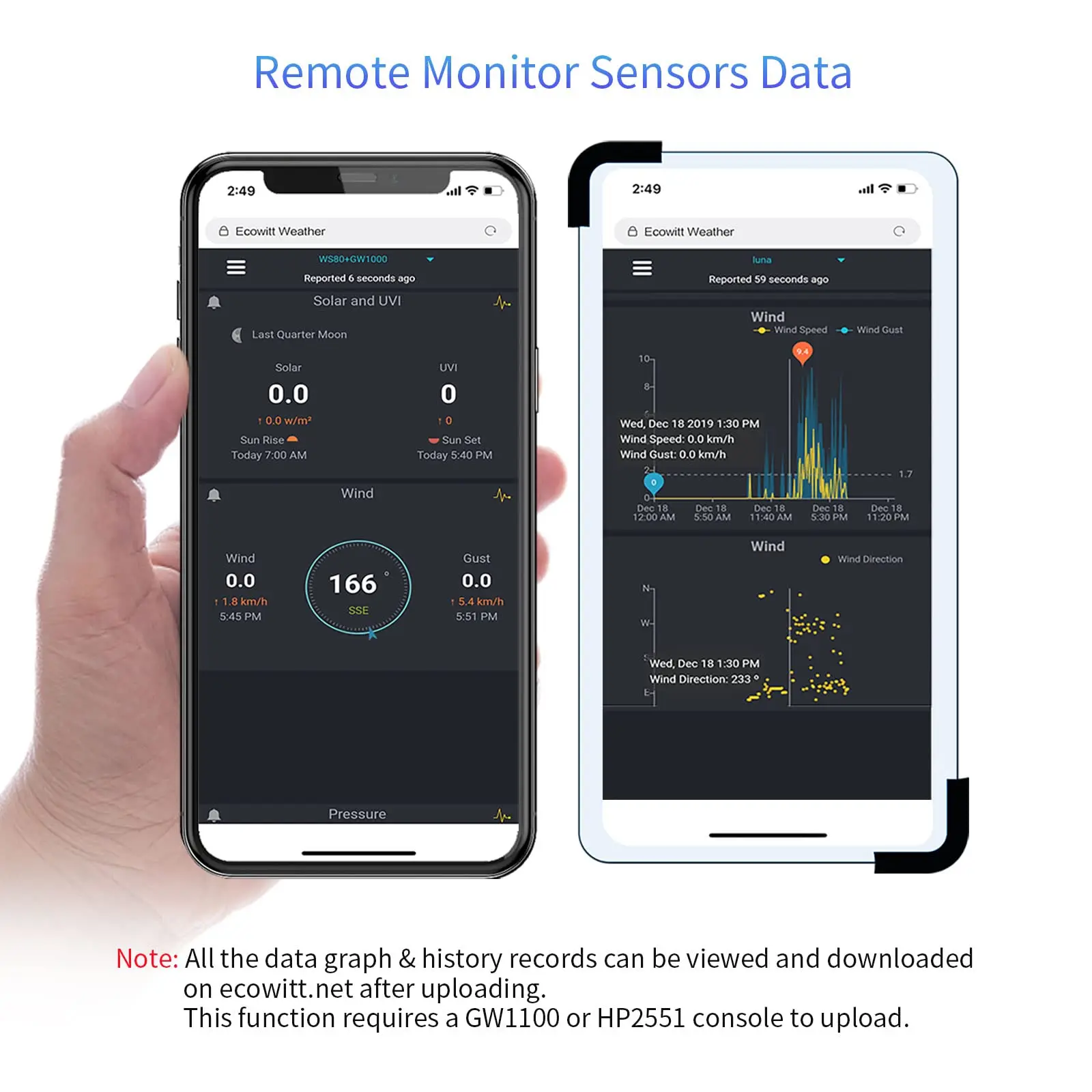

View Online Data on WS View Plus or Ecowitt App

When the Wi-Fi configuration is done, you can view the live data of your ultrasonic sensor on the WS View Plus or Ecowitt App application(only for the GW1100 gateway).

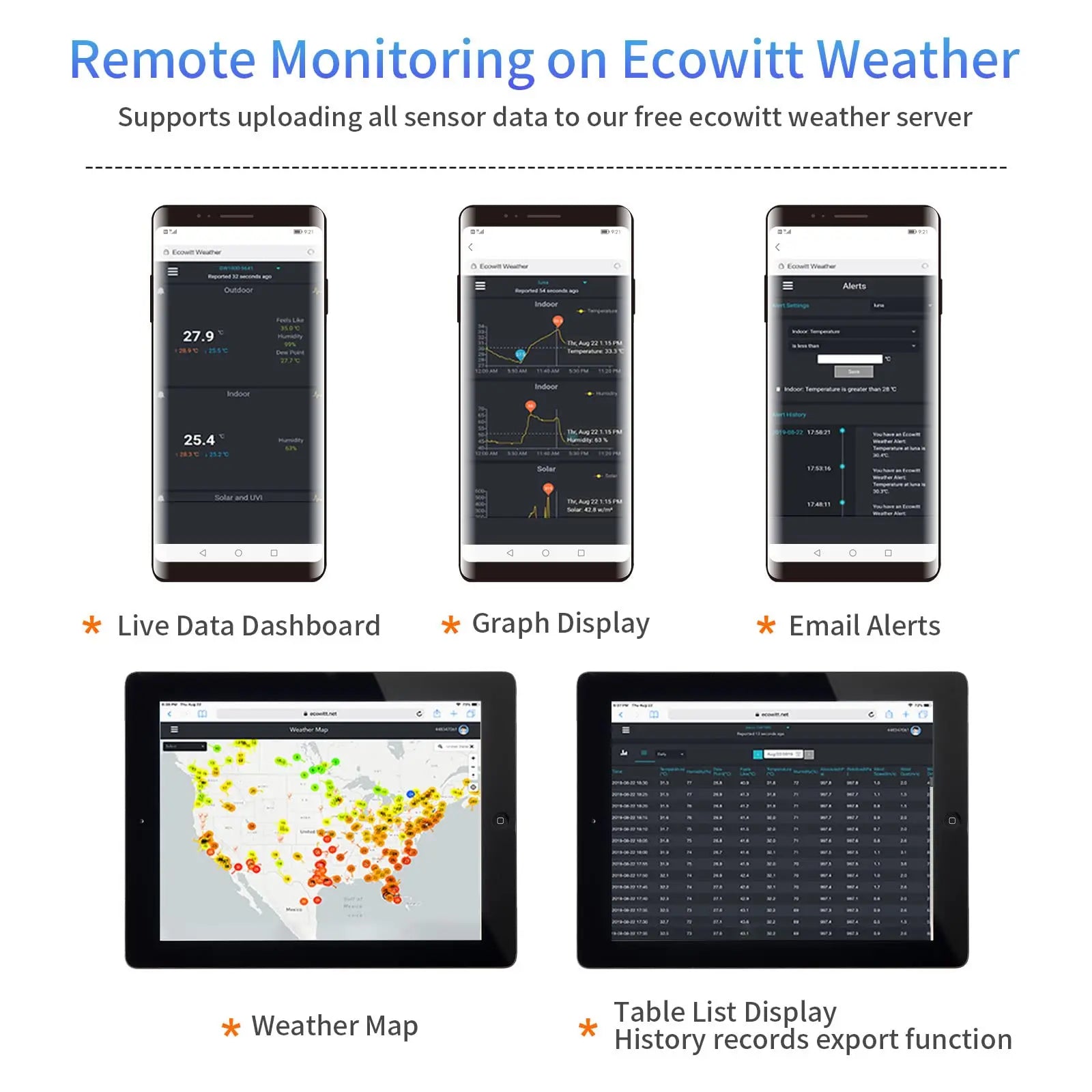

Remote Monitoring

Supports uploads to WU/WeatherCloud/WOW. The history graph of your WU station ID can be viewed on the WU Dashboard on the Ecowitt or WS View Plus App.

Specifications

Measurement	Range	Accuracy	Resolution
Wind speed	0~40m/s	<10m/s, ±0.5m/s; ≥10m/s, ±5%	0.1M/S
Wind direction	0~359°	<10m/s, TBA; ≥10m/s, ±15°	1°
Temperature	-40~60°C	±1°C	0.1°C
Humidity	1~99%	±5%	1%
Light	0~300Klux	±15%	10Lux
UVI	1~15	±2	1

Anemometer sensor	Solar panel (built-in): 6.5V/4mA
Anemometer sensor (backup)	2 x AA 1.5V Lithium battery(not included)
Transmission distance	150m (492 ft) in open field
Sensor reporting interval	4.8 seconds
