Description

SPECIFICATIONS

Brand Name: kun ray

Brushless DC motor controller Voltage: 24V 36V 48V DC

Choice: yes

Current Limite: 13A+-1A / 15A+-1A

Function Intelligent learning: anti-vehicle; cruise; low brake; 1:1 power assistance,reverse

High-concerned chemical: none

Low Voltage Protection: 24V:19+-0.5V 36V:29+-0.5V 48V:39+-0.5V

Motor Controller Promotion: bike controller electric

Origin: Mainland China

Suit BLDC Motor Speed controller: Brushless Motor Electric bicycle parts

THROTTLE: 4.3VOLTAGE

Type: BLDC Motor Speed Controller

Watt(Power) output: 250w - 350W

semi_Choice: yes

without LCD display: brushless motor controller with hall sensor e-brake

NOTE!

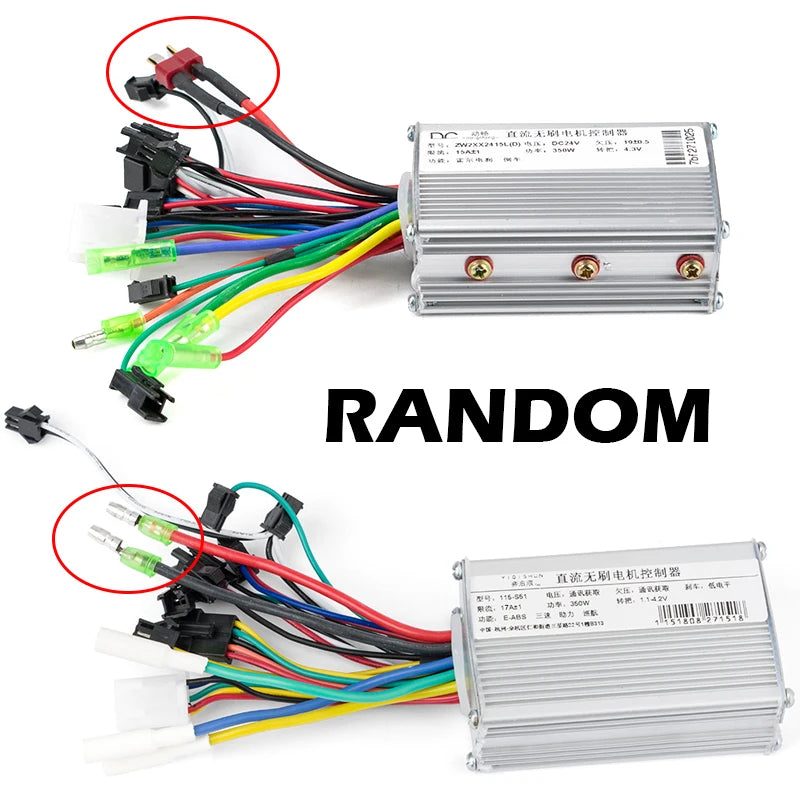

Battery connectors, T-shaped connectors and bullets are shipped randomly

Product Details

1.Voltage:24V 36V 48V DC
2.Power: 250W-350W
3.Low-Voltage Protection:
24V:19+-0.5V
36V:29+-0.5V
48V:39+-0.5V
4.Current Limite:
250W:13A+-1A
350W:15A+-1A
5.Throttle :4.3V
6.Controller Type: Brushless Speed Controller
7.Usage: For BLDC Motor 24V-48V 250W- 350W, e Bike,Electric Bicycle Scooter,Folding Bike,Unicycle Scooter,Blance CAR ,DIY Motor Controller
8.Function: Hall Reverse, E-Brake,Reverse, 1:1sendor, self-study,Cruise.
9.Wiring diagram：power cable, Motor phase, Electric door lock, Anti-theft, self-study, Hall, brake, 1: 1 boost, Cruise, Throttle

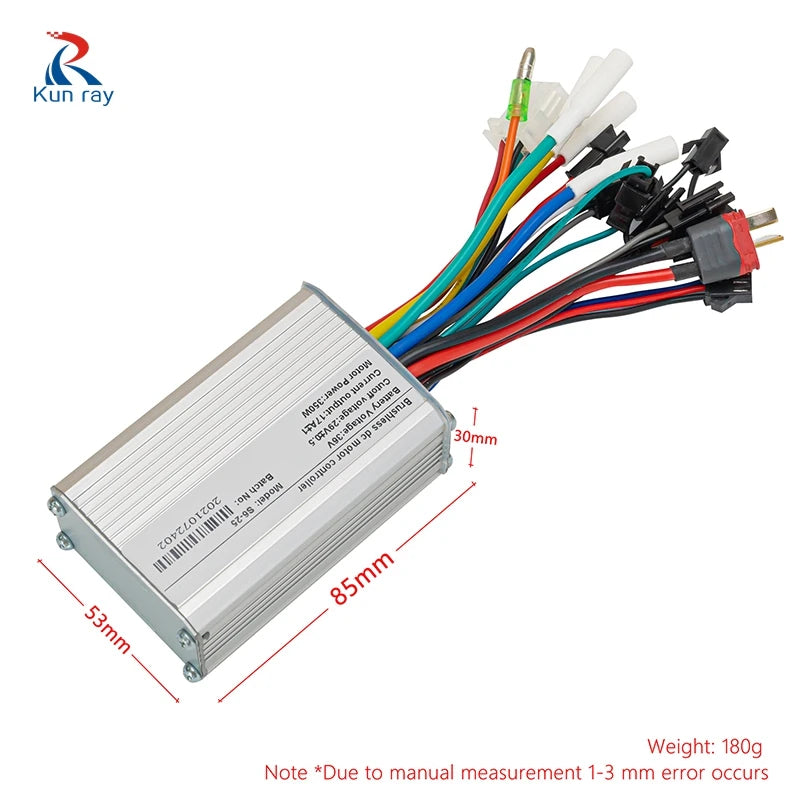

10.SIZE: L 85*W 55*H 30mm about
Weight: 195g about

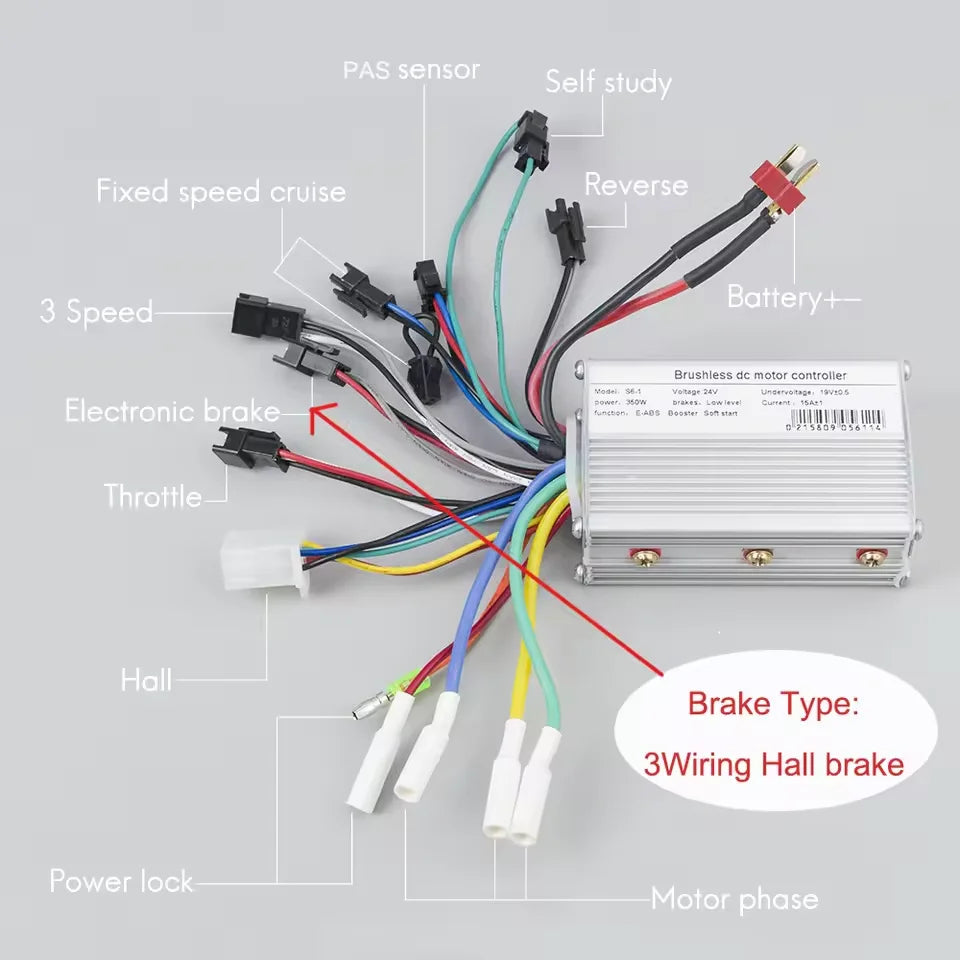

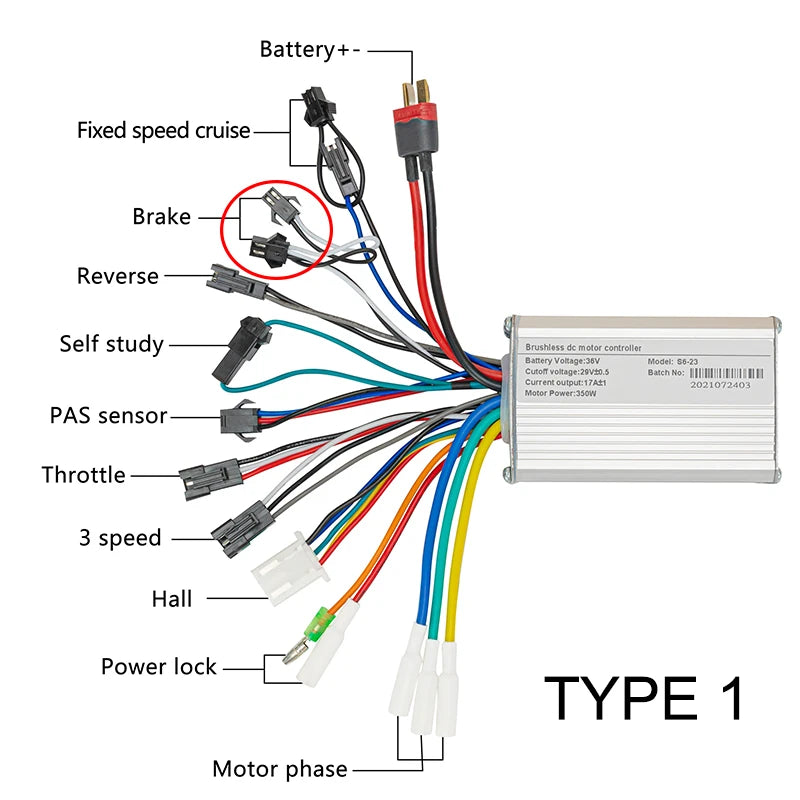

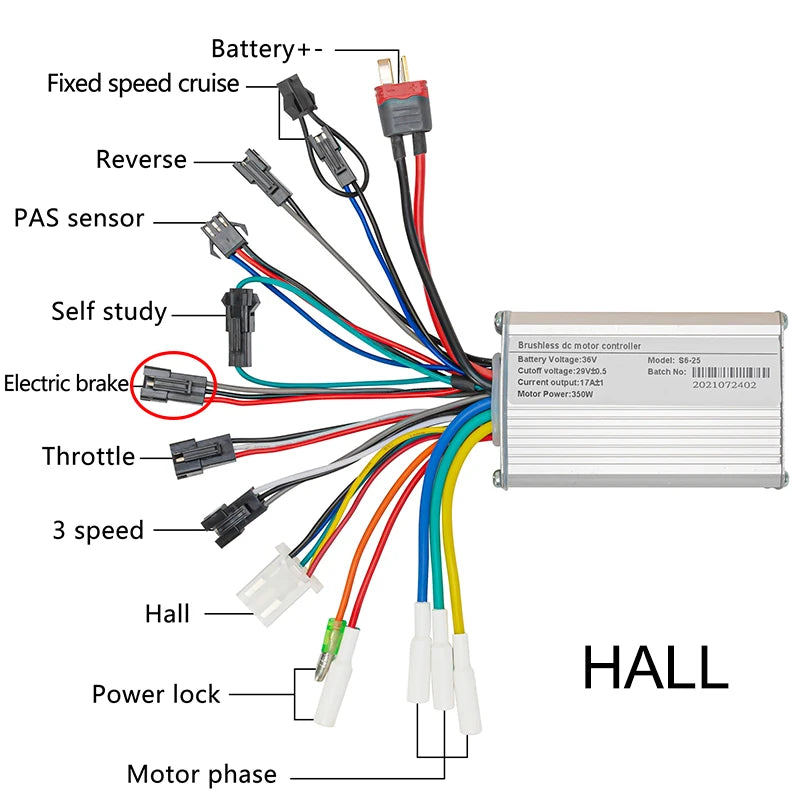

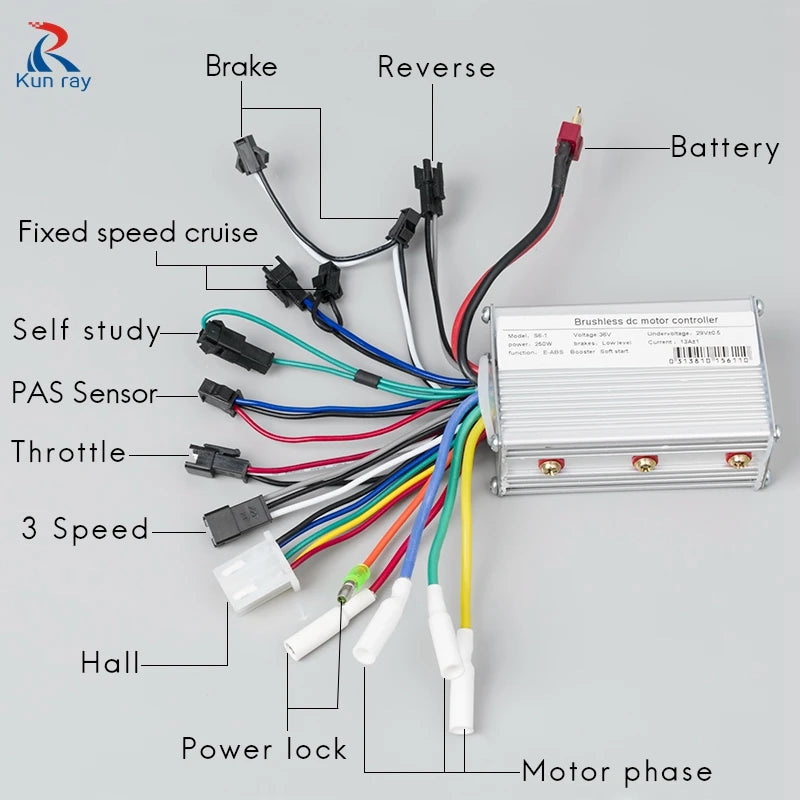

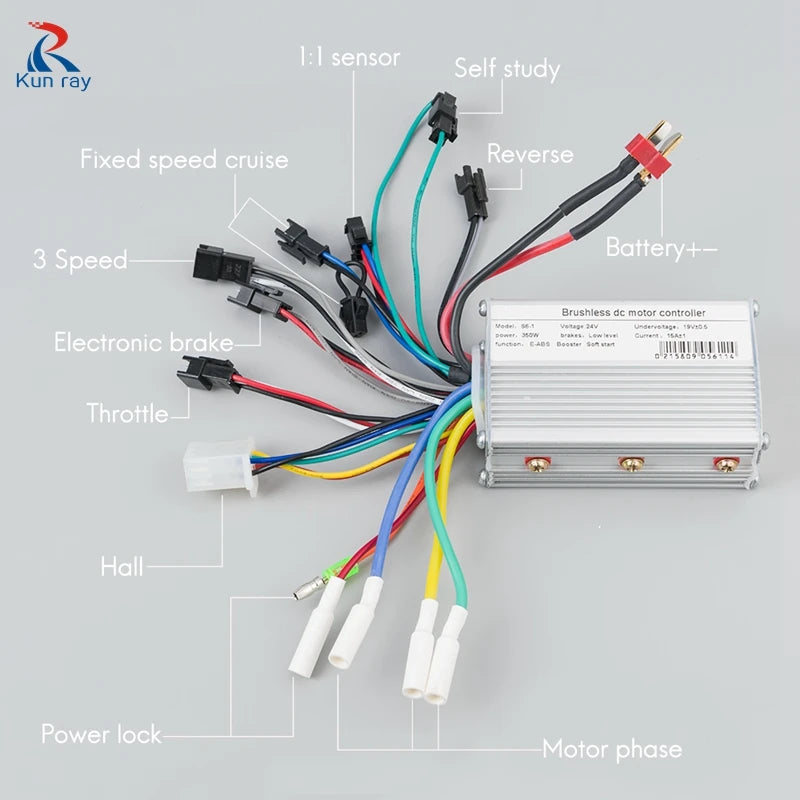

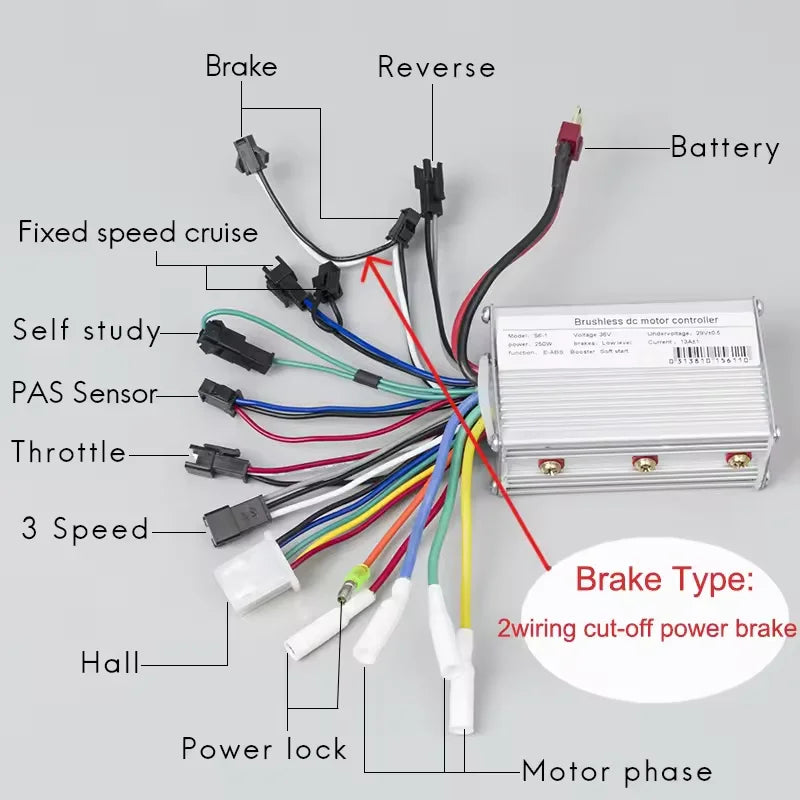

Wiring connect as below picture
