Electric Linear Actuator 12V/24V DC Motor 400mm Stroke Linear Motion Controller 100/300/500/700/1000/1200/1500N
$133.84
Sale price
$133.84
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: CNMAWAY
Certification: ce
Commutation: Brush
Construction: Permanent Magnet
Continuous Current(A): 1~2A
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 2
High-concerned chemical: none
Model Number: 350mm 400mm Stroke
Origin: Mainland China
Output Power: ＜18.65
Protect Feature: Drip-proof

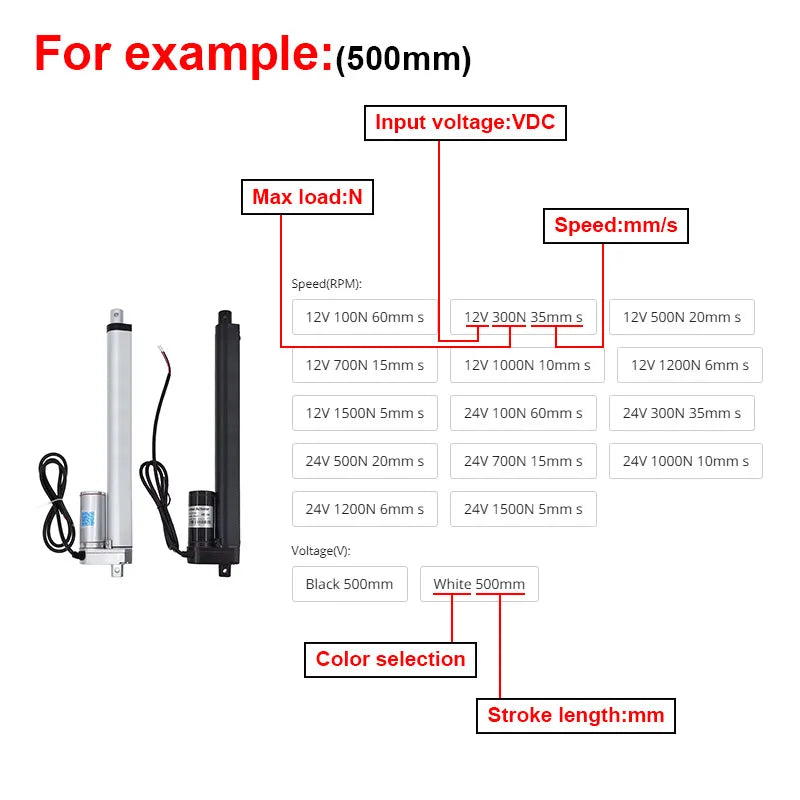

Speed(RPM): 4/6/10/15/20/35/60/90mm/s
Torque: 100/200/300/500/600/750/800/900/1100/1300/1500N

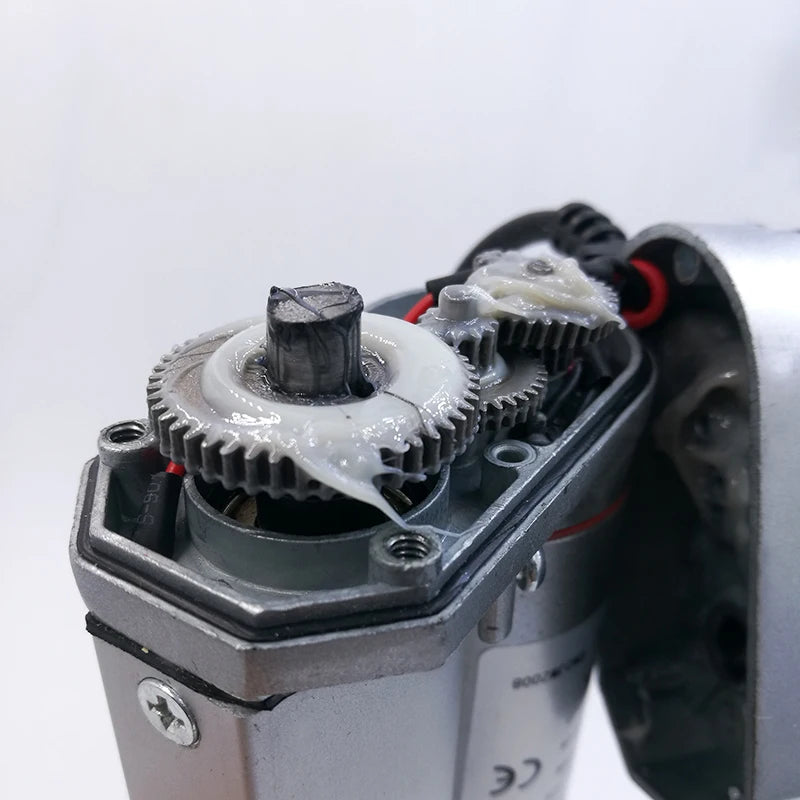

Type: Gear Motor
Voltage(V): DC12V/24V/36V/48V

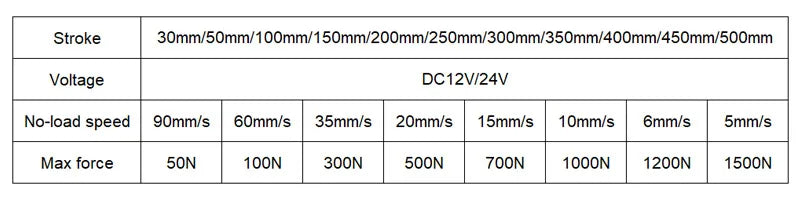

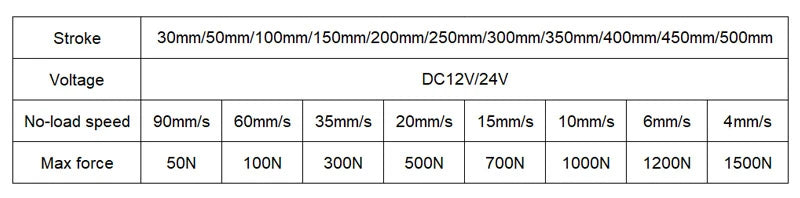

Technical Parameters:
Rated power: 20W Maximum 30W
Stroke: 50mm/100mm/150mm/200mm/250mm/300mm/350mm/400mm/450mm/500mm
Permanent magnet DC motor drive;
Voltage: 12V,24V
Standard protection grade: IP54
Material: aluminum alloy
Ambient temperature -20°C to +75°C.
Low noise design, noise level less than 42dB.
Application: Television console.couch for massage.Electric bed.Medical chair.Electric equipment ....
The self-locking force of the linear actuator is about 80%

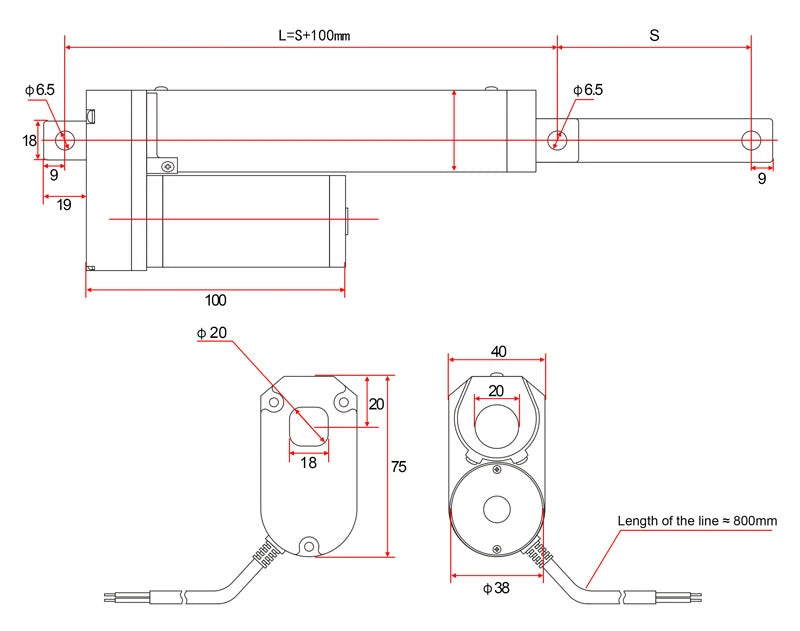

Size：
L= Minimum installation distance
S= Effective stroke
Size introduction:
Stroke Length: means the movement length of linear actuator.
Retracted Length: means the length when linear actuator 100% fully closed.
Extended Length: means the length when linear actuator 100% fully open.
Stroke length introduction:
50mm Stroke, Retracted Length=155mm, Extended Length=205mm
100mm Stroke, Retracted Length=205mm, Extended Length=305mm
150mm Stroke, Retracted Length=255mm, Extended Length=405mm
200mm Stroke, Retracted Length=305mm, Extended Length=505mm
250mm Stroke, Retracted Length=355mm, Extended Length=605mm
300mm Stroke, Retracted Length=405mm, Extended Length=705mm
... ...
