Electric Linear Actuator 1500N DC24V 30W Motor 50mm 150mm 250mm 350mm 500MM 550mm 700mm 800mm 1000mm Stroke Customized

24V 600MM Stroke / 800N 12MMS / IP43-1PC|China Mainland

$513.00

Sale price $513.00 Regular price $0.00

Skip to product information

Electric Linear Actuator 1500N DC24V 30W Motor 50mm 150mm 250mm 350mm 500MM 550mm 700mm 800mm 1000mm Stroke Customized

Electric Linear Actuator 1500N DC24V 30W Motor 50mm 150mm 250mm 350mm 500MM 550mm 700mm 800mm 1000mm Stroke Customized

$513.00

Sale price $513.00 Regular price $0.00

Speed(RPM) 24V 600MM Stroke 24V 550MM Stroke 24V 650MM Stroke 24V 700MM Stroke 24V 450MM Stroke 24V 400MM Stroke 24V 500MM Stroke 24V 250MM Stroke 24V 300MM Stroke 24V 350MM Stroke 24V 100MM Stroke 24V 150MM Stroke 24V 50MM Stroke 24V 200MM Stroke 24V 900MM Stroke 24V 1000MM Stroke 24V 850MM Stroke 24V 750MM Stroke 24V 800MM Stroke

Voltage 800N 12MMS 400N 25MMS 300N 40MMS 150N 52MMS 1500N 5MMS

Gear Count|Ships FromIP43-1PC|China Mainland

Description

SPECIFICATIONS

Brand Name: DIHOOL

Certification: CCC,ce,ROHS,CE

Commutation: Brush

Construction: Series Wound

Continuous Current(A): 1.3A

DIHOOL Model: DHLA1300

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: IE 1

High-concerned chemical: none

Model Number: DHLA1300

Origin: Mainland China

Output Power: 37.5-74.6（include74.6）

Output Voltage: 30W

Protect Feature: Totally Enclosed

Torque: 1500N

Type: Micro Motor

Usage: Car,Electric Bicycle,Fan,Home Appliance

Material: aluminum alloy

Rated power: 30W

Motor: Permanent magnet DC Motor drive;

Voltage: 12V 24V

Standard protection grade: P44

Application: Television console.couch for massage.Electric bed.Medical chair.Electric equipment ....

Note:If you need customized items, pls contact with us.

Voltage	DC24V--- Click to buy
Speed(MM/S)	12	25	40	52	66
Load Pull Capacity(N)	800	400	330	200	150
Load Push Capacity(N)	800	400	330	200	150
Self-locking Capacity(N)	800	400	330	200	150
Voltage	DC12V--- Click to buy
Speed(mm/s)	10	20	30	40	66
Pull(N)	800	400	300	200	150
Push(N)	800	400	300	200	150
Self-locking Capacity(N)	800	400	300	200	150

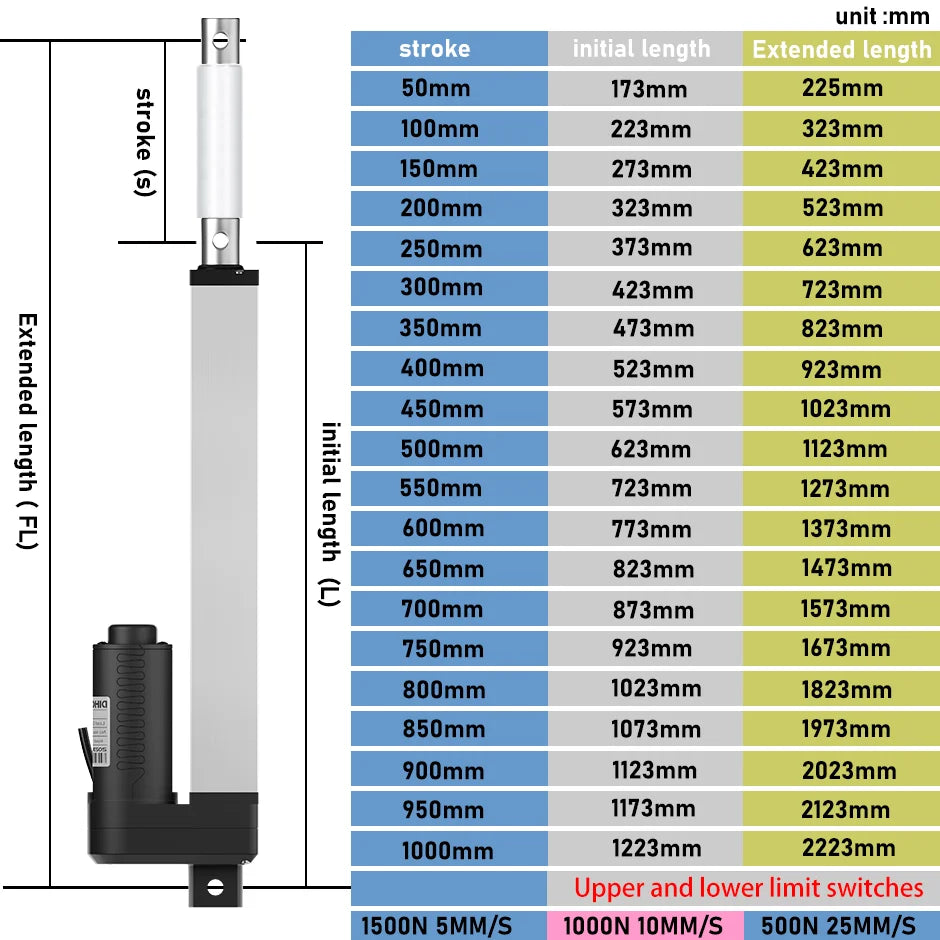

Stroke Length(mm)	50mm~1000mm
Motor Power	30W
Operating Temperature	-10℃ ~ +50℃
Operating Frequency	10% max 2min. continuous use

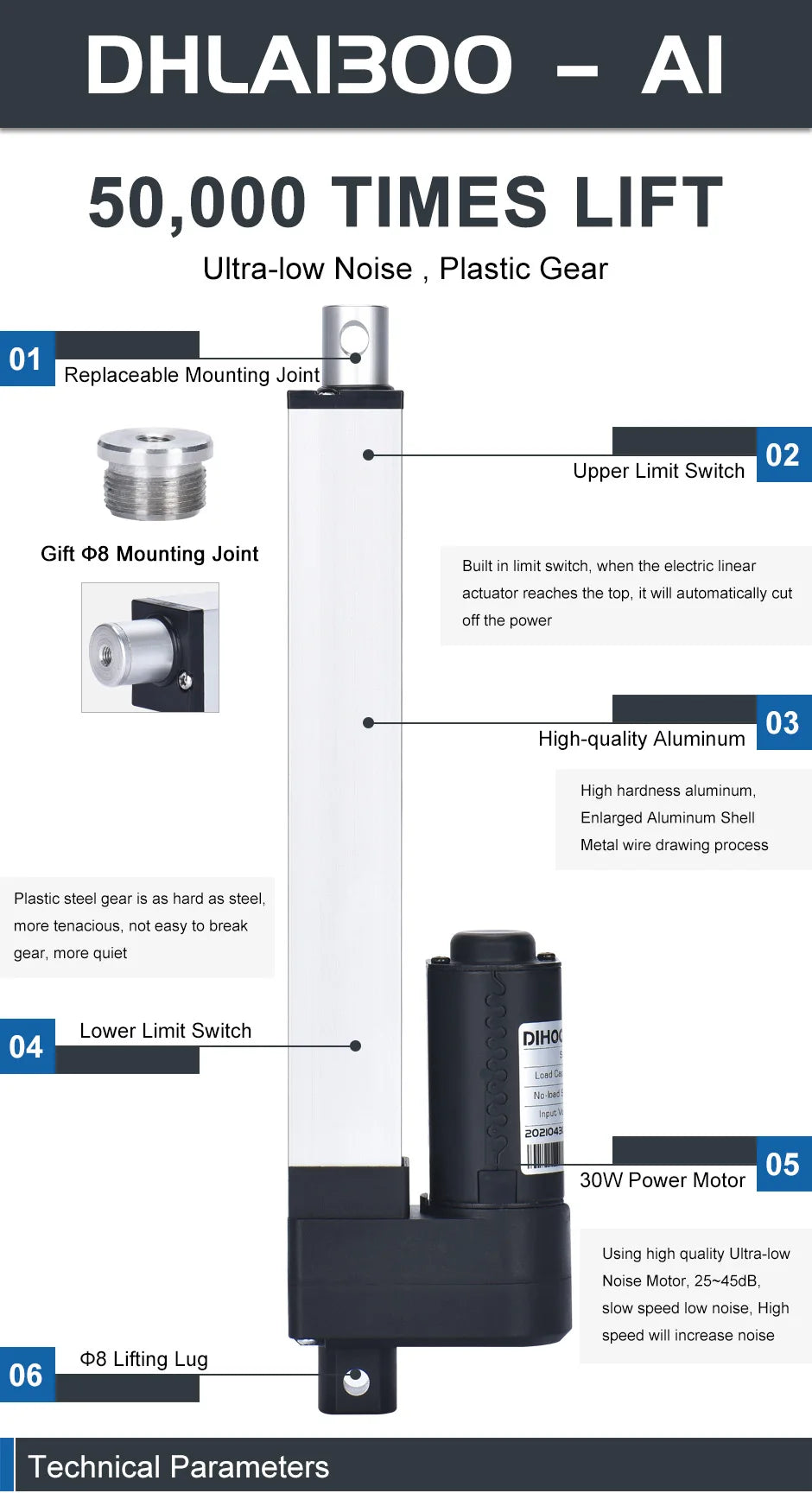

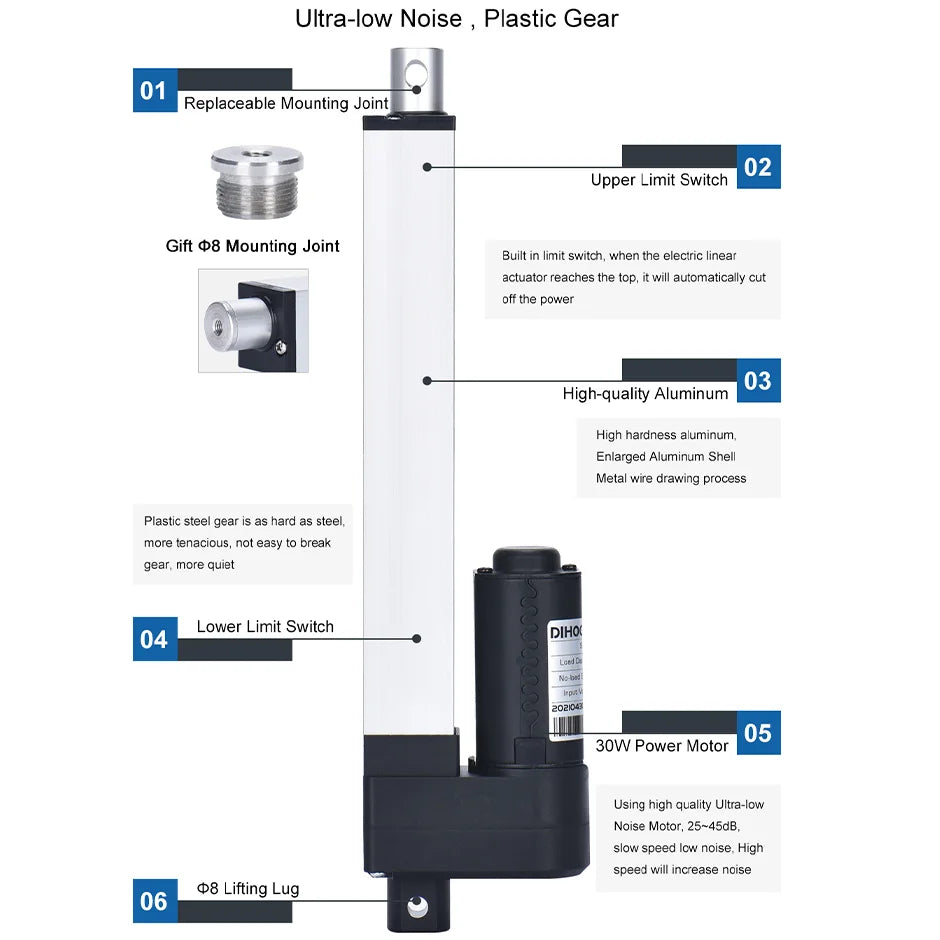

Limit Switch	Built-in

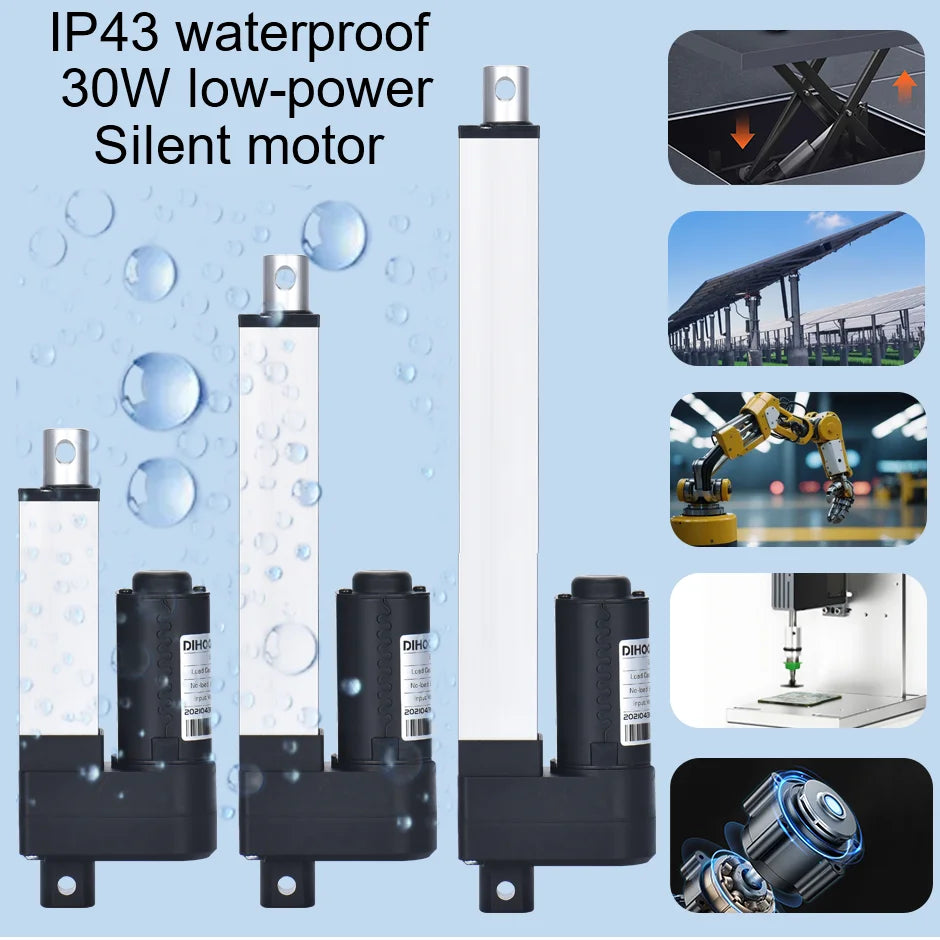

Protection Class	IP43

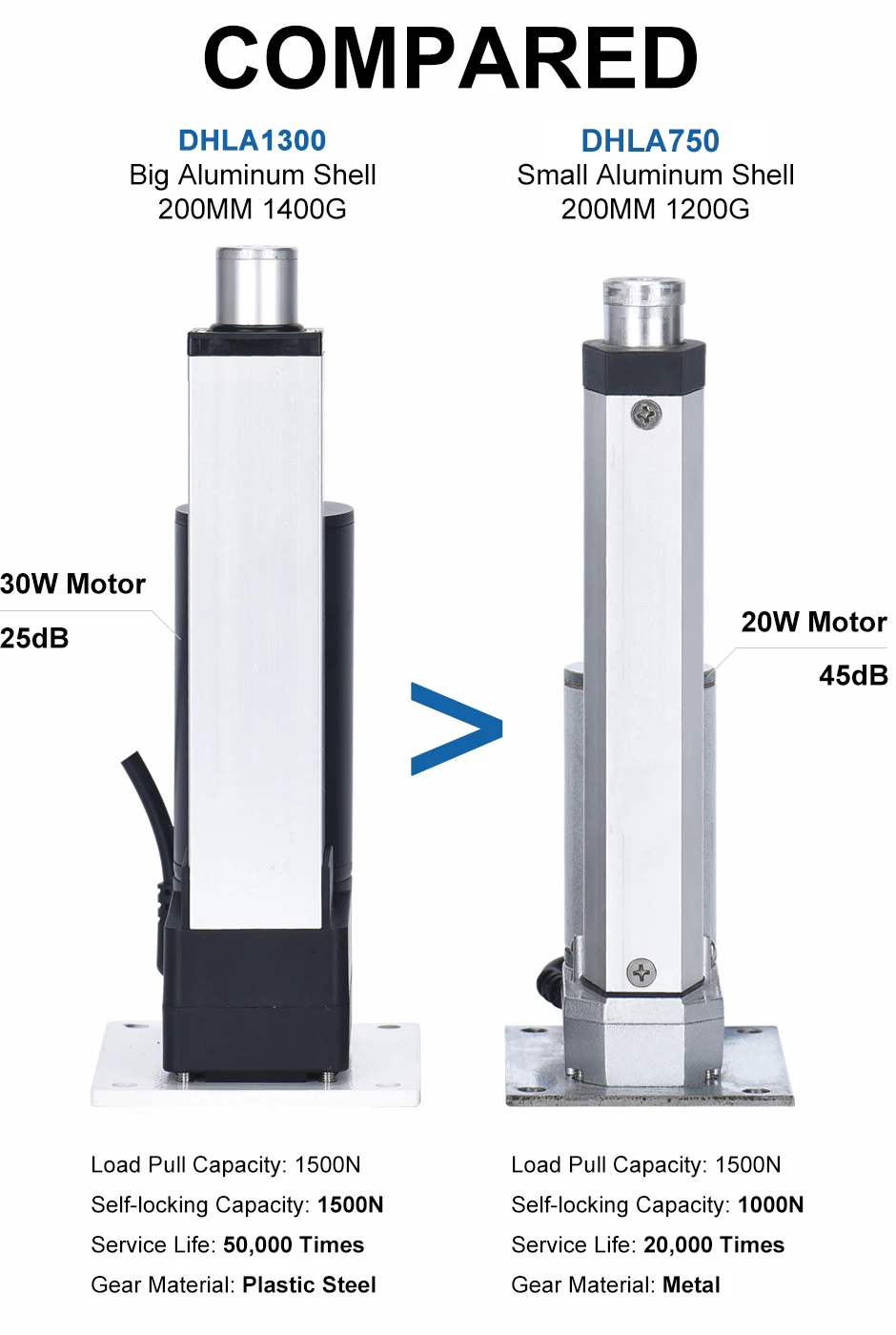

DC24V Electric Linear Actuator Comparison
PICTURE	Features	Link
	Max Load: 1500N Max Speed: 90MM/S Max Stroke: 800MM Temperature: 0℃ ~ +40℃ Noise: 45dB~65dB Motor Power: 20W Optional Function: Upper And Lower Limit Signal Feedback Quality: ★★	Click To Buy
	Max Load: 1500N Max Speed: 66MM/S Max Stroke: 1000MM Temperature: -10℃ ~ +40℃ Noise: 25dB~45dB Motor Power: 30W Optional Function: Built-in Magnet Quality: ★★★★	Click To Buy
	Max Load: 3000N Max Speed: 88MM/S Max Stroke: 1600MM Temperature: -30℃ ~ +60℃ Noise: 25dB Motor Power: 60W Optional Function: IP66 \| Hall Sensor \| Built-in Magnet \| IP67 Optional Function: Upper And Lower Limit Signal Feedback Inner Tube: High Hardness Aluminum \| 27 Items Oxidation Treatments Quality: ★★★★★	Click To Buy
	Max Load: 4000N Max Speed: 26MM/S Max Stroke: 1000MM Temperature: 0℃ ~ +40℃ Protection Level: IP43 Noise: 30dB Motor Power: 60W Optional Function: Upper And Lower Limit Signal Feedback Quality: ★★★	Click To Buy
	Max Load: 6000N Max Speed: 40MM/S Max Stroke: 1400MM Temperature: 0℃ ~ +40℃ Protection Level: IP43 Noise: 30dB Motor Power: 55W Optional Function: Hall Sensor \| Built-in Magnet Optional Function: Upper And Lower Limit Signal Feedback Quality: ★★★	Click To Buy
	Max Load: 8000N Max Speed: 40MM/S Max Stroke: 1000MM Temperature: 0℃ ~ +40℃ Protection Level: IP43 Noise: 30dB Motor Power: 75W Optional Function: Manual Control + Electric Control Optional Function: Hall Sensor \| Built-in Magnet \| 304 Stainless Steel Pipe Optional Function: Upper And Lower Limit Signal Feedback Quality: ★★★★	Click To Buy
	Max Load: 8000N Max Speed: 36MM/S Max Stroke: 1000MM Temperature: -25℃ ~ +65℃ Protection Level: IP54 Noise: 30dB Motor Power: 60W Inner Tube: 304 Stainless Steel Pipe Optional Function: Upper And Lower Limit Signal Feedback Quality: ★★★★	Click To Buy
	Max Load: 10000N Max Speed: 160MM/S Max Stroke: 1000MM Temperature: -30℃ ~ +65℃ Protection Level: IP65 Noise: 55dB Motor Power: 260W Inner Tube: 304 Stainless Steel Pipe Optional Function: Hall Sensor Optional Function: Upper And Lower Limit Signal Feedback Quality: ★★★★	Click To Buy
	Max Load: 12000N Max Speed: 60MM/S Max Stroke: 1000MM Temperature: -20℃ ~ +65℃ Protection Level: IP66 Noise: 45dB Motor Power: 250W Inner Tube: 304 Stainless Steel Pipe Optional Function: Hall Sensor Optional Function: Upper And Lower Limit Signal Feedback Quality: ★★★★★	Click To Buy
