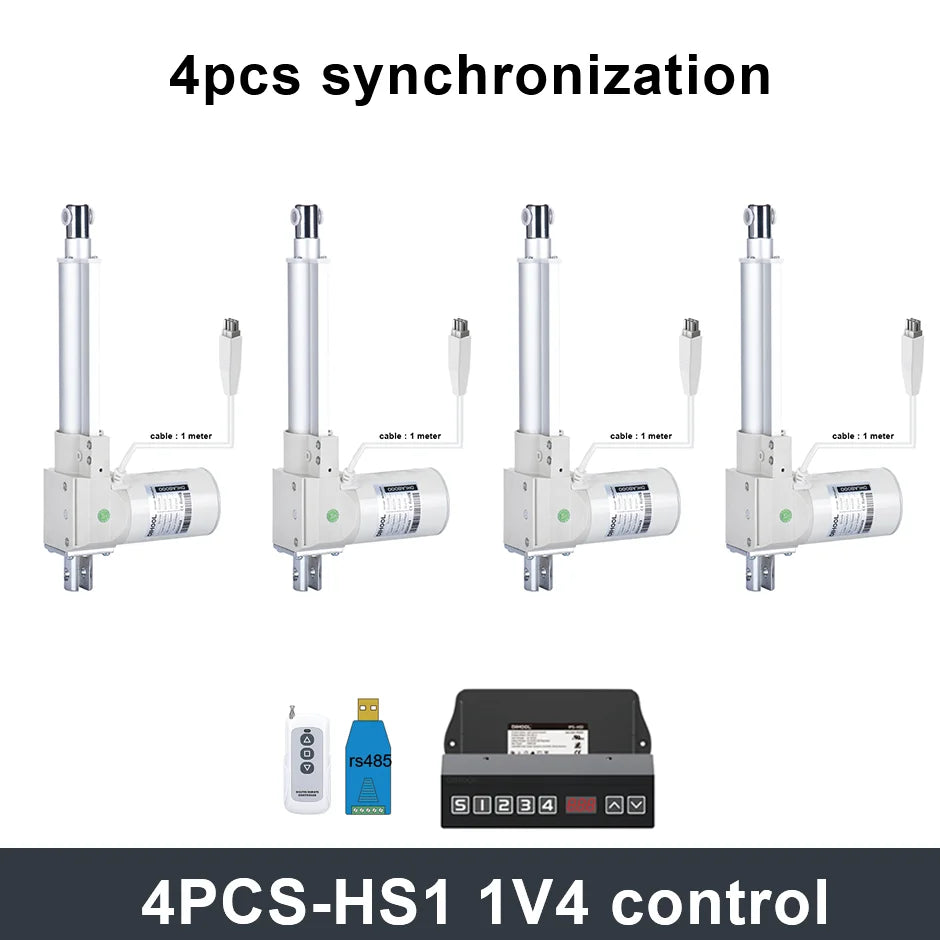

Electric Linear Actuator 24V With Hall Sensor 4PCS SYNC Control KIT MAX 8000N 100MM 200MM 300mm 500mm 1000mm Stroke
350mm Stroke / DC24V 2000N 15MMS / 4PCS-HS1 1V4|China Mainland
$3,306.24
Sale price
$3,306.24
Regular price
$0.00
Skip to product information
Electric Linear Actuator 24V With Hall Sensor 4PCS SYNC Control KIT MAX 8000N 100MM 200MM 300mm 500mm 1000mm Stroke
$3,306.24
Sale price
$3,306.24
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: DIHOOL
Certification: CCC,ce,ROHS,CE
Color: Silver
Commutation: Brush
Construction: Series Wound
Continuous Current(A): 2.5A
DIHOOL Model: DHLA8000
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 1
High-concerned chemical: none
Model Number: DHLA8000
Origin: Mainland China
Output Power: 74.6-735（include735）
Output Voltage: 55W / 75W
Protect Feature: Totally Enclosed
Torque: Max 8000N
Type: Micro Motor
motor voltage: DC24V
power adapter: AC100~240v TO DC24v OUT
Option Description
For Linear Actuator
8000N: speed 3.3MM/S
3000N: speed 9MM/S
2000N :speed 15MM/S
800N :speed 25MM/S
NOTE: The bracket , flat plate and controller is not free, if you need them, please buy it separately. There will be a small error between the speed and the actual operation, which is a normal phenomenon
Material: aluminum alloy
Rated power: 75W 8000N / 55W 3000N 2000N 750N
Motor: Permanent magnet DC Motor drive;
Voltage: 24V
Standard protection grade: IP43
Application: Television console.couch for massage.Electric bed.Medical chair.Electric equipment ....
Note:If you need customized items, pls contact with us.
Voltage |
DC24V---Click to buy |
|||
Speed(MM/S) |
4 |
9 |
15 |
28 |
Load Pull Capacity(N) |
8000 |
3000 |
2000 |
800 |
Load Push Capacity(N) |
8000 |
3000 |
2000 |
800 |
Self-locking Capacity(N) |
6000 |
2000 |
1500 |
600 |
Voltage |
DC12V---Click to buy |
|||
Speed(mm/s) |
4 |
9 |
15 |
28 |
Pull(N) |
8000 |
3000 |
2000 |
800 |
Push(N) |
8000 |
3000 |
2000 |
800 |
Self-locking Capacity(N) |
6000 |
2000 |
1500 |
600 |
Motor Power |
75W |
55W |
55W |
55W |

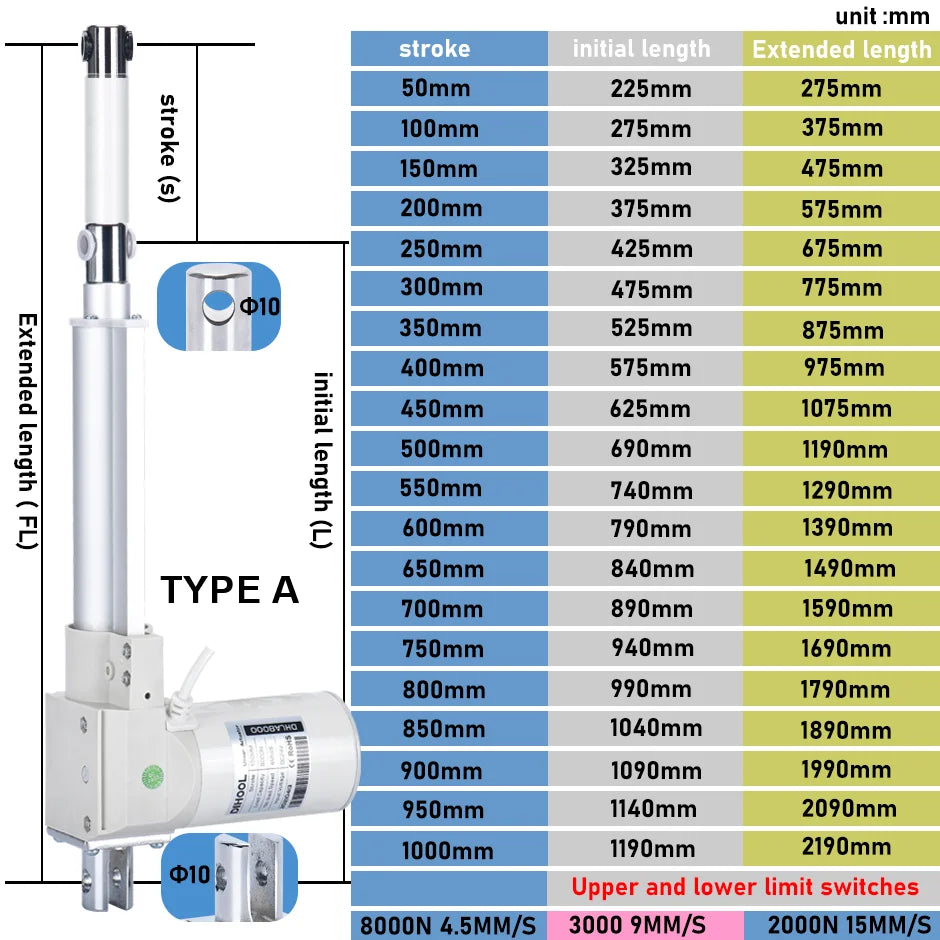

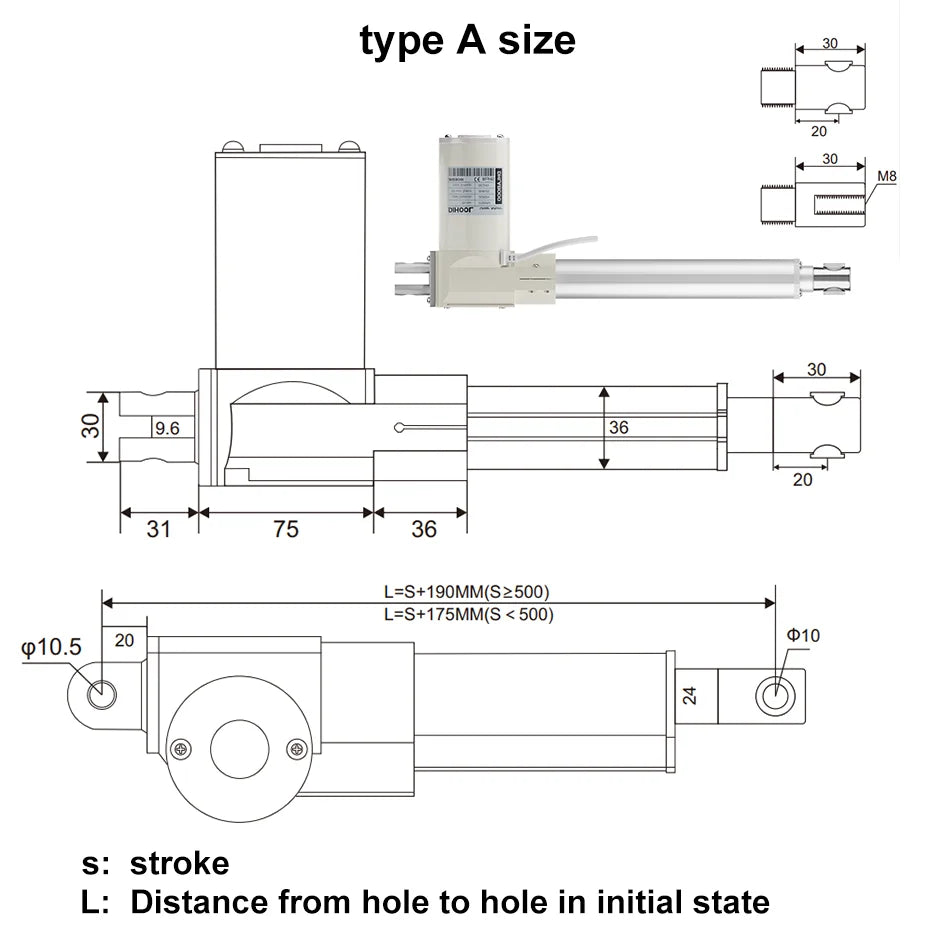

Stroke Length(mm) |
50mm~1600mm (can be customized) |
|||
Operating Temperature |
-10℃ ~ +50℃ |
|||
Operating Frequency |
10% max 2min. continuous use |
|||

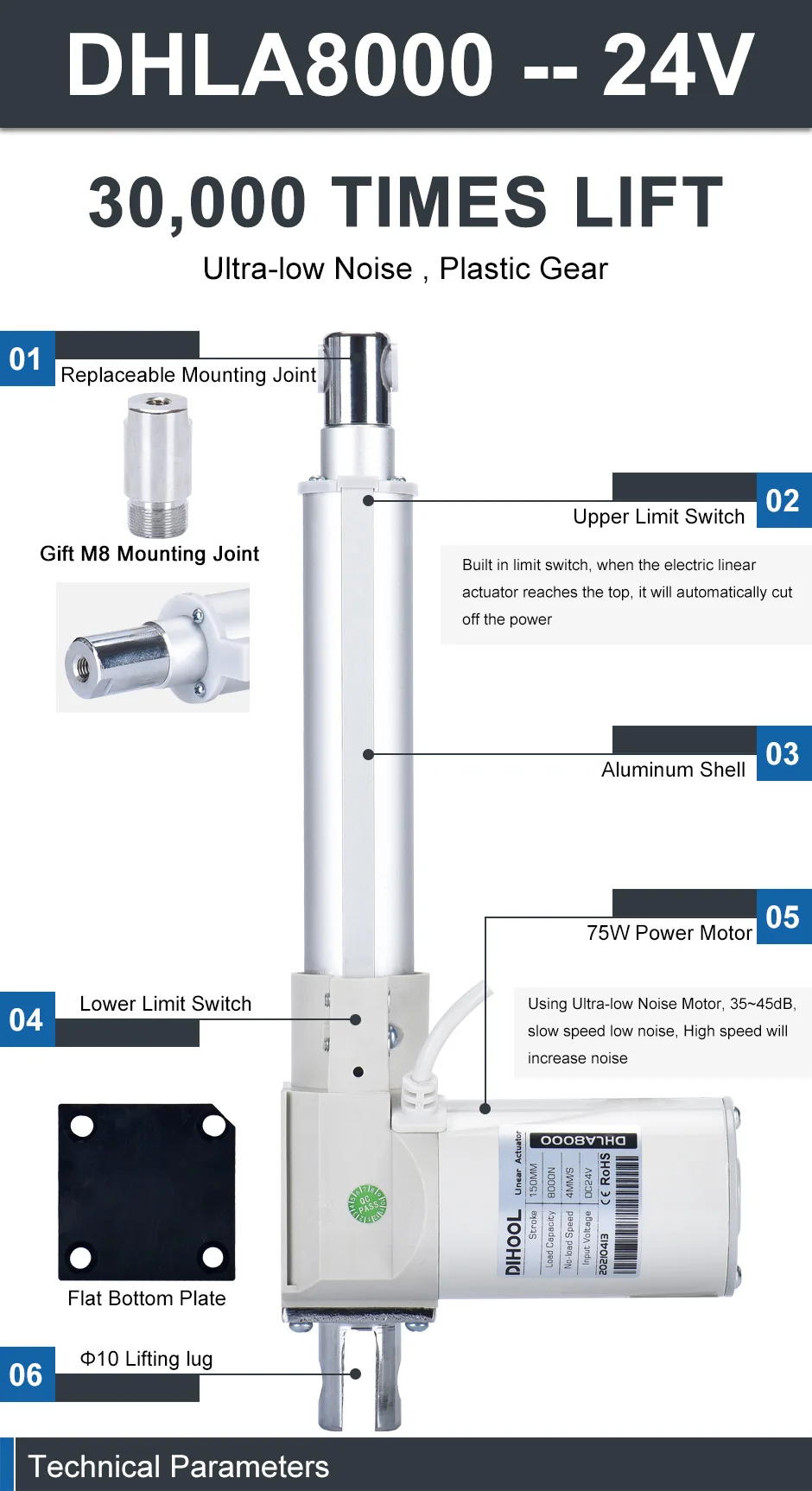

Limit Switch |
Built-in |
|||
Protection Class |
IP43 |
|||
Metal Gears: noisy; long-term work will cause metal fatigue and easy breakage due to overheating;
Plastic Gear: quiet sound; plastic steel material has good toughness and will not break due to overheating;
Plastic steel gears are used in more and more places, such as medical equipment must be replaced by plastic steel gears

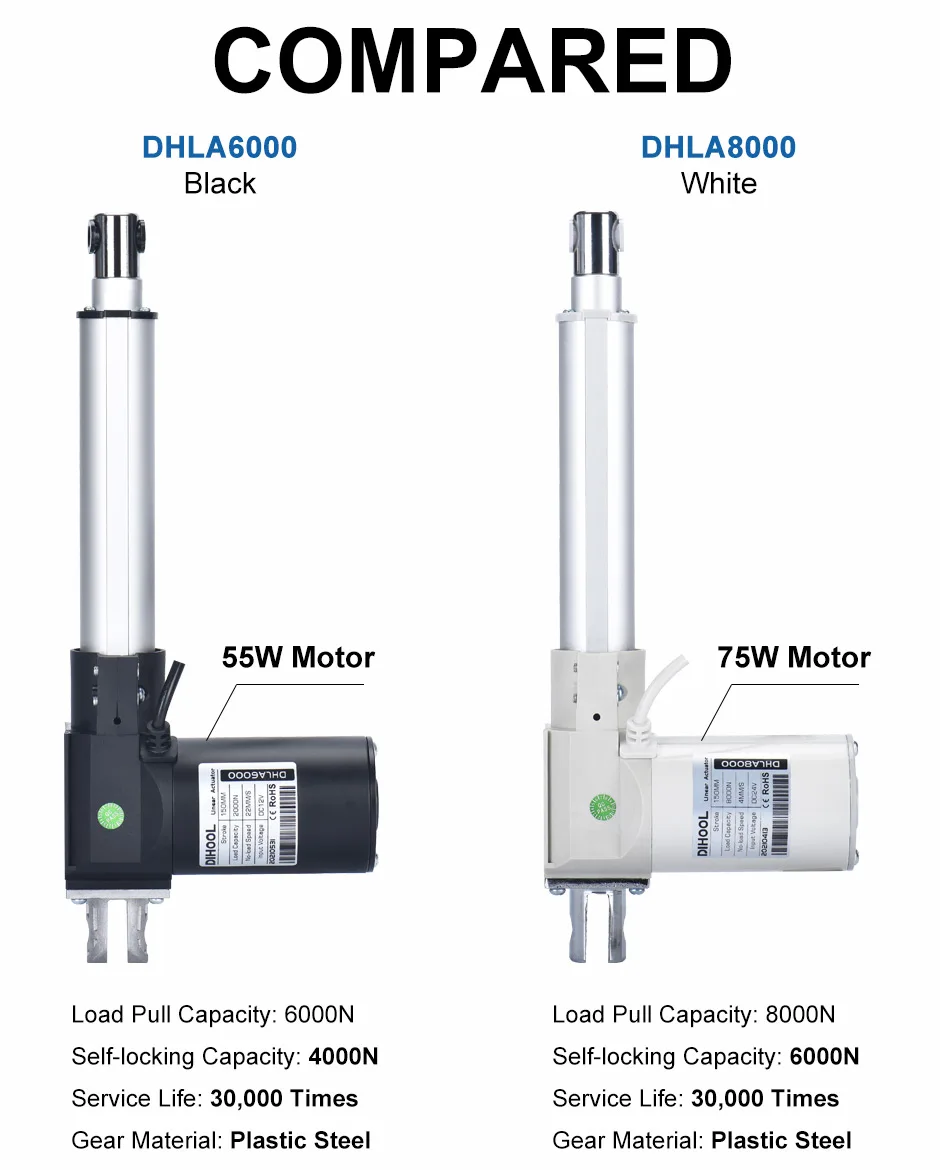

DC24V Electric Linear Actuator Comparison | ||
PICTURE |
Features |
Link |
|
Max Load: 1500N |
Click To Buy |
|
Max Load: 1500N |
Click To Buy |
|
Max Load: 3000N |
Click To Buy |
|
Max Load: 4000N |
Click To Buy |
|
Max Load: 6000N |
Click To Buy |
|
Max Load: 8000N |
Click To Buy |
|
Max Load: 8000N |
Click To Buy |
|
Max Load: 10000N |
Click To Buy |
|
Max Load: 12000N |
Click To Buy |
